Zephyr VISTA ISLAND DVL-E36ASSX User manual

www.zephyronline.com
VISTA ISLAND
DVL-E36ASSX
DVL-E42ASSX
RANGE HOOD - Installation instructions
ENGLISH..........................3
FRANÇAIS.......................27

Table of Contents
SAFETY INSTRUCTIONS..................................................................................................pag. 4
LIST OF MATERIALS...........................................................................................................pag. 8
DUCTING CALCULATION SHEETS.......................................................................................pag. 9
HOODSPECIFICATION....................................................................................................pag.10
INSTALLATION
- INTERNAL BLOWER.....................................................................................pag. 11
- EXTERNAL & IN-LINE BLOWER PREPARATION...............................pag. 13
- DUCTING OPTIONS.....................................................................................pag. 15
- MOUNTING THE RANGE HOOD.............................................................pag. 16
- POWER SUPPLY CONNECTION..............................................................pag. 19
TOUCH CONTROL............................................................................................................pag. 21
OPTIONAL REMOTE CONTROL..................................................................................pag. 22
MAINTENANCE ................................................................................................................pag. 23
WIRING DIAGRAMS........................................................................................................pag. 24
LIST OF PARTS AND ACCESSORIES ........................................................................pag. 26
WARRANTY .......................................................................................................................pag. 27
- 3 -

IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of fire or electric shock, do not use this fan with
any Solid-State Speed Control Device.
CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct
air outside – Do not vent exhaust air into spaces within walls or ceilings or into
attics, crawl spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous
or explosive materials and vapors.
CAUTION -To avoid motor bearing damage and noisy and/or unbalanced im-
pellers, keep drywall spray, construction dust, etc. off power unit.
CAUTION - Please read specification label on product for further information
and requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock
the service disconnecting means to prevent power from being switched on
accidentally. When the service disconnecting means cannot be locked, se-
curely fasten a prominent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smok
Safety instructions 1/4
- 4 -

ing and greasy spillovers that may ignite. Heat oils slowly on low or medium
settings.
B. Always turn hood ON when cooking at high heat or when flambeing foods
( i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambè ).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate
on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary. Heat oil slowly on low
to medium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off
food being prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWINGa:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go
out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam ex-
plosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to
operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
aBased on “kitchen firesafety tips” published by NFPA
Proper maintenance of the Range Hood will assure proper performance of
the unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated con-
struction.
Safety instructions 2/4
- 5 -

B. Sufficientairisneededfor proper combustionandexhaustingofgasesthrough
the flue (chimney) of fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guideline and safety standards such as
those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wir-
ing and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY
BE DANGEROUS.
A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause
fires.
E. Watch constantly the fried food in order to avoid the cooking oil flares up.
F. Before performing any mainteinance operation, disconnect the hood from
the electrical service.
The manufacturers will not to accept any responsibility for eventual damages,
because of failure to observe the above instructions.
Safety instructions 3/4
Electrical Requirements
Important:
- Observe all governing codes and ordinances.
- It is the customer’s responsibility to be aware of these below:
- To contact a qualified electrical installer.
- To assure that the electrical installation is adequate and in conformance with
National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-
94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and
all local codes and ordinances.
- If codes permit and a separate ground wire is used, it is recommended that a
qualified electrician determine that the ground path is adequate.
- Do not ground to a gas pipe.
- Check with a qualified electrician if you are not sure the range hood is pro-
perly grounded.
- 6 -

- Do not have a fuse in the neutral or ground circuit.
- This appliance requires a 120V 60Hz electrical supply and connected to an
individual properly grounded branch circuit protected by a 15 or 20 ampere
circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please
also refer to Electrical Diagram on product.
- A cable locking connector (not supplied) might also be required by local co-
des. Check with local requirements, purchase and install appropriate connector
if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts
02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
Federal Communication Commission Interface Statement
- This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
- This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that in-
terference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Safety instructions 4/4
- 7 -

Filters
Led Light
List of Materials
Control
Remote Blower
Wiring Harness
Remote Blower
Wiring Extension
Electrical
System Box
Remote Blower
Collar with Damper
Hardware
Magnet
Duct Covers
Assembly
Panel
- 8 -

Ducting Calculation Sheet
Duct pieces To tal
Equivalent number
length x used =
3-1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
5 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.to
6” round
transition
900 elbow
20 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) = Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) = Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) = Ft.
Subtotal column 1 =
Duct pieces To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) = Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) = Ft.
Subtotal column 2 =
Subtotal column 1 =
Totalductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
6” round to
3-1/ 4” x 10”
rect.
transition
1 Ft. x ( ) = Ft.
6” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) = Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) = Ft.
7” round to
3-1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) = Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
elbow
15 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.450
elbow
9 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.900
flat elbow
24 Ft. x ( ) = Ft.
3-1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) = Ft.
Ft. x ( ) = Ft.
15
6”, 7“, 8”
Round
in-line
damper
- 9 -

==
front of hood side of hood
top of hood

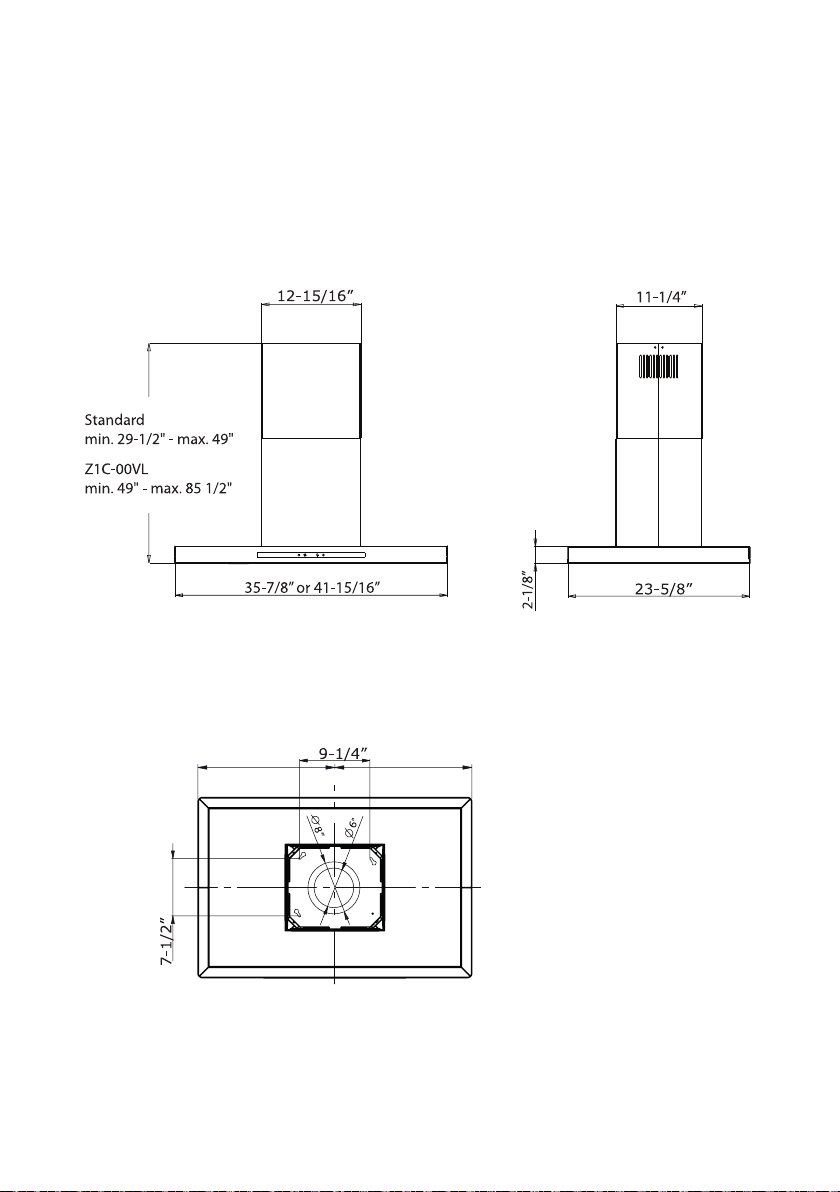

Hood Specifications
- 10 -

Installation - Internal Blower
The following instructions are for installing the internal blower.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with internal blower models CBI-290A or CBI-600A.
For external and in-line blower preparation please turn to page 13.

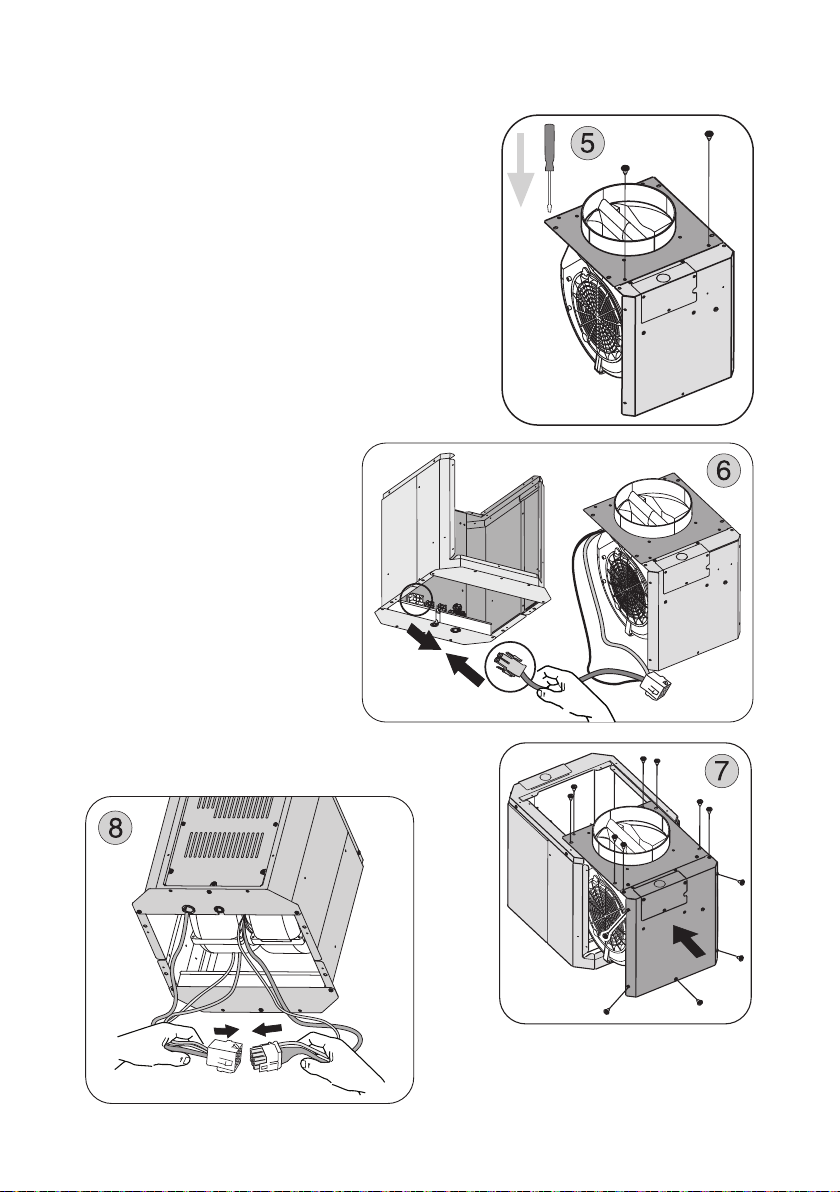

1. Remove the 6" round top plate and then re-
move the remote motor support bracket to
the motor housing. See Fig.1
2. Insert motor into the plate and secure using 4
screws. See Fig.2
3. Secure the capacitor box, connected to the
supplied wire, to the bracket using 2 screws.
See Fig.3
4. Secure the green/yellow ground wire, con-
nected to the wire supplied with the capacitor
cable, using the screw on the bracket. Fig. 4
5. Connect the plate and the motor, on the
remote motor support bracket, securing it
using 2 screws. Fig. 5
- 11 -

6. Attach the 6 pin male molex connector from
blower wire to the 6 pin female molex con-
nector located inside the blower housing.
See Fig.6
7. Install the motor and bracket, inside the motor
housing, completing the installation using the
other screws (6) that have been supplied. Fig. 7
8. Connect 9 pin male molex connector from
blower wire to 9 pin female molex connector
on the capacitor wire. See Fig.8
WARNING! Place electrical wi-
ring inside the blower housing.
The hood is now ready to be
installed on the wall.
- 12 -

The following instructions are for preparing the hood for use with an ex-
ternal or in-line blowers models CBE-1000 or PBN-1000A.
CAUTION: To reduce the risk of fire and electric shock, install this rangehood
only with remote blowers rated maximum 6.2 A.
For internal blower instruc-
tions please turn to page 11.
1. Break out the partially pre-
cut circle in the lid, located
on the remote motor sup-
port bracket, using a flat
head screwdriver. Fig. 1
2. Remove the cover by un-
doing the (3) screws. Fig. 2
3. Replace the 6" round plate with the 8" round
blower collar to top of blower housing using (4)
screws. Fig.3
4. Insert the female connector into the remote
motor support bracket enclosure. Fig.4
5. Pass the wires of the remote motor through the
hole in the cover that was previously removed
and connect them with those of the connector
located in the enclosure. Fig. 5
Note: Carry out the power supplly connection
in accordance with the national electric code,
ANSI/NFPA 70-1999.
Installation - External & In-Line Blower
Preparation
- 13 -

Note1: A cable lock (not included) may be re-
quired by local codes. Please review local co-
des for more information.
6. Reinstall the cover on the motor housing by
following the instructions from step 2 in re-
verse order.
7. Attach 6 pin male molex connectors to 6 pin
female molex connectors inside blower hou-
sing. See Fig. 6
Note2: Check local codes to determine mini-
mum wire gauge.
See manual included with external and in-
line blower for instructions on installing the
blower.
- 14 -

WARNING FIRE HAZARD
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages.
All exhaust must be ducted to the outside, unless using the recirculating option.
Use single wall rigid Metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints w/ certified
Silver Tape or Duct Tape.
Some Ducting Options
Installation - Ducting Options
- 15 -

Installation - Mounting the Range Hood
MOUNTING HEIGHTS
The range hood must be installed at
a minimum height of 24 inches and
maximum mount height of 36 inches
from the cooking surface.
It is important to install the hood at
the proper mounting height. Hoods
mounted too low could result in heat
damage and fire hazard; while hoods
mounted too high will be hard to
reach and will loose performance
and efficiency.
Duct cover extension kit is available
for taller ceiling heights.
There must be a minimum of 4-7/16
inches from the bottom of the range
hood to the bottom of the lower
support frame to ensure serviceabil-
ity. Determine dimension X during
installation planning.
MOUNTING TO THE CEILING
The following instructions assume
the installer has access to the attic
or crawl space. Each installation
may be unique to the home.
1. Remove the (2) screws to unlock
the top support frame from the
bottom support frame. Fig.1.
Note! If you ordered a recirculating kit please refer to the instructions included
inside the kits prior to installing the hood to the ceiling.
- 16 -

2. Position hole template on the ceiling
paying attention that the arrow is po-
sitioned on the same side as the range
hood controls.
- Make 3 holes in the ceiling and drive in screws without completely tightening
them. Pay attention not to insert the screw into the hole marked with an X on
the hole template.
3. Align the ceiling bracket with the
(3) screws previously installed in
the ceiling. Fig. 2
Rotate assembly slightly clockwise to
lock in place.
Tighten the 3 screws to secure the
structure in place.
- 17 -

4. Insert the bottom support frame
into the top support frame. Fig.3
Adjust height according to your in-
stallation (see pag.16) and secure
the support frames together using
the (2) screws per extension arm (8
total). Fig.4
5. Insert the motor housing into the support frame assembly and secure it using
8 screws. Fig.5
6. Connect the equipment to the power supply by following the steps shown in
the section POWER SUPPLY CONNECTION.
NOTE: For the various installations use screws and screw anchors suited to the
type of ceiling (minimum screw size: 1/4" diameter x 2-3/4" length).
- 18 -

Installation - Power Supply Connection
GENERAL
• Carefully read the following important information regarding installation
safety and maintenance. Keep this information booklet accessible for further
consultations.
POWER SUPPLY CONNECTION
For connection to the power supply refer to the following:
1. Break out the partially pre-cut circle in
the cover of the mains power connection
enclosure using a flat head screwdriver.
Fig. 1
2. Remove the power supply cover by un-
doing the (2) screws. Fig. 2
3. Connect the supply conduit to the cover,
then connect the hood to the power sup-
ply by making the following connections.
Fig.3:
BLACK = L line
WHITE = Nneutral
GREEN / YELLOW = G ground
- A double-pole switch properly rated must
be installed to provide the range hood
power supply disconnection.
- Connect the electrical conduit to the Field
Wiring Compartment using listed onduit
fittings.
- Carry out the power supplly connection in
accordance with the national electric code,
ANSI/NFPA 70-1999.
- 19 -

4. Replace the lid by following the instructions from step 9 in reverse order, ensu-
ring that the tab on the lid is within the enclosure.
5. Having connected the equipment to the power supply, you can now continue
with the ceiling mounting instructions.
6. Secure the correct size ducting for your installation (not supplied) to the collar
on top of the housing. Fig.4
7. Secure the two upper duct covers to sup-
port frame with (4) screws. Fig.5
8. Secure the two lower duct covers parts to
the support frame by overlapping the la-
teral magnets. Fig.6
9. Verify that ducting from hood is con-
nected to ducting in the attic that will
exhaust air out of the home.
- 20 -
