zewa 21200 User manual

version:1.0
User Manual
Please read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, Keep the manual well for further
reference in case you have problems.
Thank you very much for selecting Activity Tracker 21200 .
Manufactured for Zewa, Inc.
12960 Commerce Lakes Drive#29
Fort Myers, FL 33913 USA
www.zewa.com
Toll Free Customer Service:
1-888-993-3592
[email protected]
FCC ID: OU9L405-B02
Activity Tracker Model:21200
PO#2B4450-LS431-B002-说明书-A2
印色：单黑
材质：80g书写纸
尺寸：80*150 mm

Table of Contents
Overview
Device Components
Initial Start-Up
General Instructions
Install the App and Pair-up
Start Measuring
Light It up
5
5
8
10
.........................................................................................................
.........................................................................................................
..........................................................................................................................
..............................................................................................................Tie the wristband
7
................................................................................................
Check the Data
Symbol Meaning
Symbol Meaning
2
.........................................................................................................
Activate the Activity Tracker 6
..............................................................................................
View the Data
......................................................................................................
11
List 5
.....................................................................................................................................
Special Function
TFT Display
4
.........................................................................................................
Battery Charging .............................................................................................................. 9
How to Use 10
.......................................................................................................................
Night Mode
..................................................................................................................
12
Heart Rate Detection ........................................................................................................ 12
Troubleshooting
Specifications
Maintenance
Warranty
13
14
15
15
...................................................................................................................
.....................................................................................................................
........................................................................................................................
...............................................................................................................................
Warning 15
...............................................................................................................................
Activity Tracker Care 16
........................................................................................................
Built-in Battery Care 16
...........................................................................................................
Health Disclaimer 16
................................................................................................................
Other Notes 16
.........................................................................................................................
Display Settings ............................................................................................................. 12
................................................................................................................. 17FCC Statement
1
Table of Contents

Symbol Meaning
TFT Display
Steps
Time,date,steps ( Time format :24 hours)
Heart rate
Symbol for “MANUFACTURER”Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed
of with household waste. Please
recycle where facilities exist.
Check with your local authority or
retailer for recycling advice”
Symbol for “COMPLIES WITH EU
REQUIREMENTS”
Symbol for “THE OPERATION
GUIDE MUST BE READ”
Running
Walking
Gym
Cycling
Swimming
Basketball
Football
Badminton
Pingpong
Volleyball
Yoga
11
23
8 /08
10
..........
TUE
steps
5846
bpm
76
Running
Walking
Cycling
Swimming
Basketball
Football
Badminton
Pingpong
Volleyball
Gym
The Consumed Calorie (kcal)
Yoga
The warning signs and symbols are essential to ensure your correct and
safe use of this product and protect you and others from injury. Please kindly
find the meanings of the warning signs and symbols, which you may
encounter in the label and user manual, as follows:
2
Symbol Meaning Symbol Meaning
3

General Instructions
Main Features:
a. support the Bluetooth 4.2 technology
b. Single point of touch function and color display screen
c. keep a record of the measuring data during 7 days
d. display walking steps, walking distance, the consumed calories,
dynamic heart rate, and so on.
e. 24 hours heart rate monitoring
f. Swimming water proofing
g. Sleeping monitoring
h. Accurate step-counting
i. Automatic identify running function
List
1. Activity Tracker 21200 (Built-in Polymer Lithium Battery)
2. User Manual

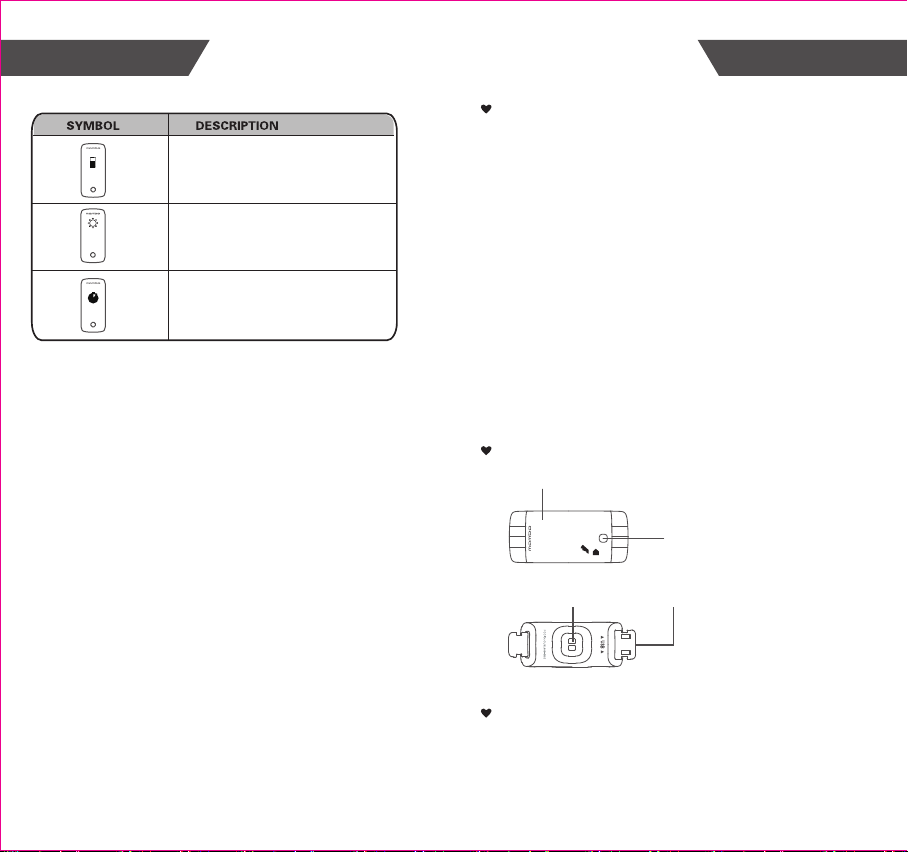

Device Components
Battery status
Weather
Stopwatch
Stopwatch
Sunny
20°/30°
AQI 30
Excellent
66%
TFT Display
Touch Key
09
59
8 /08
809
........
TUE
Heart rate sensor USB Interface
Zewa Activity Tracker 21200 can track your activity and aerobic fitness in
anytime.It is designed to measure the walking steps, distance,consumed
calories and dynamic heart rate.
This device has Bluetooth 4.2 technology, the user can set personal
information such as height, weight, goal step and so on through the Bluetooth
devices, and then the information can be downloaded to Activity Tracker
21200. The data in the Activity Tracker also can be uploaded to the device
which supports the Bluetooth 4.2 technology. So the user can check it in
anytime.
54
OverviewSymbol Meaning

Install the App and Pair-Up
CAUTION
Download the Zewa app from APP Store or Google Play.
Install the APP, and register an account. Then set your personal
information (Gender, Birthday, Height, Weight, Name and so on).
Before you use the mobile device which supports Bluetooth 4.2
technology, please turn on the Bluetooth.
The time on Activity Tracker will synchronize with the one on
your mobile device. The measuring data will be transmitted to your
device which supports Bluetooth 4.2 technology through the
Bluetooth.
The device can’t connect with the app or upload the data if the
following situations appear:
1. The Bluetooth is off, or unconnected with the Internet.
2. Over the specified transmitting distance. The Bluetooth
transmitting distance of Activity Tracker is ≤10 meters in the
situation of no obstacle.
3. The special QR code is not correct.
4. The smartphone isn’t in the list of compatible devices.
List of compatible devices:
For iOS devices:
The operating system must be iOS 8 or more, such as iPhone
4S, iPhone 5/5C/5S, iPhone 6/6 Plus and above.
For Android devices:
The operating system must be 4.3 or more.
Activate Activity Tracker
For the initial use, tap the touch key to light up the Activity Tracker .
“Open APP to pair” appears on the screen for 10 seconds and then it will
turn off. Please activate it by connecting it with the app within 30 minutes,
otherwise, it will return to shipping mode automatically.
CAUTION
Notes:
(1) When the shipping mode is removed, the Activity Tracker
will display the initial time: 0:00.
(2) After connecting with the mobile device, the Activity Tracker
will sync the time from the mobile device, and it will display the
current time.
Open APP
to pair
76
Initial Start-UpInitial Start-Up

Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
The charging input voltage is 5V.
CAUTION
The Mini USB port is only used for charging the power, but can
not be used for transmitting the data to the computer.
Must make the touch key towards to the inner side of body. The
heart rate sensor must be close to the skin. The distance between
wristband and wrist should be 2 cm or more.
Tie the wristband
When the TFT displays the
following symbol, it reminds you
the battery is used up, you need
to charge the power at once.
When the device is charging the power, the TFT will display as
the following picture,The power symbol blinks.
The battery capacity goes from 0 to current .
The TFT displays as the following picture, it means the
charging is complete.
Pull out the wristband, then insert the device’s charging port into
the computer’s or charger’s USB port to finish the charging.
When the TFT displays the
following symbol, it reminds you
the battery is low, you need to
charge the power.
Battery Charging
≥2cm
Close to the skin
bpm
76
19
59
8 /08
--
TUE
09
59
8 /08
809
........
TUE
66%
Charging
completed
89
Initial Start-Up Initial Start-Up

Check the Data
Following the steps of LIGHT IT UP to read the data you want.
Tap the touch key at any time to light up the Activity Tracker , it
will display the time first. Tap the touch key each time, it will
display the data according order set from Zewa APP. If there
is no operation, it will turn off in 5 seconds.
CAUTION
Notes: The data of the day will be cleared to zero automatically
when the time is 0:00. The data cannot be cleared to zero
manually.
The device only stores the latest 7 day’s heart rate data, the data
will be deleted if it’s over 7 days.
Light It up
The measuring data will be transmitted to your device which supports
Bluetooth 4.2 technology if you have paired up with it.
How to Use
Follow the tips in the manual to wear the Activity Tracker . Then it
can start the measurement.
Start Walking
Light up the Activity Tracker as the below steps:
OR
Tap the touch key
If there is no operation, it will turn off in 5 seconds.
10 Steps More than 10 steps
Rotating your wrist
kcal
steps
steps
0
steps
11
steps
10
10 11
View the DataStart Measuring

Detect heart rate.Measuring.
Night Mode
Heart Rate Detection
The default state of night mode is OFF. You can set it on or off, and the
starting and ending time on the app. In night mode, you could not light up the
Activity Tracker by rotating your wrist, but you could by touching the key on
the screen.
The default mode of heart rate detection is ON. If you set it off, it will stop
heart rate measurement. If you set it on, the indicator with green light will be
on for continuous heart rate detection.
Heart Rate Detection is OFF.
You can decide which screen you want to display on the Activity Tracker
through the app. The default pages (time, steps, calorie, distance, heart rate)
are on. You can select the order of displaying pages, and must keep at
least one page on.
Display Settings
Turn On
HR bpm
76
Measuring
failed.
Troubleshooting
Solution
Problem Root Cause
Abnormal
measuring results:
Huge difference
between two recent
measurement.
No display on
TFT when the
device powers on.
Bluetooth is OFF.
Data transmission
Turn ON the Bluetooth.
The App is OFF. Press the icon to turn ON
your app.
Place your device which
supports the Bluetooth 4.2
technology close to the
Activity Tracker.
Out of range of Bluetooth
transmission.
Less than 10 steps
Walk in a normal way.
The power is not enough. Charge power in time.
Use the correct portable
fashion, avoid that the
Activity Tracker has irregular
shaking.
Continue to walk more than
10 steps.
Incorrect portable fashion
make the device has
irregular shaking.
Slide or wearing the
slippers to walk.
1312
Special Function Troubleshooting

Specifications
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the
manufacturer. Please refer to the above table for the descriptions on accuracy.
WARNING: No modification of this equipment is allowed.
Product Name
Dimension
Weight Approx. 22 g (including the wristband)
Display TFT colour screens
V.A.:21.7 mm x 10.8 mm
Steps 0-120000 steps, division 1 step
Calories
Battery Grade
Working Environment
Temperature: 0°C to 40°C
Relative Humidity: ≤90% RH
Atmospheric Pressure: 80 kPa ~ 106 kPa
Storage Environment Temperature: -20°C to 60°C
Relative Humidity: ≤90% RH
Power Source 3.7V / 4.2V 80mAH polymer lithium battery
Running hour
Exercise Time 0-23 hours and 59 minutes, division 1 minute
Accessories 1. One Wrist Band
2. User Manual
0-12000.0 kcal, division 0.1 kcal
Distance 60.00 km
Heart rate Range: 30 beat/min~200 beat/min,
division 1 beat /min
Protection against
ingress of water IP68
When the battery is fully charged, it can be used
about 5 days (heart rate function is open), or
about 30 days ( heart rate function is closed).
Whole size: Approx. 241 mm x 19.2mm x 12.5mm
(including the wristband)
0%-100% grade，division 1%
Activity Tracker 21200 When carrying out usual maintenance, please ensure practice of the following
Do’s and Don’ts:
Zewa warrants its products free of defects in materials and workmanship in
normal use for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including
but not limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated
in this user manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under
warranty, please deliver the original package to Zewa prepaid. Please return
the store receipt (with the retail purchase date) and a note with reasons to
return on it as well.
Maintenance
Warranty
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then
use a dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance
of discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact
Zewa.
(Please refer to Warranty for contact information
Charge the power once for every 3 months, or at least once for half a year, if
the device is not likely to be used for a long time.
Warning
While your Activity Tracker is designed to be worn 24/7, its components are
electronic and susceptible to damage if used improperly. Please read the
safety guidelines on the following pages to ensure proper use and care.
Manufactured for Zewa, Inc.
12960 Commerce Lakes Drive#29
Fort Myers, FL 33913 USA
www.zewa.com
Toll Free Customer Service:
1-888-993-3592
[email protected]
1514
MaintenanceSpecifications

Activity Tracker Care
Built-in Battery Care
Health Disclaimer
WARNING: THIS Activity Tracker IS NOT A MEDICAL DEVICE. The
Activity Tracker and its associated applications should not be used to
diagnose, treat, or prevent any disease or medical condition. Always seek the
advice of a qualified medical professional before making any changes to your
exercise, sleep or nutrition, as doing so may cause severe harm or death.
• Dispose of the Activity Tracker, the Activity Tracker’s battery in accordance
with local regulations. Do not dispose of the battery with regular household
waste.
• Recycle your package in accordance with local regulations.
Other Notes
FCC Statement
FCC ID: OU9L405-B02
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
• Caution: The user is cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment.
• NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
• If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
• This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
• This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
• Do not expose your Activity Tracker to liquid, moisture, humidity, or rain while
charging. Exposure of the Activity Tracker to moisture while charging could
result in electric shock.
• Do not tamper with or abuse the Activity Tracker. For example, without
limitation, do not drop,disassemble, open, crush, excessively bend, deform,
puncture, shred, microwave, incinerate, paint, or insert foreign objects into the
Activity Tracker.
• Do not use abrasive cleaners to clean your Activity Tracker.
• Do not expose your Activity Tracker to extremely high or low temperatures.
• Do not leave your Activity Tracker near open flames such as cooking burners,
candles, or fireplaces.
• Do not bring your Activity Tracker into contact with any sharp objects. This
could cause scratches and damage.
• Do not insert anything into your Activity Tracker unless otherwise specified in
the user instructions. This may damage the internal components.
• Do not attempt to repair, modify, or disassemble your Activity Tracker; it does
not contain any user-serviceable components.
• Do not attempt to replace your Activity Tracker’s battery. It is built-in and not
changeable.
• Only charge the battery in accordance with the user instructions supplied
with the Activity Tracker.
• Avoid charging your Activity Tracker in extremely high or low temperatures.
• Do not wear your Activity Tracker while you are charging it.
• Do not attempt to disassemble the Activity Tracker or force open the built-in
battery.
• Do not clean the Activity Tracker when it is being charged. Always unplug the
charger first before cleaning the Activity Tracker.
• Do not dispose of your Activity Tracker in a fire. The battery could explode
causing injury or death.
Warning
16 17
Warning
