Zico QUIC-LIFT HLAS Series Parts list manual
ZICO®
3097PM6
QUIC-LIFT™HorIzonTaL Ladder aCCess sysTem
modeL HLas
ParTs and InsTrUCTIon manUaL REV. 10-23-13
I. SYSTEMS AVAILABLE
II. INSTALLING THE LADDER ACCESS SYSTEM
A. Preparation for Mounting
B. Electrical System
C. Mounting Suggestions
III. GENERAL INSTALLATION INFORMATION
A. Mounting Points
B. Electrical Control Panel
C. Ladder Control Panel
IV. STANDARD EQUIPMENT
A. Instruction Packet
B. Electrical Control Panel
C. Ladder Control Panel
V. OPTIONAL EQUIPMENT
A. Model LAS-LGK Ladder Guard Kit
B. Installation Rung Wear Sleeve
VI. TROUBLESHOOTING
A. Excess Movement of the Rack and Ladders
B. Rack Moving in a Jerking Motion or Stops
VII. MAINTENANCE
A. Periodic
B. Semi-Annually or at Scheduled Apparatus Lube Service
C. Replacing Hydraulic Fluid in the Pump
D. Replacing the Hydraulic Cylinder
E. Replacing the Latch Limit Switch
F. Pressure Washing
VIII. SERVICE
IX. WARRANTY
X. DRAWINGS, DIAGRAMS AND CHARTS
A. Basic System
B. Electrical System
C. Hydraulic System
-1-
-2-
I. SYSTEMS AVAILABLE
Systems for ladders are made to order according to the ladders to be carried. In order to provide the System
you require, we need to know the manufacturer, model number and length of ladders to be carried. The following
models are available according to the nested depth of the ladder combinations:
number:
NOTE: The following restrictions apply to both Systems
• Systemsaredesignedforladdersnotexceeding35'inlength.
• Systemsarenotdesignedforladderswithbangersorpoles.
• Maximumweightofladdersandotherequipmentcarriedontheladderrackisnotto
exceed300pounds.
The Systems are designed to operate in the following manner:
the vehicle. The electrical actuator will close the latch at the end of the cycle.
cycle the latch will snap into place locking the booms in the closed position.
ladders are not required.
NOTE: Forallpartnumbersinparenthesis,refertoFigure17,page25throughFigure20,
page28andListingChart1,page24.
-3-
II. INSTALLING THE LADDER ACCESS SYSTEM
A. PreparationforMounting
The System has been tested at the factory prior to shipping. No additional adjustments should be
cut down in length for your application. A can of touch-up paint is available for this purpose. See
drawings below to determine the required dimensions.
SYM DESCRIPTION DIM. (MIN./MAX.)
Ashelf to bottom of ladder rack
Bshelf depth
Cshelf width; door opening
Dtruck wall to bottom of rack (down pos.)
*
*
*customer to cut boom to length required to obtain proper truck clearance.

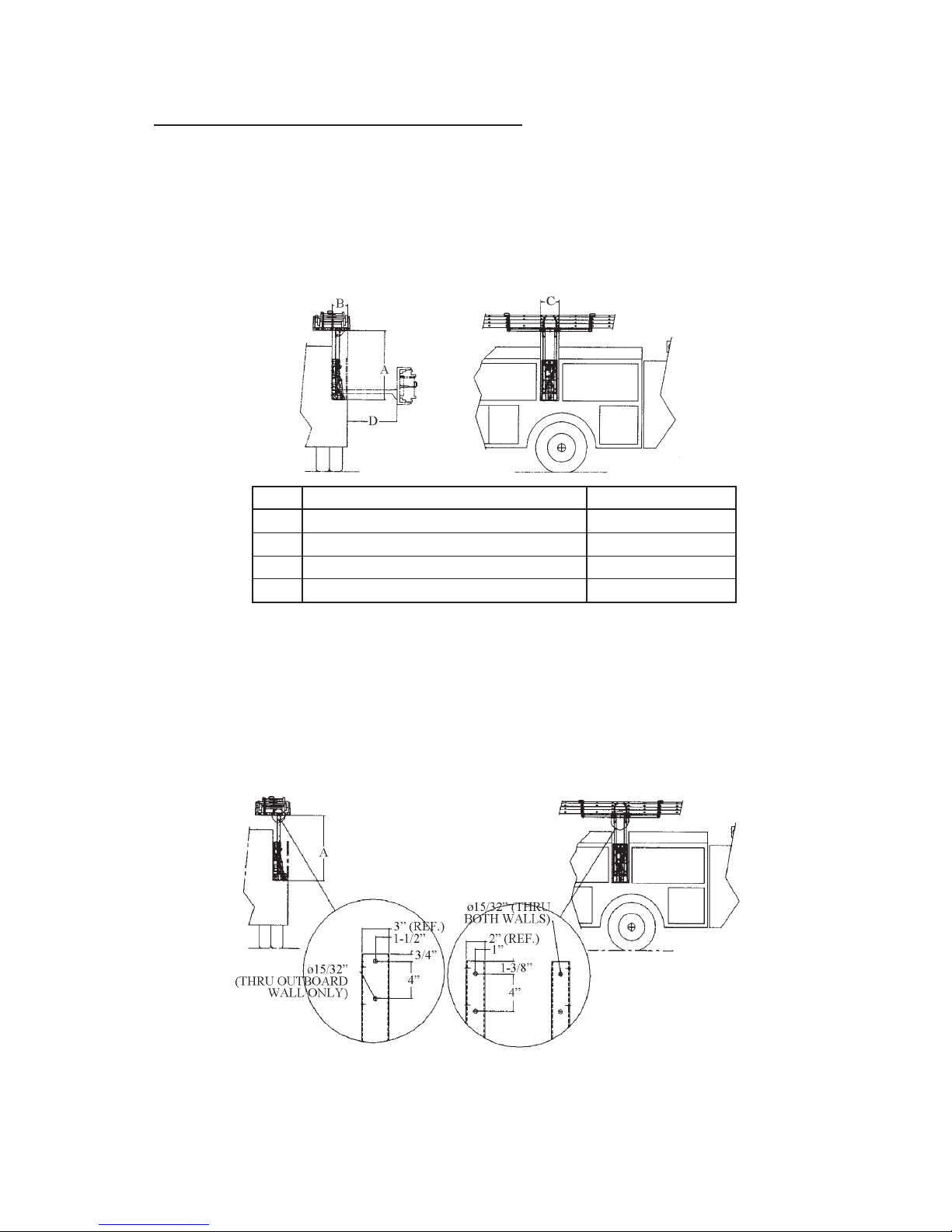

FIGURE1
REQUIRED DIMENSIONS
HLAS SYSTEM
See Figure 2.

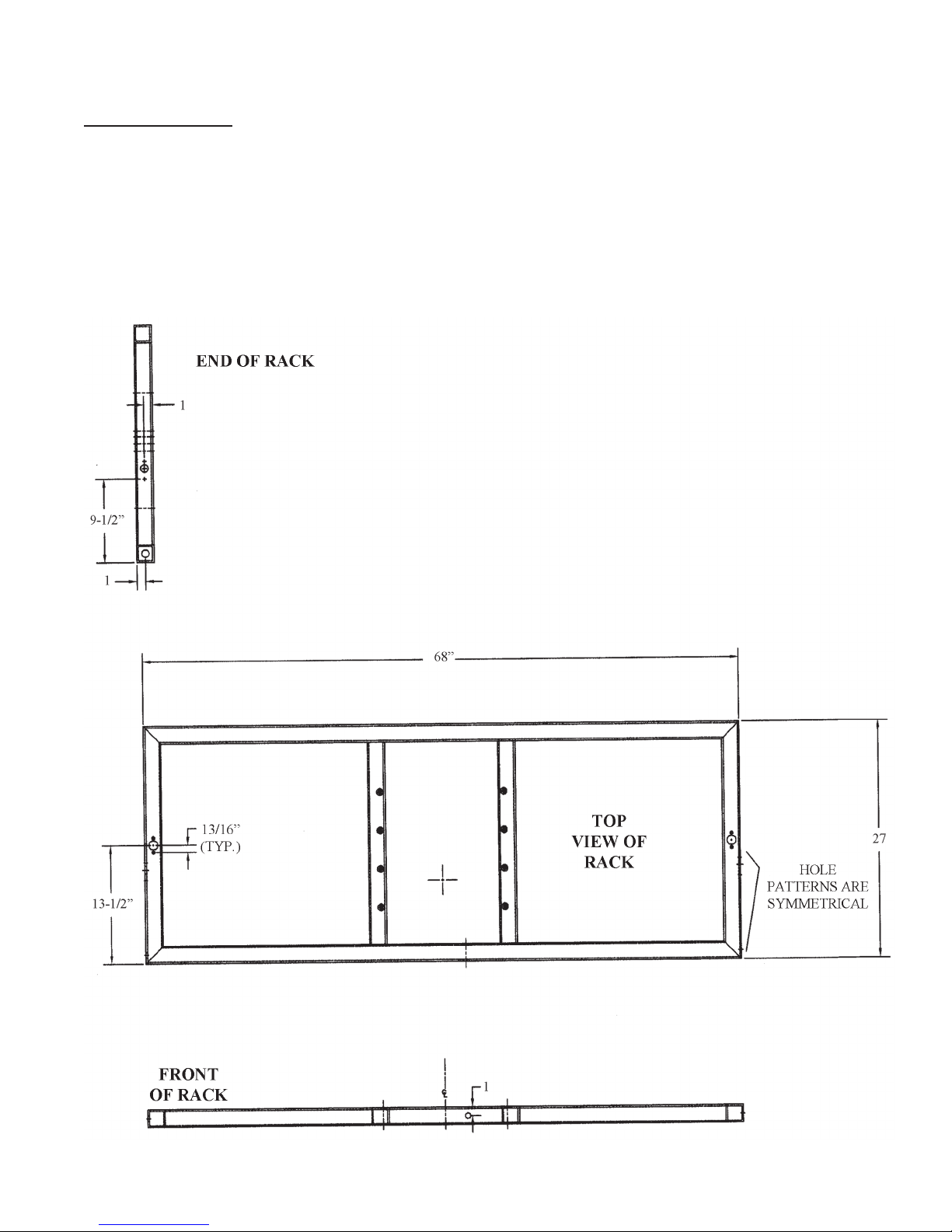

FIGURE2
HOLE LOCATIONS
TOP OF BOOMS
A. PreparationforMounting(continued)
Plan and lay out the entire installation before making any cuts or drilling holes in the body of the
Position the unit on the shelf of the apparatus and clamp it in place so that you can determine where
the holes will be required for the mounting bolts. Also check to be sure there is an integral component of
the body structure to attach the mounting bolts through. If there is no main frame member, you may have to
of the ladder rack.
When the ladder is raised and lowered in this position, it should clear protruding objects on the
apparatus, such as emergency light, hand rails, etc. Make sure that when the ladders are in the up position
they do not obstruct cross lays on hose reels.
In the event that the booms come into contact with the stiffening rib at the top of the vertical hose bed
wall, you may have to notch out the stiffening rib to recess the HLAS System. If the stiffening rib must be
notched, the exposed metal surfaces should be painted and covered with an edge guard material. In
addition, if the stiffening rib is notched, you may wish to add a backing plate on the inside surface of the
hose bed wall. The plate will reinforce the hose bed wall and provide a good mounting support for the
vertical mounting holes, if used. The edges of the mounting plate should be rounded off on the side next
substantial backing plates or attached to an integral component of the body structure.
A ladder stop must be provided which will prevent the ladders from swaying when in the stored
will be up to the body manufacturer to fabricate unless the optional Zico HLAS Stop, HLAS-OS, is
FIGURE 3
LADDER STOP
A. PreparationforMounting(continued)
A mechanism for opening the door panel in front of the unit must also be fabricated by the apparatus
manufacturer. The actual mechanism will depend on whether the door opens down or to the side. Contact
the factory for suggestions.
B. Electrical System
Now that you are sure of your mounting position, and the boom has been cut to the proper length, you
good idea to remove the unit from the apparatus shelf and clamp it to a work bench so that the booms can
edge of the table as it would be on the shelf of your apparatus. Be sure the table is secured by adding a
counterweight to the other side before lowering the unit. Determine where the wires can be run so they will
not be visible from the outside of the apparatus. We recommend all electrical connections be soldered as
this method is superior to crimp connections. We further recommend that a terminal block or quick
Make up a wiring harness using wires longer than the required run lengths. Temporarily make all
wire connections so you can test the system. With the table properly secured, you should be able to operate
the unit with the ladders in place. Be sure the ladders will clear the edge of the table before drilling any
holes in the apparatus.

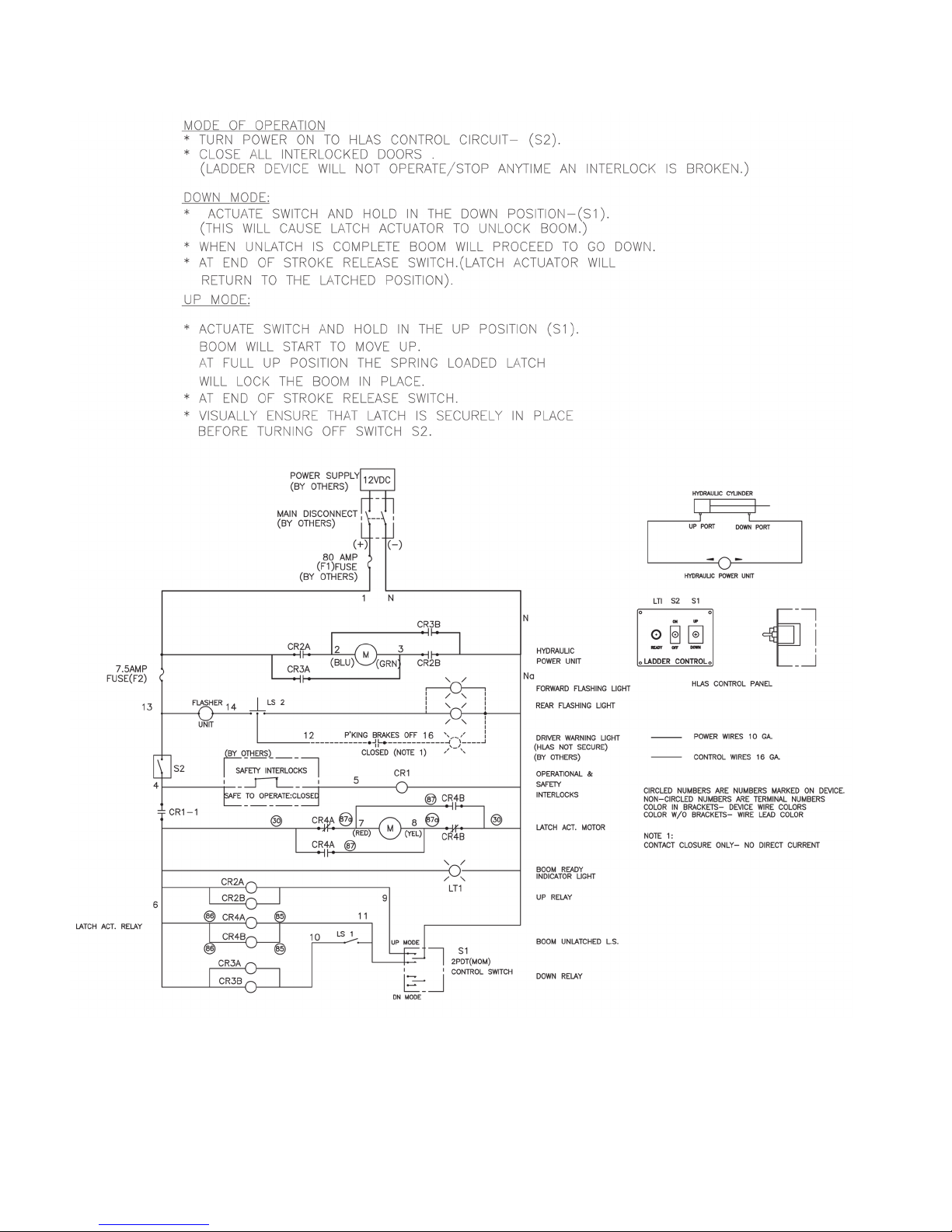

FIGURE4
WIRING DIAGRAM
ELECTRIC/HYDRAULIC SYSTEM
PART NUMBER DESCRIPTION SOURCE QTY.
1
Power Relay CR2A, CR2B, CR3A, CR3B
Door Interlock Relay CR1 1
2
Flasher 1
Newark # 28F881 1
FIGURE5
FIELD WIRING DIAGRAM
ELECTRIC/HYDRAULIC SYSTEM
-8-
ITEM PART NUMBER DESCRIPTION QTY.
1 1
2 1
3 2
2
LOCKWASHER #10 10
10
8 1
2
10 FLASHER 1
11 1
12
13
1
2
WIRING SET 1
18 TERMINAL LABEL 1
TERMINAL MARKING 1

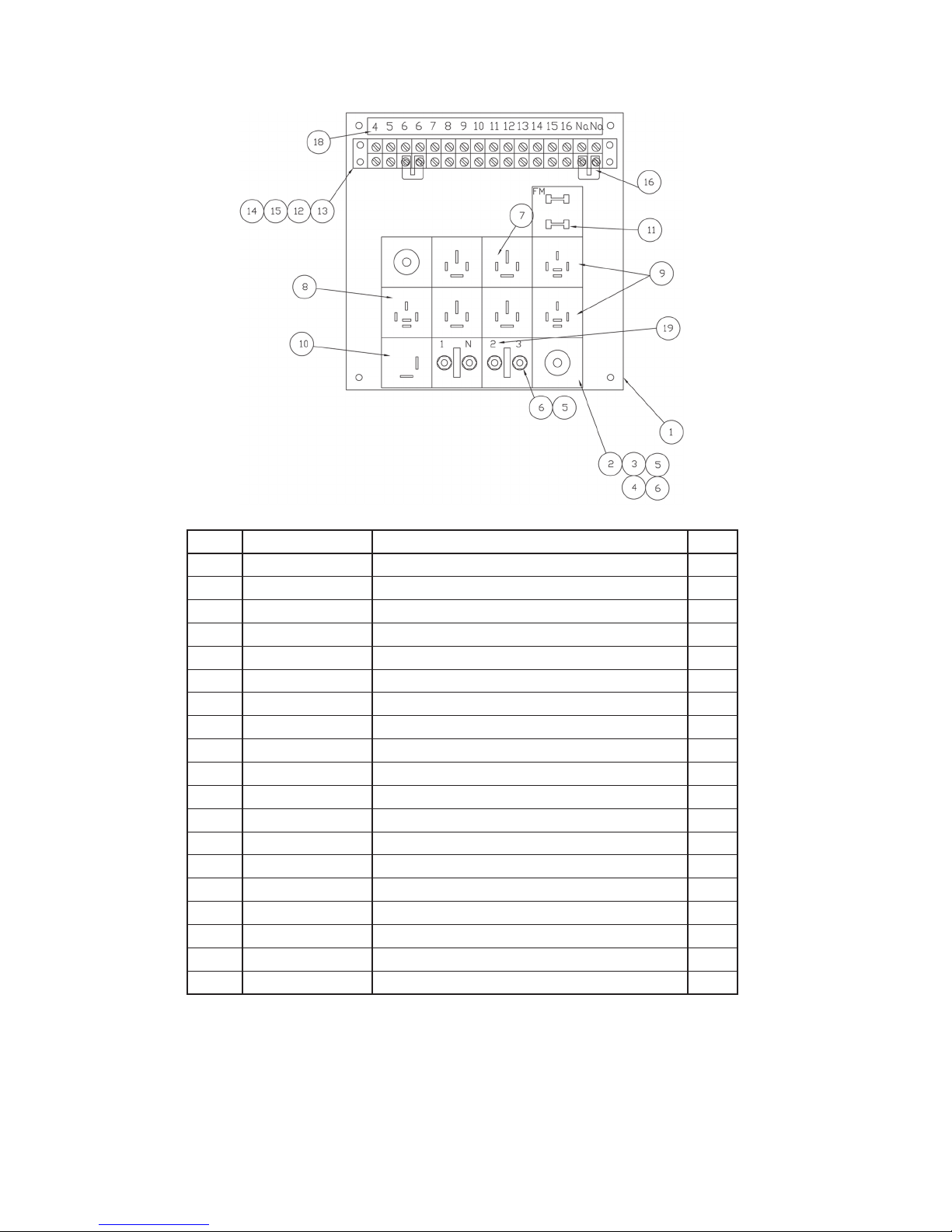

FIGURE 6
ELECTRICAL PANEL DIAGRAM
ELECTRIC/HYDRAULIC SYSTEM

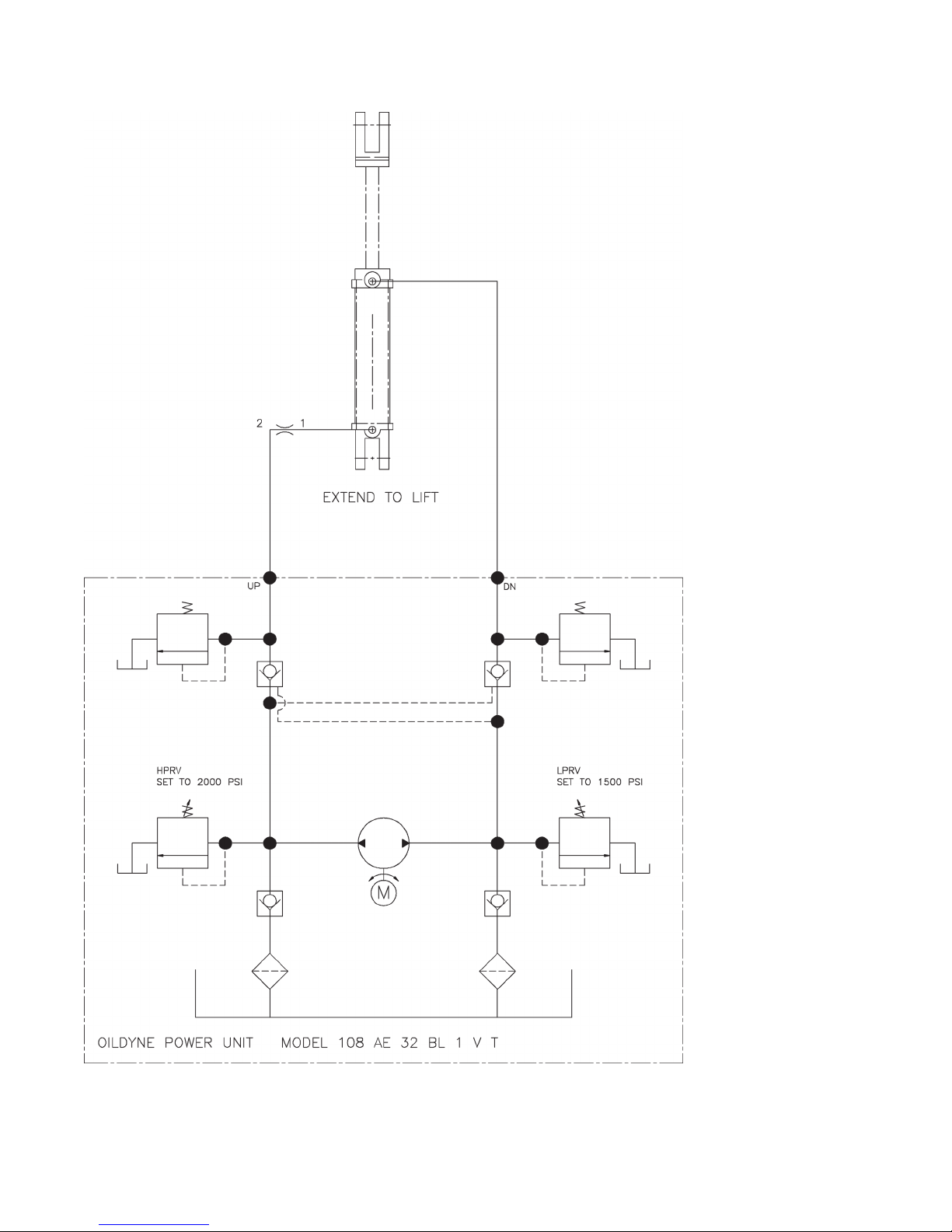

FIGURE 7
HYDRAULIC CIRCUIT DIAGRAM
-10-
ITEM
NO. PART NO. DESCRIPTION QTY.
Clearance Light 2
88 Plate, Limit Switch* 1
Switch, Limit 1
1
2
In Line Splice
Snap Plug Connection*
1

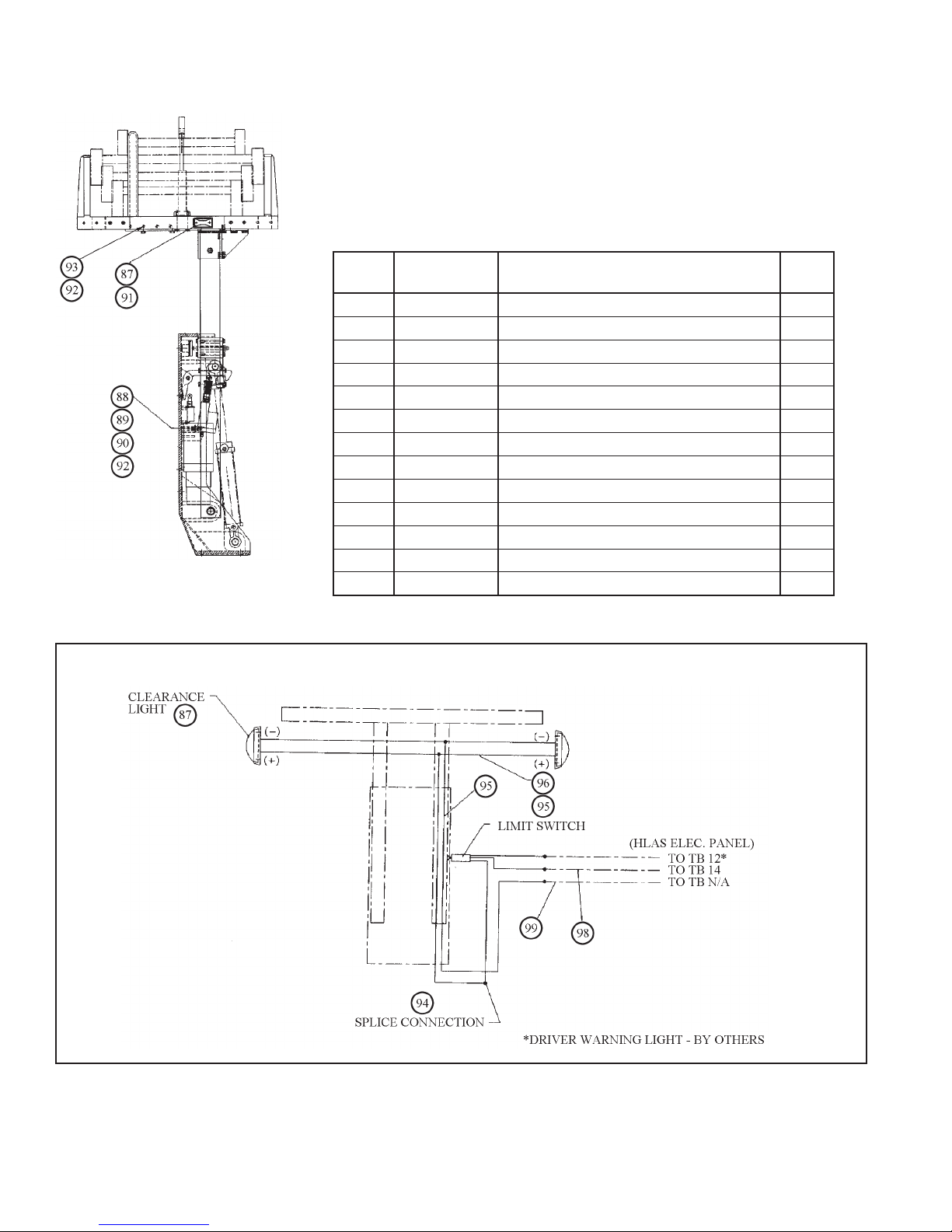

FIGURE 6
PARTS & WIRING DIAGRAM
FLASHING LIGHT KIT
WIRING DIAGRAM LIGHTS TO BE MOUNTED ON FORWARD
& REAR FACE OF LADDER RACK
*Installed on unit
-11-
WIRING SYSTEM:
1. Lights are to be mounted on forward and rear face of
ladder rack.
installed, one for each light. Wires run on the inside
of the rack.
wire should run-up through the right boom.
wire, ready to plug into lights prior to mounting.
FIGURE 7
WIRING SYSTEM
FLASHING LIGHT KIT
-12-
C. MountingSuggestions
pressure sensitive or metal label must be mounted in close proximity to the ladder control panel. All
apparatus operators must be instructed to keep the area in front of the ladders clear of personnel when the
System is being raised or lowered.
Before starting the installation you should make sure you have all necessary tools and materials. This
NOTE: Thehydraulicpumpisdesignedforuseinthenormaloperatingtermpaturerangeof
-20to+160degreesFahrenheit.Pleasereviewyourapplicationwiththefactoryfor
usesbelow-20degrees.
Following these simple instructions should make your installation easy and professional.
III. GENERAL INSTALLATION INFORMATION
A. MountingPoints
The HLAS unit should be positioned so that an equal number of rungs of the ladder extend on either
only, it is a great advantage to be able to use mounting bolts on the vertical surface as well. The unit should
be attached to an integral structural member of the vehicle. If this is not possible, then a one-half inch thick
B. Electrical Control Panel
The electrical control panel should be mounted in a water-proof compartment. Dimensions are
any obstructing compartment doors are shut. Because of the higher amperage required to operate the
-13-
C. LadderControlPanel
The ladder control panel should be mounted in such a position that the operator has full view of the
Panel should be mounted in a waterproof compartment. After all connections are complete and
system has been tested, protect connections with a weather proofer like liquid tape.
years of excellent service.
NOTE: Donotpermitpersonneltohang,sitorstandontherackorladderswhiletheyare
storedontheQUIC-LIFTSystem.Permanentdamagemayresult.
IV. STANDARD EQUIPMENT
The following items are included with each complete HLAS System:
A. InstructionPacket
Includes all information required to install a complete System. Wiring diagrams and parts lists are
provided.
B. ElectricalControlPanel(79)P/N3097-500-148
Complete panel ready for mounting.

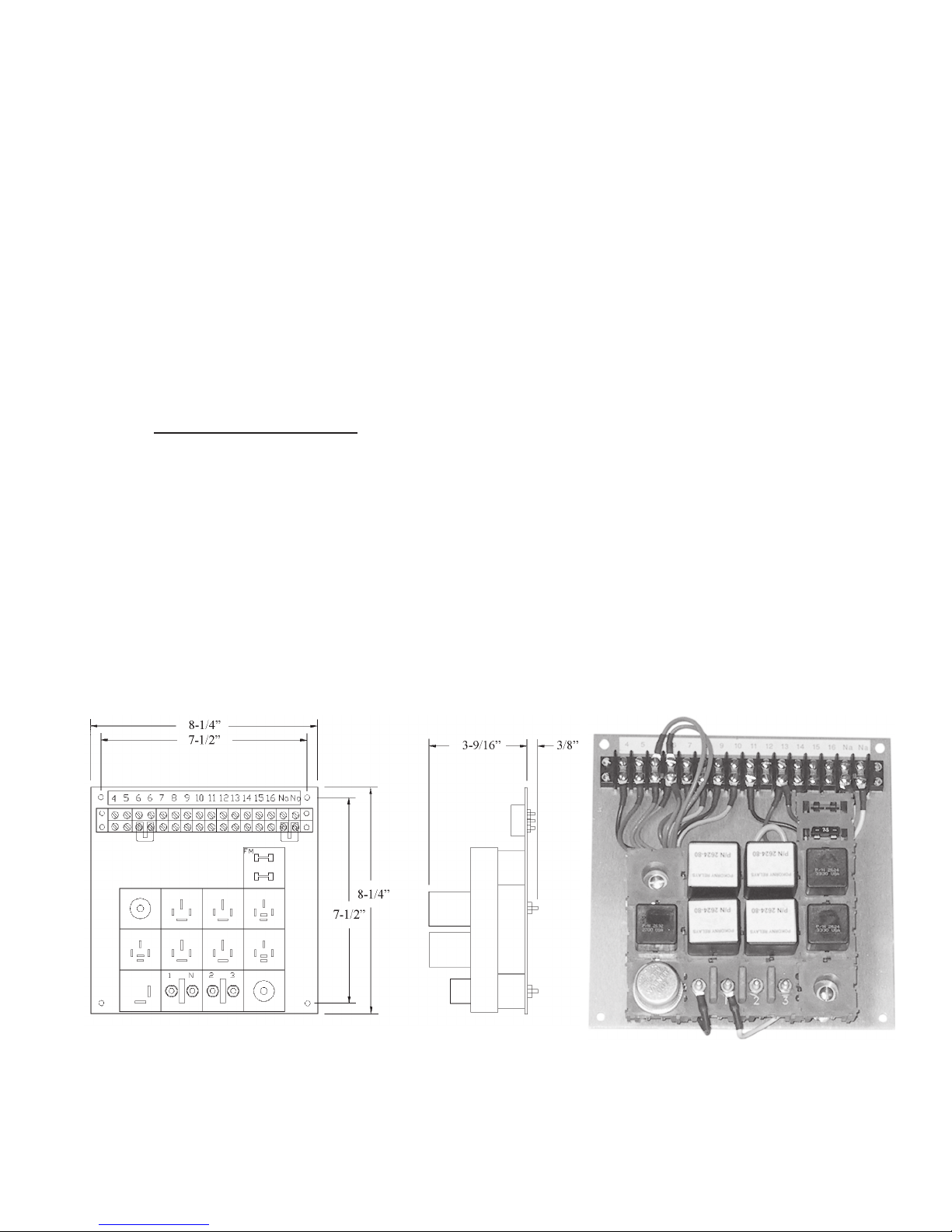

FIGURE8
OVERALL DIMENSIONS AND COMPONENTS
ELECTRICAL CONTROL PANEL
C. LadderControlPanel(80)P/N3097-500-170
ready for mounting.

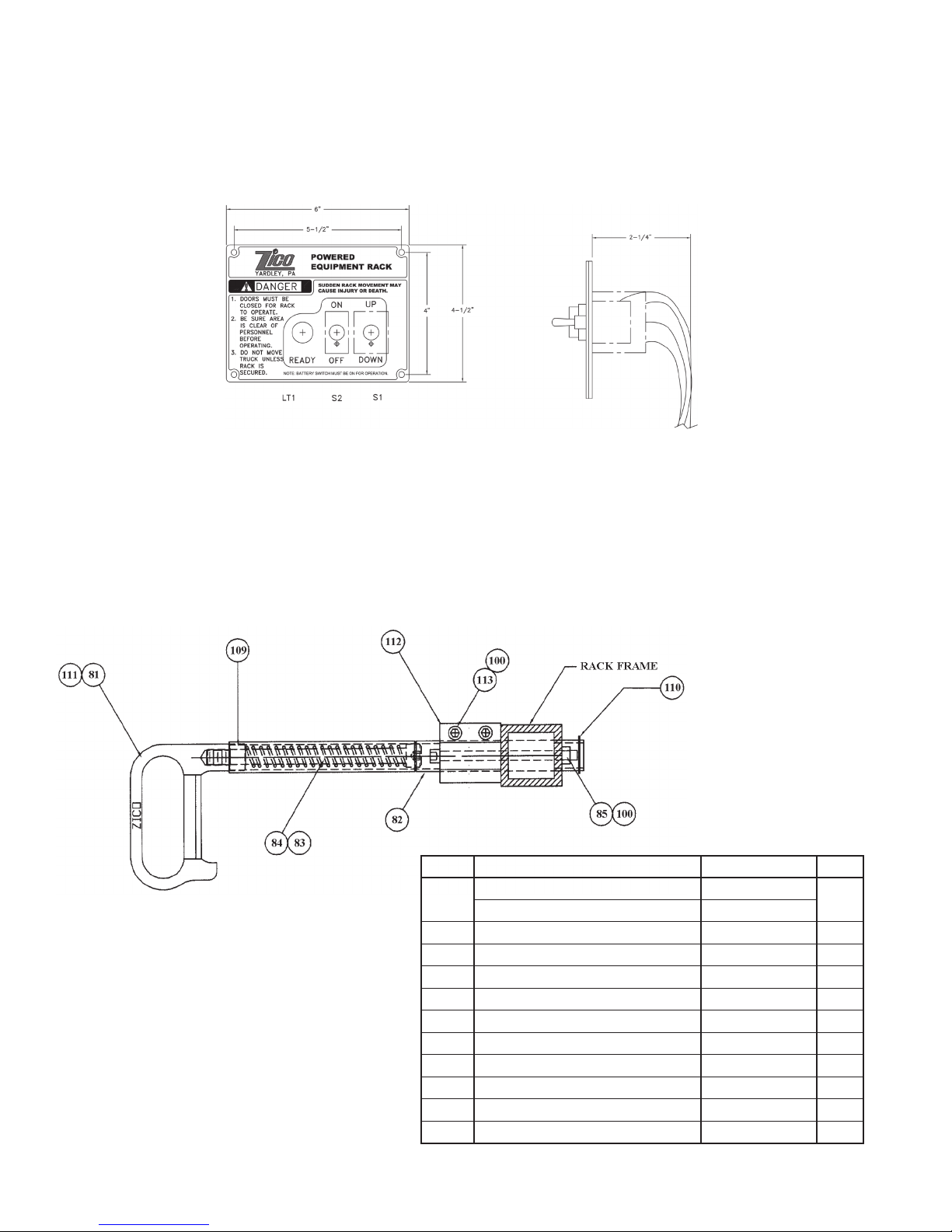

FIGURE 9
OVERALL DIMENSIONS AND COMPONENTS
LADDER CONTROL PANEL
ITEM PART NAME PART NUMBER QTY.
81 Handle 1
83 Spring 1
1
1
110 Ret. Ring, 1 1
111 Wear Strip 1
112 Support, Retainer Handle 1
113 2
2
100
FIGURE10
HANDLE ASSEMBLY
82 1
LT1 = PowerIndicatorLampP/N3097-500-169
S2 = PowerSwitchP/N3097-500-157
S1 = ControlSwitchP/N3097-500-156
Boot,ToggleSwitchP/N3097-105-145
NamePlate(red)3097-500-179
SwitchPlate(alum.)3097-500-178

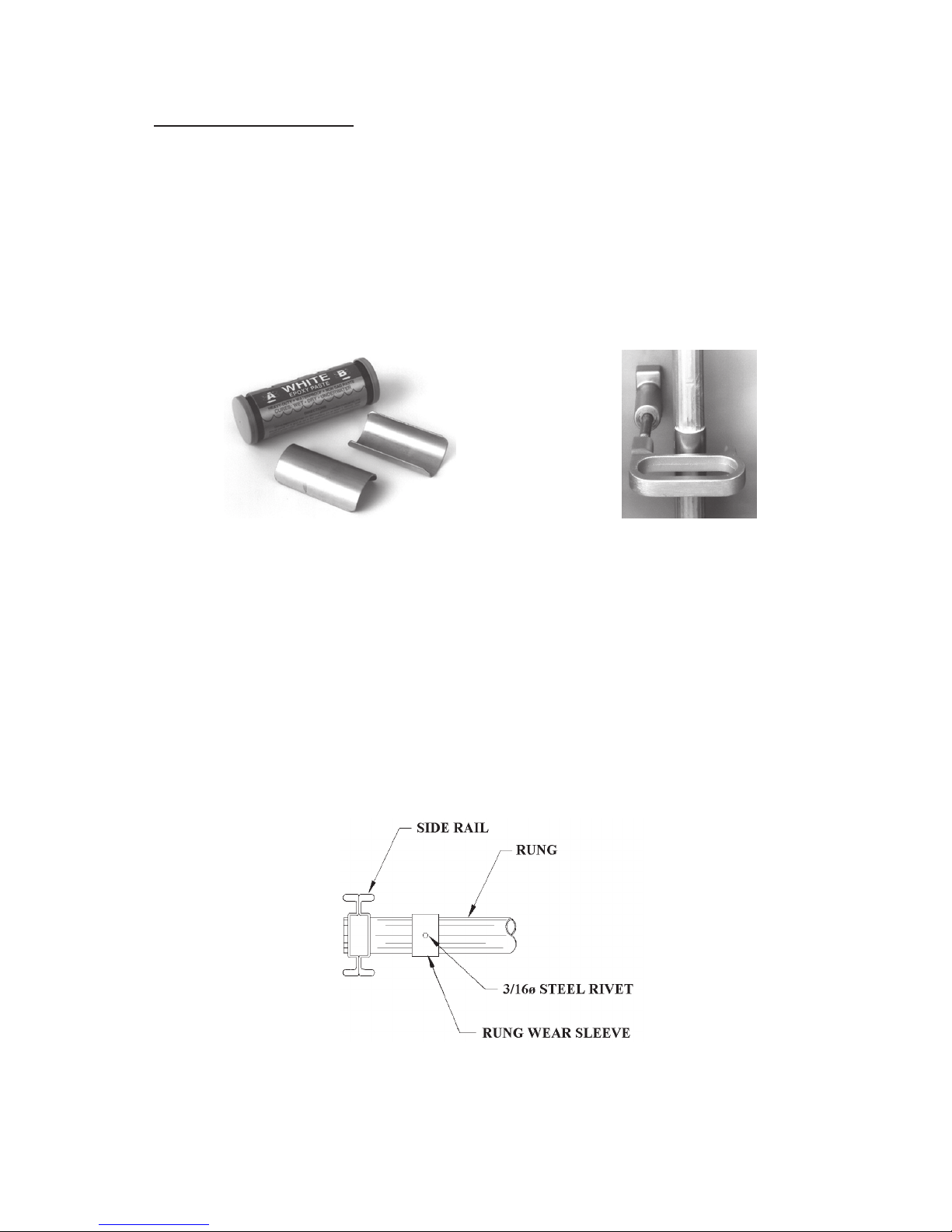

V. OPTIONAL EQUIPMENT
The following items may be added to the HLAS Systems:
A. ModelLAS-LGKLadderGuardKit
The ladder guard kit contains one tube of epoxy and two stainless steel guards. The guards may be
with the rung. The new handle assemblies have a replaceable plastic wear pad which should prevent
damage to the rungs, but the ladder guard kit may also be required if unnecessary wear is noted.
Kitcontainsonetubeofepoxy
andtwostainlesssteelrung
protectors.
Rungprotector
installedshowing
proper placement.
FIGURE11
LADDER GUARD KIT
B. InstallationRungWearSleeve
The small plastic sleeves may be purchased directly from the ladder manufacturer. The sleeves are
pop-riveted to the rungs and prevent unnecessary wear on the rungs from constant rubbing on the side rails.
FIGURE12
RUNG WEAR SLEEVE
VI. TROUBLESHOOTING
should be required unless excess movement is noted.
A. ExcessMovementoftheRackandLadders
If the rack and ladders appear to be moving more than when the System was initially installed, it is
probably due to one of the following reasons:
1. Ladders and rack not properly seated against the vehicle mounted ladder stop.
A ladder stop must be provided by the apparatus manufacturer to prevent the ladders from
swaying. If the ladder rack is not touching the stop, swaying will occur. Shims may be required to
close the gap.
2. Booms move freely when the rack is pushed or pulled by hand.
a. Remove ladders with the rack in the down position. Raise the unit back up approximately
pump will slow down when the cylinder is fully extended.
shorter.
e. The length of the cylinder may be adjusted as follows:
1.
2.
takes the pressure off the cylinder which will make the next step easier.
A. ExcessMovementoftheRackandLadders(continued)
3. Turn the cylinder shaft in the appropriate direction to lengthen or shorten it.
WARNING: Donotuseapipewrenchorvisegrips.Damagetothecylindershaft
willoccur.Theshaftwillalmostalwaysturnbyhand.Rubbercoated
workgloveswillincreaseyourgrip.
bolt at this time.
the boom assemblies.

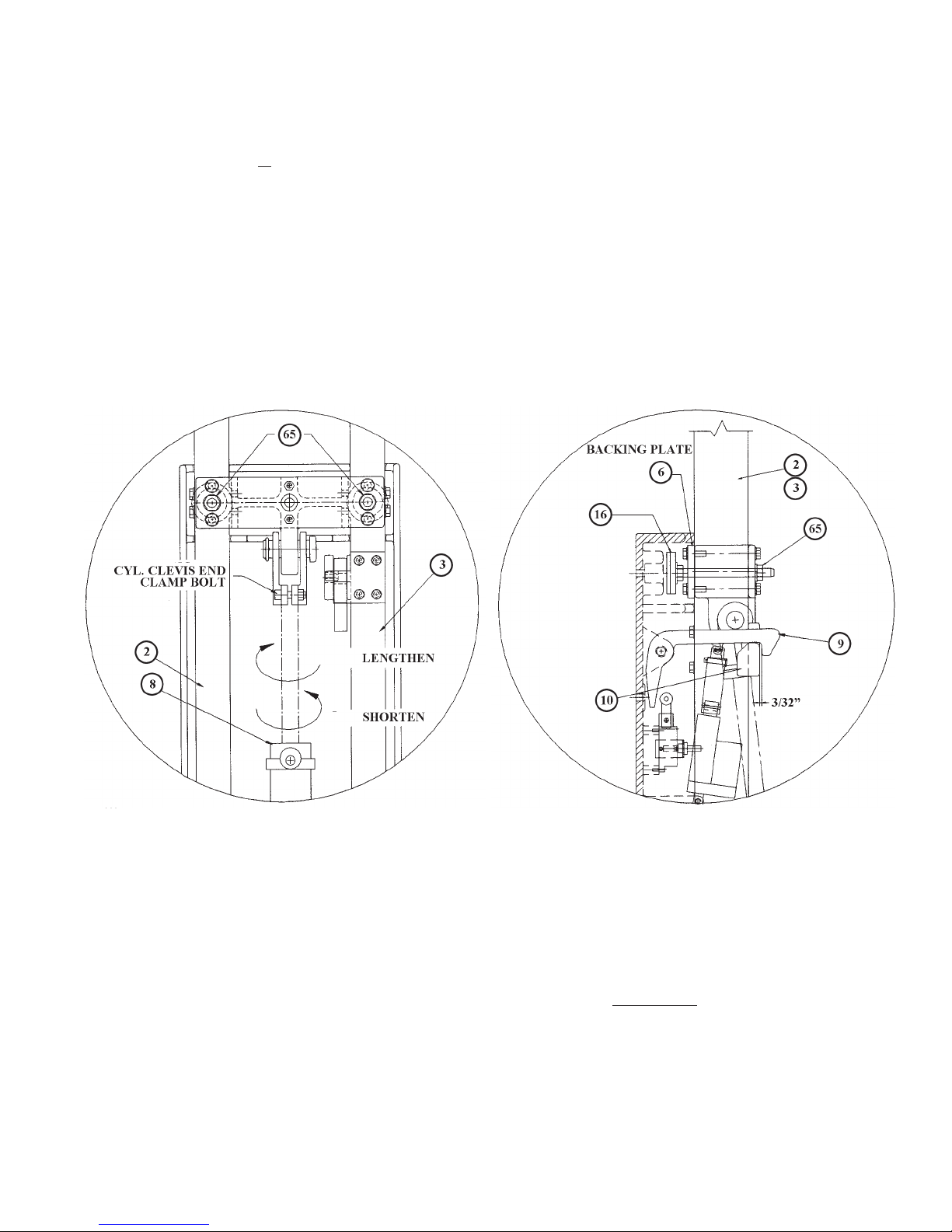

FIGURE13
FRONT VIEW
FIGURE14
SIDE VIEW
tightening the bumper.
i. Lower the unit a few inches. Turn the bumpers out one full turn away from the backing
j. Raise the unit back up to full cylinder extension. Listen for the pump to slow down. The
-18-
B. RackMovinginaJerkingMotionorStops
VII. MAINTENANCE
A. Periodic
proceeding.
3. Visually inspect the plastic pads for wear. Pads are located at several points on the ladder rack
B. Semi-AnnuallyoratScheduledApparatusLubeService
1. Lubricate the following parts as indicated.
a. Joints and pivot points should be sprayed with CRC brand Stor&Lub long term lubricant
and rust preventative #03032. Excess lubrication should be wiped off.
b. Hydraulic ram is self-lubricating and should require no additional lubrication.
lube at these three points.
come together.
FIGURE15
HYDRAULIC SYSTEM COMPONENTS
B. Semi-AnnuallyoratScheduledApparatusLubeService(continued)
Hydraulic system is a closed loop system. Noone,otherthanaqualiedhydraulicpump
technician,shouldattempttoremoveanyttingsorhosesfromthesystem.Thesystemcontains
oneoricewhichisrestrictedto.025"(30).Removalofthisttingcouldcausebodilyinjury.
SeelocationonFigure14.
a. The booms must be lowered to gain access to the dip stick located in the front side of the
pump.
b. Remove dip stick and wipe dry with a clean, dry cloth.
-20-
B. Semi-AnnuallyoratScheduledApparatusLubeService(continued)
c. Replace dip stick, placing it in the hole, but do not tighten.
checked by fully tightening the dip stick in place and then removing it. The oil level should be
used with the system as follows:
32 ounces.
C. ReplacingHydraulicFluidinthePump
available before starting the job. Hydraulicuidinthissytemmaybeunderpressure.Alwayswear
safetyglassesandprotectiveclothingandusethefollowingproceduretochangetheuid:
1. Lower the booms and remove the ladder rack and ladders.
3. Disconnect the electric wires to the hydraulic pump.
dip stick. Remove the screw in the bottom of the pump reservoir and remove the reservoir. At this
time the old oil may be discarded and the reservoir cleaned.
8. Place the two open hydraulic lines into a receptacle. Raise and lower the booms by hand to blow
CAUTION: Controltheraisingandloweringofthebooms.Donotallowthemtodrop
uncontrolled.
This manual suits for next models
2
Table of contents
Other Zico Lifting System manuals
Popular Lifting System manuals by other brands
Maxon
Maxon TE-20 installation manual
Aqua Creek
Aqua Creek PORTABLE PRO POOL-AT LIFT Installation and operating instructions
Arjo
Arjo Maxi 500 Operating and Product Care Instructions
JLG
JLG 10msp Service and maintenance manual
HOMECARE PRODUCTS
HOMECARE PRODUCTS EZ-ACCESS THRESHOLD RAMP Instructions for use
Auto Crane
Auto Crane 5005H SERIES owner's manual
