ZIEHL-ABEGG NETcon A-G-102ANE User manual

NETcon
A-G-102ANE
380087
Digital Operating and Display Device
Operating Instructions
Software version: Valid from software version 1.01
L-BAL-E156-GB 2105 Index 004 Part.-No.
english

Content
1 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Structure of the operating instructions . . . . . . . . . . . . . . . . . . . . 4
1.2 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Explanations of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Product safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Requirements placed on the personnel / due diligence . . . . . . . 6
2.5 Start-up and during operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.6 Work on the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.7 Modifications / interventions in the device . . . . . . . . . . . . . . . . . 7
2.8 Operator’s obligation of diligence . . . . . . . . . . . . . . . . . . . . . . . . 7
2.9 Employment of external personnel . . . . . . . . . . . . . . . . . . . . . . . 8
3 Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Operational area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Disposal / recycling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Temperature influences during commissioning . . . . . . . . . . . . . . 9
5 Electrical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 EMC-compatible installation of control lines . . . . . . . . . . . . . . . . 10
5.3 Voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.4 Digital inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.4.1 Digital input "D1" (day- / night switchover) . . . . . . . . . . . . . 11
5.4.2 Digital input "D2" (Stop / Start) . . . . . . . . . . . . . . . . . . . . . 12
5.5 Alarm relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.6 Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.6.1 RS-485 interface for MODBUS . . . . . . . . . . . . . . . . . . . . . 12
5.6.2 RS-485 - network design and interface parameter . . . . . . . 13
Operating Instructions NETcon A-G-102ANE
L-BAL-E156-GB 2105 Index 004 Part.-No.
2/32

6 Operating the NETcon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.1 Controls and LCD-display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.2 Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2.1 Menu plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2.2 Operation and parameterising . . . . . . . . . . . . . . . . . . . . . 18
7 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1 Prerequisites for commissioning . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.2 Procedure for commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.3 Connection options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.3.1 Conventional connection . . . . . . . . . . . . . . . . . . . . . . . . . 22
7.3.2 Connection when using Connection box ECblue . . . . . . . . . 22
8 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.1 Menu group FAN INFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.2 Menu group ERROR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
8.3 Menu group PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.4 Menu group FAN SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
8.5 Menu group BROADCAST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8.6 Menu group FAN ADDRESS . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.7 Menu group INTERN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9 Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.1 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.2 Connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.3 Dimensions [mm] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.4 Manufacturer reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.5 Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Operating Instructions NETcon A-G-102ANE
L-BAL-E156-GB 2105 Index 004 Part.-No.
3/32

1 General notes
Compliance with the following instructions is mandatory to ensure the functionality and
safety of the product. If the following instructions given especially but not limited for
general safety, transport, storage, mounting, operating conditions, start-up, mainte-
nance, repair, cleaning and disposal / recycling are not observed, the product may not
operate safely and may cause a hazard to the life and limb of users and third parties.
Deviations from the following requirements may therefore lead both to the loss of the
statutory material defect liability rights and to the liability of the buyer for the product that
has become unsafe due to the deviation from the specifications.
1.1 Structure of the operating instructions
Before installation and start-up, read this manual carefully to ensure correct use!
We emphasize that these operating instructions apply to specific units only, and are in
no way valid for the complete system!
Use these operating instructions to work safely with and on the device. They contain
safety instructions that must be complied with as well as information that is required for
failure-free operation of the device.
Keep these operating instructions together with the device. It must be ensured that all
persons that are to work on the device can refer to the operating instructions at any time.
Keep the operating instructions for continued use. They must be passed-on to all
successive owners, users and final customers.
1.2 Target group
The operating instructions address persons entrusted with planning, installation, start-
up, maintenance and servicing, who have the corresponding qualifications and skills for
their job.
1.3 Exclusion of liability
Concurrence between the contents of these operating instructions and the described
hardware and software in the device has been examined. It is still possible that non-
compliances exist; no guarantee is assumed for complete conformity. To allow for future
developments, construction methods and technical data given are subject to alteration.
We do not accept any liability for possible errors or omissions in the information con-
tained in data, illustrations or drawings provided.
ZIEHL-ABEGG SE is not liable for damage due to misuse, incorrect use, improper use
or as a consequence of unauthorized repairs or modifications.
1.4 Copyright
These operating instructions contain copyright protected information. The operating
instructions may be neither completely nor partially photocopied, reproduced, translated
or put on data medium without previous explicit consent from ZIEHL-ABEGG SE. In-
fringements are liable for damages. All rights reserved, including those that arise through
patent issue or registration on a utility model.
Operating Instructions NETcon A-G-102ANE General notes
L-BAL-E156-GB 2105 Index 004 Part.-No.
4/32

2 Safety instructions
2.1 Intended use
The equipment is to be used solely for the purposes specified and confirmed in the
order.
Any other use above and beyond this is considered not for the intended purpose unless
agreed otherwise by contract. The manufacturer will not be liable for any damage
resulting from this. The individual or company using it bears the sole risk.
Reading these operating instructions and complying with all contained instructions -
especially the safety notifications contained therein - are considered part of intended
use. To consider is also the manual of attached components. Not the manufacturer,
rather the operator of the device is liable for any personal harm or material damage
arising from non-intended use!
Operating Instructions NETcon A-G-102ANE Safety instructions
L-BAL-E156-GB 2105 Index 004 Part.-No.
5/32

2.2 Explanations of symbols
Safety instructions are highlighted with warning triangles and are depicted
according to the degree of hazard as follows.
Attention!
General hazardous area. Death or severe injury or significant property damage can
occur if the corresponding precautions are not taken!
Danger due to electric current
Danger by dangerous, electric voltage! Death or severe injury can occur if the
corresponding precautions are not taken!
Information
Important additional information and advice for user.
2.3 Product safety
The device conforms to the state of the art at the time of delivery and is fundamentally
considered to be reliable. The device and its accessories must only be used in a flawless
condition and installed and operated in compliance with the operating instructions.
Operating outside the device's technical specification (see technical data) can lead to a
defect in the device and additional damage!
2.4 Requirements placed on the personnel / due diligence
Persons entrusted with the planning, installation, commissioning and maintenance and
servicing in connection with the frequency inverter must have the corresponding qual-
ifications and skills for these jobs.
In addition, they must be knowledgeable about the safety regulations, EU/EC directives,
rules for the prevention of accidents and the corresponding national as well as regional
and in-house regulations. Personnel to be trained or instructed and apprentices are only
permitted to work on the device under the supervision of an experienced person. This
also applies to personnel undergoing general training. Comply with the legal minimum
age.
2.5 Start-up and during operation
Attention!
•During commissioning, unexpected and hazardous conditions can arise in the entire
installation due to defective adjustments, defective components or incorrect electrical
connections. Remove all persons and objects from the hazardous area.
•During operation, the device must be closed or installed in a control cabinet. Fuses
may only be replaced by new ones and must not be repaired or bypassed. The data
for the maximum line fuse are to be considered absolutely (see Technical data). Use
only fuses specified in schematic diagrams.
Operating Instructions NETcon A-G-102ANE Safety instructions
L-BAL-E156-GB 2105 Index 004 Part.-No.
6/32

•Any faults detected in the electric system/modules/operating equipment must be
corrected immediately. If these faults are not corrected, the device/system is
potentially very dangerous. The device/system must therefore not be operated when it
is faulty.
2.6 Work on the device
Information
Mounting, electrical connection, and start-up operation may only be carried out by an
electrical specialist in accordance with electrotechnical regulations (e.g. EN 50110 or
EN 60204)!
Danger due to electric current
It is generally forbidden to carry out work on electrical live parts. Protection class of the
device when open is IP00! It is possible to touch hazardous voltages directly.
The safe isolation from the supply must be checked using a two-pole voltage detector.
2.7 Modifications / interventions in the device
Attention!
For reasons of safety, no unauthorized interventions or modifications may be made on
the device. All planned modifications must be authorized by the manufacturer in writing.
Use only genuine spare parts / genuine wearing parts / genuine accessories from
ZIEHL-ABEGG.These parts were specifically designed for the device. There is no
guarantee that parts from non-original sources are designed and manufactured in
correspondence with load and safety requirements.
Parts and optional equipment not supplied by ZIEHL-ABEGG are not approved by
ZIEHL-ABEGG for use.
2.8 Operator’s obligation of diligence
•The contractor or owner must also ensure that the electric systems and equipment
are operated and maintained in accordance with electro-technical regulations.
•The owner is obliged to ensure that the device is operated in perfect working order
only.
•The device may only be used as intended.
•You must periodically examine the safety equipment for their properly functioning
condition.
•The assembly instructions and/or operating instructions are always readily available
at the location where the device is being used, are complete and are in legible
condition.
•These persons are regularly instructed in all applicable questions regarding occupa-
tional safety and environmental protection and are knowledgeable regarding the
assembly instructions and/or operating instructions and, especially, are familiar with
the safety instructions contained therein.
Operating Instructions NETcon A-G-102ANE Safety instructions
L-BAL-E156-GB 2105 Index 004 Part.-No.
7/32

•All safety and warning notices attached to the device are never removed and remain
legible.
2.9 Employment of external personnel
Maintenance and service work are frequently carried out by external employees who
often do not recognize the specific situations and the thus resulting dangers.These
persons must be comprehensively informed about the hazards in their area of activity.
You must monitor their working methods in order to intervene in good time if necessary.
3 Product overview
3.1 Operational area
The digital operating and display device is combined used with MODBUS compatible
fans / FFUs to assemble networked fans / FFUs (up to 63 units).
It can be used only fans / motors of the series "ECblue MODBUS Basic".
FFU: A Filter-Fan-Unit is a combination of fan and EC-Controller (with bus connection) in
a respectively housing.
3.2 Transport
•The device is packed ex factory to suit the transport method previously agreed.
•Always use the original packaging materials when transporting the device.
•Avoid shocks and impacts to the device during the transport.
•During manual handling the human lifting and carrying restrictions must be observed
and adhered to.
3.3 Storage
•The device must be stored in its original packaging in a dry and weather-proof room.
•Avoid exposure to extreme heat and cold.
•Avoid over-long storage periods (we recommend a maximum of one year).
3.4 Disposal / recycling
Disposal must be carried out professionally and in an environmentally friendly way in
accordance with the respective national legal stipulations.
"Separate the materials by type and in an environmentally friendly way.
"If necessary, commission a specialist company with the waste disposal.
Operating Instructions NETcon A-G-102ANE Product overview
L-BAL-E156-GB 2105 Index 004 Part.-No.
8/32

4 Mounting
4.1 General notes
Attention!
The following points must be complied with during the mechanical installation to avoid
causing a defect in the device due to assembly errors or environmental influences:
•Before installation remove the device from the packing and check for any possible
shipping damage! Start-up is not allowed in the case of transport damage!
•The installation in a switch cabinet or in a adequate plastic housing will be made
through a snap-up on a 35 mm top-hat-rail (EN 50 022) or through screw fastening.
•Do not allow drilling chips, screws and other foreign bodies to reach the device
interior!
•Do not mount equipment on vibrating base!
•Care must be taken to avoid direct radiation from the sun!
4.2 Temperature influences during commissioning
Avoid condensation in the controller and functional faults attributable to condensation by
storing the controller at room temperature!
Operating Instructions NETcon A-G-102ANE Mounting
L-BAL-E156-GB 2105 Index 004 Part.-No.
9/32

5 Electrical installation
5.1 Safety precautions
Danger due to electric current
•Work on electric components may only be carried out by trained electricians or by
persons instructed in electricity under the supervision of an electrician in accordance
with electrical engineering regulations.
•The 5 electrical safety rules must be observed!
•It is forbidden to carry out work on electrically live parts.
•Cover neighbouring electrical equipment during installation work.
•Other measures may be necessary to achieve safe electrical isolation.
•A second person must always be present when working on energized parts or lines
who disconnects in case of emergency.
•Electrical equipment must be checked regularly: Loose connections are to be re-
tightened and damaged cables must be replaced immediately.
•Always keep switch cabinets and all electrical supply facilities locked. Access is only
allowed for authorized persons using a key or special tool.
•Operating the device with the housing cover removed is prohibited because
energized, exposed parts are present inside the device. Disregarding this regulation
can lead to severe personal injury.
•The required protective earth connection is established using screws between the
housing parts in metal terminal space covers and housing casings. Commissioning is
only permissible after these screws have been properly attached!
•The device owner is responsible for the EMC of the entire plant according to the
locally applicable standards.
•Metal screwed-connections are not permitted in plastic housing parts because there is
no potential equalization.
•Never clean electrical equipment with water or similar liquids.
Information
The respective connections are represented in the enclosure of this Operating
Instructions (see connection diagram)!
5.2 EMC-compatible installation of control lines
To avoid interference, sufficient space must be left for power and motor cables. The
control cables can have a maximum length of 30 m and must be shielded above 20 m.
When using a shielded cable the shield must be connected to the PE conductor on one
side, i.e. only on the device side, e.g. using a shield connection terminal on the top hat
rail (as short and with as low an induction as possible).
Operating Instructions NETcon A-G-102ANE Electrical installation
L-BAL-E156-GB 2105 Index 004 Part.-No.
10/32

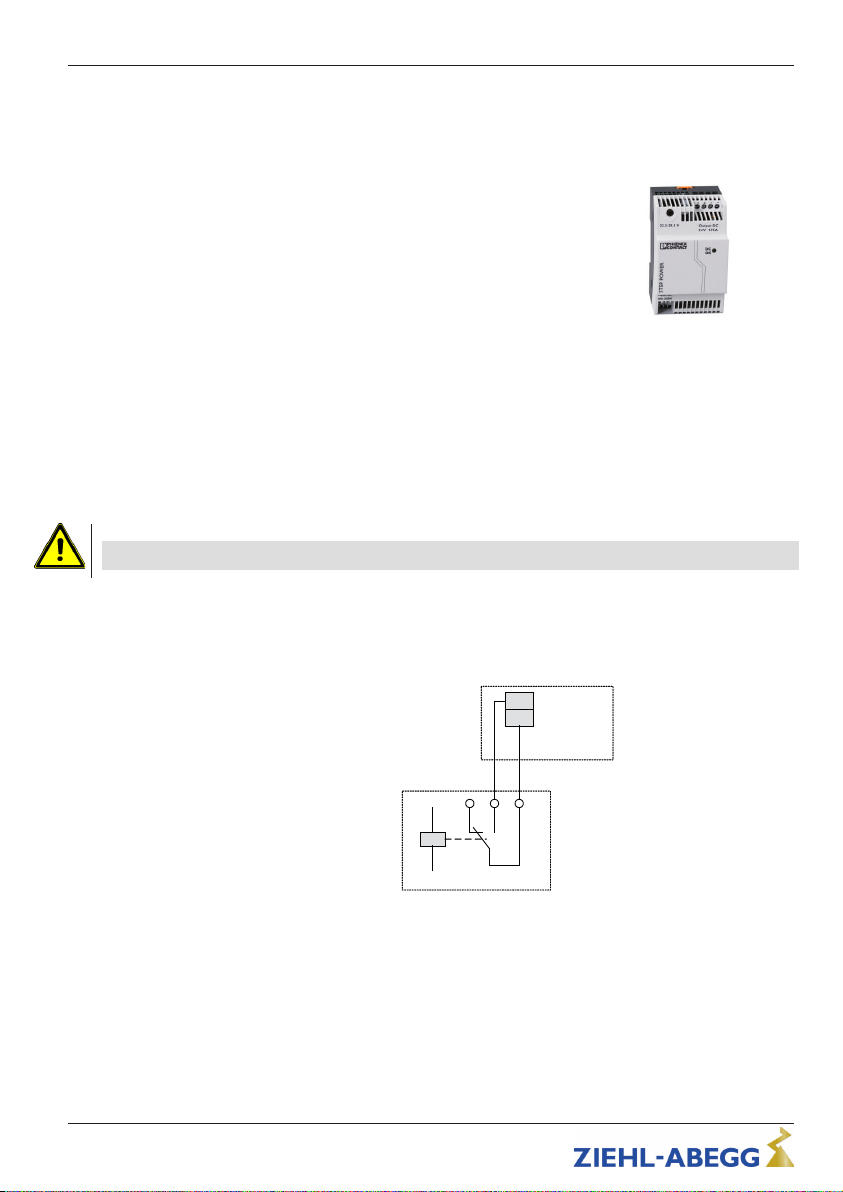

5.3 Voltage supply
The supply voltage is connected to terminals "V+
in
" and "V-
in
". Here, it must strictly
observed that the supply voltage lies within the allowable tolerance specifications.
Supply voltage: 24 V DC +/- 10 % (400 mA)
Option: Power supply for switch cabinet mounting
Type STEP-PS/1AC/24DC/1.75
Part.-No. 380067
Primary: 1~100...240 V +/- 10 % / 50/60 Hz (600 mA)
Secondary: 24 V DC (1,75 A / 42 W)
for top hat rail mounting
5.4 Digital inputs
The unit has 2-digital inputs:
•D1 → Input "Night" (Set Intern2)
•D2 → Input "Stop / Start"
Attention!
Never apply line voltage to the digital input!
5.4.1 Digital input "D1" (day- / night switchover)
Day / night changeover for all installed
fans takes place via the digital input "D1".
In the unused condition the day value (Set
Intern1) is active. If the connection (D1
with V+
out
) is jumpered, the night speed
set (Set Intern2) is active.
The digital input can be triggered by a
timer, for example. A commercial external
switch could also be connected of course.
Tag- / Nacht
day- / night
CXG-428ANE
ext.Schaltkontakt / ext. switch
D1
V+out
Example with an external switch contact
Operating Instructions NETcon A-G-102ANE Electrical installation
L-BAL-E156-GB 2105 Index 004 Part.-No.
11/32

5.4.2 Digital input "D2" (Stop / Start)
Via the digital input "D2", all connected fans can be stopped or started (e.g. during
revision work). For using this function, the digital input "D2" has to be activated first in the
menu group "INTERN". In addition the MinSpeed of all fans must be set to "0", because
the MinSpeed has a higher priority.
Then the following applies:
•D2 connected to V+
out
→ START (all fans started - normal state)
•D2 not connected to V+
out
→ STOP (all fans stopped - shown in the display)
5.5 Alarm relay
An external fault indicator is available over
the potential-free contact of the built-in
relay (contact rating 2 A, 250 V).
The relay picks up during operation, i.e.
terminals "K2no" and "A" are jumpered. It
drops out in the event of power failure or
fault, i.e. terminals "K2nc" and "A" are jum-
pered.
The closed contact can thus be used to
activate a warning lamp or a klaxon.
PE
PE L1
L1
N
N
Netz / line 1~230 V
50 / 60 Hz
Störung
disturbance
AK2no K2nc
max. Kontaktbelastung:
max. contact rating:
2 A / 250 VCA
2 A / 250 VCA
Typical fault condition circuit
5.6 Communication
5.6.1 RS-485 interface for MODBUS
The device has an RS-485 interface for networking via MODBUS. Connection at: "1A
(1D+)", "1B (1D-)" and "GND". The interface has a built-in fail-safe circuit, and 150 Ohm
termination.
Operating Instructions NETcon A-G-102ANE Electrical installation
L-BAL-E156-GB 2105 Index 004 Part.-No.
12/32

5.6.2 RS-485 - network design and interface parameter
Please ensure the correct connection; i.e. "A (D+)" must always be connected to "A
(D+)" of the next devices. The same applies to "B (D-)" .
In addition, a "GND" connection must be established, as dissimilar potential (over 10 V!)
will lead to the destruction of the RS-485 interface (e.g. lightning).
GND D+ D- GND D+ D-
16.0 4.200 8
v_m odbu s_ge raete_ ansc hluss .vsd
general example for Modbus device connection
The data line must be connected from one device to the next. No other type of wiring is
allowed! Always use only two wires of one lead (twisted pair) for the connection.
Examples for Modbus connection
Recommended wire types
1. CAT5 / CAT7 cables
2. J-Y (St) 2x2x0.6 (telephone cable)
3. AWG22 (2x2 twisted pair)
Information
•Pay attention to sufficient distance from powerlines and motor wires (min.
20 cm).
•Do not use wire shield.
•Except the data link "A (D+)", "B (D-)" the "ID1 - ID2" and the "GND" connection
may no further cable cores of the data line be used.
•A maximum of 63 users can be connected directly with each orther in automatic
adressing.
•Max allowed wire length 1000 m (CAT5/7 500 m).
Default interface parameter
Baudrate 19200
Bits 8
Parity Even (None, exception of devices agriculture)
Stop bits 1
Handshake none
Operating Instructions NETcon A-G-102ANE Electrical installation
L-BAL-E156-GB 2105 Index 004 Part.-No.
13/32

Information
If any matters are unclear, please contact our V-STE support department for control
systems - ventilation technology. The information sheet “Network structure of MODBUS”
R-TIL08_01 contains detailed information about “MODBUS”.
6 Operating the NETcon

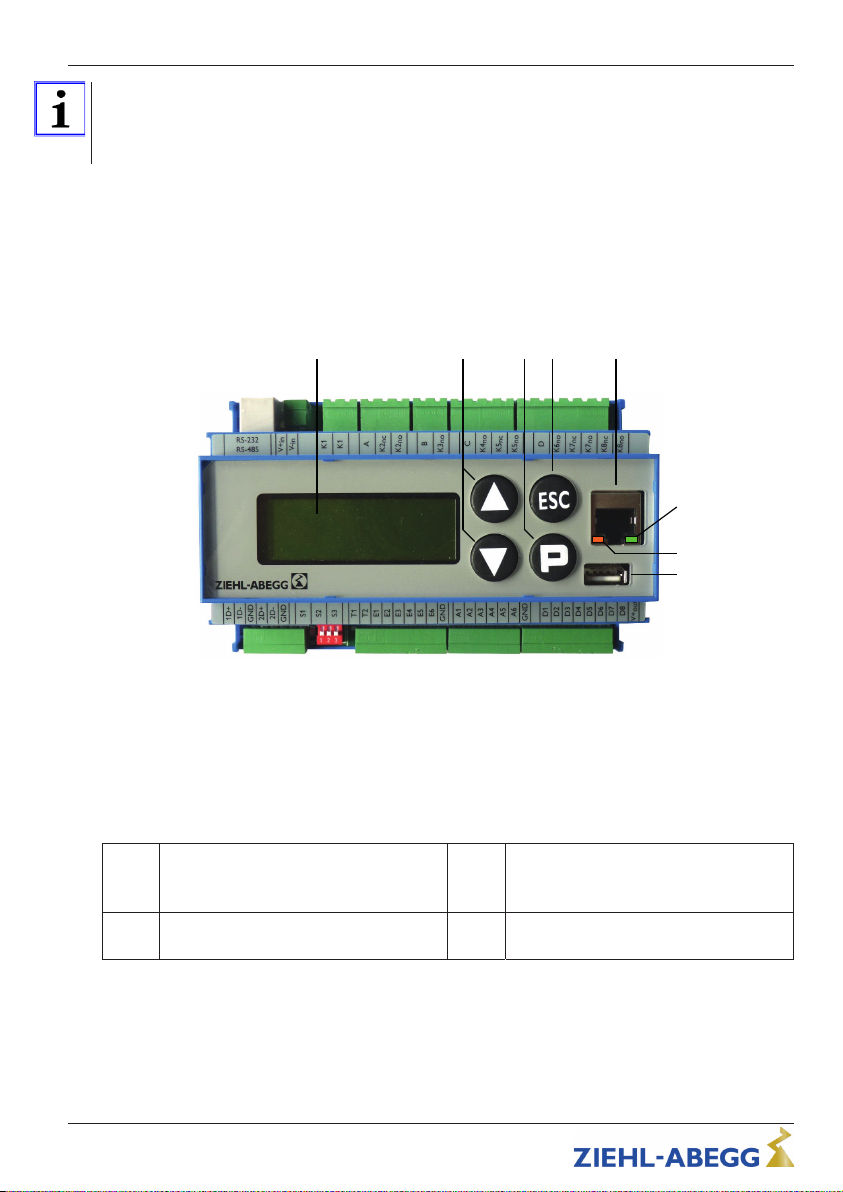

6.1 Controls and LCD-display
1
28.02.2011
v_bedel_cxg-428ne.vsd
23 4 5
6
7
8
1 LCD-Display
2 Arrow keys
3 P-key
4 ESC-key
5 LAN interface; programming interface
6 Link-LED
7 Traffic-LED
8 USB 1.0
P
• Start submenu
• Start change parameter (text flashes)
• Store parameter
▼ • Menu selection (downwards)
• Reduce parameter value
ESC • Leave submenu
• Keep parameter unchanged ▲ • Increase parameter value
• Menu selection (upwards)
The device has a built-in user interface consisting of an illuminated 4-line display with 20
characters per line and 4 buttons (see picture).
The device has a real time clock with power reserve. The error entries have these
timestamp.
Operating Instructions NETcon A-G-102ANE Operating the NETcon
L-BAL-E156-GB 2105 Index 004 Part.-No.
14/32

6.2 Menu structure
Ziehl-Abeg-
l-Abegg ECblue
System o.k.
14.04.2011 10-
10:48:31
The fault-free state of a system is indicated by “System o.k.”. An error is only
shown on the display when it occurs.
If no keys are pressed within 90 seconds, the NETcon returns automatically to
the "System o.k." display. The "System o.k." display takes precedence over
the main menu.
Information
It is a precondition for operation and parameterising that the display is showing
"System o.k."
6.2.1 Menu plan
Ziehl-Abeg-
gECblue
System o.k.
14.04.2011 1-
10:48:31
P↓ ↑ ESC
FAN INFO
see connec-
connected
ECblue
01 - 05
▲
▼
ERROR
Error Histo-
History
▲
▼
PIN EDIT
PIN required
XXXX
▲
▼
FAN SET
edit connec-
connected
ECblue
01 - 05
▲
1
P↓ ↑ ESC P↓ ↑ ESC P↓ ↑ ESC
FAN IN-
INFO 01 ON
1200rpm max
Speed
0rpmmin
Speed
P
ESC
FAN IN-
INFO 01 ON
901rpm Speed
900rpm Se-
SetIntern1
NO ER-
ERROR V01.06
FAN 03 01
HALL SENSOR
02.05.2011 1-
14:15:20
FAN SET 01 ON
901rpm Speed
900rpm Se-
SetIntern1
NO ER-
ERROR V01.06
P
2
▲ ▼ ▲ ▼ ▲ ▼
Operating Instructions NETcon A-G-102ANE Operating the NETcon
L-BAL-E156-GB 2105 Index 004 Part.-No.
15/32

FAN INFO xx
OFF
1200rpm max
Speed
0rpmmin
Speed
P
ESC
FAN INFO xx
OFF
0rpm Speed
850rpm Se-
SetIntern2
NO ER-
ERROR V01.06
FAN 17 02
MOTOR
BLOCKED
04.05.2011 1-
14:15:44
FAN SET xx ON
849rpm Speed
850rpm Se-
SetIntern2
NO ER-
ERROR V01.06
P
2
▲ ▼ ▲ ▼ ▲ ▼
... ↓ ...
max. 63 entries
... ↓ ...
max. 20 entries
... ↓ ...
max. 63 entries
ESC
2
FAN SET 01 ON
1200rpm max
Speed
0rpmmin
Speed
▲
▼
FAN SET 01 E-
EDIT
ON in Fan
OFF new
ctrl-enable
▲
▼
FAN SET 01 E-
EDIT
900rpm in
FAN
1100rpm new
SetIntern1
▲
▼
FAN SET 01 E-
EDIT
900rpm in
FAN
850rpm new
SetIntern2
▲
▼
FAN SET 01 E-
EDIT
NOT RESET
reset inter-
interface
▼
1
BROADCAST
common
settings to
ALL FANs
▲
▼
FAN ADDRESS
Set/Get
No. of ECbl-
ECblue
▲
▼
INTERN
Netcon
A-G-102ANE
V01.01
P
ES-
C
INTERN EDIT
Time: 10:48
Dat-
e: 14.04.2011
P↓ ↑ ESC P↓ ↑ ESC ▲ ▼
BROADCAST E-
EDIT
*** ctrl-en-
able
FAN ADDRES-
DDRESS EDIT
NOT Autoad-
utoaddressing
▲
▼
FAN ADDRES-
DDRESS EDIT
05 FANs con-
connected
00 new
INTERN EDIT
Error Histo-
History
CLEAR
▲ ▼ P ▲ ▼
BROADCAST E-
EDIT
1100rpm Se-
SetIntern1
FAN ADDRESS
Autoaddress-
ddressing
in pro-
progress 0
INTERN EDIT
ENABLE A-
Alarm Relais
DISABLE new
Operating Instructions NETcon A-G-102ANE Operating the NETcon
L-BAL-E156-GB 2105 Index 004 Part.-No.
16/32

▲ ▼ ▲ ▼
BROADCAST E-
EDIT
850rpm Se-
SetIntern2
FAN ADDRES-
DDRESS EDIT
05 FANs con-
connected
07 new (Au-
(Autoaddr)
INTERN EDIT
ENABLE D2
STOP
ENABLE new
▲ ▼
BROADCAST E-
EDIT
NOT RESET
reset inter-
interface
Operating Instructions NETcon A-G-102ANE Operating the NETcon
L-BAL-E156-GB 2105 Index 004 Part.-No.
17/32

6.2.2 Operation and parameterising
The selection of the meun group takes place with the arrow keys to the right with [▲], to the
left with [▼].
The parameter of the menu group are displayed with [P]. With the arrow keys you can move
up and down inside the menu group. Leave the menu group via [ESC].
The parameters are altered by pressing [P]. The value now flashing can be adjusted via the
arrow keys. This value is stored by pressing [P] again. Leave the submenu without any
changes using [Esc] .
Example: Alter "SetIntern1" of the fan "FAN 03"
Ziehl-Abeg-
l-Abegg ECblue
System o.k.
14.04.2011 10-
10:48:31
It is a precondition
for a change that PIN
"0010" is entered
and the display "Sys-
tem o.k." is present.
↓ Continue with 4x [▲]
FAN SET
edit connec-
connected
ECblue
01 - 05
The main menu
"FAN SET" appears.
↓ Continue with [P]
FAN SET 01 ON
901rpm Speed
900rpm SetIn-
SetIntern1
NO ER-
ERROR V01.06
Now it will displayed
the first fan. Select
the required fan with
[▲] and [▼] (
Menu plan).
↓ Continue with 2x [▲]
FAN SET 03 ON
901rpm Speed
900rpm SetIn-
SetIntern1
NO ER-
ERROR V01.06
Now it will displayed
the third fan.
↓ Continue with [P]
Operating Instructions NETcon A-G-102ANE Operating the NETcon
L-BAL-E156-GB 2105 Index 004 Part.-No.
18/32

FAN SET 03 ON
1200rpm max
Speed
0rpmmin Speed
Thereupon appear
the first parameters
"max Speed", "min
Speed" (only infor-
mation) with the cur-
rent values (FAN 3).
The next parameter
is shown, when [▲]
is pressed again.
↓ Continue with 2x [▲]
FAN SET 03 E-
EDIT
900rpm in Fan
1000rpm new
SetIntern1
Thereupon appears
the first parameter
"SetIntern1" with the
current value (FAN
3). The current value
begins to flash when
[P] is pressed again.
Flashing values can
be altered via the
arrow keys.
↓ Continue with [P]
FAN SET 03 E-
EDIT
1000rpm in
Fan
1000rpm new
SetIntern1
The amended values
are stored with [P]. If
the new value is not
to be transferred, the
operation can be ter-
minated with [ESC].
Information
The setting of the respective values is done in increments of 10.
Operating Instructions NETcon A-G-102ANE Operating the NETcon
L-BAL-E156-GB 2105 Index 004 Part.-No.
19/32

7 Start-up
7.1 Prerequisites for commissioning
Attention!
1. You must mount and connect the device in accordance with the operating instructions.
2. Double check that all connections are correct.
3. The supply voltage must match the information on the rating plate.
4. Make sure that no persons or objects are in the fan's hazardous area.
7.2 Procedure for commissioning
The address of the fan can be assigned by the automatic addressing function in the
main menu "FAN ADDRESS".
Alternatively can the addressing be done in advance with a hand held terminal. The
number of the addressed fans can then be entered manually.
Procedure:
Ziehl-Abeg-
l-Abegg ECblue
System o.k.
14.04.2011 10-
10:48:31
It is a precondition for the Start-up that PIN "0010" is entered and the
display "System o.k." is present.
↓ Continue with 6x [▲]
FAN ADDRESS
Set/Get
No. of ECblue
Main menu "FAN ADDRESS"
↓ Continue with [P]
FAN ADDRESS E-
EDIT
NOT Autoad-
Autoaddressing
Press [P] and select with [▲] "DO", to start the automatic addressing.
↓ Continue with [P]
FAN ADDRESS
Autoaddress-
ddressing
in progress 8
During the automatic addressing the information window (left) is shown,
where the quantity of the addressed fans are displayed.
↓
Operating Instructions NETcon A-G-102ANE Start-up
L-BAL-E156-GB 2105 Index 004 Part.-No.
20/32
