ZIP HydroTap G4 Celsius
User Guide
®
• Tap Operation..................(Pages 3-5)
• LCD Screen & Menu .......(Pages 6-19)
• Maintenance.................... (Pages 20-23)
• Contact & Details............ (Page 24)
Date of Installation............./........./.........
Affix Model Number Label
Here
802701
ARC CUBE
COMMERCIAL MODELS

Page 2 of 24 802701 - G4 User Guide - 09.2016 - v2.02
NOTES

802701 - G4 User Guide - 09.2016 - v2.02 Page 3 of 24

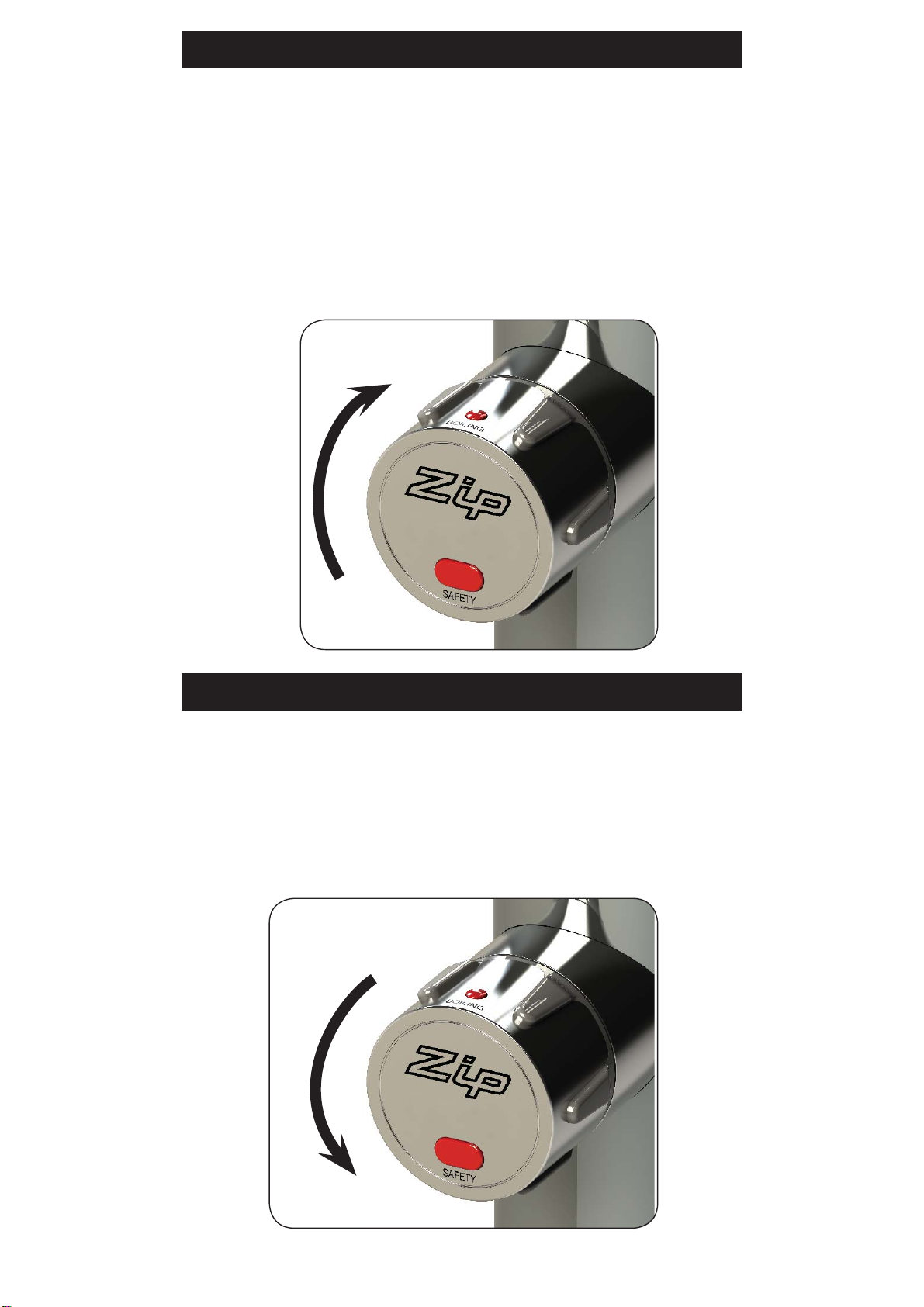

Tap operation - Chilled Sparkling
Turning the rotary control allows the dispensing of either Chilled Sparkling or
Chilled water. For your convenience, the rotary control is spring loaded, so
when released, will return automatically to the OFF position
Rotate for Sparkling water
To dispense Sparkling water: (Model CS175)
To dispense Chilled water: (Model C125/175)
Rotate for Chilled water
Turn the rotary control forward as shown
Turn the rotary control in reverse as shown
Tap operation - Chilled water

Page 4 of 24 802701 - G4 User Guide - 09.2016 - v2.02
Tap operation - Mixer
The Mixer tap lever is operated as
a conventional ‘Flick Mixer’. The hot
side is marked with a red stripe and
the cold side with a blue stripe, for
dispensing cold to warm water.
Lifting the handle up will decrease the
flow rate and lowering the handle will
increase the flow rate. Lift the handle
all the way up to turn the tap off.
When the handle is moved towards
the blue mark, the temperature is
decreased and when moved towards
the red mark, the temperature is
increased. The final temperature will
be dependant on the temperature of
the incoming cold water.
The spout may be swivelled, left or
right, through 170°for convenience.
To dispense Boiling water: with the safety ON.
Tapping the
illuminated RED safety
button twice, with one
finger, will cause the
safety red light to flash
for a few seconds.
While flashing, turn
the rotary control (as
shown) to dispense
boiling water.
(See section G for
safety settings)
Tap operation - Boiling water
Rotate for Boiling water
Safety
To dispense Boiling water: with the safety OFF.
When the RED safety light is OFF, turn the rotary control (as shown) to
dispense boiling water.
Vent
Boiling models

802701 - G4 User Guide - 09.2016 - v2.02 Page 5 of 24
Filter Warning and Reset
Filter Warning Light:
As a reminder that the filter requires changing, the warning light will flash
quickly every 10 secs. (See section on filter maintenance.)
Filter Reset:
The warning light will need to be reset after the filter has been changed.
(See section C)
Safety light
Warning light
Fault Warning Lights:
If there is a fault with
the system, both the
safety light and the
warning light will flash
for 1/2 sec ON and 1/2
sec OFF until the fault
is rectified.
(See section B) or call
an authorised service
man.
Temperature Warning Light:
The warning light will flash slowly for 1 sec On and 3 secs OFF whenever the
water is not at the temperature set point. The tap may be operated, but the
water may not be at the desired temperature . The slow flashing light will turn
off once the water reaches the set point. The set point temperature is user
adjustable (See section G).
Sleep mode (Boiling models)
In SLEEP MODE the unit will Go to “Sleep” after 2 hrs of inactivity, after
which, the home screen status window will show “Sleep Mode”.
The sleep mode may be activated from the settings menu. (See section G).
To wake from sleep mode, first tap the safety twice and then turn the rotary
control.

Page 6 of 24 802701 - G4 User Guide - 09.2016 - v2.02

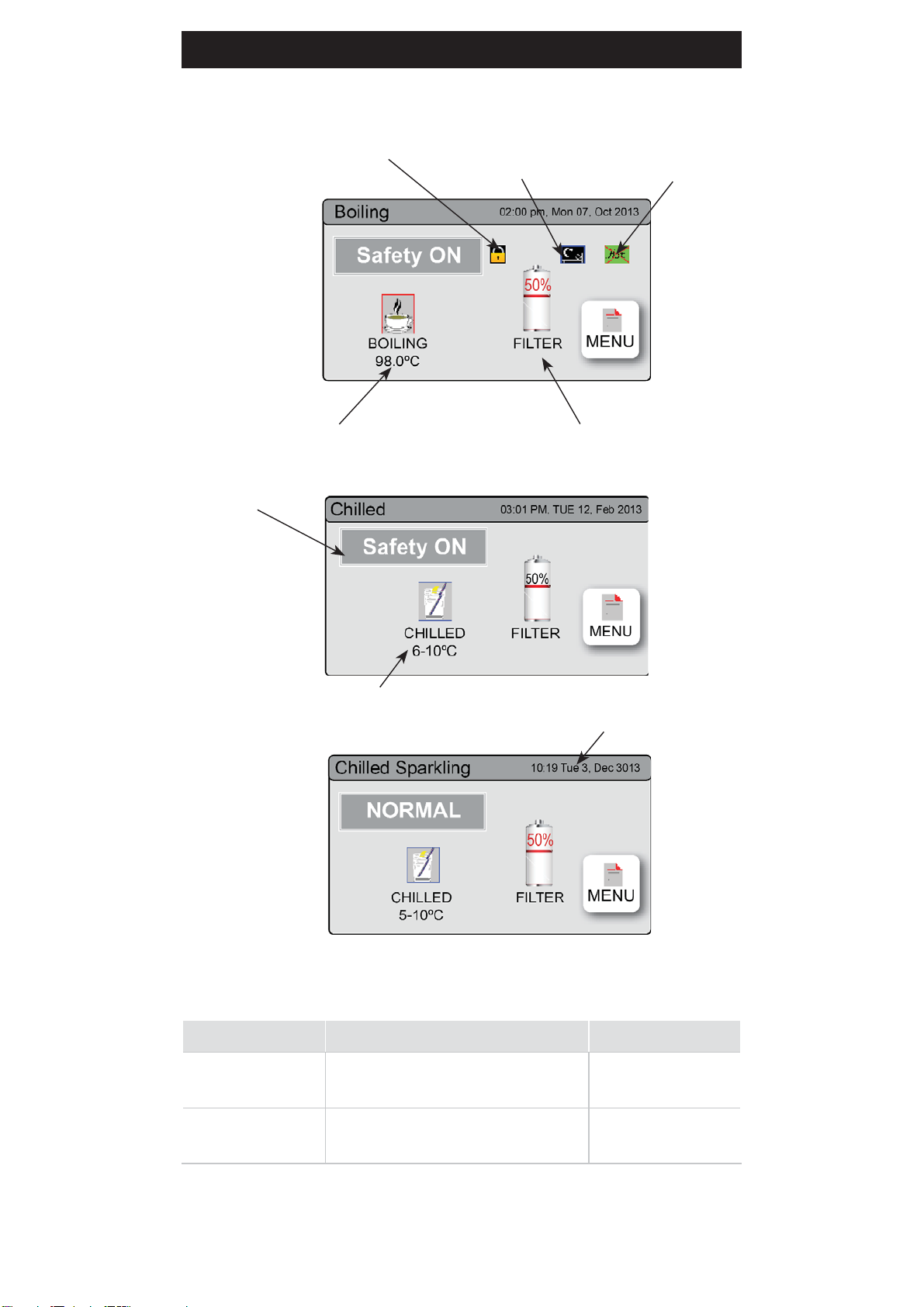

The Zip HydroTap G4 Celsius introduces a ‘TOUCH’ screen for easy setup
and operation adjustment.
Other possible messages in status window:
Status** Information Notes
System Fault Product has one or more system
faults Refer to section B
Change Filter External/Internal filter needs to be
replaced Refer to section C
3LCD Screen
**Status window
Set boiling water temperature Filter usage
Date and Time
Sleep Mode Icon Energy Mode Icon
Safety lock Icon
Set chilled water temp.
B160/240
window
C125/175
window
CS175
window
NOTE: As an energy saving feature, the home screen will turn OFF After
5 minutes of non use. Touching the darkened LCD panel will reactivate the
home screen.

802701 - G4 User Guide - 09.2016 - v2.02 Page 7 of 24
3LCD Screen Menu
Main Menu Sub Menu Sub Menu Options Section
Language
• English
• German
A
• Product Info
• System Faults
• Event Log
• Product serial no.
• Lists
B
Information
Installation
• Filter Flush
• Filter Reset
• Reset options
• Calibration options
C
Service Password protected
D
Security
• Enable Password
• Set Password
• Change Password
E
Communication
• Remote Monitor
• Remote Control
• Wifi Options
F
Settings
• Date/Time
• Temperature
• Filter
• Energy Modes
• Safety
• Dispense Times
• 12hr/24hr Mode
• Hot/Cold Setpoint
• Filter Life (Litres)
• Filter Life (Months)
• Sleep Mode Options
• Safety Lock
• Hot/Cold Dispensing
G

Page 8 of 24 802701 - G4 User Guide - 09.2016 - v2.02

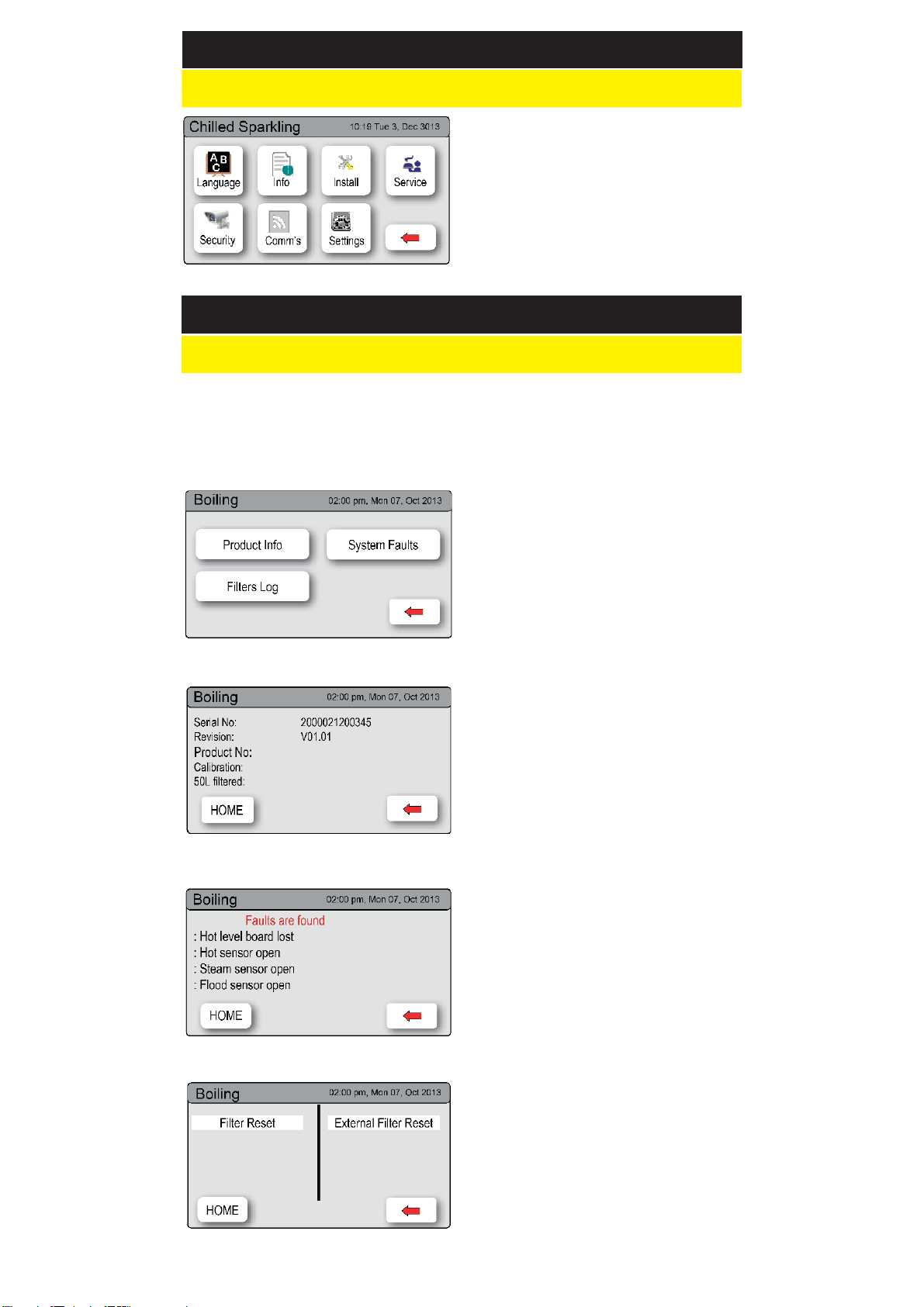

A Set Language
B System Information
In this section, you can find your product serial number , check system fault
messages or view the event logs of your product.
LCD Screen operation - Section A
LCD Screen operation - Section B
1. Press [Product Info] to view the
product serial no.
2. Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
1. Press[SystemFaults]to checkthe
fault information;
2. Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
1. Press [Filtert Log] to view the
system’s filter log.
2. Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
1. Press the [MENU] button for main
menu.
2. Press the [Info] button to view the
product serial number and other
key information
1. Press [MENU] for main menu.
2. Press [Language] button.
3. Select the preferred language
4. Press [<=] button for the previous
menu

802701 - G4 User Guide - 09.2016 - v2.02 Page 9 of 24

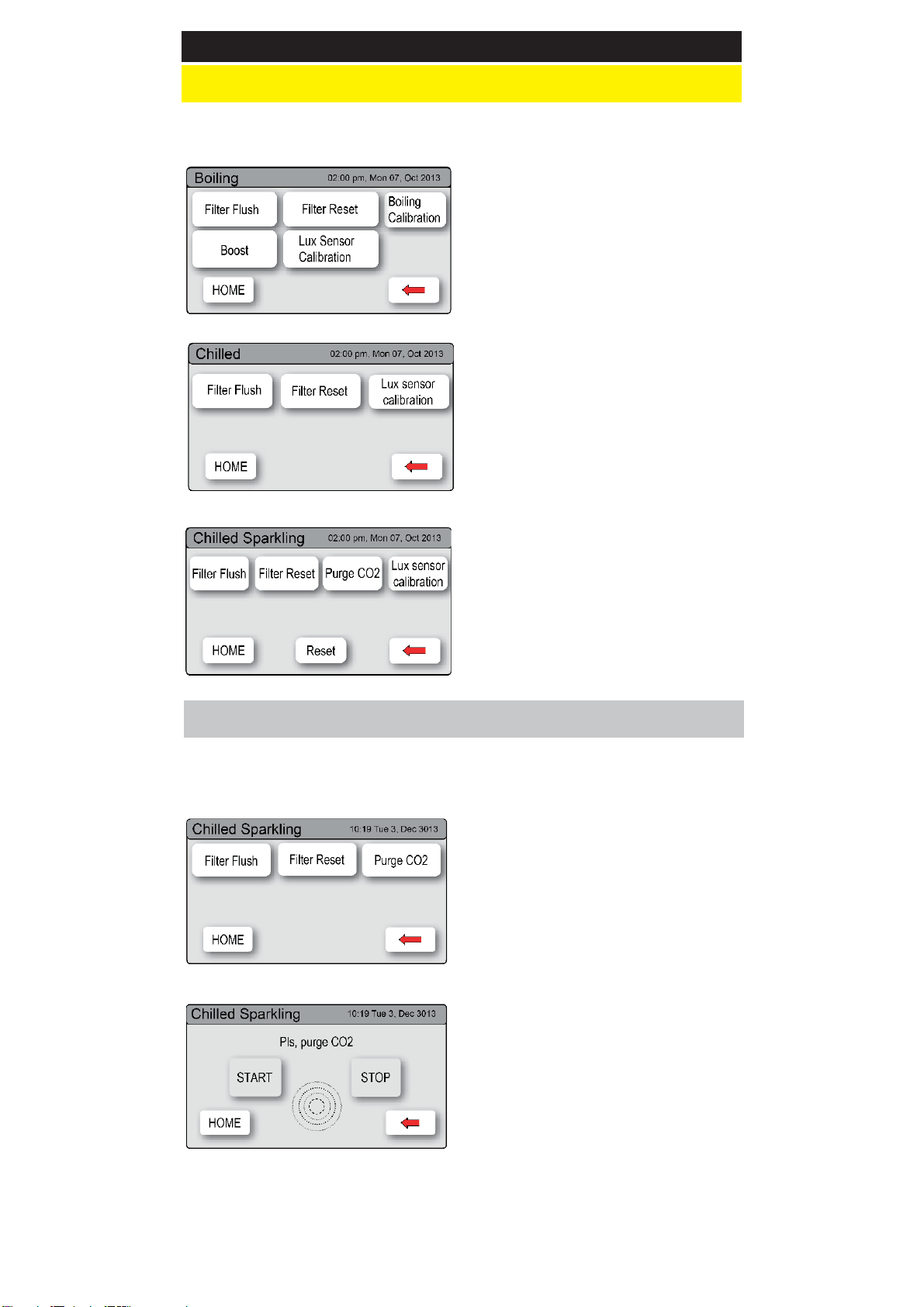

C Install
Once your Zip HydroTap G4 unit has been installed, Go to Install menu to
configure the system settings for your product.
B160/240 Screen
Sub menu:
1. Filter Flush
2. Filter Reset
3. Boiling Calibration
4. Booster
5. Lux Sensor Calibration
LCD Screen operation - Section C

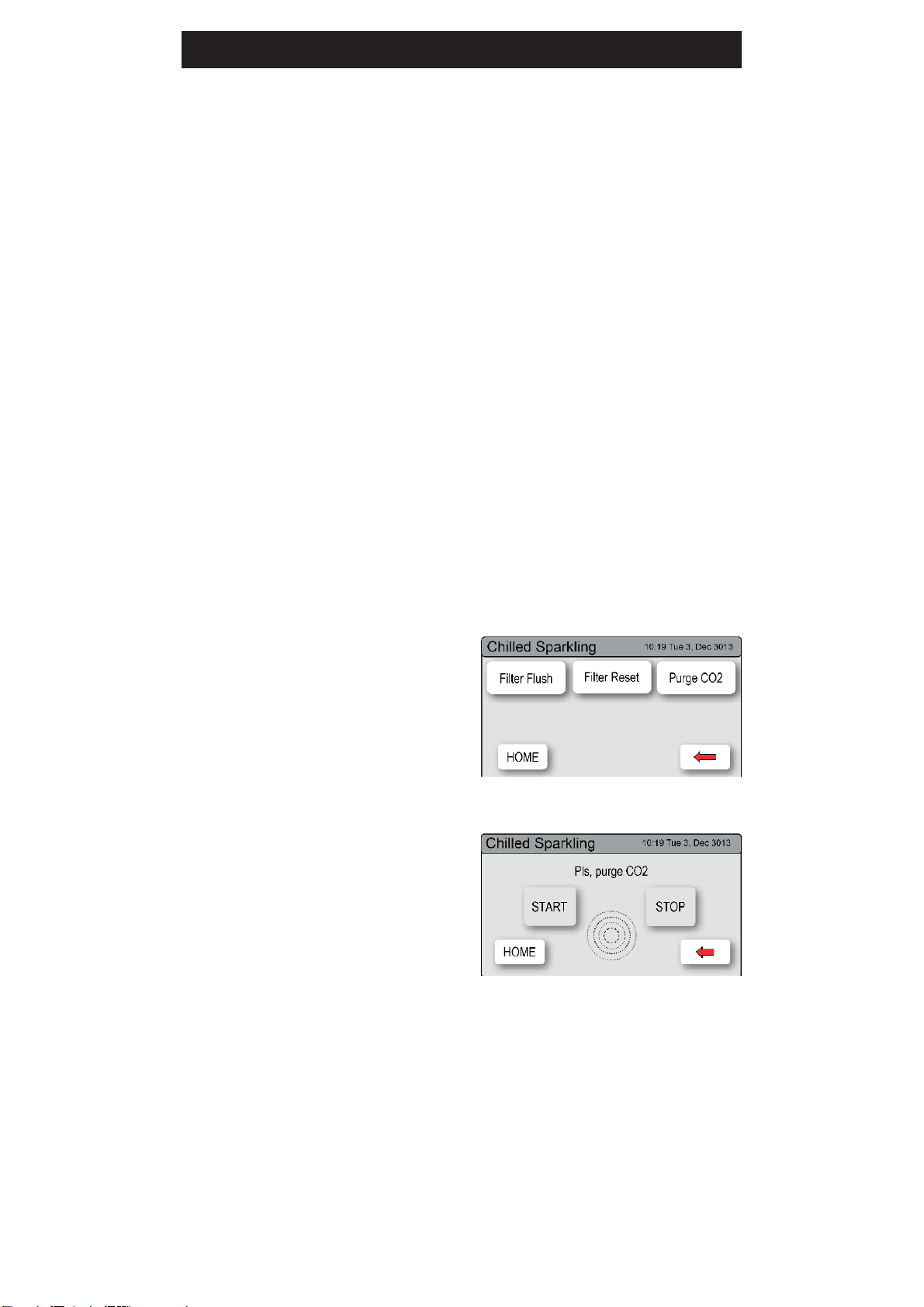

CO2Purge (CS175 Model)
When fitting a new gas bottle, it is important to purge the gas lines.
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Purge CO2] button.
4. In the next screen, press the
[START] button to commence the
purging process.
5. Wait for the water to stop flowing
through the unit.
6. Wait a further 10 seconds after the
water has stopped flowing. During
this time you will hear the CO2gas
escaping through the tap.
7. Press [STOP] to end the purge.
8. Press [<=] button for the previous
menu or press the [Home] button to
return to the home screen.
C125/175 Screen
Follow 1,2 & 5.above
CS175 Screen
Follow 1,2 & 5.above
Follow CO2purge below

Page 10 of 24 802701 - G4 User Guide - 09.2016 - v2.02

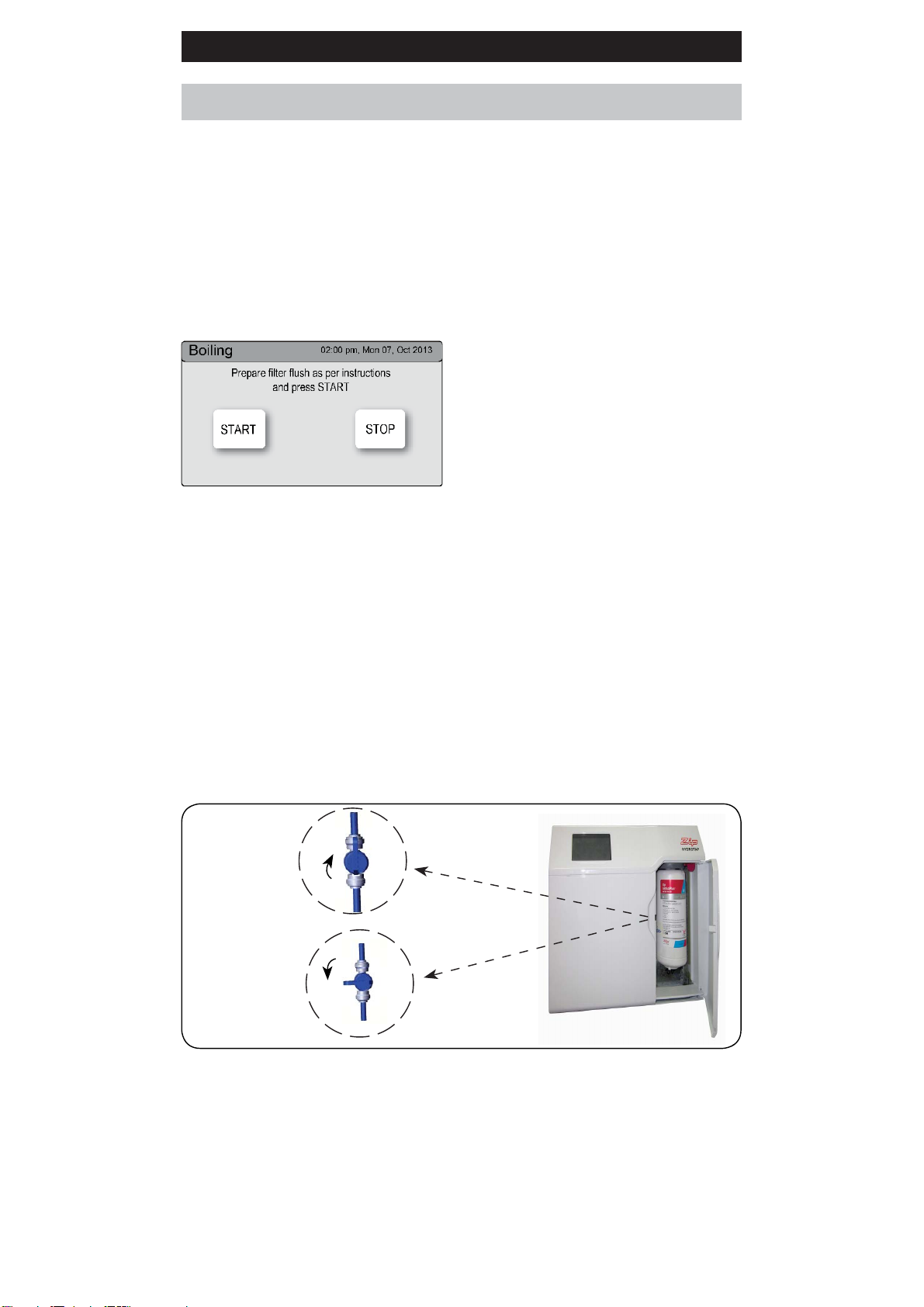

Have a 10L bucket or similar container (not supplied) at the ready to hold
a quantity of water that will be ejected while the Filter Flush Mode is in
operation. Open the filter access door on the front of the HydroTap and the
filter cartridge will be exposed. Located to the rear RHS of the cartridge is a
flush line, approx 600mm long and the flush line stop cock. Place the valve
end of the flush line into the 10L bucket or container (not supplied).
1 - Filter Flush (All)
NOTE: Run at least 10 Ltrs
of water through to flush the
filter of any excess black carbon
particles (this is normal). Once
the filter flush has finished,
press the Stop button to display
the main menu
OPEN
Position
CLOSED
Position
ON
OFF
1. Press the [MENU] button for main
menu.
2. Press the [Install] button. Turn the
stop cock ON.
3. Press the [Filter Flush] button.
4. Press [Start] button to start filter
flush. Once the filter flush is
finished, Turn the stop cock OFF
first (to ensure the cock is properly
closed) then press [Stop] to end
filter flush mode.
5. Press [<=] button for the previous
menu or press [Home] button to
return to the home screen.
6. After initial installation, Turning
OFF the Filter Flush Mode puts
the HydroTap into calibration
mode. With subsequent filter
C125/175nges, the system reverts
to the main menu.
The Zip HydroTap allows the user to adjust the filter life and to edit the filter
usage. (See filter details on Pages 14 -15).
LCD Screen operation - Section C

802701 - G4 User Guide - 09.2016 - v2.02 Page 11 of 24
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Filter Reset] button.
4. Tosetthefilterlifeoreditfilterusage,
refer to section G- Filter.
After replacing the filter, the counters should be reset
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Hot Calibration] button.
4. In the next screen, press [Calibrate] if
you want to start calibration.
Boiling Calibration Screen
3 - Boiling Calibration (Boiling models)
1. Press the [MENU] button for main
menu.
2. Press the [Install] button.
3. Press the [Booster] button.
4. If a Booster is installed, select YES to
enable the Booster.
5. Dispense boiling water for a minimum
of 30 secs and check the outlet hose
from the Booster is warm.
6. Otherwise select NO, if no Booster is
installed
This function should only be considered when a Booster unit is installed.
G4 HydroTap Booster Screen
4 - Booster (Boiling models)
NOTE: Failing to make the correct selection for ‘Booster’ will effect product
performance.
2 - Filter Reset (All)
LCD Screen operation - Section C
NOTE: Occasionaly the system will vent steam from the tap. This is normal
operation as HydroTaps are programmed to re-calibrate at regular intervals.
On start up, the Zip HydroTap starts a self-calibration program. The controls
take the system through the calibration process. Once complete, the system
reverts back to normal operation. If you would like to calibrate the system
anytime after initial installation, please follow the steps below.

Page 12 of 24 802701 - G4 User Guide - 09.2016 - v2.02
NOTE: In Australia call a licensed electrician, plumber,or Zip office on
1800-638-633, for assistance, service, spare parts, or enquiries.
D Service
LCD Screen operation - Section D

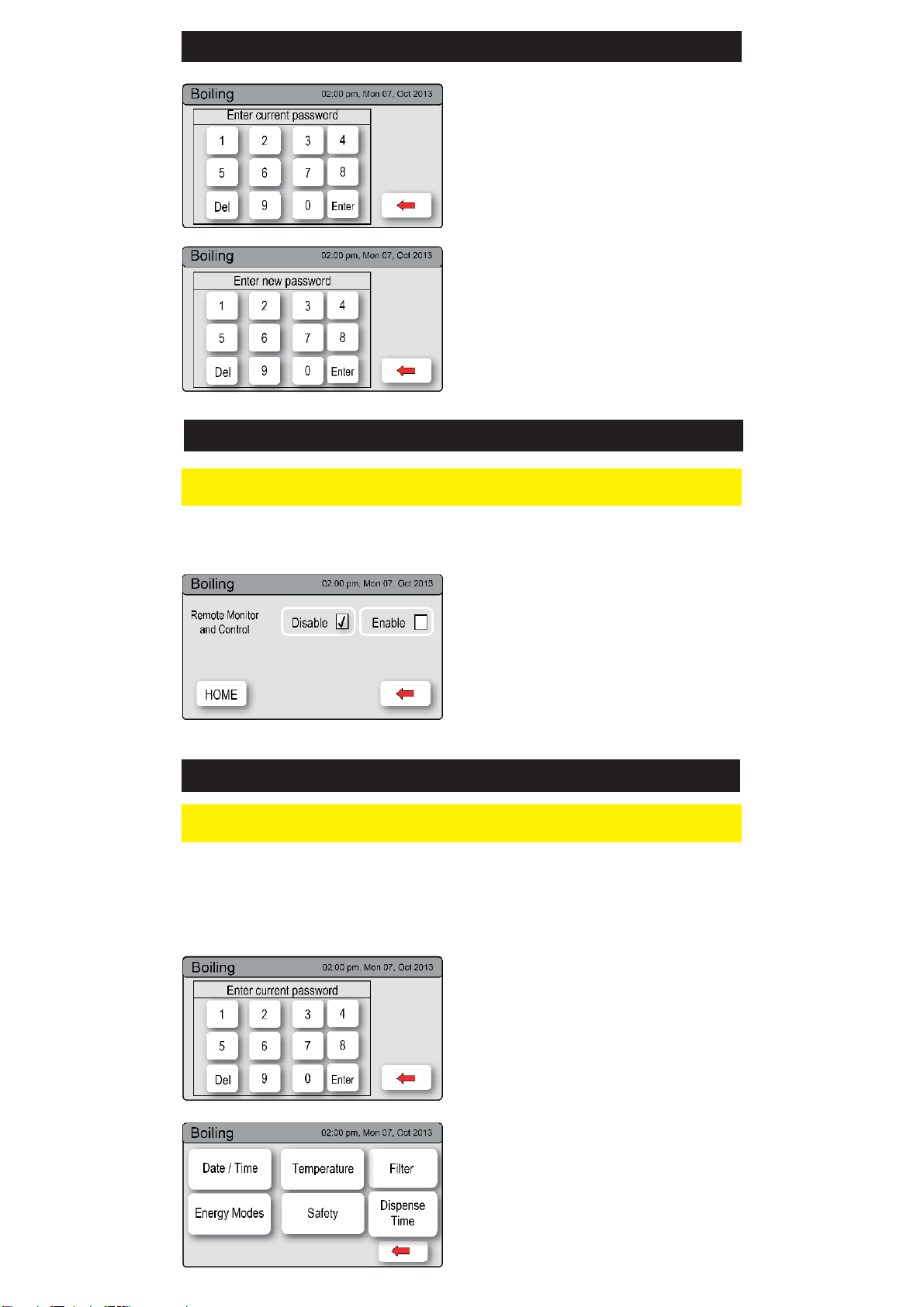

E Security
The Zip HydroTap G4 allows the appliance coordinator to set up a password
to protect against users changing the preferred system settings.
To set a password
1. Press the [MENU] button for main
menu.
2. Press the [Security] button.
3. Press [Change Password}
4. Enter a 4 digit password
5 - Lux (light level) Sensor Calibration (All)
1. Press [MENU] button for main
menu.
2. Press [Install] button.
3. Press [Lux Sensor Calibration]
button.
4. The lights on the Tap head will flash
to confirm calibration.
5. Check for correct tap operation
by selecting ‘Lux Sensor-> OFF’.
When the room is darkened (below
the calibrated light level), the
tap lights will turn OFF after 24
seconds.
LCD Screen operation - Section E
This section is reserved for service technicians only

802701 - G4 User Guide - 09.2016 - v2.02 Page 13 of 24
To change a password
1. Press the [MENU] button for main
menu.
2. Press the [Security] button.
3. Press [Change Password}
4. Enter your old 4 digit password
5. Then enter your new 4 digit
password. You will need to
enter your password to access
the settings screen. If you have
forgotten the password, please
disconnect the power and restart
your HydroTap unit.
F Communication (when available)
The Zip HydroTap G4 allows the user to use wifi to monitor & control the
product remotely.
Not yet available
G Settings (All)
3. LCD Screen operation - Section G g Instructions
1. Press the [MENU] button for main
menu.
2. Press the [Settings] button.
4. Then enter your 4-digit password.
LCD Screen operation - Section F
If, in section E, you have set a password, then you will need to enter your
password to access the settings screens. If you have forgotten the password,
please disconnect the power and restart your HydroTap unit.
LCD Screen operation - Section E

Page 14 of 24 802701 - G4 User Guide - 09.2016 - v2.02
3. LCD Screen operation - Section G tions
1. Press the [MENU] button for main
menu.
2. Press the [Temperature] button.
3. To adjust the temperature, press
the relevant temperature button and
then use the up and down arrows.
4. Press[HOME] to returntothe Home
screen.
Zip HydroTaps are designed to operate within 1ºC to 2ºC of set point for
boiling water and between 5ºC to 9ºC (3ºC to 5ºC for CS175) for chilled
drinking water. All boiling water units are self calibrating to 98ºC, which is the
recommended setting. Adjustments to the 98ºC setting are not recommended
however, under certain circumstances adjustments may be made between
68º - 100ºC. It should be noted that a 6% energy saving in standby power
can be achieved when the 98ºC setting is selected over the 100ºC setting.
Furthermore, the 100ºC setting is not recommended as the delivery rate of
water may be affected.
Set Temperature
1. Selectindividuallythehour,minutes
and day and adjust using the up
and down arrows.
2. Select individually the date, month
and year and adjust using the up
and down arrows.
3. Press [HOME] to return to the
Home screen.
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Date/Time] button.
4. Select either 12 hour or 24 hour
mode. The selected mode will be
displayed in a dark grey colour with
a tick box on the right.
5. Press [NEXT] to set the time and
date
G4 HydroTap Set
Date/Time Screen
Set Date / Time

802701 - G4 User Guide - 09.2016 - v2.02 Page 15 of 24
To edit the filter life:
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Filter] button.
4. Press the [Filter Life] button, for
Internal or External filter.
5. To change filter life, first select filter
life (Litres) or filter life (Months),
then adjust using the up or down
arrows.
NOTE: Filter Life increases in 500
litre increments to a maximum of 10000
litres. Factory set at 6000 litres.
Filter
Zip HydroTap G4 allows the user to adjust filter life and edit filter usage.
To edit the filter usage:
This function is to reset the Filter change
display after a filter has reached the
end of its life (refer to “Replace Filter
Instructions” section of this document).
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Filter] button.
4. Press the [Edit Filter] button for
Internal or External filter.
5. To edit, select Edit Usage (Litres)
or Edit Usage (Months), then adjust
using the up or down arrows.
6. Press [HOME] to return to the Home
screen.
3. LCD Screen operation - Section G
Note: The filter life may be set as a
function of Litres used, or in months
from the filter change. When the first of
these functions is reached (i.e. Litres or
months expired), the filter warning light
will be illuminated on the tap.
Either of these functions may be
disabled (See below).

Page 16 of 24 802701 - G4 User Guide - 09.2016 - v2.02
LCD Screen operation - Section G
Sleep Mode Light
Level Time Delay State Boiler Chiller
2 Hours-> 68°C N/A 2 Hr Sleep 68°C ON
2 Hours-> OFF N/A 2 Hr OFF OFF OFF
Lux Sensor->68°C Dark N/A Sleep 68°C ON
Lux Sensor-> OFF Dark N/A OFF OFF OFF
Lux or 2 Hr-> 68°C Dark 2 Hr Sleep 68°C ON
Lux or 2 Hr-> OFF Dark 2 Hr OFF OFF OFF
Disable N/A N/A ON ON ON
This mode allows the HydroTap to Go into Energy Saving mode. There are
two options available: ‘Sleep’ mode and ‘ON/OFF’ mode.
To activate the sleep mode:
1. Press [MENU] button for main
menu.
2. Press [Setting] button.
3. Press [Energy Modes] button.
4. Press [Sleep Modes] button then
in the next screen, use the up and
down arrows to select one of the
7 options, as shown in the table
below.
Energy Modes (Boiling models)
In SLEEP MODE the unit will Go to “Sleep” after a 2hr period of
inactivity. The Boiling water will gradually drop to either 68°C or room temp,
as shown in the table below and the Chilled water will be ON or OFF.
When the period of inactivity passes, the home screen status window will
show “Sleep Mode”.
Lux (Light) Sensor Calibration:
It is recommended to recalibrate the Lux (Light) Sensor after selecting any of
the 4 Lux sensor options from the sleep mode menu. Before commencing,
ensure there are ‘Normal to Dim’ (Not Dark) operating light conditions.
Note: Refer to section C5 on Page 12 for calibration procedure
Note: Any attempt, during OFF mode, to dispense water, will bring the unit
out of sleep mode. The unit will return to sleep mode after 2 hours of non
use. Please allow sufficient time for the water to reach the set temperature
after disabling the sleep mode.

802701 - G4 User Guide - 09.2016 - v2.02 Page 17 of 24
To activate ON/OFF mode:
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. If required, Enter your 4 digit
password
4. Press the [Energy Modes] button.
5. Select ‘Individual set’ if you wish
to allocate a specific time for each
day.
6. Select ‘group set 1’ if you wish to
allocate the same time to all 7 days
7. Select ‘Group set 2’ if you wish
to allocate the same time to the
5 working days (Mon-Fri) and
additional times for (Sat-Sun).
This screen allows you to select the
individual days for programming.
Only one ON /OFF period is allowed for
each day
In ON / OFF Mode the user may turn the unit ON or OFF at specific times
for individual days or alternatively by weekly and/or weekend settings.
Individual set screen
Group set screen
A
A
LCD Screen operation - Section G
1. Press Group 1 or Group 2 option
2. Press button to enable / disable
group set. When the enable box is
ticked, this allows each individual
day to have an “On/Off“ time.
3. Press [ON/OFF Modes] button, to
set up ON/OFF time.
4. When in Group 2 Press [NEXT] to
select Sat-Sun options
Note: Any attempt, during OFF mode, to dispense water, will bring the unit
out of energy mode. The system will revert to the energy mode setting after
30 minutes of non use.

Page 18 of 24 802701 - G4 User Guide - 09.2016 - v2.02

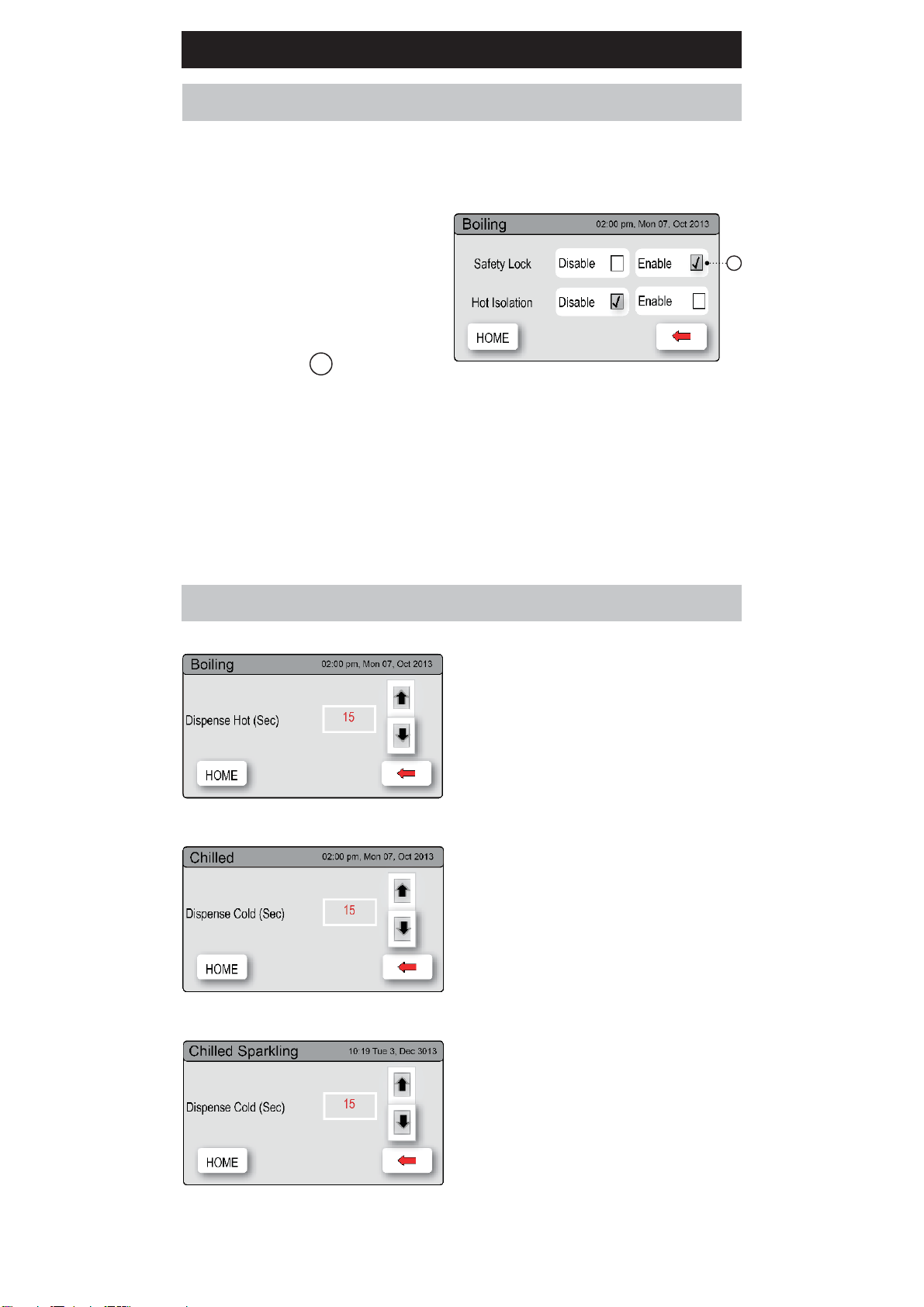

Dispense Times (All) The ability to change the maximum
dispensing time for both the Hot and
Chilled water has been introduced.
The default settings for the maximum
dispensing times is 15 seconds.
Here, the operator may change both
the Hot and Chilled dispensing times
to between 5 and 15 seconds, in
increments of 1 second.
To edit the dispensing times:
1. Press the [MENU] button for main
menu.
2. Press the [Setting] button.
3. Press the [Dispense Time] button.
4. Select the option to change and
scroll using the up and down arrow
Keys.
5. Press [HOME] to return to the Home
screen.
LCD Screen operation - Section G
NOTE: The Hot Isolation function is not actionable for the Celsius range of
taps
Safety (Boiling models)
Boiling Only Models
To set the safety using the touch screen:
1. Press the [MENU] button for
main menu.
2. Press the [Setting] button.
3. If required, Enter your 4 digit
password
4. Press the [Safety] button.
5. Press button to Enable /
Disable, the safety lock feature on the tap.
NOTE: When Disabled, boiling water may be dispensed from the Hydrotap
by rotating the control anticlockwise.
B
B

802701 - G4 User Guide - 09.2016 - v2.02 Page 19 of 24
2.6kg Gas bottle Change
1. Turn the CO2bottle, black knob, OFF (Clockwise).
2. Turn the regulator, grey knob, all the way out (Anti clockwise).
3. Dispense sparkling water for 30 seconds, until the water flow is free of gas
4. Remove the regulator assembly from the bottle by unscrewing the large
chrome nut. It is not necessary to remove the hose from the regulator. Be
aware that some CO2may be discharged from the bottle joint.
5. Be careful not to lose the plastic sealing washer, inside the chrome nut.
6. If the hose is removed from the regulator, be careful not to lose the sealing
olive
7. Removethebottlefromthecradlebylooseningthehook-and-loopsecuring
strap.
8. Fit the regulator and hose assembly to the new gas bottle. Ensure all the
seals are in place.
9. Fit the bottle in an upright position (use the hook-and-loopsecuring strap).
10. Turn the regulator grey knob, ON (Clockwise) and adjust to betweem 2.7-
3.0 bar. (Green zone on dial).
11. Check all joints for gas leaks using a sponge and soapy water.
12. Press the [MENU] button for main menu.
13. Press the [Install] button.
14. Press the [Purge CO2] button.
15. In the next screen, press the
[START] button to commence the
purging process.
16. Wait for the water to stop flowing
through the unit. Wait a further
10 seconds after the water has
stopped flowing. You will hear the
CO2gas escaping through the tap.
17. Press [STOP] to end the purge
18. Press [<=] button for the previous
menu or press the [Home] button to
return to the home screen.
19. The display screen should revert to
Normal operation.
20. Dispense some sparkling water from the tap and perform a taste test.
Note: Do not discard your empty 2.6kg bottle.
The 2.6kg bottles are refillable. Return the empty bottle to your nearest Zip
service centre for exchange.

Page 20 of 24 802701 - G4 User Guide - 09.2016 - v2.02
Filter Maintenance
To Change the Filter: (See also Section C)
1. Open the door of the under sink unit.
2. Relieve system pressure via the filter flush stop cock, a quick open and
close will do. Use the bucket to catch the discharge.
3. Grasp filter cartridge, depress the red lever at the top right of the filter and
rotate the cartridge a quarter turn to the left, then gently pull down.
4. Caution: a small amount of water will drip as the cartridge is removed.
5. Do not tilt the cartridge as water may spill from it if tilted.
6. Unpack replacement cartridge and remove sanitary cap, write today’s
date where shown on the label.
7. Avoid touching the filter O-rings and filter opening as this may cause
bacterial contamination of the cartridge.
8. Moistenthe O-ringswithwater, alignthefront cartridgelabelto the left(as
shown in the “insert filter” diagram for filter cartridge replacement), and
push the new cartridge into the filter head.
9. Turn the cartridge a quarter turn to the right until the cartridge comes
to complete stop and is locked into position, with the front label facing
forward.
10. Initiate the filter flush programme by scrolling through the menu screen
(See section C).
11. When completed, wipe up any spills and dispose of spent filter cartridge
and packaging thoughtfully.
12. Close the door to secure the appliance.
13. Adjust the filter settings in Section G - filter - Litres and Days used.
The Zip HydroTap notifies when a filter replacement is due. If you notice one
of the following, you will need to change the filter:
• The change Filter light will flash until reset. (See Section C)
• The filter percentage will change to 0% on the screen.
NOTE: Depending on local water quality conditions and usage, the filter may
require changing anywhere from 500 Litres to 10000 Litres. You may also
need to replace the filter if you notice unpleasant odours or tastes.
Some water may drip from the filter head (socket) during replacement. Keep
a towel handy to dry up any drips.
