Faucet operation ...........................................3
Touch-Free Wave................................................... 4
Classic Faucet.........................................................6
Celsius AIO, Arc, Cube ............................................8
Celsius AIO Mixer ................................................. 10
Touch Screen ................................................11
A Set language, units of measure.........................13
B System information .........................................13
C Install ............................................................. 14
D Service............................................................ 18
E Security .......................................................... 18
F Communication - WiFi (selected models) ........ 18
G Settings .......................................................... 19
Maintenance .............................................. 24
Cleaning...............................................................24
Water Filter ..........................................................24
Air inlet filter .......................................................26
Gas bottle change (sparkling models) .................. 27
Home menu icons ........................................29
HydroTap®G4
User guide
Scan QR Code
to download the
latest version of
this document.
English French
PRODUCT LABEL

Page 2 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Thank you for purchasing a Zip HydroTap!
Enjoy instant filtered boiling, chilled and/or sparkling water from
the Zip HydroTap. The HydroTap Command Center, installed
under the bench, has a color touchscreen display, energy saving
mode and internal water filter.
This user manual has been written according to firmware version
023-B03.0.00.
For the latest user manual, please check us.zipwater.com

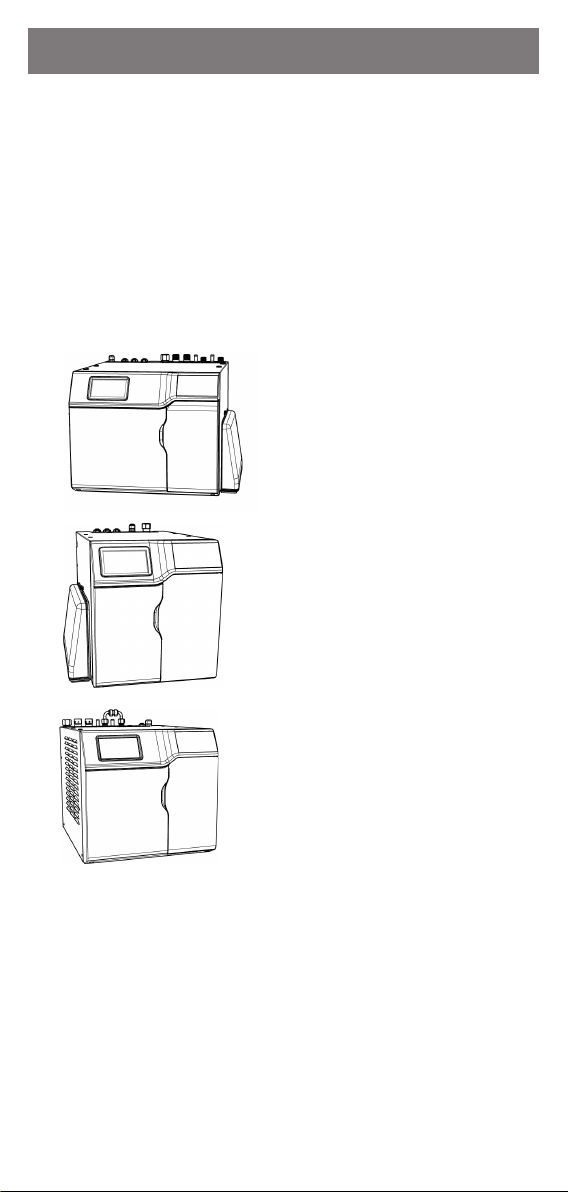

HydroTap Command Centers
Boiling/Chilled
Boiling/Chilled/Sparkling
Chilled/Sparkling

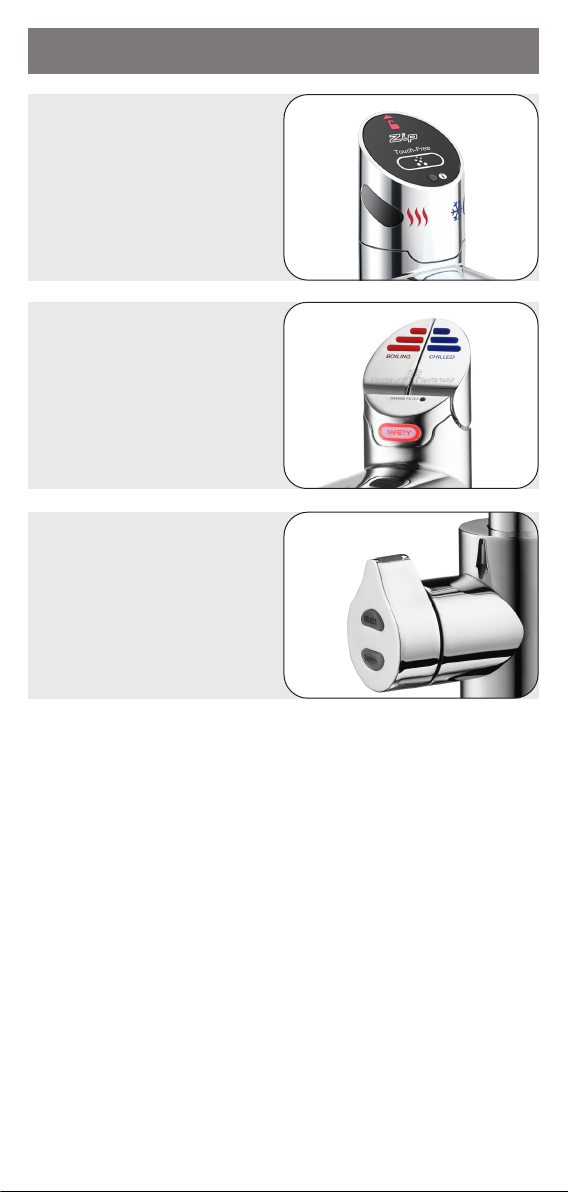

805846US v1.04 06.21 HydroTap G4 User Guide Page 3 of 32
Touch-Free Wave
page 4
Celsius All-in-One,
Arc & Cube
page 8
Faucet operation
Classic Faucet
page 6

Page 4 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Touch-Free Wave
Boiling water
BC, BCS models
Touch-Free sensor control
Controls
Rear sensor: boiling
lock (boiling models)
Side sensor
(water type varies
with model)
Side sensor
(water type varies
with model)
Top sensor
(sparkling models)
Chilled/Ambient water
BC, BCS, CS models
Sparkling water
BCS, CS models
!
WARNING!
BOILING WATER
+
Indicator LED
Sensor range:
1 - 5cm
(½” - 2“)
Chilled Ambient
Side + Rear sensor: bottle fill
Sparkling
Top + Rear sensor: bottle fill

805846US v1.04 06.21 HydroTap G4 User Guide Page 5 of 32

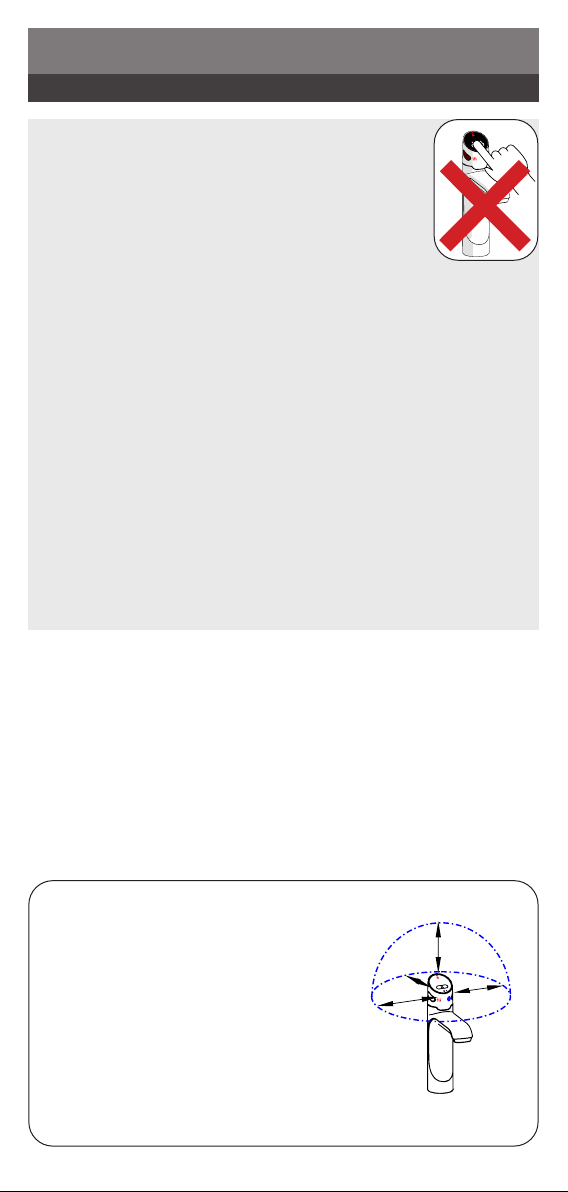

NOTE:
Ensure 100mm (4”) clearance around
the faucet sensors.
The Touch-Free Wave faucet will not
operate in temperatures below 10°C
(50°F).
Do not use abrasives to clean the
sensor lenses! This could cause
permanent malfunction and void
warranty.
Touch-Free Wave
Lights
To dispense, hold your hand within 1 to 5cm
(½” - 2”) of the sensors. The faucet will not
operate if the sensors are touched.
Indicator LED
RED: Boiling and safety sensors activated,
water dispensed.
BLUE: Chilled sensor activated, water dispensed.
WHITE: Sparkling sensor activated, water dispensed.
PURPLE: Lock mode on (when faucet is idle).
Flashing RED: Sensor activated incorrectly; your hand
may be too close to sensor, sensor has been touched or
covered.
Flashing alternately WHITE/BLUE/RED: Service or
maintenance required. Refer to the Command Center
LCD screen.
WHITE flashing rapidly: Sensors calibrating when power
is first applied. Allow 10 seconds.

Page 6 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Boiling water
BC, BCS models
Press/Pull RED lever
+
Touch SAFETY
(if SAFETY ON - RECOMMENDED)
Chilled water
BC, BCS, CS models
Press/Pull BLUE lever
Sparkling water
BCS, CS models
Press/Pull BOTH levers
Classic Faucet
Controls
Press/Pull controls
Press to dispense
(auto return)
Pull for timed dispense
(manual return)

805846US v1.04 06.21 HydroTap G4 User Guide Page 7 of 32
Classic Faucet

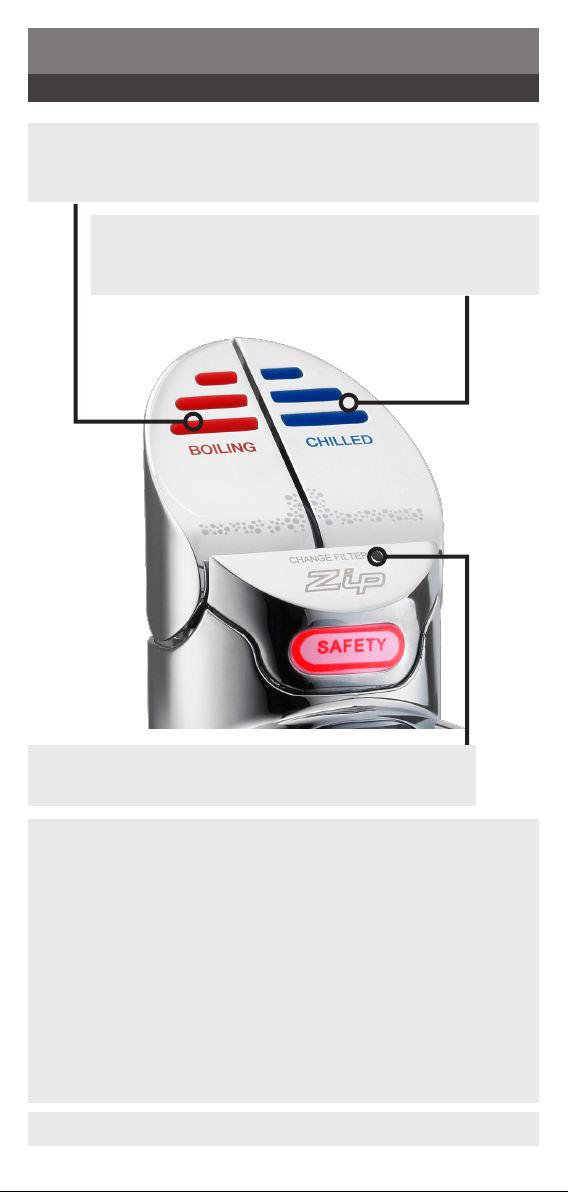

Lights
Red lights on: Boiling water at set temperature
Flashing slowly: Boiling water below set temp
Flashing quickly: System fault - refer to LCD screen
Blue lights on: Chilled water at set temperature
Flashing slowly: Chilled water above set temp
Flashing quickly: System fault - refer to LCD screen
All lights flashing: System fault - refer to LCD screen
Filter light off: Filter within lifespan
Flashing: Filter change due (see page 24)
Safety lock sensor RED: Safety lock active
OFF: Safety lock is not active
At installation, recalibrate light sensor: Do not cover
safety lock sensor.
• In normal operating mode and safety enabled, turn the
power OFF.
• Pull both faucet levers to the forward position.
• Turn ON the power. The HydroTap will calibrate the
safety switch. Return the levers to the neutral position.
• To check calibration, dispense boiling water in normal
light conditions, with the safety enabled.

Page 8 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
Celsius AIO, Arc, Cube
Controls
Boiling water (BC, BCS)
Touch SELECT until RED.
Touch SAFETY 2x.
While lights flash RED, rotate
the control back or forward to
dispense.
Rotating control
Rotate back to dispense
(auto return)
Rotate forward for
timed dispense
(manual return)
Touch for water type:
BLUE chilled (default)
WHITE sparkling
RED boiling
SELECT
SAFETY
SAFETY
SELECT
x2
RED
Sparkling water (BCS, CS)
Touch SELECT until WHITE.
With WHITE light on, rotate control
back or forward to dispense.
SELECT
WHITE
Chilled water (BC, BCS, CS)
Touch SELECT until BLUE.
With BLUE light on, rotate control
back or forward to dispense.
SELECT
BLUE

805846US v1.04 06.21 HydroTap G4 User Guide Page 9 of 32
Celsius AIO,Arc, Cube
Lights
SAFETY light
RED: Safety lock on.
All three lights flashing, once every 10 seconds: Filter
change due (see page 24)
SAFETY
SELECT light
BLUE (default): Chilled water at set temperature, ready to
dispense
- Flashing slowly: Chilled water above set temp
- Flashing quickly: System fault - refer to LCD screen
RED: Boiling water at set temperature
- Flashing slowly: Boiling water below set temp
- Flashing quickly, 2 secs: Ready to dispense boiling water
WHITE: Ready to dispense sparkling water
SELECT
Indicator light
ON (RED or BLUE): Water at set temperature

Page 10 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
To increase the flow rate, move the handle away from
the faucet. To decrease the flow rate, return the handle
towards the faucet.
To decrease temperature, move the handle towards the
BLUE mark. To increase temperature, move the handle
towards the RED mark. Final temperature will depend on
the temperature of the incoming cold water.
Celsius AIO Mixer
Controls

805846US v1.04 06.21 HydroTap G4 User Guide Page 11 of 32
The HydroTap has a touch screen for easy setup and
operation adjustment.
The screen will turn OFF after 5 minutes of non-use. Touch
the screen to reactivate.
Status window messages:
*Status Information Notes
Safety ON Safety lock is activated (this
cannot be disabled)
Refer to section G
- Safety
System Fault Product has one or more
system faults
Refer to section B
Sleep Mode System is in sleep mode.
Boiling water or hot water is
not available.
Refer to section G
- Energy mode
Change
Filter
External/Internal filter needs
to be replaced
Refer to section C
System Off Off mode. Boiling, chilling,
and filling functions are off.
Refer to section G
- Energy mode
Hot Isolated Hot isolation has been
activated. Boiling water or
hot water is not available.
Refer to section G
- Safety
Touch Screen
Product model
Status window*
Safety lock Sleep mode Hot isolation mode
Set Boiling Temp Set Chilled Temp Menu button
Date/time
Filter usage

Page 12 of 32 805846US v1.04 06.21 HydroTap G4 User Guide

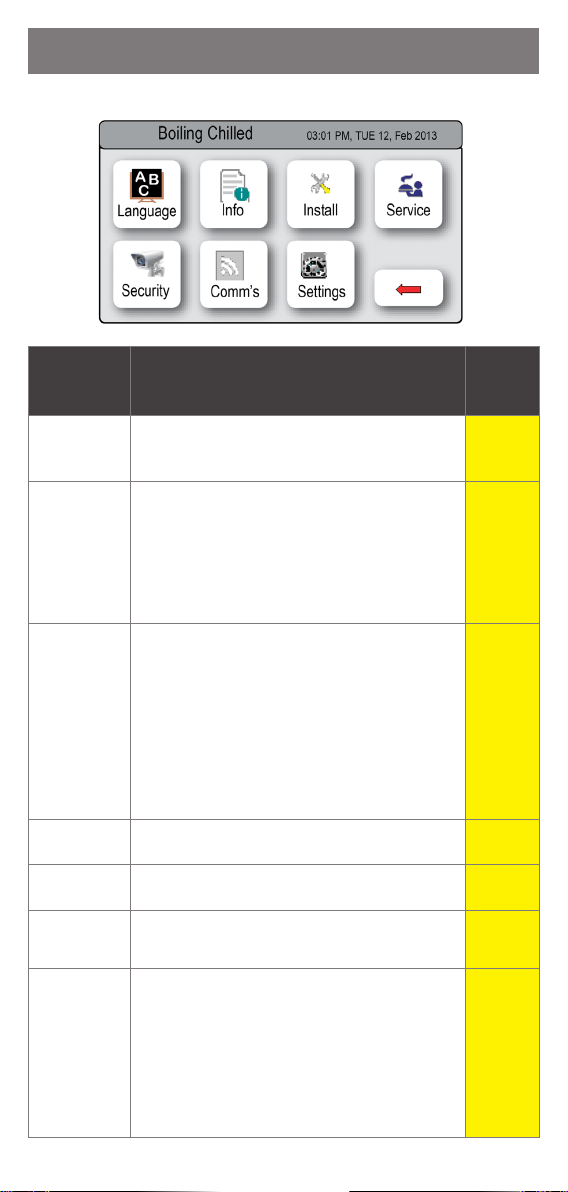

Main
Menu Sub Menu Section
Language • English / Deutsch / Français
• Units: Metric/Imperial A
Info
• Product Info
• System Faults
• Filters Log (Internal/External)
• Recent Fault Log
• Energy
B
Install
• Filter Flush
• Filter Reset
• Boiling Calibration
• Boost
• Purge CO2(Sparkling models)
• Lux sensor calibration
• Advanced Options
• Reset
C
Service Password protected D

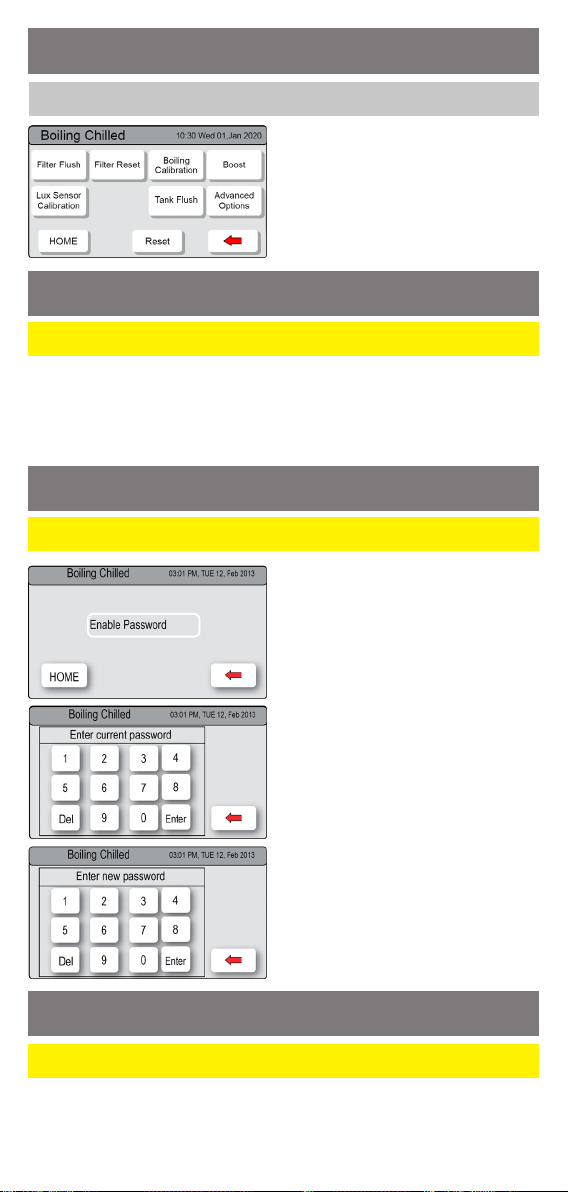

Security • Enable Password E
Communi-
cation
• WiFi Setup, Cloud Server Registration
• Fault Relay F
Settings
• Date/Time
• Temperature
• Filter
• Energy Modes
• Safety
• Dispense Times
G
Main Menu

805846US v1.04 06.21 HydroTap G4 User Guide Page 13 of 32

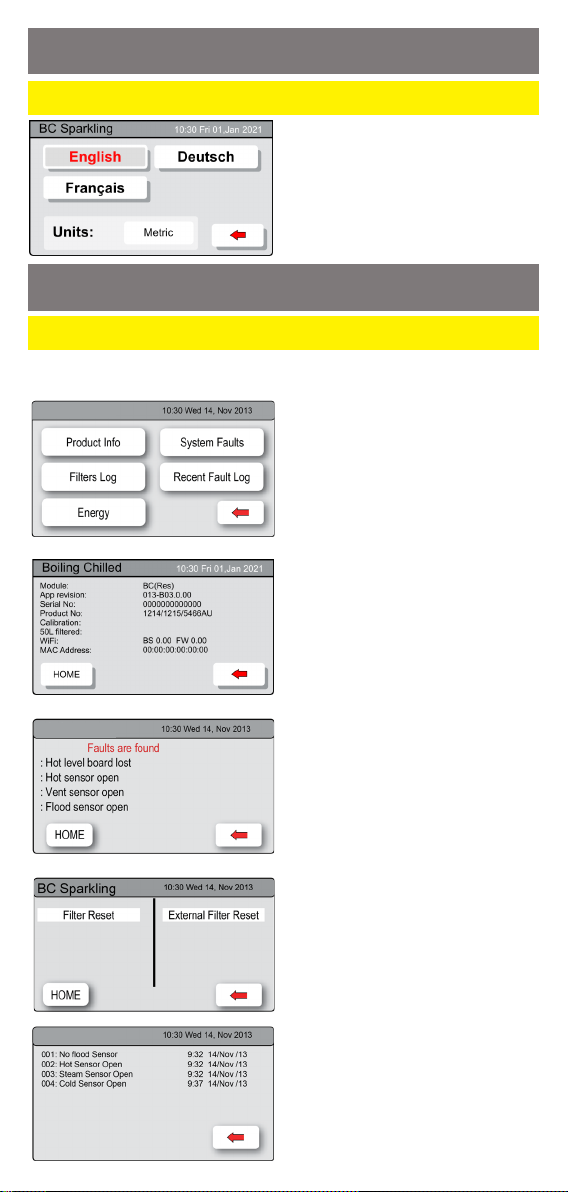

1. Press [MENU] -[ Language].
2. Select the desired language.
3. Select the desired units of
measure.
4. Press [<=] button for the
previous menu.
Section A
A Set language, units of measure
B System information
In this section, you can find your product serial number, check
system fault messages or view the event logs of your product.
1. Press [Product Info] to view
the product information.
2. Press [<=] for the previous
menu or press [Home] to
return to the home screen.
1. Press [System Faults] to
check active faults.
2. Press [<=] for the previous
menu or press [Home] to
return to the home screen.
1. Press [Filter Log] to view the
filter reset dates and usage.
2. Press [<=] for the previous
menu
1. Press [MENU] for main
menu.
2. Press [Info] to view the
product serial number and
other key information.
1. Press [Recent Fault Log] to
view the last recorded faults
2. Press [<=] for the previous
menu
Boiling Chilled
Boiling Chilled
Section B
Boiling Chilled

Page 14 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
C Install
Filter flush should be run at commissioning and whenever the
water filter cartridge is replaced. Have a 10L (3 gallon) bucket or
similar container (not supplied) at the ready to hold a quantity of
water that will be ejected during the Filter Flush process. Open the
filter access door at the front of the HydroTap Command Center
to access the filter cartridge. At the rear RHS of the cartridge is a
flush line and the flush line stop cock.
Once your Zip HydroTap G4 unit has been installed, use the Install
menu to configure:

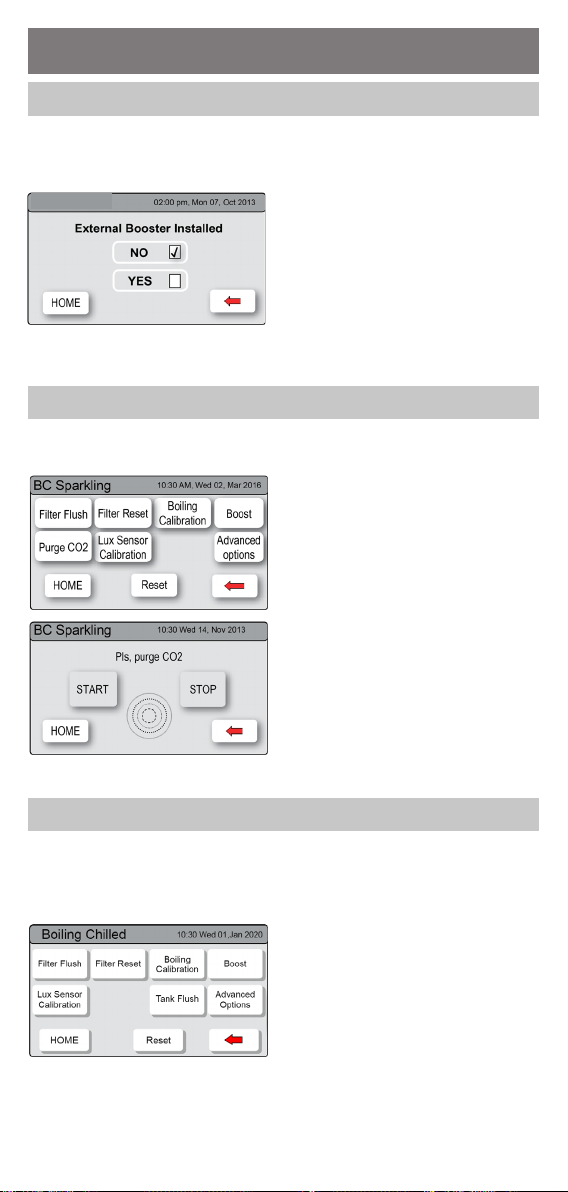

1 - Filter Flush
Note: Run at least 10 liters (3
gallons) of water through to
flush the new filter cartridge.
Once the filter flush has
finished, press the Stop
button on the screen.

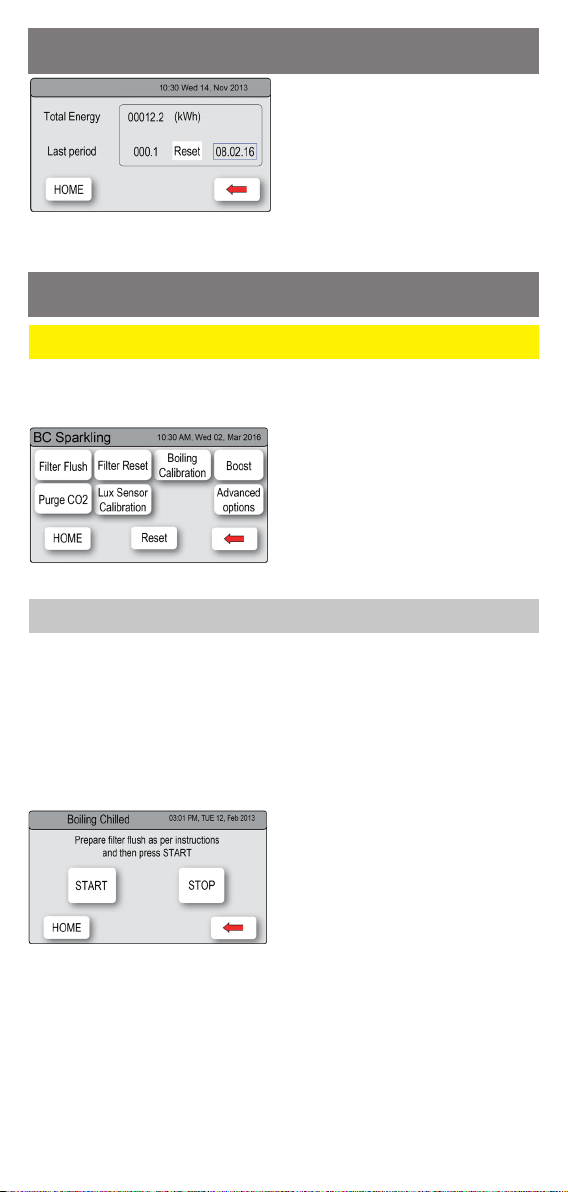

1. Filter Flush
2. Filter Reset
3. Boiling Calibration
4. Booster
5. CO2 Purge (sparkling models)
6. Lux Sensor Calibration
7. Advanced options
8. Reset
1. Press [MENU] - [Install] -
[Filter Flush].
2. Place the valve end of the
flush line into the empty
bucket or container, and turn
the stop cock ON.
3. Press [Start] to start filter
flush. Once the filter flush is
finished, turn the stop cock
OFF, then press [Stop] to end
filter flush mode.
4. Press [<=] button for the
previous menu or press
[Home] button to return to
the home screen.
5. Reset the filter counter.
1. Press [Energy] to view Energy
information.
2. Total energy consumption will
be displayed, or
3. Select reset to restart the
energy counter.
4. Press [<=] for the previous
menu or press [Home] to
return to the home screen.
Boiling Chilled
Section B
Section C

805846US v1.04 06.21 HydroTap G4 User Guide Page 15 of 32
OPEN
Position
CLOSED
Position
ON
OFF
After replacing the filter and flushing, the counters must be reset.
At commissioning, the Zip HydroTap starts a self-calibration
program. Once complete, the system proceeds to normal
operation. If you experience excess steam from the tap, please
recalibrate the system following the below steps.
1. Press [MENU] -[Install]
-[Boiling Calibration].
2. In the next screen,
press [Calibrate] to start
calibration. Calibration will
take about 10 minutes.
3 - Boiling Calibration
2 - Filter Reset
NOTE: Occasionally the system will vent steam from the faucet.
This is normal operation as HydroTaps are programmed to re-
calibrate at regular intervals.
1. Press [MENU] - [Install] - [Filter
Reset].
2. Press [Reset Internal Filter].
The date and usage at the time
of reset will be recorded in the
Filter Log.
3. To set the filter life or edit
filter usage, refer to section
G- Filter.
Section C

Page 16 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
1. Press [MENU] - [Install] -
[Booster].
2. If a Booster is installed, select
YES to enable the Booster.
3. If no Booster is installed,
select NO.
The Booster heater is an accessory that can be installed with the
HydroTap. It is used to increase the boiling water produced. Refer
to Zip for more information.
4 - Booster
Note: Failing to make the correct selection for ‘Booster’ will affect
product performance.
Boiling Chilled
Section C
The Lux Sensor in the faucet measures light in the area to activate
energy-saving mode. To calibrate the lux sensor, first ensure the
ambient room light is typical for normal required operation. Then:
6 - Lux Sensor Calibration (Classic Lever Faucet)
5 - CO2 Purge
When fitting a new gas bottle, it is important to purge water from
the gas lines. 1. Press [MENU], [Install], [Purge
CO2]
2. Press [START] to commence
the purging process.
3. Water will dispense from the
faucet. Wait for the water to
stop flowing from the faucet.
4. Wait a further 10 seconds
after the water has stopped
flowing. During this time you
will hear the CO2 gas escaping
through the faucet.
5. Press [STOP] to end the purge.
6. Press [<=] for the previous
menu or [Home] to return to
the home screen.
1. Press [MENU] - [Install] - [Lux
Sensor Calibration]. The lights
on the Faucet head will flash
to confirm calibration.
2. Check for correct faucet
operation by selecting ‘Lux
Sensor OFF’. When the room is
darkened below the calibrated
light level, the faucet lights
will turn OFF after approx 30
seconds and energy modes will
initiate (if enabled)

805846US v1.04 06.21 HydroTap G4 User Guide Page 17 of 32
Press [MENU] - [Install] -
[Advanced Options].
Periodic Pulse Reduced
Cavitation - can only disable if
boiling set below 98°C (209°F)
(Boiling models) Two electric
pulses are sent every 5 minutes to
the pump. This prevents the build
up of air bubbles inside the pump
and ensures an even flow of hot
water at the faucet.
Power Pulsing - can only disable
if boiling set below 98.5°C (210°F)
(Boiling models) This is a
default set point control feature which ensures the hot water is
maintained as close as possible to the set point. This is achieved
by applying a closer tolerance to the set point temperature range.
Fan speed adjustment
(Residential and small commercial models) Adjust the fan speed
to reduce noise. If the Command Center is operating near 35°C
(95°F), then the fan speed must be set to 100%. The fan speed
may be adjusted for quieter operation only if the operating
temperatures are considerably lower than 35°C (95°F).
Section C
7 - Advanced options
Advanced Settings (more)
Pre-pulse Reduced Cavitation
Mode (Boiling models)
Enabled (default): An electric
pulse is sent to the pump before
every dispense of boiling water to
prevent build up of air bubbles and
ensure an even flow of hot water.
Wave Faucet Sensor Demister Mode
Enabled (default): activates the Wave Faucet internal heater to
prevent its sensors from being affected by condensation from steam.
Disabled: conserves a small amount of power.
Wave Faucet Lock Mode
Disabled (default): Chilled or sparkling water can be dispensed by
activating the corresponding sensor.
Enabled: in addition to the chilled or sparkling sensor, the
rear sensor must also be activated in order to dispense chilled
or sparkling water. This is useful to prevent false activation if
a highly reflective surface is present (such as high-visibility
reflective tape). The Bottle Fill function will be disabled.

Page 18 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
E Security
Set up a password to protect
against users changing the
preferred system settings.
To set a password
1. Press [MENU] - [Security] -
[Enable Password].
2. Enter a 4 digit password
To change a password
1. Press [MENU] -[Security] -
[Change Password]
2. Enter your old 4 digit
password.
3. Then enter your new 4 digit
password. You will need
to enter your password to
access the settings screen.
The password will be cleared
if power is reset (restart).
F Communication - WiFi (selected models)
WiFi and Fault Relay are optional for selected commercial models,
enabling the user to monitor the product remotely. Refer to your
Zip service provider for more details.
Section E
Section F
Call a licensed electrician, plumber or Zip’s US distributor Culligan
International Company on US Toll Free 1-833-233-2358, for
assistance, service, spare parts or enquiries.
D Service
This section is reserved for Zip-trained service technicians only
Section D
Press [MENU] - [Install] - [Reset]
to power down and restart the
system. This is useful if you need
to reset a password in section E,
or clear an active fault.
8 - Reset (restart)
Section C

805846US v1.04 06.21 HydroTap G4 User Guide Page 19 of 32
Press [MENU] - [Settings] to configure:
1. Date/Time
2. Temperature
3. Filter
4. Energy Modes
5. Safety
6. Dispense Time
1. Press [MENU] - [Temperature]
2. Select Hot or Cold Setpoint
and use the arrows to select
alternatives.
Note: for Sparkling models, Cold
Setpoint is fixed at 3.5 - 6° C (38 -
43°F).
1. Press [MENU] - [Settings] -
[Date/Time].
2. (English language only) Select
12 hour mode or 24 hour
mode. The selected mode will
be displayed in dark grey color
with a tick box on the right.
3. Press [NEXT] to set time.
1 - Set Date / Time
Zip HydroTaps are designed to operate within 1° to 2° of set point for
boiling water and 6 - 10°C (43 - 50°F) for chilled water. Boiling water
units are self-calibrating to 98°C (208°F) (recommended setting).
Adjustments to this setting are not recommended however, under
certain circumstances adjustments may be made between 68 - 100°C
(154 - 212°F). NOTE: A 6% energy saving in standby power can be
achieved with a 98°C (208°F) setting compared to 100°C (212°F).
Furthermore, the 100ºC (212°F) setting is not recommended as the
delivery rate of water will be affected.
2 - Set Temperature
1. Select individually the hour,
minutes and day and adjust
using the up and down arrows.
2. Select individually the date,
month and year and adjust
using the up and down arrows.
3. Press [HOME] to return to the
Home screen.
G Settings
Boiling Chilled
Section G

Page 20 of 32 805846US v1.04 06.21 HydroTap G4 User Guide
To adjust water filter life:
1. Press [MENU] - [Settings] -
[Filter].
2. Select [Int Filter] OR [Ext Filter]
for internal or external filter.
3. Select Filter Life (Liters/
Gallons) or Filter Life
(Months), then adjust using
the up/down arrows to edit
filter life.
Note: Filter Life increases in
increments of 500 liters (125-
150 gallons) to a maximum of
10000 liters (2650 gal). Default
Filter Life is 4000 liters (1000
gal) / 12 months (residential) or
6000 liters (1500 gal) / 6 months
(commercial).
3 - Filter
Zip HydroTap G4 allows the user to adjust and edit water filter life
and usage.
The water filter life may be set as
a function of liters (gallons) used,
or in months from the last filter
change. When the first of these
functions is reached (i.e. liters/
gallons or months expired), the
filter warning light on the faucet
will illuminate. Either of these
functions may be disabled - see
below.
If the filter counter is accidentally
reset, current filter life can be
edited.
To edit current water filter life:
1. Press [MENU] - [Settings] -
[Filter].
2. Press [Edit Int/Ext Filter] for
Internal or External filter.
3. To edit, select Edit Usage
(liters/gallons) or Edit Usage
(Months), then adjust using
the up/down arrows.
4. Press [HOME] to return to the
Home screen.
Boiling Chilled
Boiling Chilled
Section G
