Zirkon zahn M2 MILLING UNIT COMFORT LINE User manual

m2 milling unit
comfort line
operation and maintenance manual

02 ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
Operation and maintenance manual (Translation of the original version)
M2 Milling Unit Comfort Line
Machine type: M2 Milling Unit (Wet Heavy Metal, Teleskoper, Dual Wet Heavy Metal, Dual
Teleskoper, Dual Double Teleskoper)
Version: 1.0
Copyright 2021
Zirkonzahn Gais srl

03
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021

04 ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
Milling Units overview.......................................................... 08
Operation and maintenance manual ................................................ 11
Service....................................................................... 12
General...................................................................... 13
General description of the milling unit .......................................... 13
Functional description of the milling unit.................................... 13
Device ID plate ........................................................ 14
Manufacturer.......................................................... 14
Usage........................................................................ 15
Intendeduse .............................................................. 15
Notintendeduse........................................................... 16
SafetyandResidualRisks........................................................ 17

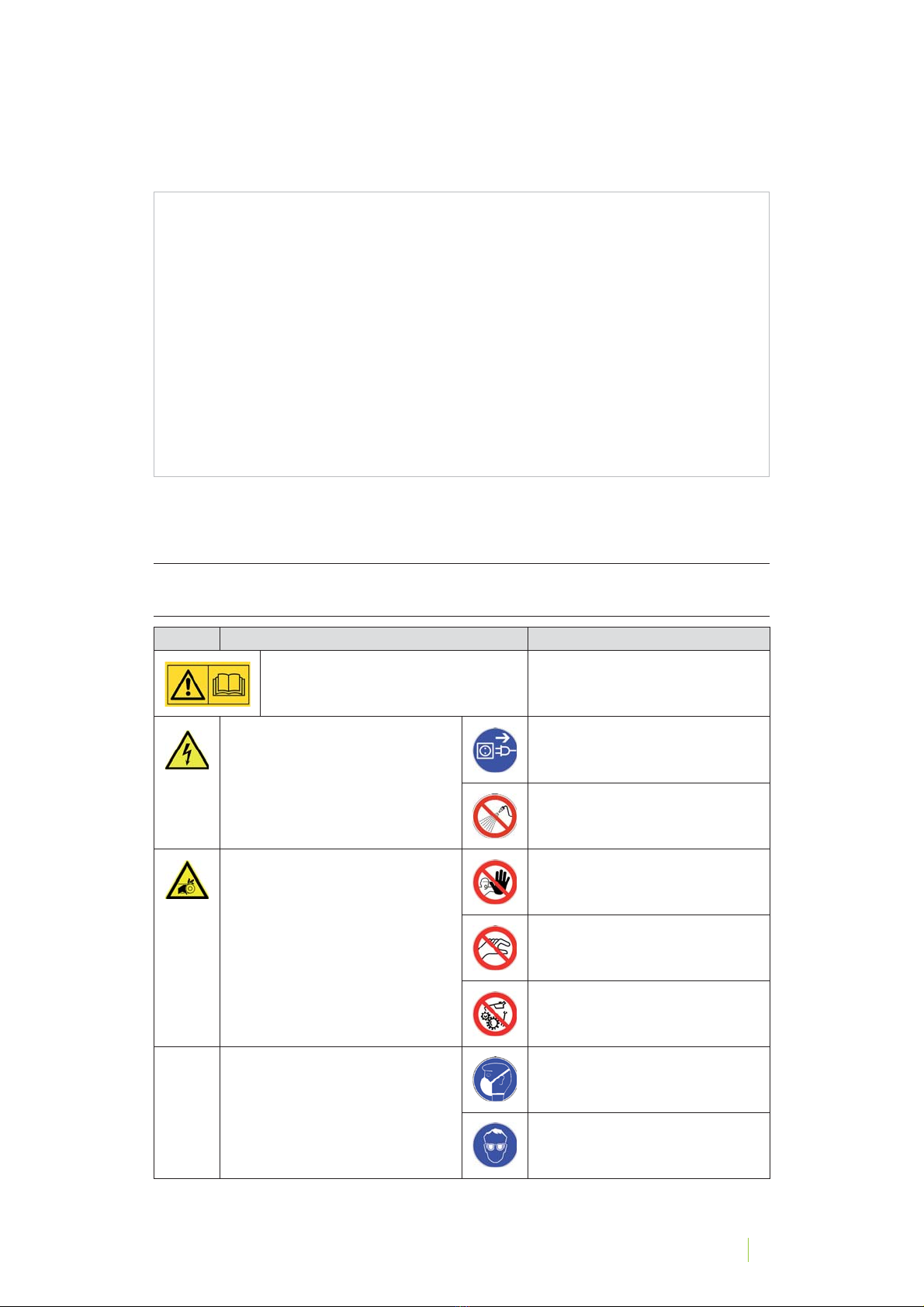

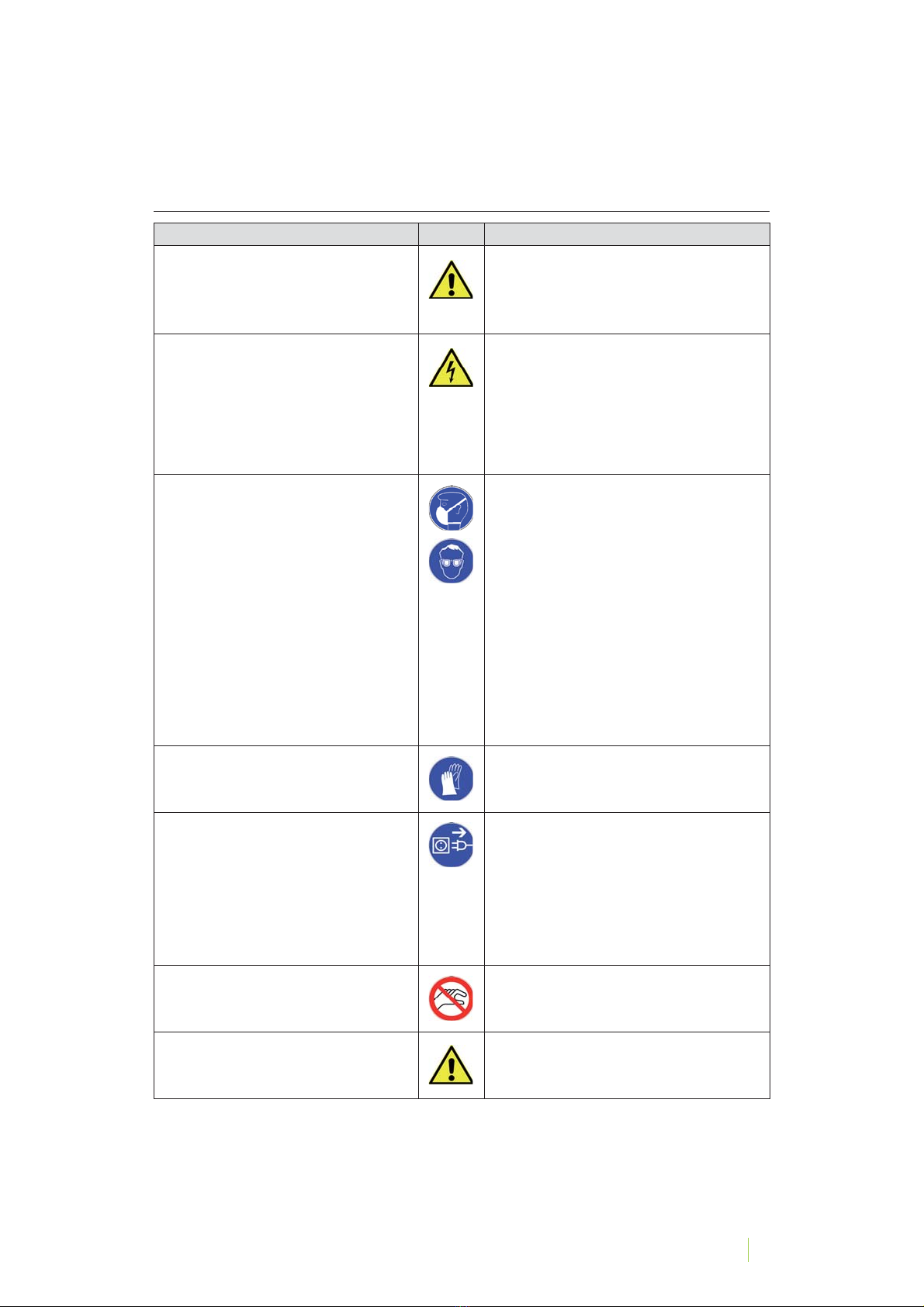

Symbols used in this manual and on the milling unit ............................... 17
Dangersymbols........................................................ 17
Othersymbols......................................................... 18
Residual risks and safety regulations ........................................... 18
Possiblesourcesofdanger ................................................... 19
Installation site ................................................................ 21
Important instructions for setting up the system................................... 21
Components .................................................................. 23
Checklist of components - Standard version. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
M2 Milling Unit ........................................................... 24
M2 Dual milling unit ....................................................... 25
Recommended additional articles .............................................. 26
Ioniser ............................................................... 26
Teleskoper Orbit ....................................................... 26
BlankRepositionerHolder............................................... 27
Raw-Abutment® Holder.................................................. 27
Raw-Abutment®Holder 6 Teleskoper ...................................... 27
Glass Ceramics Holder .................................................. 27
TABLE OF CONTENTS

05
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
Glass Ceramics Holder 9 Teleskoper ....................................... 27
JawPositioner Support................................................... 27
Cleaning Set Milling Spindle Automatic .................................... 28
Calibration plate for milling unit .......................................... 28
Zirkonzahn.Software.................................................... 28
Installation.................................................................... 31
Transport and unpacking..................................................... 31
Firststart-up.................................................................. 33
Connection of the milling unit ................................................ 33
M2 milling unit ........................................................ 34
M2 Dual milling unit.................................................... 36
Connecting of the Cleaning Kit ............................................... 38
Normal operation Wet milling ................................................ 40
Wet cleaning of the milling unit ............................................... 41
Firststart-up .............................................................. 44
Normal use ............................................................... 45
Safety aspects ......................................................... 45
Always wear protective equipment......................................... 45
Procedure ............................................................ 46
Cleaning ..................................................................... 47
Cleaning instructions ....................................................... 47
Safety measures when cleaning the device....................................... 47
Cleaning intervals .......................................................... 48
Daily or after each use .................................................. 48
Weekly .............................................................. 48
Clean milling chamber ...................................................... 48
Cleaning of the orbit with wet processing (with orbit cleaning liquid) ................. 48
Spindle and chuck cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Maintenance.................................................................. 51
Maintenanceandcontrol..................................................... 51

06 ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
Repairs and troubleshooting ...................................................... 53
Detected faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Spindleexchange .......................................................... 53
E-Box exchange ........................................................... 53
Printedcircuitboardsexchange ............................................... 54
Front plate exchange ........................................................ 54
Long-term shutdown........................................................ 54
Disposal.................................................................. 54
Training and practice ....................................................... 55
Procedure in the event of faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Detected faults......................................................... 55
Possible faults and troubleshooting......................................... 55
Milling unit is not responding............................................. 55
Milling process does not start ............................................. 55
Collet chuck does not open - Changing of the burs is not working ................ 55
Interrupted milling process ............................................... 56
Inaccurate milling result ................................................. 56
Return................................................................... 56
Warranty..................................................................... 57
Warranty claim ............................................................ 57
Lossofwarranty........................................................... 57
Thewarrantydoesnotcover.................................................. 58
Technical improvements..................................................... 58
Technical data ................................................................. 59
Technical data of the M2 Milling Unit .......................................... 59
Technical data of the M2 Dual Milling Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Compressed air connection ................................................... 61
Environmental conditions .................................................... 61
Permissible transport and storage conditions ..................................... 61

07
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021

08 ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
MILLING UNITS OVERVIEW
M2 Teleskoper milling unit
M2 Wet Heavy Metal milling unit

09
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
M2 Dual Wet Heavy Metal
milling unit
M2 Dual Teleskoper
milling unit
M2 Dual Double Teleskoper
milling unit

10 ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021

11
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
OPERATION AND MAINTENANCE MANUAL
This operation and maintenance manual is an integral part of the M2 milling unit comfort line and
must be kept in a place known to the operator and easily and immediately accessible at all times.
The milling units may only be operated by fully trained people.
For reasons of readability, the milling units are summarised under the designation M2 milling unit
or milling unit, if the given information applies to both milling units. In addition, the masculine
form is chosen for designating people but all indications refer to members of all sexes.
This operation and maintenance manual contains all the information required for the safe use of
the M2 and M2 Dual milling units produced by Zirkonzahn srl. However, it is not intended to
replace a training course with regard to the scope of application.
The participation in a CAD/CAM training course offered by Zirkonzahn is recommended.
Operational capability and long-term value of the system can only be guaranteed if service and
maintenance work prescribed in the appendix are carried out.
This manual is subject to amendments at Zirkonzahn's sole discretion in the event of technical
further development.
This operation and maintenance manual is a translation of the original German version. Translations in
several languages are available directly in the Zirkonzahn.Fräsen software which belongs to the milling
unit and can be called up by clicking on “More”. An updated version, if available, can be requested
from Zirkonzahn headquarters in Gais (Tel.: [phone], e-mail: [email protected]).

12 ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
The device complies with the applicable legal regulations, safety regulations and health
requirements:
EG-Referenz
Riferimenti CE
EC References
Références CE
Referencias CE
Harmonisierte Normen
Norme armonizzate
Harmonised standards
Normes harmonisées
Normas armonizadas
For machine safety: 2006/42/EC
For low voltage: 2014/35/EU IEC 61010-1 (ed. 3)
For EMC – Rules: 2014/30/EU
EN IEC 61000-6-4:2019
EN IEC 61000-3-2:2019
EN 61000-3-3:2013 + A1:2019
EN IEC 61000-6-2:2019
The declaration of conformity is available and will be provided upon request.
SERVICE
If after reading these instructions some questions remain unanswered or if indications, safety
instructions or technical explanations have not been fully understood, do not hesitate to contact the
Zirkonzahn headquarters in Gais (phone [phone] or e-mail: [email protected]).

13
CHAPTER
GENERAL
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021

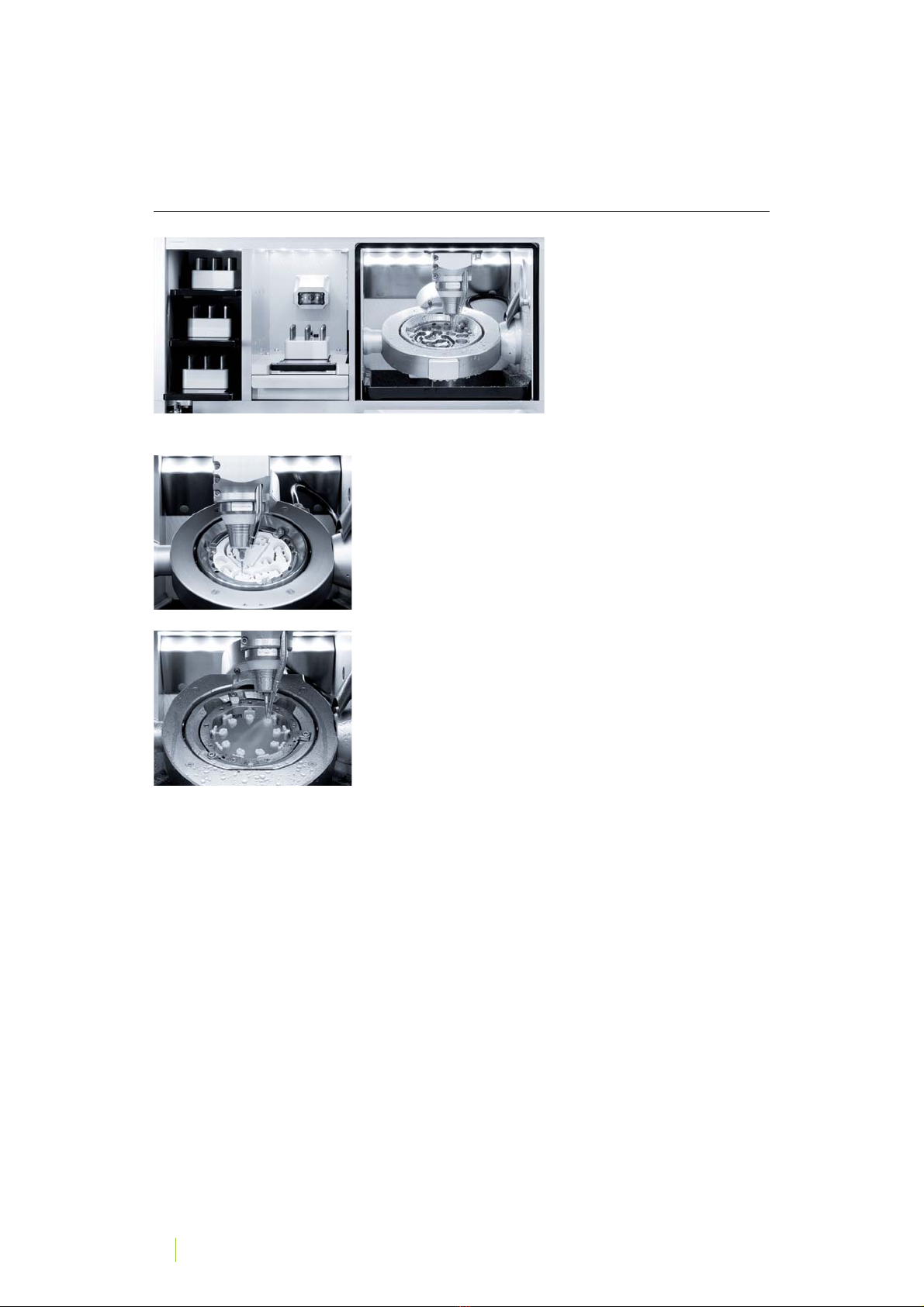

GENERAL DESCRIPTION OF THE MILLING UNIT
6JG/UVCPFUHQTOQTGWUGTEQOHQTVCPFOQTGƀGZKDKNKV[9KVJVJG/OKNNKPIWPKVCNNFGPVCN
materials can - depending on the equipement - be processed precisely and particularly cleanly with
dry or wet processing.
The proven 5+1 axis simultaneous milling technology with extra large Teleskoper Orbit (Ø 125 mm)
ensures optimal milling results. Also hard-to-reach areas, such as undercuts and divergences can be
milled without any problems. In addition, several workpieces (e.g. glass ceramics,
4CY#DWVOGPVECPDGſZGFCPFRTQEGUUGFKPVJGQTDKVD[WUKPIXCTKQWUENCORKPITKPIUQRVKQPCN
The milling chamber is spaciously designed, optimally illuminated and easily accessible and
viewable. Via integrated PC, milling processes and calibration processes can be started and
elaboration tools can be loaded. In the contamination-protected tool chamber with 21-compartment
tool changer, milling tools are automatically exchanged and organised. The M2 Dual milling
units are equipped with two milling chambers as well as a contamination-protected tool chamber
containing 3 magazines with 21 tool slots each and an automatic tool changer function. The optical
VQQNFGVGEVKQPGPUWTGUITGCVGTUCHGV[FWTKPIOKNNKPI6JGQRVKECNKFGPVKſECVKQPQHVJGGNCDQTCVKQP
tools makes sure that the correct tools are used. The milling unit has an automatic self-cleaning
and drying function as well as a cleaning kit for manual cleaning.
Functional description of the milling unit
The M2 milling unit works with 5+1 axes simultaneous milling technology. The CNC control data
of the toolpaths are generated by the CAM system.
The mechanical, pneumatic and electronic components are arranged in a sturdy tubular frame
whose surface are made with safety glass. The frame, equipped with a printed circuit board on
the rear side as well as an air purge system, protects the mechanical, pneumatic and electronic
components from dusts. The anti-scratch safety glass is also easy to clean and gives the milling
unit a fresh look even after years of intensive use.
GENERAL

An der Ahr 7
39030 Gais - Südtirol/Italy
Tel: [phone] Fax: [phone]
www.zirkonzahn.com - [email protected]
Type: Milling machine M2
Serial No.: XXX
Manufactured: XXX
Power: 100-240V ~/ 50-60 Hz / 600W
external output max. 1000W/500W
Weight: XXX
Made in Italy/Südtirol
14
CHAPTER
GENERAL
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
Device ID plate
The Device ID plate of the M2 milling unit is attached on the front of the milling unit.
Manufacturer
Zirkonzahn srl, Headquarters Italy – 39030 Gais – (BZ, Italy) is the manufacturer of the
M2 milling units and is referred throughout the operation and maintenance manual as Zirkonzahn.

15
CHAPTER
USAGE
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
INTENDED USE
The M2 milling unit was designed exclusively for the manufacture of dental restorations,
but can also be used for the production of jewellery.
The M2 milling unit is designed for processing the following materials:
- Zirconia*
- Dental resins*
- Wax*
- Sintermetall*
- Composite*
- Titanium* (can only be milled with wet processing function)
- Cobalt-Chromium*
- Wood*
- Glass ceramics
- Raw-Abutments®(prefabricated titanium abutments)
*In principle, all Zirkonzahn materials are suitable for the corresponding categories.
The processing of third party materials in this system is not recommended due to the lack of
coordination regarding tools as well as milling strategies.
It is recommended to use only Zirkonzahn original burs with a 6 mm shank diameter!
USAGE

16
CHAPTER
USAGE
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
For using this milling unit, a basic dental technical knowledge is required. The participation in a
CAD/CAM training course offered by Zirkonzahn is recommended.
The M2 milling unit can only be operated with a suitable extraction unit (see technical data).
Directive "2004/37/EC - Protection against the risks related to exposure to carcinogens or
OWVCIGPUCVYQTMENCUUKſGUJCTFYQQFFWUVCUCECTEKPQIGPKEUWDUVCPEGKPVJG'76JGTGHQTG
during elaboration of wood and hardwood, consider that exposure to these materials dusts is
dangerous for the lungs and can be carcinogenic. A suitable extraction unit and respiratory
protection must be provided during processing. The collection and disposal of the generated dust
CPFQWVIQKPICKTOWUVEQORN[YKVJNQECNQHſEKCNTGIWNCVKQPU
Zirkonzahn assumes no liability for any damage to health caused by possible dust exposure in
connection with the milling unit.
Direct contact between rotating tools and the user is excluded when the system is used correctly.
NOT INTENDED USE
Uses that are not described in the chapter "Intended use" do not fall within the scope of intended use.
The manufacturer declines any responsibility for this.
Particular attention must be given to the following unintended and unauthorised uses:
- The machine is not conceived for processing sintered zirconia.
- The milling unit is not designed for operation in an explosive atmosphere and must not be used
in explosion-endangered areas.
- Important components of the milling unit work with oil-free compressed air (e.g. opening
the milling spindle). Operation without compressed air or with compressed air that does not
EQTTGURQPFVQVJGRCTCOGVGTUURGEKſGFKPVJGVGEJPKECNFCVCKUPQVRGTOKVVGF
- 5RGEKſEYGVRTQEGUUKPIRTQITCOOGUGZKUVHQTVJGGNCDQTCVKQPQHVKVCPKWOCPFQVJGTNKIJVOGVCNU
&T[OKNNKPIQHVJGUGOCVGTKCNUKUPQVRGTOKVVGFſTGJC\CTF
- Dry milling without a functioning suction unit increases the risk of dust exposure and is
therefore not permitted.

17
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
SYMBOLS USED IN THIS MANUAL AND ON THE MILLING UNIT
Danger symbols
Symbol Danger Instruction
The milling unit is designed for
professional users. Danger in case of
improper use.
Read the operation and maintenance
manual before usage. Strictly follow
the instructions.
Caution: Hazardous voltage! Unplug during repair works.
The use of water, compressed air or
solvents is strictly forbidden!
Moving parts. Use by competent personnel only.
Touching moving parts is strictly
forbidden.
Repair and maintenance work on
moving parts is strictly forbidden!
Fine dust may be generated during
elaboration.
Use breathing protection.
Use eye protection.
SAFETY AND
RESIDUAL RISKS

18
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
Higher noise emissions can occur
during elaboration (e.g. when tools
are worn out).
Wear suitable ear protection.
High empty weight of the milling
unit: Risk of contusions (especially
during transport and installation).
Wear suitable protective gloves and
also safety shoes when setting-up
and transporting.
Dust and sharp tools (milling burs):
Cuts and contusions during operation.
Aggressive cleaning agents (orbit
cleaning): Danger of skin irritation.
Wear suitable chemical resistant
gloves.
Other symbols
Symbol
General warnings that can lead to injuries if disregarded.
This symbol refers to particularly important text passages in the operation and
maintenance manual.
This symbol indicates the necessity to document work processes.
RESIDUAL RISKS AND SAFETY REGULATIONS
Read and follow the safety instructions in this operation and maintenance manual to avoid danger
VQRGTUQPUCPFFCOCIGVQRTQRGTV[;QWTUCHGV[EQOGUſTUV
In the event of equipment defects push the emergency shutdown switch and follow hazard
warnings.
The changing interior lighting is part of the safety concept and enables the closing
surveillance to be checked. If the lighting colour in the interior does not change
from green to another colour when the front plate is opened, there is a defect and
the milling unit could start unintentionally even when the front plate is open. Set the
device out of operation and contact the Zirkonzahn support team at the Zirkonzahn
headquarters in Gais (Tel. [phone] or e-mail: [email protected]).

19
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
POSSIBLE SOURCES OF DANGER
Possible sources of danger Security measure to be taken
Milling unit has a high dead weight
(see technical data). Risk of bruising
during transport and installation of the
equipment.
Wear work safety gloves and safety shoes
when setting up the milling unit.
Components under electrical voltage.
Defective power supply lines.
Only use milling unit with an intact power
supply system (including power cable).
Repairs and replacement of electrical
components must only be carried out by a
SWCNKſGFGNGEVTKEKCP
GOGTIGPE[UJWVFQYPŬVGPUKQPHTGG
Dust emissions. Elaboration generates dust as a result of
the processing. The extraction capacity of
the connected extraction system should be
UWHſEKGPVVQCDUQTDKV
A small deposit of dust in the milling
unit can never be completely excluded.
Therefore, wear respiratory protection and
safety goggles when opening the milling
unit and especially when cleaning it.
9JGPOKNNKPIƀCOOCDNGOCVGTKCNUUWEJCU
resins and wood), an antistatic suction pipe
must be used.
Use of sharp milling tools. In general, only hold milling tools by their
shank, not on their cutting edge.
Protective gloves are recommended.
Moving parts. The operation of the milling burs is only
possible with the front plate closed.
Should the front plate be damaged or the
safety switch not work properly (colour
of the light must change when opening),
switch off the milling unit and contact our
customer support immediately.
Danger of contusions caused by the
front plate.
The front plate must be closed manually.
$GHQTGENQUKPIOCMGUWTGVJCVſPIGTUQT
objects are not trapped.
+PUWHſEKGPVDGCTKPIECRCEKV[QHVJG
installation surface for the equipment.
The installation surface must correspond to
VJGTGSWKTGOGPVUURGEKſGFKPVJGVGEJPKECN
data.

20
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE M2 MILLING UNIT COMFORT LINE – VERSION: 19/05/2021
Heated workpieces and tools. For some jobs and/or materials, higher
temperatures can be reached during
elaboration. This must be taken into
account when removing the workpiece or
changing the elaboration tools. The wearing
of protective gloves is recommended.
Possible sparking when used
improperly.
When milling workpieces made of titanium
or other light metals, the milling unit must
not be operated unattended.
9GTGEQOOGPFVJCVCUWKVCDNGſTG
extinguisher is kept ready in the vicinity
CPFVJCVCſTGFGVGEVQTKUKPUVCNNGF
Increased noise emissions. If increased noise emissions are noticed at
the workplace, ear protection must be worn.
