Zirkon zahn M1 MILLING UNIT COMPACT LINE User manual

m1 milling unit compact line
Operation and maintenance manual

02 ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
Operation and maintenance manual (Translation of the original version)
M1 Milling Unit Compact Line
Machine type: M1 Milling Unit (Abutment, Soft, Wet, Wet Heavy Metal)
Version: 1.0
Copyright 2021
Zirkonzahn Gais

03
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021

04 ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
Milling Units overview.......................................................... 08
Operation and maintenance manual ................................................ 09
Service....................................................................... 10
General...................................................................... 11
General description of the milling unit .......................................... 11
Functional description of the milling unit.................................... 11
Device ID plate ........................................................ 12
Manufacturer.......................................................... 12
Usage........................................................................ 13
Intendeduse .............................................................. 13
Notintendeduse........................................................... 14
SafetyandResidualRisks........................................................ 15
Symbols used in this manual and on the milling unit ............................... 15
Dangersymbols........................................................ 15
Othersymbols......................................................... 16
Residual risks and safety regulations ........................................... 16
Possiblesourcesofdanger ................................................... 17
Installation site ................................................................ 19
Important instructions for setting up the milling unit ............................... 19
Components .................................................................. 21
Checklist of components Standard version....................................... 21
M1 milling unit ............................................................ 23
Recommended additional articles .............................................. 24
Ioniser M1............................................................ 24
Raw-Abutment®Holder ................................................. 24
Glass Ceramics Holder .................................................. 24
JawPositioner Support................................................... 24
Zero point stylus D6 for M1/M4 milling units ................................ 25
Zirkonzahn.Software.................................................... 25
TABLE OF CONTENTS

05
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
Installation.................................................................... 27
Transport and unpacking..................................................... 27
Operation..................................................................... 29
Connecting the Desktop PC (Option 1) ......................................... 29
Connecting the All in One Touch PC (Option 2) .................................. 29
Connection of the milling unit ................................................ 30
Connecting the Grindcontrol.................................................. 30
Firststart-up .............................................................. 33
Normal use ............................................................... 33
Safety aspects ......................................................... 33
Alwayswearsecurityequipment .......................................... 33
Procedure ............................................................ 34
Cleaning ..................................................................... 35
Cleaning instructions ....................................................... 35
Safety measures when cleaning the milling unit................................... 35
Cleaning intervals .......................................................... 36
Daily or after each use .................................................. 36
Weekly .............................................................. 36
Monthly.............................................................. 36
Clean milling chamber ...................................................... 36
Cleaning of the Grindcontrol ................................................. 36
Cleaning of the orbit with wet processing (with Orbit Cleaning Liquid) ................ 36
Cleaning of spindle and chuck ................................................ 37
Maintenance.................................................................. 39
Maintenanceandcontrol..................................................... 39
Repairs and troubleshooting ...................................................... 41
Detected faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Restart protection after power failure ........................................... 41
Spindleexchange .......................................................... 41

06 ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
E-Box exchange ........................................................... 42
Printedcircuitboardsexchange ............................................... 42
Front plate exchange ........................................................ 42
Long-term shutdown........................................................ 42
Disposal.................................................................. 42
Training and practice ....................................................... 43
Procedure in the event of faults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Detected faults......................................................... 43
Possible faults and troubleshooting......................................... 43
Milling unit is not responding............................................. 43
Milling process does not start ............................................. 43
Collet chuck does not open - Changing of the burs is not working ................ 43
Interrupted milling process ............................................... 44
Inaccurate milling result ................................................. 44
Return................................................................... 44
Warranty..................................................................... 45
Warranty claim ............................................................ 45
Lossofwarranty........................................................... 45
Thewarrantydoesnotcover.................................................. 46
Technical improvements..................................................... 46
Technical data ................................................................. 47
Technical data of the M1 milling unit........................................... 47
Option2:AllinOneTouchPC ........................................... 48
Compressed air requirements ................................................. 48
Connection to the power supply system via residual-current circuit breaker............. 49
Environmentandstorageconditions............................................ 49
Permissible transport conditions ............................................... 49

07
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021

08 ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021

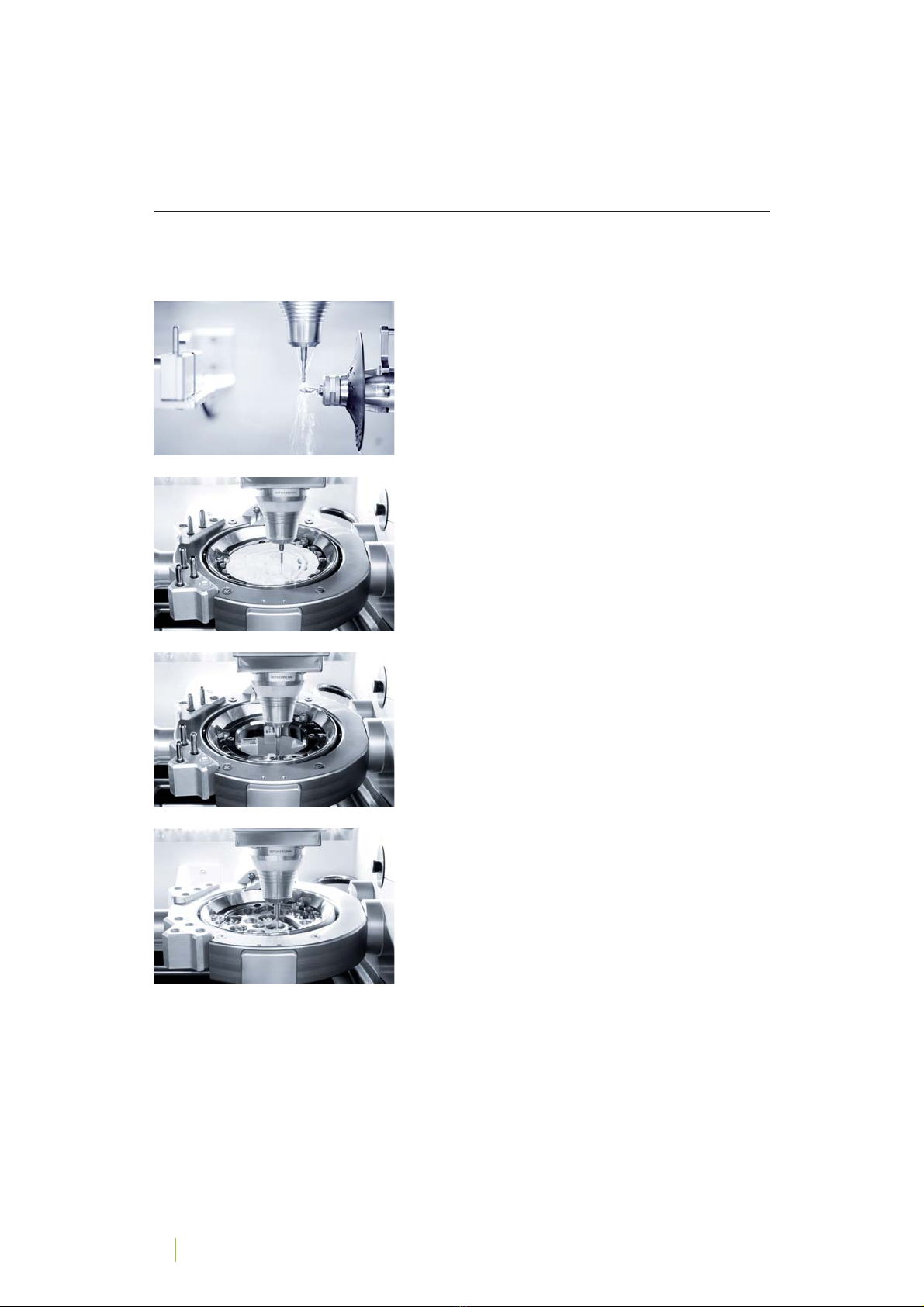

MILLING UNITS OVERVIEW
M1 Soft Milling Unit
M1 Wet Milling Unit
M1 Wet Heavy Metal Milling Unit
M1 Abutment Milling Unit

09
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
OPERATION AND MAINTENANCE MANUAL
This operation and maintenance manual is an integral part of the M1 milling unit compact line and
must be kept in a place known to the operator and easily and immediately accessible at all times.
The milling units may only be operated by fully trained people.
For reasons of readability, the milling units are summarised under the designation M1 milling unit
or milling unit/machine, if the given information applies to both milling units. In addition, the
masculine form is chosen for designating people but all indications refer to users of all sexes.
This operation and maintenance manual contains all the information required for the safe use
of the M1 Abutment, M1 Soft, M1 Wet and M1 Wet Heavy Metal milling units produced by
Zirkonzahn srl. However, it is not intended to replace a training course with regard to the scope
of application.
The participation in a CAD/CAM training course offered by Zirkonzahn is recommended.
Operational capability and long-term value of the system can only be guaranteed if service and
maintenance work prescribed in the appendix are carried out.
This manual is subject to amendments at Zirkonzahn's sole discretion in the event of technical
further development.
This operation and maintenance manual is a translation of the original operating instructions.

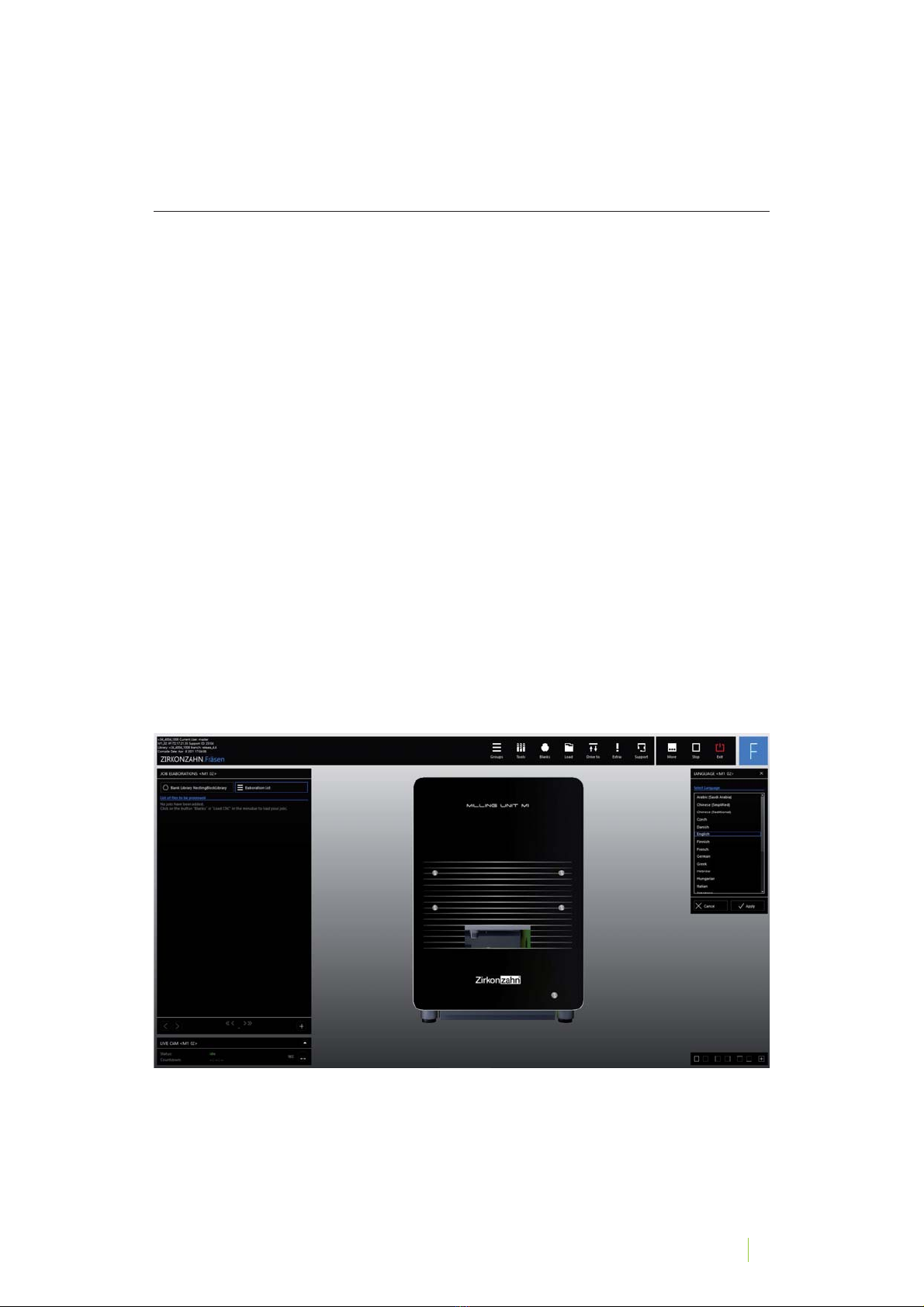

Translations in several languages are available directly in the Zirkonzahn.Fräsen software which
belongs to the milling unit and can be called up by clicking on "More". An updated version,
if available, can be requested to Zirkonzahn headquarters in Gais (phone [phone];
e-mail: [email protected]).

10 ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
The device complies with the applicable legal regulations, safety regulations and health
requirements:
EG-Referenz
Riferimenti CE
EC References
Références CE
Referencias CE
Harmonisierte Normen
Norme armonizzate
Harmonised standards
Normes harmonisées
Normas armonizadas
For machine safety: 2006/42/EC
For low voltage: 2014/35/EU IEC 61010-1 (ed. 3)
For EMC – Rules: 2014/30/EU
EN IEC 61000-6-4:2019
EN IEC 61000-3-2:2019
EN 61000-3-3:2013 + A1:2019
EN IEC 61000-6-2:2019
The declaration of conformity is available and will be provided upon request.
SERVICE
If after reading these instructions some questions remain unanswered or if indications, safety
instructions or technical explanations have not been fully understood, do not hesitate to contact
Zirkonzahn headquarters in Gais (phone [phone] or e-mail: [email protected]).

11
CHAPTER
GENERAL
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
GENERAL DESCRIPTION OF THE MILLING UNIT
The complete Compact Line is particularly compact and space saving and is characterised by its
extreme short milling times thanks to the fast engines. It can be combined in an optimal way with
the Zirkonzahn Scanner S600 ARTI and the user-friendly Zirkonzahn.Software. To avoid any
damage, the mechanical, pneumatic and electronic components are arranged in a sturdy tubular
frame structure whose four surfaces are made with special glass and equipped with a metal panel
on the rear side. Vibrations are dampened by rubber buffers.
The chosen version determines which indications can be processed with which materials:
With the M1 Abutment milling unit it is possible to produce individual titanium abutments out
of precast titanium abutment blanks (Raw-Abutments®) in a fast way. The M1 Soft milling unit
is particularly suitable for the dry processing of soft materials such as Sintermetall and zirconia.
With the integrated wet processing function, up to four glass ceramic blanks can be milled in a
single milling process with the M1 Wet milling unit. With its orbit built on four bearings and the
integrated wet processing function, the M1 Wet Heavy Metal milling unit is ideal for the milling
of hard metals such as titanium.
Functional description of the milling unit
The M1 milling unit is conceived for 4 axes processing (M1 Abutment) or 5+1 axes processing
with simultaneous milling technology. The CNC control data of the toolpaths are generated by
the CAM system. The entire milling process, including tool changing, is automated and takes
place in the machine's enclosed milling chamber. The process can be observed by the user at
any time via the integrated camera. Loading/unloading the orbit and the tool magazine, starting
the milling process, calibrating and cleaning the machine are the only processes that have to be
performed manually.
GENERAL

An der Ahr 7
39030 Gais - Südtirol/Italy
Tel: [phone]
Fax: [phone]
www.zirkonzahn.com
[email protected]
Type: Milling machine M1
Serial No.: 001M1190109BP
Manufactured: 2019
Power: 100-240V ~/50-60Hz/600W
external output max. 1000W/500W
Weight: 105kg
Made in Italy/Südtirol
12
CHAPTER
GENERAL
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
Device ID plate
The Device ID plate of the milling unit is attached on the front of the milling unit.
Manufacturer
Zirkonzahn srl, Headquarters Italy – 39030 Gais – BZ, is the manufacturer of the milling unit and
is referred throughout the operation and maintenance manual as Zirkonzahn.

13
CHAPTER
USAGE
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
INTENDED USE
The milling units of the M1 milling unit compact line were designed exclusively for the
manufacture of dental restorations, but can also be used for the production of jewellery.
Milling Unit Dry processing Wet processing
M1 Abutment
milling unit
- Glass ceramics, composite, Raw-
Abutments®(precast titanium
abutments)
M1 Soft milling unit Presintered zirconia, resin, wax,
wood, Sintermetall
Not available.
M1 Wet milling unit Presintered zirconia, resin, wax,
wood, Sintermetall
Glass ceramics, composite
M1 Wet Heavy Metal
milling unit
Presintered zirconia, resin, wax,
wood, Sintermetall
Glass ceramics, composite, hard
metals such as titanium and
chrome-cobalt, Raw-Abutments®
(precast titanium abutments)
*In principle, all Zirkonzahn materials are suitable for the corresponding categories. The
processing of third party materials in this system is not recommended due to the lack of
coordination regarding tools as well as milling strategies.
It is recommended to use only Zirkonzahn original burs with a 3 or 6 mm shank diameter,
depending on the used milling spindle.
For using this milling unit, a basic dental technical knowledge is required. The participation in a
CAD/CAM training course offered by Zirkonzahn is recommended.
The milling units of the M1 milling unit compact line can only be operated with a suitable
extraction unit (see technical data). Directive "2004/37/EC - Protection against the risks related
USAGE

14
CHAPTER
USAGE
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
VQGZRQUWTGVQECTEKPQIGPUQTOWVCIGPUCVYQTMENCUUKſGUJCTFYQQFFWUVCUCECTEKPQIGPKE
substance in the EU. Therefore, during elaboration of wood and hardwood, consider that exposure
to these materials dusts is dangerous for the lungs and can be carcinogenic. A suitable extraction
unit and respiratory protection must be provided during processing. The collection and disposal
QHVJGIGPGTCVGFFWUVCPFQWVIQKPICKTOWUVEQORN[YKVJNQECNQHſEKCNTGIWNCVKQPU<KTMQP\CJP
assumes no liability for any damage to health caused by possible dust exposure in connection with
the milling unit.
Direct contact between rotating tools and the user is excluded when the system is used correctly.
NOT INTENDED USE
Uses that are not described in the chapter "Intended use" do not fall within the scope of intended
use. The manufacturer declines any responsibility for this.
Particular attention must be given to the following unintended and unauthorised uses:
- The machine is not conceived for processing sintered zirconia.
- The milling unit is not designed for operation in an explosive atmosphere and must not be used
in explosion-endangered areas.
- Important components of the milling unit work with oil-free compressed air (e.g. opening
the milling spindle). Operation without compressed air or with compressed air that does not
EQTTGURQPFVQVJGRCTCOGVGTUURGEKſGFKPVJGVGEJPKECNFCVCKUPQVRGTOKVVGF
- 5RGEKſEYGVRTQEGUUKPIRTQITCOOGUGZKUVHQTVJGGNCDQTCVKQPQHVKVCPKWOCPFQVJGTNKIJVOGVCNU
&T[OKNNKPIQHVJGUGOCVGTKCNUKUPQVRGTOKVVGFſTGJC\CTF
- Dry milling without a functioning suction unit increases the risk of dust exposure and is
therefore not permitted.

15
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
SYMBOLS USED IN THIS MANUAL AND ON THE MILLING UNIT
Danger symbols
Symbol Danger Instruction
The milling unit is designed for
professional users. Danger in case of
improper use.
Read the operation and maintenance
manual before usage. Strictly follow
the instructions.
Caution: Hazardous voltage! Unplug during repair works.
The use of water, compressed air or
solvents is strictly forbidden!
Moving parts. Use by competent personnel only.
Touching moving parts is strictly
forbidden.
Repair and maintenance work on
moving parts is strictly forbidden!
Fine dust may be generated during
elaboration.
Use breathing protection.
Use eye protection.
SAFETY AND
RESIDUAL RISKS

16
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
Higher noise emissions can occur
during elaboration (e.g. when tools
are worn out).
Wear suitable ear protection.
High empty weight of the milling
unit: Risk of contusions (especially
during transport and installation).
Wear suitable protective gloves and
safety shoes.
Dust and sharp tools (milling
burs): Cuts and contusions during
operation.
Aggressive cleaning agents (orbit
cleaning): Danger of skin irritation.
Wear suitable chemical resistant
gloves.
Other symbols
Symbol
General warnings that can lead to injuries if disregarded.
This symbol refers to particularly important text passages in the operation and
maintenance manual.
This symbol indicates the necessity to document work processes.
RESIDUAL RISKS AND SAFETY REGULATIONS
Read and follow the safety instructions in this operation and maintenance manual to avoid danger
VQRGTUQPUCPFFCOCIGVQRTQRGTV[;QWTUCHGV[EQOGUſTUV
In the event of equipment defects push the emergency shutdown switch and follow hazard
warnings.
The changing interior lighting is part of the safety concept and enables the closing
surveillance to be checked. If the lighting colour in the interior does not change from
green to another colour when the front plate is opened, there is a defect and the
milling unit could start unintentionally even when the front plate is open. Set the
device out of operation and contact the Zirkonzahn support team at the Zirkonzahn
headquarters in Gais (phone [phone] or e-mail: [email protected]).

17
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021

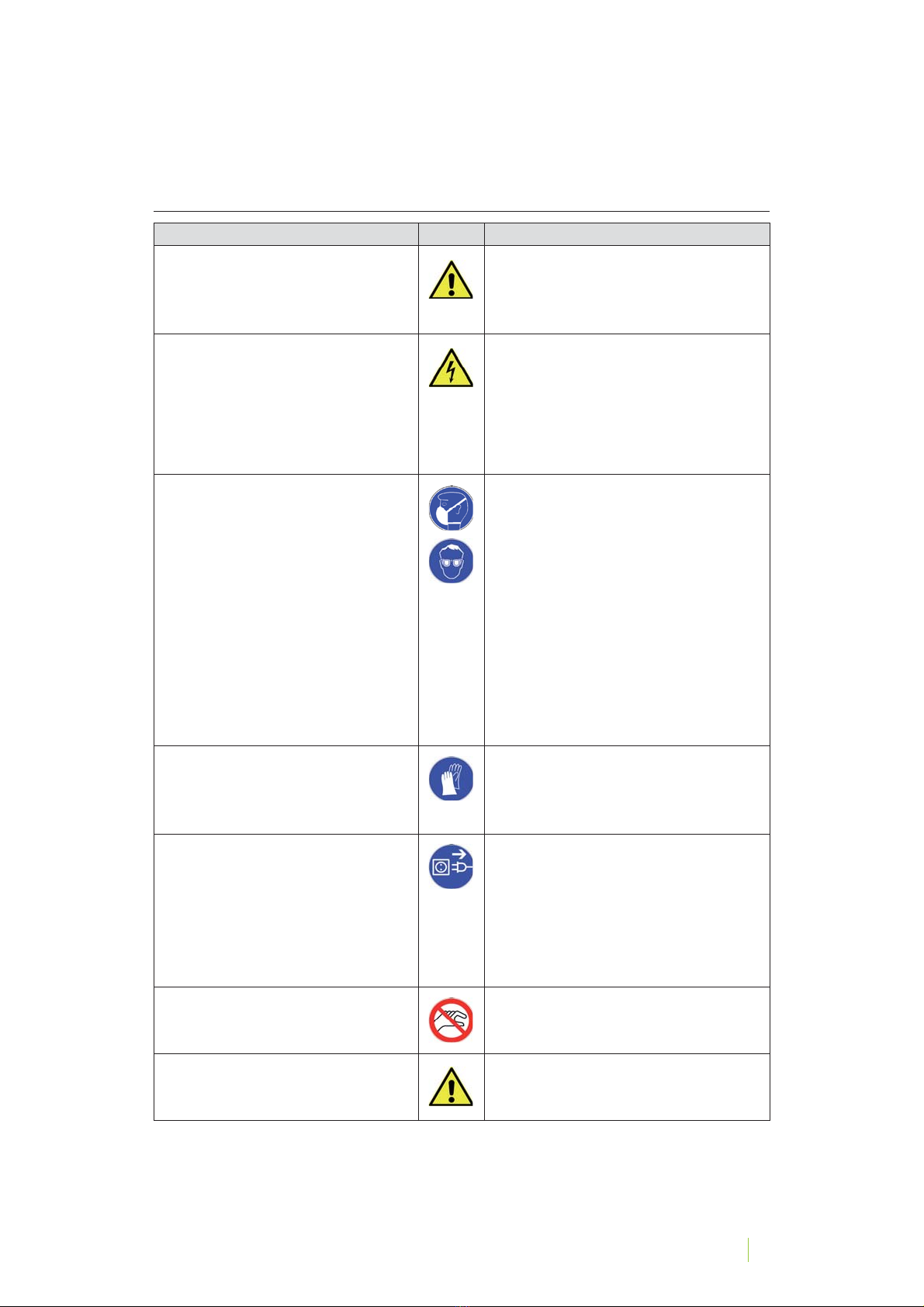

POSSIBLE SOURCES OF DANGER
Possible sources of danger Security measure to be taken
The milling unit has a high dead
weight (see technical data sheet). Risk
of contusions during transport and
installation of the equipment.
Wear work safety gloves and safety shoes
when setting up the milling unit.
Components under electrical voltage.
Defective power supply lines.
Only use milling unit with an intact power
supply system (including power cable).
Repairs and replacement of electrical
components must only be carried out by a
SWCNKſGFGNGEVTKEKCP
'OGTIGPE[UJWVFQYPŬVGPUKQPHTGG
Dust emissions. Elaboration generates dust as a result of
the processing. The extraction capacity of
the connected extraction system should be
UWHſEKGPVVQCDUQTDKV
A small deposit of dust in the milling
unit can never be completely excluded.
Therefore, wear respiratory protection and
safety goggles when opening the milling
unit and especially when cleaning it.
9JGPOKNNKPIƀCOOCDNGOCVGTKCNUUWEJ
as resin or wood), an antistatic suction pipe
must be used.
Use of sharp milling tools. In general, only hold milling tools by their
shank, not on their cutting edge.
The wearing of protective gloves is
recommended.
Moving parts. The operation of the milling burs is only
possible with the front plate closed.
Should the front plate be damaged or the
safety switch not work properly (colour
of the light must change when opening),
switch off the milling unit and contact our
customer support immediately.
Danger of contusions caused by the
front plate.
The front plate must be closed manually.
$GHQTGENQUKPIOCMGUWTGVJCVſPIGTUQT
objects are not trapped.
+PUWHſEKGPVDGCTKPIECRCEKV[QHVJG
installation surface for the milling unit.
The installation surface must correspond to
VJGTGSWKTGOGPVUURGEKſGFKPVJGVGEJPKECN
data.

18
CHAPTER
SAFETY AND RESIDUAL RISKS
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021

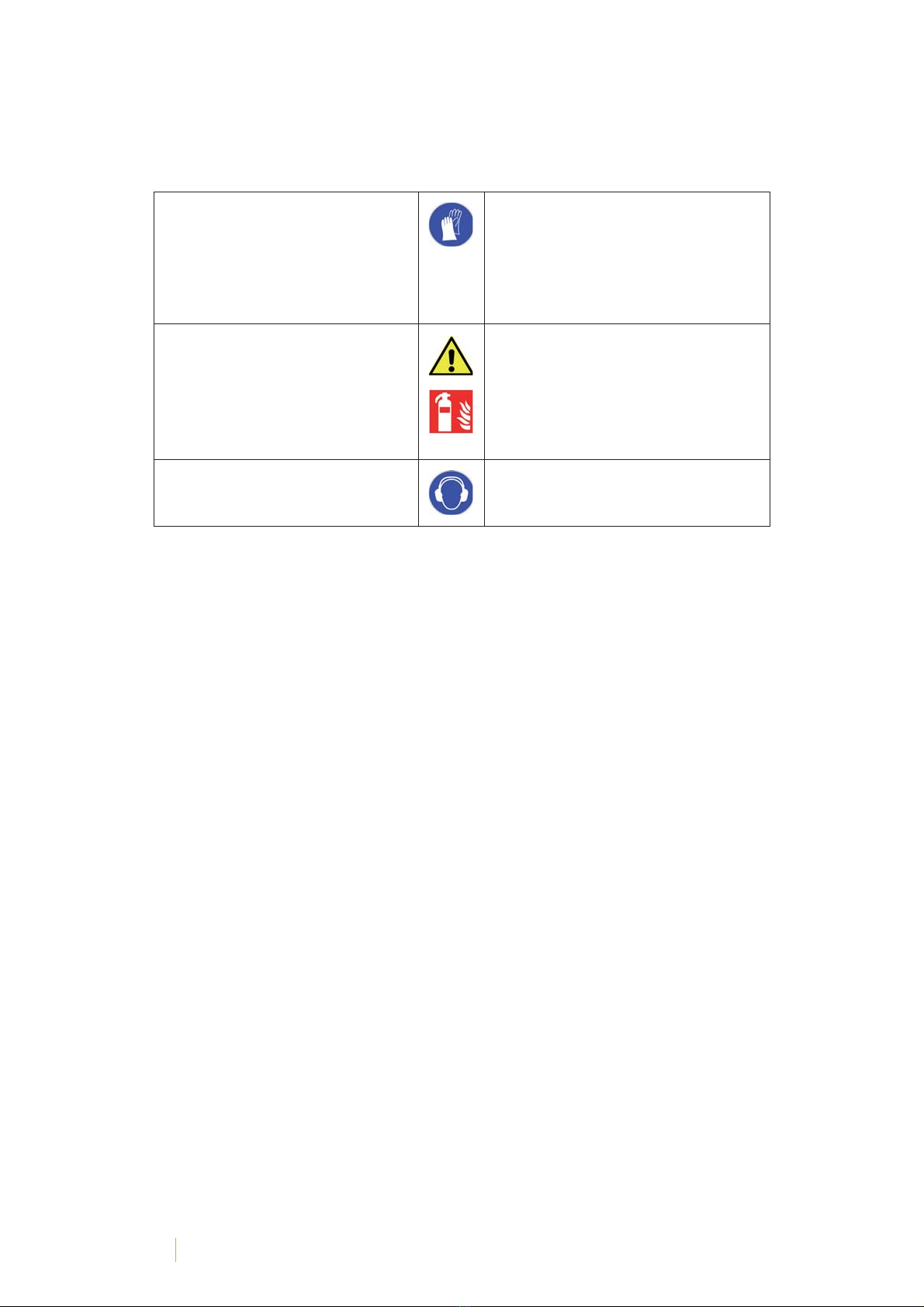

Heated workpieces and tools. For some jobs and/or materials, higher
temperatures can be reached during
elaboration. This must be taken into
account when removing the workpiece or
changing the elaboration tools. The wearing
of protective gloves is recommended.
Possible sparking when used
improperly.
When milling workpieces made of titanium
or other light metals, the milling unit must
not be operated unattended.
9GTGEQOOGPFVJCVCUWKVCDNGſTG
extinguisher is kept ready in the vicinity
CPFVJCVCſTGFGVGEVQTKUKPUVCNNGF
Increased noise emissions. If increased noise emissions are noticed at
the workplace, ear protection must be worn.

19
CHAPTER
INSTALLATION SITE
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
IMPORTANT INSTRUCTIONS FOR SETTING UP THE MILLING UNIT
The M1 milling unit compact line has been designed for operation in protected and closed
CTGCUCPFOC[QPN[DGOQXGFCPFRNCEGFQPUWHſEKGPVN[UVCDNGCPFNGXGNUWTHCEGUKPFT[
non-corrosive environments (see technical data).
Do not expose milling unit to direct solar radiation. The resulting temperature differences could
lead to milling inaccuracies. For reasons of accuracy, a constant room temperature of 20 °C must
be maintained.
The milling unit and in particular the electronics installed on the rear side must be protected
against splash water.
#FKUVCPEGQHCVNGCUVOQPCNNUKFGUQHYCNNUGVEOWUVDGOCKPVCKPGFVQGPUWTGUWHſEKGPVCKT
circulation and good accessibility for repair and maintenance.
For ergonomic reasons, an appropriate working height should be provided. For optimum
accessibility to the processing area, the height of the open front plate must be taken into account.
Work and danger area must be easily visible and lit (at least 500 lux).
The milling unit should be set up in such a way that the mains disconnection (plug) is easily
reached during operation and can be easily disconnected and checked in case of an emergency.
The electrical power supply system must comply with the applicable national standards.
The compressed air connection must be laid and installed by a specialist and must comply with the
URGEKſECVKQPUIKXGPKPVJGVGEJPKECNFCVC
#UWKVCDNGſTGGZVKPIWKUJGTOWUVDGKPUVCNNGFKPVJGXKEKPKV[
INSTALLATION SITE

20
CHAPTER
INSTALLATION SITE
ZIRKONZAHN – OPERATION AND MAINTENANCE MANUAL M1 MILLING UNIT COMPACT LINE – VERSION: 13/05/2021
