21
Description of your pH Perfect 22
1.1. Identification of parts 22
1.2. LCD screen and functions 23
Installation 24
2.1. Recommendations 24
2.2. Technical details 24
2.3. Installation diagram 25
2.4. Installing the control unit and electrical connections 26
2.5. Installing the pH sensor 27
Operating advice 28
3.1. Calibration procedure 28
3.2. Rule for injecting pH Perfect 30
Adjustments: “Settings” menu 31
4.1. Language 31
4.2. “Settings” menu - Default parameters 31
4.3. Set point 31
4.4. Type of dosage 32
4.5. “OFA” over-feed protection 32
4.6. Type of calibration 33
4.7. Detection that filtration is in progress 33
4.8. Resetting the appliance 33
Care and maintenance of your pH Perfect 34
5.1. Changing the peristaltic pipe 34
5.2. Winterizing the pH Perfect 35
Trouble-shooting guide 35
6.1. Alarms 35
6.2. Problem solving 36
Your guarantee 37
Contents
1
2
3
4
5
6
7

22
Congratulations, you are now the owner of a Zodiac pH Perfect, which allows you to
regulate the pH of your pool simply and easily.
The pH Perfect measures the pH value between 0.0 (acidic) and 14.0 (alkaline)
using a pH sensor on the filtration system, which constantly analyzes the water in
your pool.
Depending on the value measured, the pH Perfect dosing pump injects the amount
of product needed to maintain the balance of the water in the pool.
The pH Perfect will function with either acid or alkaline dosing.
1.1. Identification of parts

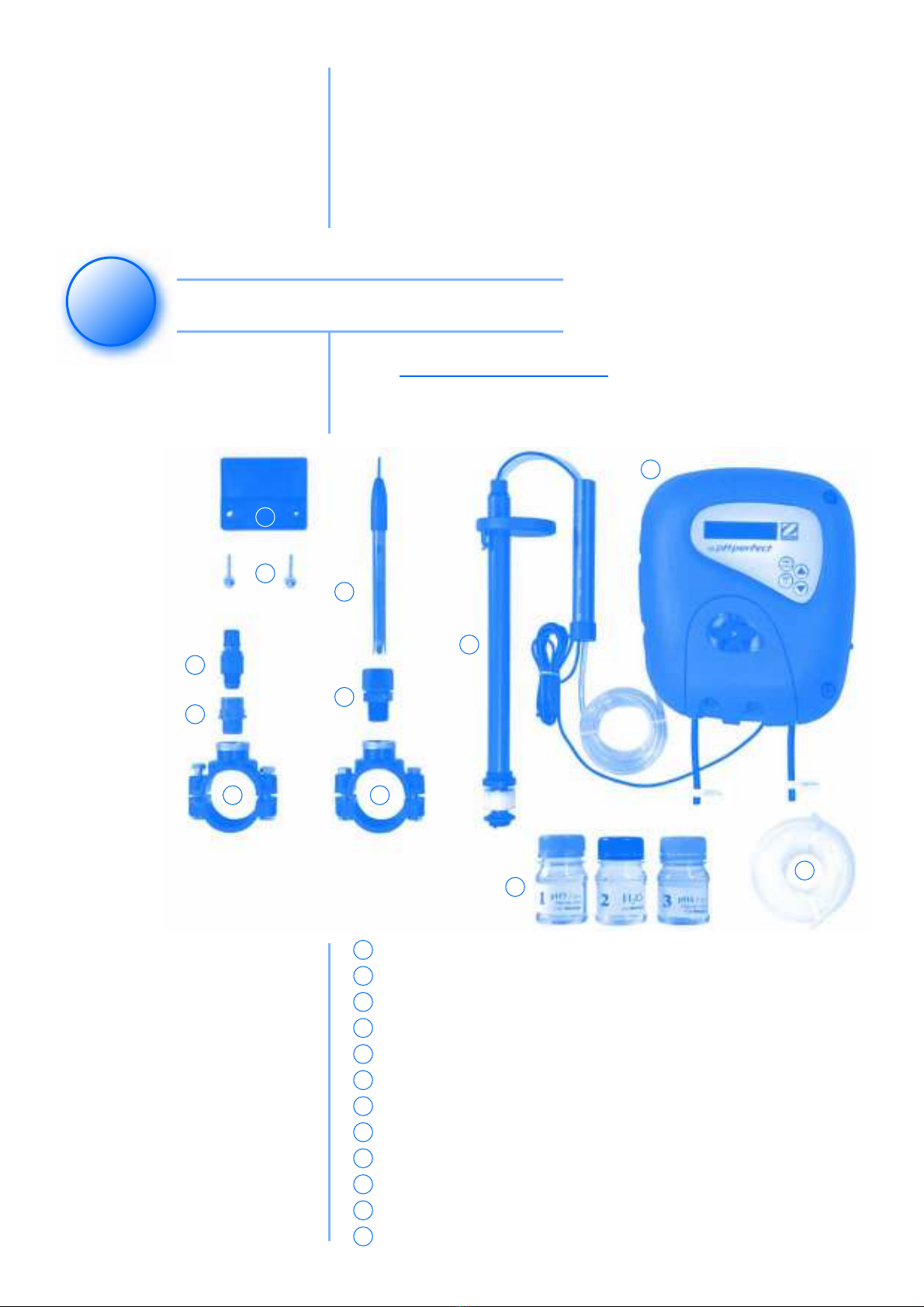

The pack contains the items shown and required to install your pH Perfect:
pH Perfect controller
Wall bracket
2 x Stainless-steel screws and plugs (Ø = 6 mm)
Polyethylene inlet tube (5 metres)
Intake pipe with 2-metre PVC tube and 3-metre cable
FPM lipped injection flap valve (3/8")
pH Sensor with 5-metre shielded cable
Injection flap valve reducer
Sensor holder, model PSS3 (1/2”)
Collar for fixing the injection valve to DN 50 mm pipe
Collar for fixing the injection flap valve on tube DN 50 mm
pH calibration fluid kit
12
11
10
9
8
7
6
5
4
3
2
1
Description of your pH Perfect
1
1
2
3
4
5
6
7
8
9
10 11
12

1.2. LCD screen and Functions
23
1
2
3
4
56 7
8
9
10
11
12
13
Backlighted LCD screen.
Peristaltic pump (1.5 L/h).
Connection for linking the semi-rigid polyethylene inlet tube (part# 4).
Connection for linking the PVC crystal intake pipe (part# 5).
Packing assembly: for passing the control cable directly to the filter (220-240V AC only
when filtration is in progress).
Packing assembly: for passing the cable linking the unit to the intake pipe sensor (part# 5).
Packing assembly: for passing the 220-240V AC power cable.
BNC socket for connecting the pH sensor: (part# 7).
Master switch: for powering the control unit.
Navigation button “down”: for navigating in the “Settings” menu.
“SET/Esc” button: button for exiting from the “Settings” menu; also for displaying the pH
set point when pressed continuously.
Navigation button “up”: for navigating in the “Settings” menu.
“CAL/Enter” button: button for enabling the sensor calibration mode (the button must be pressed
for 5 seconds). This is also used for accepting changes in the “ Settings” menu.
13
12
11
10
9
8
7
6
5
4
3
2
1

24
2.1. Recommendations
2.2. Technical details
Dimension (L - W - H) 240 x 200 x 90 mm
Weight (appliance, sensor, tube and pipes) 1.7 kg
Power feed 50Hz 220-240 V AC
Consumption 9 W
Pump flow rate 1.5 l/h (or 25 ml/min)
Maximum backpressure 150 kpa
pH control range 0.0 pH-14.0 pH
Appliance accuracy +/- 0.1 pH
Calibration of the sensor Semi-automatic in 2 points
(1 point possible)
Installation
2
Warning: The pH Perfect must be installed by an experienced pool
professional.
➣Should pH perfect require any electrical maintenance always disconnect
the appliance from the power supply.
➣Before installing the pH Perfect controller, make sure that you have all
the components required and that you have read the instruction manual
carefully.
➣Failure to comply with the instructions contained in this manual can be
dangerous, cause damage to the appliance and may void the warranty.
➣While installing the pH Perfect controller, make sure of the following:
– The supply voltage is as indicated on the label attached to the side of
the appliance
– The pressure at the injection point is less than 150 kpa
– The protective housing on the pump is properly clipped into position
– The suction tube is immersed with the intake pipe in the container of
corrective solution to be injected and is connected to the pump (on
the left). Then retighten the nut on the connector
– The inlet tube will then be connected to both the pump (on the
right), and the inlet pipe to the pool through the injection flap valve
(part# 6).
➣Use pH corrective products as recommended by your pool specialist.
➣The pH sensor should be handled with care.
!

2.3. Installation diagram
Installation of the pH Perfect on the filtration system
The injection point must be the last element on the return line before the pool.
Keep the sensor cable away from other power cords in order to prevent electrical
interference.
The maximum pressure in the pipes must not exceed 150 kpa.
To increase the life span of the peristaltic pipe, the pressure should not exceed
100 kpa.
If the pool has a chlorinator, a heating system or any other equipment, they must
be situated after the pH sensor but before the acid injection point.
Important:
The distance between the sensor and the injection point must not be less
than 60 cm.
!
60 cm mini
25

2.4. Installing the control unit
and electrical connections
Install the pH Perfect controller on a wall in an easily accessible place. Fix the
wall bracket to the wall using the screws supplied and attach the pH Perfect.
Before doing any work inside the appliance, make sure that the main switch is on
position 0. By unscrewing the two screws on the right-hand side of the appliance
by a 1/4 turn, the pH Perfect can be opened sideways.
“ Standard ” electrical connections for a pH Perfect
CAUTION:
The electrical connections for the pH Perfect must be done by an experienced
pool professional.
!
26

2.5. Installing the pH sensor
Installation instructions
Caution: The length of pipe between sensor and injection point must
not be less than 60 cm.
➣The sensor must be vertical, or at 45° max. and always above the pipe. In no
circumstances should it be positioned horizontally or below the pipe.
➣The sensor should be positioned before any treatment devices.
!
Correct positions
Incorrect positions
27

28
3.1. Calibration procedure
Refer to paragraph 4.2. to change the language.
> Calibration must be done each time your pool is restarted at the beginning of
the season.
> The procedure should be repeated if an abnormal amount of corrective solution
is consumed (pH minus or pH plus).
> The calibration procedure can only be carried out when filtration is stopped.
> Before calibrating, stop filtration and close the valves so as to isolate the pH
sensor holder from flowing water.
Operating advice
3
Important:
The sensor must be calibrated when your pH Perfect is first installed and
ideally every two months there after.
!
1 2 3
45
b
ac
> Fill flask n°2 with clean water
(tap water).
Figure 1.
> Undo the sensor holder and
remove the sensor from the pipe.
Figure 2.
> Rinse the sensor in flask n°2 (water).
Then shake gently to remove
excess water. Figure 3.
> Immerse the sensor
in flask n°1 (pH 7).
Figure 4.
> Keep the “CAL/Enter” button pressed
for more than 5 seconds until
“Calibration” appears on the
LCD screen (Figure 5a
).
Press the “CAL/Enter” button again
as indicated on the screen for
calibration on pH7 (
Figure 5b):
an automatic progression bar then
appears (Figure 5c
). Keep the
sensor immersed in the buffer
solution for 30 seconds.

• The pH Perfect peristaltic pump is self-starting. However, it is possible
to operate it manually by keeping the “Navigation“up button pressed.
The peristaltic pump will then inject corrective solution as long as the
button is pressed.
29
678
9ba 10
11 12
> After 30 seconds, the appliance
again indicates the measurement
reliability of the sensor expressed
as a percentage. Figure 6.
E.g.: 100 % with a new sensor;
if < 25 %, see chapter 6.2.
> Rinse the sensor in flask n°2 (water).
Then shake gently to remove
excess water. Figure 7.
> Immerse the sensor
in flask n°3 (pH 4).
Figure 8.
> Press the “CAL/Enter” button
to go to calibration on pH4.
Press the “CAL/Enter” button
again as indicated on the screen
Figure 9a.
> an automatic progression bar
then appears. Figure 9b.
Keep the sensor immersed
in the buffer solution
for 30 seconds.
> After 30 seconds, the appliance
indicates the measurement
reliability of the sensor expressed
as a percentage. Figure 10.
E.g.: 100 % with a new sensor;
if < 25 %, see chapter 6.2.
> Rinse the sensor in clean water,
then shake gently to remove excess
water and replace it in its sensor
holder (it must not touch the pipe).
Figure 11.
> To finish calibration, press
the “CAL” button.
The instrument will return
to measuring mode.
Figure 12
.
• When calibration is completed, your
pH Perfect is ready to regulate the
pH in your pool automatically.
• If the pH in the pool is very far
from the set point of the appliance
(7.4 pH by default), pause the
over-feed protection for 24 or
48 hours (see paragraph 4.5.).
