Introduction
The Jandy Pro Series JXi pool/spa heater is a blower
assisted, internal combustion chamber, residential
heater.
General
All gas fired appliances require correct installation to assure safe operation.
The requirements for this pool heater include the following:
Indoor vent adapter required for indoor installation.
Must be vented with Type B Double wall for Category 1 venting or stainless steel
vent pipe for Category 3.
Water piping can be Schedule 40 PVC.
Can be wired 120VAC or 240 VAC
The JXi CAN be installed on combustable surfaces.
Field Assembly
- Properly size gas pipe to supply gas from the meter to the heater.
- Gas shut-off valve (ball-cock) must be installed in-line outside of the heater jacket.
- Suitable gas union must be installed to connect gas line to heater outside of the heater jacket.
- Gas sediment trap (drip leg) in gas line between shut-off valve and heater.
- Supplied power 120VAC or 240VAC (as local code requires)
Proper Gas Pipe Sizing
Distance from Gas Meter
Heater
Size
0-50 feet
(0-15 m)
50-100 feet
(15-30 m)
100-200 feet
(30-60 m)
in. mm in. mm in. mm
200 1 25 1-1/4 32 1-1/4 32
260 1-1/4 32 1-1/4 32 1-1/4 32
330 1-1/4 32 1-1/4 32 1-1/2 38
400 1-1/4 32 1-1/2 38 1-1/2 38
For LP gas, reduce pipe diameter by one size, but
maintain a minimum 3/4 inch diameter.
Model Numbers JXI200N, JXI200P,
JXI260N, JXI260P, JXI330N, JXI330P,
JXI400N, JXI400P
JXI 400 N
Model
BTU's Gas Type N= Natural P = Propane
4

Installation Requirements (Field Assembly)
Supplied power 120VAC or 240VAC
Electrical wiring must be in accordance with the latest
edition of the National Electric Code® (NEC®), ANSI®/
National Fire Protection Association® (NFPA®) 70, or
in Canada, the Canadian Electrical Code (CSA® C22.1)
unless local code requirements indicate otherwise.
The heater comes factory-wired intended for use with 240
Vot, 60 Hz AC eld electrical supply. To use 120 Vot,
60 Hz AC requires changing the position of the voltage
selector board on the power distribution board. This must
be done by a certi ied electrician.
Filter
Filter
Pump
JXi Heater
Electrical
Power Distribution Board
Conversion from 240 VAC to 120 VAC
FOR 120 VAC
FOR 240 VAC
10
1
1
10
5

Installation Requirements
Filter
Filter
Pump
JXi Heater
Plumbing
PLUMBING
Heater must be plumbed down steam of filter.
Heater must be installed so that when the filter pump is off so to is the heater.
All electrical equipment must be grounded and bonded.
The JXi heater is Versa Plumb ready.
The Versa Plumb System reduces hydraulic resistance by up to 50% versus other equipment sets in
its class.
The Versa Plumb System's increased hydraulic efficiency allows for up to a 1/2 HP smaller pump to
achieve the same level of flow, resulting in greater energy savings.
Faster installation with our pre-assembled plumbing kits, which enable quick and consistent equipment
plumbing design to reduce installation costs.
Innovatively designed system requires less plumbing pipe and fittings, while increasing hydraulic efficiency.
6

Clearances
Minimum vertical clearance = 36 inches
Minimum clearance to
at least one door panel = 18 inches
Water Flow
Water Inlet
Water Outlet
Combustion and Ventilation requirements.
Appropriate site location
Clearances/ Combustable sufaces
In both indoor installations (US) and outdoor shelter
installations (Canada), the heater must be placed to
provide clearances on all sides for maintenance and
inspection, as well as maintain minimum distances from
combustible surfaces.
TOP: 6 inches (15 cm)
EXHAUST SIDE: 6 inches (15 cm) from
surface of the exhaust vent
HEADER SIDE: 6 inches (15 cm)
DOOR PANELS: 6 inches (15 cm)
Minimum Clearances for combustible surfaces
The following minimum clearances must be maintained from combustible surfaces during operation.
Installation RequirementsIn
Model Min gpm (lpm) Max gpm (lpm)
200 30 (114) 120 (454)
260 30 (114) 120 (454)
330 30 (114) 120 (454)
400 30 (114) 120 (454)
7

A
A
Clearances to Openings
Distance from heater to door, window or other
opening to living structure.
Dimension “A”– 4’ minimum
Forcedair inlet
C
B
Distance from heater to forced air inlet or other vented opening.
Dimension “B” –May be any distance if dimension “C” is 3’ or more.
Dimension “B”– Must be at least 10’ if dimension “C” is less than 3’.
8

Vent Cap
2’
10’
1/4 inch minimum
pitch per foot of
horizontal pipe.
Category l Venting
Type B Double Wall
Vent Pipe. Adequate air
into room
See next slide
12 inches from ceiling
12 inches from floor
Heater Size Vent Size
200 6" (15cm)
260 7" (18cm)
330 8" (20cm)
400 8" (20cm)
Table 2. Category I Vent Pipe Sizing Table
Heater
Size Vent Size
Special Gas Vent
Length (vertical or horizontal)
in feet (metres)
200 4" (10cm) TBD (m)
260 4" (10cm) 50ʹ(15m)
330 4" (10cm) TBD (m)
400 4" (10cm) 50ʹ(15m)
Table 3. Category III Vent Pipe Sizing Table
When the installation requires horizontal venting in excess
of what is allowed for Category I installations or calls
for horizontal discharge, the JXi may be installed with a
Category III venting system.
See Table 3 for recommended vent size and run lengths
without elbows. For each elbow installed, reduce the run
length by 12 feet (3.7m)
Vertical or Horizontal Venting
(Category III)
9

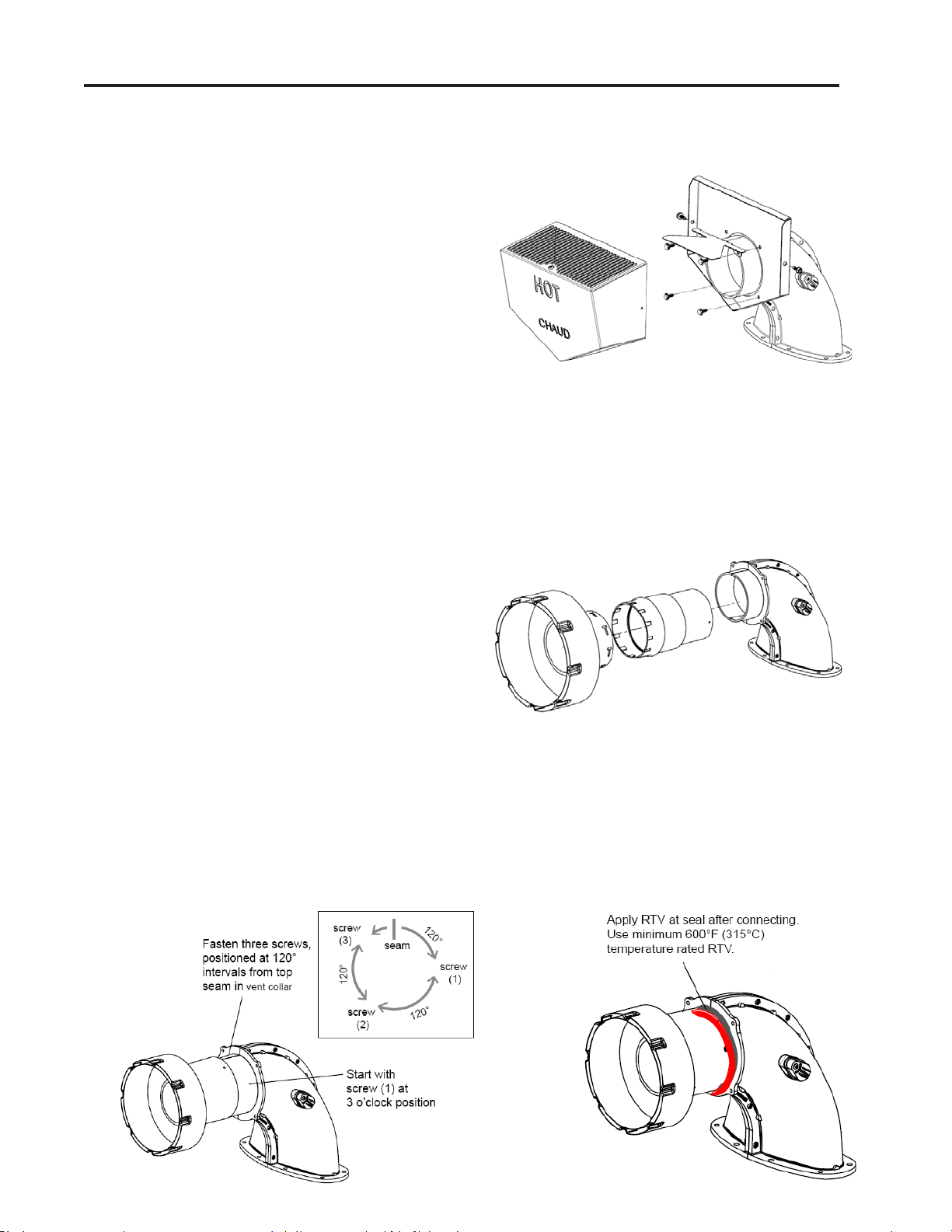

Vent Connection and Pipe Sizing
Figure 3 Figure 4
Vent Pipe or Elbow Increaser Installation
(Category I and Category III)
1. Remove the exhaust body.
2. Remove the exhaust rain shield .(Figure 1)
Exhaust Vent
Rain Shield
3.
Category I:
Install a draft hood connector and an increaser to
meet the vent size requirements per Table 2. (See
Figure 2.)
Category III:
Install vent connector or elbow to the flue colla
according to the specific i stallation instructions
from the vent connector or elbow component
manufacturer.
Figure 2. Remove Exhaust Body and Rain Shield
Figure 1
Figure 2
Figure 2. Remove Exhaust Body and Rain Shield
4.
Wipe the socket of the vent body with rubbing
alcohol using a clean cloth or paper towel, then.
dry with a different clean cloth.
5.
Connect the vent connector to the lue collar and
fasten with three (3) sheet metal screws, as
shown in Figure (3).
Figure 3. Correct positioning of screws
on vent collar
6. Apply high temperature silicone RTV at the
connection to seal, as shown in Figure 4.
NOTE: Use a minimum 600°F (315°C) temperature rated RTV. Figure 4. Seal Connection with RTV
10

Power Interface
Board (PIB)
J12
J15
J16
J17
J6
J3
J10
Air/Coil
J9
H2O
CONFIG 0 1 2 3 4
ON
FIL- P MP AUX 1 A UX 2 AUX 3 AUX 4 AUX 5 A UX 6 AUX 7 SLR-PMP E-HTR
INTAKE RETURN CLEANER SOLAR
AUTO
SERVICE
TIME OUT
RESET
HEATER SOLAR
POOL MODE
SPA MODE
SPA DRAIN
SPA FILL
SPARE
ON
4 3 2 1
RED
BLACK
YELLOW
GREEN

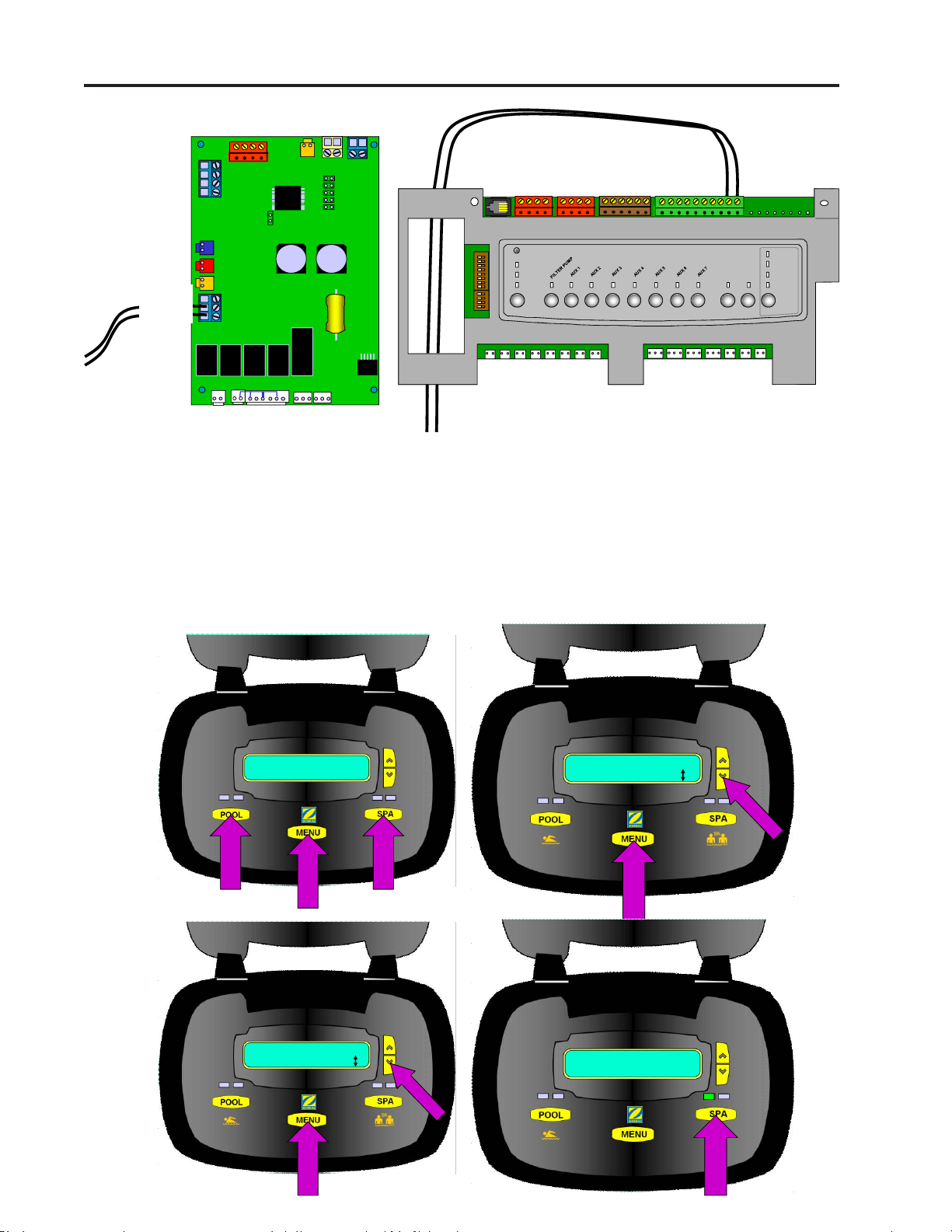

Connection to Controls
Connection to Jandy Control - RS 485
JXi CONNECTED TO AQUALINK RS AT RS 485 LINE
There are two ways of connecting a Jandy JXi heater to theAquaLink RS. One way is to connect at the Pool
and Common terminals of the Power Interface Board. This type of connection is shown on the next page. The
other way is to connect to the RS 485 line (red terminal bar) as shown here. When connected at the RS 485
line, the JXi andAquaLink RS become “smart” in that the control knows if the heater is malfunctioning. When
connecting to the RS 485 line, the AquaLink RS firmware must be Rev N or newer.
To establish communication between the LXi andAquaLink RS do either of the following:
After making connection turn power off then on to the AquaLink RS.
Hold the MENU button down for 5 seconds, then simply follow the screen prompts.
11

JXi Connected to “Fireman’s Switch”
Power Interface
Board (PIB)
J12
J15
J16
J17
J6
J3
J10
Air/Coil
J9
H2O
CONFIG 0 1 2 3 4
SPA
POOL
COMMON
ON
FIL- P MP AUX 1 AUX 2 AUX 3 A UX 4 AUX 5 AUX 6 A UX 7 SLR-PMP E-HTR
INTAKE RETURN CLE ANER SOLA R
AUTO
SERVIC E
TIME OUT
RESET
HEATER SOLAR
POOL MOD E
SPA MODE
SPA DRAIN
SPA FILL
SPARE
ON
HEATER IS OFF
PRESS POOL OR
SPA
®
SELECT SERVICE
SETUP REMO
TE
®
®
SELECT SERVICE
SETUP
REMOTE
TSTAT
®
* REMOTE
TSTAT *
* ENABL
ED
*
JXi HEATER CONNECTION AT “FIREMAN’S SWITCH”
At the JXi Power Interface Board connect one end of two wires to terminals POOL and COMMON (J6).
Connect the other end of these two wires to terminals 1 and 2 of theAquaLink RS Green terminal bar.
Set pool thermostat to maximum (104 F).
Set the JXi to recognize this type of connection by holding down MENU, POOL, and SPAbuttons
together for 7 to 10 seconds at the JXi’s User Interface. Set REMOTE to T-Stat. Press POOL button to
exit.
12

End User Menu, Universal Control, LXi
Hold down the Menu Button for 5 to 10 Seconds
Temperature Scale
Spa Timer
Display Light
English
Spanish
French
Fahrenheit
Celsius
Continuous
0:15 to 23:00 Hours
On
Off
2 Minute Delay
Language
Installer/Technician Menu, Universal Control, LXi
Hold down the Pool, Menu, & Spa Button for 5 to 10 Seconds
Maintain Temp
Delay
Freeze Protect
Louver
Remote
Load Defaults
Water Temp Cal
Water Temp Diff
Statistics
0:00 to 2:00 Hours
Off
Hi-Lo-Com
Remote T-Stat
Off
On (34º - 42º)
Disable
Enable
No
Yes
C = + or - 2°
F = + or - 4°
F & C = +1° to +5°
Gas Valve on time (# of hours).
Cycles (# of times heater fires).
Maintain Temp
Last Fault *------------*
*------------*
C = + or - 4°
F = + or - 4°
Air Temp Cal
Disable
Enable
DISPLAY BEZEL w/GASKET & COVER
P/N = R0458300
Hold down the POOL, MENU and SPA buttons
for 5 to 10 seconds to enter the hidden menu.
Hold down the MENU buttons for 5 to 10
seconds to enter the menu.
HEATER IS OFF
PRESS POOL OR SPA
®
®
HEATER IS OFF
PRESS POOL OR SPA
JXi
JXi
13

As with all pool heaters water velocity and flow through the heat exchanger are controlled by
an automatic bypass. The automatic bypass consists of a disk and spring and is located between
the Inlet/Outlet header.
A thermal regulator valve is also incorporated into this heater in the Inlet/Outlet header. Its
purpose is to hold water in the exchanger during initial heat up to reduce the amount of condensate
created at the heat exchanger.
Components - Water Flow
Thermal Regulator Valve (TRV)
R0589700
Bypass Kit with Shaft,
C-Clip and Poppet
R0589800
Heat Exchanger
R0589402-05
Heat Exchanger
Model 200 = 3 tubes
Model 260 = 4 tubes
Model 330 = 5 tubes
Model 400 = 6 tubes
14

Power Distribution Board
Power Interface Board
Ignition Control
Release Button
Components - Electrical
Raceway Release Button
Press to release
15

FOR 120 VAC
FOR 240 VAC
10
1
1
10
Power Interface Board (PIB)
R0458200
Power Distribution Circuit Board
P/N = R0458100
To covert from 240 VAC to 120 VAC wiring, snip the wire tie holding the conversion board in place. Remove the
conversion board, flip it over and reinsert.
16

Ignition Control
R0456900
L1
W
VAL
IGN/FS
IGN/
120
PS
L2
GND
F2
F1
24
VAC
FC
FENWAL
Blower ON
Pre-Purge
15 seconds
Hot Surface Igniter
40 seconds
Heat Up
From Air Pressure Switch
From Thermostat
To Gas Va lve
To HSI
out of phase with
120 VAC
Pre-Purge: 15 Sec. Ignition: 7 Sec. Interpurge: 15 Sec. Heat-Up 40 Sec. Input : 24 VAC 50/60 Hz 300 mA Valve: 24 VAC, 2.0 A max. Inducer: 120/240 VAC, 3.0 A, ¼ HP Ignitor: 120 VAC, 5.0 A max. 50/60 Hz
Pre-Purge: 15 Sec. Ignition: 7 Sec.
Interpurge: 15 Sec. Heat-Up: 40 Sec.
Input : 24 VAC 50/60 Hz 300 mA
Valve: 24 VAC, 2.0 A max.
Inducer: 120/240 VAC, 3.0 A, ¼ HP
Ignitor: 120 VAC, 5.0 A max. 50/60 Hz
17

Water Temperature Sensor
R0456500
10 K Ohms thermistor
Water Pressure Switch
R0013200
Transformer
P/N = R0456300
This transformer is a center tap primary. When
connected to the Power Distribution Board, this
transformer provides 120 VAC to terminals L1 and L2
of the Ignition Control, whether the incoming power is
120 or 240 VAC.
The secondary (24 VAC) of the transformer provides
power to the Power Interface Board and the Ignition
Control.
In-Line Fuse - 2 amp
P/N = R0337100
Fuse and Harness
P/N = R0457700
18

High Limit – 150 °F
High Limit – 135 °F
High Limit Temperature Sensors Kit
R0592300
High Limit – 135 °F High Limit – 150 °F
19

Air Blower
Air Pressure Switch
Air Orifice
Union – Gas Orifice
is located here
Gas Valve
Fuel Components
20
