Zoeller 1332-0006 User manual

Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
024998 B
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
IRRIGATION
PUMPS
MODELS #1332-0006, 1333-0006
Zoeller®is a registered trademark
of Zoeller Co. All Rights Reserved.
Español p. 24

2
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard
UL778. CSA certied pumps are certied to CSA Standard C22.2 No. 108. (CUS)
DANGER
ELECTRICAL SHOCK HAZARD.
Always disconnect power source before performing any work on or near the motor or its connected load. If the
power disconnect point is out-of-sight, lock it in the open position and tag it to prevent unexpected application of
power. Failure to do so could result in fatal electrical shock.
ELECTRICAL SHOCK HAZARD.
Do not handle the pump with wet hands or when standing in water as fatal electrical shock could occur.
Disconnect main power before handling unit for ANY REASON!
RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool areas.
WARNING
ELECTRICAL SHOCK ALERT.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the Occupational
Safety and Health Act (OSHA).
ELECTRICAL SHOCK ALERT.
Replace damaged or worn wiring cord immediately.
ELECTRICAL SHOCK ALERT.
Do not kink power cable and never allow the cable to come in contact with oil, grease, hot surfaces, or chemicals.
ELECTRICAL SHOCK ALERT.
Unit must be securely and adequately electrically grounded. This can be accomplished by wiring the unit to a
ground metal-clad raceway system or by using a separate ground wire connected to the bare metal of the motor
frame or other suitable means.
CHEMICAL ALERT.
Prop65 Warning for California residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
CAUTION
ELECTRICAL SHOCK MAY OCCUR
Protect the power cable from coming in contact with sharp objects.
HOT SURFACE MAY CAUSE BURNS
Be careful when touching the exterior of an operating motor - It may be hot enough to be painful or cause injury.
PRODUCT DAMAGE MAY RESULT
Make certain that the power source conforms to the requirements of your equipment.

3
PACKAGE CONTENTS
Description Quantity
Pump 1
Foot Valve 1
Before beginning installation of product, make sure all parts are present. Compare parts with package
contents drawing. If any part is missing or damaged, do not attempt to assemble the product. Contact
customer service for replacement parts.
Estimated Installation Time: 2 hours.
Tools Required for Assembly (not included): Hacksaw, Pipe Wrenches (2), Wire Strippers, Needle-Nose
Pliers, Phillips Screwdriver, Wire Cutters, Adjustable Wrench
Parts Required For Assembly (not included): 2 in. Sched 40 PVC pipe, 1-1/2 in. Sched 40 PVC pipe,
2 in. MPT x 2 in. slip adapter, 1-1/2 in. MPT x 1-1/2 in. slip adapter, 1-1/2 in. pipe tee, 1-1/2 in. slip
x 1-1/4 in. FPT reducer bushing, 1-1/4 in. MPT plug, 2 in. 90º pipe elbow, 1-1/2 in. 90º pipe elbow,
thread tape, 1/4 in. electric wire strain relief, 2-step PVC glue system (primer and sealer), and thread
paste.
Optional Parts For Assembly (not included):
1. Priming Plug with Pressure Gauge: Used instead of a priming plug alone. Helps determine if
the pump is primed, indicates if the pump is operating properly and what kind of pressure is in the
system when operating.
(1) 1-1/4 in. MPT x 1/2 in. FPT reducer bushing
(1) 1/2 in. MPT x 1/4 in. FPT reducer bushing
(1) 100 PSI pressure gauge
2. Unions: Used for easy removal of the pump from the sprinkler system.
(2) 2 in. union
(1) 1-1/2 in. union
3. (1) 1-1/2 in. Ball Valve: Prevents back flow of water from the sprinkler system when the pump is
removed from the system.
4. 1-1/2 in. Couplers: Quantity determined by the total length of pipe used.
5. 2 in. Couplers: Quantity determined by the total length of pipe used.
PREPARATION

4

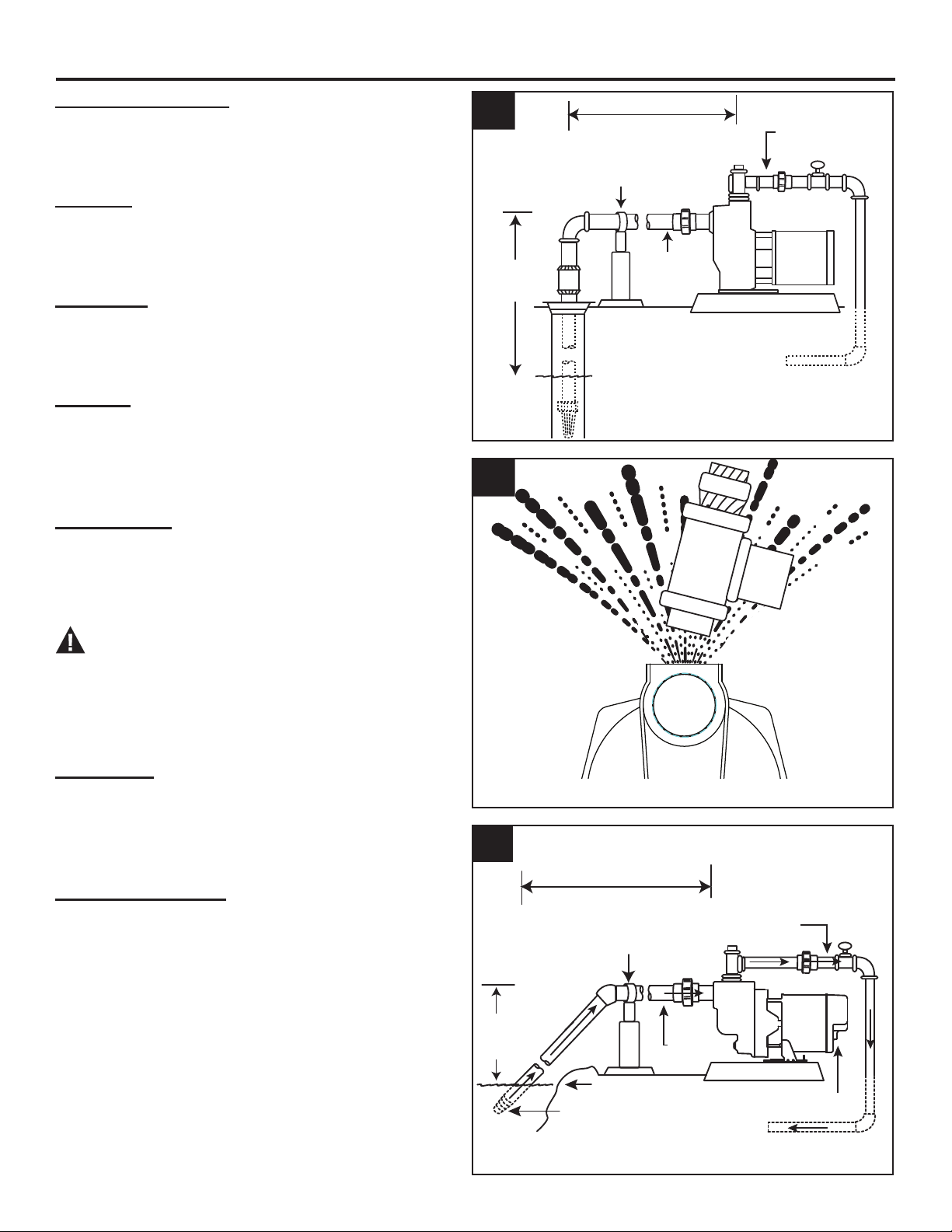

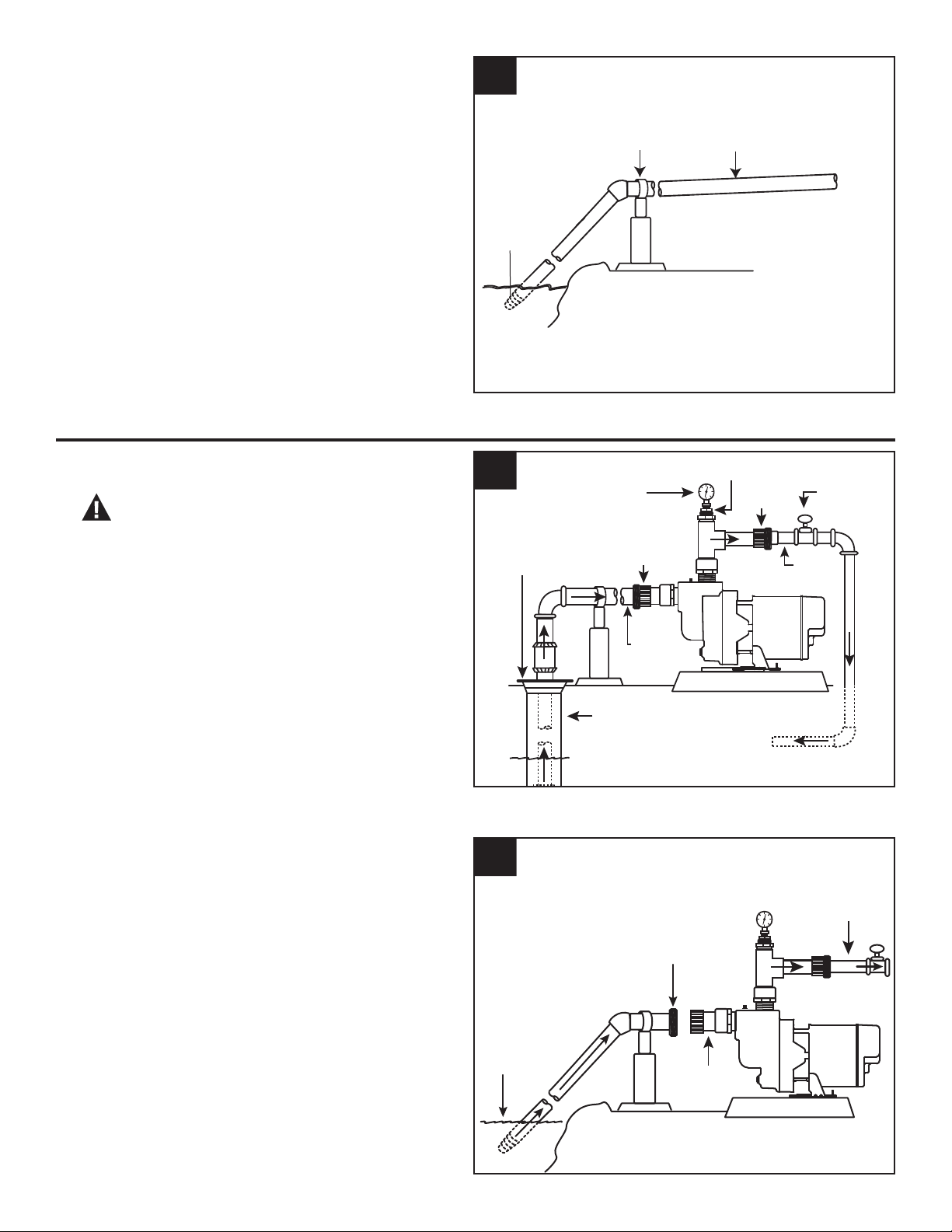

Typical Pump Setup
Typical setups for lawn sprinkler pump systems
include ground water wells (Fig. 1) or surface
water, such as lakes, ponds, or streams. (Fig. 3)
Location
For best performance, the pump must be
located as close to the water source as possible
and protected from the elements.
Ventilation
Ventilation and drainage must be provided to
prevent damage to the motor from heat and
moisture.
Freezing
The pump and all piping must be protected from
freezing. If freezing weather is forecast, drain
pump or remove completely from the sprinkler
system.
Water Supply
The water source must be able to supply
enough water to satisfy the capacity of the pump
and water needs. See performance chart in
section: SPECIFICATIONS.
WARNING: NEVER run pump against a
closed discharge. Doing so can boil water inside
pump causing hazardous pressure in unit, risk of
explosion and possibly scald persons handling
pump. (Fig. 2)
Vertical Lift
Vertical lift is the vertical distance from the
lowest level of the water to the pump intake. The
pump will move water as long as the pump is
within 25 vertical feet of the water source.
Horizontal Distance
The horizontal distance is the horizontal
measurement between the pump inlet and the
water source. This distance may affect the ability
of the pump to operate. If it is over 60 feet, call
customer service at 1-800-584-8089.
GENERAL PUMP INFORMATION
Water Level
25 ft.
max
Vertical
Lift
Outlet
Pipe
Inlet
Pipe
Discharge to
Sprinkler System
60 ft. max.
Inlet pipe to water
Pipe
Support
1
2
Water Level
25 ft.
max
Vertical
Lift
Outlet Pipe
Inlet
Pipe
Discharge to
Sprinkler System
Inlet pipe to water
Pipe
Support
60 ft. max.
Motor Cover
Foot
Valve
3

5
Pipe And Fittings
Use galvanized steel or NSF PW Schedule 40
PVC pipe and fittings. This material is designed
for water pressure and will seal against air
and water under pressure. Do Not Use: DWV
fittings, as these are designed for drains without
pressure and will not seal properly.
CAUTION: The entire system must be
air and water tight for efficient operation and to
maintain prime.
Wire Size:
The wire size is determined by the distance
from the breaker box to the pump motor, and
the horsepower rating of the motor. See the wire
chart in PUMP ELECTRICAL INSTRUCTIONS
for proper wire size.

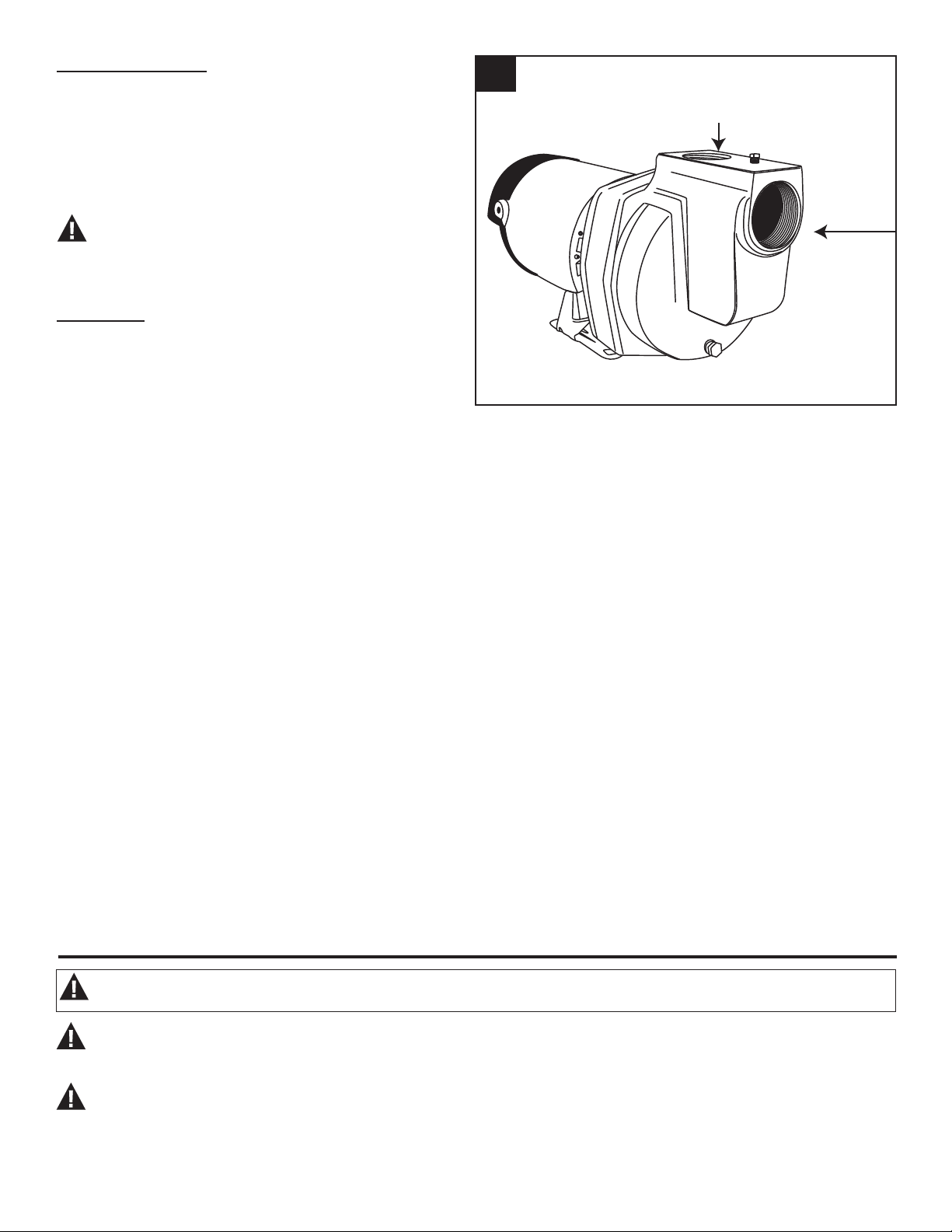

1-1/2 in. Discharge
2 in.
Suction
4
CAUTION: Dry-t entire assembly to ensure proper t before gluing or taping parts.
CAUTION: Follow all proper gluing procedures as specied by the glue manufacturer. Always glue
in a vertical direction whenever possible to prevent glue from dripping inside pipe or ttings.
CAUTION: Use thread tape and a thread paste compound on all male threads except for the
unions. Tighten securely with a wrench and add another 1/4 turn to ensure proper seal.
PUMP PREPARATION FOR WELL AND SURFACE WATER

6
IL1252
IL1253

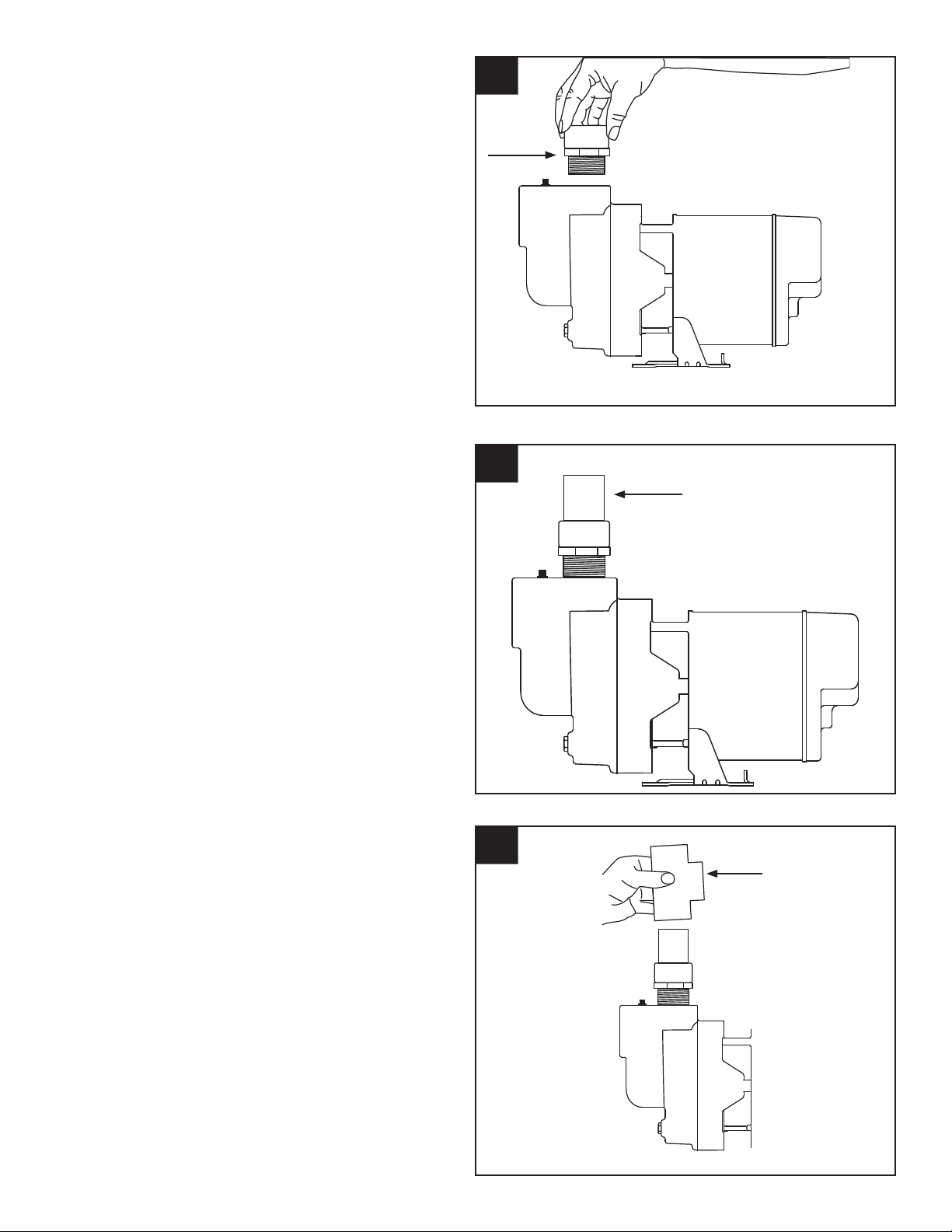

1. Thread 1-1/2 in. MPT x 1-1/2 in. slip adapter
(not included) into the outlet port located at
the top of the pump.
2. Glue a 6 in. piece of 1-1/2 in. pipe (not
included) into the adapter.
3. Glue a 1-1/2 in. tee (not included) to the pipe.
1
3
2
IL1254

7
4
5
6

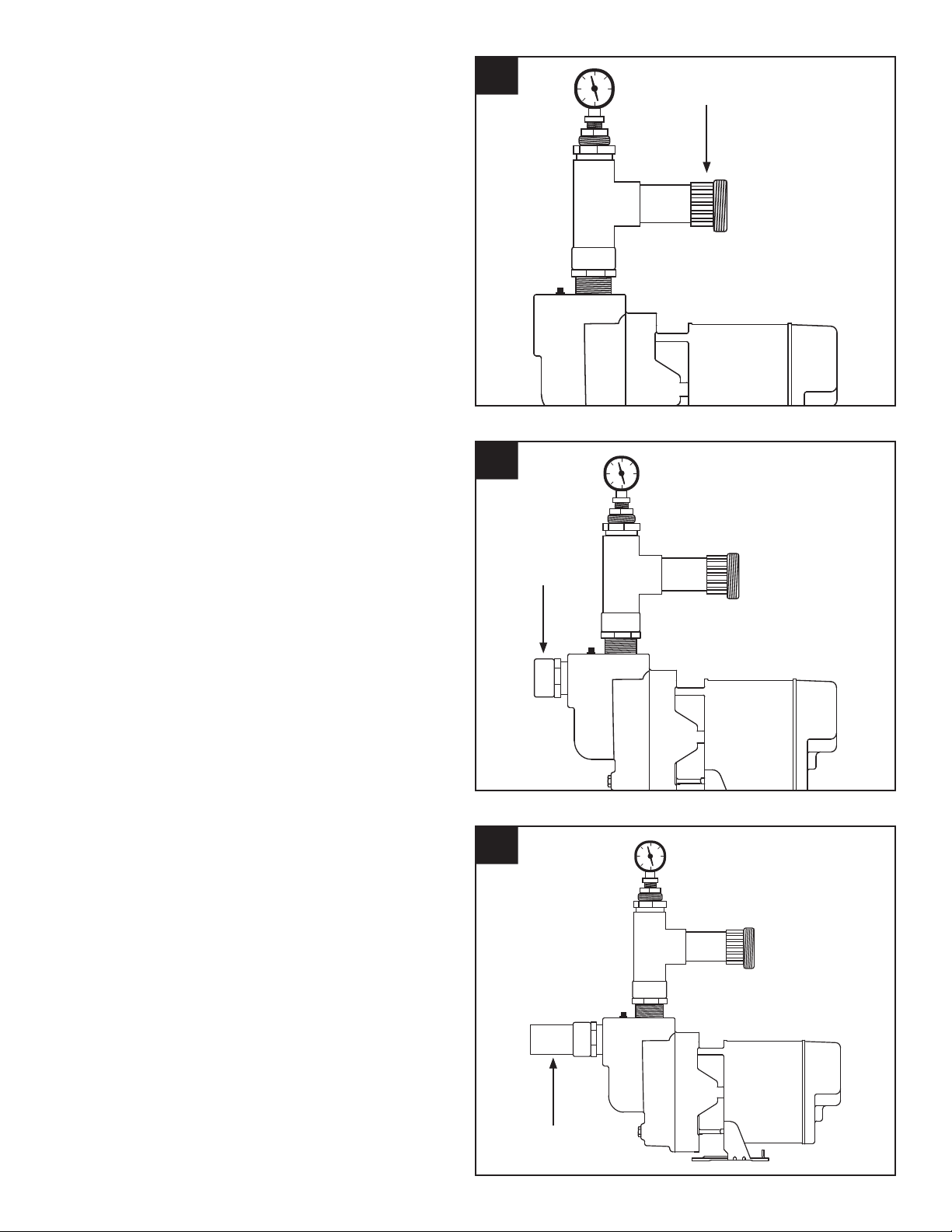

4. Glue a 1-1/2 in. slip x 1-1/4 in. adapter (not
included) to the top opening of the 1-1/2 in.
tee.
5. Thread in a 1-1/4 in. priming plug or optional
priming plug with pressure gauge (neither
included).
NOTE: Hand tighten only, as this will be
removed for priming.
6. Glue another 6 in. section of 1-1/2 in. pipe
(not included) into the opening in the
1-1/2 in. tee.
IL1255
Priming Plug
with Pressure
Gauge
1-1/4 in.
Priming
Plug

8
7. Glue the male thread side of a 1-1/2 in. union
(not included) to the pipe.
8. Thread 2 in. MPT x 2 in. slip adapter (not
included) into the inlet port located on the
front of the pump body.
9. Glue an 8 in. section of 2 in. pipe (not
included) into the 2 in. adapter.
7
8
9

9

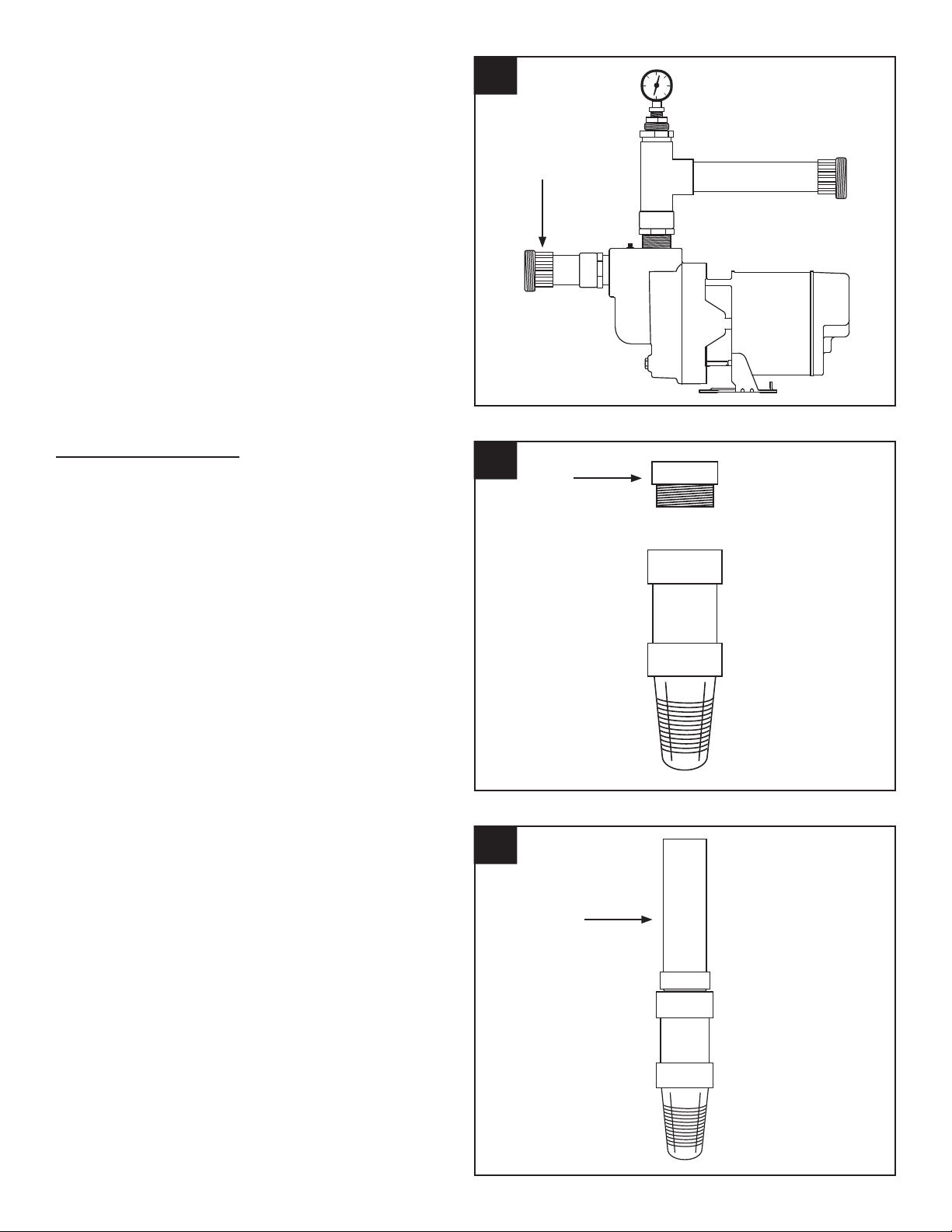

10. Glue one side of a 2 in. union (not included)
to the pipe.
For Well Installations
11. Thread a 2 in. MPT x 2 in. slip adapter (not
included) into the foot valve.
12. Glue 2 in. pipe (not included) into the
adapter. Glue enough sections of pipe
together using 2 in. couplers (not included)
in order for the foot valve to be completely
submerged in water. Be sure inlet pipe
will remain fully submerged at the lowest
expected level of the water source.
10
11
12

10
13. Install well seal (not included) in order to
hold the inlet pipe in position in the well.
14. Glue a 90º elbow (not included) when the
inlet pipe is in line with the inlet port of the
pump.
For Surface Water Installations
For surface water installations, follow steps 11
and 12 above and then:
15. Glue a 45º elbow (not included) when the
inlet pipe is in line with the inlet port of the
pump.
IL1261
Water Level Discharge to
Sprinkler System
Well Seal
Inlet Pipe
Water Level Discharge to
Sprinkler System
Elbow
Water
Level
Outlet Pipe
Inlet
Pipe
Discharge to
Sprinkler System
Elbow
13
14
15

11
PUMP INSTALLATION FOR WELL AND SURFACE WATER
1. Mount pump on a solid foundation as close
to the water source as possible.
CAUTION: Support the 2 in. inlet
pipe from the well or lake to the inlet port
to prevent sagging. Sagging will create air
pockets within the pipe that will prevent the
pump from priming and operating correctly.
2. Glue female 2 in. union (not included) to
the end of inlet pipe leading from the water
source.
Water Level Discharge to
Sprinkler System
Well Seal
100 PSI
Pressure
Gauge
Priming Plug
Union Ball
Valve
Outlet
Pipe
Inlet
Pipe
Well
Union
Water
Level
Outlet Pipe
Inlet
Pipe
2 in.
Female
Union
16. Support inlet pipe with pipe support (not
included).
Pipe
support Slope pipe upward
from water source
Use a concrete block or
other solid material to
support suction pipe
Water level
16
1
2

12
3. Connect the 2 in. union together to complete
the inlet line to the pump.
4. Glue a 6 in. piece of 1-1/2 in. pipe (not
included) to the female portion of the 1-1/2
in. union.
5. Glue 1-1/2 in. ball valve (not included) to the
other end of the 6 in. piece of pipe.
Water
Level
Outlet Pipe
Inlet
Pipe
2 in.
Union
1-1/2 in.
Union
Ball Valve
3
4
5

13

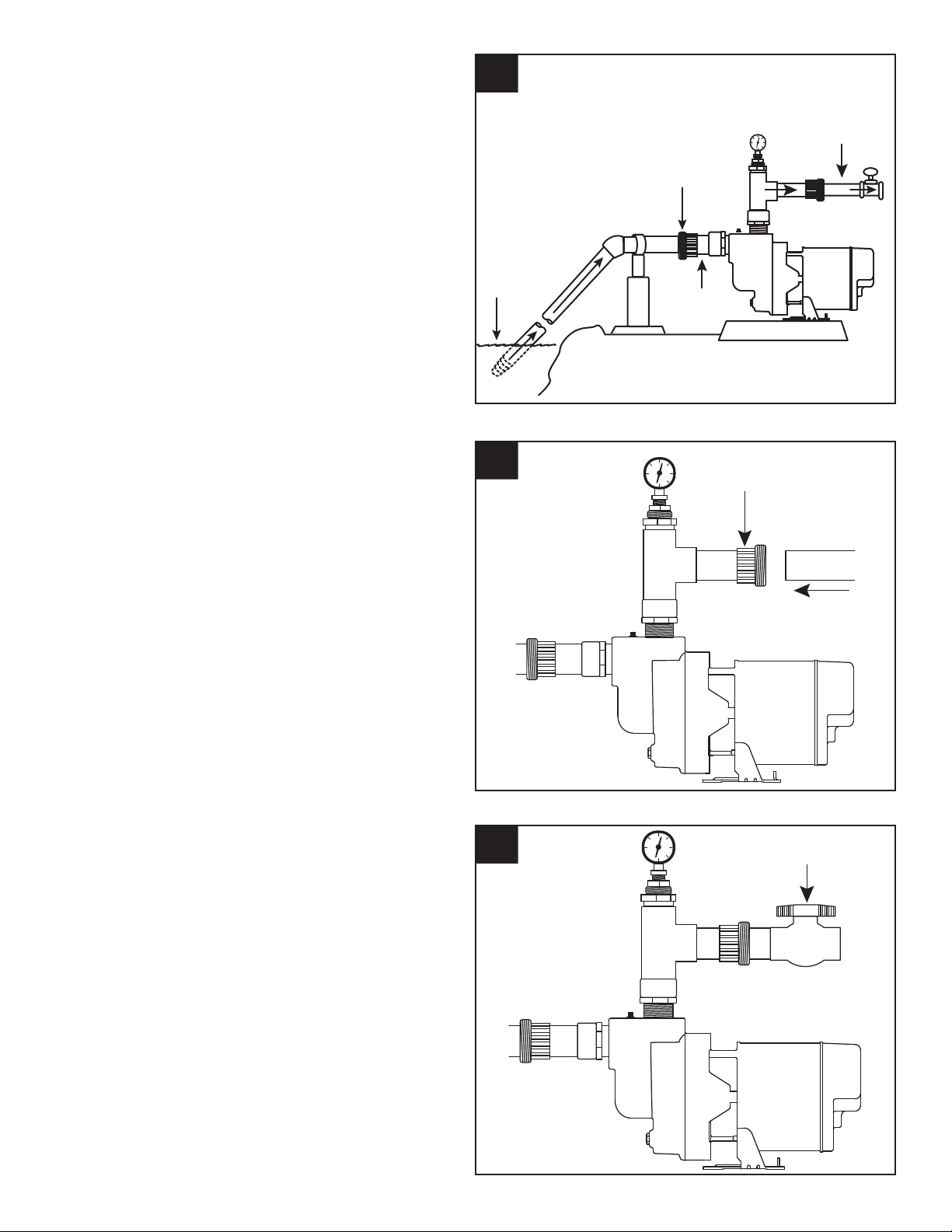

6. Connect the 1-1/2 in. outlet pipe to the
sprinkler system (not included) by gluing in
additional sections of pipe (not included) as
needed.
7. Connect union to ensure proper t. Do not
tighten until after priming.
CAUTION: Do not glue union together.
IL1123
Outlet Pipe
Inlet
Pipe
Discharge to
Sprinkler System
IL1124
Outlet Pipe
Inlet
Pipe
Discharge to
Sprinkler System
6
7

14
PUMP ELECTRICAL INSTRUCTIONS
Wire Size Chart
Distance From
Motor To Fuse
Box, Meter or
Electrical Outlet
Minimum Copper Wire Size Chart (Gauge)
Single Phase Motors
1-1/2 HP 2 HP
115 Volt 230 Volt 115 Volt 230 Volt
0-50 Ft.
50-100 Ft.
100-150 Ft.
150-200 Ft.
200-300 Ft.
Fuse Size (Amps)
12
10
8
*
*
20
14
14
12
12
10
15
12
10
8
*
*
20
14
14
12
10
10
15
(*) Not economical to run in 115 V; use 230 V
NOTE: This pump can be used with a variety of controls, including a pump start relay, pressure switch
with tank, and indexing valve. See control manufacturer’s instructions for details.
ELECTRICAL SHOCK ALERT.
Under-size wiring can cause motor failure and even fire. Use proper wire size specified in the wire size
chart below.
ELECTRICAL SHOCK ALERT.
Replace damaged or worn wiring cord immediately.
ELECTRICAL SHOCK ALERT.
Do not kink power cable and never allow the cable to come in contact with oil, grease, hot surfaces, or chemicals.
ELECTRICAL SHOCK ALERT.
The pump must be properly grounded using the proper wire cable with ground.
ELECTRICAL SHOCK ALERT.
Always disconnect pump from electricity before performing any work on the motor.
ELECTRICAL SHOCK MAY OCCUR
All wiring should be performed by a qualified electrician in accordance with the National Electric Code and local
electric codes.
ELECTRICAL SHOCK MAY OCCUR
Connect the pump to a separate electrical circuit with a dedicated circuit breaker. Reference the wire size chart
below for proper fuse size.
ELECTRICAL SHOCK MAY OCCUR
Protect the power cable from coming in contact with sharp objects.
PRODUCT DAMAGE MAY RESULT
Make certain that the power source matches the pump requirements. This pump has a dual voltage
motor and can run on 115 V or 230 V. This pump is wired from the factory to run on 230 volts; refer to
page 16 if you want to change the pump to run on 115 volts.
WARNING
CAUTION

15
A B L2
L1
IL1271
A B L2
L1
IL1272
2
3
2. Thread electric wire strain relief (not
included) into wire opening on the side of the
motor of pump.
3. Insert wire through electric wire strain relief
and tighten screws.
1
1. Remove rear motor cover on pump by
unscrewing the two screws.

16
A B L2
L1
IL1273
4
4. Connect white power lead to L1 and black
power lead to L2.
5. Connect green ground wire to green
grounding screw. Re-install rear motor cover
to pump.
To change from 230 V to 115 V
6. The motor of pump is dual voltage and
can run on either 115 volts or 230 volts. In
general, 230 volts is more economical to run,
and requires a smaller wire size. The pump
is pre-set in the factory to run at 230 volts.
A B L2
L1
IL1274
A B
L2L1
G R AY
RED
5
6

17
b. Pull the red wire with the female flag
connector from the “B” terminal. Place it
to the right on the L2 terminal spade post.
c. Reinstall the rear motor cover.
A B
L2L1
G R AY
RED
7b
7c
7. For 115 volts service, change the following
wires on the terminal board:
a. Using a pair of needle nose pliers,
pull the gray wire with the female flag
connector from the “B” terminal spade
post. Place it to the left on the “A”
terminal spade post. A B
L2L1
G R AY
RED
7a

18
PUMP PRIMING AND STARTUP
IL1278
Priming Plug
with Pressure
Gauge
Outlet Pipe
Inlet
Pipe
Air Relief Plug
IL1279
Priming Plug with
Pressure Gauge
Air Relief Plug
IL1280
Air Relief
Hole
1
2
3
CAUTION: All pumps must be primed by
filling the pump cavity with water before they
are first operated. This may take several gallons
of water, as the entire inlet line will be filled in
addition to the pump cavity. The longer the inlet
line, the more water is required for priming.
1. Disconnect the 1-1/2 in. outlet union and
separate the pipe.
2. Remove the air relief plug on top of pump
and the 1-1/4 in. priming plug with pressure
gauge or plug. Refer to Pump Preparation
Step 5.

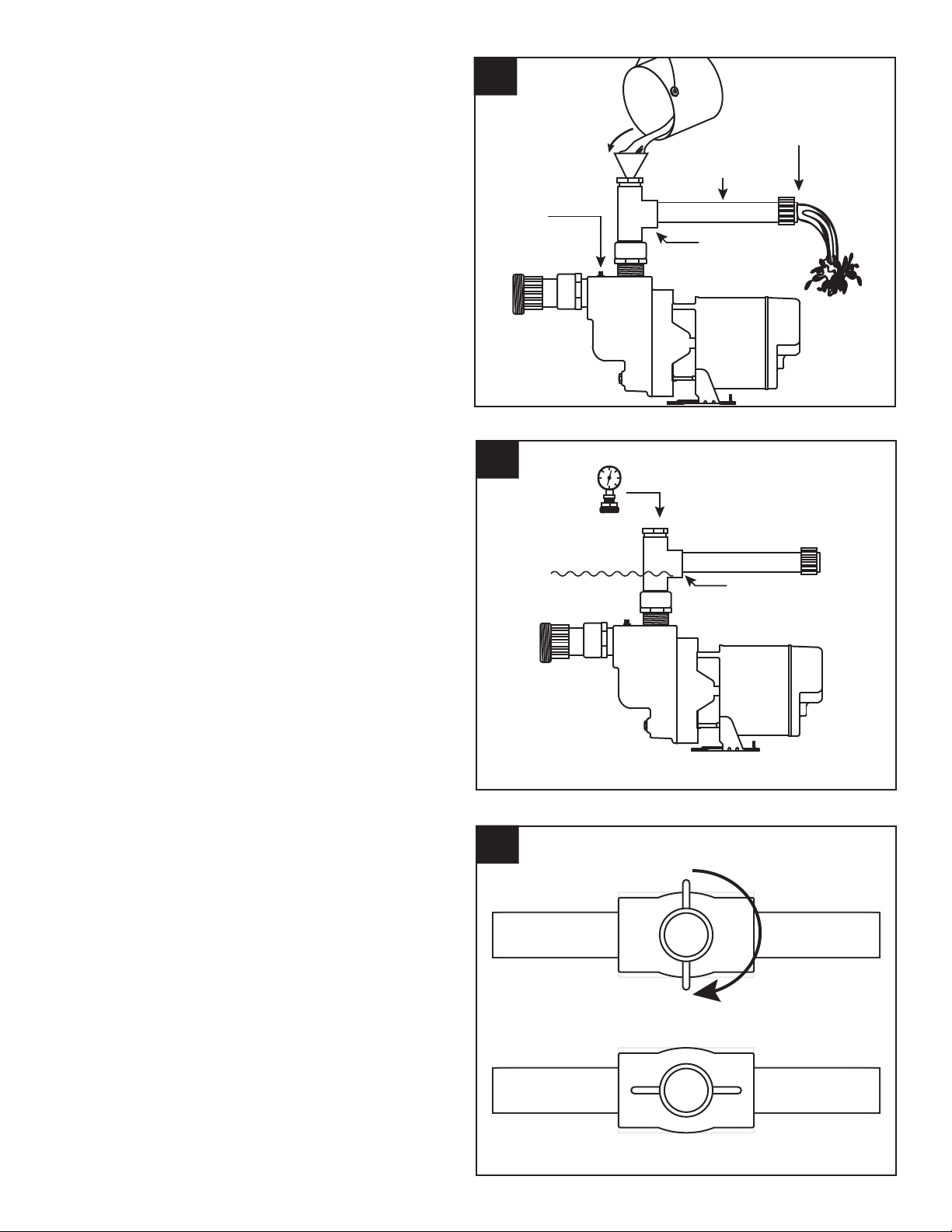

3. Slowly fill pump cavity until water comes out
of air relief hole on top of the pump.

19
IL1288
Priming Plug with
Pressure Gauge
Water
Level Pipe Tee
Closed
Open
5
6
5. Wait 10 minutes to see if water level drops
below the pipe tee. If level drops, check foot
valve. If level stays constant, replace the
priming plug.
6. Reconnect 1-1/2 in. union on outlet pipe.
Open the ball valve (turn handle to line up
with pipe), and then turn on breaker to start
pump.
Outlet Pipe
Open Union
Air Relief
Plug
Pipe Tee
4
4. Replace air relief plug and continue adding
water to pump cavity until water comes out of
the open outlet pipe at the open union.

20
IMPORTANT: If the pump fails to prime within five minutes:
7. Turn the power off at the breaker box. Check all pipe connections for leaks, making sure all
connections are water and air tight. Check the inlet pipe for any sagging, making sure the inlet pipe
is in a straight line to the pump. Watch for leaks or a milky color in the discharged water, which
indicates an air leak. Re-prime if necessary, following steps 1 through 6 above. Reset breaker at the
breaker box.
IMPORTANT: If the pump hums instead of pumping or turns off repeatedly, shut pump off
immediately. Check voltage. Pump is wired to run on 230 volts. If the pump cuts out or stops, you
may be attempting to connect to 115 volts. See PUMP ELECTRICAL INSTRUCTIONS to see how to
correctly change the motor voltage to 115 volts.
MOTOR DATA CHART
HP Phase Volts Code Letter Max Amps
Locked Rotor
Amps
1-1/2 1
1
115
230 G18.0 9.0
72.0
36.0
21
1
115
230 G21.0 10.5
108.0
54.0
PERFORMANCE
Item
Number HP Vertical
Lift (FT)
Capacity - U.S. Gallons per Minute
Discharge Pressure (PSI) Inlet
Pipe
Outlet
Pipe
15 20 25 30 35 40
1332-0006 1-1/2
10 66 58 53 42 32 10
2 in. 1-1/2 in.
15 62 57 47 38 25 7
20 54 52 42 31 13 3
25 40 38 36 23 12 0
1333-0006 2
10 67 62 56 49 39 27
2 in. 1-1/2 in.
15 63 59 52 44 34 25
20 59 56 49 40 29 9
25 37 36 35 31 18 5
SPECIFICATIONS
