SEWAGE PUMP
MODEL #1261-0001
Serial Number Purchase Date
Zoeller®is a registered trademark
of Zoeller Co. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
SW1134 B

2
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard
UL778. CSA certied pumps are certied to CSA Standard C22.2 No. 108. (CUS.)
• ELECTRICAL SHOCK ALERT.
To reduce the risk of electric shock, install only a circuit protected by a ground-fault circuit-interruptor
(GFCI). Make certain that the ground fault receptacle is within the reach of the pump’s power supply
cord. DO NOT USE AN EXTENSION CORD.
• ELECTRICAL SHOCK ALERT.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
• ELECTRICAL SHOCK ALERT.
Do not kink power cable, and never allow the cable to come in contact with oil, grease, hot surfaces,
chemicals, or sharp objects. Replace damaged or worn wiring cord immediately.
• ELECTRICAL SHOCK ALERT.
As a safety measure, each electrical outlet should be checked for ground using an Underwriters
Laboratory Listed circuit analyzer, which will indicate if the power, neutral, and ground wires are
correctly connected to your outlet. If they are not, contact a licensed electrician.
• ELECTRICAL SHOCK ALERT.
These pumps are supplied with a 3-prong grounded plug to help protect you against the possibility of
electrical shock. DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE GROUND PIN.
• ELECTRICAL SHOCK ALERT.
To reduce the risk of electric shock, install only a circuit protected by a ground-fault circuit-interruptor
(GFCI).
• ELECTRICAL SHOCK ALERT.
Make sure the pump electrical supply circuit is equipped with fuses or circuit breakers of proper
capacity. A separate branch circuit is recommended, sized according the National Electrical Code
for the current shown on the pump name plate.
• CHEMICAL ALERT.
This product contains chemicals known to the state of California to cause cancer and birth defects or
other reproductive harm.
SAFETY INFORMATION
DANGER
• ELECTRICAL SHOCK HAZARD .
Always disconnect power source before performing any work on or near the motor or its connected
load. If the power disconnect point is out-of-sight, lock it in the open position and tag it to prevent
unexpected application of power. Failure to do so could result in fatal electrical shock.
• ELECTRICAL SHOCK HAZARD.
Do not handle the pump with wet hands or when standing in water as fatal electrical shock could
occur. Disconnect main power before handling unit for ANY REASON!
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool areas.
WARNING

3
CAUTION
CAUTION
• PRODUCT DAMAGE MAY RESULT.
Make certain that the power source conforms to the requirements of your equipment.
• PRODUCT DAMAGE MAY RESULT.
Maximum continuous operating water temperature for standard model pumps must not exceed
104°F (40°C).
Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Installation Time: 2 hours
Tools Required for Assembly (not included): Adjustable wrench, hacksaw, flathead screwdriver,
Phillips screwdriver, tape measure, utility knife, pipe wrench.

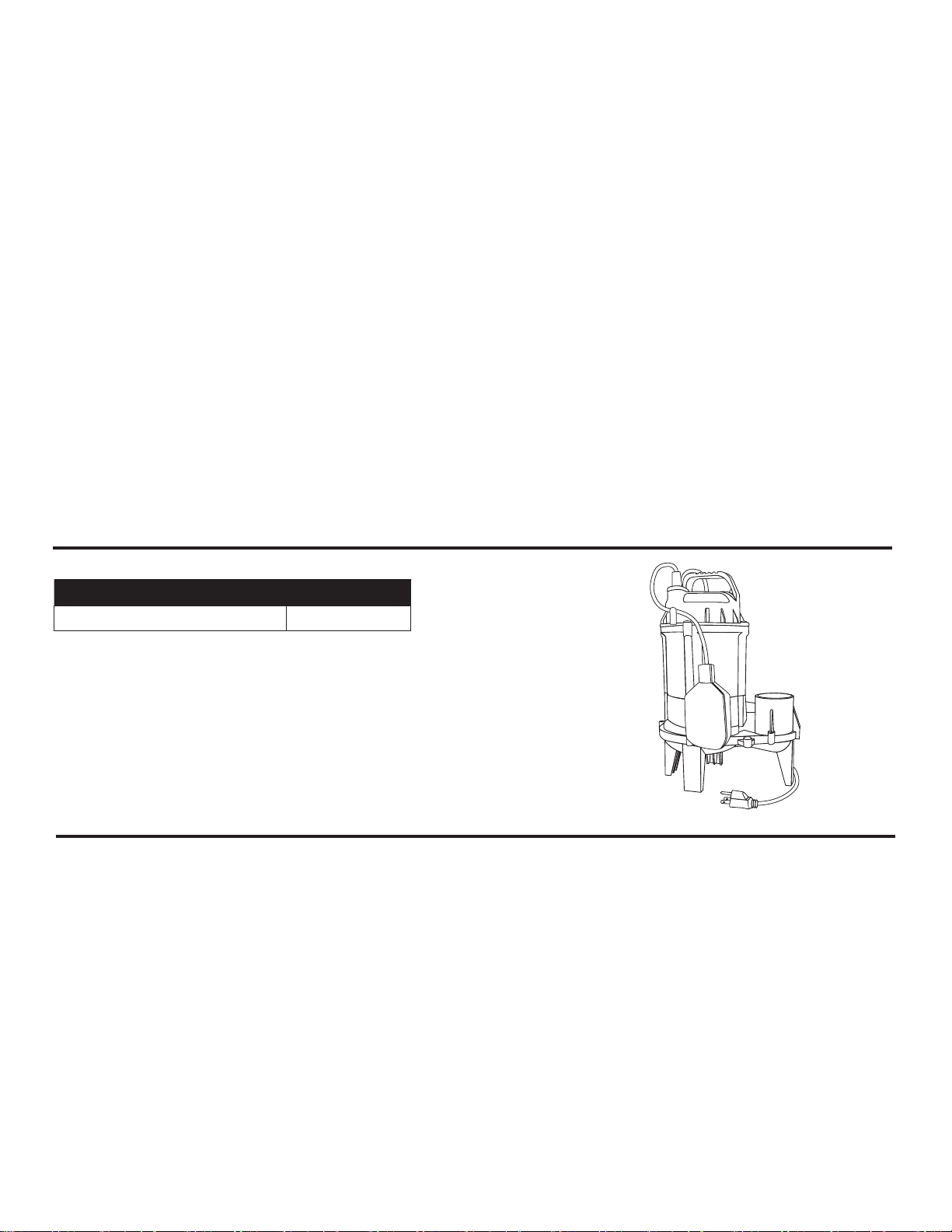

Description Quantity
Pump 1
PREPARATION
Parts Required For Assembly (not included): sewage pump basin minimum 18 in. w x 30 in. deep,
basin cover, basin gasket, 2 in. check valve, 2 in. union, gate valve or ball valve as required by codes, 2
in. Sched 40 PVC pipe, 2-step PVC glue system (primer and sealer), cable or zip ties.
PACKAGE CONTENTS

4

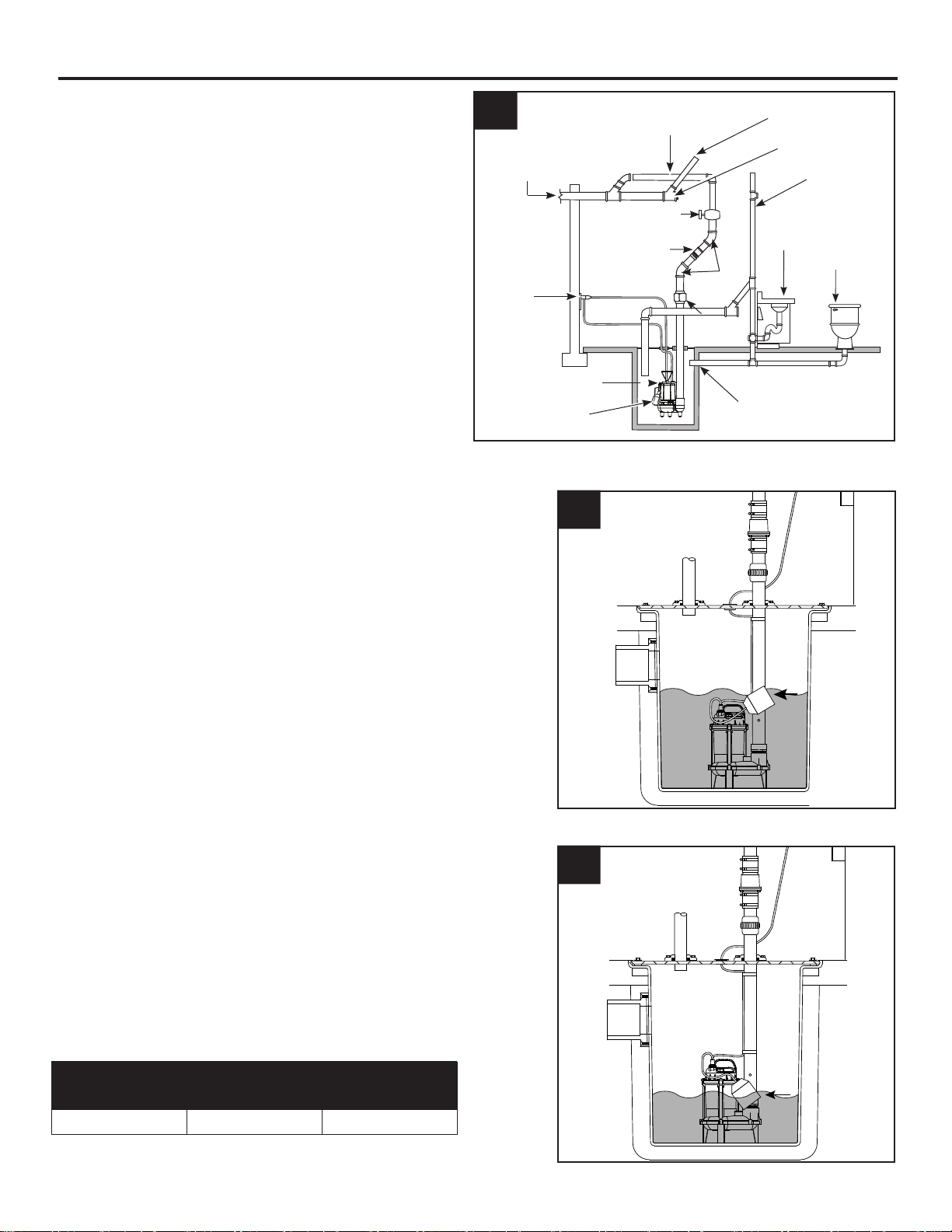

1. Sewage pumps are pumps used to remove
waste water that contains solids up to 2 in.
in diameter. The most common application is
for draining bathroom waste water to a sewer
or septic line.
Three prong
grounded
outlet
equipped
with a
ground fault
interruptor
2 in. Discharge
pipe
Upper level drainage
Cleanout
Flange
Lavatory
45°
Elbow
2 in. Check
valve
2 in. gate valve
Union
Vent pipe
Sink
Main waste
line to sewer
or septic tank
Switch
Pump
1
2. These pumps are equipped with a float switch. The
pump will turn on automatically when the water level in
the basin reaches the “on” level.
On
2
Off
3
Item On Level Off Level
1261-0001 14 in. 9 in.
3. The pump will turn off automatically when the water
level in the basin reaches the “off” level.
GENERAL PUMP INFORMATION

5
INSTALLATION INSTRUCTIONS
30 in.
18 in.

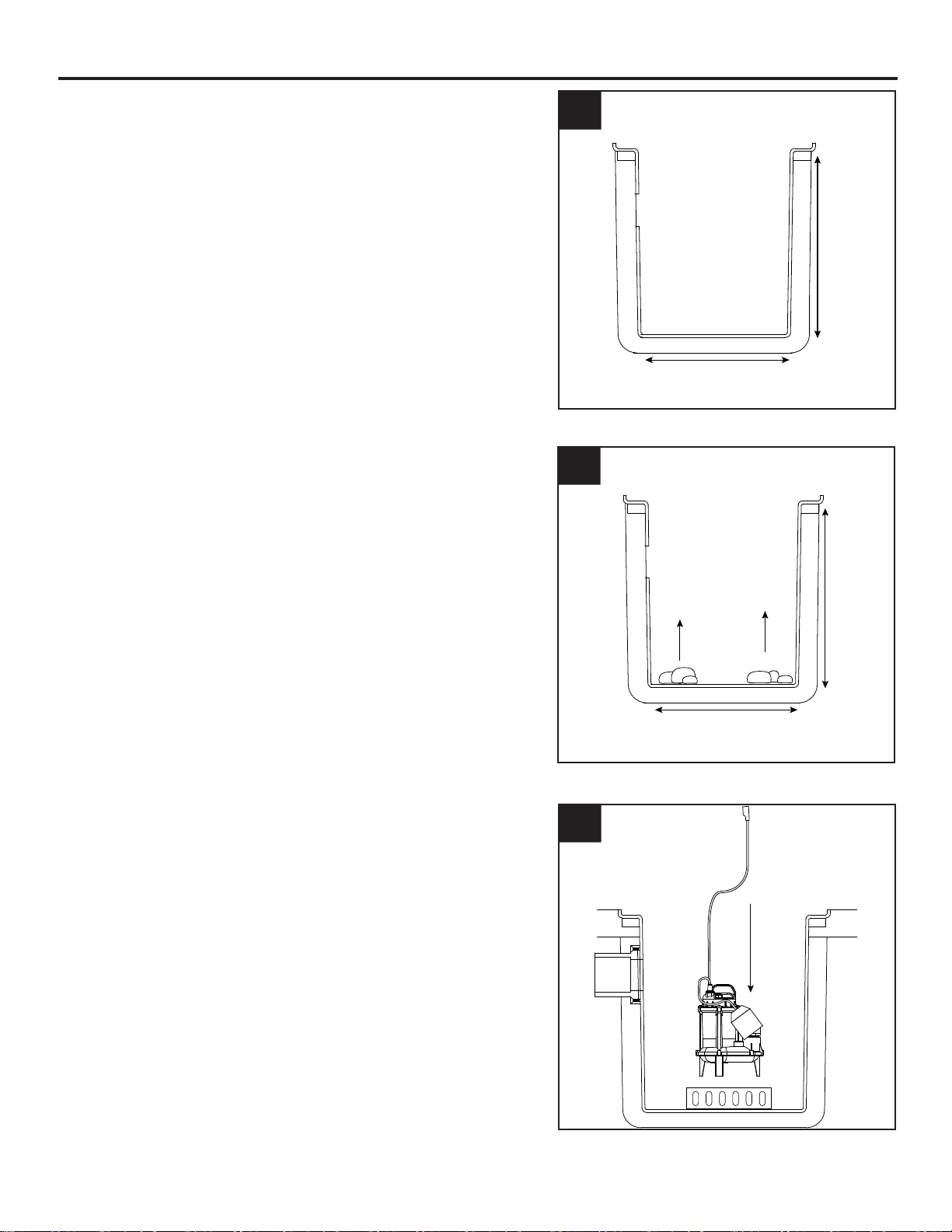

1. Use a basin (not included) that is at least 18 in. wide
by 30 in. deep. 1
2. Clean the basin of all debris. 2
3. Set the pump on a solid, level surface. A brick or block
(not included) may be installed under the pump to
provide a solid base.
3

6
INSTALLATION INSTRUCTIONS
4
5
6
4. Place the pump inside the basin with the switch
positioned away from incoming water.
5. Be sure the oat switch is at least 1 in. away from the
side walls of the basin and free of any obstructions
through the full range of switch motion.
6. Install rigid 2 in. discharge pipe (not included) according
to local, regional, and state codes.
Incoming
water
Switch
Switch
1 in.
Minimum
Discharge
Pipe

7
INSTALLATION INSTRUCTIONS

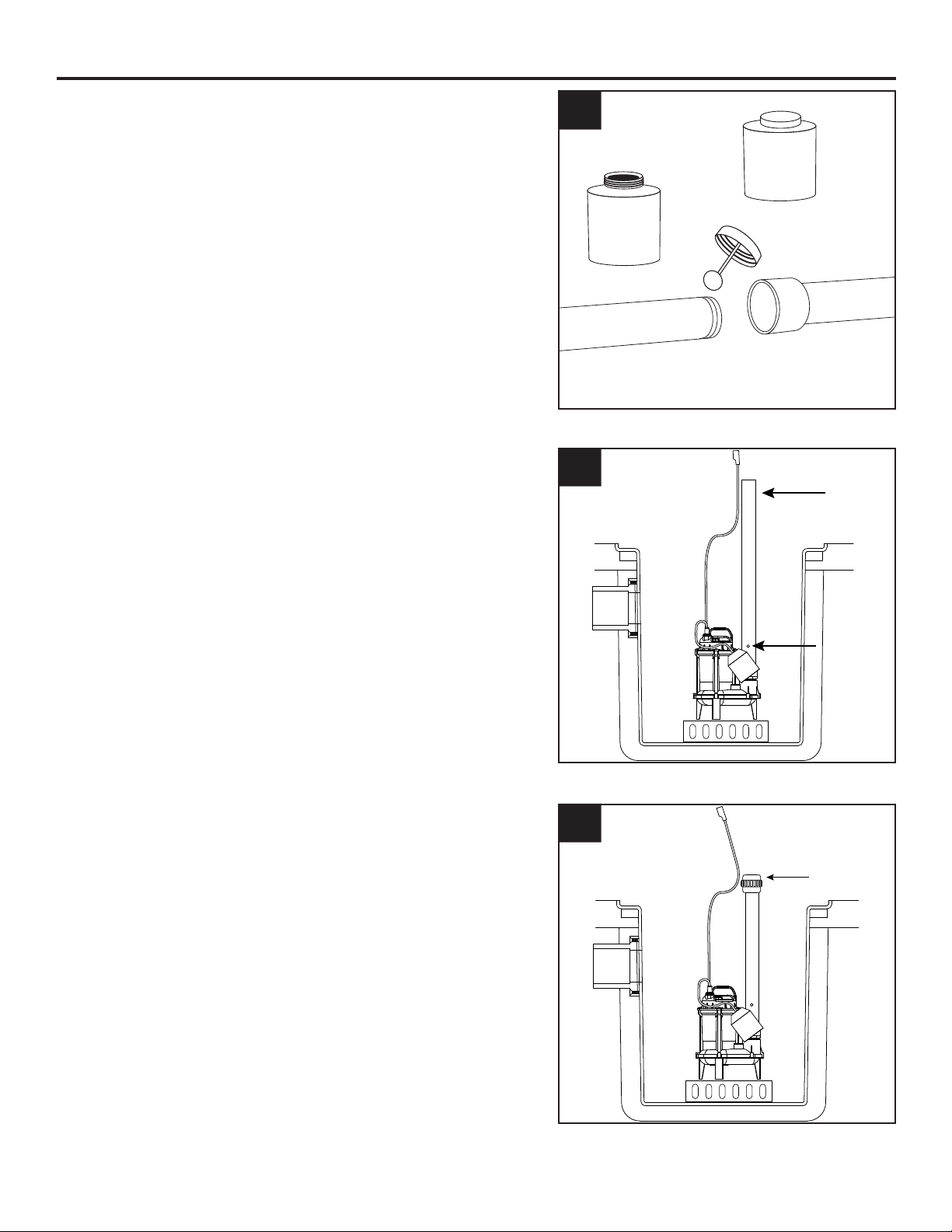

7. Use a 2-step PVC glue system (not included) to join
pipe and any ttings needed.
8. Drill a 3/16 in. hole in the discharge pipe above the
pump discharge to prevent air lock. Water stream will
be visible from this hole when the pump is running. The
hole must be cleaned periodically.
9. Install a 2 in. union (not included) above the basin to
allow the pump to be removed for cleaning and service.
Discharge
Pipe
3/16 in.
hole
Union
7
8
9

8
INSTALLATION INSTRUCTIONS

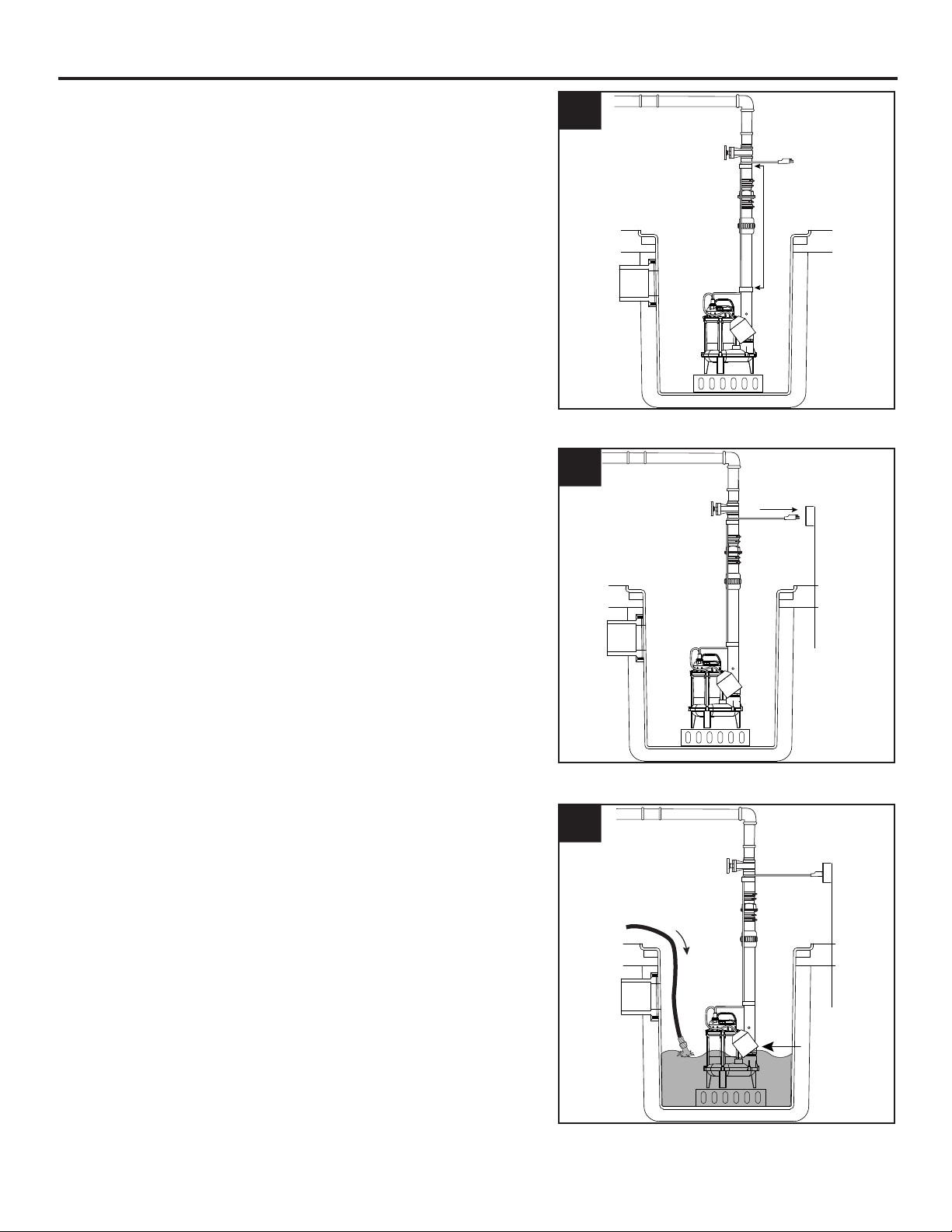

10. Install a 2 in. check valve (not included) above the
union to prevent back-ow.
11. Install a 2 in. gate valve (not included) above the check
valve as required by local, regional or state codes.
12. Connect remaining discharge pipe into main waste
line to sewer or septic tank.
Check
Valve
Gate
Valve
Main
waste line
10
11
12

9
INSTALLATION INSTRUCTIONS
13. Attach power supply cord to discharge pipe using
cable or zip ties (not included) to allow the oat switch
to move freely.
14. Connect pump power supply cord to a receptacle
protected by a ground fault circuit interruptor (GFCI).
Cable or
Zip Ties
GFCI
protected
receptacle
13
14
15. Fill the basin with water to check operation. The pump
will start when the water level has reached the switch
“on” level.
On
15

10
INSTALLATION INSTRUCTIONS
16. Install a basin cover and gasket (not included) on the
top of the basin. This will contain gases and odors,
prevent debris from falling into the basin, and prevent
personal injury.
Basin cover
and gasket
16
17. Install a vent pipe (not included) according to local,
regional, or state codes to remove gases and odors.
Vent pipe
17
MOTOR DATA CHART
HP Phase Volts Code Letter Max Amps
Locked Rotor
Amps
1/3 1115 H8.4 19.5
PERFORMANCE
Item
Number HP Ft. of Head Flow (GPM) Shut Off
Head (Ft.)
Discharge
Size
1261-0001 1/3
576
20 2 in.10 50
15 20
SPECIFICATIONS

11
TROUBLESHOOTING
Problem Possible Cause Corrective Action
Pump will not
start or run.
1. Water level too low. 1. Water must be at the appropriate level
to activate switch.
2. Blown fuse or tripped circuit breaker. 2. If blown, determine cause and then
either replace with properly sized fuse,
or reset breaker.
3. Low line voltage. 3. Contact an electrician.
4. Motor is defective. 4. Replace pump.
5. Switch is defective. 5. Replace switch.
6. Inlet screen clogged. 6. Remove debris.
7. Switch is obstructed. 7. Remove obstruction to ensure free
motion of switch.
Pump starts and
stops too often.
1. Water is back-flowing into basin from
discharge pipe.
1. Install check valve.
2. Switch is defective. 2. Replace switch.
3. Check valve not functioning properly
or leaking.
3. Be sure check valve is installed and
operating properly. Replace check
valve if necessary .
Pump shuts off
and turns on
independently
of switch (trips
thermal overload
protection.)
1. Excessive water temperature. 1. Pump should not be used for water
above 104°F (40°C).
2. Switch is defective. 2. Replace switch.
3. Switch is obstructed. 3. Remove obstruction to ensure free
motion of switch.
4. Discharge pipe is clogged. 4. Remove clog in discharge piping.
5. Low line voltage. 5. Contact an electrician.
Pump is noisy
or vibrates
excessively.
1. Worn bearings. 1. Replace pump.
2. Impeller is clogged or damaged. 2. Where applicable, remove screen
and volute, clean impeller or replace
impeller.
3. Piping attachment to building
structure too rigid or too loose.
3. Install rubber coupling (not included) to
isolate pump vibration from discharge
piping.
Pump will not
shut off.
1. Switch is defective. 1. Replace switch.
2. Switch is obstructed. 2. Remove obstruction to ensure free
motion of switch.
3. Discharge pipe is clogged. 3. Remove clog in discharge piping.
4. Water inflow exceeds pump capacity.
.
4. Re-check sizing calculations to
determine proper pump size.

12
Problem Possible Cause Corrective Action
Pump operates,
but delivers little
or no water.
1. Low line voltage. 1. Contact an electrician.
2. Inlet screen clogged. 2. Remove debris.
3. Broken impeller or debris in impeller
cavity.
3. Remove screen and volute, clean
impeller or replace impeller.
4. Check valve stuck closed or installed
backwards.
4. Be sure check valve is installed and
operating properly. Replace check
valve if necessary .
5. Shut off valve closed. 5. Open shut off valve.
TROUBLESHOOTING

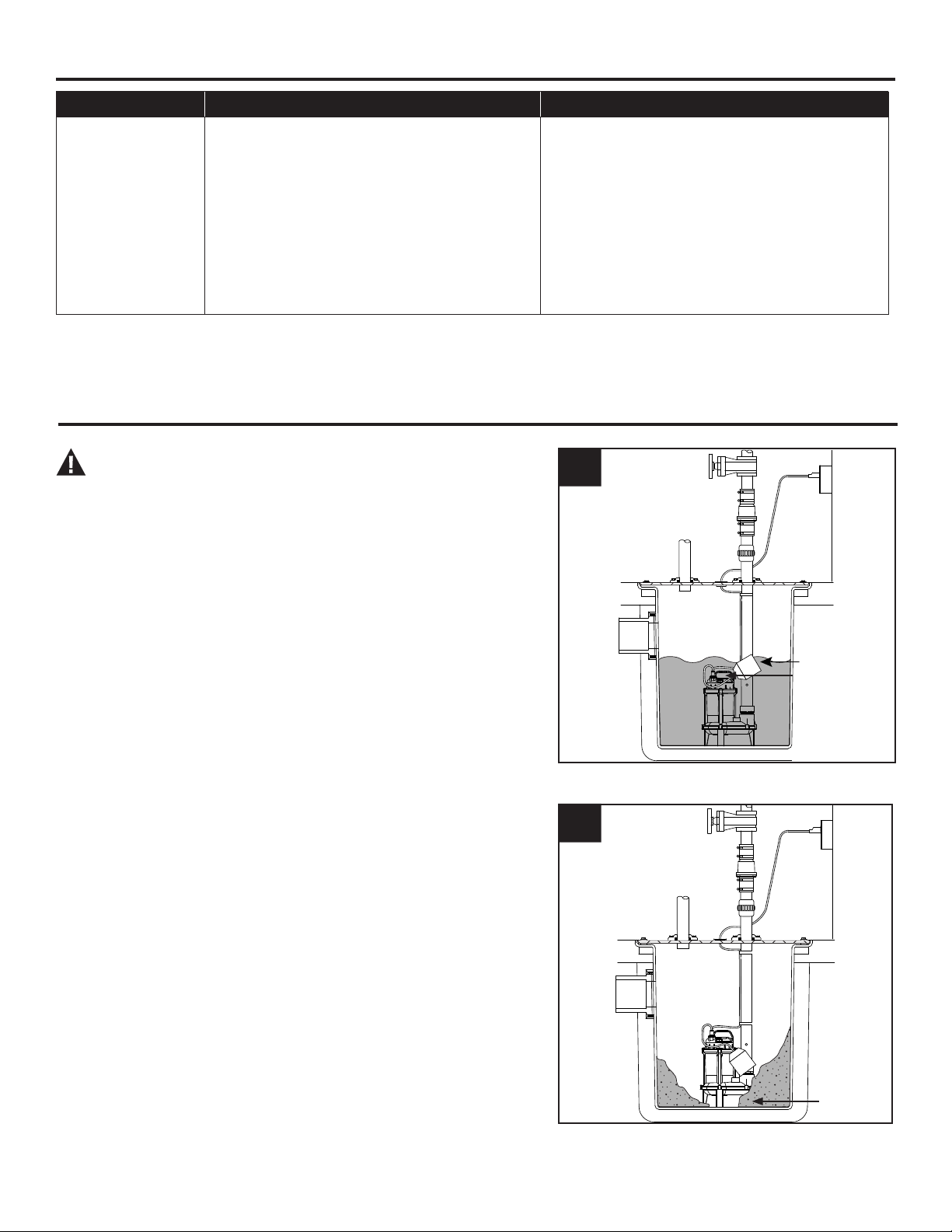

CARE AND MAINTENANCE
WARNING: Always disconnect pump from power
supply before handling.
Inspect and test system for proper operation at least every
three months.
1. Remove any build-up of debris from the switch or float,
and check to be sure it moves freely.
On
1
2
2. Remove any debris from the basin that could interfere
with the operation of the switch.

13
WARRANTY
This product is warranted for two years from the date of purchase or thirty (30) months from the date of manufacture, whichever occurs rst. Subject to the conditions hereinafter set forth, the manufacturer will repair or replace to the original consumer, any portion of the product which proves defective due to defective materials or workmanship. To obtain warranty service, contact the dealer from whom the product was purchased. The manufacturer retains the sole right and option to determine whether to repair or replace defective equipment, parts or components. Damage due to conditions beyond the control of the manufacturer is not covered by this warranty. THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly install, operate or maintain the unit in accordance with printed instructions provided; (b) to failures resulting from abuse, accident or negligence or use of inappropriate chemicals or additives in the water; (c) to normal maintenance services and the parts used in connection with such service; (d) to units which are not installed in accordance with normal applicable local codes, ordinances and good trade practices; and (e) if the unit is used for purposes other than for what it was designed and manufactured. RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty must be returned to the manufacturer at Kendallville, Indiana or such other place as the manufacturer may designate, freight prepaid. THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND MAY NOT BE EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL BE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY AND THEREAFTER ALL SUCH IMPLIED WARRANTIES ARE DISCLAIMED AND EXCLUDED. THE MANUFACTURER SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO DAMAGE TO, OR LOSS OF, OTHER PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY OF THE MANUFACTURER SHALL NOT EXCEED THE PRICE OF THE PRODUCT UPON WHICH SUCH LIABILITY IS BASED. This warranty gives you specic legal rights, and you may have other rights which vary from state to state. Some states do not allow limitations on duration of implied warranties or exclusion of incidental or consequential damages, so the above limitations may not apply to you.
In those instances where damages are incurred as a result of an alleged pump failure, the
Homeowner must retain possession of the pump for investigation purposes.

14
BOMBA PARA AGUAS
NEGRAS
MODELO #1261-0001
Número de serie Fecha de compra
Zoeller®es una marca registrada
de Zoeller Co. Todos derechos
reservados.
¿Preguntas, problemas, partes faltantes? Antes de acudir al minorista, llame a nuestro departamento
de servicio al cliente al 1-800-584-8089, de lunes a viernes de 7:30 a.m. a 5:00 p.m., EST.
ADJUNTE SU RECIBO AQUÍ
SW1134 B

15
Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto.
• NOTA: Las bombas con la marca “UL” y con la marca “US” se prueban para cumplir los estándares de UL
UL778. Las bombas con certicación CSA cumplen con el estándar CSA C22.2 No. 108. (CUS.)
• ALERTA DE DESCARGA ELÉCTRICA.
Para reducir el riesgo de descarga eléctrica, instale solamente un circuito protegido por un interruptor de
circuito con protección de falla a tierra (GFCI, por sus siglas en inglés). Cerciórese de que el receptáculo
de falla a tierra esté dentro del alcance del cable de alimentación eléctrica de la bomba. NO USE NINGÚN
CABLE DE EXTENSIÓN.
• ALERTA DE DESCARGA ELÉCTRICA.
Siga todos los códigos locales eléctricos y de seguridad, además del Código nacional de electricidad (NEC,
por sus siglas en inglés) y el de la Administración de Salud y Seguridad Ocupacional (OSHA, por sus siglas
en inglés).
• ALERTA DE DESCARGA ELÉCTRICA.
No doble el cable de alimentación y nunca permita que el cable entre en contacto con aceite, grasa,
superficies calientes, productos químicos u objetos punzantes. Cambie inmediatamente los cables dañados
o desgastados.
• ALERTA DE DESCARGA ELÉCTRICA.
Como medida de seguridad, la tierra de todo tomacorriente eléctrico debe ser verificada con un analizador
de circuito aprobado por Underwriters Laboratory, el cual indicará si los cables vivo, neutro y tierra están
conectados correctamente al tomacorriente. De no estar conectados correctamente, llame a un electricista
calificado que cuente con la debida licencia.
• ALERTA DE DESCARGA ELÉCTRICA.
Estas bombas vienen con un enchufe de 3 clavijas, con conexión a tierra, para protegerlo en caso de una
descarga eléctrica. BAJO NINGUNA CIRCUNSTANCIA QUITE EL CONECTOR DE TIERRA.
• ALERTA DE DESCARGA ELÉCTRICA.
Para reducir el riesgo de descarga eléctrica, instale un circuito protegido por un interruptor con detección
de falla a tierra (GFCI). Todas bombas vienen con provisiones para fuga de tierra adecuada para proteger
contra la posibilidad de descarga eléctrica.
INFORMACIÓN DE SEGURIDAD
PELIGRO
• PELIGRO DE ELECTROCUCIÓN.
Siempre desconecte el suministro de fuerza eléctrica antes de hacer cualquier trabajo en o cerca del motor o su carga
conectada. Si el punto de desconexión de la alimentación está fuera de la vista, fíjelo en la posición abierta
y etiquételo para evitar una aplicación de alimentación inesperada. El incumplimiento de dicho paso podría
provocar una descarga eléctrica fatal.
• PELIGRO DE ELECTROCUCIÓN.
No manipule la bomba con las manos húmedas ni cuando esté parado en el agua, ya que podría ocurrir una descarga
eléctrica fatal. SIN IMPORTAR EL MOTIVO, desconecte la alimentación principal antes de manipular la unidad.
• PELIGRO DE CHOQUE ELÉCTRICO.
Esta bomba no ha sido diseñada para uso en áreas de piscinas.
ADVERTENCIA

16
CAUTION
Antes de comenzar a instalar el producto, asegúrese de tener todas las piezas. Compare las piezas con
la lista del contenido del paquete. No intente ensamblar el producto si falta alguna pieza o si estas están
dañadas.
Tiempo de instalación estimado: 2 horas.
Herramientas necesarias para el ensamblaje (no se incluyen): Llave ajustable, sierra de mano, destornillador de
cabeza plana, destornillador Phillips, cinta métrica, cuchillo para uso general, llave para tubos
Descripción Cantidad
Bomba 1
PREPARACIÓN
Piezas requeridas para el ensamblaje (no incluidas): contenedor para agua de la bomba de sumidero de al
menos 45 cm (18 pulg.) de ancho x 75 cm (30 pulg.) de profundidad, cubierta del contenedor, junta del contenedor,
válvula de retención de 2 pulg., unión de 5 cm (2 pulg.), válvula de paso o válvula de bola según lo exigen los
códigos, Tubería de PVC Sched 40 de DN50 (2 pulg.), sistema para pegar PVC de 2 pasos (imprimante y sellador),
cable o abrazaderas de plástico
CONTENIDO DEL PAQUETE
• ALERTA DE DESCARGA ELÉCTRICA.
Compruebe que el circuito de suministro de energía eléctrica de la bomba esté equipado con fusibles o
cortacircuitos de la capacidad adecuada. Es aconsejable usar un circuito derivado independiente con la
capacidad estipulada en el Código eléctrico nacional de EE.UU. (National Electrical Code) según la corriente
especificada en la placa de identificación de la bomba.
• ALERTA DE PRODUCTO QUÍMICO.
Este producto contiene sustancias químicas reconocidas por el estado de California como causantes de
cáncer y defectos congénitos u otros daños en el aparato reproductivo.
• PUEDE PROVOCAR DAÑO AL PRODUCTO
Asegúrese de que la fuente de energía cumpla los requisitos de su equipo.
• PUEDE PROVOCAR DAÑO AL PRODUCTO
En los modelos de bombas estándar, la temperatura máxima del agua en régimen permanente nunca deberá
exceder los 40°C (104°F).
PRECAUCIÓN

17
1. Las bombas para aguas servidas son bombas
que se usan para eliminar agua servida que
contiene sólidos de hasta 5,08 cm de diámetro.
La aplicación más común es para drenar agua
servida a un desagüe o línea séptica.
Tomacorriente
con puesta a
tierra de tres
clavijas
equipado
con un
interruptor
de falla de
puesta
a tierra
Tubo de descarga
de 2 pulg Drenaje de
nivel superior
Tapón de
protección
Bomba
Brida
Lavamanos
Válvula de
control de
2 pulg
Válvula de
compuerta de 2 pulg
Unión
Tubería de
ventilación
Fregadero
Tubería de desagüe
principal al desagüe
o tanque séptico
Codo
de 45°
Interruptor
1
2. Estas bombas están equipadas con un interruptor de
flotador. La bomba se encenderá automáticamente
cuando el nivel de agua en el recipiente alcance el nivel de
encendido.
Nivel de
encendido
2
Nivel de
encendido
3
Artículo
Nivel de
encendido
Nivel de
apagado
1261-0001 14 pulg. 9 pulg.
3. La bomba se apagará automáticamente cuando el nivel de
agua en el recipiente alcance el nivel de apagado.
INFORMACIÓN GENERAL ACERCA DE LA BOMBA

18
INSTRUCCIONES DE INSTALACIÓN
76,20
cm
45,72 cm
1. Se un recipiente (no se incluye) que sea de al menos
45,72 cm de ancho por 76,20 cm de profundidad. 1
2. Elimine todos los desechos del recipiente. 2
3. Fije la bomba en una supercie sólida y nivelada. Puede
instalar un ladrillo o bloque (no se incluye) debajo de la
bomba para proporcionar una base sólida.
3

19
INSTRUCCIONES DE INSTALACIÓN
4
5
6
4. Coloque la bomba dentro del recipiente con el interruptor
ubicado lejos del agua entrante.
5. Asegúrese de que el interruptor del otador esté por
lo menos a 25 mm (1”) de las paredes laterales del
contenedor para agua y libre de obstrucciones en todo el
rango de movimiento del interruptor.
6. Instale una tubería de descarga rígida de 2” (no incluida) de
acuerdo con los códigos locales, regionales y estatales.
Agua
entrante
Interruptor
Interruptor
Mínimo
de 2,54 cm
Tubo de
descarga

20
INSTRUCCIONES DE INSTALACIÓN
7. Use un sistema de adhesivo PVC de 2 pasos (no
se incluye) para unir la tubería y cualquier conector
necesario.
8. Taladre un oricio de 4,76 mm en el tubo de descarga sobre
la descarga de la bomba para evitar obstrucciones de aire.
El chorro de agua será visible desde este oricio cuando
la bomba esté funcionando. El oricio se debe limpiar
periódicamente.
9. Instale una unión de 2 pulg (no se incluye) sobre el
recipiente para permitir que la bomba se pueda extraer para
nes de limpieza y servicio.
Tubo de
descarga
Orificio de
4,76 mm
Unión
7
8
9
