CAST IRON
CONVERTIBLE JET PUMP
MODEL #1463-0006
Serial Number Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Zoeller®is a registered trademark of
Zoeller Co. All Rights Reserved.
IL0194
024990 C
ZoellerAtHome.com
INSTRUCTIONS
FOR DEEP WELL
INSTALLATION
(25-70 FT.)

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
2
© 2020. All rights reserved.
Power supply required.........................................................................................115 volts or 230 volts, 60 Hz
(Pump is set by the factory to run on 230 volts)
Maximum water temperature.........................................................................................................77°F (25°C)
Individual branch circuit required.......................................................................................... 15 Amp minimum
Discharge connection........................................................................................................................1 in. NPT
Suction connection ......................................................................................................................1-1/4 in. NPT
Motor duty....................................Continuous duty with enforced air cooling and thermal overload protection
Pressure switch ......................................................................................... Preset at 20 PSI “on” / 40 PSI “o󰀨”
Water depth rating - Deep Well ............................................................................................ Maximum of 70 ft
ITEM # HP VOLTAGE HZ MAX
AMPS
LOCKED
ROTOR
AMPS
PERFORMANCE AT 40 PSI - GPM
DEEP WELL
30 FT 40 FT 50 FT 60 FT 70 FT
1463-0006 1 115/230 60 14/7 52/26 10.6 7.9 7.3 5.7 4.6
• ELECTRICAL SHOCK HAZARD.
Always disconnect power source before performing any work on or near the motor or its connected load.
If the power disconnect point is out-of-sight, lock it in the open position and tag it to prevent unexpected
application of power. Failure to do so could result in fatal electrical shock.
• ELECTRICAL SHOCK HAZARD.
Do not handle the pump with wet hands or when standing in water as fatal electrical shock could occur.
Disconnect main power before handling unit for ANY REASON!
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool areas.
• ELECTRICAL SHOCK ALERT.
Follow all local electrical and safety codes, as well as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSHA).
• ELECTRICAL SHOCK ALERT.
Replace damaged or worn wiring cord immediately. Never use an extension cord.
• ELECTRICAL SHOCK ALERT.
Do not kink power cable and never allow the cable to come in contact with oil, grease, hot surfaces, or
chemicals.
• ELECTRICAL SHOCK ALERT.
Wire motor to correct supply voltage. This pump has a dual voltage motor and can run on 115 V or 230 V. It
is factory pre-set to run on 230 V.
• ELECTRICAL SHOCK ALERT.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard UL778.
CSA certied pumps are certied to CSA Standard C22.2 No. 108. (CUS.)
DANGER
WARNING
PRODUCT SPECIFICATIONS

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
3
© 2020. All rights reserved.
Unit must be securely and adequately electrically grounded. This can be accomplished by wiring the unit to
a ground metal-clad raceway system or by using a separate ground wire connected to the bare metal of the
motor frame or other suitable means.
• ELECTRICAL SHOCK ALERT.
Make certain the electrical power source is adequate for the requirements of the pump.
• ELECTRICAL SHOCK ALERT.
Never use an extension cord with this pump.
• CHEMICAL ALERT.
Prop65 Warning for California residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• HAZARDOUS PRESSURE ALERT.
Install pressure relief valve in discharge pipe. Release all pressure on system before working on any
component.
• EXPLOSION ALERT
Do not use to pump ammable or explosive uids such as gasoline, fuel oil, kerosene, etc. Do not use in
ammable and/or explosive atmospheres.
• PRODUCT DAMAGE MAY RESULT
This pump is not to be used for irrigation or water systems.
• PRODUCT DAMAGE MAY RESULT
Protect the power cable from coming in contact with sharp objects.
• PRODUCT DAMAGE MAY RESULT
Do not run pump dry.
• PRODUCT DAMAGE MAY RESULT
Pump and plumbing must be full of water before startup.
• PRODUCT DAMAGE MAY RESULT
Do not pump water which contains sand, mud, silt, or debris.
• INJURY MAY RESULT
Be careful when touching the exterior of an operating motor. It may be hot enough to be painful or cause
injury.
CAUTION
CAUTION

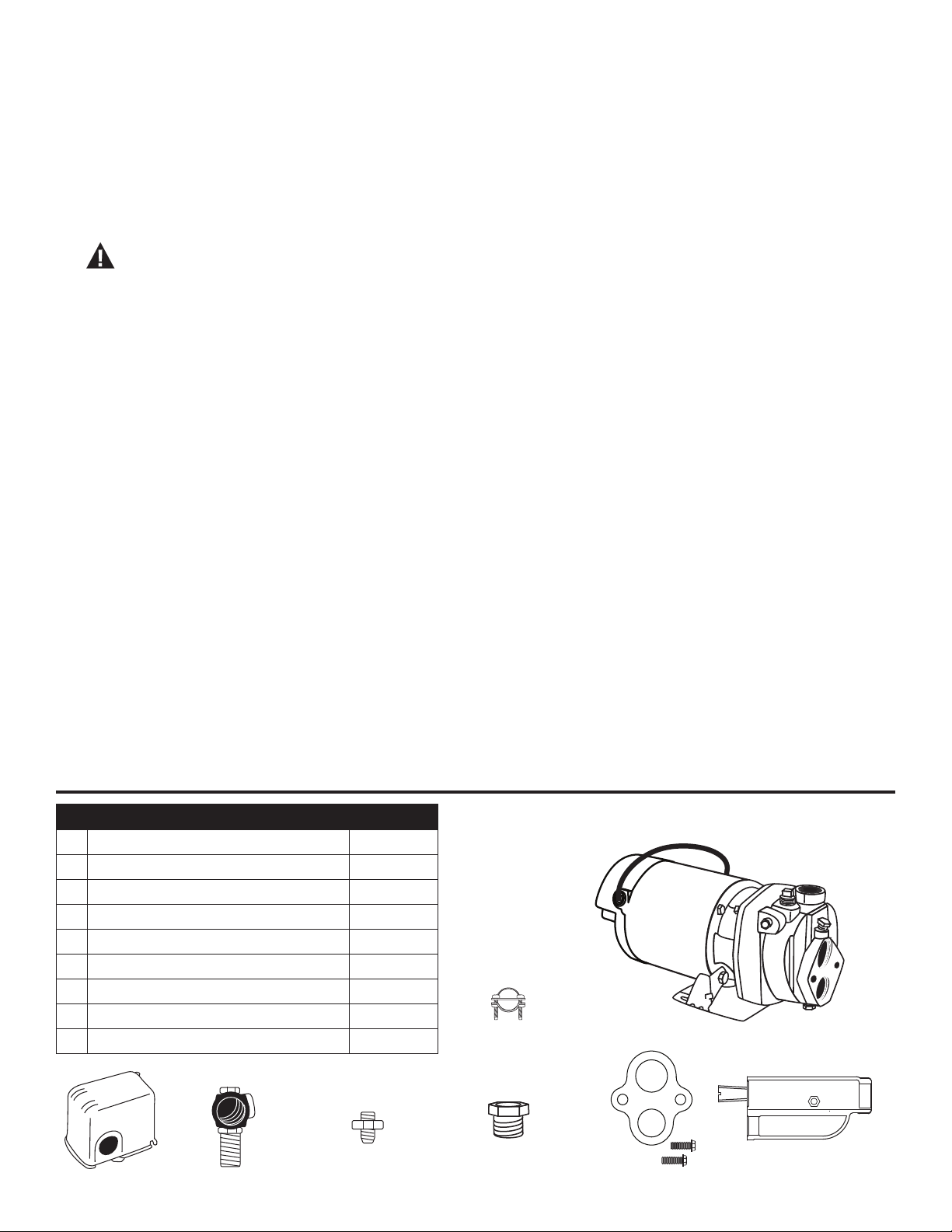

Description Quantity
A Pump 1
B Ejector 1
C Gasket 1
D Bolts 2
E 20/40 Pressure Switch 1
F Control Body 1
G Control Body Adjustment Screw 1
H Strain Relef 1
I 1” x 3/4” PVC Adapter 1
PACKAGE CONTENTS
IL0194
A
BC
D
E F G I
H

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
4
© 2020. All rights reserved.

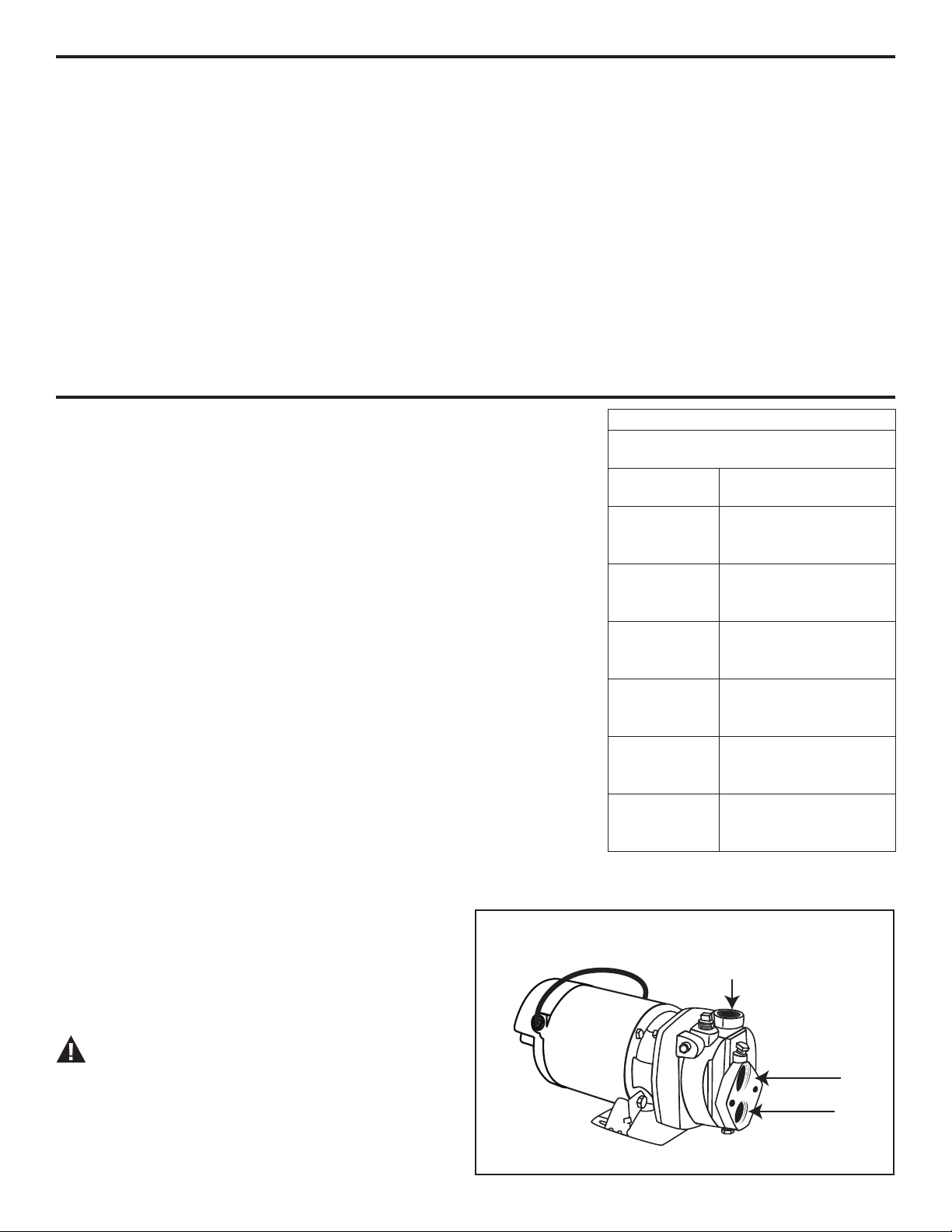

1 in. Discharge
1-1/4 in.
Suction
1 in.
Pressure
Ventilation - Ventilation and drainage must be provided to prevent
damage to the motor from heat and moisture.
Freezing - Pump and all piping must be protected from freezing. If
freezing weather is forecast, drain pump or remove completely from
the system.
Water Supply - The water source must be able to supply enough
water to satisfy the capacity of pump and water needs. See
Performance Chart on page 2.
Suction Lift - Suction lift is the vertical distance from the lowest level
of the water to the pump intake. See Performance Chart on page 2.
Horizontal Distance - The horizontal distance is the horizontal
measurement between pump suction and the water source. This
distance may a󰀨ect the ability of pump to operate. If it is more than
100 ft., call the manufacturer for assistance: 1-800-584-8089.
Wire Size:
The wire size is determined by the distance from the power source to
the pump motor and the horsepower rating of the motor. See the wire
chart in ELECTRICAL CONNECTIONS for proper wire size.
PREPARATION
Before beginning installation of product, make sure all parts are present. If any part is missing or damaged, do
not attempt to assemble the product. Compare parts to package contents list.
Estimated Installation Time: 2 hours.
Tools Required for New Installation (not included): pipe wrenches (2), wire strippers, needle-nose pliers,
Phillips screwdriver, wire cutters, adjustable wrench, 2-step PVC glue system (primer and sealer), thread tape,
tire gauge and tire pump
Parts Required for New Installation (not included): 1-1/4 In. union, 1-1/4 in. adapter, 1-1/4 in. elbow, 3/4 in.
union, 1 in. adapter, 1 in. x 3/4 in. reducer bushing, 3/4 in. adapter, 1 in. elbow, 1-1/4 in. check valve, 3/4 in. tee
(plastic), 3/4 in. tee (steel), 3/4 in. x 3 in. nipple (steel), 3/4 in. plug (steel), foot valve, electric cord strain relief,
100 psi pressure gauge (qty 2).
GENERAL PUMP INFORMATION
Wire Size Chart
Recommended Copper Wire and Fuse
Sizes
Distance from
Motor to Meter 1 HP
0-50’
115 V
230 V
10 GA
14 GA
50-100’
115 V
230 V
10 GA
14 GA
100-150’
115 V
230 V
10 GA
12 GA
150-200’
115 V
230 V
8 GA
12 GA
200-300’
115 V
230 V
6 GA
10 GA
Fuse Size
115 V
230 V
Amps
30
15
Pipe And Fittings
Use galvanized steel or NSF PW Schedule 40 PVC
pipe and ttings. This material is designed for water
pressure and will seal against air and water under
pressure. Do Not Use: DWV ttings, as these are
designed for drains without pressure and will not seal
properly.
CAUTION: The entire system must be air and
water tight for e󰀩cient operation and to maintain
prime.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
5
© 2020. All rights reserved.
Typical Pump Setup
1. Deep wells (25 - 70 ft. lift) where well ID is 4” or
more and a two pipe ejector is installed in the well.
(FOR WELL DEPTHS OF 0-25 FT., SEE
INSTRUCTIONS 025409)
IL2146
Water
Level
Suction
Lift
3/4 in.
Discharge
Pipe
1-1/4 in.
Suction
Pipe
Discharge
to Home
Pipe
Support
Foot Valve
1 in.
Pressure
Pipe
4 in. ID Well
Ejector
1
CAUTION: Dry-t entire assembly to ensure proper t before gluing or taping parts.
CAUTION: Follow all proper gluing procedures as specied by the glue manufacturer. Always glue in a
vertical direction whenever possible to prevent glue from dripping inside pipe or ttings
CAUTION: Use pipe tape and pipe paste compound on all male threads. Tighten with wrench to a snug
hhNOTE: REPLACE EJECTOR WHEN REPLACING PUMP.
INSTALLING PIPING IN WELL - DEEP WELL
Water
Level
Suction
Lift 1-1/4 in.
Suction
Pipe
Foot Valve
1 in.
Pressure
Pipe
4 in. ID Well
Ejector
25 - 90 ft.
1

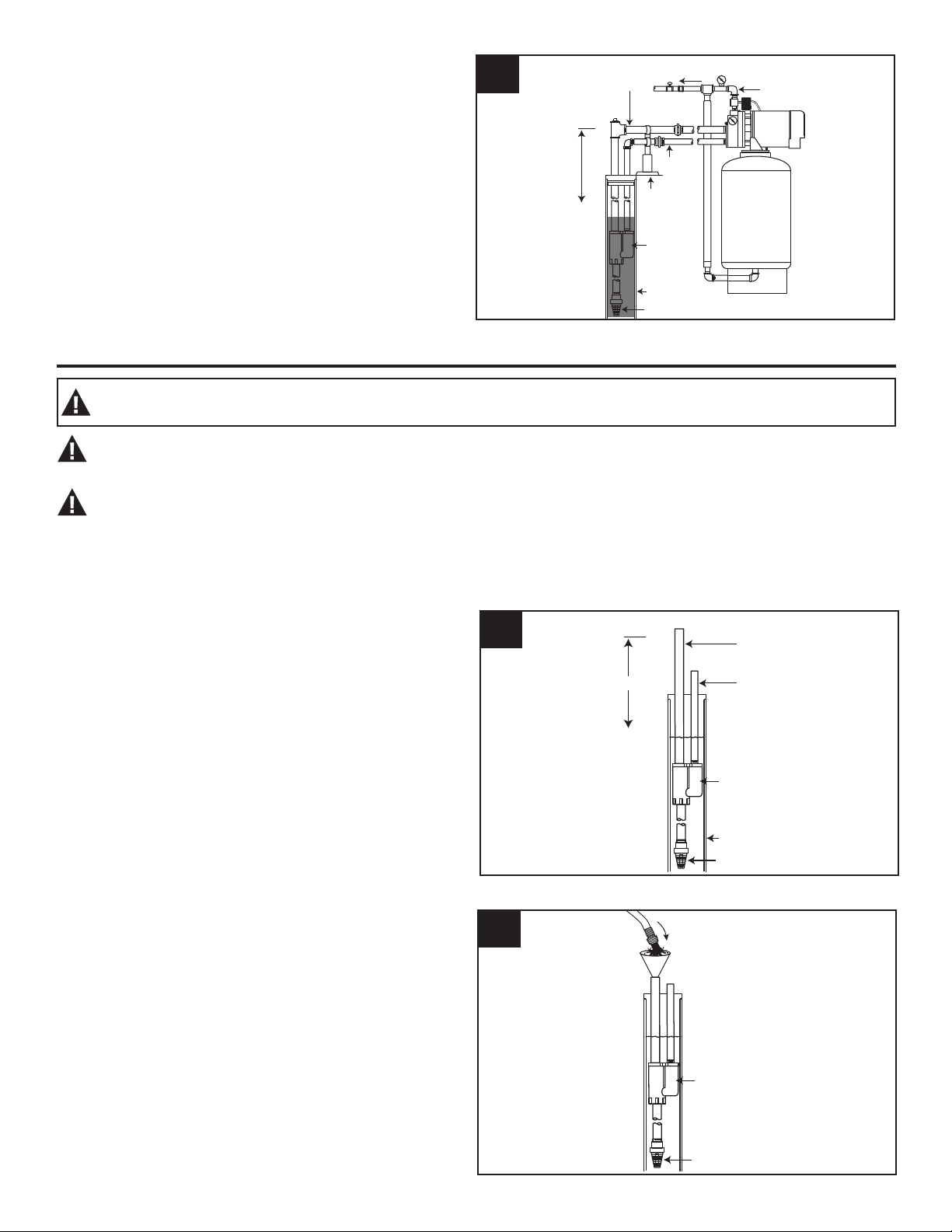

1. Attach the foot valve to the ejector using a
galvanized steel or plastic nipple. Add enough
1 in. pressure pipe and 1-1/4 in suction pipe to
submerge ejector 10 to 15’ below pumping water
level, making certain foot valve is at least ve (5)
feet from bottom of well. If pressure pipe and
suction pipe of the same diameter are used, be
sure to identify them clearly so that they will be
connected to the proper tappings of the pump.
If a known well leak exists, replace nipple with
21 feet of 1-1/4 in. tail pipe between the ejector
and the foot valve. This will provide a continuous
source of water for the pumping system.
Foot Valve
Ejector
2
2. Check pipe and foot valve for leaks by lling pipes
with water. A continuous loss of water indicates a
leak in the piping, foot valve, or unions, and must
be corrected.
If no leaks are found, proceed to WELL TO PUMP
CONNECTION (SUCTION PIPE).

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
6
© 2020. All rights reserved.
Water
Level
Suction
Lift
Pipe
Support
Unions
Foot
Valve
3
3. All piping from the well to the pump should slope
slightly upward with no sagging. Support suction
pipe between water source and pump. Unions in
the suction line near the pump and well will aid in
servicing. Be sure to leave enough room so that
wrenches can be used easily.
Replace foot valve for best performance.

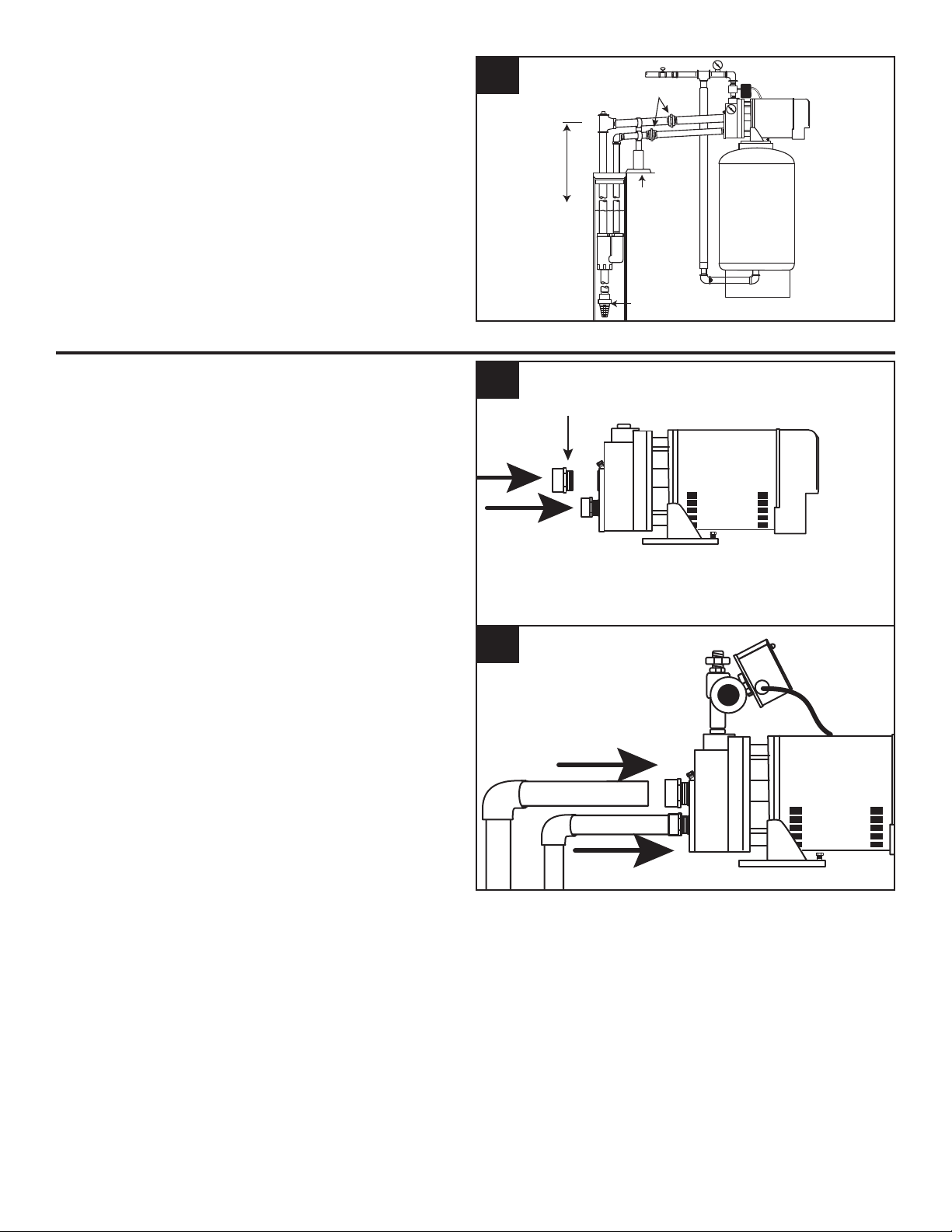

WELL TO PUMP CONNECTION (SUCTION PIPE) - DEEP WELL
1. Make the connection to your well. Wrap all
threaded ttings with pipe tape 5 times or apply
a pipe paste (pipe dope) to ensure an air tight
connection.
IL1395
Tape
1
IL1396
2
2. Finish the connection to your well with additional
pipe and ttings as needed.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
7
© 2020. All rights reserved.

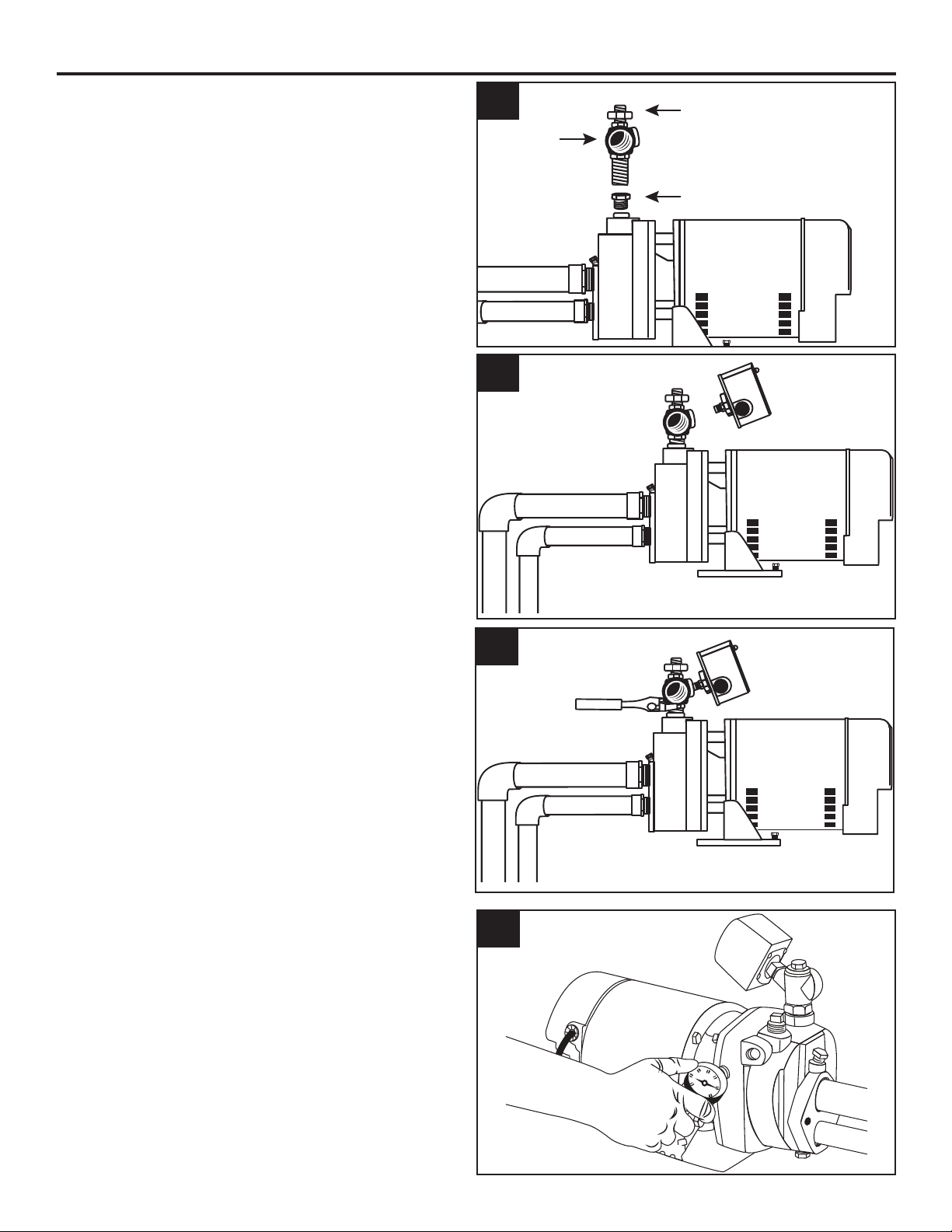

PUMP TO PRESSURE TANK CONNECTION (DISCHARGE PIPE) - DEEP WELL

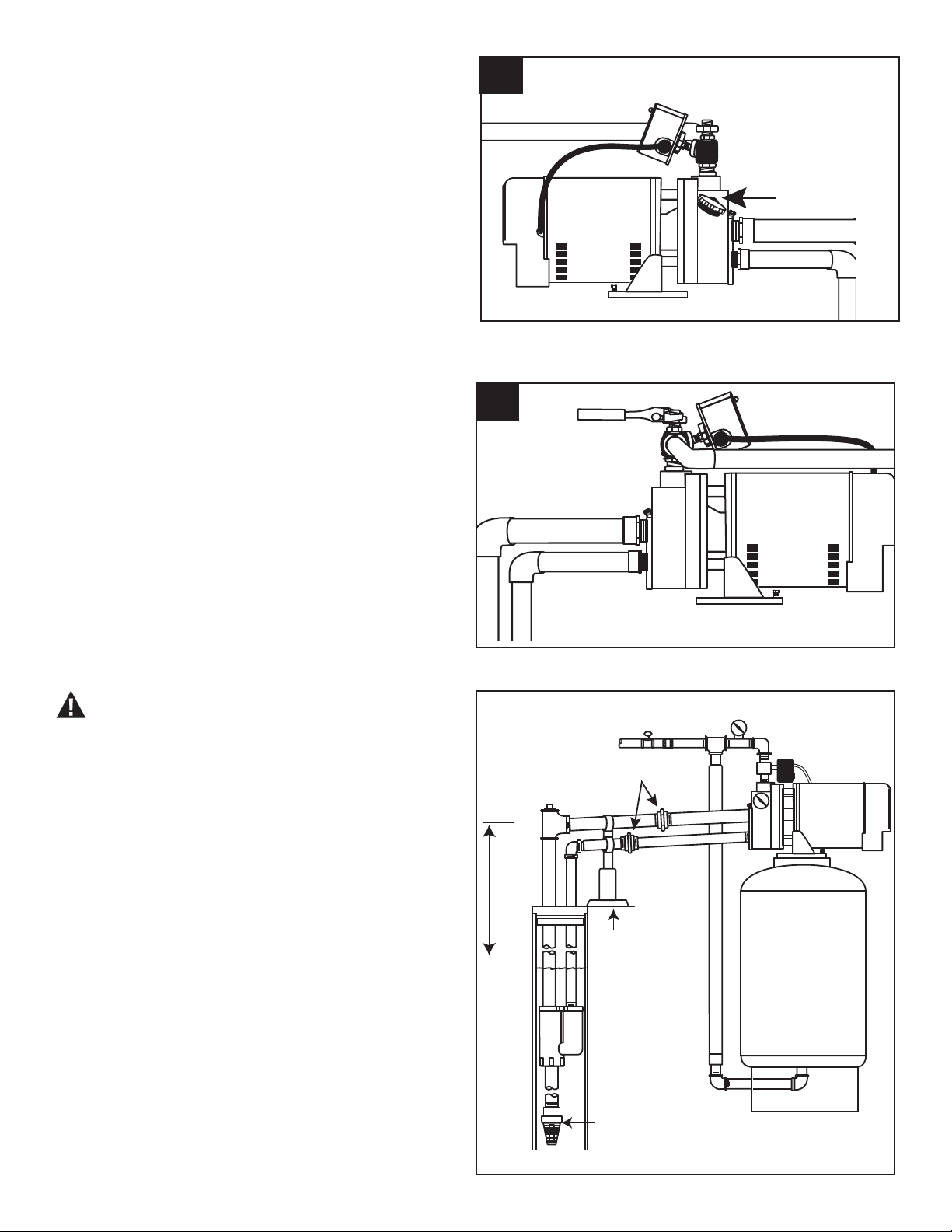

1. To begin the connection to the pressure tank,
install the 1 in x 3/4 in adapter (included) to pump
discharge. Install ow control body to adapter.
Using Teon tape, position the discharge outlet of
the control body facing right as you look directly
into the face of the pump
IL2206
Control
Body
Flow Control
Screw
1 in. x 3/4 in. adapter
1
2. Assemble the pressure switch in the 1/4” tapping
adjacent and to the right of the discharge outlet
of the control valve. Refer to Pump Electrical
Connection section for pressure switch wiring.
IL1389
2
3. Tighten ow control body.
IL1390
3
IL1391
4
4. Install optional pressure gauge in 1/4” tapping
on side of pump body. Face of gauge should be
positioned so that dial can be read easily.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
8
© 2020. All rights reserved.
5. Continue with ttings and pipe to the pressure
tank. A 3/4 in. union is optional but recommended
for easy connection and disconnection.
CAUTION: Install a pressure relief valve on any
installation where the pump pressure can exceed
the maximum working pressure of the tank and
plumbing.
IL1387
Glue
5

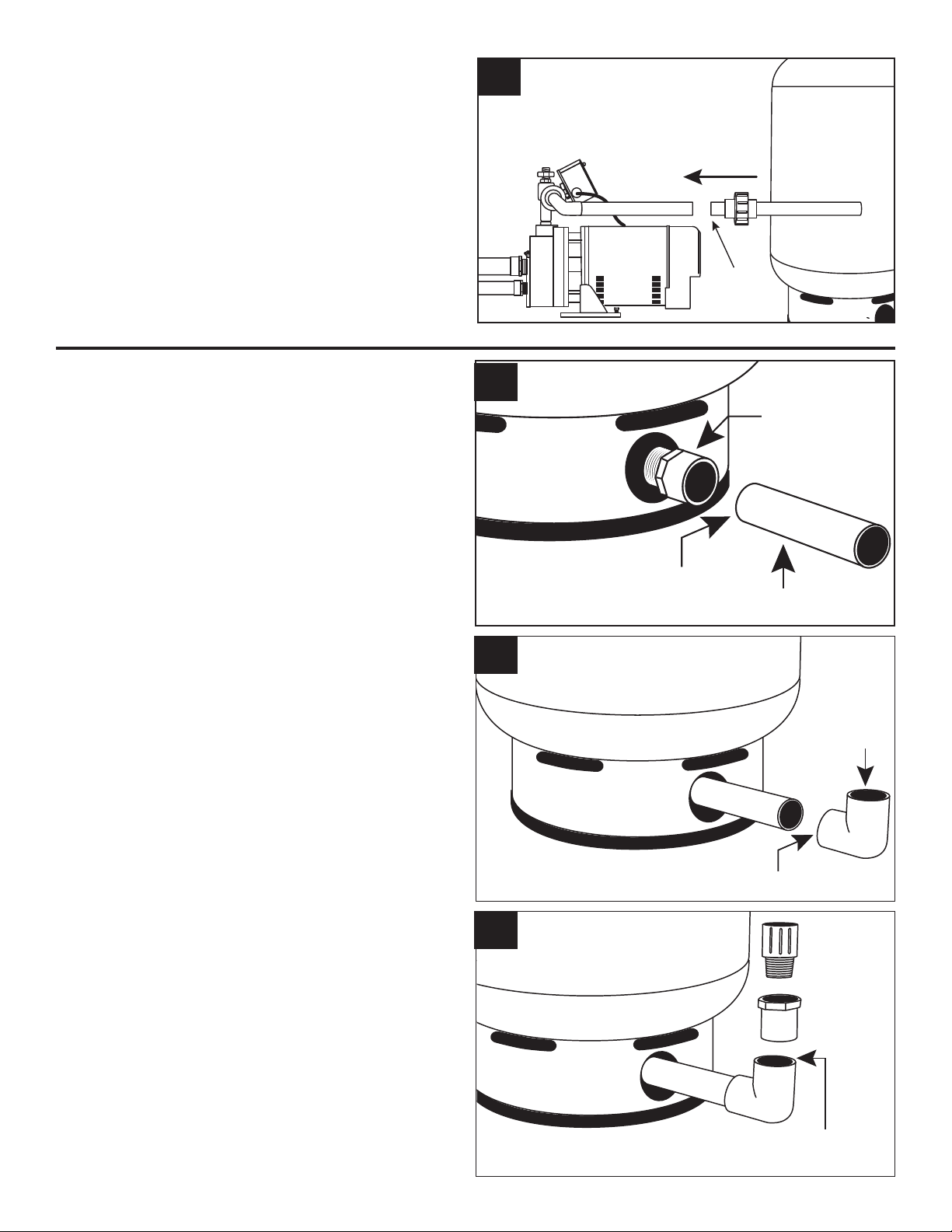

TANK TO HOUSE CONNECTION
1. Most pressure tanks will have a 1 inch inlet elbow
on the bottom. Connect to this elbow with a 1 in.
MPT x 1 in. slip (glue) adapter and short piece of
pipe.
2. Install a 1 in. elbow.
IL1365
Glue
Adapter
Pipe
IL1366
Glue
Elbow
3. Attach a 1 in. slip (glue) x 3/4 in. FPT adapter
and 3/4 in. MPT x 3/4 in. slip.
Glue
Adapter
Coupling
1
2
3

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
9
© 2020. All rights reserved.
4. Install a 3/4 in. union (optional) and continue
with pipe and 3/4 in. x 3/4 in. x 3/4 in. tee.
IL1368
Glue
Tee
Union
5. Make the connection to the house plumbing.
From the tee, install pipe and shut o󰀨 valve
(optional).
IL1386
6. Completed deep well installation with piping and
tank is shown.
IL1369
Glue
To House
Plumbing
From Pump
Shut off valve
4
5
6

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
10
© 2020. All rights reserved.
WARNING:
• Always disconnect pump from electricity before
performing any work on the motor.
• Under-sized wiring can cause motor failure and
even re. Use proper wire size specied in the
Wire Size Chart.
• Replace damaged or worn wiring cord
immediately.
• Do not kink power cable and never allow the
cable to come in contact with oil, grease, hot
surfaces, or chemicals.
• The pump must be properly grounded using the
proper wire cable with ground.
CAUTION:
• Protect the power cable from coming in contact
with sharp objects.
• All wiring should be performed by a qualied
electrician in accordance with the National
Electric Code and local electric codes.
• Connect the pump to a separate electrical circuit
with a dedicated circuit breaker. Refer to the Wire
Size Chart for proper fuse size.
PUMP ELECTRICAL CONNECTIONS
L1
L2
AB
L1
L2
AB
115 Volts
Single Phase
Line
230 Volts
Single Phase
Line
Y
E
L
L
O
W
W
H
I
T
E
G
R
E
Y
R
E
D
T
A
N
Y
E
L
L
O
W
W
H
I
T
E
G
R
E
Y
R
E
D
T
A
N
Check Voltage of Power Source
Before Connecting
DO NOT CONNECT ANY GROUND WIRE
TO THESE LEADS
WIRING DIAGRAM
IL1401
1

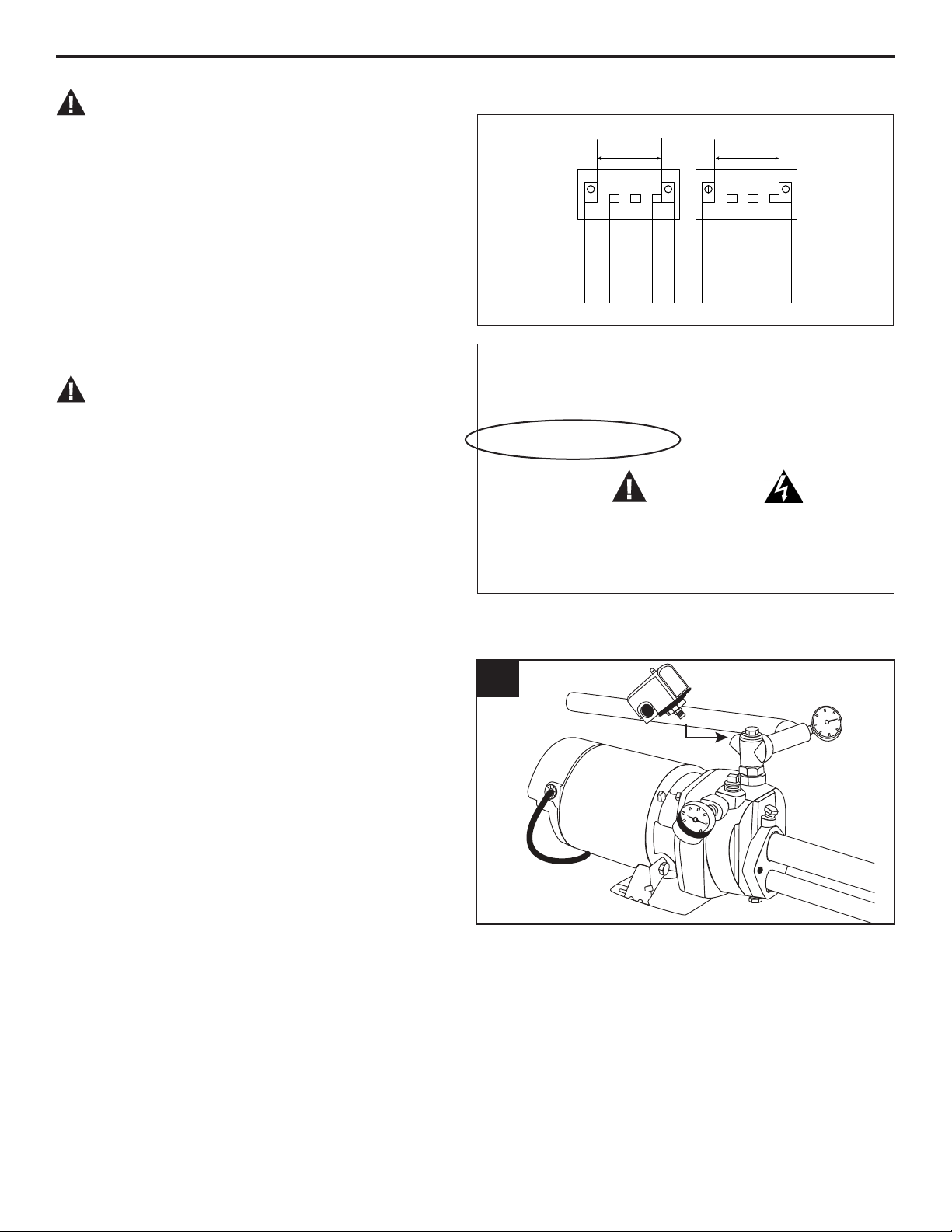

Wiring the Pressure Switch:
CAUTION: Make certain that the power source
matches the pump requirements. This pump has a
dual voltage motor and can run on 115 V or 230 V.
This pump is pre-wired at the factory to run on 230 V.
NOTE: To change pump voltage, see wiring diagram
on this page or instructions on page 13.
1. Screw the pressure switch into the 1/4 in. opening
on the side of the ow control and remove the
switch cover.
C
US
LR90197
UL Std. No. 778
ENCLOSURE 3
starwatersystems.com
Pump: JHU10 Rev: B
Motor: 98U1071
HP: 1PH 1Hz 60
Volts 115/230 S.F. 1.2 Amps 14/7
S.F. Amps: 14/7 RPM 3450 Type C
Duty: Cont. Temp 65C KVA Code G
Frame 56L Ins Class B
Factory prewired for 230V Thermally protected automatically
Check voltage of power source Use copper conductors only
ELECTRICAL HAZARD
Improper installation may result in  re, explosion, electrical short or injury. Replace all covers
before operating. Ground motor in accordance with local and national electrical codes.
Disconnect power source before touching internal parts. Motors equipped with automatic
protection may restart without warning.
See instruction manual for proper installation procedure.
Se reporter au manuel d’instructions pour suivre la procédure adéquate d’installation.
Consulte el instructive para conocer el procedimiento de instalación correcto.
L1
L2A B
L1
L2A B
IL0180
YELLOW
115 VOLT
SINGLE PHASE
LINE
230 VOLT
SINGLE PHASE
LINE
WHITE GRAY RED TAN YELLOW WHITE GRAY RED TAN
DATE CODE: 0418* Made in USA

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
11
© 2020. All rights reserved.
IL1374
Wire from
motor
4
IL1373
Wire from
motor
3
IL1372
2

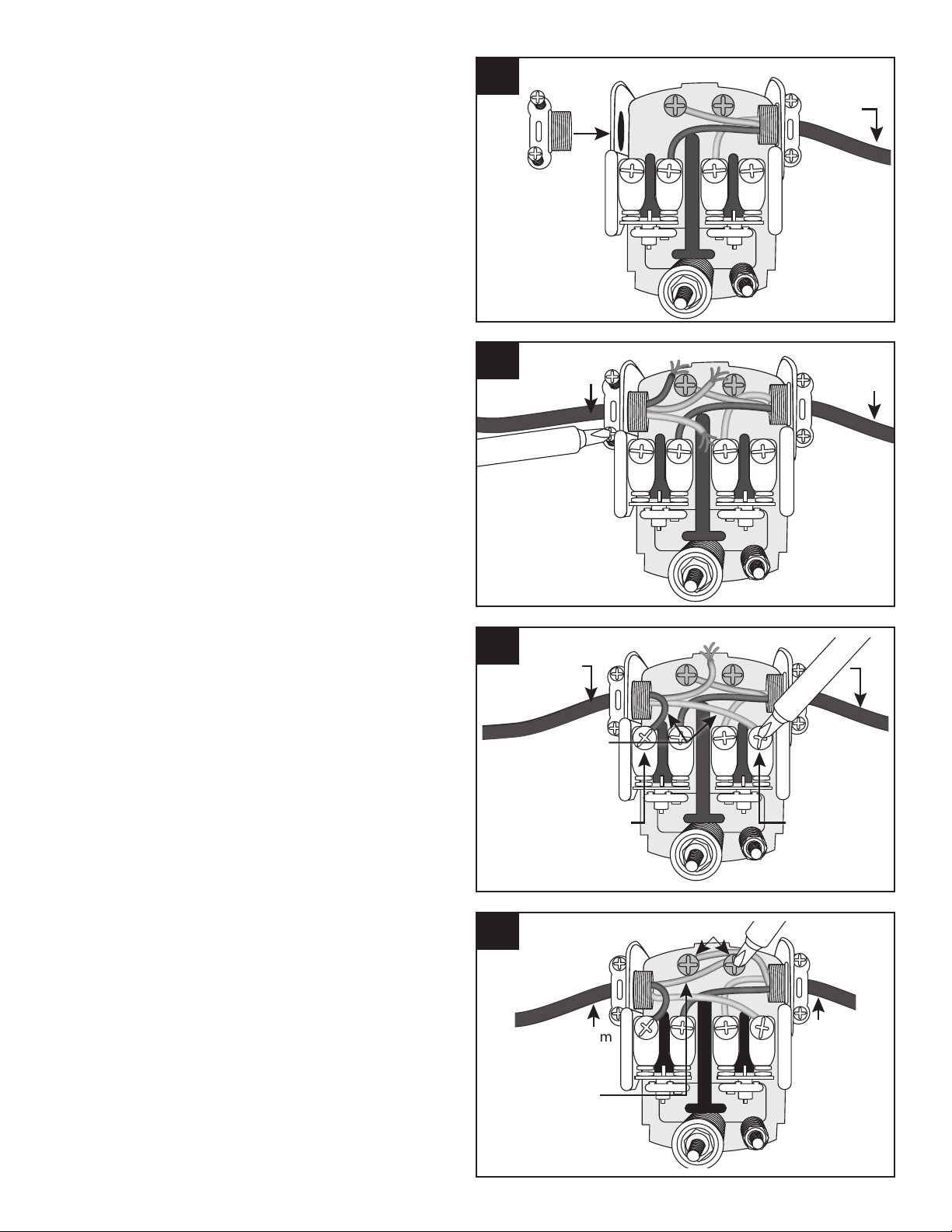

3. Thread the cable from the pump motor through
the strain relief into the pressure switch cavity
and tighten both screws on the strain relief. Do
not crush wire.
4. Connect the two motor wires of the motor cable
to the two inside terminals on the pressure
switch.
2. Insert an electrical wire strain relief into the
opening in the side of the pressure switch closest
to the motor.
IL1375
Wire from
motor
Ground Screws
5
5. Connect the green ground wire from the motor
cable to one of the green ground screws at the
bottom of the pressure switch.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
12
© 2020. All rights reserved.
Wire from
motor
Wire from
power
supply
7
IL1376
Wire from
motor
Pressure
switch
Strain
relief
6
6. Insert an electrical wire strain relief into the
opening in the opposite side of the pressure
switch.
7. Thread the cable from the power supply through
the strain relief and tighten both screws on the
strain relief. Do not crush wire.
Wire
from
motor
Wire from
power
supply
Ground Screws
Green
ground
wire
9
Outside
terminal
Two wires
from power
supply
Outside
terminal
Wire from
motor
Wire from
power
supply
8
9. Connect the green ground wire from the power
supply to the remaining green ground screw in
the pressure switch, and re-attach the pressure
switch cover.
8. Connect the two wires from the power supply to
the two outside terminals on the pressure switch.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
13
© 2020. All rights reserved.
A B
L1
L2
IL2194 B
230 V
G R AY RED
A B
L1
L2
IL2195 A
230 V
G R AY RED
A B
L1
L2
IL2196 A
115 V
G R AY RED
A B
L1
L2
IL1354 A
115 V
GRAY
RED
C
US
LR90197
UL Std. No. 778
ENCLOSURE 3
starwatersystems.com
Pump: JHU10 Rev: B
Motor: 98U1071
HP: 1PH 1Hz 60
Volts 115/230 S.F. 1.2 Amps 14/7
S.F. Amps: 14/7 RPM 3450 Type C
Duty: Cont. Temp 65C KVA Code G
Frame 56L Ins Class B
Factory prewired for 230V Thermally protected automatically
Check voltage of power source Use copper conductors only
ELECTRICAL HAZARD
Improper installation may result in  re, explosion, electrical short or injury. Replace all covers
before operating. Ground motor in accordance with local and national electrical codes.
Disconnect power source before touching internal parts. Motors equipped with automatic
protection may restart without warning.
See instruction manual for proper installation procedure.
Se reporter au manuel d’instructions pour suivre la procédure adéquate d’installation.
Consulte el instructive para conocer el procedimiento de instalación correcto.
L1
L2A B
L1
L2A B
IL0180
YELLOW
115 VOLT
SINGLE PHASE
LINE
230 VOLT
SINGLE PHASE
LINE
WHITE GRAY RED TAN YELLOW WHITE GRAY RED TAN
DATE CODE: 0418* Made in USA
1

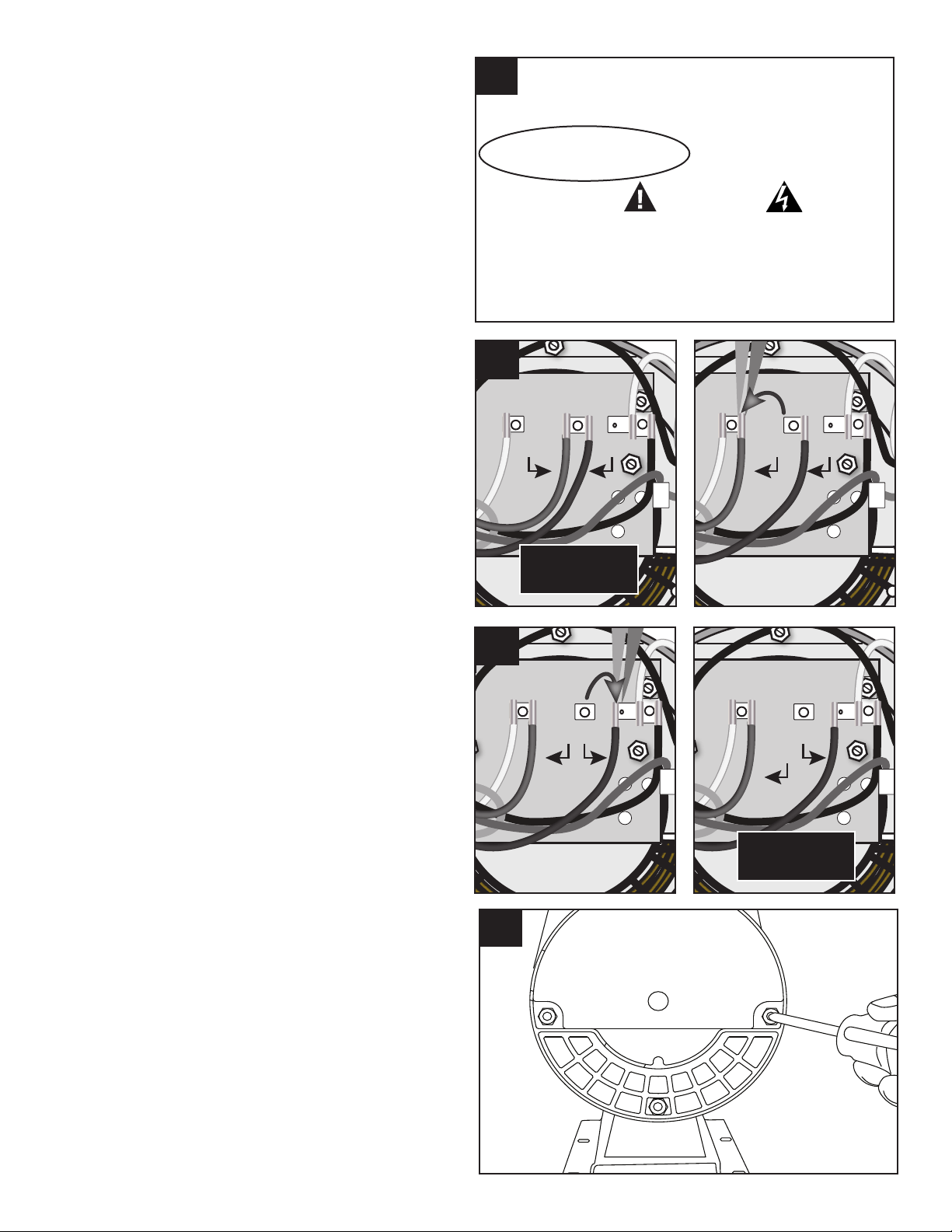

To change from 230 V to 115 V
1. The motor of this pump is dual voltage and can
run on either 115 V or 230 V. In general, 230 V is
more economical to run and requires a smaller
wire size.
NOTE: This pump is pre-wired at the factory to
run on 230 V.
2b
2a
b. Pull the red wire with the female ag
connector from the “B” terminal. Place it to the
right on the “L2” terminal spade post.
2a. For 115 V service, change the following wires on
the terminal board:
a. Using a pair of needle nose pliers, pull the
gray wire with the female ag connector from
the “B” terminal spade post. Place it to the left
on the “A” terminal spade post.
2c
c. Reinstall the rear motor cover.
NOTE: To change voltage from 115 V to 230 V,
simply reverse instructions above.
230 V
115 V

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
14
© 2020. All rights reserved.

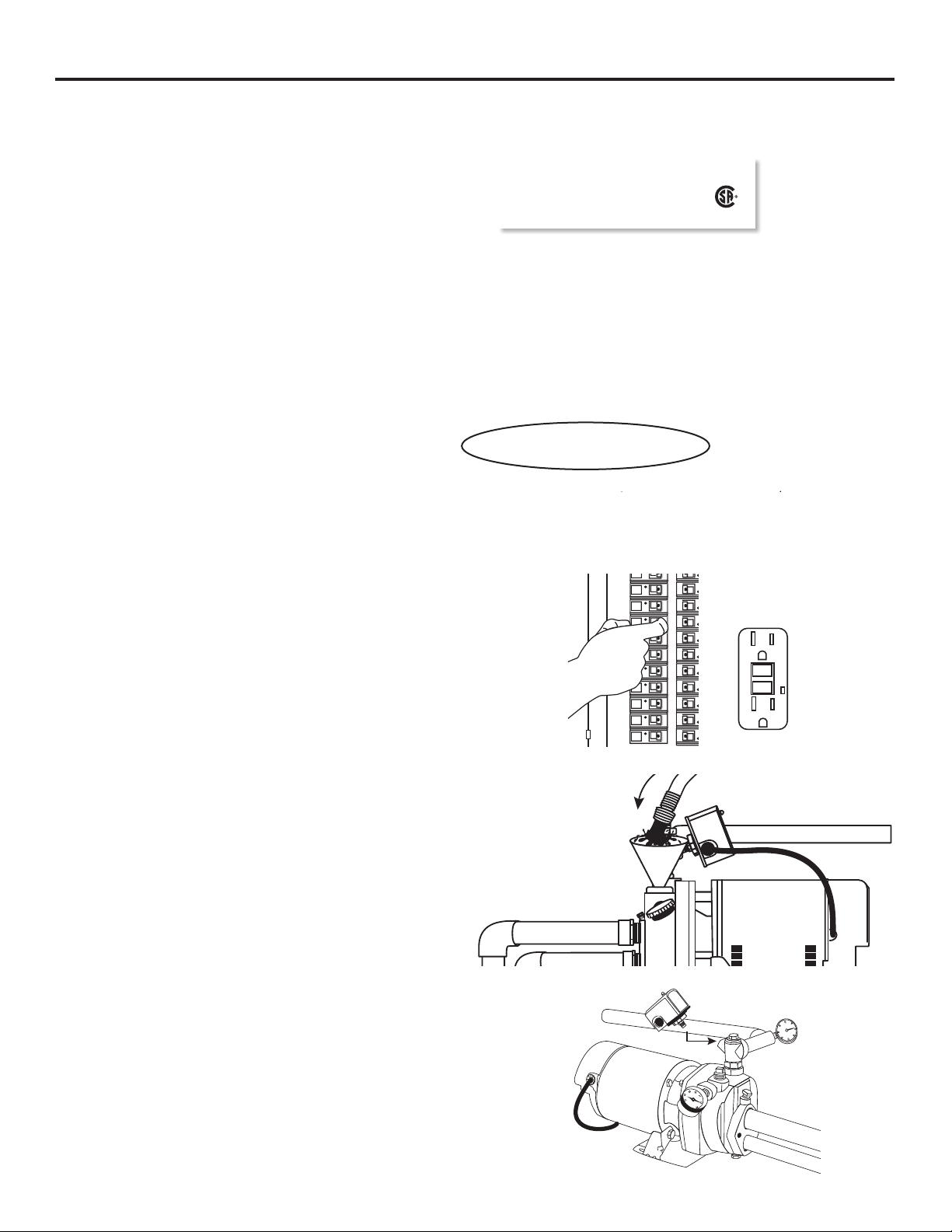

PUMP PRIMING & STARTUP - DEEP WELL
IL1409
4
IL1406
2
2. Fill pump cavity with water until full and replace
priming plug.
4. Tighten ow control screw completely by turning
clockwise, then loosen two turns. Now start the
pump.
CAUTION: All pumps must be primed (lling
the cavity with water) before they are rst operated.
This may take several gallons of water, as the suction
line will be lled in addition to the pump cavity.
1. Remove the 1/2” priming plug.
IL1407
1
Pressure
Gauge -
Household
Pressure
Pump
Pressure Gauge -
Maintain min. 46 PSI
while running
3
3. The ow control valve allows you to adjust the
balance between pump body pressure and
household pressure. Install a a pressure gauge
on the pump body and a second gauge in the
discharge line. Follow the steps below to maximize
pressure to your home while making sure you
maintain a minimum of 46 PSI at the pump while
the pump is running.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
15
© 2020. All rights reserved.
IL1408
Pressure
Gauge
5
5. If pump is correctly primed, pressure will quickly
build and register on the gauge mounted on the
pump body. If pressure does not build, repeat
priming operation. All air must be vented from the
drive and suction pipes, as well as the body before
the pump will prime. The pump body may need
to be lled several times in order to achieve the
prime.
Water
Level
Suction
Lift
Pipe
Support
Unions
Foot
Valve
IMPORTANT: If the pump fails to prime within
ve minutes:
Turn power o󰀨 at the breaker box and check all pipe
connections for leaks. All connections must be water
and air tight in order for pump to operate.
All piping from the well to the pump should slope
slightly upward with no sagging. Support suction
pipe between water source and pump. Unions in
the suction line near the pump and well will aid in
servicing. Be sure to leave enough room so that
wrenches can be used easily.
NOTE: Look for leaks or a milky color in the
discharged water, which indicates an air leak.
Re-prime if necessary, following steps 1 through
6 above. Reset breaker at the breaker box. All
connections must be water and air tight in order for
pump to operate.
IL1409
6
6. With pump operating at high pressure, open two
or more faucets and slowly unscrew the ow
control screw until maximum ow is obtained.
The pressure gauge should read 46 PSI, which
is the minimum operating pressure of the pump.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
16
© 2020. All rights reserved.
CARE AND MAINTENANCE
Winterizing
CAUTION: Drain the entire system if there is
danger of freezing. A drain plug is provided at the
bottom of the pump for this purpose.
IL0345
1
PREVENT
PUMP
DAMAGE!
Remove plug in
freezing weather

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
17
© 2020. All rights reserved.
Please review the following troubleshooting questions before returning a pump as defective.
If you have any questions, please call Customer Service at [phone].
MODEL LIQUID PUMP
LR90197
US
REV
DATE CODE:/CÓDIGO DE FECHA
Made in USA • Hecho en EE.UU.
Kendallville, IN 46755 • USA
QUICK TROUBLE-SHOOTING CHECKLIST
20
20
20
20
RESET
RESET
TEST
TEST
IL1381
C
US
LR90197
UL Std. No. 778
ENCLOSURE 3
starwatersystems.com
Pump: JHU10 Rev: B
Motor: 98U1071
HP: 1PH 1Hz 60
Volts 115/230 S.F. 1.2 Amps 14/7
S.F. Amps: 14/7 RPM 3450 Type C
Duty: Cont. Temp 65C KVA Code G
Frame 56L Ins Class B
Factory prewired for 230V Thermally protected automatically
Check voltage of power source Use copper conductors only
ELECTRICAL HAZARD
Improper installation may result in  re, explosion, electrical short or injury. Replace all covers
before operating. Ground motor in accordance with local and national electrical codes.
Disconnect power source before touching internal parts. Motors equipped with automatic
protection may restart without warning.
See instruction manual for proper installation procedure.
Se reporter au manuel d’instructions pour suivre la procédure adéquate d’installation.
Consulte el instructive para conocer el procedimiento de instalación correcto.
L1
L2A B
L1
L2A B
IL0180
YELLOW
115 VOLT
SINGLE PHASE
LINE
230 VOLT
SINGLE PHASE
LINE
WHITE GRAY RED TAN YELLOW WHITE GRAY RED TAN
DATE CODE: 0418* Made in USA
IL1406
IL1401
1. Check date code to make sure pump is within
warranty period. Date code is the month and
the year.
(Example: 0318 is March of 2018. Date Code is
found on the top of the pump.)
2. Make certain that the power source matches the
pump requirements. This pump has a dual voltage
motor and can run on 115 V or 230 V. This pump is
pre-wired at the factory to run on 230 V.
3. If pump does not run, check the GFI or breaker
panel switch to make sure it is in full operation.
4. If the pump runs all the time, make sure the
pump has been primed correctly. If pump is not
holding the prime, inspect check valve, foot
valve, and piping, then reprime.
5. If the pump runs but won’t shut o󰀨, check
pressure switch.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
18
© 2020. All rights reserved.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Little or no
discharge
1. Casing not initially lled with water 1. Fill pump casing
2. Suction lift too high, or too long 2. Move pump closer to water source
3. Hole or air leak in suction line 3. Repair or replace. Use pipe tape and
pipe sealing compound.
4. Foot valve too small 4. Match foot valve to piping or install one
size larger foot valve.
5. Foot valve or suction line not submerged
deep enough in water
5. Submerge lower in water
6. Motor wired incorrectly 6. Check wiring diagram
7. Casing gasket leaking 7. Replace
8. Suction or discharge line valves closed 8. Open
Pump will not
deliver water
or develop
pressure
1. No priming water in casing 1. Fill pump casing
2. Leak in suction line 2. Repair or replace
3. Discharge line is closed, and priming air
has nowhere to go
3. Open ball valve
4. Suction line (or valve) is closed 4. Open
5. Foot valve is leaking 5. Replace foot valve
6. Suction screen clogged 6. Clean or replace
Loss of suction 1. Air leak in suction line 1. Repair or replace
2. Suction lift too high 2. Lower suction lift, install foot valve, and
prime
3. Insu󰀩cient inlet pressure or suction head 3. Increase inlet pressure by adding more
water to tank or increasing back pressure
4. Clogged foot valve or strainer 4. Unclog
Pump vibrates
and/or makes
excessive noise
1. Mounting plate or foundation not rigid
enough
1. Reinforce
2. Foreign material in pump 2. Disassemble pump and clean
3. Impeller damaged 3. Replace
4. Worn motor bearings 4. Replace
Pump will not
start or run
1. Improperly wired 1. Check wiring diagram on motor
2. Blown fuse or open circuit breaker 2. Replace fuse or close circuit breaker
3. Loose or broken wiring 3. Tighten connections, replace broken
wiring
4. Stone or foreign object lodged in impeller 4. Disassemble pump and remove foreign
object
5. Motor shorted out 5. Replace
6. Thermal overload has opened circuit 6. Allow unit to cool. Restart after reason for
overload has been determined.

FOR DEEP WELL APPLICATIONS 25 - 70 FT.
19
© 2020. All rights reserved.
WARRANTY
REPAIR PARTS
ITEM DESCRIPTION PART NO.
1 Repair Kit includes
impeller, di󰀨user, rotary
seal, quadraseal, and
di󰀨user rubber
148140
2Flow Control Assembly 134349
7
8
This product is warranted for two years from the date of purchase. Subject to the conditions hereinafter set
forth, the manufacturer will repair or replace to the original consumer any portion of the product which proves
defective due to defective materials or workmanship. To obtain warranty service, contact the dealer from whom
the product was purchased. The manufacturer retains the sole right and option to determine whether to repair
or replace defective equipment, parts, or components. Damage due to conditions beyond the control of the
manufacturer is not covered by this warranty.
THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly install,
operate, or maintain the unit in accordance with printed instructions provided; (b) to failures resulting from
abuse, accident, or negligence, or use of inappropriate chemicals or additives in the water; (c) to normal
maintenance services and the parts used in connection with such service; (d) to units which are not installed
in accordance with normal applicable local codes, ordinances, and good trade practices; and (e) if the unit is
used for purposes other than for what it was designed and manufactured.
RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty must be
returned to the manufacturer at Kendallville, Indiana or such other place as the manufacturer may designate,
freight prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND MAY
NOT BE EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL BE LIMITED TO
THE PERIOD OF THE LIMITED WARRANTY AND THEREAFTER ALL SUCH IMPLIED WARRANTIES ARE
DISCLAIMED AND EXCLUDED. THE MANUFACTURER SHALL NOT, UNDER ANY CIRCUMSTANCES, BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO
DAMAGE TO, OR LOSS OF, OTHER PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE,
OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY
OF THE MANUFACTURER SHALL NOT EXCEED THE PRICE OF THE PRODUCT UPON WHICH SUCH
LIABILITY IS BASED.
This warranty gives you specic legal rights, and you may have other rights which vary from state to
state. Some states do not allow limitations on duration of implied warranties or exclusion of incidental or
consequential damages, so the above limitations may not apply to you.
1
2
In those instances where damages are incurred as a result of an alleged pump failure, the Homeowner
must retain possession of the pump for investigation purposes.

1
© 2020. Todos los derechos reservados.
IL0345
Your validation code for this project is LB808344
(From old instructions)
HIERRO FUNDIDO
BOMBA CONVERTIBLES
DE JET
MODELO #1463-0006
Zoeller®es una marca registrada de
Zoeller Co.
Todos derechos reservados.
Número de serie Fecha de compra
¿Preguntas, problemas, partes faltantes? Antes de acudir al minorista, llame a nuestro departamento
de servicio al cliente al 1-800-584-8089, de lunes a viernes de 7:30 a.m. a 5:00 p.m., EST.
ADJUNTE SU RECIBO AQUÍ
024990S C
ZoellerAtHome.com
INSTRUCCIONES
PARA INSTALACIONES
DE POZO PROFUNDO
7.6-27.4 M (25-90 PIES)
IL0194
