ZOLAR Toliman 30S User manual

TM
Toliman 30S User Manual

Preface
Please read this document carefully in order to understand the ZOLAR™ Toliman 30S (hereinafter
referred to as Product) and use it reasonably. Refer to the ocial website (www.z-cam.com) for the
latest version of this document and updated product information.
Please contact Shenzhen ImagineVision Technology Limited (hereinafter referred to as
ImagineVision) or its authorized distributor/resellers, in case of any product queries about installa-
tion or operation.
Safety Guideline
Please read and follow this Safety Guideline and all the terms associated to this Product carefully, to
know your legal rights, responsibilities, and safety instructions, otherwise, it may result in product
damages, safety accidents and personal injuries. By using this Product, you hereby signify that you
have read, understood, acknowledged and accepted this Safety Guideline and all the terms and
conditions associated with this Product, and assume responsibility for any behaviors or consequen-
ces. You undertake to use this Product on normal and reasonable purpose, and agree to this Guide-
line and all the terms and conditions associated with this Product, as added, reduced, amended,
modified made by ImagineVision from time to time.
ImagineVision provides no expressed or implied guarantee in relation to this Product, assumes no
loss or legal responsibility raised from misuse of this Product contrary to this Safety Guideline and
the terms associated to this Product, accepts no indirect, consequent, punitive, occasional, special,
criminal-punitive loss or legal responsibility. Under any circumstances, the total liability of
ImagineVision shall NOT exceed the price paid by you to ImagineVision for the product.
Safety Warning
This Product is not intended for use by persons under the age of 18. Keep out of reach of children.
1 . Keep children away when operating the product.
2. Do not stare at the light source as it may cause permanent eye damage.
3. Wear gloves before touching heated surfaces of the product to prevent burns.
4. Wear gloves when touching sharp edges and corners of the product to prevent cuts.
5. Do not block or cover the vents of the product.
6. Product is not waterproof and not dust proof. Prevent water and dust from entering into the pro-
duct which may cause damages.
7. Position the power cables so that it will not be tripped over, or accidentally pulled out causing the
product to shut down.
8. If an extension power cable is required, the minimum amperage rating should not be less than
that of the product’ s own power cable.
9. When using the device with AC DC Power Adapter, connect it to a grounded power outlet.
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
2
Disclaimer
All product features and technical specifications stated are subject to the sole interpretation and
explanation of Shenzhen ImagineVision Technology Limited, and subject to change without notice.
10. Do not place the product near any flammable and/or volatile liquid to prevent potential damages.
Version 1.0.0

3
MENU
Preface
Safety Guideline
Safety Warning
Disclaimar
Product Description
Product Description
Product Highlight
Product Overview
Main Unit
Main Unit Controller
Remote Controller
Packing List
Ready to use
Installation
Power Supply
Start Up
Menu Operation
Remote Controller Connection
Mobile App
Bluetooth®Connection
Wi-Fi Connection
Firmware Upgarde
Operation Guide
Correlated Color Temperature Adjustment
Intensity Adjustment
Favorites
Light Eect
Light Control
ZolarLink Multi Light Sync
Indicator Status
Settings
2
2
2
2
5
5
5
6
6
7
8
9
10
10
11
12
12
12
13
13
14
14
15
15
15
15
16
18
19
23
24
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
[21]

4
Accessories
ZOLAR™ Stylist 32x32
ZOLAR™ Barndoor 32x32（Optional Accessory）
ZOLAR™ SoftBox Accessory Kit 32x32（Optional Accessories）
Handle（In Box Accessory）
Product Specifications
Photometric data
Warranty Policy
Warranty Scope
Warranty Period
Warranty Arrangement
Limited Warranty
FCC Compliance Statement
RF Warning Statement
26
26
28
30
32
33
35
36
36
36
36
36
37
37
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Product Description
ZOLAR™ professional LED lighting system is developed by Shenzhen ImagineVision Technology
Limited, the same successful team that created Z CAM Cinema Cameras. ZOLAR™ products are de-
veloped with profound color science knowledge, leading image processing algorithms, as well as
camera lens and sensor calibration expertise. Delivering high fidelity color reproduction and excel-
lent color rendition with performances very close to natural daylight.
Our in-house developed “Self Adaptive Spectral Nonlinear Dynamic Illuminance Calibration System”
eliminates the inconsistent LED performance issues. In addition, our revolutionary solution allows a
mixture of ZOLAR™ light series to be used simultaneously without any visible color deviation (color
matching mode will be added to other ZOLAR™ series).
ZOLAR™ Toliman is a Bi-color LED light panel series targeting professional video productions. Its ex-
cellent soft light performance and high fidelity color reproduction has set a new benchmark for the
industry. Designed with dual full spectrum LEDs to deliver continuous light spectrum across full CCT
range with exceptionally high CRI & TLCI scores, particularly in R9, R12, R13 & R15. No compromise.
Spectral Similarity Index (SSI) is developed by The Academy of Motion Picture Arts and Sciences to
evaluate the fidelity of color reproduction particularly for LED light, from a single chip CMOS digital
camera point of view. It quantitatively compares the spectrum of the test light with that of a desired
reference light source, expressing the similarity as a single number on a scale up to 100. High values
indicate a high likelihood of high fidelity color reproduction by most cameras. SSI of ZOLAR™ Toliman
is close to or exceeds 90, across full CCT range (3,200K~5,600K), a leading standard in the industry.
Higher score implies higher fidelity color reproduction, particularly the skin tone. This is exactly why
these scores exist.
ZOLAR™, The sun is the limit!
· CRI: Ra ≥ 97 (R9 & R12 up to 95), TLCI ≥ 98;
· Spectral Similarity Index SSI up to 90;
· Low power consumption high output: Input ≤ 120W, Output ≥ 4,680 lx at 1m / 3.28ft;
· Revolutionary 25º optical design lens array to boost illuminance.
· ZOLAR Stylist precision directional super light transmissible panel: control beam angle, light diu-
sion, no color shift;
· Multi Light Sync - ZolarLink (wireless), rapid auto sync grouping;
· Supports Art-Net 4 & sACN (through wireless connection);
· Built in Light Eect for dierent scene applications;
· Bluetooth + WiFi mixed control: Remote Controller, mobile app (iOS & Android).
5
Product Description
Product Highlight
ZOLAR™ Toliman 30S User Manual
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Main Unit
ZOLAR™ Toliman 30S User Manual
6
Bottom
15
16
17
18
19
08
09
10
11
04
13
12
Rear
07
Top
01
14
02
03
05
04
06 07
Front
[03] 3x ZOLAR Stylist Clot
Slot 1
Slot 2
Slot 3
ZOLAR Stylist
09
Product Overview
1.Slide Latch
2. Corner Guard
3. 3x ZOLAR Stylist Slot
4. Tilt Lock Clamping Lever
5. Yoke Mount
6. Hand Knob Swivel Screw Clamp
7. Spigot
8. Vent Holes
9. ZOLAR Power Adapter Back Plate
10. Quick Release Button
11. Top Handle
12. V-Mount Battery Plate
13. Main Unit Controller
14. Antenna Port
15. Vent Holes
16. M-I-S Selector
17. Remote Controller Port
18. Power Input
19. Power Switch
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
20
21
22
23
24
25
26
27
28
20. Main Unit Controller LCD Screen
21 . Indicator
22. Rotary Encoder
23. Mode Button
24. Menu Button
25. Favorite Button
26. F3 Button
27.F2 Button
28. F1 Button
7
[13] Main Unit Controller
Main Unit Controller
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
29. Remote
30. Rotary Encoder
31 . Left Button
32. F1 Button
33. F2 Button
34. Mode Button
35. Indicator
36. Right Button
37. F3 Button
38. Menu Button
39.Favorite
40. Power Switch
41 . Remote Connector Port
29
30
31
32
33
34
35
36
37
38
39
41
Remote Controller - Front
Remote Controller - Bottom
Remote Controller - Right
8
30
Remotec Controller
40
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
9
Packing List
Before using this product, please check that the package contains all of the following items. If not,
please contact your sellers immediately.
Main Unit
1 pc
Remote Controller
1 pc
Remote Connector Cable
1 pc
AC DC Power Adapter
1 pc
Power plug varies
according to socket
types for each
country.
CN Plug
En Plug
US Plug
EU Plug
AC Power Cable*
1 pc
Screwdriver
1 pc
ZOLAR Stylist W - Side A
ZOLAR Stylist W 32x32
1 pc
Antenna
1 pc
Handle
1 pc
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Ready To Use
ZOLAR™ Toliman 30S User Manual
Installation
1 . Rotate Tilt Lock Clamping Lever [04] to adjust the inclination between Main Unit and Yoke Mount
[05]. Rotate anti-clockwise to loosen and clockwise to tighten. Angle of inclination is adjustable
±360°;
2. Mount the Main Unit onto light stand head mount through Spigot [07], rotate Hand Knob Swivel
Screw Clamp [06] clockwise until it is tightened;
3. Repeat above step 1 to adjust the inclination between Main Unit and Yoke Mount [05] afterwards.
10
Graphic: Main Unit Installation
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
11
Power Supply
Using AC DC Power Adapter
1
2
AC 110v-240v
3
4
V+ GND
N.C
Graphic：Power Connection

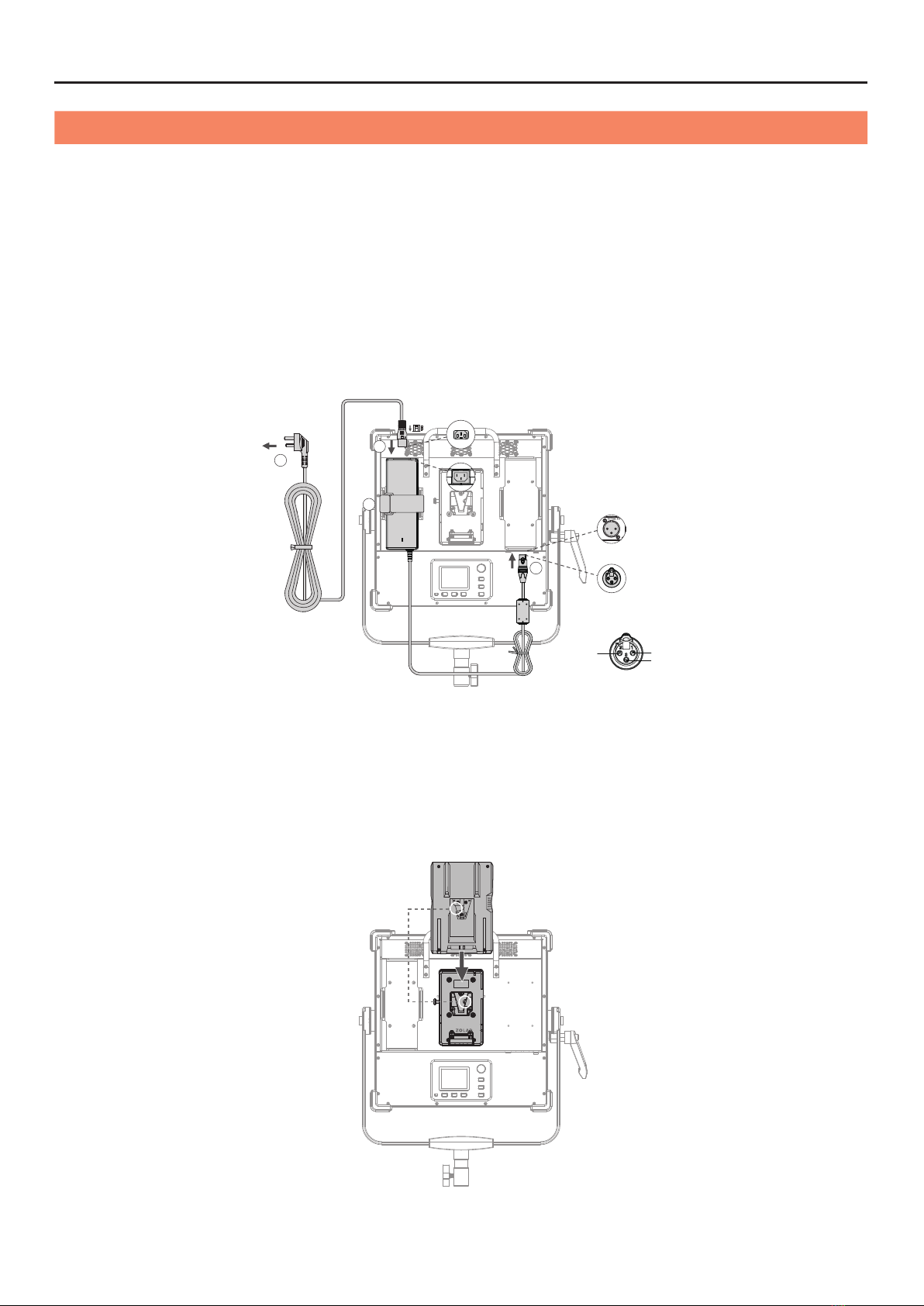

1. Place AC DC Power Adapter onto either one of the ZOLAR™ Power Adapter Back Plates [09] and
fasten the attached strap to lock it in position;
2. Align the position of safety lock and connect output power plug of the AC DC Power Adapter to
Power Input [18] of the Main Unit;
3. Connect AC power cable to AC DC Power Adapter;
4. Connect AC power plug to AC power outlet (100~240V, 50/60Hz);
5. To disconnect, first unplug the AC power, then press and hold the safety lock of output power
plug to disconnect, then switch AC power cable safety lock to unlock position, press and hold to
disconnect.
Version 1.0.0
1. Slide the V-Mount battery to the V-Mount Battery Plate [12] from the top;
2. Push gently downwards until lock into position;
3. To unmount the battery, press and hold Quick Release Button [10], then lift the battery upward.
* Only V-Mount batteries can be used. Not included in the standard package.
Using Battery*
Graphic：Battery Connection
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
12
Start Up
1. Verify power supply connection;
2. Turn Power Switch [19] to “|” position;
3. To power o, simply turn Power Switch [19] to “O” position.
Menu Operation
1. Press Menu Button [24] on the Main Unit Controller [13] to enter the menu;
2. Rotate Rotary Encoder [22] clockwise to move cursor downward, anti clockwise to move cursor
upward. Press to confirm selection. Press Menu Button [24] to return to the upper level menu.
Remote Controller Connection
1. Connect the Remote Controller cable to the Remote Controller Port [17] of the Main Unit, the other
end to the Remote Controller Port [41] of the Remote Controller;
2. Turn Power Switch [40] to “ON” position to start using;
3. Press and hold Right Button [36] to suspend light output of Main Unit, press and hold again
to resume light output;
4. To turn o Remote Controller, simply turn Power Switch [40] to “OFF” position.
Version 1.0.0
Graphic：Remote Controller Connection
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
13
Bluetooth® Connection
Screw in the antenna clockwise to the Antenna Port [14]. Download and install ZOLAR™ Mobile App.
1. Connect mobile device to Main Unit
a) Press Menu Button [24] on the Main Unit Controller [13] during standby mode to enter menu;
b) Rotate Rotary Encoder [22] to select “Information” and note down the serial number;
c) Open ZOLAR™ Mobile App on the mobile device, click the three dots on the top right corner
to enter Settings;
d) Select “Bluetooth” in Connections, then click top left corner arrow sign to return to home
menu;
e) Click the device icon on top of the home screen and select the corresponding Main Unit,
then click to confirm;
f) Press Menu Button [24] to return to upper level menu;
g) ZOLAR™ Mobile App is now ready to control the Main Unit.
2. Disconnect mobile device from Main Unit
a) Quit ZOLAR™ Mobile App and Bluetooth will be disconnected automatically.
b) Bluetooth connection will be reestablished automatically when ZOLAR™ Mobile App is
opened again.
Mobile App
ZOLAR™ Mobile App (iOS & Android)
Scan the corresponding QR code below to download and install ZOLAR™ Mobile app, then use
Bluetooth or WiFi to connect and control the Main Unit.
App Store (iOS) Google Play (Android) 
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
14
Wi-Fi Connection
Screw in the antenna clockwise to the Antenna Port [14]. Download and install ZOLAR™ Mobile App.
1 . Connect Main Unit to wireless router (2.4GHz frequency band only)
a) Press Menu Button [24] on the Main Unit Controller [13] during standby mode to enter menu;
b) Rotate Rotary Encoder [22] to select “Wi-Fi” , press once to enter Wi-Fi menu;
c) Rotate Rotary Encoder [22] to select “QR Code” , press once to display the QR Code;
d) Turn on WiFi and Bluetooth on mobile device. Then connect to the wireless router through
Wi-Fi.
e) Open ZOLAR™ Mobile App on the mobile device, click the three dots on the top right corner
to enter Settings;
f) Select “Wi-Fi configuration, position the viewfinder onto the QR Code to scan;
g) Once successfully scanned, SSID of the router will be shown, enter password then click
“Connect” ;
h) Once successfully connected to the router, click top left corner arrow sign to return to home
menu;
i) Press Menu Button [24] to return to upper level menu;
j) ZOLAR™ Mobile App is now ready to control the Main Unit.
2. Disconnect Main Unit from wireless router
a) Press Menu Button [24] on the Main Unit Controller [13] during standby mode to enter menu;
b) Rotate Rotary Encoder [22] to select “WiFi” , press once to enter WiFi menu;
c) Rotate Rotary Encoder [22] to select “Disconnect” , press and select Yes, then press again to
confirm disconnection.
Firmware Upgrade
Download and install ZOLAR™ Mobile App. Connect Main Unit to wireless router. Power level should
be 50% or above if using battery power. Ensure no interruption of power supply during the upgrade
process:
1)
1. Open ZOLAR™ Mobile App on the mobile device. Select Firmware Upgrade in main menu. List of
Main Units connected to the wireless router and available firmware version will be shown.
2. Select the corresponding Main Unit, click Upgrade, press Confirm to start. Firmware version will
be shown on the Main Unit Controller [13] display. Upgrade process will take approximately 4
minutes;
3. Upgrade is successful once the upgrade progress bar reaches 100%. Main Unit will restart auto-
matically;
4. In case of upgrade failure, repeat the above steps to upgrade again.
Attention:
· Main Unit must be placed within 3 meters of the wireless router during the upgrade process. Otherwise there is a
chance of upgrade failure.
· All necessary permissions must be granted to ZOLAR™ Mobile App. Otherwise there is a chance of upgrade failure.
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
Operation Guide
Correlated Color Temperature Adjustment
1. Press Mode Button [23] on the Main Unit Controller [13] during standby mode, rotate Rotary
Encoder [22] to select CCT, press to enter CCT menu;
2. Press F1 Button [28] to enter CCT adjustment mode;
3. Rotate Rotary Encoder [22] clockwise to increase color temperature. Each click increases 50K.
Highest value is 5,600K;
4. Rotate Rotary Encoder [22] anti-clockwise to decrease color temperature. Each click decreases
50K. Lowest value is 3,200K;
5. Press F1 Button [28] again to lock the current color temperature, and quit the CCT adjustment
mode.
Intensity Adjustment
1. Press F3 Button [26] on the Main Unit Controller [13] during standby mode to enter Intensity
adjustment mode;
2. Rotate Rotary Encoder [22] clockwise to increase intensity. Each click increases 0.1%. Highest
value is 100%;
3. Rotate Rotary Encoder [22] anti-clockwise to decrease intensity. Each click decreases 0.1%.
Lowest value is 0%;
4. Press F3 Button [26] again to lock the current intensity, and quit the intensity adjustment mode.
Graphic: CCT Adjustment Interface Graphic: Intensity Adjustment Interface
Favorites
1. Confirm the intensity and CCT values that need to be collected;
2. Press and hold the Favorite Button [25] of the Main Unit Controller [13] until "Saved" is displayed
at the top of the screen, then release it, and the preference has been favorited;
3. If you want to use the favorites, click the Favorites Button [25] to display the list of all favorites;
4. Rotate Rotary Encoder [22], after selecting it, press the Rotary Encoder [22] to confirm, and then
press the Favorite Button [25] to return;
5. If you want to delete your favorites, after selecting them in the favorites list, press the
F3 Button [26] to choose whether to delete them;
6. To delete all favorites, long press the F3 Button [26] to choose whether to delete all.
15
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Light Eect
ZOLAR™ built in light eect library consists of commonly used light eects on-set production and in
TV broadcast studios. Ideal substitute for special light eect equipment.
List of light eects：
· Cloud Passing
· Explosion
· Fire
· Fireworks
· Fluorescent Flicker
· Lightning
· Paparazzi
· Pulsing
· Strobe
· Television
· Welding
· Process
· Fade In/Out
ZOLAR™ Toliman 30S User Manual
16
Version 1.0.0
Cloud Passing Explosion Fire Fireworks
Fluorescent
Flicker
Lightning Paparazzi Pulsing Strobe
Television Welding Process Fade In/Out
Graphic：Light Eects Icon
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

ZOLAR™ Toliman 30S User Manual
17
Version 1.0.0
Select light eect either directly on the Main Unit Controller menu, or through Art-Net / sACN. Each
light eect can be set individually. Settings of eect can be saved in Favorite for quick retrieval.
1. Eect Selection
a) Press Mode Button [23] on the Main Unit Controller [13] during standby mode, rotate Rotary
Encoder [22] to select Eect, press to enter Eect menu;
b) Press Rotary Encoder [22] once again to show the Eect list;
c) Rotate Rotary Encoder [22] to select an eect from the list, press to confirm, and return to
Eect menu;
2. Adjustment of Eect Intensity
a) Press F3 button [26] in Eect menu to enter intensity adjustment mode;
b) Rotate Rotary Encoder [22] to select the desired intensity, press F3 Button [26] to lock the
intensity, and quit intensity adjustment mode.
3. Settings of Eect
a) Press F1 button [28] in Eect menu to enter Settings;
b) Rotate Rotary Encoder [22] to select and adjust settings of the eect, select Exit or press
Menu Button [24] to quit settings.
4. Start/Stop Eect
a) When Eect is not in operation, press F2 Button [27] to start Eect;
b) When Eect is in operation, press F2 Button [27] to stop Eect, Main Unit will cease light
output.
c) Start/Stop Eect operation is only allowed in Eect menu.
5.Quit Eect
Press Mode Button [23] on the Main Unit Controller [13] in Eect menu, rotate Rotary Encoder
[22] to select CCT, press Rotary Encoder [22] to confirm and quit Eect.
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Tip: When you choose the basic intensity value in the flat area of the dimming curve, the dynamic range of
the light eect will be very low in this intensity. Change to another light eect or select another dimming
curve to obtain a more dynamic light eect.
Light Control
ZOLAR™ Toliman 30S supports four Dimming Curves, the Dimming Curves are overall situation and
can be controlled through the main unit menu or Art-Net / sACN.。
Dimming Curve
· Exponential (default setting): The dimming precision is higher at lower intensity and lower at
higher intensity. Use this dimming curve if you want to use high precision at low intensity.
· Logarithmic: The dimming precision is lower at lower intensity and higher at higher intensity.
Use this dimming curve if you want to use high precision at high brightness.
· Linear: The intensity change is proportional to the value adjusted by the Rotary Encoder [22] .
· S-curve: The dimming precision is high at both lower and higher intensity, and lower at
intensity levels in between. Use this dimming curve for high precision at low and high intensity
levels.
1. Press the Menu Button [24] on the Main Unit Controller [13] to enter the menu interface;
2. Rotate Rotary Encoder [22], select “Light Control” , and press the Rotary Encoder [22] to enter
the next level menu;
3. Select “Dimming Curve” and press the Rotary Encoder [22] to enter the next level menu;
4. Rotate Rotary Encoder [22], after selecting the dimming curve, press the Rotary Encoder [22] to
confirm;
5. Select “Exit” or press the Menu Button [24] to return to the original menu step by step.
Set Dimming Curve
ZOLAR™ Toliman 30S User Manual
18
Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

*Varies depending on on-site wireless network signal reception conditions
ZolarLink - Multi Light Sync
ZolarLink multi light wireless sync technology adopts the self-developed intelligent response
synchronization structure, which does not need to be connected to the network one by one, and
does not need to use any computer or mobile phone device. It can set up to 16 groups of ID tags,
each ID tag supports up to 60 slaves, providing an unprecedented ecient and new convenient
experience for the synchronous interconnection of multiple lights.。
1. ZolarLink Initial Pairing
a) Make sure that when the master and slave are connected, they are kept within a distance of
3 meters, and the Antenna Port [14] has been installed with an antenna;
b) Select one as the host, turn o the power, the M-I-S Selector [16] selects the M position; turn
on the power, the Indicator [21] flashes in magenta;
c) Select one as the slave, turn o the power, turn the M-I-S Selector [16] to select the S position;
turn on the power, the Indicator [21] will flashes in cyan;
d) The master and slave will be successfully networked within 5 seconds, the top area of the
Controller LCD Screen [20] of the master will display a magenta connection icon and the
number of connected slaves, and the indicator [21] turns a steady magenta; the top area of
the Controller LCD screen [20] of the slave will display a cyan connection icon, and the
indicator [21] turns a steady cyan;
e) Repeat steps c and d to add other slaves to the same group ID (up to 60);
f) If it still fails to join the network after more than 20 seconds, press the Menu Button [24] on
the Main Unit Controller [13] to enter the menu list, turn the Rotary Encoder [22], select
"ZolarLink", and press it to enter the "ZolarLink" menu, select "Disconnect", the slave will
automatically restart and re-pair, if it still fails, please refer to "Exception Handling";
g) After completing the pairing operation, place the master and slave at the desired location, the
longest distance between them is about 100 meters*.
Notice:
During the pairing process, try to stop the operation and
change the settings of products within the same network.

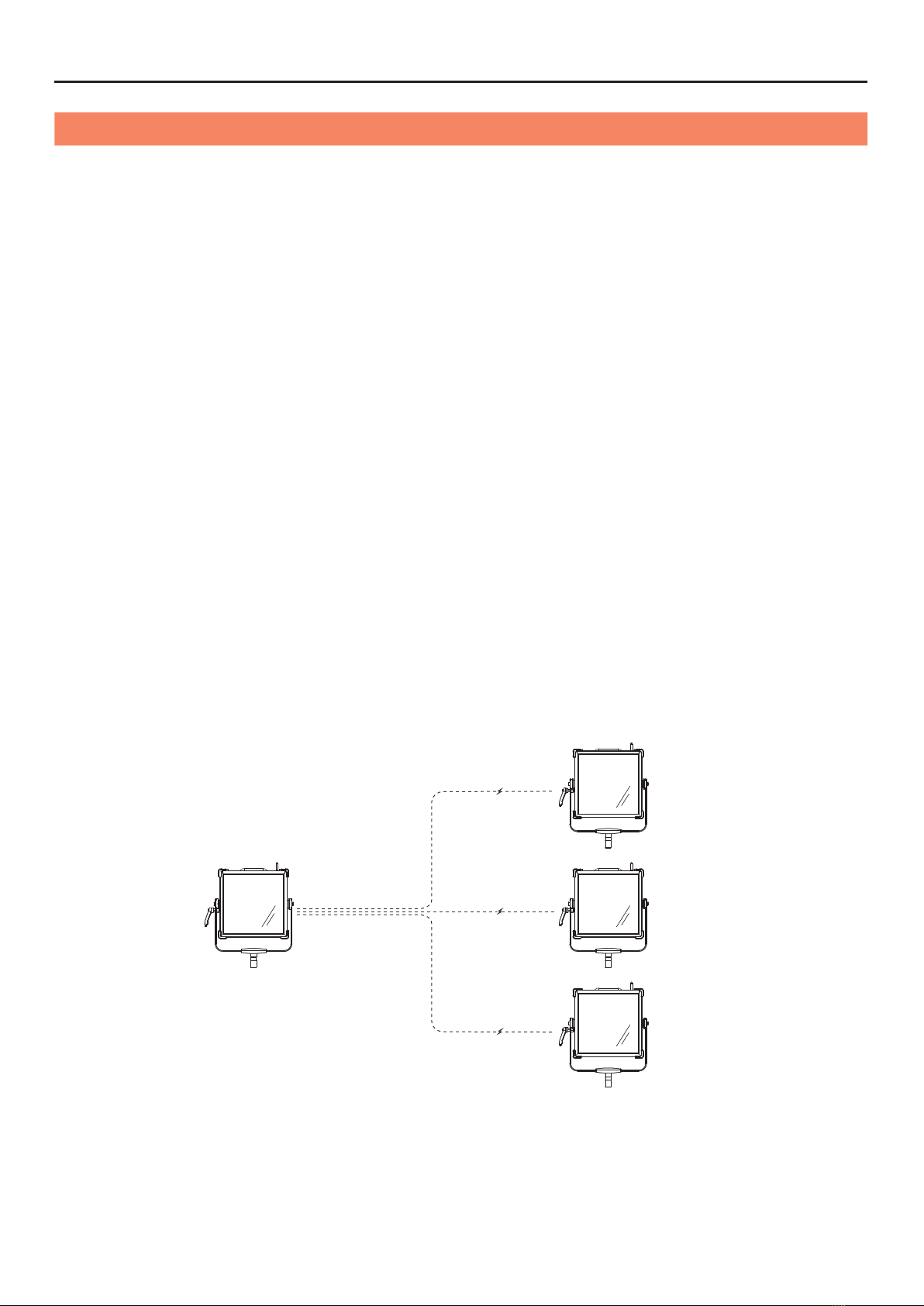

Graphic：ZolarLink - Multi Light Sync
ZOLAR™ Toliman 30S User Manual
19
Version 1.0.0
Master
Slave 1
Slave 2
More Slaves
Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved

Tip:
If all slaves (without changing the default group ID) are power on at the same time for initial pairing:
10 units: about 48 seconds*
20 units: about 1 minute 52 seconds*
30 units: about 2 minutes 55 seconds*
40 units: about 5 minutes and 10 seconds*
50 units: about 6 minutes*
It is recommended that the number of paired slaves should not exceed 10 at the same time in each round,
which is more ecient.
If paired, all slaves will power on at the same time to synchronize with the master: within about 2 seconds*
*Varies depending on on-site wireless network signal reception conditions
2. Quick unpairing
a) Press the Menu Button [24] on the Main Unit Controller [13] of the master to enter the menu
list, rotate Rotary Encoder [22], select “ZolarLink” , press it to enter the “ZolarLink” menu,
select “Disconnect” , all paired online slaves will automatically cancel the pairing relation-
ship with the master, without the need to deal with slaves one by one;
b) If the master needs to become a slave to join a new network pairing, turn o the power,
turn the M-I-S Selector [16] to select the S position, and then follow the "Initial Pairing"
process;
c) If this master needs to return to the idle state, please follow the "Exit ZolarLink" process.
3.ZolarLink Sync Usage Mode (overall situation)
a) Change the relevant color temperature, intensity, light eect and other settings on the
master, all the slaves of the same group ID will be automatically synchronized to the same
settings;
b) After synchronization, each slave can be set individually as required, without aecting the
original settings of other slaves or masters of the same group ID;
c) If you want to save all the current settings of the master and slave in the same group ID, the
master enters the "ZolarLink" menu, rotate Rotary Encoder [22] to select "Scene", and then
select one of 1 to 8 as the scene number, long press Rotary Encoder [22] to save;
d) If you need to update the scene after the master and slave settings in a group of IDs are
changed, you can repeat step c (select the same scene number); if you want to save to
another scene number after the settings are changed, you can repeat step c (select another
scene number) ;
e) If the master and slave settings are changed individually in the same group ID, if you want
to restore the original saved scene settings, enters the “ZolarLink” menu of the master,
rotate Rotary Encoder [22] to select “Scene” , and then select the desired restore Scene
number, press the Rotary Encoder [22] , the master and slave will restore the original scene
settings;
f) If a slave wants to exit this group ID without being aected by its synchronization update,
enter the “ZolarLink” menu,rotate Rotary Encoder [22] to select “Sync” , press it once,
select “O” , and press it again to confirm, The slave will no longer receive synchronous
update commands from the master.
ZOLAR™ Toliman 30S User Manual
20Version 1.0.0 Copyright © 2022 Shenzhen ImagineVision Technology Ltd. All Rights Reserved
