Zonet ZEW2540P User manual

Copyright Statement
is the registered trademark of Zonet Technology Inc. All the
products and product names mentioned herein are the trademarks or registered
trademarks of their respective holders. Copyright of the whole product as
integration, including its accessories and software, belongs to Zonet Technology
Inc. ithout the permission of Zonet Technology Inc., any individual or party is
not allowed to copy, plagiarize, imitate or translate it into other languages.

802.11n ireless USB Adapter
1
Table of Content
Chapter 1. Introduction……………………………………………………………2
1.1 Welcome…………………………………………….…………………………2
1.2 Product Feature…………………………………………………………………2
1.3 Content of Package……………….…………………….……………………2
Chapter 2. Installation…………………………………………………………………3
Chapter 3. Configuration………………………………………………………..……
3.1 Station Mode…….………………………………………………………..……
3.1.1 Profile…….……........……………………………………………..……7
3.1.1.1 Add/Edit Profile…………………………………………......……7
3.1.2 Network.......………………………………………………………………9
3.1.3 Link Status…………………………………………………………..…...9
3.1.4 Advanced……………..……….…………………………………………10
3.1.5 Statistics……………..……….…………………………………………10
3.1. WMM….......................………........………………..………………11
3.1.7 WPS….......................………........………………..………………12
3.1.8 SSO….......................………........………………..………………13
3.1.9 CCX….......................………........………………..………………13
3.2 AP Mode………………..…....……………………………….…………..14
3.2.1 Configuration………..……………………………………………...….15
3.2.2 Access Control…......………..………………………...………..……1
3.2.3 MAC Table...........………..…………………………....………………17
3.2.4 Switch to Working Station Mode..………………………………17
3.3 Use Zero Configuration................................….……….…………..18
Chapter 4. How to connect with PSP………………………………………….21
4.1 Configure PSP with Ad-Hoc mode……………………………….………21
4.2 Configure XLink Kai…………………………………………………………23
Chapter 5. Product Specifications………….........................……………….24
Chapter . TroubleShooting………….........................………….............25

802.11n ireless USB Adapter
2
Chapter 1 Introduction
1.1 Welcome
Thank you for purchasing Zonet ZE 2540P-802.11n wireless USB adapter.
ZE 2540P connects you with IEEE802.11n networks at receiving rate up to an
incredible 150Mbps! By using the reflection signal, 802.11n's “Multiple In,
Multiple Out” (MIMO) technology increases the range and reduces “dead spots” in
the wireless coverage area.
Soft AP supported by ZE 2540P can help you establish wireless LAN networking
with lowest cost. Besides, PS ( i-Fi Protected Setup) simplify the security
setup and management of i-Fi networks. Supports MM for Multimedia
Applications with Quality of Service in i-Fi® Networks. Especially supporting
PS3, PSP, Nintendo DS and ii connections with XLink Kai software will be your
best choice to enjoy on-line gaming.
1.2 Product Feature
Complies with IEEE 802.11n, IEEE 802.11g and IEEE 802.11b standards
Provides USB2.0 port
Provides 150Mbps receiving rate and 150Mbps sending rate
Supports 20MHz/40MHz frequency width
Auto-
detects and changes the network transmission rate
Provides two work modes: Infrastructure and Ad-Hoc
Supports Soft AP to establish your wireless LAN networking
supports PS3, PSP, ii and Nintendo DS connecting with Internet and
Xlink Kai to enjoy on-line gaming
Supports 64/128-bit EP, PA, PA2 encryption methods and 802.1x
security authentication standard
PS ( i-Fi Protected Setup) simplify the security setup and management
of i-Fi networks.
Supports MM for Multimedia Applications with Quality of Service in
i-Fi® Networks
Supports indows 2000 / XP / Vista / 7
1.3 Contents of Package
One ZE 2540P
One Installation CD w/User Manual
One Quick Installation Guide
One USB cable
Contact your local authorized reseller or the store purchased from for any items
damaged and/or missing.

802.11n ireless USB Adapter
3
Chapter 2 Installation
NOTE:
1. For future driver upgrading, please visit our website at www.zonetusa.com
2. Snap-shot screens of the following installation procedure are based on Windows
X . Installation procedures will be similar for other windows operating systems.
1. Insert ZE 2540P into a USB
slot of your computer.
2. Select Cancel when “Found
New Hardware” window
appears.
3. Insert Installation CD to your
CD-ROM drive. B r owse CD and
double-click setup.exe in
Driver folder to execute it. The
wizard will run and install all
necessary files to your
computer automatically.
4. C lick Next to accept the
Agreement. Or click Cancel to
exit .

802.11n ireless USB Adapter
4
5. S elect Install driver and
Ralink WLAN Utility or
Install driver only then click
Next .
. S elect Ralink Configuration
Tool or icrosoft Zero
Configuration Tool then
click Next .
a. It’s recommended to select
Ralink Configuration
Tool, which provides fully
access to all function of
ZE 2540P.
b. If you prefer to use the
wireless configuration tool
provided by indows XP or
Vista, please select
Microsoft Zero
Configuration Tool .
7. Click Install to start the
installation.

802.11n ireless USB Adapter
5
8. Click Finish to complete the
software installation.
You will see a tray icon appear in your system tray at the bottom of the
screen after the software and hardware installation completed successfully.

802.11n ireless USB Adapter
6
Chapter 3 Configuration
3.1 Station Mode
Station Mode is the default access mode for ZE 2540P.
In this mode, ZE 2540P serves as a client to receive the wireless signals to
access the Internet.
Double-click the tray icon to launch the configuration utility.
Or right click the tray icon and select Launch Config Utility.

802.11n ireless USB Adapter
7
3.1.1 Profile
Profile can keep your favorite wireless setting among your home, office, and
other public hotspot. You may save multiple profiles and activate the one at your
preference.
 Add: to create a new profile
 Edit: to edit/modify/change parameter of an existing profile
 Delete: to delete an existing profile
 Activate: to make an existing profile become active and to connect
3.1.1.1 Add/Edit Profile
a. System Configuration
 Power Save Mode:
a. CAM (Constantly Awake Mode) – ZE 2540P will stay power-ON as long
as the computer is connected to a power outlet.
b. PSM (Power Saving Mode) – ZE 2540P will hibernate when the
computer is hibernating.

802.11n ireless USB Adapter
8
 Network Type:
a. Infrastructure – A wireless Router and/or Access Point is required.
b. Ad-hoc – Peer-to-Peer network, no base station required.
 TX Power:
Amount of transmit power used by the radio transceiver to send out signal.
User can choose different value in the drop down menu
 Preamble:
Only available under Ad-hoc mode. Value can be chose from Auto, Long, or
Short
 Threshold:
Frame size when RTS/CTS handshake performs before attempt to transmit.
a. RTS Threshold: Default value = 2347
b. Fragment Threshold: Default value = 2346
b. Authentication and Encryption


 Authentication: Open, Shared, PA(CCKM capable), PA-PSK,
PA2(CCKM capable), PA2-PSK, PA-NONE


 Encryption: None, EP, TKIP, AES, TKIP(MFP), AES(MFP).
c. 802.1X

802.11n ireless USB Adapter
9
3.1.2 Network
Under Network tab, you will know information of all surrounding wireless
networks from the last scan.
Click Rescan to update and refresh.
3.1.3 Link Status
Link status page shows detail information about the current connection.

802.11n ireless USB Adapter
10
3.1.4 Advanced
The Advanced tab shows Advance function of UI


 Enable Tx Burst: Ralink’s proprietary frame burst mode. Suggest using
with an Access Point that has the same technology.


 Enable TCP Window Size: Check this box and the configuration utility will
adjust TCP window size automatically to get better performance.


 Fast Roaming at: Fast to roaming, setup by transmitting power
3.1.5 Statistics
Statistics tab displays the detail counter information based on 802.11 MIB
counters. This page translates that MIB counters into a format easier for user to
understand.

802.11n ireless USB Adapter
11
3.1. WMM


 WMM Enable: Enable i-Fi Multi-Media


 WMM - Power Save Enable: Enable MM Power Save


 Direct Link Setup Enable: Enable DLS (Direct Link Setup). This function will
greatly improve the data transfer rate between MM-enabled wireless
devices.
a. MAC Address: Input the MAC address of another MM-enabled wireless
device you wish to establish a direct link.
b. Timeout Value: must be between 0~65535 in integer. If the value is zero
represents it always connects. Default value of Timeout Value is 60
seconds.
c. Tear Down: If you want to remove a specific wireless device from DLS
table, select the device and click this button to remove it.

802.11n ireless USB Adapter
12
3.1.7 WPS
PS tab supports the configuration setup using PIN configuration method or PBC
configuration method.
PS( i-Fi Protected Setup) simplify the security setup and management of i-Fi
networks.
 PIN: Enter the Pin code and click PIN to automatically connect ZE 2540P
with wireless devices around.
 PBC: Click PBC to complete auto-check and connections between ZE 2540P
and other wireless device.
 Rescan: Update information on surrounding wireless network.
 Information: Display the information about PS IE on the selected
network.
 Pin Code: 8 digit numbers.
 Renew: Click to update the Pin code.
 Config Mode: Enrollee or external Registrar.
 Detail: Information about Security and Key in the credential.
 Connect: click to connect the PS wireless network.
 Rotate: Connect to the next network inside credentials.
 Disconnect: to disconnect the connected wireless network.
 Export Profile: Export all credentials to Profile.
 Delete: Delete an existing credential.
 WPS associate IE: Send the association request with PS IE during PS
setup.
 WPS probe IE: Send the probe request with PS IE during PS setup.
Note: When clicking IN or BC button, please don't click Rescan within two-minute. If you want
to abort this setup within the interval, restart IN/ BC or press Disconnect to stop W S.

802.11n ireless USB Adapter
13
3.1.8 SSO
SSO (Backup Exec for indows servers SAN Shared Storage Option) is a strong
LAN-free backup solution.
3.1.9 CCX


 Enable CCX(Cisco Compatible eXtensions):


 Enable Radio Measurement: channel measures every 0~1023
milliseconds

802.11n ireless USB Adapter
14
3.2 AP Mode
ZE 2540P also can serve as an access point to transmit wireless signals and
create wireless network, allowing other wireless clients to access the network.
Right-click the tray icon and select Switch to AP ode.

802.11n ireless USB Adapter
15
3.2.1 Configuration
In soft AP configuration Utility page, you can make some basic configurations,
such as wireless network name, mode, channel and authentication.
Click Security Setting button to make different security configurations of
wireless communication, and you can choose the authentication type or
encryption type.
Note:
1. The Hex characters include 0~9 numbers and a~f letters.
2. ASCII characters include any numbers/letters and characters.

802.11n ireless USB Adapter
16
3.2.2 Access Control
Choose Access Control tab to start MAC control. Access control includes Allow
All and Reject All. After editing the MAC address access list, only the MAC in the
Allow All list could access the Soft AP.

802.11n ireless USB Adapter
17
3.2.3 MAC Table
MAC Table page shows the information of the wireless devices accessed to this
soft AP.
3.2.4 Switch to Working Station mode
In the Soft AP mode, right-click the icon in the system tray and choose
Switch to Station Mode, then ZE 2540P is switching to working station mode
with an interface of working station.

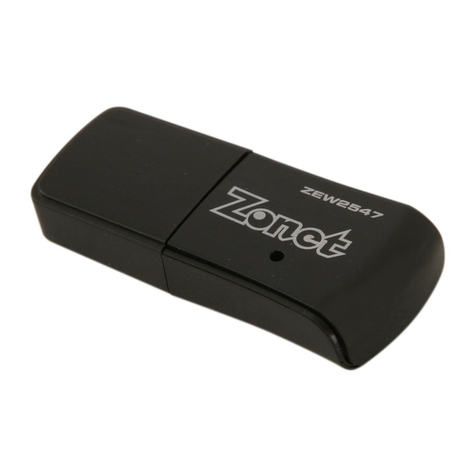

802.11n ireless USB Adapter
18
3.3 Use Zero Configuration
indows XP and Vista has a built-in wireless network configuration utility
“ indows Zero Configuration” ( ZC). It is a built in service to configure your
wireless clients from indows
1. Start using ZC, r ight click the tray icon and select Use Zero
Configuration as Configuration utility.
2. The windows wireless network connection will appear. Double click the
wireless network icon on the system tray to check the wireless network,
choose the network and click Connect to setup the association.
3. If your wireless router has been encrypted, there will be a window appeared
for input the key. Please input the key and click Connect, then the connection
connect.
