ZoneVu ZoneVu ZVD-GW1-DEN User guide

ZVD-GW1-DEN
DENNARD DOME INTERFACE
INSTALLERS MANUAL

MEYERTECH LIMITED
ISSUE 01
CONTENTS
1. PRODUCT WELCOME 3
2. PRODUCT SUPPORT 3
3. FEATURES 3
4. INSTALLATION 4
4.1 CONNECTING THE TELEMETRY DISTRIBUTION 4
5. CONFIGURATION 5
6. OPERATION 6
6.1 PRESETS 6
6.2 TOURS 6
6.3 MENU OPERATION 6
6.4 SLOW SPEED MODE 6
6.5 GLOBAL FUNCTIONS 6
7. SPECIFICATIONS 7
8. TROUBLE SHOOTING GUIDE 8
9. DECLARATION OF CONFORMITY 9
10. PRODUCT WARRANTY 10
11. DOCUMENT HISTORY 11
Whilst every effort has been made to confirm the information in this document is correct,
MEYERTECH LIMITED cannot accept any liability for any errors, omissions and or incorrect
information contained within this document.
No part of this document may be reproduced or distributed in any form or by any means
without prior written consent from MEYERTECH LIMITED.
MEYERTECH LIMITED are committed to continuous product development and therefore reserve
the right to change specifications without notice.
1999 ALL RIGHTS RESERVED.
Page 2 MAN-GW1-DEN
http://www.meyertech.co.uk

ISSUE 01
1. PRODUCT WELCOME
Thank you for purchasing a ZoneVu 3rd Party dome interface.
In conjunction with the ZoneVu DVK-001 keyboard and an extensive range of 3rd Party Domes, the
ZVM-328 provides a complete and powerful retail solution.
This Manual should be used in conjunction with the standard ZoneVu Matrix and Keyboard manuals.
MEYERTECH are dedicated to customer service and support. If you have any questions or problems,
our staff will be pleased to assist you on the technical help line listed on page 15.
Information regarding other MEYERTECH products and technical information can be found on the
MEYERTECH World Wide Web site by pointing your Internet browser to:
http://www.meyertech.co.uk
2. PRODUCT SUPPORT
The ZVD-GW1-DEN supports the following domes, manufactured by Dennard
• Type 2050 Dome
3. FEATURES
The following features are supported on the Dennard range of domes.
• 2-wire RS-485 telemetry distribution for up to 32 domes, per interface.
• Simultaneous Pan, Tilt, Zoom and Autofocus.
• 8-Speeds on each axis.
• 99 Presets
• 4 Preset Tours, with selectable approach speed and dwell time.
• Selectable Auto/Manual Focus operation.
Page 3http://www.meyertech.co.ukMAN-GW1-DEN

MEYERTECH LIMITED
ISSUE 01
4. INSTALLATION
To obtain the optimum performance from your ZoneVu system, please take time to read this manual
before commencing installation. If you have any questions or problems our staff will be pleased to
assist you on the technical help line listed on page 15.
WARNING EQUIPMENT POWER SUPPLY UNITS CONTAIN HAZARDOUS
VOLTAGES. THE EQUIPMENT MUST BE EARTHED TO
PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
This ZoneVu interface should only be used in conjunction with the following equipment:
• ZVM-328 3u 19” Low Profile Case (1 required per bank of 32 Domes).
• ZVM-PSU Matrix Power Supply 12V (1 required for each ZVM-328 module).
• DVK-001 Keyboard (1 required per system).
• DVK-PSU 12V DC Keyboard Power Cube.
• Type 2050 Dennard Dome
4.1 CONNECTING THE TELEMETRY DISTRIBUTION

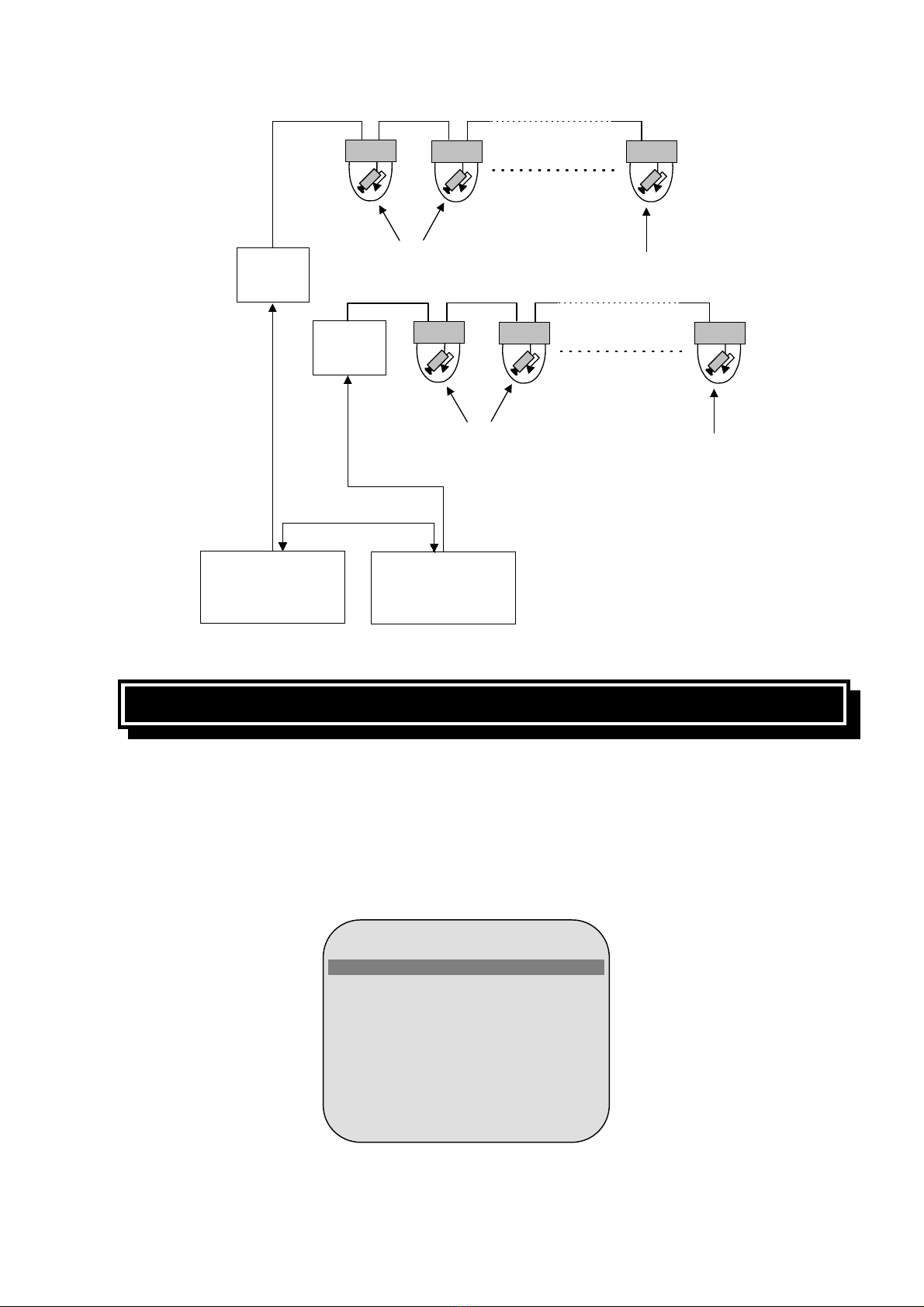

Connect up the telemetry distribution in accordance with diagram below and the specifications in
Section 7, paying special attention to the maximum ratings and the notes below.
1. ALWAYS use Screened cables for low voltage and signal cables, ensuring the screen is
connected to 0V or Earth.
2. AVOID looming cables of differing characteristics together E.G. Telemetry cables with cables
carrying mains power.
3. The maximum cable run for Twisted Pair is typically 1Km.
4. The maximum number of Dome cameras that can be connected to a driver interface is 32.
5. The domes should be ‘Daisy Chained’ with the last dome in the chain being terminated and all
other domes unterminated.
Page 4 MAN-GW1-DEN
http://www.meyertech.co.uk

ISSUE 01
ZVM-328
Matrix (master)
2 Wire
RS-422
Telemetry
2 Wire
RS-485
Telemetry
Comms I/O
ZVM-328
Matrix (slave)
unterminated external termination
fitted
unterminated external termination
fitted
ZVD-GW1-
DEN
Interface
Channel 1
Channel 2
ZVD-GW1-
DEN
interface
Channel 1
Channel 2
Comms I/O
5. CONFIGURATION
Please refer to the ZVM-328 matrix manual for details on how to configure the system.
When configuring the matrix, the telemetry type should be set up as follow:
• Within the Main Menu of the On Screen Display, select Setup Matrix
• Within the Setup Matrix menu, select Cameras.
• Within the Cameras menu, select each camera controlled through the ZVD-GW1
interface, and in turn set each ‘Head Type’ to ‘DomeVu’ as shown below.
CAMERA OPTIONS MENU
Camera [ [ 01 ]
Video [ PRESENT ]
Camera Text
Text [ TOP ]
Text Colour [WHITE]
Time/Date [ BOTH ]
Head Type [ DomeVu ]
Digital Zoom [ENABLE]
Return To Sub Menu
Page 5http://www.meyertech.co.ukMAN-GW1-DEN

MEYERTECH LIMITED
ISSUE 01
6. OPERATION
All Functions operate as described in the DVK-001 Manual with the following exceptions and
additions:
6.1 PRESETS
Presets 1-99 (see exceptions below) are available to the user, and are stored and recalled as on a
standard ZoneVu system
Preset 94 cannot be stored. When recalled it starts the dome configuration menu.
Home (Preset 0) cannot be stored, when recalled the dome ‘Resumes’ its last function
6.2 TOURS
Tours 1-4 are available, and are programmed through the keyboard as on a standard ZoneVu system.
Up to 16 positions can be programmed (unused positions will be left blank)
Dwell time is entered in the range 1-10. This translates to a pause of 0 -18 seconds
Speed is entered in the range 1-8. A value of 1 gives maximum speed, 8 is minimum.
6.3 MENU OPERATION
The dome configuration menu is started by recalling preset 94.
The menu is navigated by panning and tilting the joy-stick. ‘Recall preset 1’ is used to select items.
6.4 SLOW SPEED MODE
Slow mode can be toggled on/off using the ‘Gear’ key on a Meyertech keyboard (where available).
This only effects joy-stick control.
6.5 GLOBAL FUNCTIONS
Global commands are not supported by the dome.
Page 6 MAN-GW1-DEN
http://www.meyertech.co.uk

ISSUE 01
7. SPECIFICATIONS
POWER INPUT - 12VDC Power Supply (included) from 230VAC
TELEMETRY INPUT - 9 pin D type connector (Female)
RS-422 (2-wire)terminated
Pin 1 Rx-
Pin 2 Rx+
Pin 5 Ground
TELEMETRY OUTPUT - 9 pin D type connector (Female)
RS-485 (2-wire)terminated
Pin 3 Rx-/Tx-
Pin 4 Rx+/Tx+
Pin 5 Ground
CURRENT CONSUMPTION - 100mA Max.
DIMENSIONS - 155mm x 108mm x 40mm
WEIGHT - 0.5 kg
TEMPERATURE - Operational 0 Degrees to 40 Degrees C
- Storage minus 20 Degrees to plus 60 Degrees C
- Humidity 10% to 95% (Non-condensing)
Page 7http://www.meyertech.co.ukMAN-GW1-DEN

MEYERTECH LIMITED
ISSUE 01
8. TROUBLE SHOOTING GUIDE
This Trouble Shooting Guide should be used in the first instance of encountering any problems with
your Dome control system. If problems persist, contact MEYERTECH on the Technical Help line
numbers given on page 15.
Symptom Solution
Dome moves without
joystick control.
Calibrate keyboard joystick. See Relevant section of
keyboard manual.
Dome control
intermittent
Check cable insulation and termination. See Section 4.1
Page 8 MAN-GW1-DEN
http://www.meyertech.co.uk

Page 9http://www.meyertech.co.ukMAN-GW1-DEN
ISSUE 01
9. DECLARATION OF CONFORMITY
EC DECLARATION OF CONFORMITY ACCORDING
TO ARTICLE 10 OF COUNCIL DIRECTIVE 89/336/EEC
Manufacture’s Name: MEYERTECH
Manufacture’s Address: MEYERTECH Limited
OfficeBlockOne
Southlink Business Park
Oldham
OL41DE
declares, that the product(s):
Product Name : ZVD-GW1-DEN
Dome control interface
Model(s) : All
Product Options : All
conforms to the following Product Specifications :
EN55022 CLASS B
EN50093
EN60950 Amendments 1, 2, & 3 1992
Supplementary Information :
MEYERTECH declare under our sole responsibility that the product to which this declaration
relates, is in conformity with the protection requirements of council directive 89/336/eec on
the approximation of the laws of the member states relating to electromagnetic compatibility,
when installed in accordance with the instructions given in this manual.
SIGNED -
S K MEYERS
Director
MEYERTECH LIMITED
ISSUED THIS DAY : 1st October 1997
European Contact : Meyertech Limited (Head Office), Office Block One,
Southlink Business Park, Oldham, England, OL4 1DE.

MEYERTECH LIMITED
ISSUE 01
10. PRODUCT WARRANTY
MEYERTECH LIMITED warrants that at the time of shipment the products manufactured by
Meyertech will be free from defects in material and workmanship.
Should any defects appear within twelve months from date of shipment, Meyertech Limited shall at it’s
sole discretion repair or replace the defective material. Such material shall not be accepted for return
or repair without prior notification of Meyertech Limited.
Return shipments to Meyertech Limited shall be at the customer’s expense. Meyertech Limited will
return said equipment prepaid via best way.
This warranty is in lieu of and excludes any and all other expressed or implied warranties of
merchantability or fitness, or otherwise. Items manufactured by any supplier other than Meyertech
Limited shall bear only the warranty made by the manufacturer of that product, and Meyertech Limited
assumes no responsibility for the performance or reliability of that product.
Meyertech Limited will not be liable for any special or consequential damages, or for loss, damages,
or expense directly or indirectly arising from the use of the products, or any inability to use them either
separately or in combination with any other equipment or material or from any other cause.
This warranty does not extend to any product manufactured by Meyertech Limited which has been
subject to misuse, neglect, accident, war, civil disturbance, terrorist acts, improper installation, act of
God, or in violation of the instructions supplied by Meyertech Limited.
Page 10 MAN-GW1-DEN
http://www.meyertech.co.uk

ISSUE 01
11. DOCUMENT HISTORY
ZoneVu Interface Installation Manual: MAN-GW1-DEN
ISSUE DATE CHANGE RECORD
01 03 August 1999 First Issue
Page 11http://www.meyertech.co.ukMAN-GW1-DEN

MEYERTECH LIMITED
ISSUE 01
NOTES
Page 12 MAN-GW1-DEN
http://www.meyertech.co.uk

ISSUE 01
Page 13http://www.meyertech.co.ukMAN-GW1-DEN Page 13http://www.meyertech.co.ukMAN-GW1-DEN
ISSUE 01
NOTES

MEYERTECH LIMITED
ISSUE 01
Page 14 MAN-GW1-DEN
http://www.meyertech.co.uk
MEYERTECH LIMITED
Page 14 MAN-GW1-DEN
http://www.meyertech.co.uk
ISSUE 01
NOTES

ISSUE 01
Office Block One
Southlink Business Park
Oldham
England
OL4 1DE
Sales Support
[phone]
[phone]
Email: [email protected]
Technical Support
Scunthorpe
[phone]
http://www.meyertech.co.uk
Page 15http://www.meyertech.co.ukMAN-GW1-DEN
