Introduction
Thank you for purchasing the Zoombak Car Locator. Zoombak is
focused on the development and marketing of breakthrough mobile
communications solutions that leverage the power of wireless
technology and location-based services to provide people with new
ways to connect to each other and their world.
This Guide will introduce you to all of the features of your Zoombak
Car Locator device. If you have any questions, please contact
Zoombak Customer Care at 1-866-951-0101 or visit our website at
www.zoombak.com.
In addition to this Zoombak Car Locator User Guide, included in your
package is a Zoombak Car Locator Quick Start Guide. The Quick Start
Guide will briey walk you through activating your service, using your
service, and setting up your safety zones and alerts. For more detailed
instructions on using your service, please visit www.zoombak.com.
Please read this Zoombak Car Locator User Guide and the
accompanying Quick Start Guide before setting up your account.
Activation and use of the Zoombak Locator are subject to Zoombak’s
customer agreement, plans, terms and conditions, which can be found
at www.zoombak.com/terms.
The Zoombak Car Locator User Guide is divided into ve main
sections:
• Section 1. Getting Started
• Section 2. Using the Car Locator
• Section 3. Safety and Warranty Information
• Section 4. Contacting Customer Care
• Section 5. Specications and Certications
1
zoombak.com

Getting Started
This section addresses two primary areas:
• Zoombak Car Locator Features
• Zoombak Car Locator Package Contents

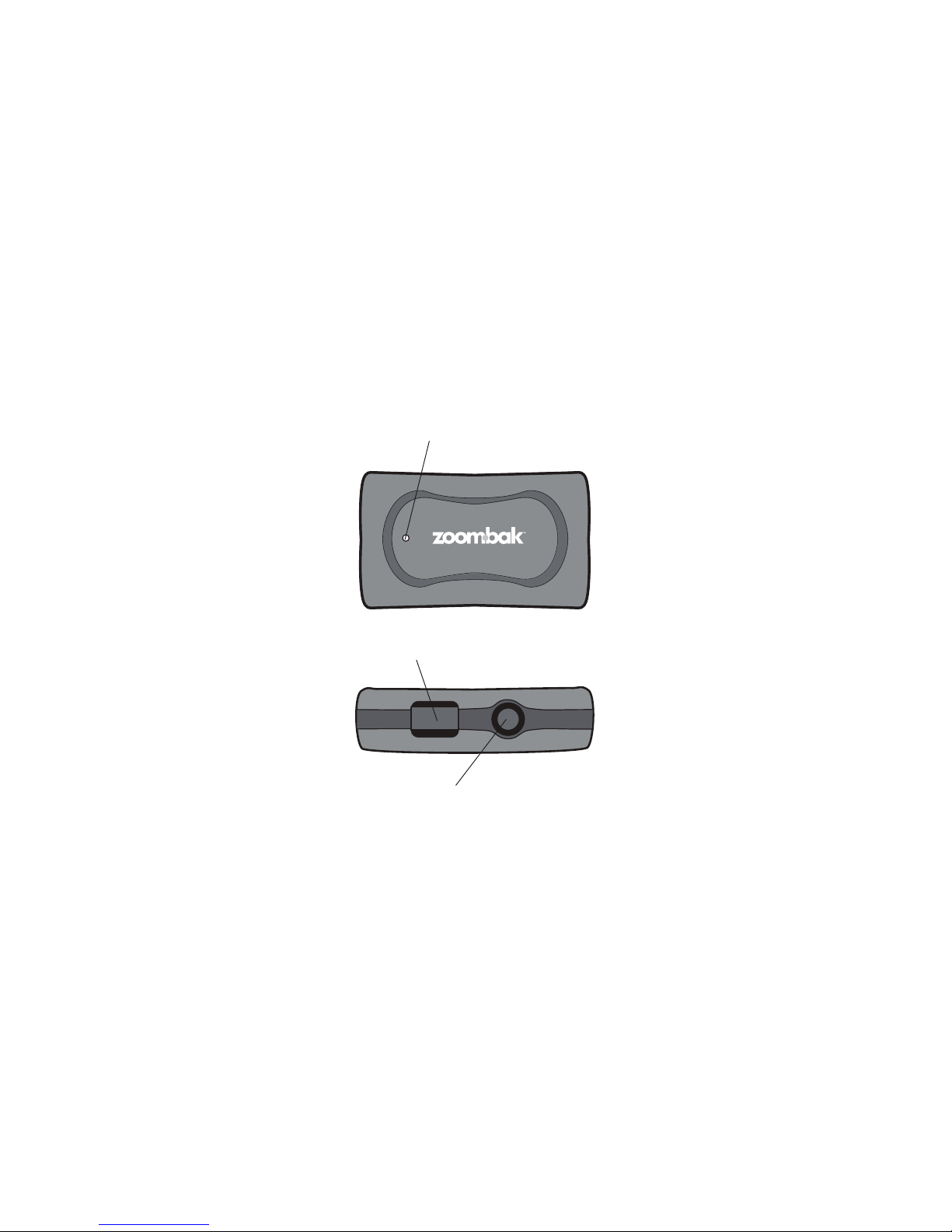

Front / Aerial View of Locator
Indicator LED
USB Charger
Power Button
Key Functions
• USB Charger Jack-Connects the Zoombak Car Locator to the AC
Wall Charger (included) or 12 Volt DC Car Charger (included for
installed option)
• Locator Status LED indicator – Allows you to monitor (at a glance)
the power and battery status of your Zoombak Car Locator
2zoombak.com
1

4
Zoombak Car Locator Package Contents
When you purchase the Zoombak Car Locator, the package should
contain the following:
• Zoombak Car Locator
• Zoombak Car Locator Installation Kit (bracket, screws, Velcro set,
zip ties and 2-sided tape)
• AC Wall Charger
• 12 Volt DC Car Charger- Installed Option
• Zoombak Car Location Quick Start Guide
• Zoombak Car Locator User Guide
Zoombak Locator
12-V Charger
Bracket for Auto Installation
Wall Charger
If any of these items are missing from your package, please contact
Zoombak Customer Care at 1-866-951-0101.
3
zoombak.com

Using the Car Locator
This section addresses ve primary areas:
• Charging the Battery
• Battery Life
• Powering the Car Locator ON/ OFF
• Monitoring the Car Locator Status
• Placing the Locator In Your Car
Charging the Battery
Before using the Zoombak Car Locator for the rst time, you will
need to fully charge the battery. Follow these simple instructions to
charge the battery. The initial battery charge time will be 6 hours;
each subsequent battery charge will be approximately 4 hours.
1. Remove the Zoombak Car Locator and AC Wall Charger from the
Zoombak Car Locator package.
2. Plug the AC Wall Charger into a wall outlet.
3. Attach the Zoombak Car Locator to the AC Wall Charger via the
USB Charger Jack on the Zoombak Car Locator.
4. The Locator Status LED indicator will glow amber (yellow),
indicating that the Zoombak Car Locator is charging.
5. Once the Locator Status LED glows green this will signal that the
Zoombak Locator is fully charged.
4zoombak.com
3

6
Battery Life
Mode Battery Life
Standby Up to 120 hours or 5 days
Active Locator Service Up to 150 Location Requests
Battery life depends on several factors including temperature,
network, signal strength and Locator service features used. Location
requests include the following Zoombak Locator service features:
“Find Now,” “Safety Zones” mode and ‘Continuous Tracking” mode.
When your Zoombak Locator indicates low battery (blinking amber
LED), recharge your battery as dened in the section of this User
Guide titled Charging the Battery”
Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. The Zoombak Locator battery is
not user replaceable; It can only be replaced by an authorized service
provider. For more information, go to: www.zoombak.com.
5
zoombak.com

Powering the Car Locator ON/ OFF
In order to power the Zoombak Car Locator on or off, follow these
simple instructions:
1. Power ON- Press and hold the Power Button until the Locator
Status LED Indicator begins to glow (approximately two seconds).
Blinking green indicates operation OK.
2. Power OFF-Press and hold the Power Button until the Locator
Status LED Indicator begins to ash quickly (approximately two
seconds). Locator Status LED Indicator will shut OFF when the
Locator has properly shut down. A key feature of your Zoombak
Car Locator during the power off process is that the Locator will
determine its current location and send a power off notication via
email and / or mobile text message with its current location and
time/date information (see the Zoombak Car Locator Quick Start
Guide for details on setting up your alerts). The Locator Status
LED Indicator will continue to blink during the power off process,
which may take up to 2 minutes to complete this important
notication feature.
Monitoring the Car Locator Status
Refer to the following list in order to determine the status of your
Zoombak Car Locator LED Indicator at any time.
BLINKING GREEN Indicates Power ON
BLINKING AMBER (YELLOW-ORANGE) Indicates Low Battery
GREEN Indicates Fully Charged (when Charging)
AMBER (YELLOW-ORANGE) Indicates Charging
NO COLOR Indicates Power OFF or Battery Needs to
be Charged
6zoombak.com
5

8
Placing the Locator In Your Car
The location of your Car Locator device is critical to the successful
operation of the locator service. To ensure proper operation, Zoombak
recommends the device to be placed in one of the following locations
for best performance:
• In glove box
• In center console
If you choose to install your Zoombak Car Locator using the included
12 Volt DC Car Charger and Zoombak Car Locator Installation Kit,
please review carefully the Zoombak Car Locator Installation Guide
before installing and using your Zoombak Car Locator.
The Zoombak Car Locator is also perfect for use in motorcycles, ATVs,
boats and bicycles.
The Zoombak Car Locator Installation Guide can be found at www.
zoombak.com/install
7
