ZOTAC GAMING MEK MINI GAMING PC
User’s Manual
No part of this manual, including the products and software described in it, may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of ZOTAC.
Products and corporate names mentioned in this manual may be registered trademarks
or copyrights of their respective companies, and are used for identication purposes
only. All trademarks are the property of their respective owners.
Every effort has been made to ensure that the contents of this manual are correct and
up to date. However, the manufacturer makes no guarantee regarding the accuracy of
its contents, and reserves the right to make changes without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be
recycled where possible. Disposal of used batteries must be in accordance with local
environmental regulations.

ZOTAC GAMING MEK MINI Gaming PC
2
Table of Contents
Product specications ----------------------------------------------------------------------------------------3
Safety information ----------------------------------------------------------------------------------------------4
Setting up your system-------------------------------------------------------------------------------------4
Care during use ----------------------------------------------------------------------------------------------4
Welcome -----------------------------------------------------------------------------------------------------------5
Package contents -------------------------------------------------------------------------------------------5
Getting to know your ZOTAC GAMING MEK MINI Gaming PC-----------------------------------6
Top view--------------------------------------------------------------------------------------------------------6
Rear view ------------------------------------------------------------------------------------------------------7
Setting up your ZOTAC GAMING MEK MINI Gaming PC-------------------------------------------9
Conguring your ZOTAC GAMING MEK MINI Gaming PC ----------------------------------------11
Conguring a wireless connection ----------------------------------------------------------------------11
Conguring a wired connection --------------------------------------------------------------------------11
Using a static IP----------------------------------------------------------------------------------------11
Conguring audio output-----------------------------------------------------------------------------------12
Mouse & Keyboard (Optional) ------------------------------------------------------------------------------13
Combination keys -------------------------------------------------------------------------------------------13
Backlight mode-----------------------------------------------------------------------------------------------13
Game mode and button customization-----------------------------------------------------------------14
Congure your ZOTAC GAMING MEK MINI Gaming PC -------------------------------------------15
Conguring a wireless connection ----------------------------------------------------------------------15
Installing Killer Control Center ---------------------------------------------------------------------------15

ZOTAC GAMING MEK MINI Gaming PC
3
Product specications
For GM207SC7R0B / GM207SC7R1B
qMicroprocessor support
vIntel Core i7-9700 (8-core 3.0 GHz, up to 4.7 GHz)
qOnboard Graphics support
vZOTAC GAMING GeForce RTX2070 Super w/ 8GB GDDR6
vThree DisplayPort 1.4, one HDMI 2.0
(max 4 output)
qSystem Memory support
vTwo 8GB DDR4 2666MHz SO-DIMMs pre-installed (up to 32GB)
qOnboard Serial ATA
vSATA 6.0 Gb/s transfer rates
vSupport one 2.5-inch SATA HDD or SSD (max 9.5mm height) (2TB HDD pre-installed)
qExpansion slot
vOne M.2 PCIe x4 / SATA SSD slot (240GB NVMe SSD pre-installed)
vOne Optane memory slot (22/42, 22/80)
qUSB Ports
vFour USB 3.1 ports
vOne USB 3.0 Type-A port, one USB 3.0 Type-C port
q Onboard Dual LAN
vSupport one 10/100/1000 Mbps Killer Ethernet
vSupport one 10/100/1000 Mbps Ethernet
vSupport IEEE 802.3
q WiFi/Bluetooth support
vCompliant with IEEE802.11ac standard
vBluetooth 5
qOnboard Audio
vStereo analog audio output and Microphone input
qPower Supply
vTwo 19.5V/330W
qOperating systems
vWindows 10 Home 64-bit pre-installed
qProduct Size
v259mm x 139mm x 259mm

ZOTAC GAMING MEK MINI Gaming PC
4
Safety information
Your ZOTAC GAMING MEK MINI Gaming PC is designed and tested to meet the latest standards of
safety for information technology equipment. However, to ensure your safety, it is important that you
read the following safety instructions.
Setting up your system
vRead and follow all instructions in the documentation before operating your system.
vDo not use this product near water or a heat source such as a radiator.
vSet up the system on a stable surface.
vOpenings on the chassis are for ventilation. Do not block or cover these openings. Make sure
you leave plenty of space around the system for ventilation. Never insert objects of any kind into
the ventilation openings.
vUse this product in environments with ambient temperatures between 0℃and 35℃.
 If you use an extension cord, please use the UL listed cord and make sure that the total
ampere rating of the devices plugged into the extension cord does not exceed its ampere
rating.
Care during use
vDo not walk on the power cord or allow anything to rest on it.
vDo not spill water or any other liquids on your system.
vWhen the system is turned off, a small amount of electrical current still ows. Always unplug all
power, modem, and network cables from the power outlets before cleaning the system.
vIf you encounter the following technical problems with the product, unplug the power cord and
contact a qualied service technician or your retailer.
¾The power cord or plug is damaged.
¾Liquid has been spilled onto the system.
¾The system does not function properly even if you follow the operating instructions.
¾The system was dropped or the cabinet is damaged.

ZOTAC GAMING MEK MINI Gaming PC
5
Welcome

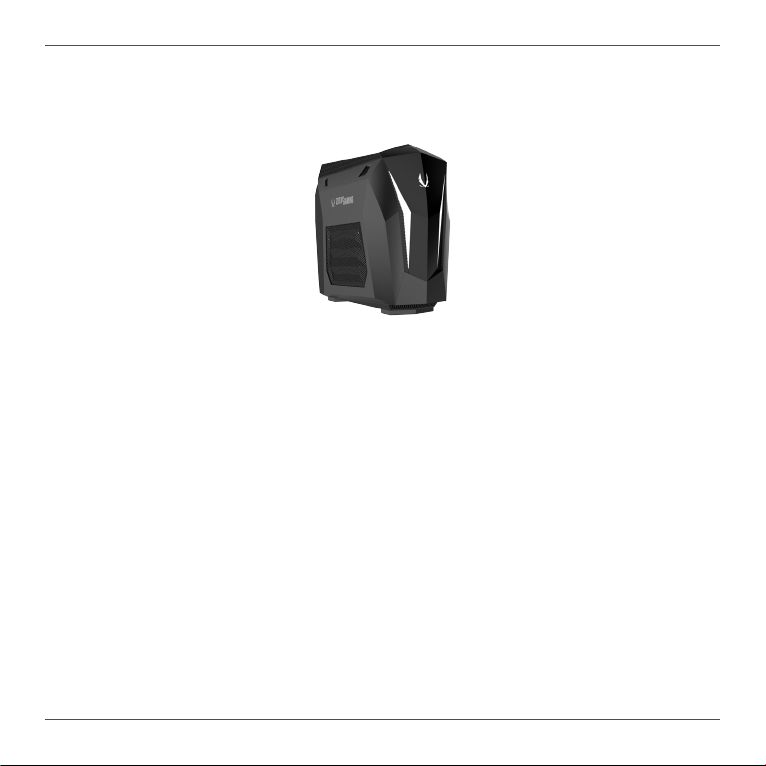

Congratulations on your purchase of the ZOTAC GAMING MEK MINI Gaming PC. The following
illustration displays the package contents of your new MEK MINI Gaming PC. If any of the below items
is damaged or missed, contact your retailer.
Package contents
• 1 x ZOTAC GAMING MEK MINI Gaming PC
• 2 x AC Adapter
• 2 or 4 x Power Cord (depends on region)
• 2 x Antenna
• 1 x Windows recovery DVD (optional, depends on region)
• 1 x USB OS Recovery and Windows drivers ash drive
• 1 x User Manual & Warranty Card
• 1 x Quick Start Guide
• 2 x Power stands
• 1 x Gaming mouse*
• 1 x Gaming keyboard*
• 1 x Gaming mouse pad*
*available on select bundles

ZOTAC GAMING MEK MINI Gaming PC
6
Getting to know your ZOTAC GAMING MEK MINI Gaming PC
Top view
1. Headphone/Audio out jack
The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to
gaming headset.
2. Microphone jack
The microphone jack is designed to connect the microphone used for easy connection with
gaming headset.
3. USB 3.0 Type-C port
The type-C USB 3.0 port supports the SuperSpeed USB 3.0 devices. Use this port for USB
3.0 devices for maximum performance with USB 3.0 compatible devices.
4. USB 3.0 port
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible
with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with
USB 3.0 compatible devices.
5. Memory card reader
The built-in memory card reader reads SD/SDHC/SDXC cards used in devices such as digital
cameras, MP3 players, mobile phones and PDAs.
6. Power LED
The power LED is always ON when power is on.
7. WiFi LED
The WiFi LED blinks when data is being transfered over WiFi.
1 2 34
5
678
9

ZOTAC GAMING MEK MINI Gaming PC
7
8. Hard disk LED
The hard disk LED blinks when data is being written into or read from the hard disk drive.
9. Power button
The power button allows powering ON and OFF the system. The ring LED will be lit while
system is On.

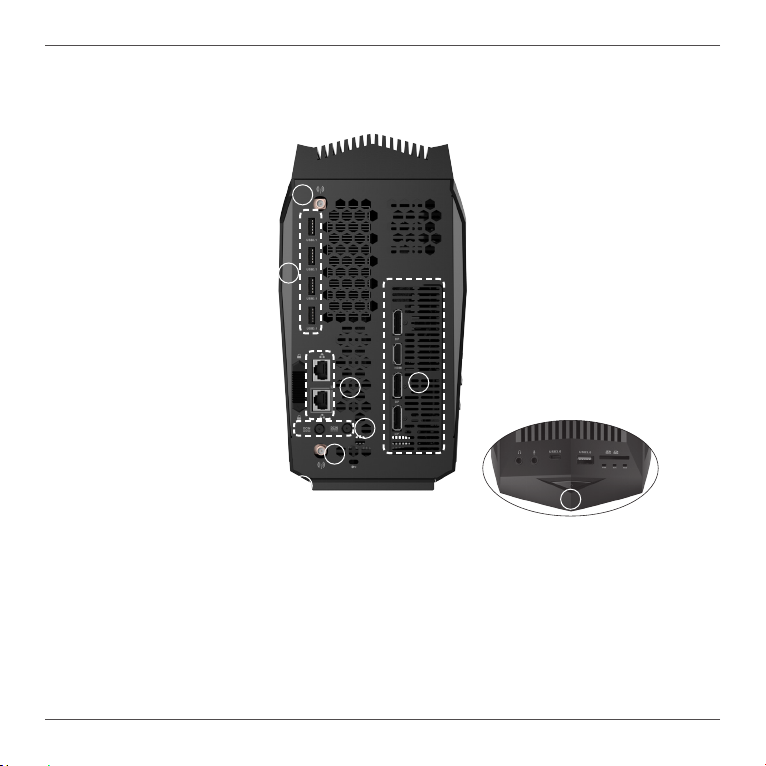

Rear view
2
1
34
2
5
6
1
6
1. WiFi antenna connectors
The WiFi antenna connector supports WiFi antenna
module.
2. USB 3.1 ports
The USB 3.1 port supports the SuperSpeed USB
3.1 device. Use this port for USB 3.1 devices for
maximum performance with USB 3.1 compatible
devices.
3. Side panel lock
Push the side panel lock to lock or unlock the side
panel.
4. LAN ports
The eight-pin RJ-45 LAN ports support standard
Ethernet cables for connection to a local network.
The LAN port marked with K is for Killer Ethernet.
5. Power inputs
The supplied power adapter converts AC power to
DC power for use with this power port. To prevent
damage to the mini-PC, always use the supplied
power adapter.
6. DisplayPorts
DisplayPort supports both external (box-to-box) and
internal (laptop LCD panel) display connections.
9
77
1

ZOTAC GAMING MEK MINI Gaming PC
8
10
11
7. HDMI port
The HDMI (High Denition Multimedia Interface) port supports a UHD device such as an LCD
TV or monitor to allow viewing on a larger external display.
Do not block ventilation outlet for warm air exhaust.

ZOTAC GAMING MEK MINI Gaming PC
9

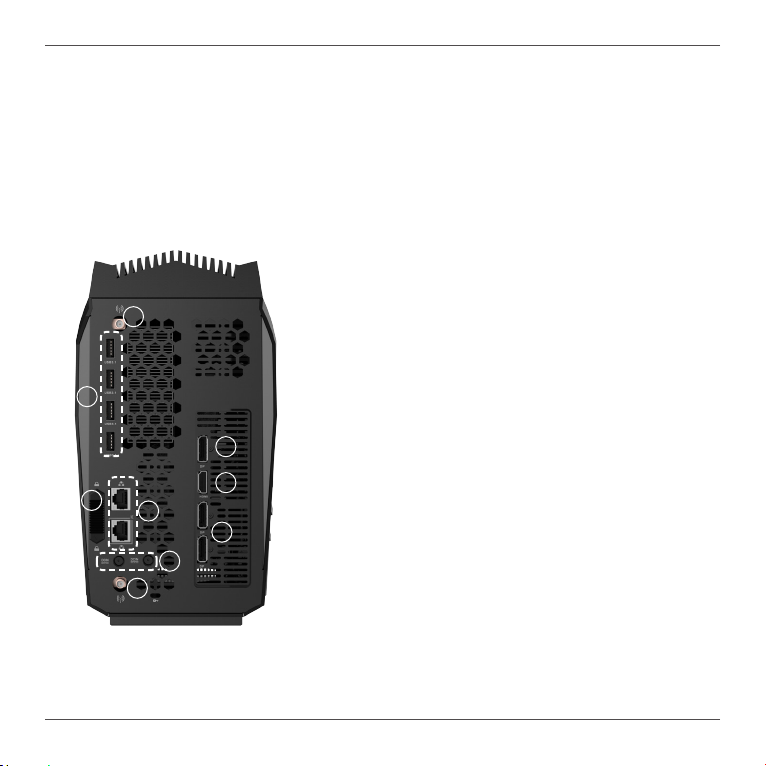

Setting up your ZOTAC GAMING MEK MINI Gaming PC
You need to connect peripherals before using your ZOTAC GAMING MEK MINI Gaming PC.
1. Connecting WiFi antenna modules
Connect WiFi antenna modules to the WiFi antenna connectors.
2. Connecting to USB devices
Connect USB devices such as keyboard, mouse, speakers or headphones, and other USB
devices to the USB ports on the system rear panel.
1
2
34
5
16
1

ZOTAC GAMING MEK MINI Gaming PC
10
3. Connecting to network devices
Connect one end of a network cable to the LAN port on the system rear panel and the other
End to a hub or switch. The LAN port marked with K is for Killer Ethernet.
4. Connecting to displays
Connect display to DP/HDMI if port available.
5. Connecting to power
Connect power to the power input.
6. Turning on the system
Plug the power cord into the power connector rmly and connect the other end to AC outlet.
Then press the power switch on the top panel to turn on the system.
When your ZOTAC GAMING MEK MINI Gaming PC is not in use, unplug the power socket
from AC outlet to save on power consumption.

ZOTAC GAMING MEK MINI Gaming PC
11
Conguring your ZOTAC GAMING MEK MINI Gaming PC
Conguring a wireless connection
Please follow the instructions below to connect to a wireless network:
1. Double-click the wireless network icon (pic) in the notication area.
2. Select the wireless network you want to connect to from the list and
click Connect.
3. After connection is established, you will see “Connected.”
Note 1: For security concerns, Do NOT connect to an unsecured network,
otherwise, the transmitted information without encryption might be visible to
others.
Note 2: Enter the network security key if necessary.
Conguring a wired connection
Using a static IP
1. Connect one end of the Ethernet cable to
your Internet Service Provider (ISP)
modem/router.
2. Connect the other end to the Ethernet port in
the rear of the MEK MINI Gaming PC.
3. Highlight “Internet Protocol (TCP/IP)” and
click “Properties”.
4. Select “Use the following IP address”.
5. Enter your IP address, subnet mask and
Default gateway.
6. Enter the preferred DNS server address if
necessary.
7. After entering all of the related values, click “OK” to nish the conguration.

ZOTAC GAMING MEK MINI Gaming PC
12
Conguring audio output
Follow the steps below to enable audio output when connecting the MEK MINI Gaming PC to a
TV or receiver via HDMI/DP/DVI adapter.
1. Access the Sound settings via the system
Control Panel.
2. Under Playback devices, click the display device
that corresponds with your audio compatible
display.
3. Click the “Set Default” button in the lower right
hand corner.
4. Click “OK” to exit the setup.

ZOTAC GAMING MEK MINI Gaming PC
13
Mouse & Keyboard (Optional)
Mouse and Keyboard are ready to use once connected to the USB port of the MEK MINI
Gaming PC.
Adjust the Mouse DPI sensitivity by pressing the button behind the Scroll wheel of the Mouse.
Refer to below list for Keyboard shortcut features and lighting.
Combination keys
FN+ESC = Turn off/on Backlight
FN+F1 = Multimedia
FN+F2 = Play / Pause
FN+F3 = Stop
FN+F4 = Volume up
FN+F5 = Volume down
FN+F6 = Volume Mute
FN+WIN_L = Lock/Un-lock Win&APP
FN+Delete = Long press 3 seconds back to default setting
Backlight mode
FN+↑ = Increased brightness
FN+↓ = Reduced brightness
FN+← = Decreased speed
FN+→ = Increased speed
FN+Prt SC = 10 kinds of lighting effects mode switch

ZOTAC GAMING MEK MINI Gaming PC
14
Game mode and button customization
Combine keys and function Highlight the keys
[Fn] + [1] (Game Mode1) ASDW ↑↓←→ ESC
[Fn] + [2] (Game Mode2) ASDW Ctrl Shift Alt Space RGQEB 1-5 Tab F1-F3
Home End PgUp PgDn PrtSc Scroll lock
[Fn] + [3] (Game Mode3) QWERTASDFGCV 1-7 Ctrl Shift
[Fn] + [4] (Game Mode4) QWERASDGXZFKLHMNUYTP Space 1-0 Ctrl Shift Alt
[Fn] + [5] (Game Mode5) QWER DGFBV Ctrl Alt Tab Space ~ 1-6 Esc
[Fn] + [6] (Game Mode6) ASDWR ↑↓←→ Ctrl Shift Alt
[Fn] + [7] (Game Mode7) AFSWRE Ctrl Shift Alt Space ↑↓←→ ZXCV 1234
[Fn] + [8] (Game Mode8) QWERDFB 1-6
[Fn] + [9] (Custom mode1) Custom LED light on or off for each button, press FN + 9
or FN + 0 to enter the button custom backlight mode, the
default 2 groups custom game backlight, each press to
switch a backlight effect. If you want to modify the current
backlight effect, press FN +ScrLk, the indicator light ashes,
then you can customize the changes, after the modication
is complete, press FN + PAUSE again to save the changes.
[Fn] + [0] (Custom mode2)
[Fn] + [PAUSE] / [Fn] + [ScrLk]
(Recording key/storage key)

ZOTAC GAMING MEK MINI Gaming PC
15
Conguring your ZOTAC GAMING MEK MINI Gaming PC
Conguring a wireless connection
Please follow the instructions below to connect to a wireless network:
1. Double-click the wireless network icon (pic) in the notication area.
2. Select the wireless network you want to connect to from the list and
click Connect.
3. After connection is established, you will see “Connected.”
Note 1: For security concerns, Do NOT connect to an unsecured network,
otherwise, the transmitted information without encryption might be visible to
others.
Note 2: Enter the network security key if necessary.
Installing Killer Control Center
Before you can use the full feature of Killer Lan, please follow the instructions below to install
the Killer Control Center.
1. Run Killer Wireless Network Driver, click “Next” when the following dialog box displays.

ZOTAC GAMING MEK MINI Gaming PC
16
2. Accept the License agreement.
3. Click “Install” to begin the installation. (Please make sure that the network is connected
before the installation)

ZOTAC GAMING MEK MINI Gaming PC
17

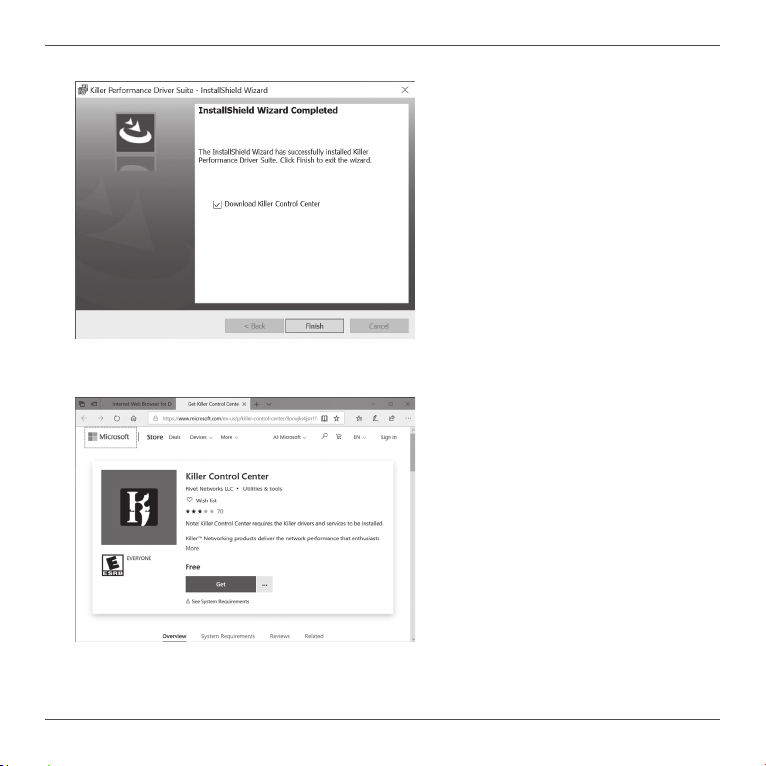

4. Check √ before “Download Killer Control Center”, and click “Finish”.
5. Click “Get” to download the Killer Control Center.

ZOTAC GAMING MEK MINI Gaming PC
18

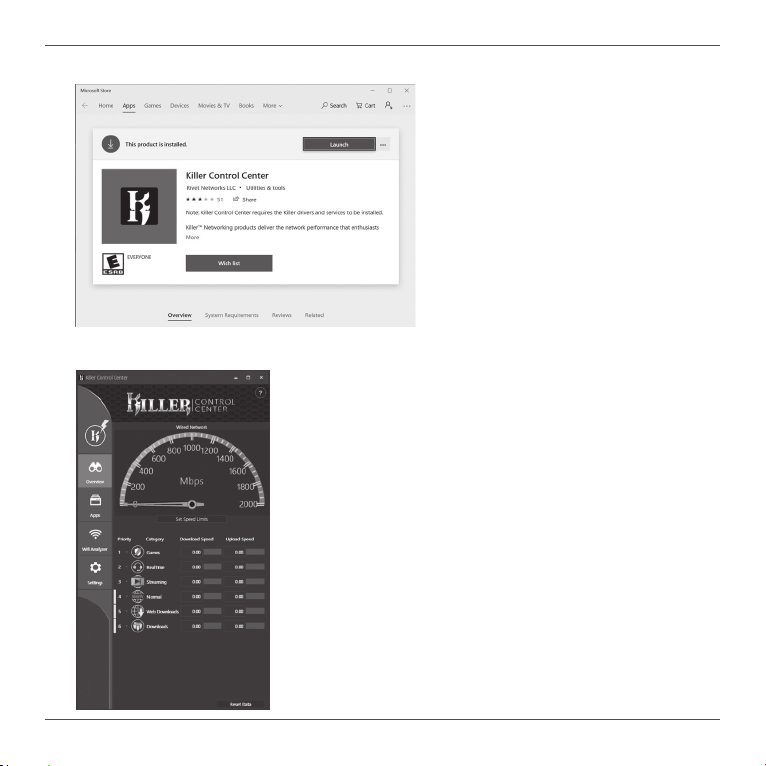

6. When the installation is complete, click “Launch” to run the Killer Control Center.
7. Killer Control Center displays as below.

ZOTAC GAMING MEK MINI Gaming PC
19
