ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
1
ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
User’s Manual
No part of this manual, including the products and software described in it, may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of ZOTAC.
Products and corporate names mentioned in this manual may be registered
trademarks or copyrights of their respective companies, and are used for identication
purposes only. All trademarks are the property of their respective owners.
Every effort has been made to ensure that the contents of this manual are correct and
up to date. However, the manufacturer makes no guarantee regarding the accuracy of
its contents, and reserves the right to make changes without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be
recycled where possible. Disposal of used batteries must be in accordance with local
environmental regulations.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
2
Table of Contents
Product specications ----------------------------------------------------------------------------------------3
Safety information ---------------------------------------------------------------------------------------------- 5
Setting up your system-------------------------------------------------------------------------------------5
Care during use ----------------------------------------------------------------------------------------------5
Welcome -----------------------------------------------------------------------------------------------------------6
Package contents -------------------------------------------------------------------------------------------6
Getting to know your ZOTAC GAMING MEK ULTRA PC Gaming System--------------------7
Top view--------------------------------------------------------------------------------------------------------7
Rear view ------------------------------------------------------------------------------------------------------8
Installing the glass side cover------------------------------------------------------------------------------ 10
Installing a new graphics card for GU3080C7R1B (i7+RTX3080) ------------------------------- 12
Installing Killer Control Center -----------------------------------------------------------------------------15
Congure your ZOTAC GAMING MEK ULTRA PC Gaming System ----------------------------19
Conguring a wireless connection ----------------------------------------------------------------------19
Conguring a wired connection --------------------------------------------------------------------------19
Using a static IP----------------------------------------------------------------------------------------------19
Conguring audio output-----------------------------------------------------------------------------------20

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
3
Product specications
For GU3080C7R1B (i7-RTX3080)
qMicroprocessor Support
vIntel Core i7-9700 (eight-core 3.0GHz, up to 4.7GHz)
qOnboard Graphics Support
vNVIDIA RTX3080 w/ 10GB GDDR6X for GU3080C7R1B
qInternal Expansion:
v32GB DDR4 OC 3200MHz
v4TB 3.5“ SATA hard drive
v512 GB M.2 NVMe SSD
q Networking
vGigabit LAN (10/100/1000Mbps)
vKiller AX1650 WiFi 6
vBluetooth 5
qAudio
vOnboard 7.1 Channel Digital Audio with optical output
qI/O
v3x DisplayPort 1.4a, 1x HDMI 2.1
vMic/Headphone
v2x USB 3.1 Gen 2 Ports (1x Type-C, 1x Type-A), 6x USB 3.0 Ports, 2x USB 2.0 Ports
qPower Supply
v1000W 80+ Gold Power Supply
qOS Pre-installed
vWindows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
4
For GU3070C7R1B (i7-RTX3070)
qMicroprocessor Support
vIntel Core i7-9700 (eight-core 3.0GHz, up to 4.7GHz)
qOnboard Graphics Support
vNVIDIA RTX3070 w/ 8GB GDDDR6 for GU3070C7R1B
qInternal Expansion:
v16GB DDR4 OC 3200MHz
v2TB 3.5“ SATA hard drive
v512 GB M.2 NVMe SSD
q Networking
vGigabit LAN (10/100/1000Mbps)
vKiller AX1650 WiFi 6
vBluetooth 5
qAudio
vOnboard 7.1 Channel Digital Audio with optical output
qI/O
v3x DisplayPort 1.4a, 1x HDMI 2.1
vMic/Headphone
v2x USB 3.1 Gen 2 Ports (1x Type-C, 1x Type-A), 6x USB 3.0 Ports, 2x USB 2.0 Ports
qPower Supply
v1000W 80+ Gold Power Supply
qOS Pre-installed
vWindows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
5
Safety information
Your ZOTAC GAMING MEK ULTRA PC Gaming System is designed and tested to meet the latest
standards of safety for information technology equipment. However, to ensure your safety, it is
important that you read the following safety instructions.
Setting up your system
vRead and follow all instructions in the documentation before operating your system.
vDo not use this product near water or a heat source such as a radiator.
vSet up the system on a stable surface.
vOpenings on the chassis are for ventilation. Do not block or cover these openings. Make sure
you leave plenty of space around the system for ventilation. Never insert objects of any kind into
the ventilation openings.
vUse this product in environments with ambient temperatures between 0℃and 35℃.
 If you use an extension cord, please use the UL listed cord and make sure that the total
ampere rating of the devices plugged into the extension cord does not exceed its ampere
rating.
Care during use
vDo not walk on the power cord or allow anything to rest on it.
vDo not spill water or any other liquids on your system.
vWhen the system is turned off, a small amount of electrical current still ows. Always unplug all
power, modem, and network cables from the power outlets before cleaning the system.
vIf you encounter the following technical problems with the product, unplug the power cord and
contact a qualied service technician or your retailer.
¾The power cord or plug is damaged.
¾Liquid has been spilled onto the system.
¾The system does not function properly even if you follow the operating instructions.
¾The system was dropped or the cabinet is damaged.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
6
Welcome

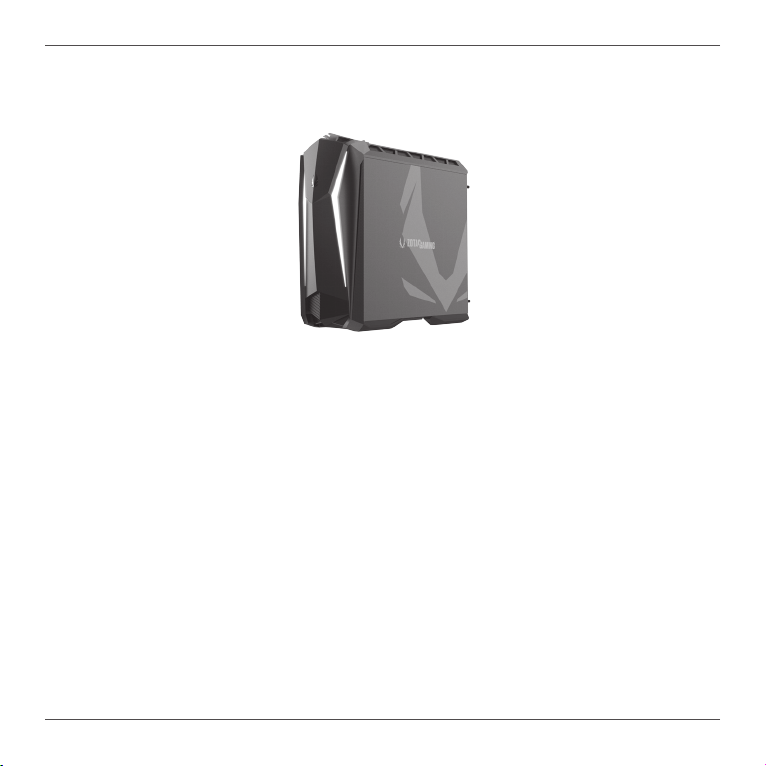

Congratulations on your purchase of the ZOTAC GAMING MEK ULTRA PC Gaming System. The
following illustration displays the package contents of your new MEK ULTRA PC Gaming System. If
any of the below items is damaged or missed, contact your retailer.
Package contents
• 1 x ZOTAC GAMING MEK ULTRA PC Gaming System
• 1 x Glass Side Cover
• 1 or 2 x Power Cord (depends on region)
• 2 x WiFi Antenna
• 1 x USB Flash Drive with Windows Recovery Image and Windows Drivers
• 1 x Quick Start Guide & Warranty Card
• 1 x User Manual (optional)

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
7
Getting to know your ZOTAC GAMING MEK ULTRA PC Gaming
System
Top view
Refer to the diagram below to identify the components on this side of the system
1. Headphone/Audio Out jack
The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to
gaming headset.
2. Microphone jack
The microphone jack is designed to connect the microphone used for easy connection with
gaming headset.
3. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible
with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with
USB 3.0 compatible devices.
4. USB 2.0 ports
The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,
mice, cameras and hard disk drives.
5. Power button
The power button turns the system ON and OFF.
1
23 4
5

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
8

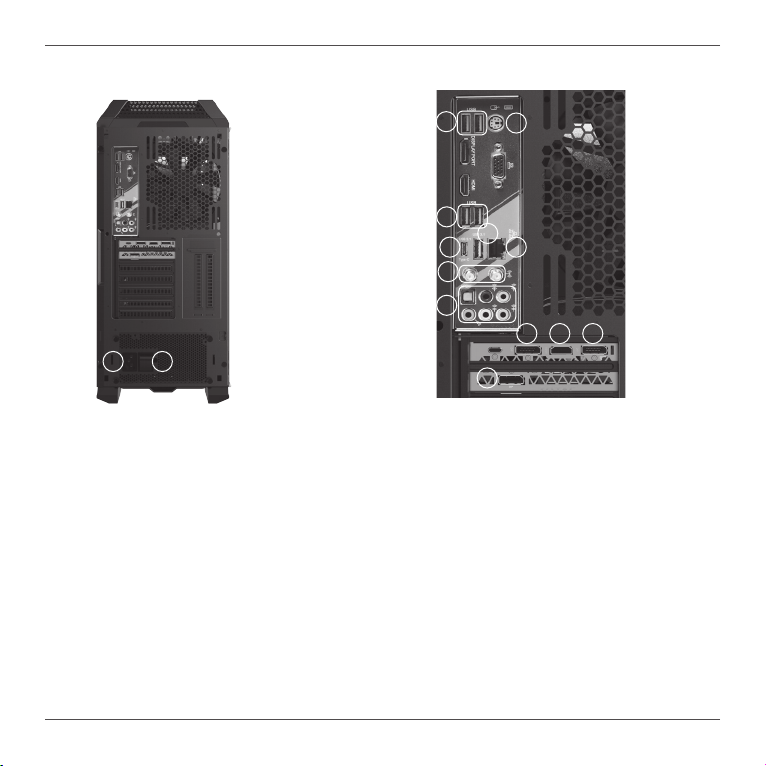

Rear view
1. USB 3.0 ports
The USB 3.0 port supports the SuperSpeed USB 3.0 device. Use this port for USB 3.0 devices
for maximum performance with USB 3.0 compatible devices.
2. PS2 keyboard/mouse port
The PS/2 port is used to connect with keyboard/mouse.
3. USB 3.1 Type-C port / USB Type-C (3a, Standard Display Connector) on select models
The USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB 3.1
devices for maximum performance with USB 3.1 compatible devices.
4. USB 3.1 port
The USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB 3.1
devices for maximum performance with USB 3.1 compatible devices.
5. LAN port
The eight-pin RJ-45 LAN port support standard Ethernet cables for connection to a local
network.
12
6
8
11
5
1
7
9
34
10
8
8
3a

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
9
6. WiFi antenna connectors
The WiFi antenna connector supports the included WiFi antenna.
7. Audio ports with SPDIF-out
Use the ve audio ports to connect audio devices. The pink jack is for microphone. The green
jack is for front speaker out signal. The blue jack is for side speaker out signal. The orange
jack is for rear speaker out signal. The black jack is for center/subwoofer signal. The optical
S/PDIF output enables connectivity with digital audio receivers and speakers for crystal clear
digital audio and surround sound from compatible soundtracks.
8. DisplayPorts
DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display
connections.
9. HDMI port
The HDMI (High Denition Multimedia Interface) port supports a UHD device such as an LCD
TV or monitor to allow viewing on a larger external display.
10. Power input (IEC C20 or C14, standard power cord connection)
Connected with power cord to mains for AC input.
11. Power switch
The Power switch turns the power supply ON (|) and OFF (O).
12. Initial setup
Follow the on-screen instructions to complete the initial setup of Windows.
This process may take several minutes.
Do not block ventilation outlet for warm air exhaust.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
10
Installing the glass side cover
The MEK ULTRA PC gaming system is pre-installed with an iron side cover, users can also install
the glass side cover in accessories. Please follow the instructions below to install the glass side
cover.
1. Rotate and remove the two screws securing the iron side cover.


2. Gently push the iron side cover and remove it as shown below.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
11

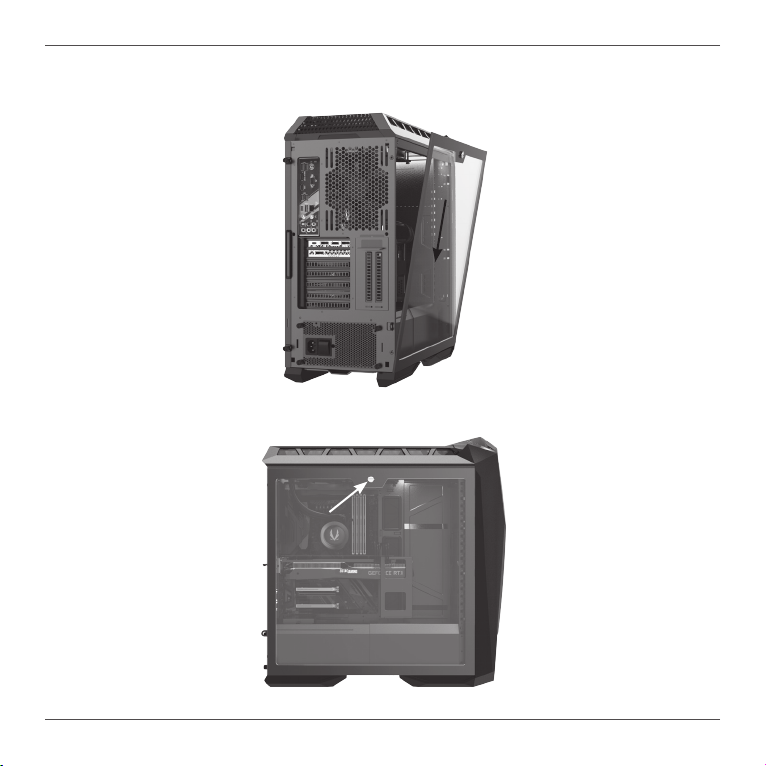

3. Insert the glass side cover to the side of the MEK ULTRA PC Gaming system, and ensure that
the installation is in place.
4. Use a coin to turn the screw to secure the glass side cover.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
12
Installing a new graphics card for GU3080C7R1B (i7+RTX3080)
The RTX3080 graphics card will be pre-installed with a Z-shaped bracket in GU3030C7R1B
models. If you need to install a new graphics card, please follow the instructions below to remove
the pre-installed graphics card.
1. Follow the steps above to remove the side covers.
2. Release the two screws and remove the cover.
3. Remove the screw of Z-shaped bracket for RTX3080 as shown below.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
13

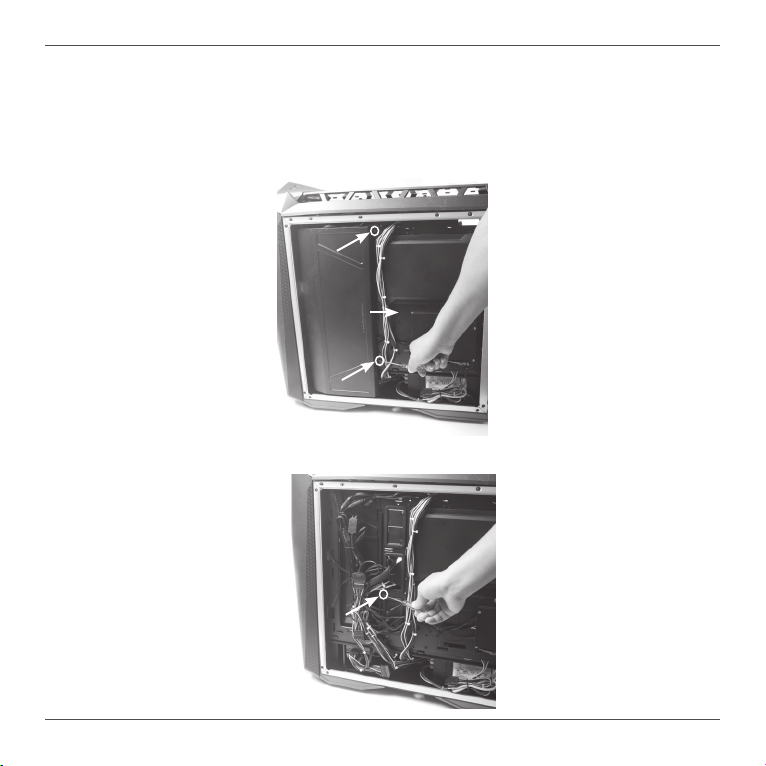

4. Locate the graphics card and release the two screws.
5. Release the cables of graphics card.
6. Press down and hold the buckle of graphics card, and remove the graphics card.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
14
7. Release the two screws and remove the Z-shaped bracket.
8. Install the new graphics card.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
15
Installing Killer Control Center
Before you can use the full feature of Killer Lan, please follow the instructions below to install
the Killer Control Center.

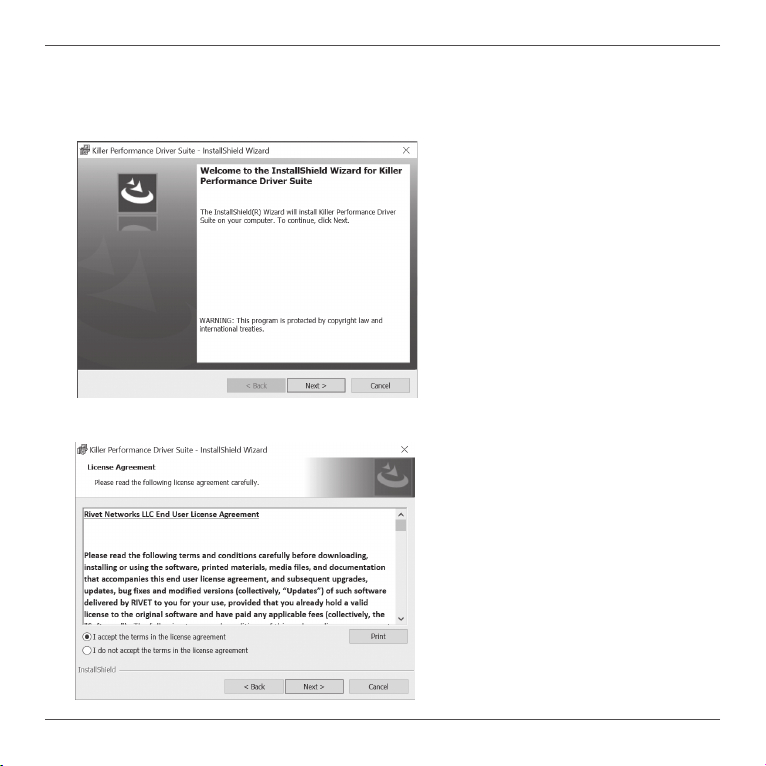

1. Run Killer Wireless Network Driver, click “Next” when the following dialog box displays.
2. Accept the License agreement.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
16

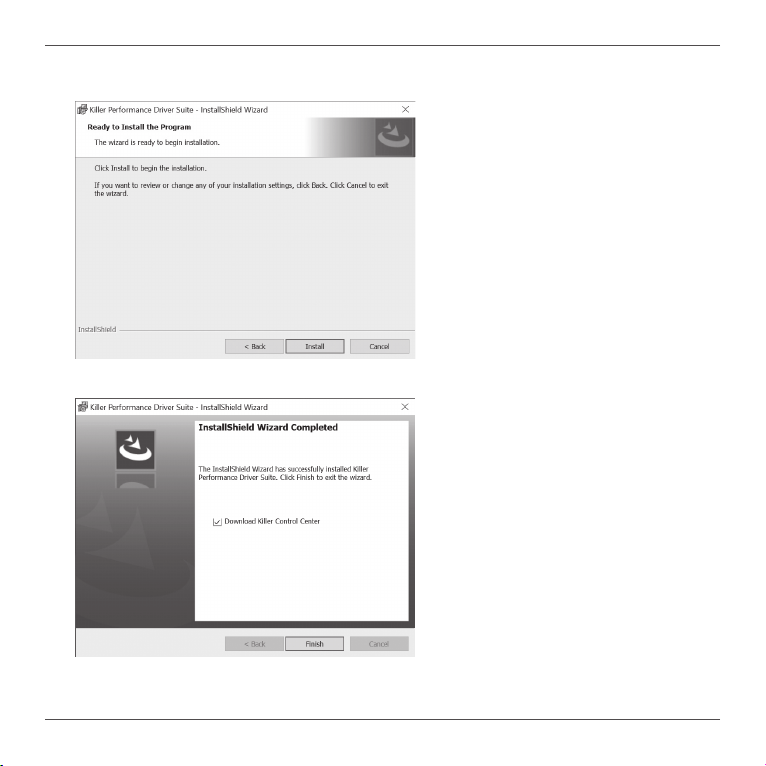

3. Click “Install” to begin the installation. (Please make sure that the network is connected
before the installation)
4. Check √ before “Download Killer Control Center”, and click “Finish”.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
17

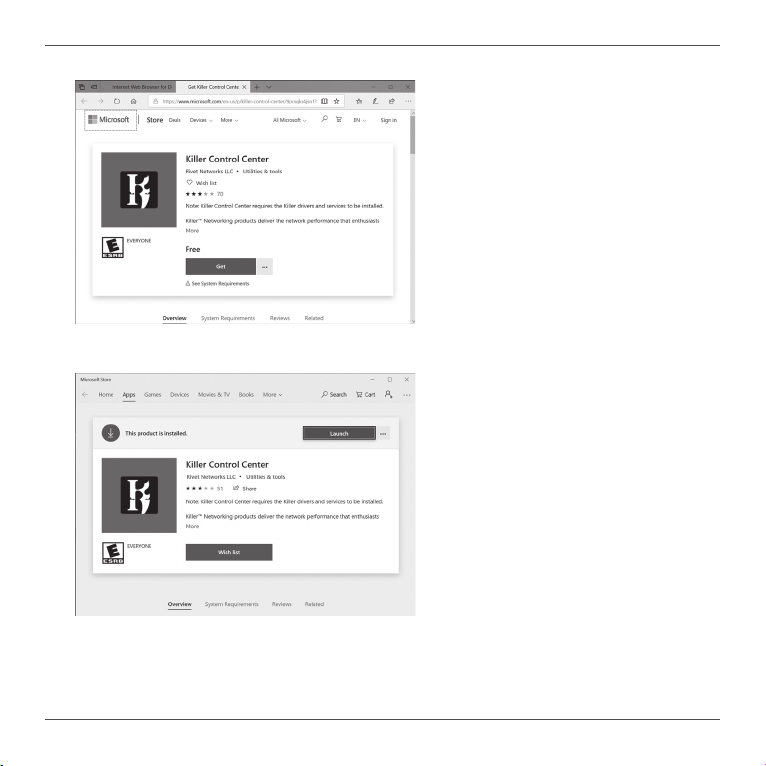

5. Click “Get” to download the Killer Control Center.
6. When the installation is complete, click “Launch” to run the Killer Control Center.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
18

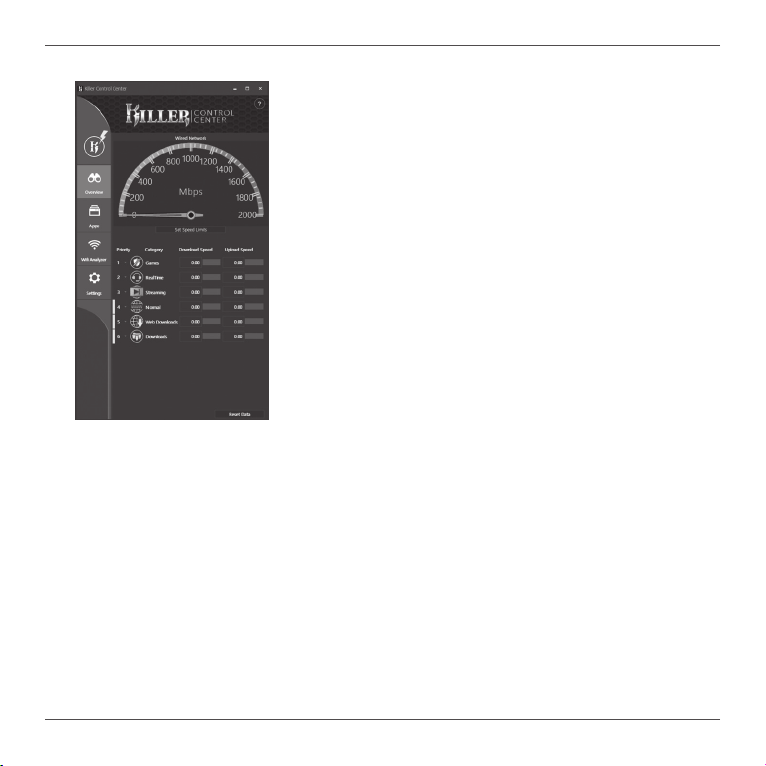

7. Killer Control Center displays as below.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM
19
Conguring your ZOTAC GAMING MEK ULTRA PC Gaming
System

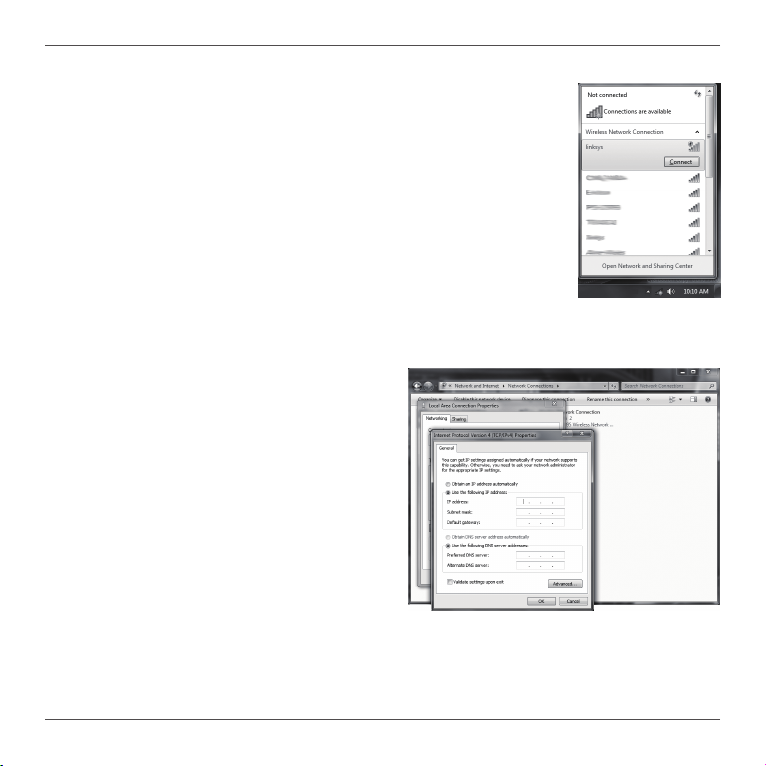

Conguring a wireless connection
Please follow the instructions below to connect to a wireless network:
1. Double-click the wireless network icon (pic) in the notication area.
2. Select the wireless network you want to connect to from the list and
click Connect.
3. After connection is established, you will see “Connected.”
Note 1: For security concerns, Do NOT connect to an unsecured network,
otherwise, the transmitted information without encryption might be visible to
others.
Note 2: Enter the network security key if necessary.
Conguring a wired connection
Using a static IP
1. Connect one end of the Ethernet cable to
your Internet Service Provider (ISP)
modem/router.
2. Connect the other end to the Ethernet port in
the rear of the MEK ULTRA PC Gaming System.
3. Highlight “Internet Protocol (TCP/IP)” and
click “Properties”.
4. Select “Use the following IP address”.
5. Enter your IP address, subnet mask and
Default gateway.
6. Enter the preferred DNS server address if
necessary.
7. After entering all of the related values, click “OK” to nish the conguration.
