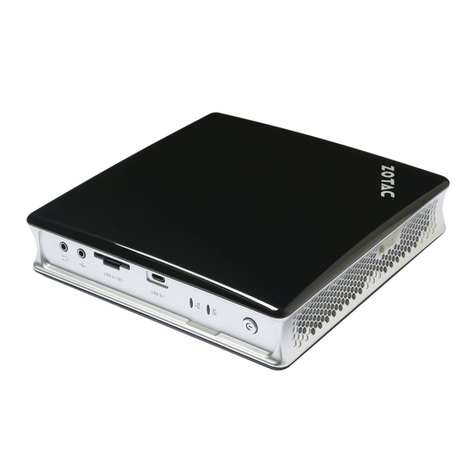

Zotac ZBOX SD-ID12 User manual

Take the first step to living green with the eco-friendly and energy-efficient ZOTAC ZBOX
SD-ID12 mini-PC powered by Intel® Atom™ technology combined with Intel® Graphics
Media Accelerator 3150 graphics. The ZOTAC ZBOX SD-ID12 mini-PC delivers phenomenal
performance and compatibility for a full Microsoft® Windows® 7 experience with Aero® user
interface while maintaining best-in-class energy-efficiency.
The ZOTAC ZBOX SD-ID12 mini-PC is easy to master with only two thumb screws in place to
unlock the internal expansion capabilities. Inside the ZOTAC ZBOX SD-ID12 mini-PC is space
for a 2.5-inch SATA hard drive and 204-pin DDR3 DIMM module while USB 2.0, eSATA and a
6-in-1 memory card reader (SD/SDHC/MS/MS Pro/xD/MMC) provide external expansion.
Specifications
• Intel® Atom™ D525 CPU (1.8 GHz, dual-core)
• Intel® NM10 Express chipset
• Intel® Graphics Media Accelerator 3150 GPU
Inside the box
• ZOTAC ZBOX SD-ID12
• Power brick & cable
• VESA monitor mount (w/4 screws)
• Stand
WWW.ZOTAC.COM
SKU: ZBOXSD-ID12
Internal Expansion
• 1 2.5-inch SATA 3.0 Gb/s hard drive
• 2 204-pin DDR3-800 SO-DIMM
Display Outputs
• HDMI (720p)
• HDCP compliant
• VGA
Front Ports
• Headphone/Audio out jack
• Microphone jack
• 6-in-1 Memory card reader
• (MMC/SD/SDHC/MS/MS Pro/xD)
• 1 USB 2.0 port
• WiFi LED
• Hard drive LED
• Power button
Features
• Intel® HyperThreading technology
• Intel® ClearVideo (SD) technology
• Microsoft® DirectX® 9 compatible
• OpenGL® 1.5 compatible
• Energy-efficient computing
Dimensions
• Length: 7.40in - 188mm
• Width: 7.40in - 188mm
• Depth: 1.73in - 44mm
Rear Ports
• eSATA
• 4 USB 2.0 ports
• 10/100/1000 Ethernet (RJ45)
• Digital S/PDIF output
• Power connector
Top Ports
• 1 USB 2.0 port
© 2010 ZOTAC International (MCO) Limited
ZOTAC International (MCO) Limited does not warrant the accuracy, completeness or reliability of information, materials and other items contained on this website or server. No liability is assumed with respect to the
use of the information contained herein. When accessing this website, users acknowledge that ZOTAC International (MCO) Limited will not be liable in any event for any damages arising out of the use of this site or any
websites linked to it.
YOUR CUSTOMIZABLE EVERYWHERE MINI-PC SD-ID12
