Operating instructions
Adora TSLQ WP
Tumble dryer

2
Safety precautions
Read the operating instructions be-
fore using the appliance for the first
time.
General safety precautions
▪This appliance can be used
by children aged 8 and
above and by persons with
reduced physical, sensory
or mental capabilities, or
lack of experience and/or
knowledge, provided they
are supervised or have
been instructed on the safe
use of the appliance and
have understood the haz-
ards involved. Children shall
not play with the appliance.
Cleaning and user mainten-
ance shall not be under-
taken by children without su-
pervision.
▪If an appliance is not
equipped with a mains
cable and a plug or other
means for disconnecting
from the mains with a con-
tact opening on each pole
complying with the condi-
tions of overvoltage cat-
egory III for full isolation, an
isolating device must be in-
corporated into the perman-
ently installed electrical in-
stallation in accordance with
the installation regulations.
▪If the mains cable of this ap-
pliance is damaged, it must
be replaced by the manu-
facturer or its Customer Ser-
vices or a similarly qualified
person in order to avoid
hazard.
Appliance-specific safety
precautions
▪Children under 3 years of
age must be kept away
from the appliance unless
they are constantly super-
vised.
▪The appliance has a max-
imum dry load capacity of
7 kg.
▪This appliance is only suit-
able for drying textiles which
have been washed in water.
▪The appliance is only to be
used with the recommended
vaporizing medium. The use
of other substances may
give rise to a toxic or fire
risk.
▪The appliance has hot sur-
faces to evaporate active
components. These sur-
faces should not be
touched during use.
▪The tumble dryer may not
be used if industrial chemic-

Safety precautions
3
als were used for cleaning.
▪Clean the fluff filters regu-
larly.
▪Do not allow fluff to build up
around the tumble dryer.
▪Do not dry unwashed items
in the tumble dryer.
▪Textiles that have been
cleaned, treated or soaked
with flammable chemicals,
detergents or solvents (such
as white spirit, alcohol, stain
remover, oil, turpentine,
acetone, paint, wax, etc.)
are a fire and explosion haz-
ard! Wash materials contain-
ing such substances first by
hand with water or allow the
solvent to evaporate com-
pletely.
▪Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes
or pillows fitted with foam
rubber pads should not be
dried in the tumble dryer.
▪Remove objects such as
lighters and matches and
the like.
▪Never stop a tumble dryer
before the end of the drying
cycle unless all items are
quickly removed and spread
out so that the heat is dis-
sipated.
▪Exhaust air must not be dis-
charged into a flue which is
used for exhausting fumes
from appliances burning
gas or other fuels.
▪Do not use a fabric condi-
tioner or other fabric care
solutions in the wash. Other-
wise pay attention to the
manufacturer's instructions.
▪Do not install the appliance
behind a door that locks, a
sliding door or a door with a
hinge that lies opposite the
hinge of the appliance.
To minimize the risk of fire in a
tumble dryer, the following should
be observed:
▪Oil-affected items can ignite
spontaneously, especially
when exposed to heat
sources such as in a tumble
dryer. The items become
warm, causing an oxidation
reaction in the oil. Oxidation
creates heat. If the heat can-
not escape, the items can
become hot enough to
catch fire. Piling, stacking or
storing oil-affected items
can prevent heat from es-
caping and so create a fire
hazard. If it is unavoidable
that fabrics that contain ve-
getable or cooking oil or

Safety precautions
4
have been contaminated by
hair care products be
placed in a tumble dryer
they should first be washed
in hot water with extra deter-
gent – this will reduce, but
not eliminate, the hazard.
Instructions for use
▪Ensure access to the place of discon-
nection (e.g. socket outlet, wall switch,
fuse) and the water tap.
▪Any repairs, modifications or manipula-
tions to the appliance, especially any
electrically live parts, may only be car-
ried out by the manufacturer, its cus-
tomer service department or similarly
qualified persons. Repairs if carried out
incorrectly may cause serious injury,
damage to the appliance and fittings, as
well as affect the functioning of the ap-
pliance. If the appliance is not working
properly or in case a repair is needed,
follow the instructions given in the «Ser-
vice and repairs» section. Please con-
tact our Customer Services if neces-
sary.
▪Before closing the appliance door and
starting a programme, ensure that there
are no foreign objects or pets in the
drum.
▪Strictly use original spare parts only.
▪If the appliance is not functioning prop-
erly, disconnect it from the power sup-
ply immediately.
▪Do not operate the appliance without a
door filter or with a damaged door filter.
Fluff can destroy the appliance!
▪To protect your washing, follow the fab-
ric care symbols and the hints and ad-
vice in the «Programme overview» sec-
tion.
▪Packaging material, e.g. plastic film and
polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Keep pack-
aging material away from children.
Correct use
The appliance is only suitable for drying
home textiles. It is designed for use in the
home and for the above-mentioned pur-
pose only. No liability is assumed for any
damage caused by improper or incorrect
use.
Transport and installation
Front
Front
Tilt max. 90° to the left!
Transport the appliance in an upright posi-
tion only! Transporting it in any other posi-
tion will result in damage to the appliance!
When carried carefully without being
shaken, the appliance may be tilted a max-
imum of 90° to the left (viewed from the
front).
As a general rule, rooms containing a heat
pump dryer should be ventilated as these
produce some humidity. If the room is kept
closed, it must be aired occasionally
(either by opening the door to the room or
a window) between several consecutive
drying programmes.

Safety precautions
5

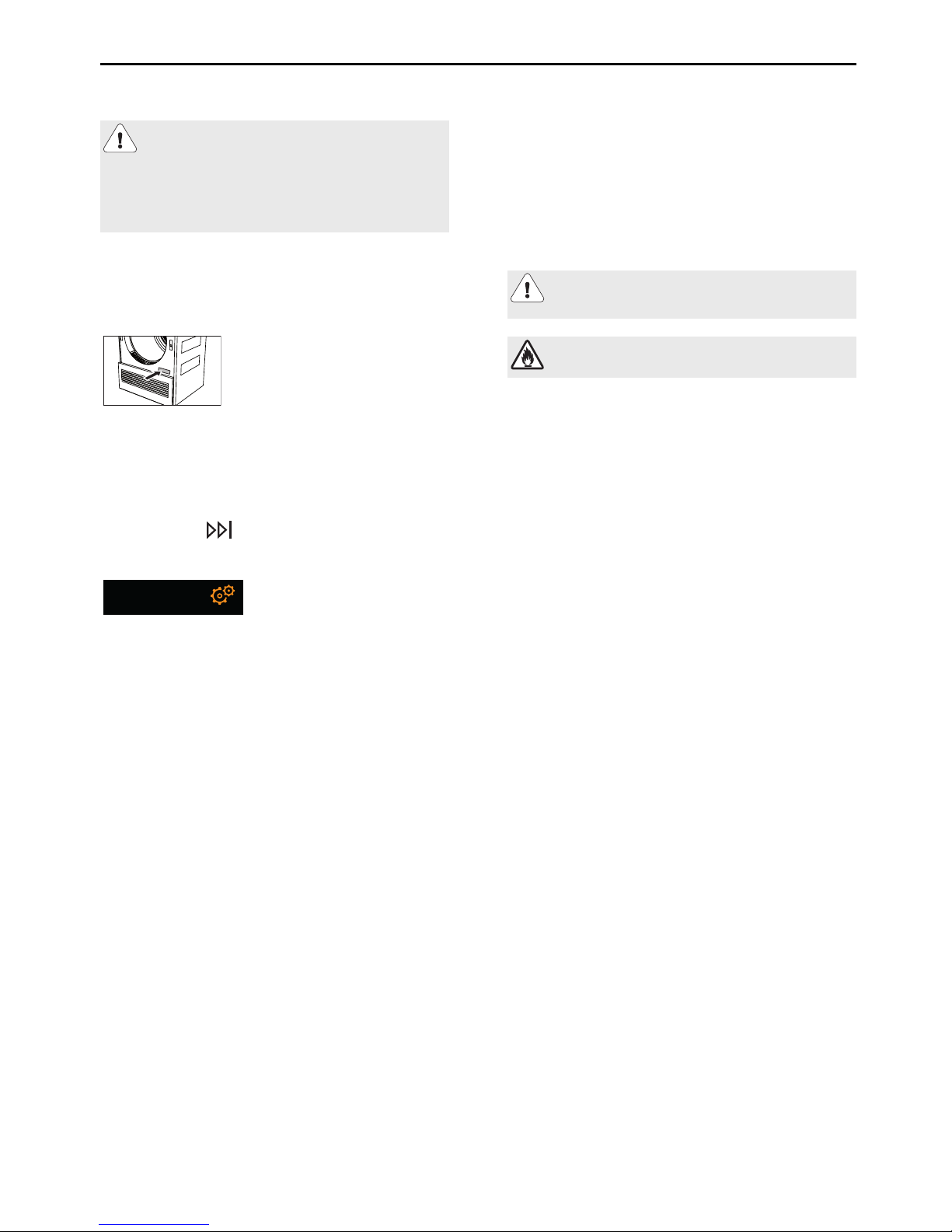

Using for the first time
The appliance must be installed and
connected to the electricity supply by
a qualified fitter/electrician in accord-
ance with the separate installation in-
structions.
Serial number
The serial number (FN) is located on the
identification plate:
▸ Note down the FN on the back page of
these operating instructions.
The FN can also be retrieved as follows:
▸ Hold the button depressed until
the following display appears:
Settings
FN 12006 000123
Note on the operating
instructions
For more information on your appliance
and for answers to frequently asked ques-
tions, visit http://www.vzug.com.
Symbols used
Denotes important safety precau-
tions.
Caution, risk of fire!
Failure to observe said precautions can
result in injury or in damage to the appli-
ance or fittings!
Validity
The product family (model number) corres-
ponds to the first alphanumerics on the
identification plate. These operating in-
structions apply to:
Appliance
designation
Adora TSLQ WP
Type WTATSLQWPZ
Product family 12006
Variations depending on the model are
noted in the text.
Modifications
Text, diagrams and data correspond to the
technical standard of the appliance at the
time these operating instructions went to
press. The right to make technical modific-
ations for the purpose of the further devel-
opment of the appliances is reserved.
Colour operating instructions can be down-
loaded from the internet from
www.vzug.com.

Contents
1 Appliance description 7
1.1 Appliance construction ..................................7
1.2 Indicator lights and button state ..................7
1.3 Operating and display elements..................8
2 Programme overview 9
2.1 Automatic programmes .................................9
2.2 Standard and extra programmes.................9
2.3 Additional programme ...................................9
2.4 Fabric types .................................................. 10
2.5 Additional functions ..................................... 11
2.6 EcoManagement .......................................... 11

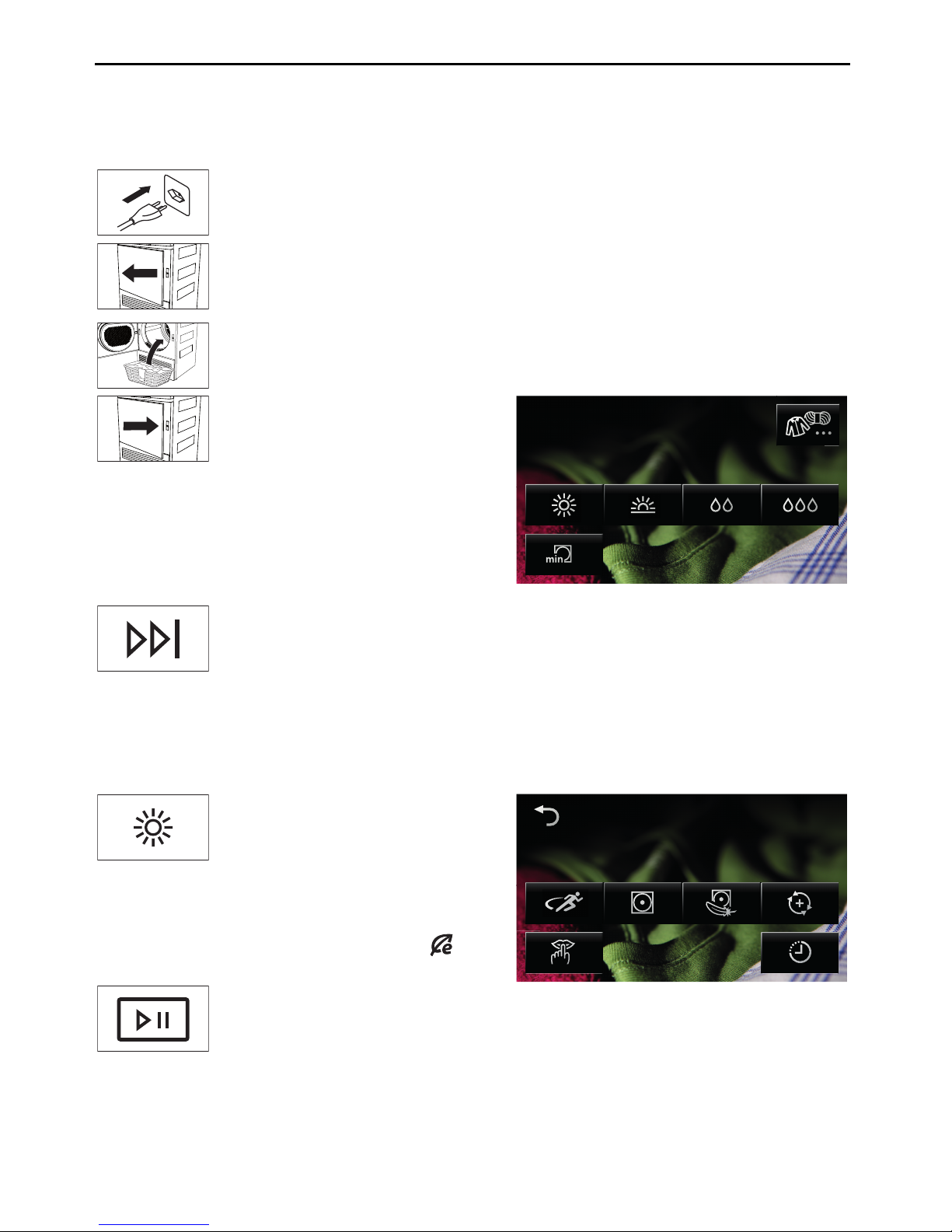

3 Operating the appliance 12
3.1 Preparations.................................................. 12
3.2 Selecting programme.................................. 12
3.3 Selecting additional functions.................... 13
3.4 Delayed start................................................. 14
3.5 Timed drying ................................................. 14
3.6 Changing selection...................................... 14
3.7 Aborting a programme ............................... 14
3.8 Interrupting a programme .......................... 15
3.9 With childproof lock activated ................... 15
3.10 End of programme ...................................... 16
3.11 EcoManagement statistics ......................... 17

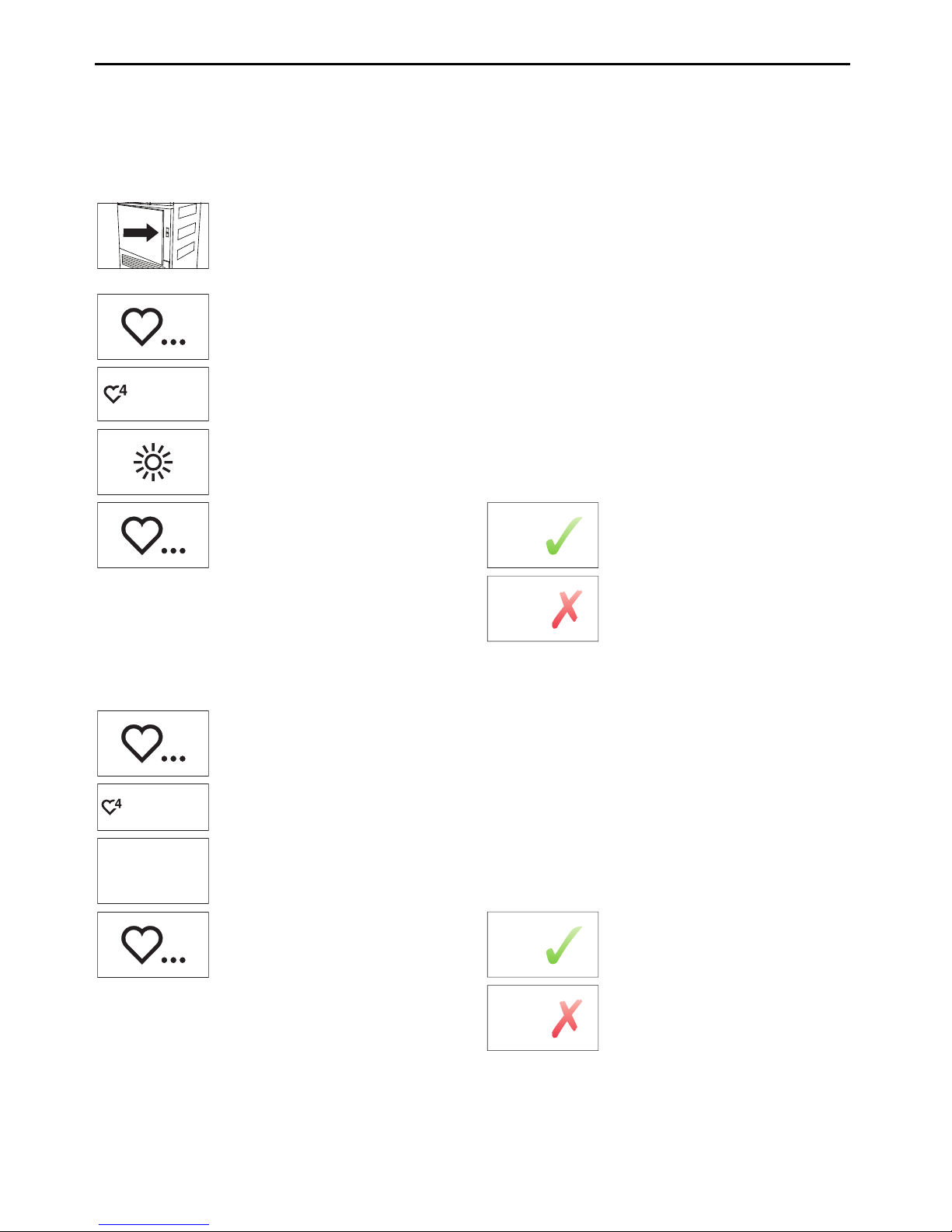

4 Favourites 18
4.1 Defining favourites ....................................... 18
4.2 Changing favourites .................................... 18
4.3 Deleting favourites ....................................... 19
4.4 Starting favourites ........................................ 19

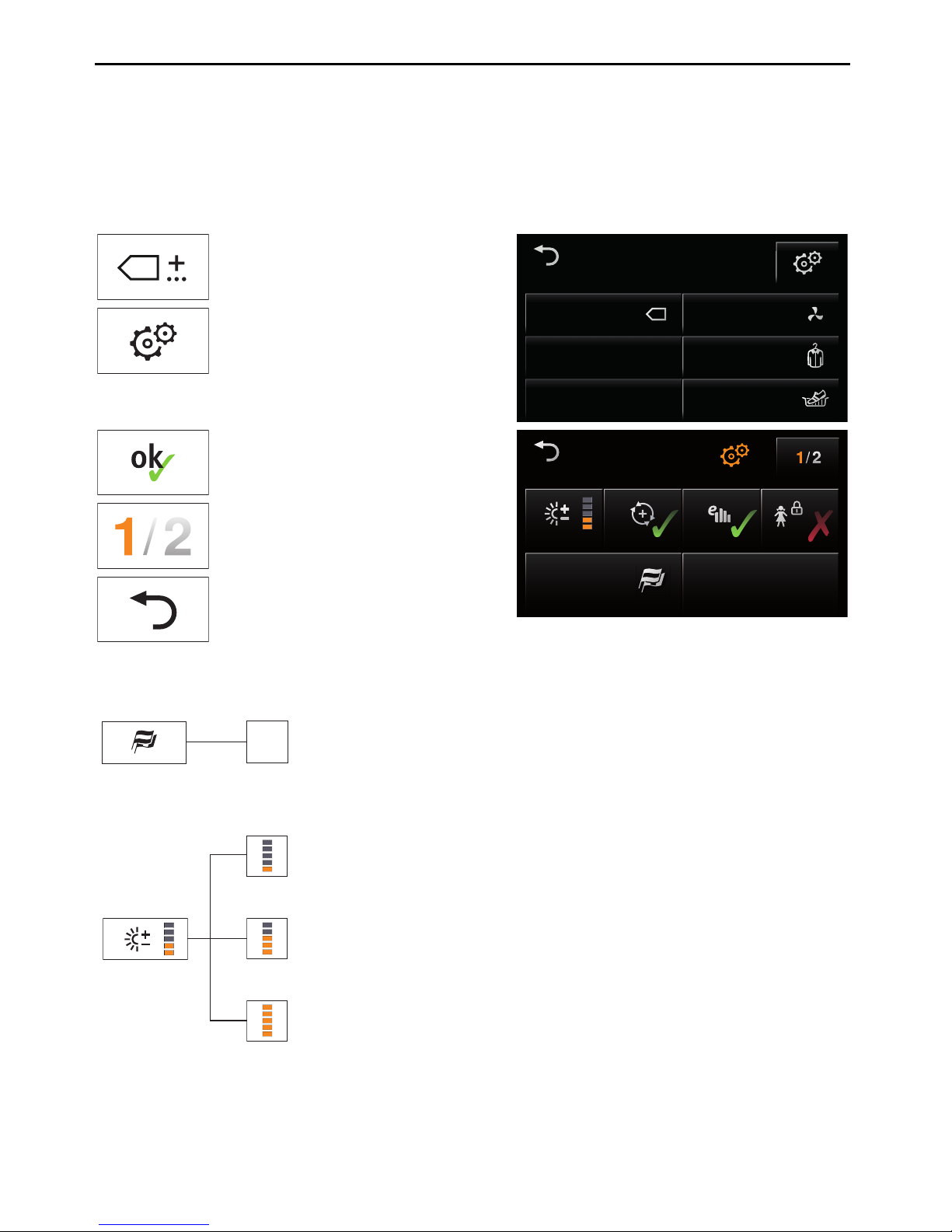

5 User settings 20
6 Care and maintenance 23
6.1 Cleaning the door filter and door filter mat...
23
6.2 Cleaning the front filter mat (annually)..... 24
6.3 Cleaning the moisture sensor ................... 24
6.4 Cleaning the temperature sensor ............. 25
6.5 Cleaning the appliance............................... 25
7 Trouble-shooting 25
7.1 Error messages.............................................25
7.2 Other possible problems.............................27
8 Spare parts 28
9 Technical data 28
10 Drying tips 30
10.1 Saving energy................................................30
10.2 Avoiding damage..........................................30
11 Disposal 31
12 Quick instructions 32
13 Services & support 32
6

1 Appliance description

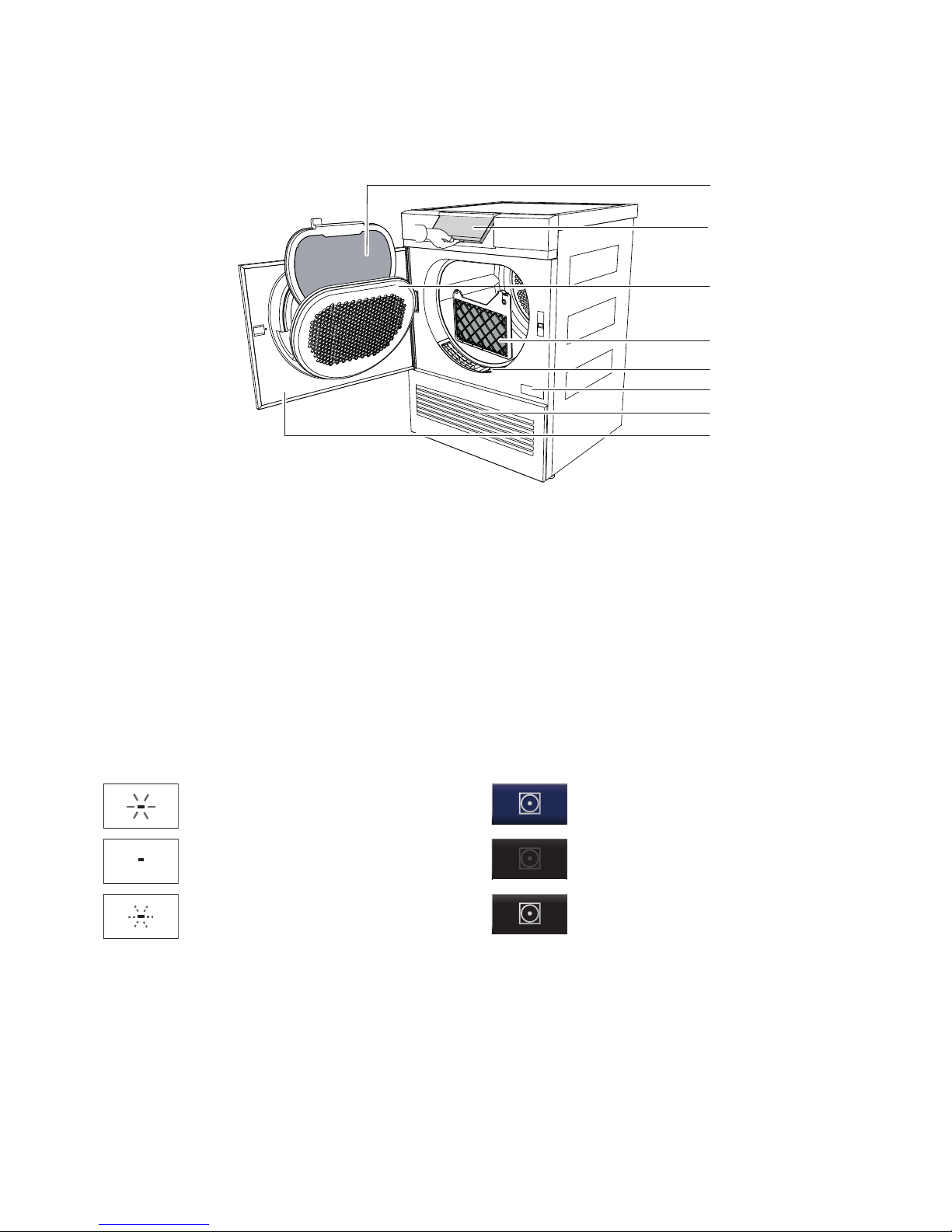

1.1 Appliance construction
1
2
3
4
6
7
8
5
1Door filter with door filter mat 5Front grille
2Pivoting operating panel 6Identification plate / serial number (FN)
3Cover for door filter 7Ventilation grille
4Front filter mat 8Appliance door
1.2 Indicator lights and button state
Indicator lights Button state
Illuminated: relevant function act-
ive
Blue background: relevant func-
tion active
Off: relevant function not select-
able
Black button: relevant function
not selectable
Flashing: relevant function select-
able
Black background: relevant func-
tion selectable
7

1 Appliance description

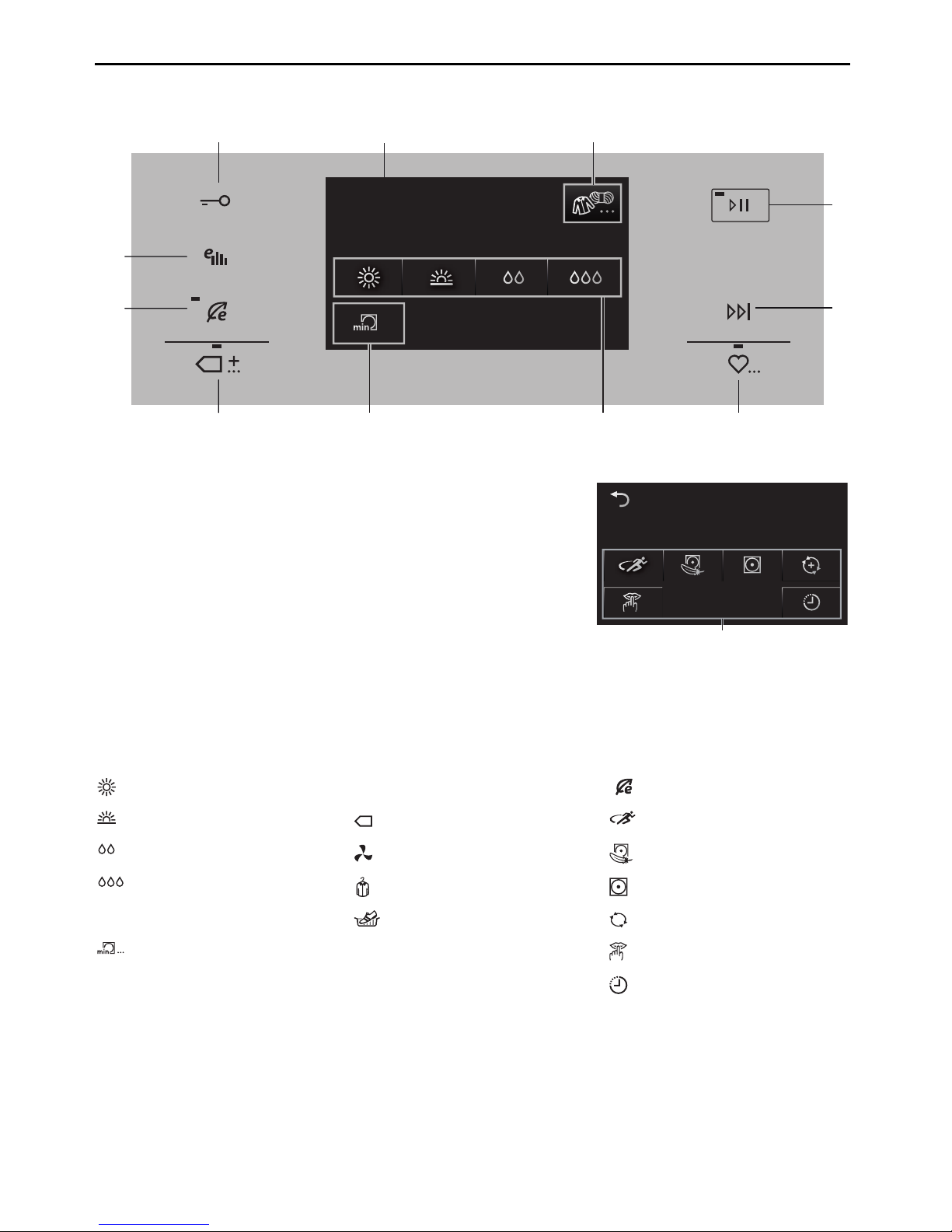

1.3 Operating and display elements
Buntwäsche
Temperatur wählen
1
4
5
6 89
10
11
2
7
Coloureds
Select programme
3
1Door opener 8Additional programme
2 h 10Normal dry
12
2TouchDisplay 9Standard and
3Fabric types extra programmes
4Start/Pause 10 Eco (see
5End of programme additional functions)
6Favourites 11 EcoManagement
7Automatic programmes 12 Additional functions
Automatic programmes Standard and Additional functions
Extra dry extra programmes Eco (10)
Normal dry Standard Sprint
Iron dry Final airing Ultra care
Damp Crease guard Easy care
Additional programme Basket programme
+
ReversePlus
Timed drying SilentPlus
Delayed start
8

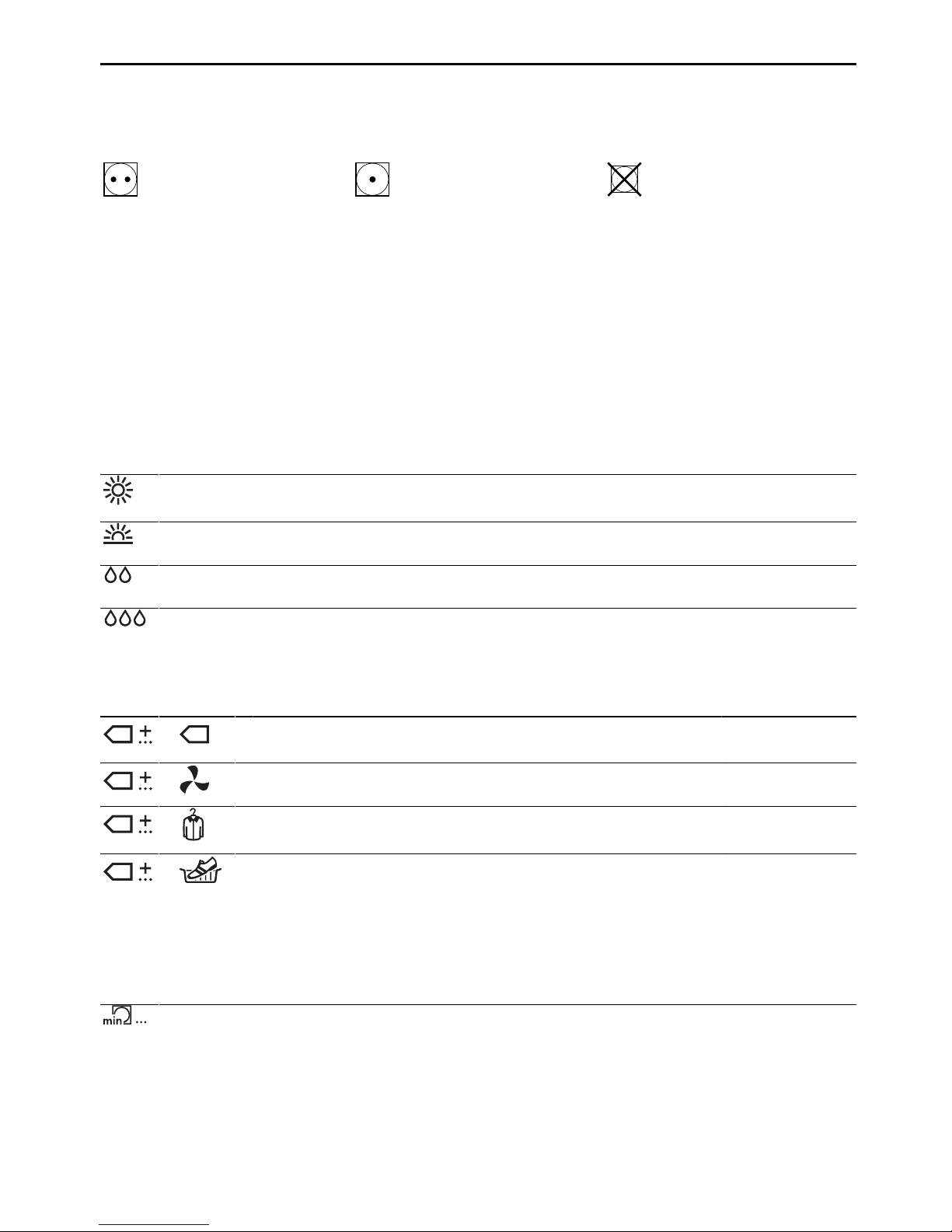

2 Programme overview
2 Programme overview
To avoid damaging the laundry, follow the fabric care symbols on garment labels:
Tumble dry, medium heat Tumble dry, low heat Do not tumble dry
2.1 Automatic programmes
Automatic drying programmes have 3 phases:
Drying The laundry is dried according to the settings.
Cooling down /
Final airing
The laundry is cooled down to a temperature at which creasing is min-
imized. The duration of this phase depends on the temperature of the
laundry. «Crease guard» starts if the appliance is not unloaded when
this phase ends.
Crease guard The dried washing is moved at frequent intervals for up to 30 minutes
to prevent creasing. Open the appliance door to end before time.
Extra dry: For thick, multi-layered textiles and mixed loads. Less suit-
able for knitted or woven articles (e.g. t-shirts or underwear).
1–7 kg
Normal dry: For similar items of washing (e.g. t-shirts or underwear). 1–7 kg
Iron dry: For items that are to be ironed. 1–7 kg
Damp: For items that are to be pressed in a mangle (e.g. table
linen).
1–7 kg
2.2 Standard and extra programmes
+ The most efficient programme for drying normal wet cot-
ton laundry.
1-7kg
+Airing: For refreshing or airing little-worn garments. 1–1.5 kg
+Crease guard: For reduced creasing (e.g. shirts and
blouses). The laundry is ready for ironing.
1kg
+Basket programme: For drying clean canvas shoes/
trainers and small items such as gloves, hats and soft
toys in the basket (can be ordered as an accessory). Not
suitable for leather or synthetic leather.
2.3 Additional programme
Timed drying: For final drying of textiles. For final drying of sleeping
bags and quilts, provided they have the relevant fabric care symbols.
Load for bulky textiles: 1 item
1–7 kg
9

2 Programme overview
2.4 Fabric types
+Coloureds: Automatic programmes suitable for most tex-
tiles.
1–7kg
Shirts: Fabrics are gently dried to «cupboard dry». max.7items
Towelling: For drying thick towels and terry towelling. 1–3kg
Denim: Denim fabrics are dried to «cupboard dry». Fol-
low the fabric care symbols as denim material can
shrink.
1–4kg
+Thick down filling: For bulky down textiles (e.g. pillows,
jackets and thick duvets). If recommended, tennis balls
can be used for fluffing up the down during drying. Op-
timum load: 1 item
1–2kg
Thin down filling: For light-weight down textiles (e.g. thin
duvets and jackets). Optimum load: 1 item
1–2kg
Bed linen: For similar items of washing. Fasten zips and
buttons.
1–3kg
Outdoor garments: Leisure- and sportswear (Sympatex,
Gore-tex, ...) are dried gently.
1–3kg
+Woollens: For woollen fabrics labelled as washable.
Gentle drying through gentle drum action and low tem-
peratures (approx. 45°C).
1kg
Silks: For drying silk fabrics. Follow the fabric care sym-
bols as silk tends to crease easily. Low temperature for
gentle drying.
1–1.5kg
Fluffing: Brings the bounce back to woollen textiles.
Since the textiles are not dried unload them as soon as
the programme ends.
1kg
WetClean finish: Loosens up delicate textiles. Unload
the textiles as soon as the programme ends.
1kg
+Baby garments: Baby garments are gently dried to «cup-
board dry». The washing is dried hygienically through an
extended final drying phase.
1–5kg
Hygiene: The washing is dried hygienically through an
extended final drying phase. Ensures all germs are killed.
Use for non-delicate fabrics only.
1–3kg
10

2 Programme overview
2.5 Additional functions
Eco: The most energy-efficient programme, suitable for all fabrics.
Provides energy savings of up to 19% depending on programme.
Sprint: Quickest drying: Time saving: up to 23minutes.
Ultra care: Very gentle drying. The temperature is reduced. Particu-
larly suitable for fine textiles.
1–2.5kg
Easy care: Gentle drying for mixed fabrics (e.g. shirts, pullovers and
T-shirts). The level of dryness is reduced. To prevent creasing, put
just a few items into the drum and remove as soon as the pro-
gramme has finished.
1–2.5kg
+
ReversePlus: The laundry is dried evenly and less likely to get
tangled. Particularly suitable for drying larger items, e.g. bed linen.
SilentPlus: Particularly quiet programme.
Delayed start: For using cheap-rate electricity (setting range of up to
24hours). The programme starts automatically when the set time is
reached.
2.6 EcoManagement
EcoManagement provides information on the energy consumption of the appliance.
The following statistical data can only be retrieved when no programme is running:
▪Energy consumption of the last programme
▪Total energy consumption
▪Average energy consumption of the last 25 programmes
The energy consumption of a programme is displayed during programme selec-
tion. At the end of a programme, the energy consumption of the last programme
run is displayed.
11

3 Operating the appliance
3 Operating the appliance
3.1 Preparations
▸ Connect the mains plug into a
suitable mains socket.
▸ Press the markings at the
edge of door (5 dots) and
open the appliance door.
▸ Loosely load wet laundry items
one by one into the appliance.
▸ Close the appliance door. En-
sure that no items of washing
are trapped in the door.
Coloureds
Select programme
The start screen appears. It
goes out after 20seconds if
no programme selection is
made. To display the start
screen again at any time,
touch the screen.
▸ Touch the button to cancel
programme selection.
3.2 Selecting programme
When a programme is selected, all the necessary settings for it are assigned automatically.
Additional functions can be selected or deselected by using further buttons in other views.
▸ Touch the button for the de-
sired programme.
2 h 10Normal dry
The programme selected, the
expected duration and the se-
lectable additional functions
are displayed. The indicator
light for the selectable
button flashes.
▸ Touch the button.
The programme selected
starts.
12

3 Operating the appliance
Duration remaining indicator
When the programme starts, the programme
duration at maximum load is displayed. The let-
ter «h» flashes for about 1 minute. During this
time, the actual load is being determined and
the expected duration remaining is being calcu-
lated. The expected duration remaining is sub-
sequently displayed.
Extra dry
Determining load
0 h 59
The programme may possibly take longer than
initially calculated. In this case, the duration re-
maining freezes while the programme runs. The
letter «h» flashes again.
Extra dry
Calculating time remaining
0 h 59
3.3 Selecting additional functions
▸ Touch the button for the de-
sired programme.
2 h 10Normal dry
The programme selected and
all selectable additional func-
tions are displayed. The indic-
ator light for the selectable
button flashes.
▸ For desired additional func-
tions, touch the corresponding
buttons.
The new programme duration
is displayed.
▸ Touch the button.
The programme selected
starts.
13

3 Operating the appliance
3.4 Delayed start
▸ Touch the button.
10 4 3
Delayed start
h min
The adjacent TouchDisplay ap-
pears.
81
▸ Enter the desired time delay
before the programme starts.
▸ Touch the button.
The delay before the pro-
gramme starts is saved.
▸ Touch the button.
The delayed start time starts.
The desired programme starts
automatically when the set
delay is up.
3.5 Timed drying
▸ Touch the button.
Timed drying
Duration in minutes
The adjacent TouchDisplay ap-
pears.
▸ Select the desired drying time.
The «Additional functions»
TouchDisplay appears.
3.6 Changing selection
▸ Touch the button in the «Additional functions» view.
▸ Select a new programme.
No changes can be made once a programme has started. The programme
must be aborted.
3.7 Aborting a programme
▸ Touch the button.
The programme is aborted. All settings are cleared.
14

3 Operating the appliance

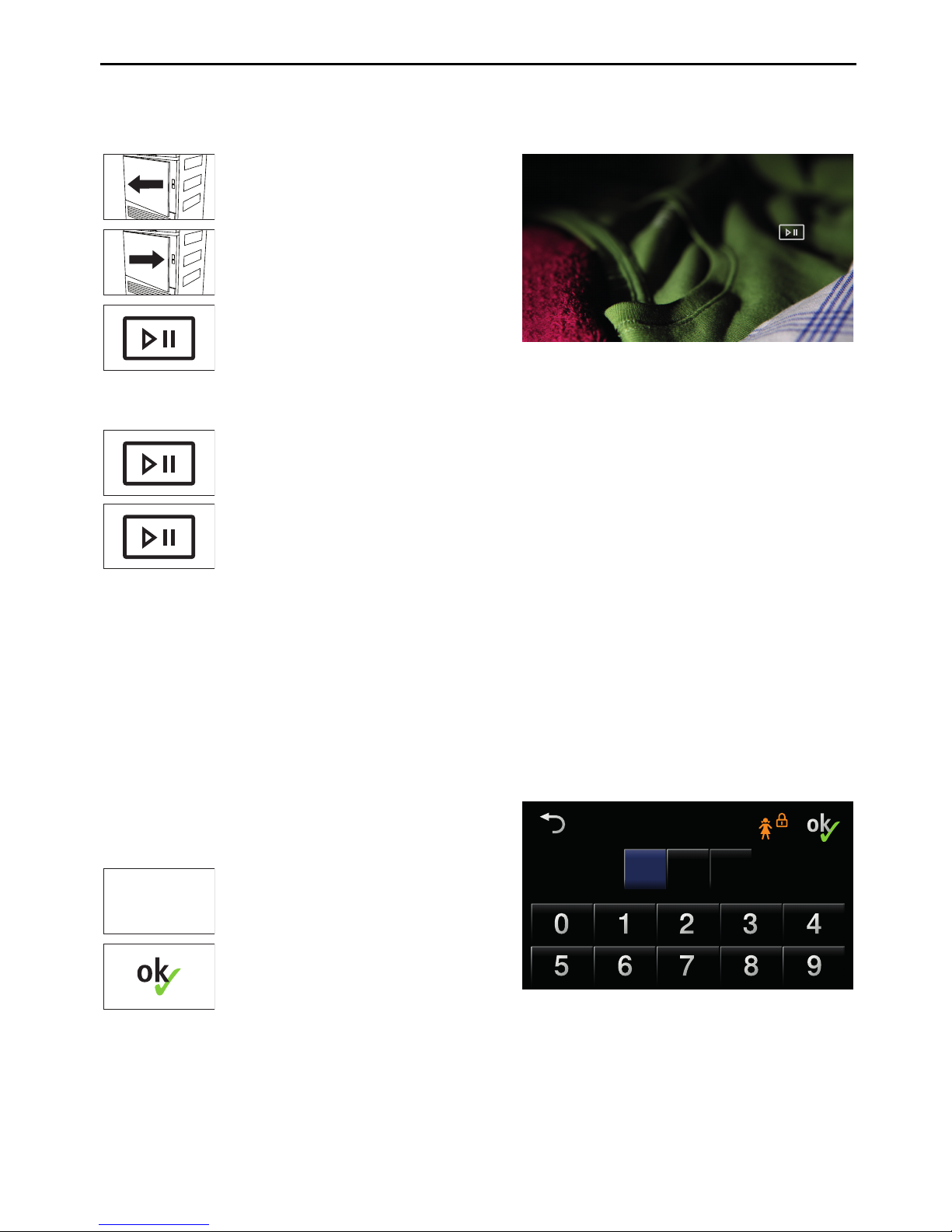

3.8 Interrupting a programme
Through opening the appliance door
▸ Open the appliance door.
Pause
Continue with button
Extra dry
The programme is interrupted.
Laundry can be added.
▸ Close the appliance door.
The adjacent TouchDisplay ap-
pears.
▸ Touch the button.
The programme is resumed.
Through pressing the pause button
▸ Touch the button.
The programme is interrupted.
▸ Touch the button again.
The programme is resumed.
Note: Each time a programme is interrupted, the programme sequence is delayed by
5minutes.
3.9 With childproof lock activated
How to turn the childproof lock on/off is described in «User settings».
When the childproof lock is activated, the appliance can no longer be operated once a pro-
gramme has started or if no button has been touched for over 20 seconds. A code must be
entered to unlock the appliance.
The adjacent TouchDisplay appears if a button
or the TouchDisplay is touched when the child-
proof lock is activated.
00 0
Childproof lock
Code
731
731
▸ Touch the digits 7, 3, 1 in se-
quence.
▸ Touch the button.
The appliance is unlocked.
After being unlocked, the appliance can be operated normally. The childproof lock is auto-
matically activated as soon as the programme starts.
15

3 Operating the appliance
3.10 End of programme
Display
Depending on whether «EcoManagement» has been activated, information on the energy
consumption is displayed when a programme ends.
With «EcoManagement»
The indicator light for the
button flashes.
End of programme - Clean door filter
Extra dry
0 h 00
Consumption values
0.9 kWh
The adjacent TouchDisplay ap-
pears.
Without «EcoManagement»
The indicator light for the
button flashes.
Extra dry
End of programme - Clean door filter
0 h 00
The adjacent TouchDisplay ap-
pears.
Note: Crease guard starts if the appliance is not unloaded straightaway. When it has finished,
all displays go out.
Unloading the washing
▸ Open the appliance door.
All displays go out.
▸ Unload the laundry.
Note: If the appliance door is opened during the «Final airing» phase, the programme is
aborted. All displays go out.
16

3 Operating the appliance

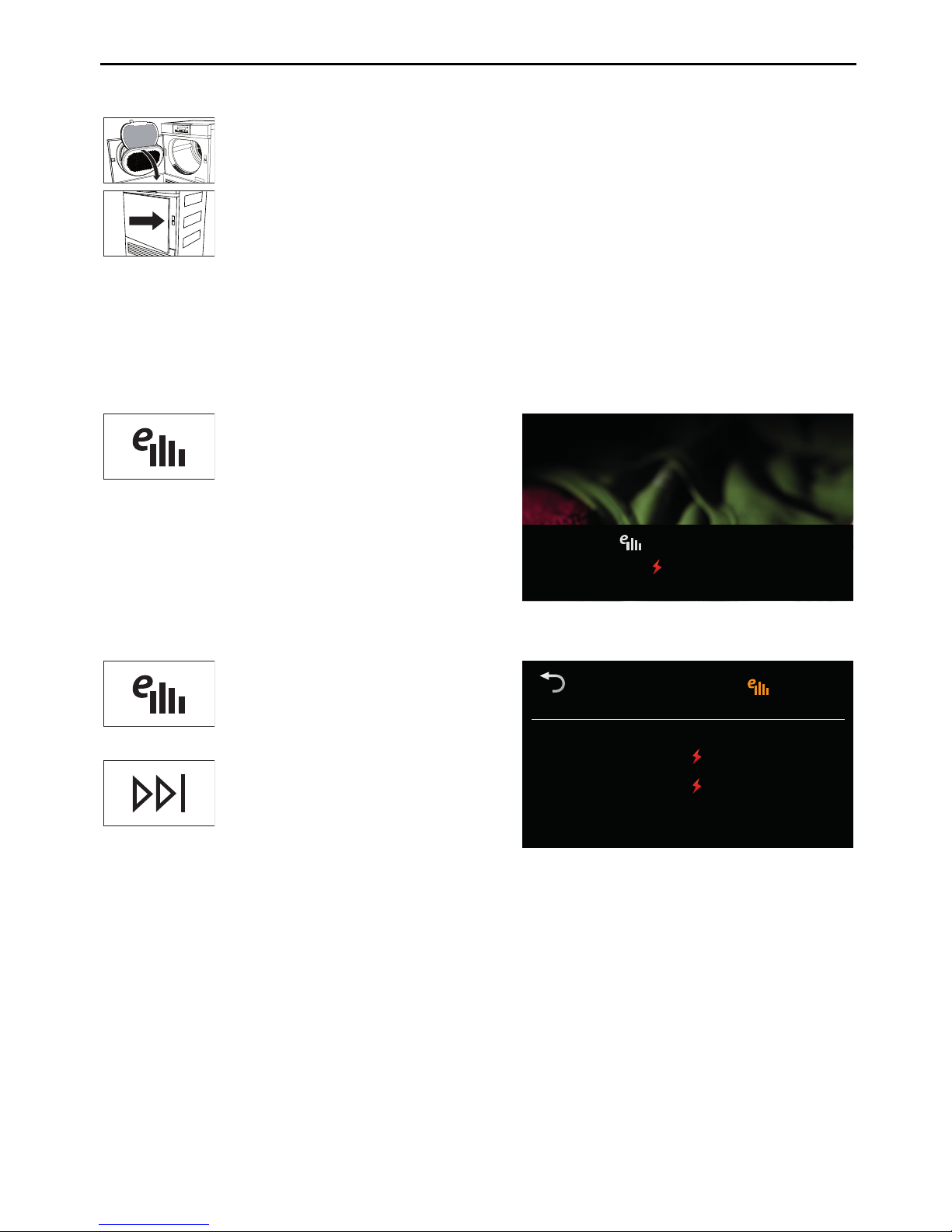

Each time after use
▸ Clean door filter (see page 23).
▸ Close appliance door.
3.11 EcoManagement statistics
Energy consumption can be displayed before a programme starts or after a programme
ends.
Displaying the last programme
▸ Touch the button.
Last programme
Consumption values
0.9 kWh
The energy consumption of
the last programme run is dis-
played.
Display total and average consumption
▸ Hold the button depressed for
3seconds.
EcoManagement
Statistics
Total
Average
390 kWh
0.9 kWh
Total and average consump-
tion are displayed.
▸ Touch the button to end stat-
istic retrieval.
17

4 Favourites
4 Favourites
Simple start to frequently used programmes.
4.1 Defining favourites
Note: The appliance door has to be open to define a favourite.
▸ Touch the button.
empty
▸ Touch one of the favourite
buttons.
▸ Select programme and ad-
ditional functions.
▸ Touch the button.
▸ Touch one of the two adja-
cent buttons.
Yes
Save favourite programme.
No
Cancel action.
4.2 Changing favourites
▸ Touch the button.
extra dry
▸ Select the favourite pro-
gramme to be changed.
Ändern
▸ Touch the button.
▸ Make changes.
▸ Touch the button.
▸ Touch one of the two adja-
cent buttons.
Yes
Save changes.
No
Cancel action.
18

4 Favourites

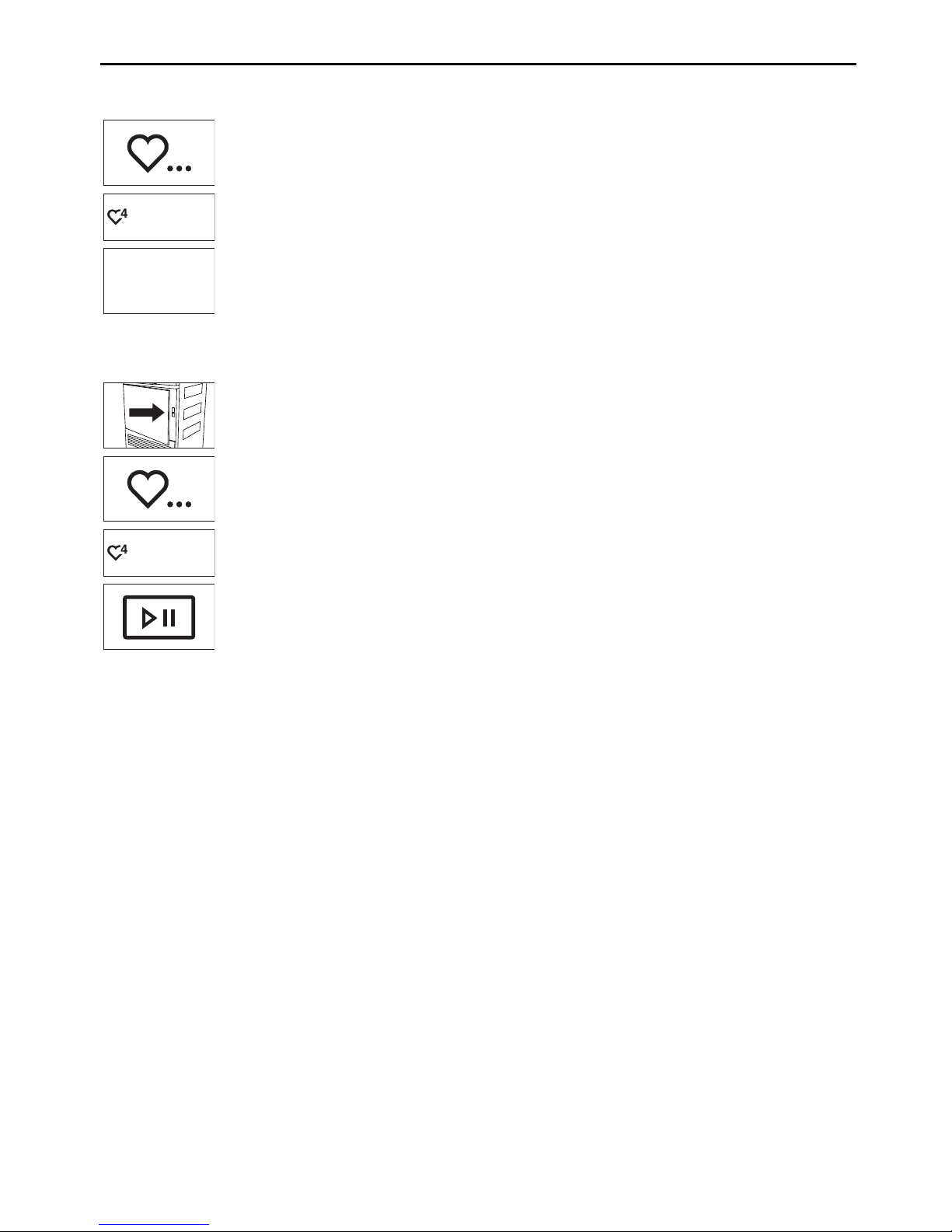

4.3 Deleting favourites
▸ Touch the button.
extra dry
▸ Select the favourite programme to be deleted.
Clear
▸ Touch the button.
The favourite programme is deleted.
4.4 Starting favourites
▸ Close the appliance door.
▸ Touch the button.
extra dry
▸ Select the desired favourite programme.
▸ Touch the button.
The programme selected starts.
19

5 User settings
5 User settings
Providing no programme is running and no error message is displayed, the user settings
can be changed with the appliance door open or closed.
5.1 Preparations
▸ Touch the button.
Extra
Standard
Crease guard
Airing
Basket
The adjacent TouchDisplay ap-
pears.
▸ Touch the button.
▸ Select and change desired
settings and submenus.
▸ Touch the button to save the
selected setting.
Language
English
Standard mode
SilentPlus
Settings
FN 12006 000123
▸ Touch the button to select and
change any other settings.
▸ Touch the button to save any
changes and to exit «Set-
tings».
5.2 Language
.. .
The language is set during the initial set-
up of the appliance. It can be changed.
5.3 Level of dryness
Very low
final drying
Normal
final drying
Very strong
final drying
1
..... .....
Change the level of dryness if the wash-
ing is not being dried sufficiently or is
being overdried. The new level of dry-
ness applies to all programmes. Very
low final drying is recommended for very
hard water and very strong final drying
for very soft water. Caution! Overdrying
can weaken fabrics!
1 Factory setting
20
