Zycoo CooVox Series-U50 User manual

For Small and Medium Business
IP PHONE SYSTEM
CooVox Series-U50
www.zycoo.com
Quick Installation Guide
Quick Installation Guide
PWR SYS WAN L AN 4 3 2 1 4 3 2 1
SLO T2 SLOT 1
Co oV ox
IP P ho ne S ystem
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

1 Package Contents
2 Hardware Installation
2.1 Safety Precautions
2.2 Product Installation
2.3 Physical Connection
2.4 Led Definitions
3 Basic System Configuration
3.1 Web Login
3.2 Network Configuration
3.3 Choose the Module
3.4 Reset to factory
4 Further Configuration
Table of Contents
02
02
03
05
06
07
08
08
09
10
11
12
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

02
2 Hardware Installation
The followings are the instructions for setting up ZYCOO CooVox-
U50 IP PBX. Please refer to the illustration and follow the simple
steps below to quickly install your IP phone.
Antenna(only for
GSM Module)
Power Adaptor
Thank you for purchasing ZYCOO IP phone system. These are the items
Included with your IP phone system purchase:
Two mounting brackets
and fittings
1 Package Contents
Warranty Card
IP PBX
Quick Installation
Guide
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

03
2.1 Safety Precautions
Notes:
To avoid any device damage and bodily injury caused by improper
use, please observe the following rules.
Keep the power off during the installation.
Use only the power adapter provided with IP PBX.
Make sure that the supply voltage matches the specifications indicated on the rear
panel of IP PBX.
To avoid the electric accident, do not open or remove the cover of IP PBX when it is
working as well as off the power.
Before cleaning the device, cut off the power supply. Do not clean it by the
waterish cloth, and never use any other liquid cleaning method.
Site Requirements
PW R SYS ET H USB 1 2 3 4
SL OT1 S LO T2
1 2 3 4
To ensure normal operation and long service life of the device,
please install it in an environment that meets the requirements
described in the following subsection. Please keep a proper
temperature and humidity in the equipment room. Too high/low
humidity may lead to bad insulation, electricity leakage,
mechanical property changes and corrosions. Too high
temperature may accelerate aging of the insulation materials and
can thus significantly shorten the service life of the device. For
normal temperature and humidity of the device, please check the
following table.
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

04
1 2 3 4 1 2 3 4
SLOT2 CooVox
IP Phone System
Temperature
0 C~40 C
-40 C~70 C
Humidity
10%~90%RH Non-condensing
5%~90%RH Non-condensing
CooVox
IP Phone System
The dust accumulated on IP PBX can be absorbed by static
electricity and result in poor contact of metal contact points. Some
measures have been taken for the device to prevent static
electricity, but too strong static electricity can cause deadly
damage to the electronic elements on the internal circuit board. To
avoid the effect of static electricity on the operation of IP PBX,
please attach much importance to the following items:
Dust the device regularly, and keep the indoor air clean.
Keep the device well grounded and ensure static electricity has
been transferred.
Electromagnetic Interference
PWR SYS ETH USB
SL OT1
Environment
Operating
Storage
PW R SYS ET H US B 1 2 3 4 1 2 3 4
SL OT1 S LO T2
Clearness
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

05
Electronic elements including capacitance and inductance on the
device can be affected by external interferences, such as conducted
emission by capacitance coupling, inductance coupling, and
impedance coupling. To decrease the interferences, please make
sure to take the following measures:
Use the power supply that can effectively filter interference from
the power grid.
Keep the devices far from high-frequency, strong-current devices,
such as radio transmitting station.
Use electromagnetic shielding when necessary.
2.2 Product Installation
ANT
1
2
3
4
SLOT 2
1
2
3
4
SLOT1
1
2
3
4
This IP PBX can support installing two extension modules at the
same time.
Optional modules are as follows.
4FXS Module
4FXO Module
1E1/T1 Module
2FXOS Module
2GSM Module
1.Check if the module is clean and intact.
2.Please ensure power of IP PBX is cut off.
3.Please ensure the direction of the module is correct (ZYCOO-logo
side up).
4.Push the module into the module slot through the guide rail.
5.Tighten the locking screws on the both ends of the module.
Module Installation
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

06
Do not touch any device on the module, just to prevent the
module from being damaged by static electricity.
This operation must be done with power cut off. The module does
not support hot- plugging.
CooVox-U50
AN T
USB CO NSO LE E TH DC 1 2V RS T
Power Adapter
Router
Please set 5~10cm gaps around the device for air circulation
Please avoid any heavy thing placed on the device.
Please place the IP PBX on a steady platform
CooVox-U50 is not a standard 19-inch rack-mountable device, but
we can provide the mounting brackets to help you install the device
to the rack if necessary.
Caution:
2.3 Physical Connection
1
2
3
4
SLOT 2
1
2
3
4
SLOT1
PSTN
Analog Phone
Desktop Installation
Rack Installation (Optional)
Caution:
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

07
2.4 LED Definitions
Indication Function Status Explaination
PWR
SYS
ETH
USB
1-4(SLOT1)
Power Status
System Status
Data Status
Data Status
SLOT1 Status
On
Off
Blink
Off
Blink
Off
On
Off
FXS
FXO
GSM
E1/T1
BRI
1-4(SLOT2) SLOT2 Status
FXS
FXO
GSM
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

08
Enter the default username (admin) and password
(admin). Then click “Login” to enter the Web-based user
interface.
Default URL address: http://192.168.1.100:9999
Default Username: admin
Default Password: admin
3 Basic System Configuration
Connect a computer and the CooVox device in the same
network. IP address is usually in the 192.168.1.X range.
Enter the default address “http://192.168.1.100:9999” of
the CooVox device into the URL address box.
Start a web browser. To use the user interface, you need a
PC with Internet Explorer (version 7.0 or higher), Firefox,
Chrome.
Step 4.
3.1 Web Login
Step 1.
Step 3.
Step 2.
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

09

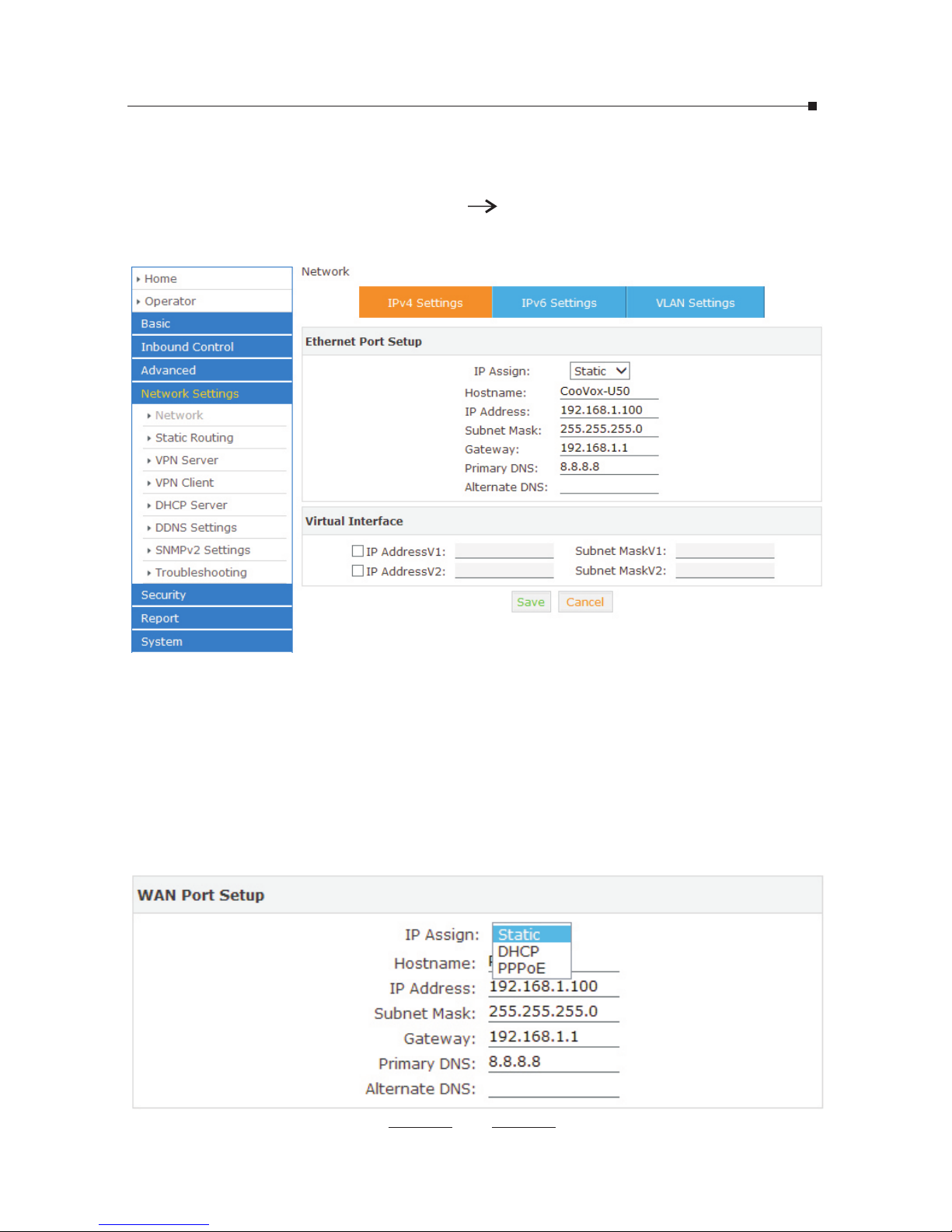

3.2 Network Configuration
Step 1. Go to Network Settings Network
Step 2. Configure the network information
There are three types of network connection. They are Static,
DHCP, PPPoE(Point-to-Point Protocol over Ethernet). You can find
detailed settings in the user manual.
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

10

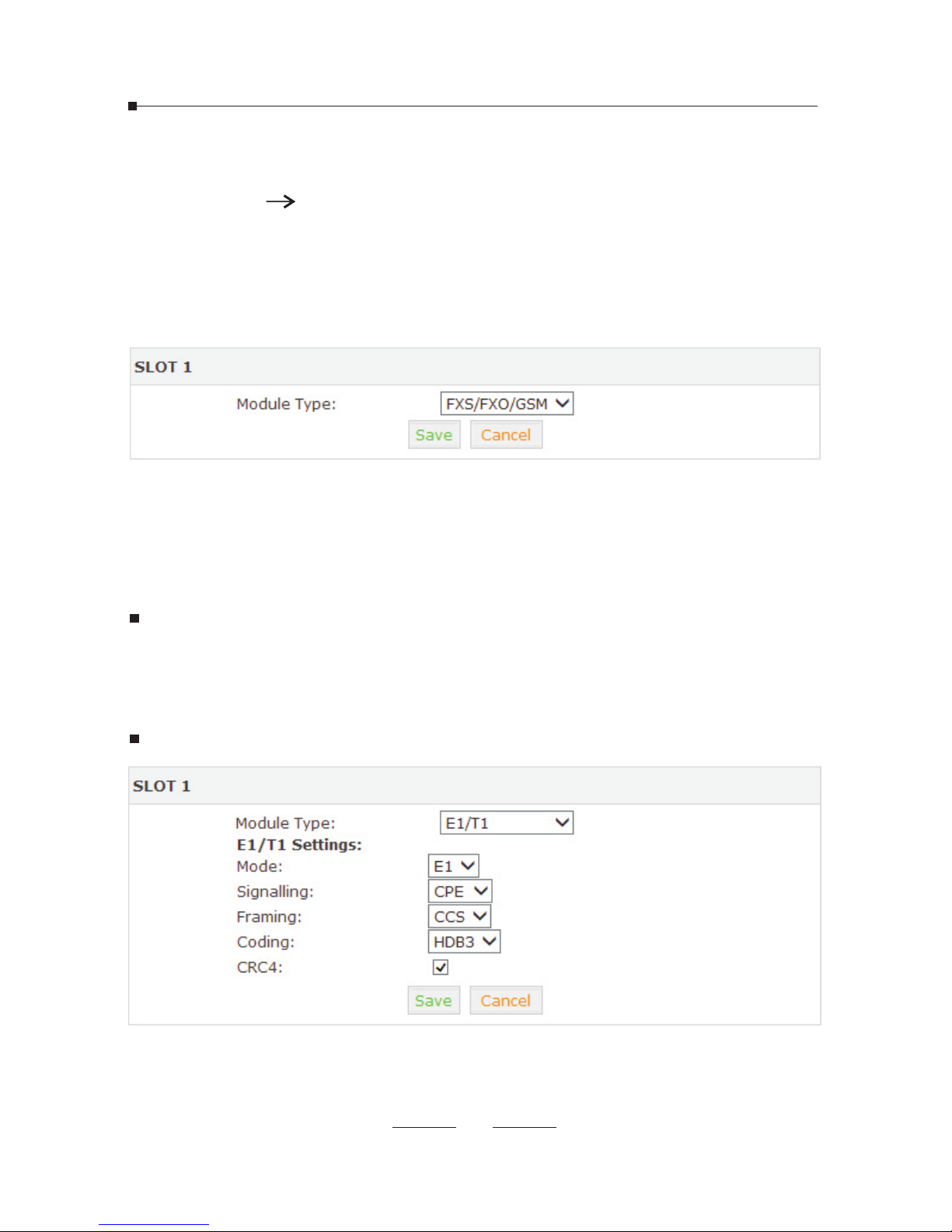

Module Type: Select the module type of the device slot.
Default type. You don’t need set anything
for these modules.
Go to System Module Settings
When using the module except FXO/FXS/GSM, you need to set the
module parameters with the below page.
FXS/FXO/GSM module
E1/T1 module
3.3 Choose the Module
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

11

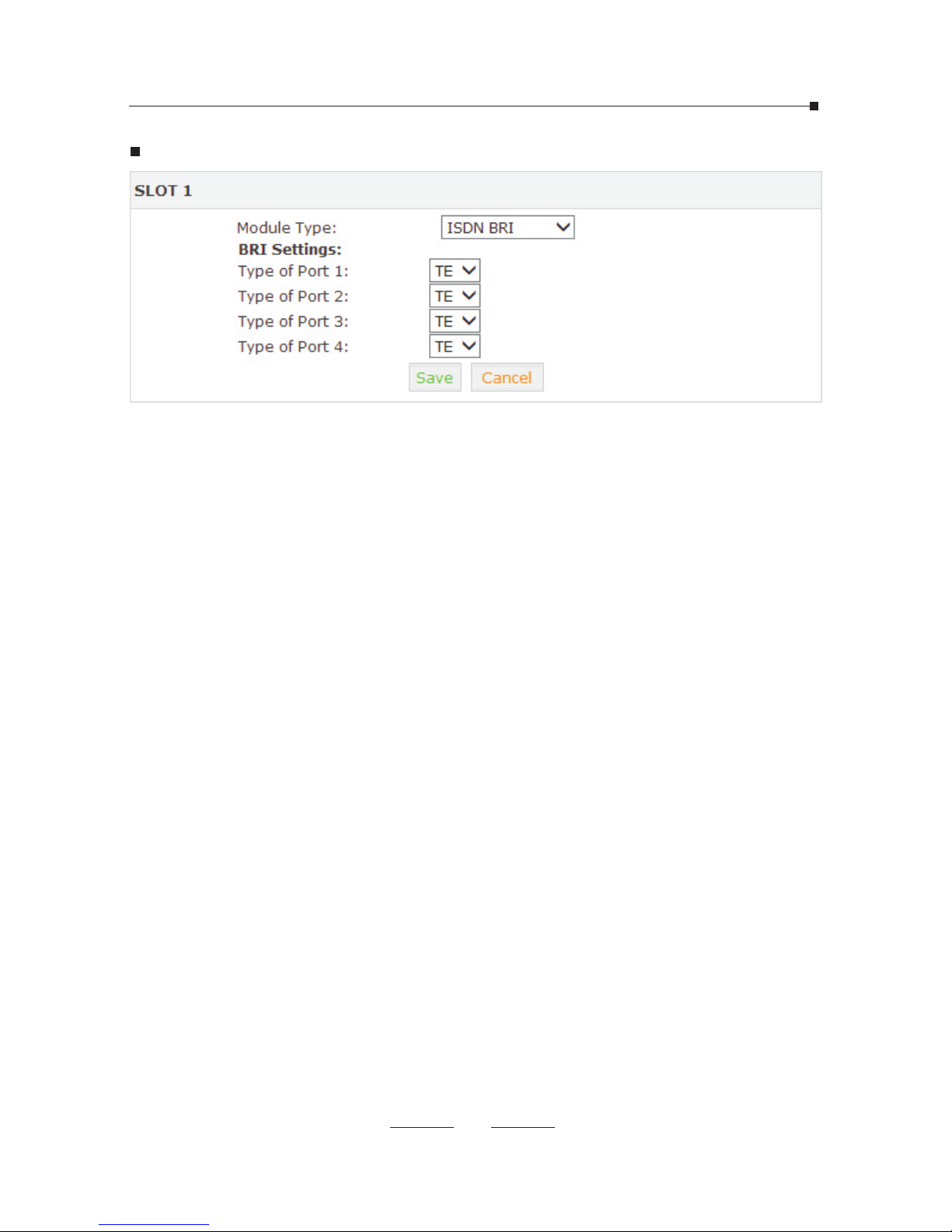

ISDN BRI module
3.4 Reset to factory
To reset the IP address to the default IP Address “192.168.1.100”
(ETH) or reset the login password to default value, press the
hardware reset button at the front panel more than 5 seconds.
After the device is rebooted, you can login the management WEB
interface within the same subnet of 192.168.1.x.
Press the “Reset” button, and all the system data will be reset to
default; so if possible, back up the configuration file before reset.
www.voipon.co.uk [email protected] Tel: [phone] Fax: [phone]

4 Further Configuration
Thank you for the purchase of ZYCOO products. The above steps
introduce simple configuration for CooVox – U50. For further
configuration, please refer to the user manual. If you have other
questions, please contact the local dealer or distributor from
which you purchased this product.
You can also browse our online FAQ resource at the ZYCOO Web site
first to check if it could solve your issue. If you need more support,
please contact ZYCOO support team.
ZYCOO online FAQ:
Http://www.zycoo.com/support
Support team mail address:
[e-mail]
Copyright © Zycoo Co., Ltd. 2013
