ZyXEL Communications P-27xx Series User manual

www.zyxel.com
www.zyxel.com
P-27xx Series
Models:
P-2701RL VoIP ATA / Gateway with Lifeline
P-2702R VoIP ATA / Gateway
Copyright © 2010
ZyXEL Communications Corporation
Firmware Version 1.01
Edition 1, 09/2010
Default Login Details
IP Address http://192.168.1.1
User Name admin
Password 1234

P-27XX Series User’s Guide 3
CHAPTER 1
Introduction
1.1 Overview
This guide helps you set up and use your ZyXEL Device (either the P-2702R VoIP
ATA / Gateway or the P-2701RL VoIP ATA / Gateway with Lifeline).
This guide contains the following sections:
SECTION PAGE DESCRIPTION
Installation
Requirements 5A checklist of things you need before you install the ZyXEL Device.
Making Hardware
Connections 6How to connect the ZyXEL Device to your network, your computer and telephone(s).
Initial Configuration 9 How to configure your ZyXEL Device to access the
Internet and make Voice over Internet (VoIP) phone
calls.
For the P-2701RL, it also explains how to set up regular
phone services that do not use the Internet.
Placing Phone Calls 15 How to make calls from the phone(s) connected to the
ZyXEL Device.
Advanced Phone
Configuration 16 How to configure advanced VoIP options.
Speed Dial Settings 24 How to create a list of speed dial numbers.
Dial Plan with URL 26 How to create a list of peer-to-peer call numbers.
Supported Phone
Functions 27 A table of the key combinations you can enter on your phone's keypad to use certain features.
System Mode and
Accounts 31 How to change your operating mode (router or bridge) and system passwords.
Auto-Provision 33 How to save the ZyXEL Device auto-provisioning file
and configure the ZyXEL Device to download the
configuration and firmware automatically from an auto-
provisioning server.
TR-069 Setting 34 How to configure the ZyXEL Device to be managed over
the WAN by an Auto Configuration Server (ACS).
Troubleshooting 37 Possible solutions for any issues that may arise.
Specifications 43 Information about your ZyXEL Device’s physical
specifications
Features 44 Supported firmware specifications.

Chapter 1 Introduction
P-27XX Series User’s Guide
4
1.2 How It Works
The following figure shows how the ZyXEL Device works:
• When you make a phone call over the Internet, you use a telephone (A) to dial
the number. The P-2701RL supports one telephone connection, and the P-2702R
supports two telephone connections.
The telephone is connected to your ZyXEL Device (C), which is connected to the
broadband modem or router that provides Internet access (D).
• When you want to use the Internet, you use your computer (B). Your computer
is connected to your ZyXEL Device (C), which is connected to the broadband
modem or router that provides Internet access (D).
You also use your computer to configure the ZyXEL Device.
•P-2701RL Only (E): Use your telephone (A) to make calls over the regular
telephone network (PSTN or Public Switched Telephone Network).
Wall Mounting
Instructions 47 How to attach the ZyXEL Device to a wall.
Safety Warnings 49 Using the ZyXEL Device safely.
Open Software
Announcements 49 Description of ZyXEL’s open software use and where to download open source components modified by ZyXEL.
Legal Information 51 Certifications, warranty and customer support
information.
SECTION PAGE DESCRIPTION
ACD
B
E

Chapter 1 Introduction
P-27XX Series User’s Guide 5
Important information about your ZyXEL Device:
1.3 Installation Requirements
Make sure you have the following things before you set up your ZyXEL Device:
• Internet Account - Information provided by your ISP (the company that lets you
connect to the Internet). This information might include your user name,
password, and so on.
• VoIP Account - Information provided by your VoIP service provider (the
company that lets you make phone calls over the Internet). This information
might include your URI, number, and so on.
• Web Browser - Internet Explorer 6.0 or later or Firefox 1.5 or later with
JavaScript enabled.
Default Management IP Address 192.168.1.1
Default Subnet Mask 255.255.255.0
Default Admin User Name admin
Default Admin Password 1234
Default User Name user
Default User Password user

Chapter 1 Introduction
P-27XX Series User’s Guide
6
1.4 Making Hardware Connections
The following shows you how to make the ZyXEL Device’s hardware connections.
Figure 1 P-2701RL Hardware Connections
Figure 2 P-2702R Hardware Connections
12345
2345

Chapter 1 Introduction
P-27XX Series User’s Guide 7
1LINE (P-2701RL only): Use a telephone cable to connect the telephone jack (or
the TEL or PHONE jack on a splitter, if one is already installed) to this port.
2PHONE 1 / PHONE 2: Use a telephone cable (and any telephone adaptor
provided with your ZyXEL Device) to connect your telephone to this port.
3LAN: Use an Ethernet cable to connect your computer to this port.
4WAN: Use an Ethernet cable to connect your broadband modem or router to this
port.
5POWER: Use the power adaptor provided with your ZyXEL Device to connect an
appropriate power source to this jack.
On the front panel, the POWER light flashes green while your ZyXEL Device starts
up, and stays green once it is ready. The WAN and LAN lights turn on if the WAN
and LAN ports are properly connected. These lights flash when the ZyXEL Device
is sending or receiving data.

Chapter 1 Introduction
P-27XX Series User’s Guide
8

P-27XX Series User’s Guide 9
CHAPTER 2
Initial Configuration
This chapter shows you how to set up your ZyXEL Device by connecting to its
built-in Web Configurator with your computer.
2.1 The Web Configurator
The web configurator is an HTML-based management interface that allows easy
device setup and management via a web browser.
To connect to the Web Configurator:
1Launch your web browser.
2Enter http://192.168.1.1 as the address.
3Enter the default administrator Username (admin) and Password (1234), then
click Login.

Chapter 2 Initial Configuration
P-27XX Series User’s Guide
10
4Click Go to Wizard setup.
5The Configuration Wizard opens.
2.2 The Connection Wizard
This section shows you how to configure your Internet connection settings using
the Connection Wizard.
Note: You must have an active Internet account with a service provider in order to
complete this section.
1In the Wizard Setup screen, select Connection Wizard.
2In the Welcome screen, click Next.

Chapter 2 Initial Configuration
P-27XX Series User’s Guide 11
3In the Time Zone Setting screen, select Enable NTP Client Update if you want
to maintain the ZyXEL Device’s internal clock by synchronizing it with a time
server.
If you do this, choose a Time Zone and an NTP Server closest to your location
from their respective menus, then click Next to save your settings and go to the
next screen.
4The WAN Interface Setting screen has different fields, depending on the type of
Internet access your ISP uses.
You can choose either Static IP,Dynamic IP, or PPPoE:
•Static IP means the ISP has assigned your Internet access account a single
IP address that will never change, regardless of whether you are online or
not. See Section 2.2.1 on page 12 for details.
•Dynamic IP allows the ISP to randomly assign your ZyXEL Device an IP
address each time it requests a WAN (or Internet) session. The IP address is
released as soon as the ZyXEL Device disconnects from the ISP. See Section
2.2.2 on page 12 for details.
•PPPoE emulates a standard dial-up connection over the Internet and requires
that each time the ZyXEL Device requests a WAN session you log in with your
ISP-assigned user name and password. See Section 2.2.3 on page 12 for
details.
Choose the setting required by your ISP then follow the instructions in the
appropriate section below. If you are not sure which setting to use then contact
your ISP.

Chapter 2 Initial Configuration
P-27XX Series User’s Guide
12
2.2.1 Static IP Connection Settings
Follow these steps if your ISP uses a static IP connection.
1Select Static IP from the WAN Access Type menu. The screen changes to
provide options for this setting.
2Enter the settings as provided by your ISP.
3Click Finished to save your settings.
2.2.2 DHCP Connection Settings
Follow these steps if your ISP uses a dynamic IP connection.
1Select Dynamic IP from the WAN Access Type menu.
2Click Finished to save your settings.
2.2.3 PPPoE Connection Settings
Follow these steps if your ISP uses a PPPoE connection.
1Select PPPoE from the WAN Access Type menu. The screen changes to provide
options for this setting.

Chapter 2 Initial Configuration
P-27XX Series User’s Guide 13
2Enter the User Name and Password assigned to you by your ISP.
3Click Finished to save your settings.
2.2.4 Test Your Internet Connection
Open another tab in your web browser and go to any web site (for example,
http://www.zyxel.com).
If you cannot access after using the configuration settings provided by your ISP,
see Troubleshooting on page 37.
2.3 The VoIP Setup Wizard
This section shows you how to configure your voice-over-Internet settings using
the VoIP Setup wizard.
Note: You must have Internet access and a VoIP account before you can complete
this section.
1In the Wizard Setup screen, select VoIP Setup.
2In the VoIP Configuration screen, enter the information provided by your VoIP
service provider.
If you have a VoIP account like “[e-mail]”, the SIP Number is
“1234”, and the SIP Service Domain is “VoIP-provider.com”. If your VoIP service
provider did not provide information for any of the fields in this screen, leave them
at their default settings.

Chapter 2 Initial Configuration
P-27XX Series User’s Guide
14

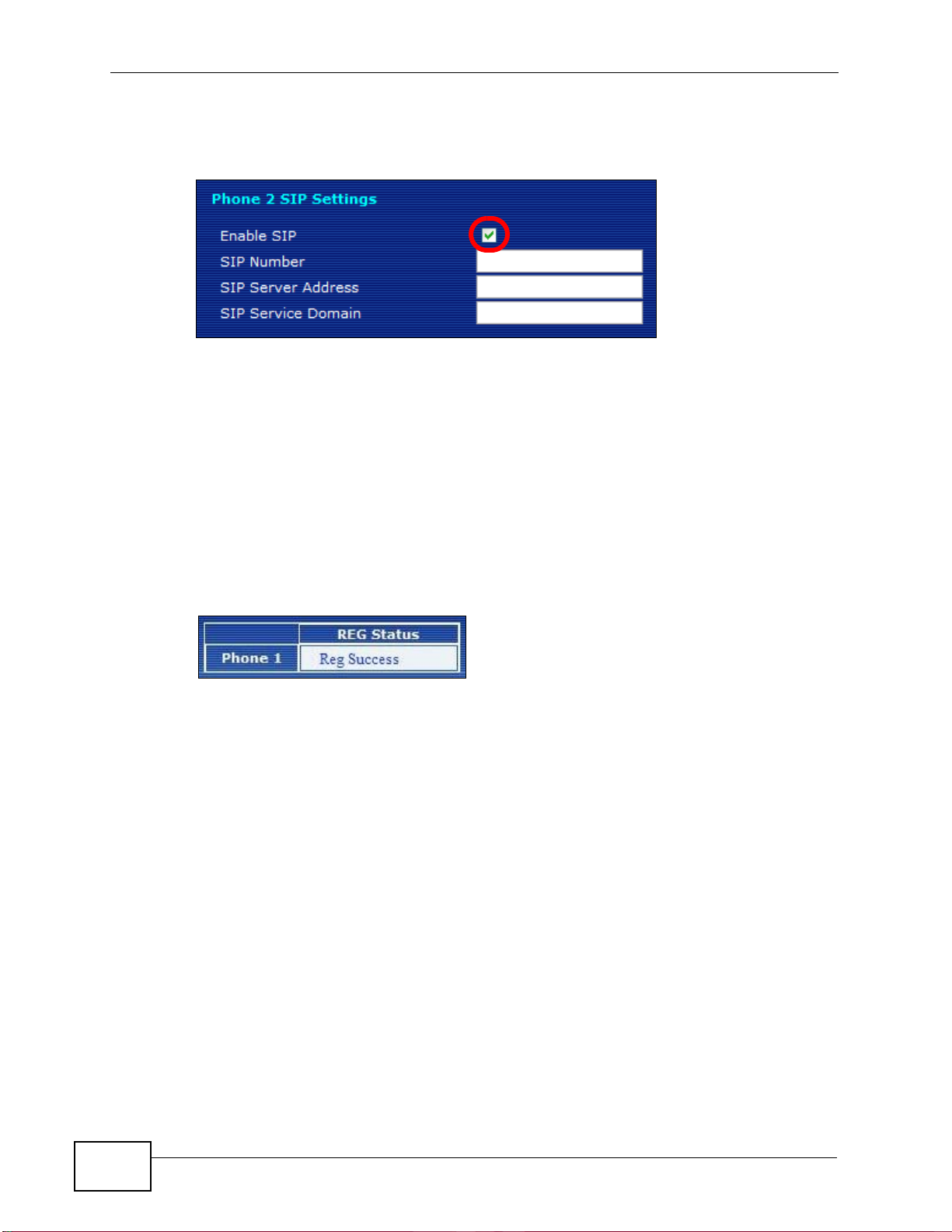

3P-2702R Only: The Phone 2 SIP Settings screen appears next. If you want to
set up a second VoIP account, select Enable SIP then enter the information for
the second VoIP account as you did for the first one in step 2.
If you do not want to configure a second VoIP account at this time, you can do so
later in the VoIP > SIP > SIP Settings screen of the advanced Web
Configurator.
4Click Finish to save your settings.
2.3.1 Test Your VoIP Connection
After you finish configuring your VoIP account (s), the wizard tests your SIP
account settings then indicates whether or not they are valid. If they are not, try
re-configuring them.
If you still cannot access after using the settings provided by your VoIP service
provider see Troubleshooting on page 37.

P-27XX Series User’s Guide 15
CHAPTER 3
Phone Use and Configuration
This chapter describes basic phone setup and usage, as well as select advanced
VoIP configuration options for your ZyXEL Device.
3.1 PSTN Phone Set Up (P-2701RL Only)
When one of your VoIP accounts is registered, the ZyXEL Device normally uses the
Internet (VoIP) rather than the regular PSTN phone line to place and receive
phone calls.
However, if you connect the Line port to a regular PSTN phone jack, then
incoming PSTN calls will be forwarded directly to the phone connected to your
ZyXEL Device’s Phone port.
3.2 Placing Phone Calls
Use the following sections to make outgoing calls from a phone attached to the
ZyXEL Device to another phone.
Follow these directions to make calls over the Internet:
• If you want to dial a SIP number that only uses numbers (for example,
“12345”), dial the number on your phone’s keypad. You can also set up a speed-
dial entry, if you want, in the VoIP > Phone Book > Speed Dial screen. See
Section 3.4 on page 24 for more information.
• If you want to make a peer-to-peer call, set up a dial plan with URL entry first.
Use the VoIP > Phone Book > Dial Plan with URL screen. Then dial the pre-
configured SIP number to make the call to a peer VoIP device directly. See
Section 3.5 on page 26 for more information.
• If you want to call a PSTN phone over the Internet, follow your VoIP provider’s
instructions.

Chapter 3 Phone Use and Configuration
P-27XX Series User’s Guide
16
3.3 Advanced Phone Configuration
Click VoIP > SIP to open the SIP Settings screen. This screen allows you to
manage up to two SIP accounts.
Figure 3 The SIP Settings Screen
To have the ZyXEL Device add a “user=phone” parameter to the SIP URI before
sending a SIP INVITE request, select the Enable option next to Set User Header
To Phone. This parameter indicates the user part of the SIP URI
(<user>@<sipserver>) the ZyXEL Device is calling is a valid telephone number.
If you need to send fax messages using T.38 and want to always use the same
port number for both transmitted and received T.38 packets, select Use Original
RTP Port. Otherwise, select Assign Port for Reinvite to have the ZyXEL Device
choose a port randomly for T.38 after the re-invite process.
Click Apply to save the changes you made in this screen.
Select Active for the phone you want to configure, then click the Modify icon. The
Phone SIP Settings screen opens, where you can set up and maintain your SIP
account(s) in the ZyXEL Device. Your VoIP or Internet service provider should
provide you with your account information.

Chapter 3 Phone Use and Configuration
P-27XX Series User’s Guide 17
Figure 4 The Phone SIP Settings screen
The following table describes the labels in this screen.
Table 1 SIP Setting
LABEL DESCRIPTION
Active SIP
Account Select this if you want the ZyXEL Device to use this account. Clear it if you do not want the ZyXEL Device to use this account.
Account
Name Enter a descriptive name for this SIP account. You can use up to 127
printable ASCII characters.
Number Enter your SIP number. In the full SIP URI, this is the part before the @
symbol. You can use up to 127 printable ASCII characters.
SIP Display
Name Enter the name that appears on the other party’s device if they have
Caller ID enabled. You can use up to 127 printable ASCII characters.
SIP Server
Address Enter the IP address or domain name of the SIP server provided by
your VoIP service provider. You can use up to 95 printable ASCII
characters.
SIP Server
Port Enter the SIP server’s listening port number, if your VoIP service
provider gave you one. Otherwise, keep the default value.
SIP Service
Domain Enter the SIP service domain name. In the full SIP URI, this is the part
after the @ symbol. You can use up to 95 printable ASCII Extended set
characters.
Register
Expire (sec) Enter the maximum amount of alloted time for the ZyXEL Device to
attempt to register with the SIP server.

Chapter 3 Phone Use and Configuration
P-27XX Series User’s Guide
18
3.3.1 Advanced SIP Settings
To access the following screens, connect to the Web Configurator as described in
steps 1-3 of Chapter 2 on page 9; however, instead of clicking Go to Wizard
Setup (as described in step 4) click Go to Advanced Setup.
Once you’re in the advanced Web Configurator, click Advanced in VoIP > SIP
Settings to set up and maintain advanced settings for each SIP account.
Outbound
Proxy Server Select this if your VoIP service provider has a SIP outbound server to
handle voice calls. This allows the ZyXEL Device to work with any type
of NAT router and eliminates the need for STUN or a SIP ALG. Turn off
any SIP ALG on a NAT router in front of the ZyXEL Device to keep it
from re-translating the IP address (since this is already handled by the
outbound proxy server).
Outbound
Proxy
Address
Enter the IP address or domain name of the SIP outbound proxy server,
if your VoIP service provider gave you one. You can use up to 95
printable ASCII characters.
Outbound
Proxy Port Enter the SIP outbound proxy server’s listening port number, if your
VoIP service provider gave you one.
Authentication
User Name Enter the user name for registering this SIP account, exactly as it was
given to you. You can use up to 127 printable ASCII characters.
Password Enter the password for registering this SIP account, exactly as it was
given to you. You can use up to 127 printable ASCII Extended set
characters.
Back Click to return to the previous screen without saving your changes.
Apply Click to save your changes.
Reset Click to restore your previously saved settings.
Advanced Click this to edit the advanced settings for this SIP account. The
Advanced SIP Settings screen appears.
Table 1 SIP Setting (continued)
LABEL DESCRIPTION

Chapter 3 Phone Use and Configuration
P-27XX Series User’s Guide 19
Note: Enter any advanced SIP configuration information as it was given to you by
your SIP service provider. If you do not have any advanced configuration
information, you can skip this section.
Figure 5 Advanced SIP Settings (part 1)
The following table describes the labels in this screen.
Table 2 SIP Setting
LABEL DESCRIPTION
SIP Port Enter the port number on your ZyXEL Device that SIP calls made with
the selected phone should use.
Media Port Enter the port number on your ZyXEL Device that RTP media packets
should use.
Packetization Select the voice codec packetization interval in milliseconds. The default
is 20 ms. This is used to minimize loss that happens during
transmission of voice data over the network.
The packetization interval effectivately sets the size of each voice
sample contained within a data packet. At 20 ms, the codec employed
in digitizing the voice signal can usually compensate for data
degredation and attenuation by using Packet Loss Concealment (PLC).
However, if the loss becomes too great, noticeable distortion occurs.
Setting the packetization interval higher, however, may introduce more
problems depending on the codec (such as G.711). Other codecs (such
as G.729 and G.723) have improved PLC techniques and as such can
also withstand a higher packetization interval; this means more packets
can be lost in transit without a noticeable loss in quality.

Chapter 3 Phone Use and Configuration
P-27XX Series User’s Guide
20
Figure 6 Advanced SIP Settings (part 2)
DTMF Relay Dual-Tone Multi-Frequency (DTMF) relay detects DTMF signals and
sends them out-of-band (via SIP or RTP) to the remote party. DTMF
relay is used when a low-bitrate voice codec might distort DTMF signals
sent over the voice channel.
The available relay types are:
•RFC2833 - Relays DTMF tones in outband RTP packets.
•SIP INFO - Relays DTMF tones in outband SIP packets.
•PCM - Relays DTMF tones in the voice data stream. PCM provides
very good sound quality with certain codecs (such as G.711) but
requires 64 kbps of bandwidth. With other codecs (such as G.729),
sound distortion may occur.
RFC2833
Payload Type This defines the DTMF tone type in decimal encoding, and which allows gateways to recognize a DTMF tone that has been embedded in a voice
signal and then respond accordingly.
Enter a digit that corresponds directly to a payload event type, as
defined in the RFC-2833 standard.
SIP INFO
Duration (ms) Specify DTMF tone play duration in milliseconds.
Call Waiting Select this to enable the call waiting feature, if supported by your phone
or SIP service provider.
DNS SRV Select Enable to have the ZyXEL Device query your ISP’s DNS server
for a list of any available SIP servers that it maintains. This is useful if
your static SIP server exeriences difficulties, making it hard for your IP
phone users to make SIP calls.
Table 2 SIP Setting (continued)
LABEL DESCRIPTION
