About Your PoE-10
The PoE-10 Single-port Power over Ethernet injector is a one-port power injector,
designed for use with 10/100 BaseT Ethernet networks. The PoE-10 injects DC
power through the unused twisted-wires (pairs 4/5 and 7/8) of a standard 8-pin
CAT 5 cable. This allows increased flexibility in the locating of a power over
Ethernet (PoE) enabled device by eliminating the need for a nearby power source.
Packaging List
The following items come with your PoE-10.
 This User’s Guide
 One Power Adaptor
 One straight-through Ethernet cable
Key Features
 One RJ-45, 10/100 Mbps PoE-enabled port.
 Ensures a constant power supply to a PoE-enabled device.
 Automatically detects if the connected device is PoE-enabled to avoid
sending power to a non-PoE device.
Front Panel LEDs
The LEDs on the front panel of the PoE-10 are shown next.
Description of LEDs
LED COLOR STATUS MEANING
PWR Green On
Off
Power is being supplied to the PoE-10.
No power is being supplied to the PoE-10.
LNK Green On
Off
Flashing
The PWR&DATA port is connected and sending
power to an Ethernet device.
No Ethernet connection is present.
The connected Ethernet device is not
PoE-enabled or is malfunctioning.

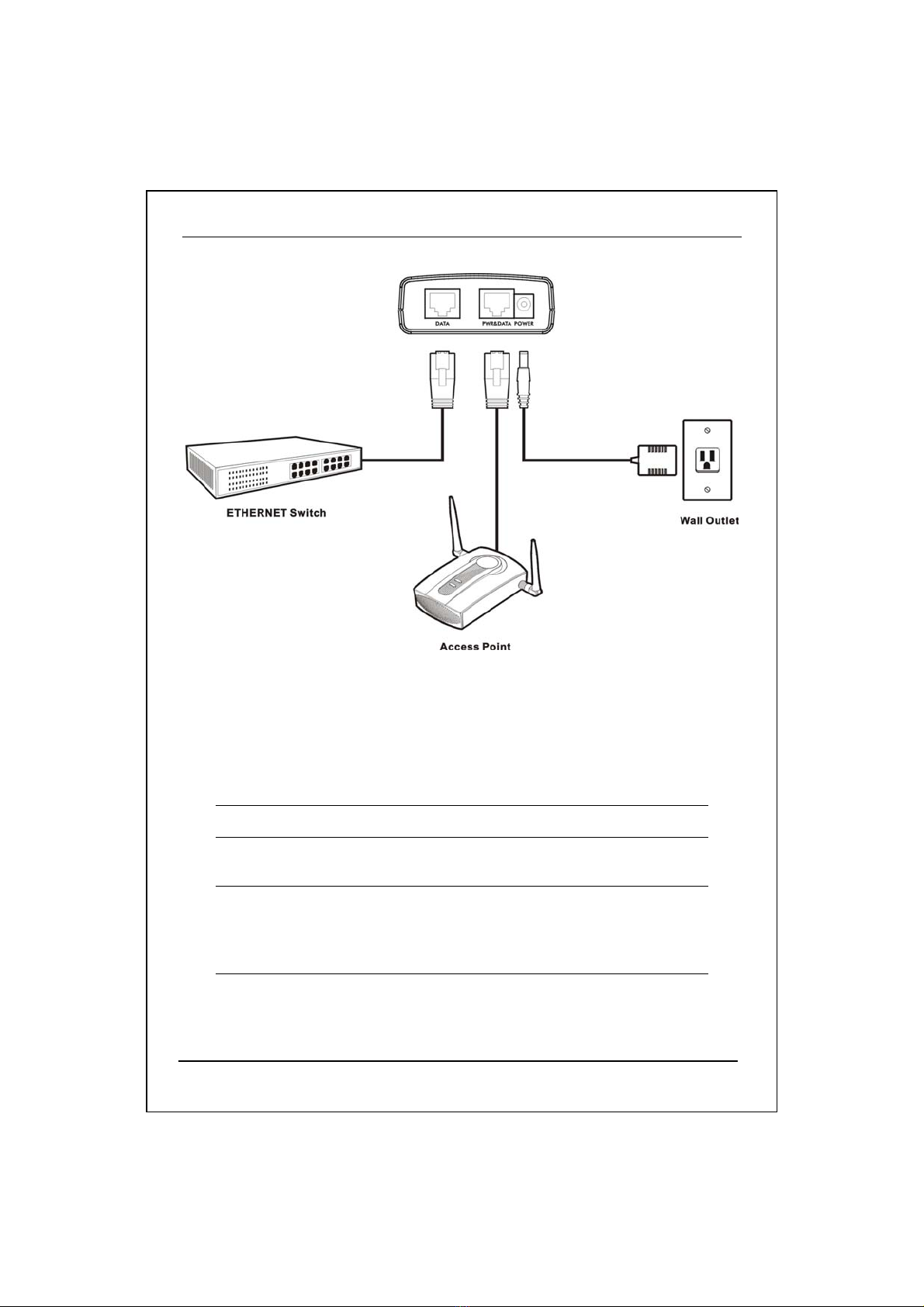

Rear Panel and Connections
The rear panel and connections of the PoE-10 are shown next. All connections

PoE-10 Single-port Power over Ethernet Injector
7
are located on the rear panel.
LAN 10/100M Ports
The PoE-10 has two LAN ports. The PWR&DATA port delivers power to your
PoE-enabled device. Use a straight-through Ethernet cable to connect the
PWR&DATA port to your PoE-enabled device.
The DATA port does not deliver power. Use an Ethernet cable to connect the
PoE-10’s DATA port to the LAN.
The maximum Ethernet cable length is 100m.
POWER Socket
WARNING: Use only the included power adaptor. It is suitable for
desktop use. Use of another power adaptor may damage the
PoE-10.
Connect the female end of the power adaptor to the PoE-10’s POWER socket.
Connect the female end of the power cord to the power adaptor and the male end
to a power source (wall outlet or power strip).

PoE-10 Single-port Power over Ethernet Injector
8
Specifications
Compatibility Compatible with certain ZyXEL PoE-enabled devices.2
Ports 1 DATA RJ-45 Ethernet port
1 PWR&DATA PoE injector RJ-45 Ethernet port
LEDs 1: PWR
1: LNK
Power Output 15.4 Watts maximum
Power Output Current 350 mA maximum
Weight 101g
Dimensions 74(W) x 102(D) x 30(H) mm
Power Adaptor Input: 100 - 240V AC, 50/60Hz
Output: 48V .5A
Power Consumption 20 Watts maximum
Operating
Temperature 5 – 50 degrees Celsius (41 – 122 degrees Fahrenheit)
Operational Humidity 10% - 90%
EMI and Safety FCC Class B, CE, CSA
2The ZyAIR B-3000, B-420 and G-3000 models at the time of writing.

PoE-10 Single-port Power over Ethernet Injector
9
Power Over Ethernet Injector RJ-45 Port Pin Assignments
PIN NO RJ-45 SIGNAL ASSIGNMENT
1 Output Transmit Data +
2 Output Transmit Data -
3 Receive Data +
4 Power +
5 Power +
6 Receive Data -
7 Power -
123456 78
8 Power -
Troubleshooting
Make sure you have securely attached the proper cables to the proper ports.
Refer to the Rear Panel and Connections section for this information. If your
PoE-10 still does not work properly, refer to the table shown next.
PROBLEM CORRECTIVE ACTION
No LEDs are on when
I connect the PoE-10.
Check to see that the enclosed power adapter is properly
connected to the PoE-10 and an appropriate power source.
Make sure the power source is on and functioning properly.
If the problem persists, your power adaptor may have
malfunctioned. Contact your local distributor.
The LNK LED is not
on.
Check to see that the Ethernet cables are connected properly
and that you are using the correct type of cable. Refer to the
Rear Panel and Connections section for this information.
If the problem persists, contact your local distributor.
The LNK LED is
flashing.
Make sure that the connected Ethernet device is PoE-enabled
and is not malfunctioning.
If the problem persists, try connecting a different PoE-enabled
device to the PoE-10’s PWR&DATA port.
The PoE-10 can send Ethernet traffic to a device that is not
PoE-enabled, but not power.
Power is not being
supplied to my
PoE-enabled device.
Ensure that the Ethernet cable connecting the PoE-enabled
device to the PoE-10’s PWR&DATA port is securely attached.
Make sure the PoE-10 is connected to an appropriate power
source and that the power source is on and functioning
properly.
