ZyXEL Communications ZyXEL Dimension GS-1008 User manual

Dimension
GS-1008/GS-1016
Gigabit Ethernet Switch
User’s Guide
Version 1.0
May 2003

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
ii Copyright
Copyright
Copyright © 2003 by ZyXEL Communications Corporation
The contents of this publication may not be reproduced in any part or as a whole,
transcribed, stored in a retrieval system, translated into any language, or transmitted in
any form or by any means, electronic, mechanical, magnetic, optical, chemical,
photocopying, manual, or otherwise, without the prior written permission of ZyXEL
Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any
products, or software described herein. Neither does it convey any license under its
patent rights nor the patents rights of others. ZyXEL further reserves the right to make
changes in any products described herein without notice. This publication is subject to
change without notice.
Trademarks
Trademarks mentioned in this publication are used for identification purposes only and
may be properties of their respective owners.

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
ZyXEL Limited Warranty iii
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any
defects in materials or workmanship for a period of up to two (2) years from the date
of purchase. During the warranty period and upon proof of purchase, should the
product have indications of failure due to faulty workmanship and/or materials,
ZyXEL will, at its discretion, repair or replace the defective products or components
without charge for either parts or labor and to whatever extent it shall deem necessary
to restore the product or components to proper operating condition. Any replacement
will consist of a new or re-manufactured functionally equivalent product of equal
value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if
the product is modified, misused, tampered with, damaged by an act of God, or
subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the
purchaser. This warranty is in lieu of all other warranties, express or implied, including
any implied warranty of merchantability or fitness for a particular use or purpose.
ZyXEL shall in no event be held liable for indirect or consequential damages of any
kind of character to the purchaser.
To obtain the services of this warranty, contact ZyXEL's Service Center for your
Return Material Authorization number (RMA). Products must be returned Postage
Prepaid. It is recommended that the unit be insured when shipped. Any returned
products without proof of purchase or those with an out-dated warranty will be
repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for
parts and labor. All repaired or replaced products will be shipped by ZyXEL to the
corresponding return address, Postage Paid. This warranty gives you specific legal
rights, and you may also have other rights that vary from country to country.

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
iv Interference Statements and Warnings
Interference Statements and
Warnings
FCC Interference Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operations.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Taiwanese BCIQ A Warning

Dimension GS-1008 Gigabit Ethernet Switch
Interference Statements and Warnings v
Certifications
Refer to the product page at www.zyxel.com.

Dimension GS-1008 Gigabit Ethernet Switch
Customer Support vii
Customer Support
If you have questions about your ZyXEL product or desire assistance, contact ZyXEL
Communications Corporation offices worldwide, in one of the following ways:
Contacting Customer Support
When you contact your customer support representative, have the following
information ready:
Product model and serial number
 Warranty information
 Date you received your product.
 Brief description of the problem and the steps you took to solve it.
METHOD
LOCATION
E-MAIL
SUPPORT/SALES
TELEPHONE/FAX WEB SITE/ FTP SITE REGULAR MAIL
[email protected]m.tw [phone] www.zyxel.com
www.europe.zyxel.com
WORLDWIDE
[e-mail] [phone] ftp.europe.zyxel.com
ZyXEL
Communications
Corp., 6 Innovation
Road II, Science-
Based Industrial
Park, Hsinchu 300,
Taiwan
[email protected]m [phone]
800-255-4101
www.zyxel.comNORTH
AMERICA
[e-mail] [phone] ftp.zyxel.com
ZyXEL
Communications
Inc., 1650 Miraloma
Avenue, Placentia,
CA 92870, U.S.A.
[email protected] [phone] www.zyxel.dkSCANDINAVIA
[e-mail] [phone] ftp.zyxel.dk
ZyXEL
Communications
A/S, Columbusvej
5, 2860 Soeborg,
Denmark
[email protected] [phone] www.zyxel.deGERMANY
[e-mail] [phone]
ZyXEL Deutschland
GmbH.
Adenauerstr. 20/A2
D-52146
Wuerselen,
Germany

Dimension GS-1008 Gigabit Ethernet Switch
Table of Contents ix
Table of Contents
Copyright ......................................................................................................................... ii
ZyXEL Limited Warranty............................................................................................... iii
Interference Statements and Warnings............................................................................ iv
Customer Support .......................................................................................................... vii
List of Figures .................................................................................................................xi
List of Tables ..................................................................................................................xi
Preface ........................................................................................................................... xii
Chapter 1 Getting to Know the GS-1008/ GS-1016...................................................... 1-1
1.1 Features ......................................................................................................... 1-1
1.2 Package Contents ..........................................................................................1-2
1.3 Backbone Switch Network Application ........................................................ 1-2
Chapter 2 Hardware Description and Installation .........................................................2-1
2.1 Desktop Installation ......................................................................................2-1
2.2 Rack-mounted Installation ............................................................................2-2
2.3 Rear Panel ..................................................................................................... 2-4
2.3.1 Rear Panel Power Connection...............................................................2-4
2.4 Front Panel .................................................................................................... 2-4
2.4.1 100/1000Mbps RJ-45 Auto-negotiating Ports....................................... 2-5
2.4.2 Auto-sensing (Auto MDI/MDIX) Ports ................................................2-5
2.4.3 Front Panel Connections .......................................................................2-5

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
x Table of Contents
2.4.4 Front Panel LEDs.................................................................................. 2-6
Chapter 3 Troubleshooting ........................................................................................... 3-1
3.1 Introduction................................................................................................... 3-1
3.1.1 PWR LED ............................................................................................. 3-1
3.1.2 LK/ACT or LNK/ACT LED................................................................. 3-1
3.1.3 100, 1000 LEDs .................................................................................... 3-2
3.1.4 FD or FDX/COL LED .......................................................................... 3-2
3.2 Improper Network Cabling and Topology.................................................... 3-2
Appendix A Product Specifications.................................................................................A
Index ................................................................................................................................C

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
List of Figures/Tables xi
List of Figures
Figure 1-1 GS-1008 ...................................................................................................... 1-1
Figure 1-2 Backbone Switch Application ..................................................................... 1-3
Figure 2-1 Attaching Rubber Feet................................................................................. 2-2
Figure 2-2 Attaching Mounting Brackets and Screws .................................................. 2-3
Figure 2-3 Mounting the Switch to an EIA Standard 19-inch Rack .............................2-3
Figure 2-4 GS-1008 Rear Panel .................................................................................... 2-4
Figure 2-5 GS-1016 Rear Panel .................................................................................... 2-4
Figure 2-6 GS-1008 Front Panel................................................................................... 2-4
Figure 2-7 GS-1016 Front Panel................................................................................... 2-5
Figure 2-8 GS-1008 LEDs ............................................................................................ 2-6
Figure 2-9 GS-1016 LEDs ............................................................................................ 2-6
List of Tables
Table 2-1 Network Cable Types ................................................................................... 2-5
Table 2-2 Front Panel LED Descriptions..................................................................... 2-7
Table 3-1 Troubleshooting PWR LED .........................................................................3-1
Table 3-2 Troubleshooting LK/ACT LED.................................................................... 3-1
Table 3-3 Troubleshooting 100, 1000 LEDs................................................................. 3-2
Table 3-4 Troubleshooting FD LED ............................................................................. 3-2
Table 3-5 Troubleshooting Improper Network Cabling and Topology ........................ 3-3

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
xii Preface
Preface
Congratulations on your purchase of the Dimension GS-1008/GS-1016 Gigabit Ethernet
Switch.
This preface introduces you to the Dimension GS-1008/GS-1016 Gigabit Ethernet
Switch and discusses the organization and conventions of this User’s Guide. It also
provides information on other related documentation.
About Gigabit Ethernet
Gigabit Ethernet is a 1Gbps (1000Mbps) extension of the IEEE 802.3 Ethernet
networking standard. Its primary applications are in corporate LANs, campus networks
and service provider networks where it can be used to tie together existing 100Mbps
Ethernet networks.
About the Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
The GS-1008/GS-1016 is designed to improve your network performance with high-
speed data transmission over copper wire. As an alternative to ATM, the GS-1008/GS-
1016 provides an ideal upgrade path for existing Ethernet-based networks that need
more bandwidth. It can be installed as a backbone network while retaining existing
investments in Ethernet hubs, switches and wiring infrastructure.
General Syntax Conventions
For brevity’s sake, we will use “e.g.” as shorthand for “for instance”, and “i.e.” as
shorthand for “that is” or “in other words” throughout this manual.
The Dimension GS-1008/GS-1016 Gigabit Ethernet Switch may be referred to as the
switch in this manual.
Related Documentation
ZyXEL Web Site
The ZyXEL download library at www.zyxel.com contains additional support
documentation and an online glossary of networking terms.

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
Getting to Know the 1-1
Chapter 1
Getting to Know the GS-1008/
GS-1016
This chapter describes the key features, benefits and applications of the GS-
1008/GS-1016.
The GS-1008/GS-1016 is designed for the campus or building environment as a high
bandwidth backbone. With the eight auto-negotiating 100/1000Base-T gigabit Ethernet
ports on the GS-1008 (16 on the GS-1016), you can connect the GS-1008/GS-1016 to
existing Ethernet routers, switches or hubs without additional expensive wiring or
equipment installation.

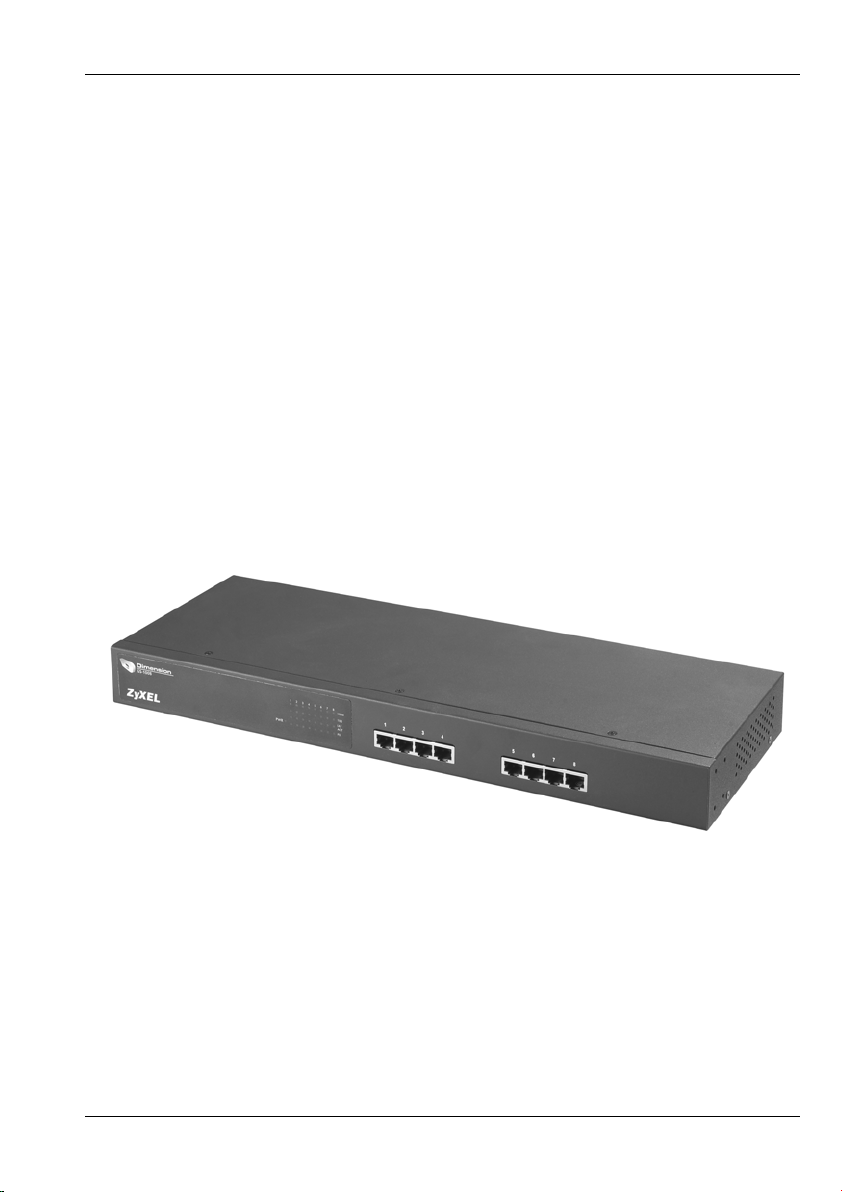

Figure 1-1 GS-1008
1.1 Features
• Conforms to IEEE 802.3, 802.3u, 802.3ab and 802.3x standards
• Eight auto-negotiating 100/1000Base-T Ethernet ports on the GS-1008

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
1-2 Getting to Know the
• 16 1000Base-T Ethernet ports on the GS-1016
• Auto-sensing (auto MDI/MDIX) for all ports
• Embedded MAC address table GS-1008: 8K entry, GS-1016: 4K entry
• Supports auto address learning
• Supports Store-and-Forward switching
• Full-duplex and half-duplex flow control
• Plug-and-Play
• LEDs for displaying real-time status
• Standard 19-inch rack mount design
1.2 Package Contents
Compare the contents of your Dimension Gigabit Ethernet switch package with the list
below. If any item is missing or damaged, please contact your local dealer.
• Dimension Gigabit Ethernet switch
• Power cord
• Four self-adhesive rubber feet
• This User’s Guide
• Rack mount kit
1.3 Backbone Switch Network Application
This section provides a sample of network topology in which the switch is used as a
high-bandwidth backbone. The switch is an ideal upgrade for 100Mbps Ethernet
networks. You can connect existing switches, hubs or computers with Gigabit
1000Base-T Ethernet adapters to the switch.
The following figure depicts a typical backbone application of the switch in an
enterprise environment. Workgroup A, Workgroup B, the standalone workstation with
gigabit Ethernet adapter and the two servers can all communicate with each other at
speed reaching 1000Mbps.

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
Getting to Know the 1-3
Figure 1-2 Backbone Switch Application

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
Hardware Description and Installation 2-1
Chapter 2
Hardware Description and
Installation
This section shows two switch installations, describes the switch hardware and
gives a functional overview of the switch.
The switch is suited to an office environment where it can be rack mounted on
standard EIA racks or as a standalone.
For proper ventilation, allow at least 4 inches (10 cm) of
clearance at the front, 3.4 inches (8 cm) at the back of the
switch. This is especially important for enclosed rack
installations.
2.1 Desktop Installation
Step 1. Set the switch upside-down on a study level space with a power outlet
nearby.
Step 2. Make sure there is enough clearance around the switch to allow air
circulation and the attachment of cables and the power cord.
Step 3. Remove the adhesive backing from the supplied rubber feet.
Step 4. Attach the rubber feet to each corner on the bottom of the switch. These
rubber feet help protect the switch from shock or vibration and ensure
space between devices when stacking.
Step 5. Turn the switch right-side up after you attach the rubber feet.

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
2-2 Hardware Description and Installation
Figure 2-1 Attaching Rubber Feet
Do not block the ventilation holes. Leave space between
switches when stacking.
2.2 Rack-mounted Installation
The switch can be mounted on an EIA standard size, 19-inch rack or in a wiring closet
with other equipment. Follow the steps below to mount your switch on a standard EIA
rack using the included rack-mounting kit.
Step 1. Align one bracket with the holes on one side of the switch and secure it
with the bracket screws. Similarly, attach the other bracket.

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
Hardware Description and Installation 2-3
Figure 2-2 Attaching Mounting Brackets and Screws
2. After attaching both mounting brackets, position the switch in the rack by lining
up the holes in the brackets with the appropriate holes on the rack. Secure the
switch to the rack with the rack’s mounting screws.
Figure 2-3 Mounting the Switch to an EIA Standard 19-inch Rack

Dimension GS-1008/GS-1016 Gigabit Ethernet Switch
2-4 Hardware Description and Installation
2.3 Rear Panel
The ventilation fan and three-pronged power receptacle are located on the rear panel
of the switch.
Figure 2-4 GS-1008 Rear Panel
Figure 2-5 GS-1016 Rear Panel
2.3.1 Rear Panel Power Connection
Connect one end of the supplied power cord to the power receptacle on the back of the
switch and the other end to the 100-240V AC, 50-60Hz power source. For the GS-
1016, push the power switch to the ON position.
2.4 Front Panel
The following graphics show the front panels of the GS-1008 and the GS-1016.
Figure 2-6 GS-1008 Front Panel
