ZyXEL Communications ES-108 - User manual

ES-108P
Ethernet Switch
User’s Guide
Version 1.0
12/2004

ES-108P User’s Guide
2
Interference Statements and Warnings
FCC Interference Statement
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operations.
FCC Warning
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
CE Mark Warning
This is a class B product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Taiwanese BCIQ A Warning Certifications
Refer to the product page
at www.zyxel.com.

ES-108P User’s Guide
3
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is
free from any defects in materials or workmanship for a period of up to
two (2) years from the date of purchase. During the warranty period and
upon proof of purchase, should the product have indications of failure due
to faulty workmanship and/or materials, ZyXEL will, at its discretion,
repair or replace the defective products or components without charge for
either parts or labor and to whatever extent it shall deem necessary to
restore the product or components to proper operating condition. Any
replacement will consist of a new or re-manufactured functionally
equivalent product of equal value, and will be solely at the discretion of
ZyXEL. This warranty shall not apply if the product is modified, misused,
tampered with, damaged by an act of God, or subjected to abnormal
working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive
remedy of the purchaser. This warranty is in lieu of all other warranties,
express or implied, including any implied warranty of merchantability or
fitness for a particular use or purpose. ZyXEL shall in no event be held
liable for indirect or consequential damages of any kind of character to the
purchaser.
To obtain the services of this warranty, contact ZyXEL's Service Center
for your Return Material Authorization number (RMA). Products must be
returned Postage Prepaid. It is recommended that the unit be insured when
shipped. Any returned products without proof of purchase or those with an
out-dated warranty will be repaired or replaced (at the discretion of
ZyXEL) and the customer will be billed for parts and labor. All repaired
or replaced products will be shipped by ZyXEL to the corresponding
return address, Postage Paid. This warranty gives you specific legal rights,
and you may also have other rights that vary from country to country.

ES-108P User’s Guide
4
Contents
ENGLISH........................................................................................5
DEUTSCH ......................................................................................8
FRANÇAIS ................................................................................... 11
ESPAÑOL ....................................................................................14
ITALIANO .....................................................................................17
中文............................................................................................... 21

ENGLISH
5
Getting to Know Your Switch
Introduction
The switch is a multi-port switch that can be used to build high-
performance switched networks. The switch is a store-and-forward device
that offers low latency for high-speed networking. The switch is designed
for SOHO (Small Office Home Office) businesses.
Standalone Workgroup Application
The switch can be used as a standalone
switch to which computers, servers and a
printer are directly connected to form a
small workgroup.
Hardware Installation
The switch is suitable for an office environment where it can be placed on
a desktop.
1. Make sure the switch is clean and dry.
2. Set the switch on a smooth, leveled and sturdy flat space strong
enough to support the weight of the switch and the connected cables.
Make sure there is a power outlet nearby.
Do not block the ventilation holes.
Rear Panel Connection
The RJ-45 ports and the power port are located on the rear panel.

ENGLISH
6
RJ-45 Auto-negotiating Ports
Your switch comes with eight 10Base-T/100Base-TX RJ-45 ports. These
ports are auto-negotiating and auto-crossover.
An auto-negotiating port can detect and adjust to the optimum Ethernet
speed (10/100Mpbs) and duplex mode (full duplex or half duplex) of the
connected device.
An auto-crossover (auto-MDI/MDI-X) port automatically works with a
straight-through or crossover Ethernet cable.
Make sure the cable length between connections does not
exceed 100 meters (328 feet).
Power
Use the supplied power cable to connect your switch to a power source.

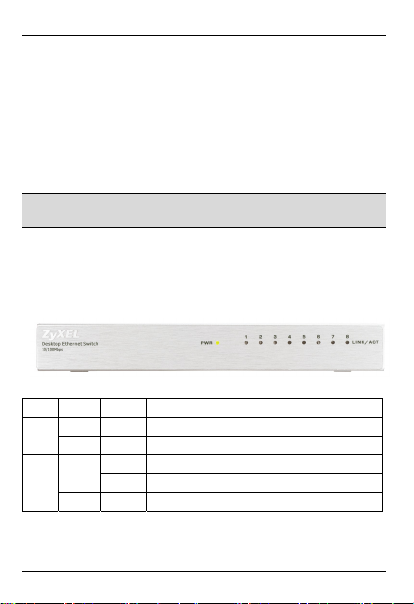

Front Panel LEDs
The following table describes the front panel LEDs.
LED COLOR STATUS DESCRIPTION
PWR Green On The switch is on and receiving power.
Off The switch is not receiving power.
Green On The port is connected to an Ethernet network.LINK/
ACT Blinking The port is receiving or transmitting data.
Off The port is not connected to an Ethernet network.

ENGLISH
7
Product Specifications
Standard
IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE802.3x Flow Control and Back-pressure
Protocol CSMA/CD
Technology Store-and-Forward switching architecture
Transfer Rate 14,880 pps for 10Mbps
148,800 pps for 100Mbps
Connector RJ-45; Auto-MDIX on all ports
MAC Address 1K Mac address table
Memory Buffer 768 Kbytes
Network Cable
(Up to 100m or
328ft)
10BASE-T: 100Ω2-pair UTP/STP Cat. 3, 4, 5
100BASE-TX: 100Ω2-pair UTP/STP Cat. 5
LED Per port: LINK/ACT
Per unit: PWR
Power Supply Internal power output 100-240 VAC 3.3V 2A
Temperature Operating: 0º C to 50º C (32º F a 122º F)
Storage: -30º C to 60º C (22º F a 140º F)
Humidity
(Non-condensing)
Operating: 10% to 90%
Storage: 20% to 95%
Dimension 194 mm (L) x 85 mm (W) x 25 mm (H)
EMI & Safety FCC Class B, CE, C-Tick

DEUTSCH
8
Lernen Sie Ihren Switch kennen
Einführung
Der Switch ist ein Multi-Port Switch für den Aufbau von Switched
Netzwerken hoher Leistung. Der Switch ist ein Speicher- und
Übermittlungsgerät mit tiefer Verzögerungsrate für High-Speed-
Netzwerke. Der Switch ist für das Kleinbüro/Heimbüro entwickelt
worden.
Standalone Workgroup Anwendung
Der Switch kann als Standalone-Switch
direkt mit Computern, Servern und
Printservern zu einer kleinen Arbeitsgruppe
verbunden werden.
Installation der Hardware
Der Switch eignet sich für Büroanwendungen und kann auf einen
Schreibtisch gestellt werden..
1. Der Switch muss sauber und trocken sein.
2. Stellen Sie den Switch auf eine weiche, ebene und stabile Fläche,
die das Gewicht des Switch und der Verbindungskabel tragen
kann. Sorgen Sie dafür, dass ein Stromanschluss in der Nähe ist.
Verdecken Sie nicht die Ventilationsöffnungen
Rückwand Anschlüsse
Die RJ-45 Ports und die Stromanschlussbuchse befinden sich auf der
Rückwand des Switchs.

DEUTSCH
9
RJ-45 Auto-Negotiating Ports
Der ES-108P enthält acht 10Base-T/100Base-TX RJ-45 Ports. Incl.
Auto-MDI/MDX, die die Verwendung von Cross-Over Kabeln
überflüssig macht.
Die Auto-Sensing Funktion erkennt und justiert die optimale
Geschwindigkeit (10/100 Mbps) und den Duplex Modus des
angeschlossenen Netzwerk Gerätes automatisch. Dies erleichtert die
Installation des Switches erheblich.
Vergewissern Sie sich, dass die Kabellängen wischen den
Verbindungen nicht mehr als 100 Meter betragen.
Stromanschluss
Verwenden Sie den mitgelieferten Stromadapter, um den Switch mit
dem Stromnetz zu verbinden. Zusätzliche Information finden Sie auf
der Etikette des Stromadapters.
Frontplatten-LEDs
Die LEDs an der Frontplatte zeigen den Echtzeit-Staus des Switchs
an.

DEUTSCH
10
LED FARBE STATUS BESCHREIBUNG
PWR Grün An Der Switch ist am Strom angeschlossen und
eingeschaltet
Aus Der Switch ist nicht am Strom angeschlossen.
LINK/ACT Grün An Der Port ist mit dem Ethernet-Netzwerk verbunden.
Aus Der Port ist nicht mit dem Ethernet-Netzwerk
verbunden.
Blinkend Der Port empfängt/sendet Daten.
Produktspezifikationen
Standard
IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE802.3x Flow Control und Back-pressure
Protokoll CSMA/CD
Technologie Store-and-Forward switching-Architektur
Transferrate 14.880 pps bei 10 Mbps
148.800 pps bei 100 Mbps
Anschluss RJ-45; Auto-MDIX an allen Ports
MAC-Adresse 1K Mac-Adresstabelle
Speicherpuffer 768 Kbytes
Netzwerkkabel
(bis 100 m)
10BASE-T: 100 Ω2-adrig UTP / STP Cat. 3, 4, 5
100BASE-TX: 100 Ω2-adrig UTP / STP Cat. 5
LED Pro Port: LINK/ACT
Pro Gerät: PWR
Stromversorgung 100-240 VAC 3.3V 2A
Betriebstemperatur 0 °C bis 50 °C (32º F bis 122º F)
Lagertemperatur -30º C to 60º C (22º F a 140º F)
Betriebsluftfeuchtigkeit 10 % bis 90 % (nicht kondensierend)
Lagerfeuchtigkeit 20% to 95% (nicht kondensierend)
Abmessungen 194 x 85 x 25 mm (L x B x H)
EMI & Sicherheit FCC Class B, CE, C-Tick

FRANÇAIS
11
Prise en main de votre switch
Introduction
Ce Switch multi port est utilisé pour augmenter les performances du
réseau. Le switch a un dispositif d’enregistrement des transferts qui
permet des temps de réponses faibles pour les réseaux à grandes
vitesses. Ce switch est destiné aux SOHO (Small Office Home
Office).
Application pour groupe de travail
autonome
Le Switch est utilisé pour connecter des
stations de travail, des serveurs, et des
serveurs d’impression entre eux pour
former un groupe de travail.
Installation
Le switch est approprié pour un environnement de bureau, il peut être
posé sur un bureau ou une étagère.
1. Installez le switch sur un endroit propre et sec..
2. Placez le switch sur un endroit suffisamment solide pour
supporter le poids du Switch et des câbles connectés. Assurez-
vous qu’il y ait une prise électrique à proximité.
NE PAS OBSTRUER LES GRILLES DE
VENTILATION

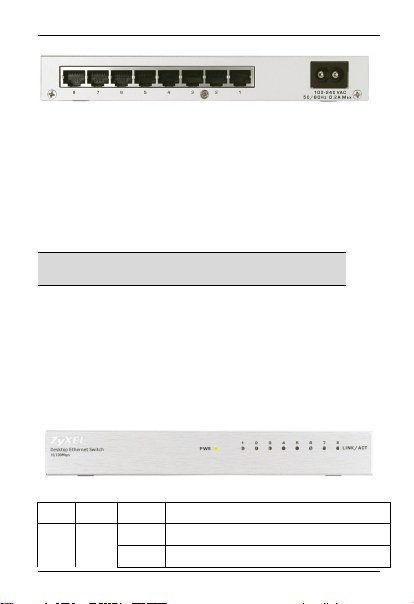

Connexion du panneau arrière
Les ports RJ-45 et le connecteur “Power” se trouvent sur la face
arrière du switch.

FRANÇAIS
12
Ports RJ-45 à négociation automatique
Votre switch est équipé de huit ports RJ-45 10Base-T/100Base-TX.
Ces ports sont à négociation et croisement automatiques.
Un port à négociation automatique peut détecter et ajuster sa vitesse à
la vitesse Ethernet optimale (10/100Mbps) et au mode duplex (full
duplex ou half duplex) de l'appareil connecté.
Un port auto-crossover ou à croisement automatique (auto
MDI/MDI-X) fonctionne automatiquement avec un câble Ehternet
droit ou un câble croisé.
ASSUREZ VOUS QUE LA LONGUEUR DES
CABLES N’EXCEDE PAS 100 METRES
Connexion de l'alimentation
Utilisez le transformateur fourni pour relier votre switch au réseau
électrique.
Voyants DEL du panneau avant
Les voyants DEL sur le panneau avant indiquent l'état en temps réel
du commutateur.
LED COULEUR ETAT DESCRIPTION
PWR Verte On Le switch est démarré et correctement
alimenté
Off Le switch est éteint ou n’est pas
alimenté

FRANÇAIS
13
LED COULEUR ETAT DESCRIPTION
LINK/
ACT
Verte On Le port est connecté au réseau
Ethernet
Off Le port n’est pas connecté au réseau
Ethernet
Clignotant Le port reçoit ou transmet des données
Spécifications du produit
Norme
IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Flow Control and Back-pressure
Protocole CSMA/CD
Technologie Architecture de commutation stockage et
retransmission
Taux de transfert 14,880 pps pour 10Mbps
148,800 pps pour 100Mbps
Connecteur RJ-45 ; Auto-MDIX sur tous les ports
Adresse MAC Table d'adresses 1K Mac
Tampon mémoire 768 Kbytes
Câble réseau
(Jusqu'à 100m ou
328 pieds)
10BASE-T : 100Ω2-paires UTP/STP Cat. 3, 4, 5
100BASE-TX : 100Ω2-paires UTP/STP Cat. 5
Voyant DEL Par port: LINK/ACT
Par unité: PWR
Alimentation
électrique Alimentation interne 100-240 VAC 3.3V 2A
Température De fonctionnement: 0º C to 50º C (32º F a 122º F)
De stockage: -30º C to 60º C (22º F a 140º F)
Humidité (Sans
condensation)
En fonctionnement10% to 90%
En stockage: 20% to 95%
Dimensions 194 x 85 x 25 mm (Long x Larg x Haut)
EMI & Sécurité FCC Class B, CE, C-Tick

ESPAÑOL
14
Familiarización con el Switch
El switch es un conmutador multi puerto que se puede usar para
construir redes conmutadas de alto rendimiento. El switch es un
dispositivo store-and-forward que ofrece una baja latencia para redes
de alta velocidad. El switch está diseñado para empresas SOHO
(Small Office Home Office).
Aplicaciones para un solo grupo de
trabajo
El switch puede usarse para un solo grupo de
trabajo, al cual se conectan directamente
estaciones de trabajo, servidores y servidores
de impresión.
Instalación del Hardware
El switch está indicado para entornos de oficina, donde puedan
conectarse los PCs.
Instalación de sobremesa
1. Asegúrese de que el switch está limpio y seco.
2. Coloque el switch en un espacio liso, nivelado y firme, lo
suficientemente fuerto como para aguantar el peso del switch y
los cables que conecte. Asegúrese de que tiene una toma de
corriente no muy lejos.
No obstaculice los agujeros de ventilación.
Conexiones del panel trasero
Los puertos RJ-45 y el de alimentación están localizados en el panel
trasero del switch.

ESPAÑOL
15
Autonegociación en puertos RJ-45
El switch dispone de ocho puertos RJ-45 10Base-T/100Base-TX.
Estos puertos soportan tanto autonegociación como auto-crossover.
Un puerto con autonegociación puede detectar y ajustarse a la
velocidad Ethernet (10/100Mbps) y al modo de transferencia (full
dúplex o half dúplex) del dispositivo conectado. Un puerto con
soporte de auto-crossover (auto-MDI/MDI-X) va a funcionar
correctamente tanto con un cable Ethernet recto como cruzado.
Asegúrese de que la longitud de sus cables no
supera los 100 metros entre sus dos extremos.
Conexión de alimentación
Use el adaptador de corriente sumnistrado para conectar su switch a
la toma de corriente.
LEDs de Panel Frontal
Los LEDs del panel frontal indican el estado del switch en tiempo
real.
LED COLOR ESTADO DESCRIPCIÓN
PWR Verde On El switch está encendido y recibiendo alimentación.
Off El switch no recibe alimentación.

ESPAÑOL
16
LED COLOR ESTADO DESCRIPCIÓN
LK/ACT Verde On El puerto está conectado a la red Ethernet.
Off El puerto no está conectado a la red Ethernet.
Parpadea El puerto está recibiendo o enviando datos.
Especificaciones de producto
Estándar
IEEE 802.3 10BASE-T Ethernet,
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Control de flujo y presión posterior
Protocolo CSMA/CD
Tecnología Arquitectura Store-and-Forward
Velocidad de
transferencia
14,880 pps para 10Mbps
148,800 pps para 100Mbps
Conector RJ-45 ; Auto-MDIX en todos los puertos
Dirección MAC Tabla de direcciones Mac de 1K
Búfer de memoria 768 Kbytes
Cable de red
(Hasta 100m o 328ft)
10BASE-T: 100Ω2 pares UTP/STP. 3, 4, 5
100BASE-TX: 100Ω2 pares UTP/STP. 5
LED Por puerto: LINK/ACT
Por unidad: PWR
Fuente de
alimentación AC100-240V 3.3V 2A
Temperatura de funcionamiento: 0ºC a 50ºC (32ºF a 122ºF)
de almacenamiento: -30º C to 60º C (22º F a 140º F)
Humedad de funcionamiento: 10% a 90% (Sin condensación)
de almacenamiento: 20% to 95%
Dimensiones 194 x 85 x 25 mm (L x A x H)
EMI y Seguridad FCC Class B, CE, C-Tick

ITALIANO
17
Informazioni sullo Switch
Introduzione
ES-108P sono switch a 8 porte sviluppati per realizzare reti ad alte
performance. Si tratta di periferiche store and forward che offrono
uno scambio dati molto veloce con un tempo di ritardo minimo. Sono
switch pensati per configurazioni in ambiente SOHO (Small Office
Home Office).
Applicazioni per Workgroup
Lo Switch può essere usato come
concentratore fra computer, server e
print server connessi fra loro e facenti
quindi parte di una piccola rete.
Hardware Installazione
Le dimensioni dello switch lo rendono adatto all’installazione in
ambienti domestici o in uffici.
1. Assicurarsi che sullo switch non vi siano tracce d’umidità.
2. Posizionare lo switch su uno spazio piano regolare, livellato e
robusto, abbastanza solido da sostenere il peso dello switch
stesso e dei cavi collegati. Assicurarsi che ci sia una presa di
corrente nelle vicinanze.
Non ostruire i fori per la ventilazione.
Connessioni del pannello posteriore
Le porte RJ-45 e la porta dell’alimentazione sono situate sul pannello
posteriore dello switch.

ITALIANO
18
Porte Auto-negozianti RJ-45
Il vostro switch è fornito di otto porte RJ-45 10Base-T/100Base-TX.
Tutte le porte sono auto-negozianti e auto-crossover.
Una porta auto-negoziante permette di rilevare sia la velocità
ottimale in standard Ethernet (10/100Mbps), sia la modalità duplex
(full duplex o half duplex) del dispositivo collegato alla porta stessa.
Una porta auto-crossover (autoMDI/MDI-X) permette il
collegamento dei dispositivi sia con cavi Ethernet dritti (straight) che
incrociati (crossover).
Collegamento dell’alimentazione
Usare l’ alimentatore fornito per connettere lo switch alla presa di
corrente.
Assicurarsi che la lunghezza del cavo fra le connessioni
non superi i 100 metri.
LED del pannello frontale
LED COLORE STATO DESCRIZIONE
PWR Verde On Lo switch è acceso e alimentato.
Off Lo switch non è alimentato.

ITALIANO
19
LED COLORE STATO DESCRIZIONE
LINK/
ACT
Verde On La porta è collegata ad una rete
Ethernet.
Off La porta non è collegata ad una rete
Ethernet.
Lampeggiante La porta sta ricevendo o trasmettendo
dati.
Specifiche del prodotto
Standard
Ethernet 10BASE-T IEEE 802.3
Fast Ethernet IEEE 802.3u 100BASE-TX
Controllo del flusso e della congestione IEEE 802.3x
Protocollo CSMA/CD
Tecnologia Architettura di commutazione a memorizzazione e
ritrasmissione
Velocità di
trasferimento
14.880 pps per 10Mbps
148.800 pps per 100Mbps
Connettore RJ-45; Auto-MDIX su tutte le porte
Indirizzo MAC Tavola indirizzo Mac 1K
Buffer di memoria 768 Kbytes
Cavo di rete (fino
a 100m o 328
piedi)
10BASE-T: 100Ω2 coppie UTP/STP; categoria 3, 4,
5
100BASE-TX: 100Ω2 coppie UTP/STP; categoria 5
LED Per le porte: LINK/ACT
Per l’unità: PWR
Alimentazione 100-240 VAC 3.3V 2A
Temperatura Operativa: da 0º C to 50º C (da 32º F a 122º F)
Stoccaggio: da -30º C to 60º C (da 22º F a 140º F)

ITALIANO
20
Umidità (senza
condensa)
Operativa: dal 10% al 90%
Stoccaggio:: dal 20% to 95%
Dimensioni 194 x 85 x 25 mm (larghezza x profondità x altezza)
EMI e Sicurezza FCC Class B, CE, C-Tick
