10Bar Underwater Housing User manual

1

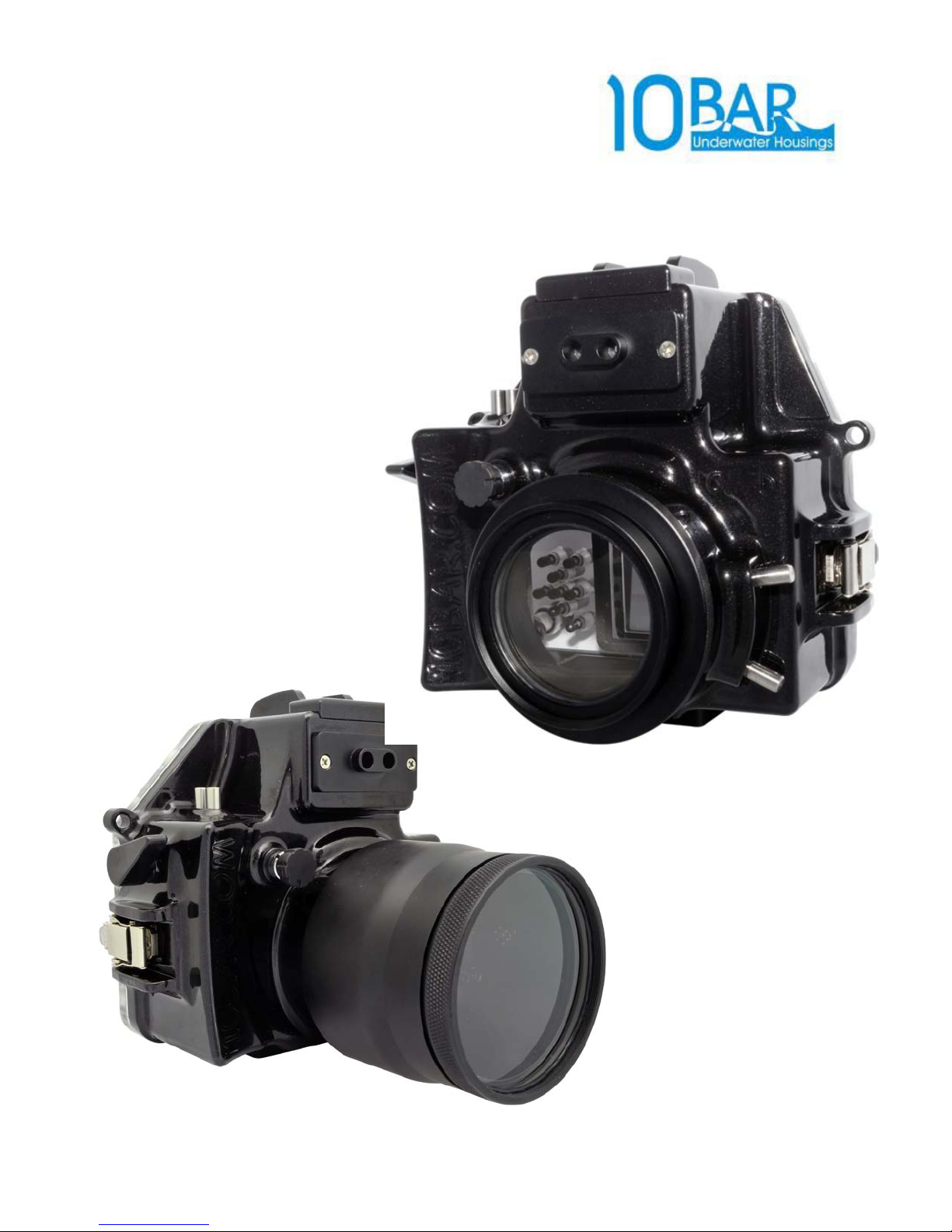

Underwater Housing for Olympus OM-D E-M5
User Manual

2
Table of Contents
1. Introduction
2. Specifications
3. Function Controls
4. Set-up Instructions
5. Use & Care of Housing
6. Service
7. Warranty
1.Introduction
Our housing for the popular Olympus OM-D E-M5 is machined from a solid block of marine grade
aluminum, anodized and finally three coats of paints are applied to protect it from the corrosive
environment that the housing will be used in. The housing is equipped with control buttons accessing all
camera functions, a fibre optics cable connector for external flash and interchangeable ports for different
lenses. The clear acrylic back cover allows checking on the camera much easier. For closure, the double
O-ring and stainless steel locking latch design provide ease of use and added security. An extensive line of
accessories like arms, filters and fibre optics cable is also available from 10Bar. Our housing for the OMD
extends the camera’s outstanding performance from land to beneath the sea.

3
2. Specifications
Tested Pressure
Housings Individually Tested to 10 Bar (90 m / 300 ft.)
Recommended Working Pressure : 60 m
Closure Design Double O-ring, Stainless Steel Locking Latch
Body Material 6061 Aluminum, Acrylic
Overall Size 185 x 172 x 165mm (L x W x H) with 12-50mm Lens Port.
180 x 172 x 165mm (L x W x H) with 60mm Lens Port.
121 x 172 x 165mm (L x W x H) with 14/20mm Lens Port.
Total Weight Approximately 1.90kg (Housing with 12-50mm Lens Port)
Approximately 1.60kg (Housing with 60mm Lens Port)
Approximately 1.55kg (Housing with 14/20mm Lens Port)
Buoyancy (with Camera) Slightly Negative in Salt Water
What’s in The Box Spare Main O-rings + O-ring Removal Tool
Silicone O-ring Grease
Universal Housing Opening Key
Padded Carrying Bag
Nylon Lanyard
Optional Accessories Port for 7-14, 9-18, 12-50, 14-42, 14-42 II, 14-42IIR, 14-45 Zoom Lens
Port Conversion Kit for 60mm Macro Lens
Dome Port for 8mm Wide Angle Lens
Flat Port for 14/20mm Lens
Red Filter for 9-18, 12-50, 14-42, 14-42 II, 14-42IIR, 14-45 Zoom Lens Port
Red Filter for 14/20/60mm Macro Lens Port
Extension Rings
Extension Arm for Strobe or Video Light

4
3. Function Controls
Function Control Buttons
(1) Shutter
(2) Movie
(3) Fn2
(4) Sub Dial
(5) Focus Control
(6) Zoom Control
(7) L-Fn
(8) Macro
(9) Mode Dial
(10) Main Dial
(11) LV
(12) Playback
(13) Fn1
(14) Menu
(15) Info
(16) Up
(17) Left
(18) OK
(19) Right
(20) Erase
(21) Down
(22) Power On/Off
(D1) Zoom Control
(D2) Focus Control

5
Control Buttons Details
1. Shutter
Press down to activate the shutter.
2. Movie
Press to start or stop recording video.
3. Fn2
Press to activate.
4. Sub Dial
Turn to rotate Sub Dial.
5. Focus Control
Press and turn to manually adjust the focus.
6. Zoom Control
Press and turn to manually adjust the zoom.
7. L-Fn
Press to activate the L-Fn function on the Olympus 12-50 mm lens
8. Macro
Press to activate the Macro function on Olympus 12-50 mm lens.
9. Mode Dial
Turn to rotate the Mode Dial.
10.Main Dial
Turn to rotate the Main Dial.
11.LV
Press to activate the LV button.
12.Playback
Press to activate.
13.Fn1
Press to activate.
14.Menu
Press to display the menus.
15.Info
Press to activate the Info button.
16.Up
Press to activate.
17.Left
Press to activate.
18.OK
Press to activate the OK button.
19.Right
Press to activate.
20.Erase
Press to delete an image.
21.Down
Press to activate.
22.Power On / Off
•Press to power on or off.
•Turn the Power On/Off button so that the white dot is lined up with the “Off” marking on the camera
when installing the acrylic back cover onto the housing.
D1. Zoom Control
Press and turn to manually adjust the zoom.
D2. Focus Control
Press and turn to manually adjust the focus.
Please consult the Olympus OM-D EM-5 camera instruction manual for details of camera
functions and settings accessed by each control button.

6
4.Set-up Instructions
Special Note on Responsibility for Watertight Integrity
Each housing is individually inspected and hydrostatically tested in the factory. However, the
responsibility for ensuring the integrity of the watertight seal lies entirely with the user. 10Bar accepts no
liability for damage to, or loss of any equipment used with, or placed inside the housing. It is highly
recommended that an in-water test of the housing without the camera be carried out before the first dive,
after changing ports or alteration of housing configuration. This simple test can be done by lowering the
housing with ballast to the expected diving depth and then retrieved to check for leaks.
Stainless Steel Locking Latch
•The clear acrylic lid is secured to the housing by three Stainless Steel Locking Latches.
•Locking Latches are simple, yet extremely secure mechanisms for locking down the housing lid.

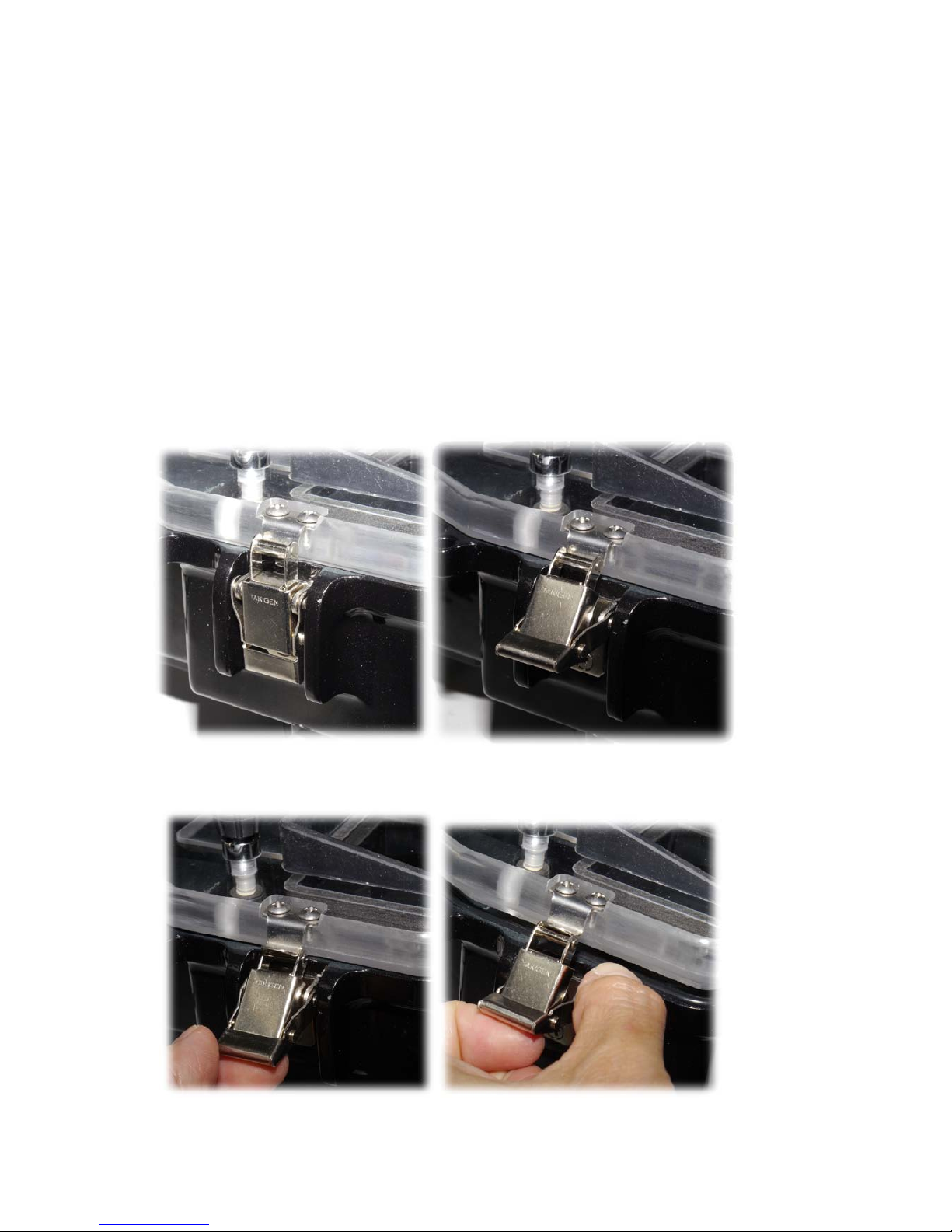

Opening the Lid
Open the lid as illustrated below.
12
Latch in Locked Position Lift Tab at End of Lever Out and Up to Unlock
3 4
Align the Catch Under the Hook Lift Tab at End of Lever to Push the Hook and Lid Up

7
Mounting Gear Rings on the Lens for Manual Focus and Zoom
•Gear rings have to be installed in order to manually turn the zoom and focus rings on the lens.
•Due to the lens mount design on the OM-D 5, our standard port M77 x 100DZ cannot support manual
focus or zoom function for the following lenses:
Olympus M. ZUIKO 14-42 f/3.5-5/6 II Lens
Olympus M. ZUIKO 14-42 f/3.5-5/6 II R Lens
Olympus M. ZUIKO 14-42 f/3.5-5/6 Lens
Panasonic LUMIX G VARIO 7-14 f/4.0 ASPH Lens.
Panasonic LUMIX G VARIO 14-42 f/3.5-5.6 POWER ZOOM O.I.S.Lens
Olympus M. ZUIKO Digital ED 9-18mm f/4.0-5.6 Lens
•Slide the Focus Gear Ring onto the lens from the direction as shown by the red arrows below.
•Use Focus Control Button (D2) on the housing to manually adjust the focus.
Panasonic LUMIX G VARIO 14-45 f/3.5-5.6 ASPH MEGA O.I.S.Lens
•Slide the Zoom Gear Ring onto the lens from the direction as shown by the red arrows below.
•Use Zoom Control Button (6/D1) on the housing to manually adjust the zoom.

8
Panasonic LUMIX G VARIO 14-42 f/3.5-5.6 ASPH MEGA O.I.S.Lens
•Slide the Zoom and Focus Gear Rings onto the lens from the direction as shown by the red arrows below.
•Use Zoom Control Button (5/D2) on the housing to manually adjust the zoom.
•Use Focus Control Button (6/D1) on the housing to manually adjust the focus.
Olympus 12-50mm f/3.5-6.3 EZ ED MSC Lens
•Slide the Zoom and Focus Gear Rings onto the lens from the direction as shown by the red arrows below.
•Use Zoom Control Button (6) on the housing to manually adjust the zoom.
•Use Focus Control Button (5) on the housing to manually adjust the focus.

9

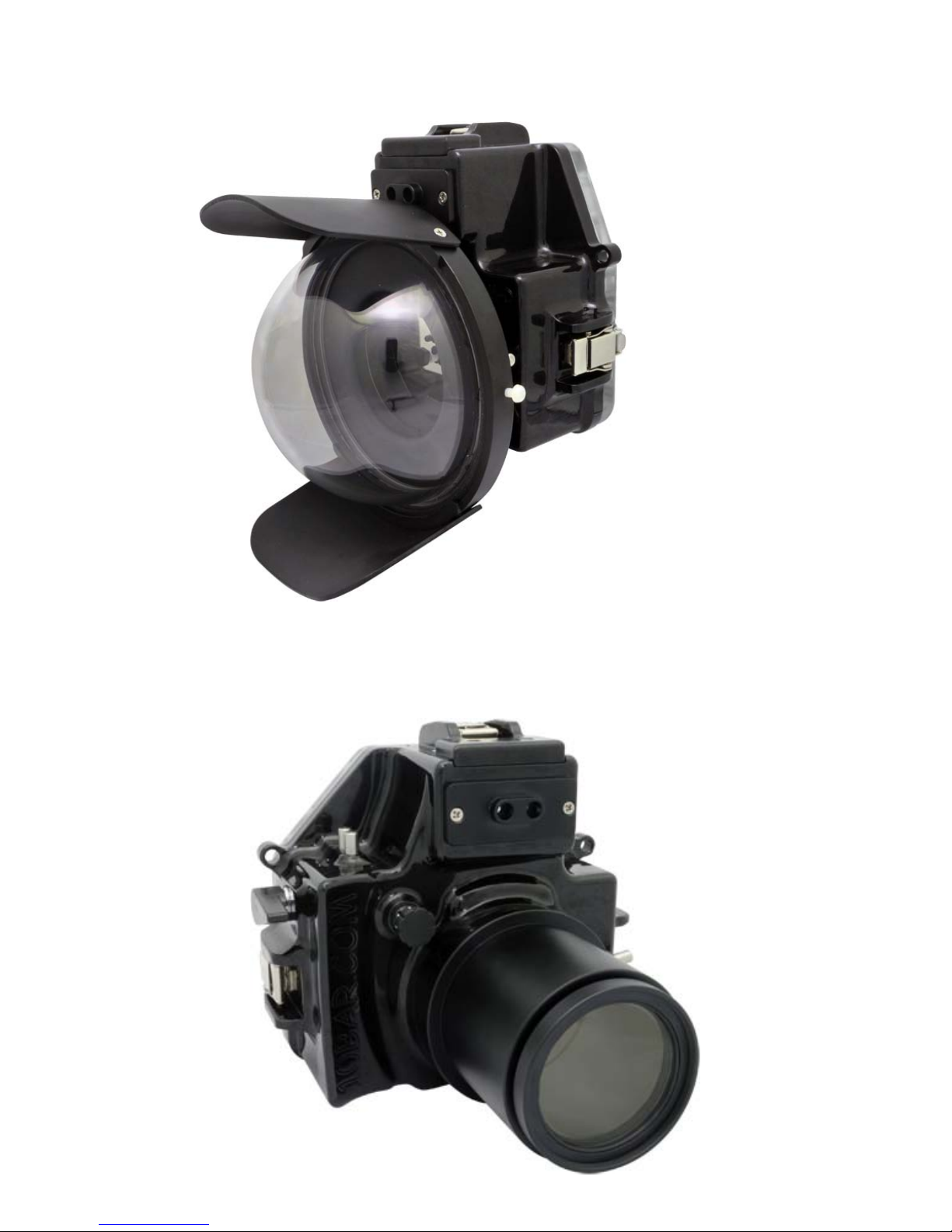

Dome Port for 8mm Wide Angle Lens
60mm Macro Lens with Port Conversion Kit

10

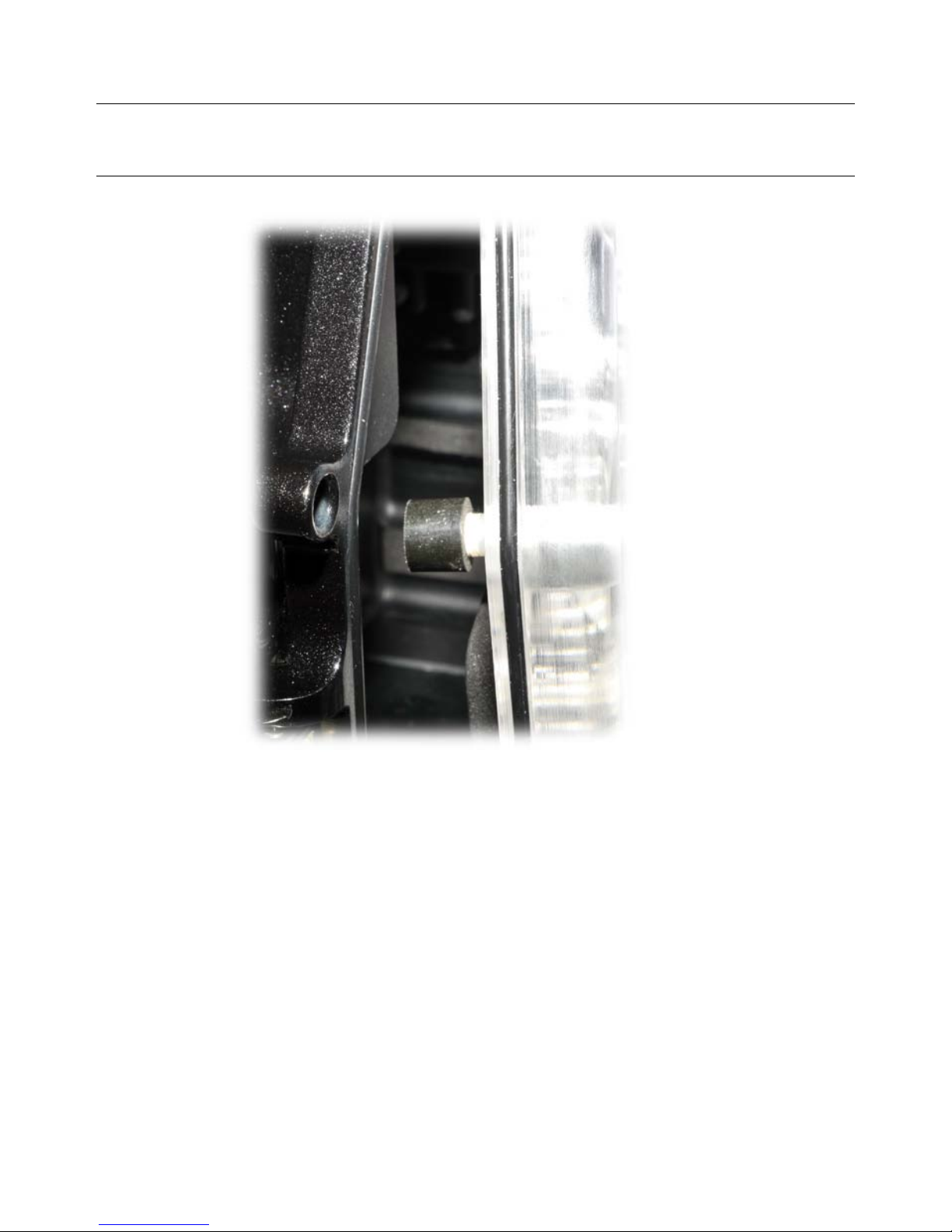

Replacing the Lid
•When replacing the lid, please make sure the latch is properly locked as illustrated below.
•After locking the lid, make a final visual inspection of the main O-ring for contamination.
Note: If the O-ring has formed a good seal, a continuous thin black line, about 0.5 to 1mm in
width should be visible where the O-ring is in contact with the lid. Follow this line all the way
round the lid as a final check that the seal is good.
