iSpringReverseOsmosisWaterFiltration
Systems


INSTALLATIONINSTRUCTIONS
&OWNER’SMANUALVer201606





Copyright©20052016ISPRINGWATERSYSTEMS,LLC.Allrightsreserved. 

ThankyouforchoosingtheiSpringReverseOsmosisWaterFiltrationSystem!
Builtfromqualitycomponentsanddeliveringexceptionalperformance,ithasearnedtheWQAGOLD
SEALcertificationagainstNSF/ANSISTANDARD58forperformanceandmaterialsafety.Pleasereview
theattachediSpringROSystemsWQAGoldSealCertificationfordetails.




Pleasekeepthisowner’smanualforfuturereference.
Itincludesthenecessaryinformationonhowtoproperlyinstall,operate,and
maintainyouriSpringReverseOsmosiswaterfiltrationsystem.

 
Page1www.123filter.com|(678)2617611|[email protected] 

TABLEOFCONTENTS

PriortoInstallation Page4
Inspectthepackage 
Recommendedtoolslist 
Operatingconditions
ComponentsIdentification
HowtousetheQuickConnectfittings
Howtoconnectthecompressionfitting
Howtodrilla½”holeinyoursinkorcountertop
InstallationSteps Page9
Step1:InstallingtheFeedWaterAdapter(AFW)
Step2:InstallingtheRO
Step3:InstallingtheDrainSaddle
Step4:InstallingtheVerticalFilters:Stages1,2,and3
Step5:InstallingtheTankShutoffValve(TSV)
Step6:InstallingtheReverseOsmosisMembrane
Step7:TubingHookUp(modelspecificsubstepsaremarkedwith*)
Step8:SystemStartUp(modelspecificsubstepsaremarkedwitha*)
ISPRINGROSYSTEMMAINTENANCE Page17
Stage1–3PreFilters

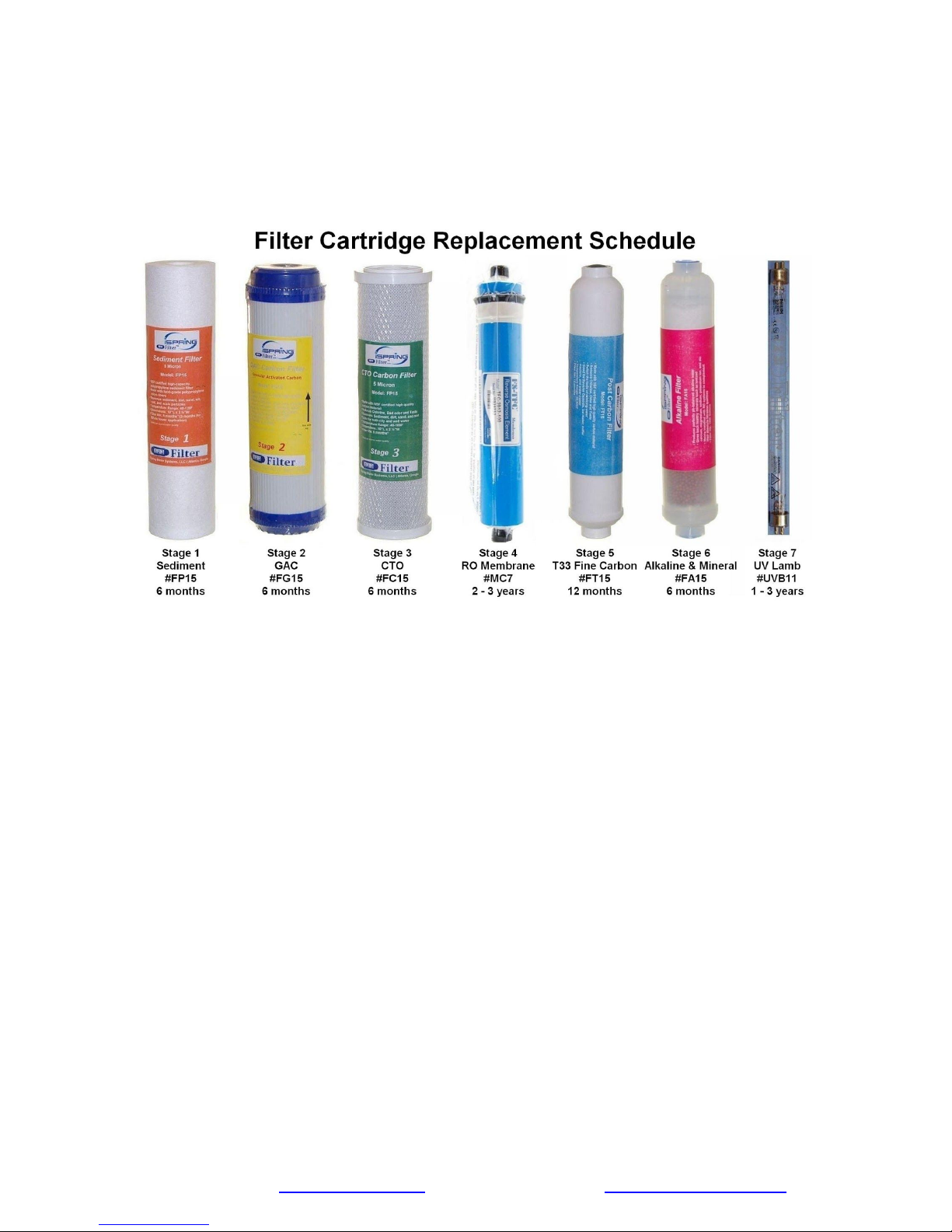

Stage4ROMembrane:Replaceevery2–3years
Stage5FT15InlinePostCarbonFilterandStage6InlineAlkalineFilter
UVFilter(UVF11A)
IceMakerKit(ICEK)
Section1:KnowledgeBase Page20
WhatIsReverseOsmosis?
HowEffectiveIsReverseOsmosisFiltration?
Whatarethespecificcontaminantsthatareverseosmosissystemremoves?
DoesReverseOsmosisremovepharmaceuticalsfromwater?
WillareverseosmosiswatersystemtasteasgoodasthewaterIpay$5.00abottlefor?
Ihaveheardthatreverseosmosiswastesalotofwater!
WhatisanAlkalineFilter?
WhatisaDIfilter?
WhatisaUVfilter?
WhatisaTDSmeter?
Maximumdistancefromtanktofaucet
WhatisanASOVandwhatdoesitdo?
DoestheUVfilterrun24/7?WillthewateroutofUVfilterbehot?
HowdoesyourRCS5TtanklessROsystemcomparetotheGEMerlin700GPDsystem?
Section2:TroubleshootingGuide Page24
Leakingfromwherethetubingispushedintothequickconnectfitting
Leakingaroundfilterhousing(Oringistoosmallorisnotinplace)
LowwaterpressureattheROfaucetoroutputlocation
LittlewaterfromtheROfaucet
ContinuousDrain
HighTDSlevelinROwater
TastesandOdorsinProductWater
FaucetLeaksorDrips
CloudyWaterandIceCubes
Afterinstallation,thewateroutoftheROfaucetisonlyatrickle
SuddendropinROwaterproduction
Page2www.123filter.com|(678)2617611|[email protected] 


PriortoInstallation

Inspectthepackage
Opentheboxandremoveallofthecomponents.Inspectthemtoensurenothingwasdamagedduringshipping.If
anypartiscrackedorbroken,pleaseimmediatelycontactiSpringCustomerSupportforreplacement.Identifyand
getfamiliarwiththecomponents.
Recommendedtoolslist
● Variablespeeddrillwithtwobits:¼”(fordrillingaholeonPVCdrainpipe),½”hollowdiamond(fordrilling
aholeoncountertopfordrinkingfaucet)
● 5/8”,9/16”openendwrench,oradjustablewrench,pliers
● Phillipsheadscrewdriver
● Scissorsorutilityknife
Operatingconditions
● Maximumwaterpressure:80psi,otherwiseapressureregulator(partno.APR70)isrequiredtolowerthe
psitoanadequatelevel.
● Minimumwaterpressure:45psi,otherwiseaboosterpumpisnecessarytoraisetheincomingwater
pressureandimprovetheROefficiency.
● Operatingwatertemperature:40–100°F(437°C)(ThisROsystemisNOTdesignedforHOTwater)
● MaximumTDS:750ppm
● InstallthisROsysteminalocationwhereitissafefromhot/coldweatheranddirectsunlight.Avoidhitting,
dropping,ordraggingthesystemasthiscancausecracksandleaks.

Page3www.123filter.com|(678)2617611|[email protected] 

Component  s  Identification


ROMachineHead*(membrane
notyetinstalled)

3PreFilterHousingsand
Cartridges

StorageTank

ROfaucetwithinstallationkit


FeedWaterAdapter(AFW)


4ColorTubingSet

DrainSaddle¼”

TankValve

HousingWrenches

TeflonTape
SpareORingsandFittings
(Realpackagequantitymay
vary) 


WaterDetector(optional)

*Ifyoursystemisa6stageor7stagesystemwithanAlkaline,DI,and/orUVfilter,the6
th
and7
th
stagearealreadypreinstalledonthemachinehead.TheUVfilteristypicallythefinalstageforallRO
UVsystems,butcanbemovedinfrontofthe1
st
stageifneeded.

Page4www.123filter.com|(678)2617611|[email protected] 

InstallationTips
HowtousetheQuickConnectfittings

Figure1
Toconnect:
1. SeeFigure1.Checkandcutthetubingendsquarelyandcleanlywithutilityknifeorscissors.
2. Makea½”markattheendofthetubesoyouwillbeabletoconfirmwhenthetubeisinserted
fullyintothefitting.
3. Removethebluelockclipfromthefittingwithyournail.Ifthelocksleevepopsoutofthe
fittingwhendoingthis,simplypopitbackin.
4. Insertthetubeintothefittinguntilyoureachthe½”markonthetube.Youwillfeelresistance
whenthetubereachesthesmallrubberOringinsidethefitting.Youwillneedtowigglethe
tubeandapplyadditionalpressuretogetitpastthisOringandcreatetheseal.Ifthetubeisnot
½”intothefittingandpasttheOring,nosealwillbecreatedandleakingwilloccur.
5. Oncethetubeisfullyinsertedintothefitting,popthebluelockclipbackonthefitting.This
willlockthetubeinplaceandpreventitfrommoving.


Figure2


Figure3
Page5www.123filter.com|(678)2617611|[email protected] 


Todisconnect:
1. SeeFigures2and3.Removethebluelockclipfromthefitting.
2. Withthebluelockclipremoved,useyourthumbandindexfingertoholddownthelock
sleeve.Thiswillreleasethemetalteethholdingthetubeinplace.Whileholdingthelocksleeve
downwiththathand,useyourotherhandtoremovethetubefromthefitting.

Howtoconnectthecompressionfitting
AcompressionfittingisusedtoconnectthePVCtubingtothethreadedmetalinletwithataperedopen
end,suchastherefrigeratorwaterinlet,drinkingfaucetwaterinlet,etc.

Figure4


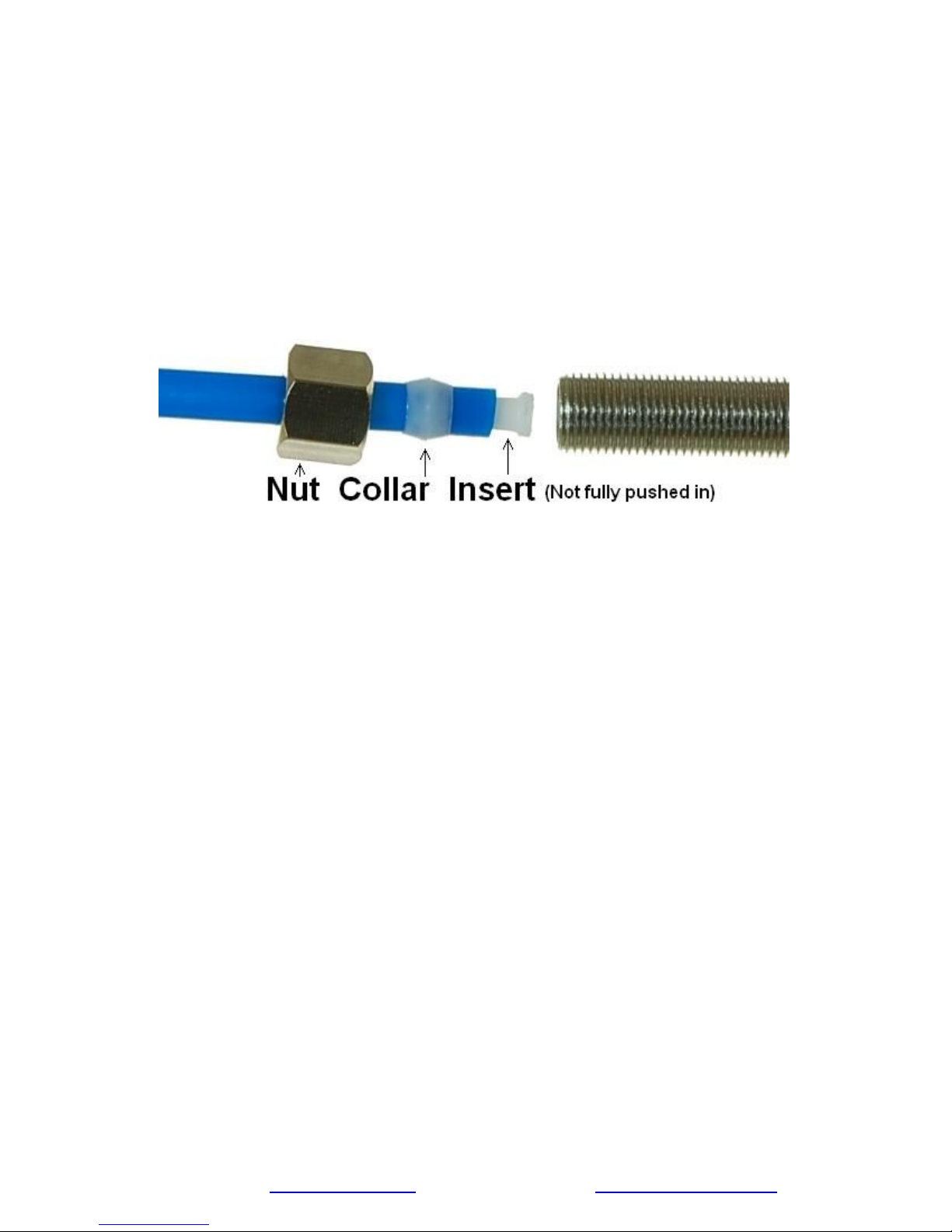

1. Slidethebrassnutandtubecollarontothetube.
2. Fullyinsertthetubeinsertintotheendofthetube.
3. Slidethetubecollartowardsthetubeinsertuntilitstops.
4. Insertthetubeintothetapered,openendofthethreadedmetalinletasshowninthepicture.
5. Screwonthebrassnutandtightenitup.Thebrassnutcompressestheplastictubecollaronto
thetaperedmetalsurfaceandcreatesawatersealbetweenthemwhilethetubeinsertstiffens
thetubing.
Howtodrilla½”holeinyoursinkorcountertop
1. It’shighlyrecommendedtowatchtheYouTubevideo“HowToDrillFaucetHoles”togeta
betterunderstandingoftheprocess.Dependingonwhatkindofcountertopyouhave,youmay
wanttohireanexperiencedprofessionaltoensuretheholeisdrilledcorrectly.
2. ChooseahalfinchDiamondCoreBitforgranite,andatitaniumdrillbitforsteel.DoNOTuse
ahammerdrillonnaturestone,glass,andceramic.
3. Anindentshouldbemadewithapunchonsteelbeforedrillingtohelpguidethebit.
4. UsecautionwhendrillingonaPorcelainsink,asitcouldbeeasilychipped.Setdrillspeedon
slow.Pressthebitdownwardfirmlyuntilbreakingthroughtheslipperysurface.
5. Usecoolanttodisperseheat.Choosewaterforgranite,andoilforsteel.UsetheWaterSuction
Cuptoholdcoolantinsideandpreventthedrillbitfromslipping.
6. Startingatslowestspeed,holdthedrillfirmlyandverticallyandpreventthedrillbitfrom
slippingonthecounter.
7. Oncebreakingthroughthesmoothsurface,swirlthedrillalittletoapplypressureinacircle
evenly.
8. Bepatientanddeliberate.Itcantake20–40minutestodrillthroughoneinch.




Page6www.123filter.com|(678)2617611|[email protected] 



SampleInstallation

Figure5

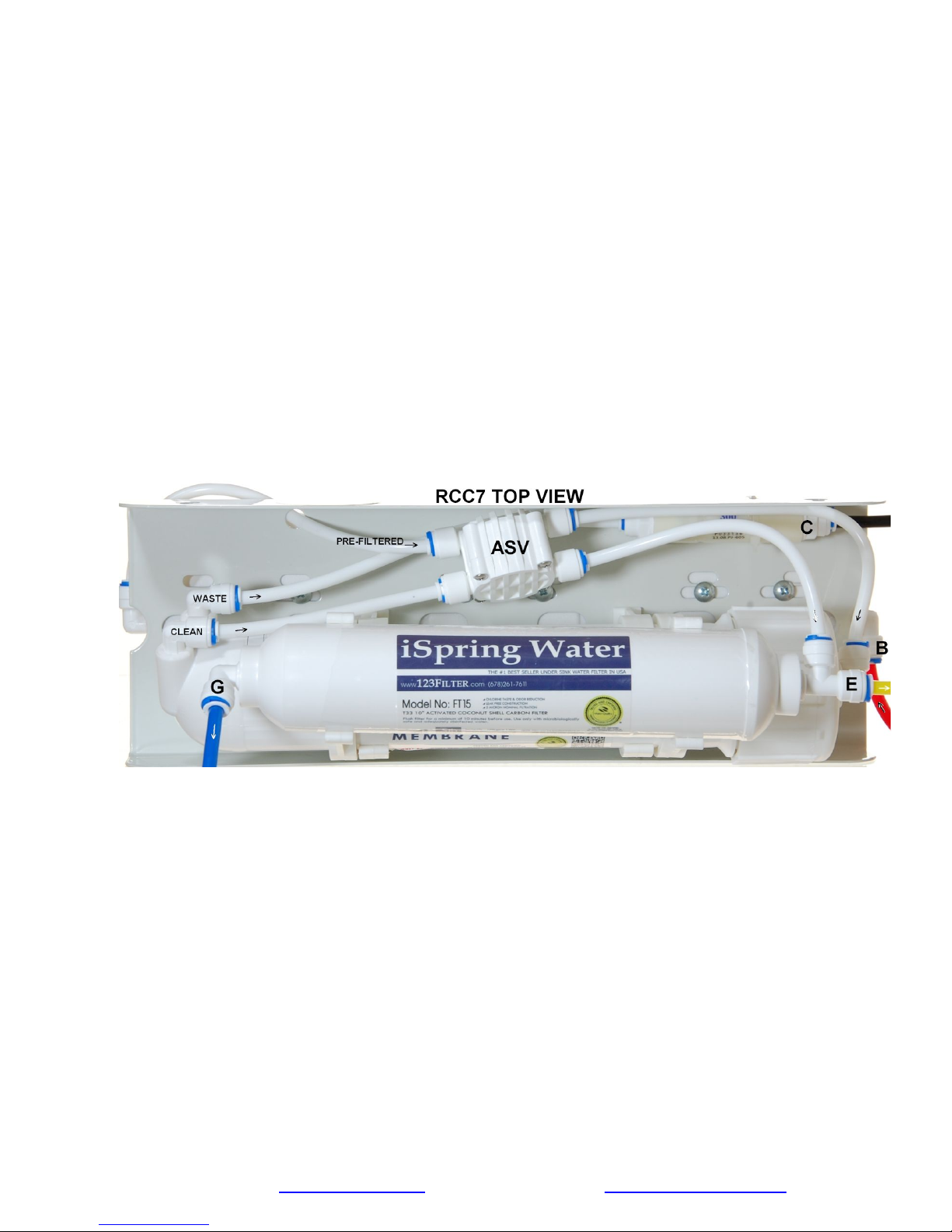

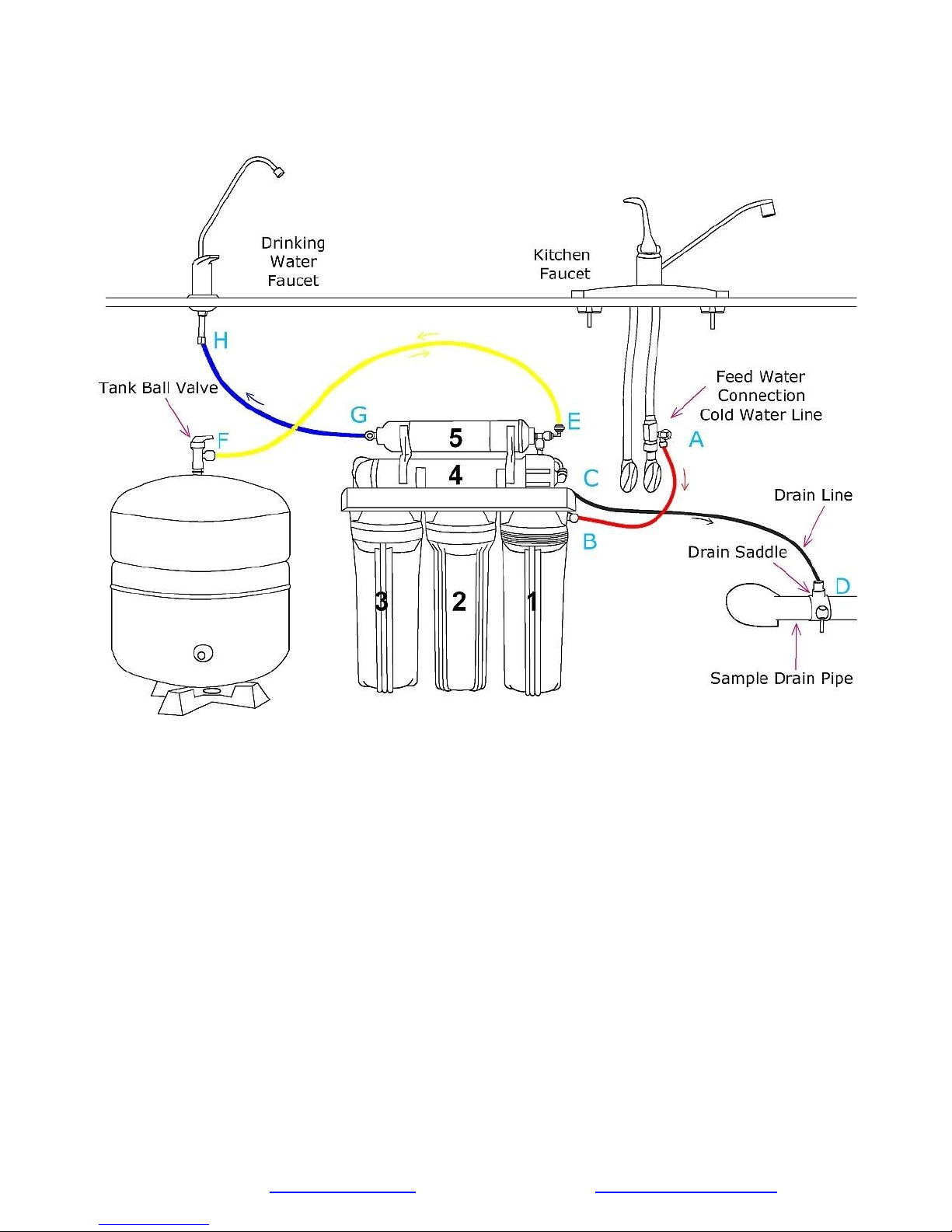

A.SourcewaterfromFeedWaterAdapter→B.Sourcewaterto1ststagewaterinlet
C.WastewaterfromFlowRestrictor→D.WastewatertoDrainSaddle/drainpipe
E.ROwaterfromstage5“T”fitting→F.ROwatertoStorageTank
F.Whenthedrinkingfaucetisopened,ROwaterfromthetankpassesthroughEandG→H.RO
watertothedrinkingfaucet


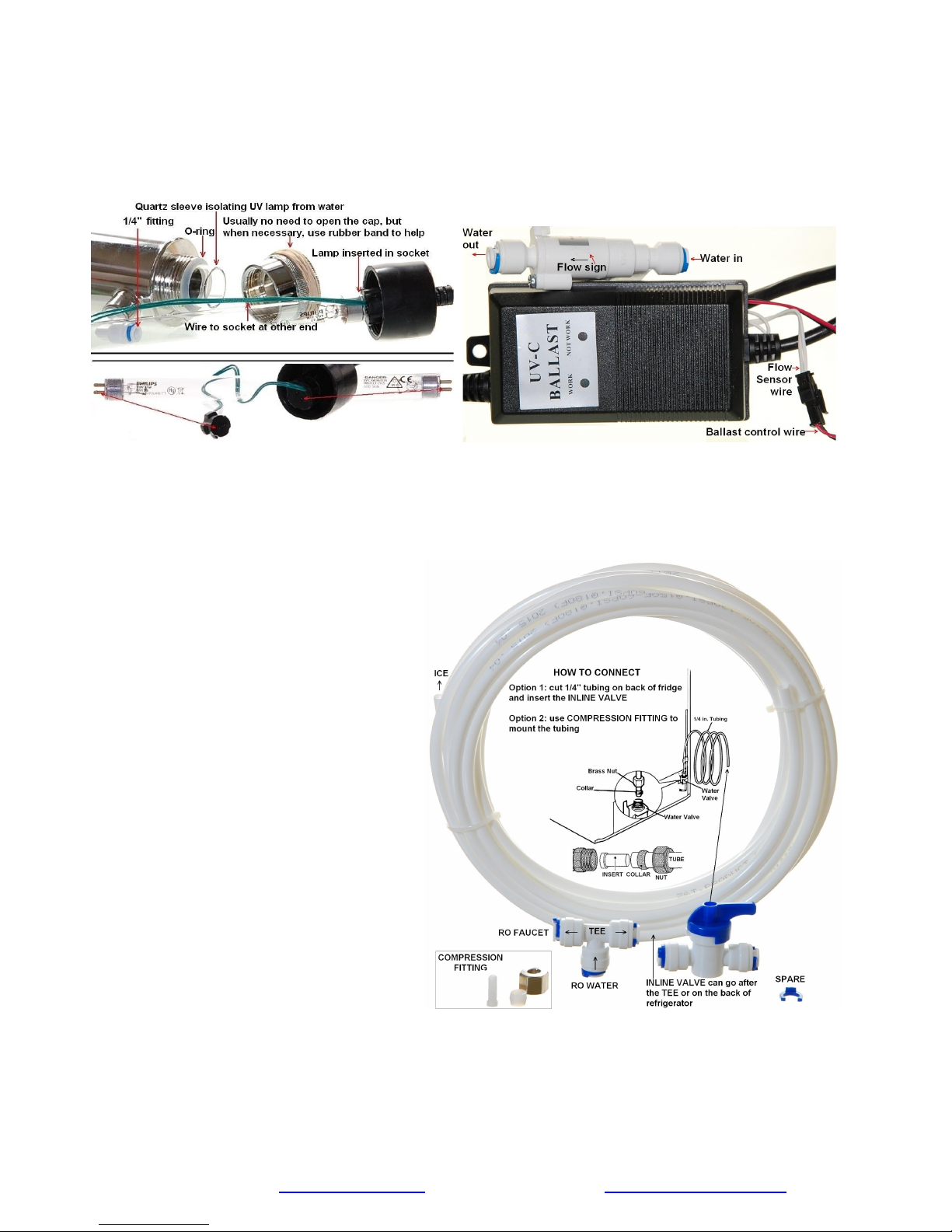

AnIceMakerKit(Part#iSpringICEK)canbepurchasedseparatelytofeedROwatertoyour
refrigeratoroutputandicemakertogetcrystalclearicecubesandgreattastingwateratease.Hooking
uptheROsystemdirectlytoyourrefrigeratoroutputcanreplacetheneedfortheROfaucet.
Page7www.123filter.com|(678)2617611|[email protected] 


Figure6
InstallationSteps

Beforeyoubegintheinstallation,itishighlyrecommendedthatyouwatchthevideo
“iSpringreverseosmosisinstallation”onYouTube.

Note:Steps1–7areindependent,andcanbeperformedinanyorder.

Step1:InstallingtheFeedWaterAdapter(AFW) 

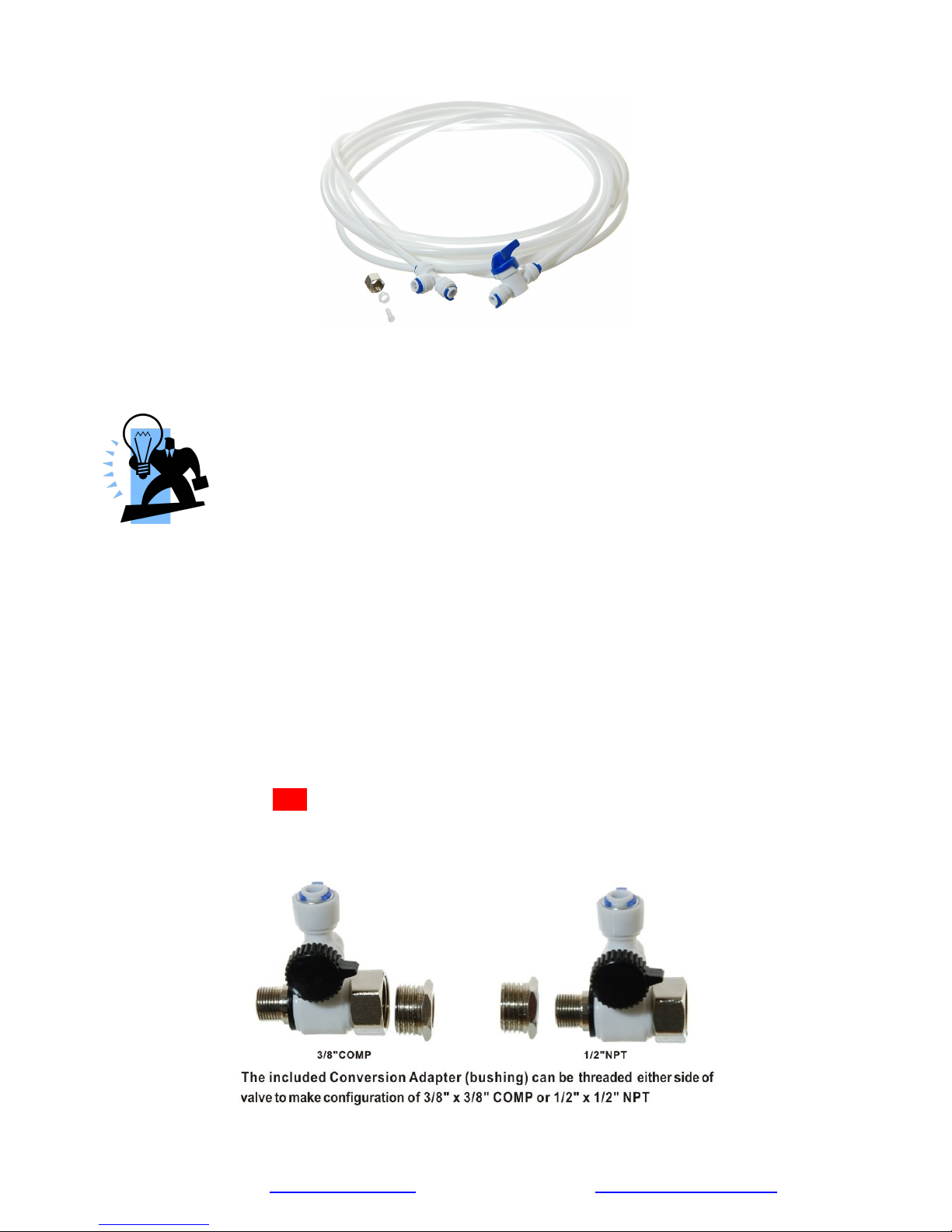

(Thebushingcanconvert3/8”comp.to½”NPT.RefertoAFWusermanual)

1.1 SeeFigure5.TurnofftheColdWaterLineviatheColdWaterSupplyValve(CWSV)underthesink.Open
thekitchenfaucettoreleaseanypressureandmakesurethewaterhasstoppedbeforeproceedingtothenext
step.Getatowelorbuckettocatchanywaterdrips.DisconnecttheKitchenFaucetConnector(KFC)pipe
fromtheCWSV.
1.2 ChecktomakesuretheOringisseatedinsidetheAFWfemaleend,andtwistitontotheCWSV.Tightenit
usingawrenchorpliers.
1.3 TwisttheKFContothemaleendoftheAFW.TurnthehandleoftheAFWtotheperpendicularOFF
position.TurnontheCWSVslowly,andensureyouaregettingaproperseal.
1.4 Connectthe1/4”REDtubingtotheAFW.

FeedWaterAdapterwithBushingtoconvert3/8”COMPto½”NPT


Page8www.123filter.com|(678)2617611|[email protected] 

Step2:InstallingtheRO
2.1 Ifyourkitchensinkdoesnothaveanexisting½”faucethole,youwillhavetodrillone.(RefertoHowto
drillaHoleonSinkorCountertop  ).Wipecleananddrythearea.
2.2 Slipthefrontplateonthefaucetstem,followedbytherubberwasher.Insertthefaucetstemintotheholeon
thecountertop.Underthesink,sliponthebackrubberwasher,andtightenthenutwiththeplasticwing.
2.3 Screwthetubingadapterontothefaucetstem.InserttheBLUEtubingabout1/2inchintothePushinfitting.



















Step3:
InstallingtheDrainSaddle
3.1 Chooseaspotonthedrainpipethatisconvenient for
installingthedrainsaddleandtubing.Ahorizontalpipeisrecommendedtominimizethe
drippingsound.
3.2 Drilla1/4”holeinthedrainpipe,andpastetheblackstickypadaroundthehole.
3.3 CuttheBLACKtubingendtomakea45degreeangle.Sliptheplasticnutandfrontplateon
thetubing.Insertthetubingintothe1/4”holeinthedrainpipe,installthebackplate,and
tightenthetwoscrewswithhexnutswhilethetubingremainsinthehole.
3.4 TightenthenutontheDrainSaddlebyhand.Pullthetubinglightlytomakesureitissecure.
 
Page9www.123filter.com|(678)2617611|[email protected] 

Step4:InstallingtheVerticalFilters:Stages1,2,and3 

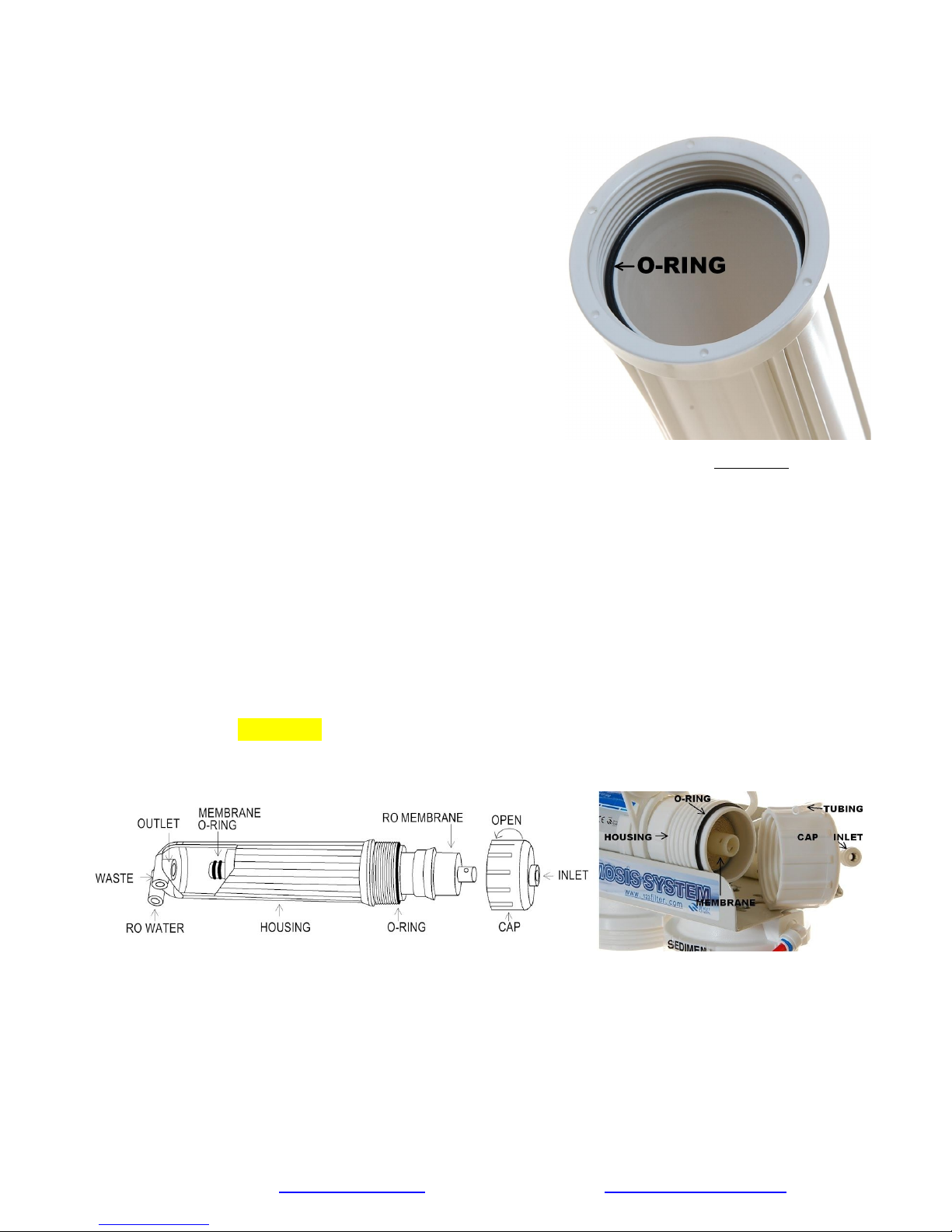

4.1 MakesuretheOringisseatedinsidethegrooveon
topofthefilterhousing.(Figure10).Alightamount
offoodgradesiliconjellymaybeusedtohelpthe
Oringsealbetter,butisnotrequired.
4.2 Thefiltercartridgesarepreservedinshrinkwrap.
Notethedirectionsignonthestickerbeforeremoving
thewrap(GACstage).
4.3 Whenplacingthefiltercartridgeintoitshousing,
makesureitiscenteredandtheknobprotrudingfrom
thebottomofthehousingfitsinthecentralholeofthe
filter.
4.4 Screwthehousing,withfiltersattached,ontothe
housingcaps(capsarepreassembledonthemachine
head).Thecapalsohasacenterknobwhichshouldbe
insertedintothecenterholeofthefiltercartridge.Twistthehousingoninaclockwisedirection
byhand,andthenusethehousingwrenchtotightenitanother1/4–1/2ofaturn.Donotover
tighten.Thiscancauseleaksandmakeitdifficulttounscrewthehousingwhenreplacing
filters.
4.5 Followsteps1.1–1.4toinstalltheGACandCTOfilters.*Note*ThesecondstageGACisthe
onlyfilterthatmustgoinacertaindirection.Makesuretheendwiththerubberwasherfaces
up,therebyattachingittothehousingcap.
Step5:Installingthe    TankShutoffValve(TSV)
5.1 Wrap1015wrapsofTeflontapeclockwise(whenlookingfromabove)ontothemetalthread
atthetopofthetank.
5.2 Screw(clockwise)theTankShutoffValveonandtightenitbyhand.Donotovertighten.
5.3 ConnecttheYELLOWtubingintotheQuickFittingontheTSV.
Step6:InstallingtheReverseOsmosisMembrane

Figure8 Figure9
6.1 First,disconnectthewhitetubefromthequickfittingconnectiononthemembranecap.This
willallowyoutounscrewthemembranehousingcap.
6.2 Unscrew(counterclockwise)andremovethemembranecap.
6.3 Removethemembranefromthevacuumsealedpackaging.Followingtheflowdirectionsign
onthemembrane,firmlyinsertitintothehousing.ThesidewiththetwosmallblackOrings
shouldbeinsertedfirst.Whenitisinsertedfullyandproperly,theendofthemembranewillbe
evenwiththehousingopening.SeeFigure89.
Page10www.123filter.com|(678)2617611|[email protected] 

6.4 **Beforetwistingthehousingcapbackon,makesuretheOringisseatedattheendofthe
membranehousingasshowninfigures8and9.Thisisveryimportanttoavoidleakingand
damagetotheOring.
6.5 Placethemembranehousingcapbackonandhandtightenit,thenusethehousingwrenchto
tightenitanother¼½ofaturn.Donotovertighten.
6.6 **DONOTreconnectthetubingtothefittingonthecapatthispoint(willbedoneinsystem
startup).





Step7:TubingHookUp(modelspecificsubstepsaremarkedwith*)

7.1 SeefigureSampleInstallationandfiguresofsystemtopview,andnoteconnectionpointsAB,
CD,EF,andGH.


Page11www.123filter.com|(678)2617611|[email protected] 




Page12www.123filter.com|(678)2617611|[email protected] 






7.2 Facingthefrontofthesystem,1ststageistheseethroughhousinglocatedontherighthand
side.ConnecttheREDtubingFeedWaterAdapter(AFW)(pointA)tothestage1elbow
fitting(pointB).
7.3 ConnecttheFlowRestrictor(pointC,3inchlongcylinderwithaFLOWlabeledonit)tothe
DrainSaddle(pointD)withtheBLACKtubing.
7.4 OntherightsideofthePostCarbonFilter(FT15,5
th
stage),connecttheTfitting(pointE)and
theTankValve(pointF)withtheYELLOWtubing. 
7.5 *ModelswithoutUV/AK/DI(5stagesystems):Attheleftendofthestage5FT15filter,insert
theBLUEtubing(linkstoROfaucet)intotheelbowfitting.
Page13www.123filter.com|(678)2617611|[email protected] 

*ModelswithUV/AK/DI:ROwaterflowsoutofpointGatFT15andflowsintotheinput
(left)sideofthenextstage.SotheBLUEtubingshouldbeconnectedtotheoutputsideofthe
finalstage.
7.6 ConnecttheotherendoftheBLUEtubingtotheROfaucet(refertoHowtoUsethe
CompressionFitting  ).
7.7 Youmayneatlyorganizethetubings,butmakesuretoleaveenoughlengthsothefiltersystem
canbemovedfreelyinandoutofthecabinetwhenreplacingfilters.
7.8 Youcanmountthesystemusingtwo10x11/4PhillipsFlatWoodScrews.
Thiswillmakereplacingfiltercartridgeseasier.





 
Page14www.123filter.com|(678)2617611|[email protected] 

Step8:SystemStartUp(modelspecificsubstepsaremarkedwitha*)

*IfyourmodelhasaUVstage,donotpluginthepoweruntilthesystemhasbeenfullyflushed*

8.1 Makesurenotubingsarekinked.TurntheTankShutoffValveOFF(perpendiculartothe
yellowtube).Placeatowelunderthesystemtocatchanypossiblewaterleaks.
8.2 TopreventanyresidualcarbonfromthecarbonprefiltersfromgettingintotheROmembrane,
youpreviouslyleftthetubingtotheinletoftheROmembranehousingcapdisconnected.Open
theFeedWaterAdapterValve(AFW)andColdWaterSupplyValve(CWSV),andflushthe
firstthreestagesintoabucketuntilthewaterturnsclear.
8.3 Oncethewaterisclear,shutofftheAFWandreconnectthetubingtotheROmembrane
housingcap.Youwillwanttoflushthesystemlikethiswheneverthefirstthreestagesare
changed.
8.4 OpentheROfaucet.SlowlyopentheAFWbackupandcheckforanyleaks.Thetop3causes
ofleaksare1)Thetubingisnotfullyinsertedintothequickconnectfitting.2)TheOringis
notinthecorrectplaceoriskinked.3)TheHousing/Capisnottightenedproperlyor
misalignedwiththethreads.
8.5 *Afterconfirmingthattherearenoleaks,plugintheboosterpumppowersupplyifyour
modelhasaboosterpump.
8.6 Within5minutes,ROwaterwillstartslowlytricklingfromthefaucet.Letthefaucettricklefor
atleast15minutestoflushouttheentiresystemapartfromthetank.Thewatermayappear
blackduetoloosecarbonfromnewcarbonfilters.Itwilleventuallyturnclearapartfrommany
tinyairbubblesleavingthesystem.
8.7 ShutofftheRODrinkingFaucet.TurnontheTankShutoffValve.Waitforthetanktofillup
completely.Itwilltake1.5to2.5hoursdependingonyourwatertemperature(40F100F,the
warmerthefaster),waterTDS(upto750,thelowerthefaster),andincomingwaterpsi(35
80,thehigherthefaster).
8.8 Afterthetankisfull,opentheRODrinkingFaucettodrainthetankcompletely.Donotusethe
firsttankofwater.Letitdrainintothesinkuntilthestreamturnsbacktoatricklethismeans
thetankhasemptiedandyoucanclosetheROfaucettoletitbeginfillingagain.
8.9 *IfyoursystemhasaUVfilter,plugintheUVpowerandchecktomakesuretheUVlightis
turningonwhenwaterflowsthroughit.TheUVfilterhasaFlowSensorSwitchthatdetects
waterflowandonlyturnsthelightonwhenneeded.
8.10 TheTDS(totaldissolvedsolids)ofthewatershouldbetestedperiodicallytoverifythatthe
systemisperformingproperly.iSpringROsystemshaveearnedWQAGOLDSEALby
exceedingNSF/ANSIstandard58andshouldbegivinga90%+TDSrejectionrate,soifyour
tapwateris100ppmyoushouldbegetting10ppmorlessfromtheROwater(200/20>,
400/40>etc.).TDSismeasuredwithaTDSmeteritisaninexpensive,easytousedevicethat
canbefoundonAmazon.comor123filter.combysearching“TDS3”.
8.11 Checkforleaksdailyforthefirsttwoweeksafterinstallationtoensurethesystemis
functioningproperly.InstalltheincludedFloodAlarmtoprovideadditionalpeaceofmindand
protection.





Page15www.123filter.com|(678)2617611|[email protected] 





Congratulations,youhavesuccessfullyinstalledyour
iSpringReverseOsmosisWaterFiltrationSystem!

Startenjoyingfantasticreverseosmosiswaterrightfromyourtap!

EndofInstallationSection
Page16www.123filter.com|(678)2617611|[email protected] 

ISPRINGROSYSTEMMAINTENANCE
AlliSpringROsystemsaredesignedwitheaseofuseandlowmaintenanceinmind.Ifthefilter
cartridgesarechangedonscheduleassuggestedbelow,thesystemwillworkproperlyforyearsto
come.


Note:Stages6and/or7onlyexistoncertainmodels.Toorderreplacementfiltersforyoursystem,visit
123Filter.comandsearchyoursystem’smodelnumber.
Stage1–3PreFilters
Replaceevery6months,orsoonerifyounoticeadecreaseinwaterfloworquality.
Thereplacementfrequencydependsonyourwaterusageandsourcewaterquality.ToprotecttheRO
membranefromchlorineandotherdamagingcontaminants,itisimportanttochangetheprefilters
accordingtoschedule.
Howtochangethestage1–3prefilters:
1. Shutoffthecoldwatersupplyvalveandtankvalve,andopentheROfaucettodepressurizethe
system.Placeabucketortowelunderthesystemtocatchanywaterspills.
2. Ifthereisenoughroomunderthesinkandthefiltersystemishungonthewall,youcantwist
thefilterhousingoffwithoutremovingthesystemfromthewall.Otherwise,youwillneedto
pullthesystemout,layitdown,andremovethehousingsatthatpoint.Becarefulwiththe
tubingconnectionswhenremovingthesystem.
3. Twistoffthefilterhousingsinacounterclockwisedirectionusingthefilterhousingwrench.
4. RefertoInstallationStep1.1toinstallthenewverticalfiltercartridges,andtightenthefilter
housingsbackon.Remembernottoovertightenthemortheywillbehardtounscrewnext
time.

Stage4ROMembrane:Replaceevery2–3years
orsooneriftheTDSlevelstartsincreasing. 
Page17www.123filter.com|(678)2617611|[email protected] 

ChecktheTDSlevelatleastonceamonthtomonitorthesystem’sperformance.TheTDSrejection
rateshouldbe90%+.Tocalculatetherejectionrate,dividetheROwaterTDSintoyourtapwaterTDS
andsubtractfrom1.Forexample,20(ROTDS)/200(TapwaterTDS)=0.110.1=0.9sotheTDS
rejectionratewouldbe90%.(NSF/ASINSTANDARD58forROwaterfilter).
HowtoChangetheReverseOsmosisMembrane

Figure11

Figure12
1. TheROmembranetypicallylastsabout2–3years.Themembranelifespandependsonthe
sourcewaterquality,yourwaterusage,andhowoftenthethreeprefiltersarereplaced.To
ensurethesystem’sperformanceandwaterpurity,itisimportanttoreplacetheprefilter
cartridgesonschedule.UseaTDSmetertoperiodicallytochecktheROwaterpurity.
2. Shutoffthecoldwatersupplyvalveandtankvalve,andopentheROfaucettodepressurizethe
system.Placeabucketortowelunderthesystemtocatchanywaterspills.
3. Removethetubingfromthequickconnectfittingonthemembranehousingcap.Usethe
membranehousingwrenchtotwistoffthehousingcapinacounterclockwisedirection.
4. Pullouttheoldmembrane.Usescissorsorplierstoapplyleverageifnecessary.
5. Cleanthemembranehousingusinghotwaterandscentfreedishsoap(optional).Rinse
thoroughly.
6. CutopenthesmallendofthevacuumsealedpackagingcontainingthenewROmembrane.
Holdthenewmembranethroughthepackaging,andinsertitintothehousingwithouttouching
themembanewithyourbarehandstoavoidcontaminationofthemembrane.
7. MakesuretheOringisproperlyseatedontheendofthemembranehousingasshowninthe
previousimages.WerecommendreplacingtheOringevery3yearstopreventleakingdueto
anexpiredordriedoutOring.
8. Placethemembranehousingcapbackonandhandtightenit,thenusethehousingwrenchto
tightenitanother¼½ofaturn.Donotovertighten.

Stage5FT15InlinePostCarbonFilterandStage6InlineAlkalineFilter
(ifyoursystemhasone):ReplacetheFT15every12monthsandtheAlkalinefilterevery6months
1. RemoveallquickconnecttubingconnectionsfromtheFT15PostCarbonFilter.
2. UnscrewthefittingsfrombothendsoftheoldPostCarbonFilter.Wrapthethreadofeachfitting23times
withTeflontape,andscrewthemintotheirrespectivesidesonthenewPostCarbonFilter.
3. ReconnectthequickconnecttubingconnectionstothenewPostCarbonFilter.

PreFilterandMembraneHousingORings:Replaceevery3years
TopreventpossibleleakingduetoanexpiredOring.
Thepackagecomeswith3spareOringsfortheprefilterhousings,and1spareOringforthemembranehousing.
Savethemwiththismanualforfutureuse.
Page18www.123filter.com|(678)2617611|[email protected] 

ExtraInstallation

UVFilter(UVF11A)
 

Figure13:FlowSensorSwitchforUVFilter
ThemodelswithaUVstagehavea“U”intheirmodelnumber,suchasRCC7U,RCC7AKUV,
RCC1UPAK,RCC1UP,etc.
TheUVmodulecomespreinstalledon
modelswithaUVfilter.Refertothe
photosaboveforabetterunderstandingon
howtheUVcomponentsareassembled
andworktogether.

IceMakerKit(ICEK)
TheIceMakerKit(model#:iSpring
ICEK)canbepurchasedseparatelyto
feedROwatertoyourrefrigeratorfor
crystalclearicecubesandgreattasting
water.Ifyouchoosetohookupthesystem
toyourrefrigeratioroutput,itcantakethe
placeofprimaryoutputovertheRO
faucet.
 
Page19www.123filter.com|(678)2617611|[email protected] 
