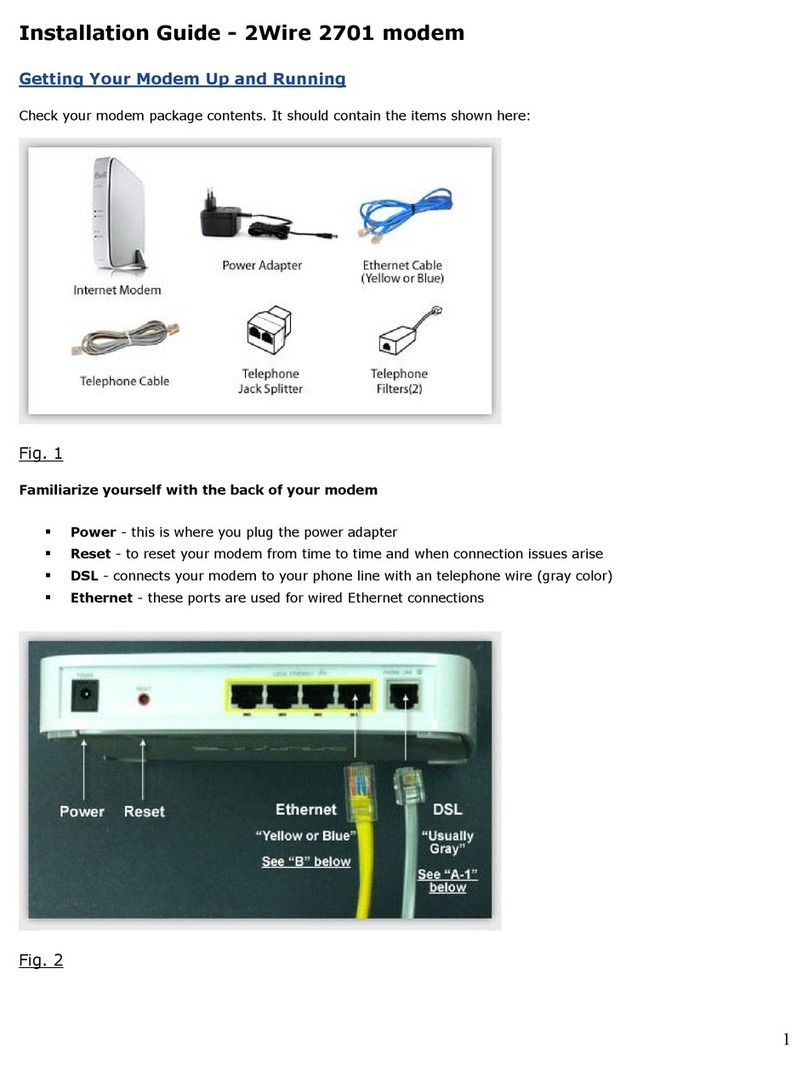

2-Wire 2701HG Series User manual

Gateway to the
Digital Home
Built to Suit Your Business Needs
2Wire gateways are available in a variety
of broadband interfaces, and offer exible
wired and wireless networking options.
While all of your customers will enjoy a
high performance router, professional
grade rewall, and simple browser based
user interface, you can customize models
with a variety of networking interfaces, and
choose whether to include an integrated
ADSL 1/2/2+ modem. All subscribers get
the same high performance, easy to use
broadband experience, enhanced by your
ability to remotely diagnose issues, offer
new services, and upgrade software.
2Wire HomePortal® 2000 Series Residential Gateway
Provide all of your subscribers with a superior customer
experience while dramatically reducing operating costs
with advanced, future-proof customer premise equipment.
Visit us on the Web
at 2Wire.com for a
complete catalog
of our products,
applications, and
services.
Advanced Modem Technology
Enhanced bridge tap, long loop, and disturber
performance raise the bar on TR-067 certied modems.
Unsurpassed Usability and Diagnostics
GreenlightTM CD-less install and auto-diagnostics engine
assist users and technicians during installation and
for a lifetime.
True Triple Play Services Platform
Integrated data applications, built-in VoIP optimized for DSL,
support for wireless-wireline convergence, and industry
rst multicast IGMP proxy and snooping for video QoS.
Future Proof Quality of Service Platform
WAN and LAN side quality of service with extended
policy management.
Integrated Churn Reducing Applications
Access Controls, Firewall Monitor, Web Remote Access
and others provide more reasons to become and remain
loyal subscribers.

2Wire Intelligent Gateways
The Modem Replacement
Models with an ADSL1/2/2+ broadband interface include
advanced modem technology unique to 2Wire, raising the
bar on modem performance. The 2Wire designed modem
technology takes advantage of an extremely low noise,
high linearity ADSL Analog Front End (AFE) and digital
echo canceller, providing excellent long loop and bridge
tap performance. Translation: The 2Wire design provides
superior modem training capabilities; particularly important
to subscribers at the edge of the DSL coverage area, or for
whom you want to provide increased speed.
Superior Wireless Experience
2Wire HyperGTM wireless technology virtually
eliminates wireless ‘coldspots’ in the home,
performing at higher rates, for further
distances, with enough power to reach through cement walls.
HyperG gateways have a unique third antenna used only
for transmitting packets, providing a boost in performance
and avoiding the power loss associated with switching the
antenna use from transmit to receive. A set of receive-only
antennas provides greater access point sensitivity, increasing
wireless throughput and range. 2Wire gateways increase
wireless bandwidth by using a high-powered transmitter that
can be congured at levels from 100 to 400mW of power.
Make Voice over IP a Wireless Reality
Ever wished your home phone and your mobile phone worked
interchangeably? 2Wire gateways provide built-in VoIP port
capabilities to support today’s wireline voice needs, but
are also the convergence point for telcos and their mobility
partners to offer wireline-wireless service convergence.
2Wire’s 802.11g-enabled gateways surpass traditional
Voice over Wi-Fi features with extended handset battery life,
automated wireless security, and integrated mobile handset
functions with xed VoIP lines. VoIP capabilities include full
SIP ALG and back-to-back SIP user agent (proxy) to support
additional ATA adapters, GSM-UMA (3GPP).
Ready, Set, Surf.
Greenlight CD-less DSL installation is the revolutionary
answer to eliminating costs and calls.
Subscribers order DSL, plug in their
gateway, and are instantly ready to
surf the Internet. Greenlight takes the
work out of manual provisioning and reduces installation
support calls.
Browser Interface
We take the work out of managing a local network. Users
see important information about the DSL connection,
devices on the network, rewall logs, and more. Optional
notication features let users know if there is a problem
and guides them to a x.
Carrier Class QoS, Performance, & Manageability
Increasing your competitive offerings by introducing
IP-enabled triple-play services through FTTN and FTTP
networks also increases your need for a high-performance
managed customer premises platform. The 2Wire software-
enabled, custom system-on-a-chip delivers the processing,
voice DSP, and software programming exibility necessary
to manage future applications. High performance DSL,
line-speed routing throughput,
stateful packet inspection (SPI)
rewall, differentiated QoS and
VoIP processing functions are
manageable virtually without
limitation. When combined
with the full management and
upgrade capabilities via the
TR-069* enabled Component
Management System (CMS), you
can rest assured that whether
Fiber/Ethernet or ADSL, the 2Wire
gateway is today’s triple play,
future-proof platform.
•CMS is TR-069 based and includes both pre-WT-098 QoS
provisioning and pre-WT-104 voice provisioning features.

Model
Number
Broadband
Interface
Ethernet
LAN
Ports
Form
Factor
2701HG
2701HG-E
ADSL2+/Ethernet
4
4
Yes
Yes
ADSL2+ 1No
4Yes
A
B
C
C
D
D
Voice
Over IP
No
2 lines
No
No
ADSL2+
No
2 lines
USB
PC
Wireless
Enabled
2701HGV
2701HGV-E
2801HG
2801HGV
4
4
4
ADSL2+
ADSL2+/Ethernet
ADSL2+
ADSL2+/Ethernet Yes
Yes
Yes
C
HomePortal®and OfficePortal™Intelligent Gateway Models
Firewall Monitor: Threats to the local network are
continuously identied and logged for users to
review. Firewall software is automatically updated
with the latest available rule set. Subscribers
determine when to receive notication of attacks
and view detailed logs through the gateway user interface.
Web Remote Access: Fast, secure access to the home
network remotely using any standard Web browser.
Download les from home computers securely while
away from home using a unique domain name and
network password. Share the domain with family
and friends who can then access specially marked
folders, while private folders stay safe.
Home Networking: Share les, printers, and a broadband
connection with every computer and network ready
device in the home.
*Interfaces vary by model
Technical Specifications
Local Network Interfaces*
• Ethernet 10/100 with Auto-crossover (1 or 4-port RJ-45)
• USB 1.1 PC, series-B port for PC and Mac connectivity
• Wireless 802.11g or high powered HyperG access point
ADSL Modem
• ADSL1, ADSL2, ADSL2+
• DSLAM interoperability: Alcatel, Lucent AnyMedia,
Lucent Stinger, Cisco, AFC, Adtran, Catena, ECI, Copper
Mountain, Nokia
• ANSI and ETSI loops
Yes
Yes
Yes
Yes
Yes
Yes
Yes 2 lines
2Wire Intelligent Gateways
Expand Your Offering
Attract more customers and retain the ones you have by
offering broadband services and applications that enhance
their broadband and networking experience. 2Wire gateways
are VoIP ready and include churn-reducing data applications
that you can offer customers for fees or as valuable features
of your offer. Gateway based applications deliver whole-
home support so there is no need to load software on every
computer or buy multiple licenses.
Access Controls: Content Screening protects viewers from
Websites with questionable content. Block or
allow categories and control access to specic
URLs. Internet Access Controls gives parents or
employers the power to decide when users can
access the Internet or use Internet applications
such as chat and instant messaging, online gaming or all
Internet access.
C
Ethernet
271HGV 4 Yes Yes 2 lines
2071
No
No
No
No
HPNA
enabled
No
Yes
Yes
No

CMS
Features and specifications are subject to change. © 2007 2Wire, Inc. 2Wire, the 2Wire logo design, and HomePortal are registered trademarks of 2Wire, Inc. OfcePortal,
MediaPortal, HyperG, FullPass, GuestPass and Greenlight are trademarks of 2Wire, Inc. All rights reserved. Patent Pending. 5100 -000562-000 2W Rev A 01/07
Technical Specifications (continued)
VoIP Functionality
• Two (2) derived voice lines via an embedded RJ-11 jack
• SIP user agent interoperability with Broadsoft Broadworks
v11.1, Nortel MCS 5200, and Sylantro servers.
• Audio codec: G711, software upgradeable to support G.726
and G.729a
• Software upgradable to support back-to-back SIP user agent
(proxy function)
• Voice over Wi-Fi support for UMA and SCCAN wireless mobile
phones
HyperG Wireless Functionality
• 802.11g wireless access point, backwards compatible
with 802.11b
• 10 power settings available through gateway user interface, up
to 400mW, for both 802.11b and 802.11g, congurable via
CMS remote management
• WEP64, 128, WPA, 802.1x
• Multi SSID
Broadband Network Interfaces
• Integrated 2Wire ADSL modem ADSL 1, ADSL2,
ADSL2 RE, ADSL2+ (1 RJ-11)
• Ethernet 10/100 with Auto-crossover (1 RJ-45)
Web Server
• Supports most popular ALGs: HTTP, FTP, H.323, FTP,
AIM, MSGAMES, DIABLO, IPSEC-IKE/ESP, IRC, MSN, PPTP,
RTP, RTSP and SIP
Software Tools and Diagnostics
• CD-based Windows and MacOS based install wizard (for
non Greenlight installations)
• Greenlight provisioning available via factory-preloaded
conguration les
• Bulletin Messaging system integrated with 2Wire CMS for
subscriber messaging
• Network Support Tool monitors and xes email and browser
application settings
Configuration
• Simple Web-based user interface for easy conguration
and diagnostics
• Quick summary page with shortcuts to most commonly
used features
Network Protocol Support
• ATM UNI, UBR, VBRnrt, VBRrt, CBR
• Support up to 8 ATM PVCs in any conguration
• IPv4, IPv6 capable, TCP, UDP, ARP, ICMP
• DHCP client/server, DNS client/server, HTTP client and server
• Single IP and multi-IP support
• Multicast IGMP Proxy, IGMP Snooping
• PPPoE, PPPoA, PAP, CHAP, RFC 2684/1483 Ethernet
• Support up to 8 PPP links and up to 8 PVCs
• 802.1x broadband network authentication
Diagnostics and Management
• Remote management and provisioning via SSL connection from
2Wire Component Management System (CMS) (DSL Forum TR-069)
• Supports TR-069 extensions WT-104 (VoIP provisioning)
and WT-098 (QoS provisioning)
• Integrated gateway-based diagnostics automatically intervene during
error conditions and intercept subscriber Web requests and provide
self-guided resolutions
• ATM Ping, DNS Ping, ICMP Ping, Traceroute
• Web-based remote gateway technician view and remote management
• Multi-color indicator lights that monitor your connection
and assist with troubleshooting
Security
• Integrated rewall includes stateful packet inspection (Layer 4) and
local IP spoong verication
• Supports stealth mode operation
• Unique signed security certicate manufactured into each
gateway for TR-069 management authentication
NAT/PAT Support
• Standard NAT/PAT between LAN and WAN
• Automated NAT Pass-Thru for LAN client-initiated VPN tunnels
(IPSec, PPTP, L2TP), SIP, H.323, RTP
• Easy to congure NAT pass-through (pinholes) for common
applications (games, servers, etc.)
• DMZplus for automatic WAN IP assignment to a local PC
Software Upgrade
• Secure TR-069 upgrade procedure via 2Wire CMS
Standard Hardware Features
• TR-068 compliant industrial design and LED indicators
• Horizontal desktop placement, or vertical standing via provided
stand
• Built-in wall mounting keyholes for subscriber mounting capability
• External power supply
Physical Specifications
• Form Factor A:
6in x 7in x 2.25in (15.2cm x 17.8cm x 5.7cm); .8lbs (.36Kg)
• Form Factor B:
7.6in x 6.4in x 1.3in (19.5cm x 16.3cm x 3.4cm); 1.12lbs (.51Kg)
• Form Factor C:
8.8in x 7.4in x 1.3in (22.5cm x 18.8cm x 3.4cm); 1.64lbs (.74Kg)
Operating Environment
• Temperature: 0° to 40° C
• Humidity: 15% to 80%, non-condensing
• Altitude: 0' – 8,000' MSL
Minimum Requirements
• CD Setup Wizard supports Windows 98, 98 SE, 2000,
ME, XP, Mac OSX (10.1) and higher (for non Greenlight installations)
• Gateway manual conguration and Greenlight installations
require a standard Web browser (HTTP VX or higher)
• All computers and devices to be connected to the gateway must have
an Ethernet network interface card or available USB port (Windows 98,
2000, ME or XP only. Mac OS 8.6 to 9.x, and 10.2 or higher)
2Wire Intelligent Gateways
2Wire, Inc. • 1704 Automation Parkway • San Jose, CA 95131 USA • Tel:[phone] • Fax: [phone] • www.2Wire.com
