23zero PEREGRINE 270 Installation guide
TM
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
Congratulations on the purchase of your new
Peregrine 270˚ awning from the team at 23
Zero. Plese read instruction carefully prior
to rst use. If you require further assistance
please contact 23 Zero ph: (855) 875-7755
Page 2
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
TM
23 Zero recommends using a qualied or experienced
tter to mount the Peregrine 270˚ to your vehicle.
Fastners and all xing connections including hinges
should be checked and inspected regularly to ensure
the awning is xed securely to your vehicle roof rack
at all times.
GETTING TO KNOW YOUR AWNING
We recommend you check all parts are included prior to rst use.
NOTE: 23 Zero take no responsibility or liability for tment of
the Peregrine 270˚ awning to your specic vehicle or trailer.
1 x Peregrine 270˚ Awning
Page 3
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
TM

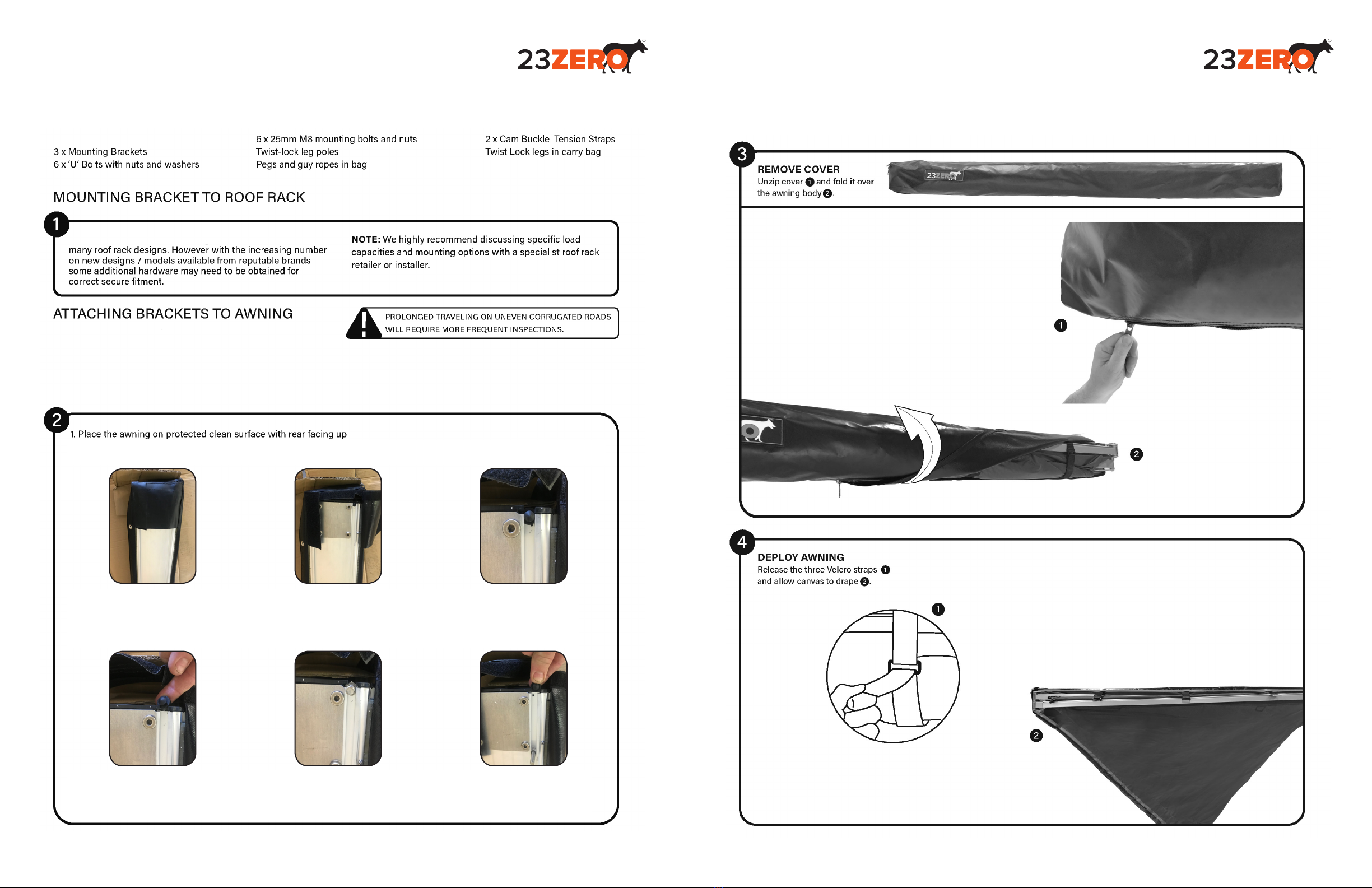

PEREGRINE 270˚ SET-UP
NOTE: Awning will free stand for set-up and pack down..
3. Find the stopper bung in the channels as in Fig 3.
4. Remove the stopper bung on each as in Fig 4.
5. Insert the M8 mounting bolts into the tracks as in Fig 5.
6. Replace the stopper bungs as in Fig 6.
7. Place bracket hole in line with bolts and fasten using M8 nut and washer.
8. Repeat for all 3 brackets.
as in Fig 1.
Fig 1.
Fig 4. Fig 5. Fig 6.
Fig 2. Fig 3.
2. At one end of the awning, undo the Velcro tabs on the cover and reveal the 2 channel grooves as in Fig 2.
Page 4
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
TM
SET-UP
Page 5
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
TM
PEREGRINE 270˚ SET-UP
NOTE: Awning will free stand for set-up and pack down..
PEREGRINE 270˚ AWNING, RAFTERS
Page 6
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
TM
PACK DOWN
Page 7
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
TM
FITTING OPTIONAL WALL KIT
Page 8
PEREGRINE 270˚
SET-UP AND CARE INSTRUCTIONS
TM
CARE AND SAFETY
THE PEREGRINE 270˚ SHOULD NOT BE ERECTED
Peregrine awning is unpacked and allowed
Peregrine 270˚ to be
1. The Peregrine 270˚ has been designed for general use
65 FEET
