2N 914033W User manual

www.2n.czVersion
2N
®Net Audio System
Public Address and Paging system
Complete manual
2.0

The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of telecommunications
equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways, private
branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE a.s. has
been ranked among the Czech top companies for years and represented a symbol of
stability and prosperity on the telecommunications market for almost two decades. At
present, we export our products into over 120 countries worldwide and have exclusive
distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands protected
by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On
www.faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...“.
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product
®Net Audio System
complies with all basic requirements and other relevant provisions of the 1999/5/EC
directive. For the full wording of the Declaration of Conformity see the CD-ROM (if
enclosed) or our website at www.2n.cz.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by this
standard and guarantee a high quality, technical level and professional aspect of all our
products.
Content

Content
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LimitsandSpecifications .............................................6
TermsandSymbolsUsed ............................................9
Advanced Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2N®IPAudioControlPanelManual ....................................11
Configuration2NNetAudiodeviceviaTelnetServer .......................54
HW Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2N®NetAudioDecoder ..............................................59
2N®NetAudioDecoderLite ..........................................66
2N®NetMic .......................................................73
2N®NetSpeaker ...................................................78
2N®NetAudioDecoderLitePCB ......................................83
2N®NetAudioDecodermonoPCB .....................................92
2N®NetAudioEncoder ..............................................101
Supplementary Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Troubleshooting ....................................................107
Directives,LawsandRegulations ......................................109
GeneralInstructionsandCautions ......................................111

42N TELEKOMUNIKACE a.s., www.2n.cz
®
Introduction
2N IP Audio system
2N IP Audio system is an IP audio system which allows you to play an acoustic
message or any other audio stream from any LAN/WAN – connected PC. All you have
to do to get a virtual broadcasting exchange is connect a standard loudspeaker or
amplifier to your . The virtual exchange helps you play any2N Net Audio Decoder
®
audio system and create separate zones with different communication contents. You
can make use of your existing LAN/WAN while installing your 2N Net Audio Decoder
®
system to save the total implementation time and, of course, cut your wiring costs.
The 2N IP Audio system consists of two basic components – a server and an audio
converter. The Control Panel software has been developed to configure the whole
broadcasting system. and 2N IP Audio
®Console 2N IP Audio
®Virtual Sound
are software products designed for everyday use – broadcasting messages via aCard
microphone and easy music playing respectively.

52N TELEKOMUNIKACE a.s., www.2n.cz
®

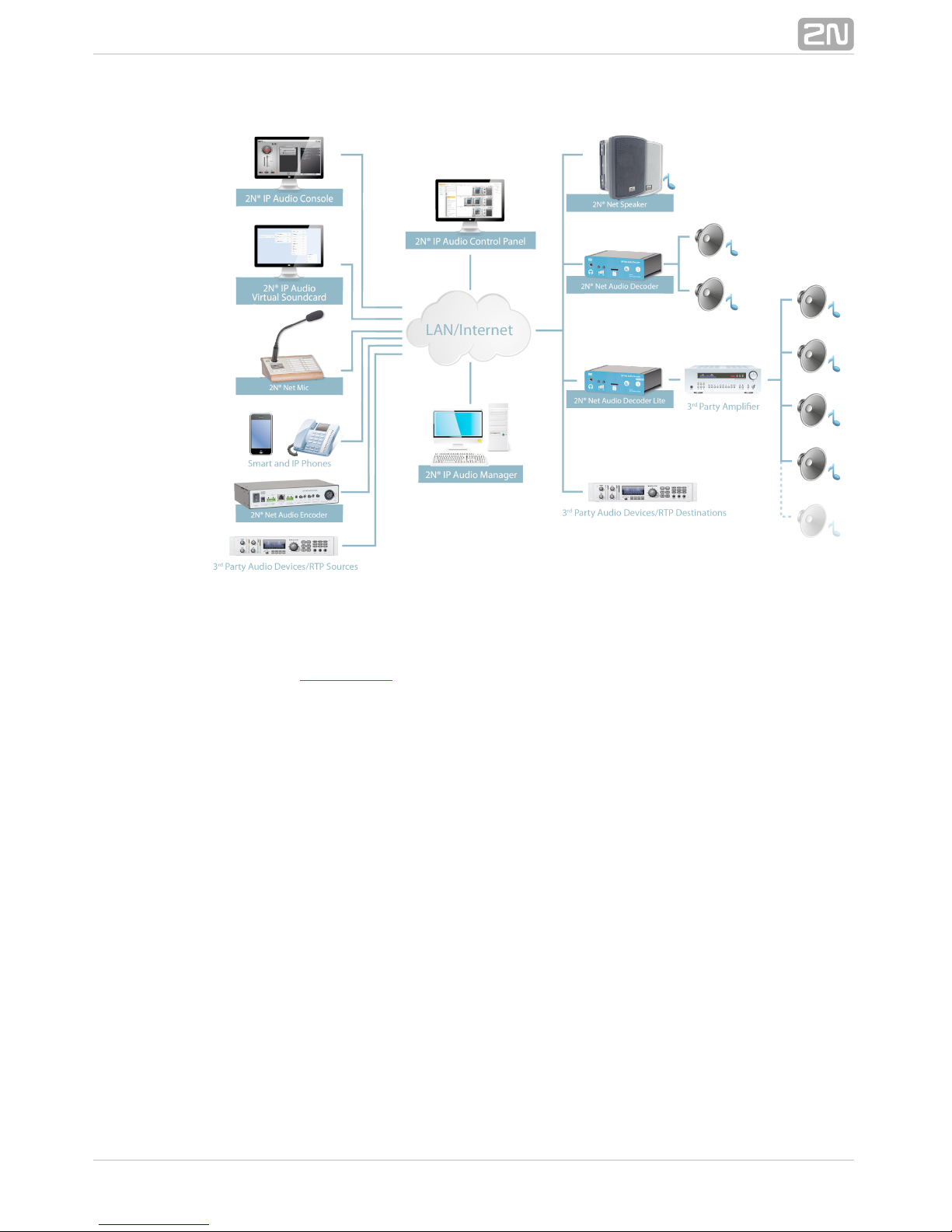

LayoutFigure: 2N IP Audio system
Refer to the section for basic information on quick system installation ofQuick Start
the 2N IP Audio Manager.
®

62N TELEKOMUNIKACE a.s., www.2n.cz
®
Limits and Specifications
Supported OS
2N IP Audio Manager
®
Linux Debian 7.7.0 32/64 bit
WIN 7 32/64 bit
WIN Server 2008 R2*
WIN Server 2012 R2*
WIN 8 32/64 bit
WIN 8.1 32/64 bit
WIN 10 32/64 bit
2N Console
®IP Audio , 2N Virtual Sound Card
®IP Audio
WIN VISTA 32/64 bit
WIN 7 32/64 bit
WIN 8 32/64 bit
WIN 8.1 32/64 bit
WIN 10 32/64 bit
Requirements
In order to perform correctly, all components are required to use exactly
the same software version - 2N IP Audio Manager, Control Panel,
®
Virtual Sound Card and Console.
Windows Media Player 11
Microsoft Visual C + + 2008 Redistributable Package (x86) – installation is
required to avoid problems with stability
Microsoft. NET Framework 4 redistributable package
Desktop Experience feature is required on Windows Server products (part
of User Interface and Infrastructure in MS Windows Server 2012)
Windows Firewall service running during installation, otherwise the 2N IP
rules have to be added manuallyAudio System
VoIP
Without Registration: Counterparty calls on the IP address of the predefined 2N IP
®
and port for the VoIP trunk (5061, e.g.).Audio Manager
With Registration: is only the client, the 2N IP Audio Manager
®2N IP Audio
®
gets registered with the PBX. It cannot be switched to the Registrar = SIPManager
Proxy mode (no phones can register with it).

72N TELEKOMUNIKACE a.s., www.2n.cz
®
Communication Protocols
Way of communication Port Protocol
Control Panel >> IP Audio Manager 6990 proprietary
Console >> IP Audio Manager 6992 proprietary
Virtual Sound Card >> IP Audio Manager 6992 proprietary
(passive mode)>> Net Audio device IP Audio Manager 6998 proprietary
>> Net Audio device IP Audio Manager 6999 proprietary
>> RTP destinationIP Audio Manager adjustable RTP
PC >> Net Audio device 23 Telnet
SYSLOG
The allows you to send logs to the syslog server. The 2N
®IP Audio Manager 2N® IP
was tested with and . For more details onAudio Manager rsyslog server Watcher
settings and use refer to the Advanced configuration -> Control Panel Manual ->
r menu.Administrato
TELNET
When 2N Net Audio Decoder
® getsconnectedtotheserver,Telnetisdisabledbydefault
andreactivatedautomaticallyafterdisconnection.ToenableTelnetwhile2N Net Audio
®
Decoder or2N Net Speaker
®isconnectedtotheserver,allowthisontheDestinations and
tabintheControlPanelfortheparticulardevice.Zones
Minimum Transfer Rates
Audio transfer between the IP Audio Manager and 2N Net Audio Decoder
® or 2N®
Net Speaker units:
Audio Option IP Audio Manager - Net
Audio Decoder transfer
Net Audio Decoder - IP
Audio Manager transfer
unicast
32 kbps
mono 100 kbps/unit 60 kbps/unit
64 kbps
mono 135 kbps/unit 60 kbps/unit
128 kbps
mon/ster 190 kbps/unit 60 kbps/unit
multicast
32 kbps
mono 70 kbps/group -
64 kbps
mono 100 kbps/group -
128 kbps
mon/ster 145 kbps/group -
Communication between SW or audio components:

82N TELEKOMUNIKACE a.s., www.2n.cz
®
Communication Type of data Transfer rate
Control Panel <-> IP Audio Manager signalling 20 kbps
Virtual Sound Card -> IP Audio Manager audio + signalling 1650 kbps
Console -> IP Audio Manager audio + signalling 1650 kbps
Net Mic -> IP Audio Manager audio + signalling 1650 kbps
Net Audio Decoder -> IP Audio Manager audio + signalling 1650 kbps
-> Expander IP Audio Manager audio + signalling 1600 kbps/stream
Audio transfer from to RTP destinations:2N
®IP Audio Manager
Option -> IP Audio Manager Net Audio device
G.711 - uLaw 85 kbps
G.711 - uLaw 85 kbps
Linear PCM 16bit 44.1kHz Stereo 1500 kbps
Linear PCM 16bit 44.1kHz Mono 800 kbps
Test Results
HW – CPU, Chipset Intel Atom
Z530
Intel Core
i5
Intel XEON
E5645
Number of different streams (Win 7,
Win 8) 6 20 -
Number of different streams (Win
Servers) -- 100
Net Audio devices (Win 7, Win 8) 40 300 -
Net Audio devices (Win Servers) - - 1,000
Number of users (all OS) 1,000 1,000 10,000
Number of SIP trunks (all OS) 10 100 100
Number of concurrent calls (all OS) 2 10 100

92N TELEKOMUNIKACE a.s., www.2n.cz
®
Terms and Symbols Used
The following symbols and pictograms are used in the manual:
Safety
by this information to prevent persons from injury.Always abide
Warning
by this information to prevent damage to the device.Always abide
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.

102N TELEKOMUNIKACE a.s., www.2n.cz
®
Advanced Configuration
This section provides you with all information on the and2N IP Audio System
advanced configuration via the .2N Control Panel
®IP Audio
Here is what you can find in this section:
2N® IP Audio Manager for Linux
2N® IP Audio Control Panel Manual
Configuration 2N Net Audio device via Telnet Server

112N TELEKOMUNIKACE a.s., www.2n.cz
®
2N® IP Audio Control Panel Manual
The is a user-friendly application used for 2N Control Panel
®IP Audio 2N
®IP
administration. Audio Manager
Here is what you can find in this section:
Sessions
Destinations & Zones
Audio Sources
Scheduler
microSD
Users
Administrator
What you should know
The 2N Control Panel
® IP Audio application may allocate a higher
amount of the memory as it keeps logs from the entire system. We
recommend you to close the application when unused.

122N TELEKOMUNIKACE a.s., www.2n.cz
®
Sessions
The session determines the Source – Destination connection, i.e. defines which source
will be played to which destination (Zones). The left session part defines and helps
control the source, the right session part determines the destination and session
options.
Session Creation and Preparation for Playing
Click on to create a session. You can perform thisSession –> Create empty session
and other actions by retrieving the floating menu by the right mouse–click. Or, you
can create a session in the Audio sources menu.
Figure: Session Window Layout
Use to add a source included in the source list to the session and adrag&drop
destination to the destination list – . Whether you addDestination targets
destinations by speakers or zones, the resultant functionality will be the same. You can

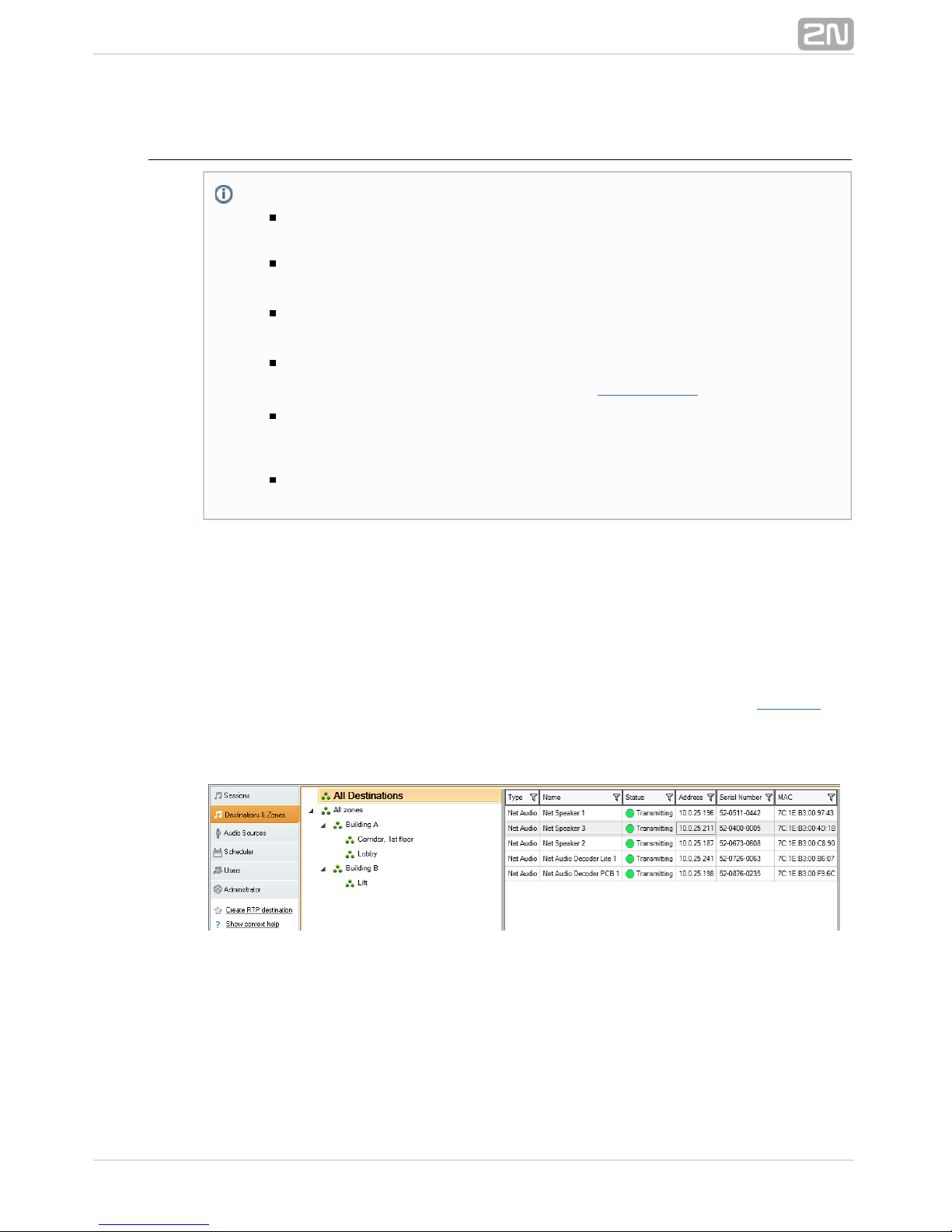

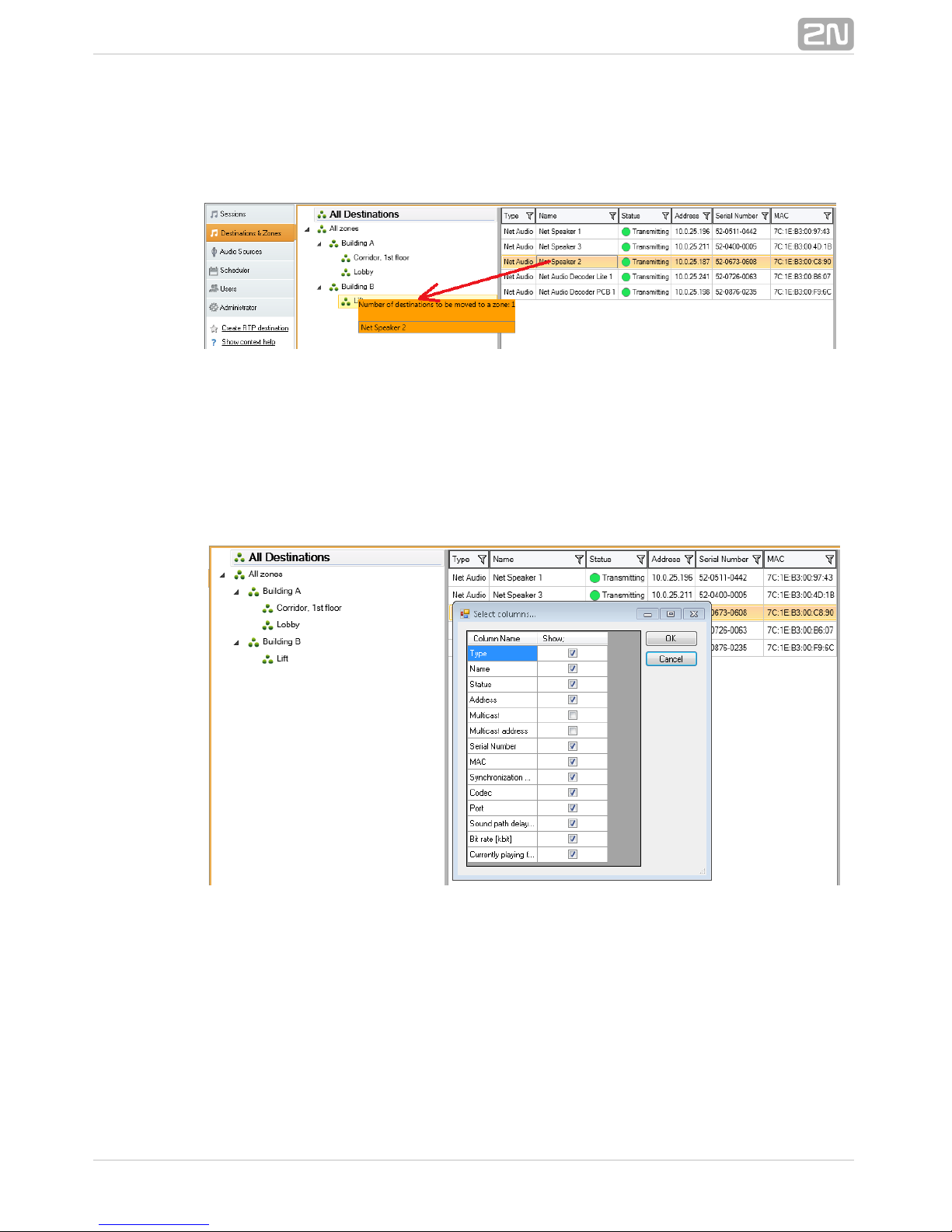

assign speakers to zones in the Destinations & Zones menu.
What you should know
Audio sources can be type–filtered in the header.Input sources
Upon power up, the server automatically launches and starts playing all
the sessions that were active before power off.
A higher priority of the active Session that thisalways guarantees
Session will occupy all Destinations assigned to it.
Licences can cause that some or 2N Net Audio Decoders
®2N Net
®
will not play. Refer to Licences in the tab forSpeakers Administrator
more details.

132N TELEKOMUNIKACE a.s., www.2n.cz
®

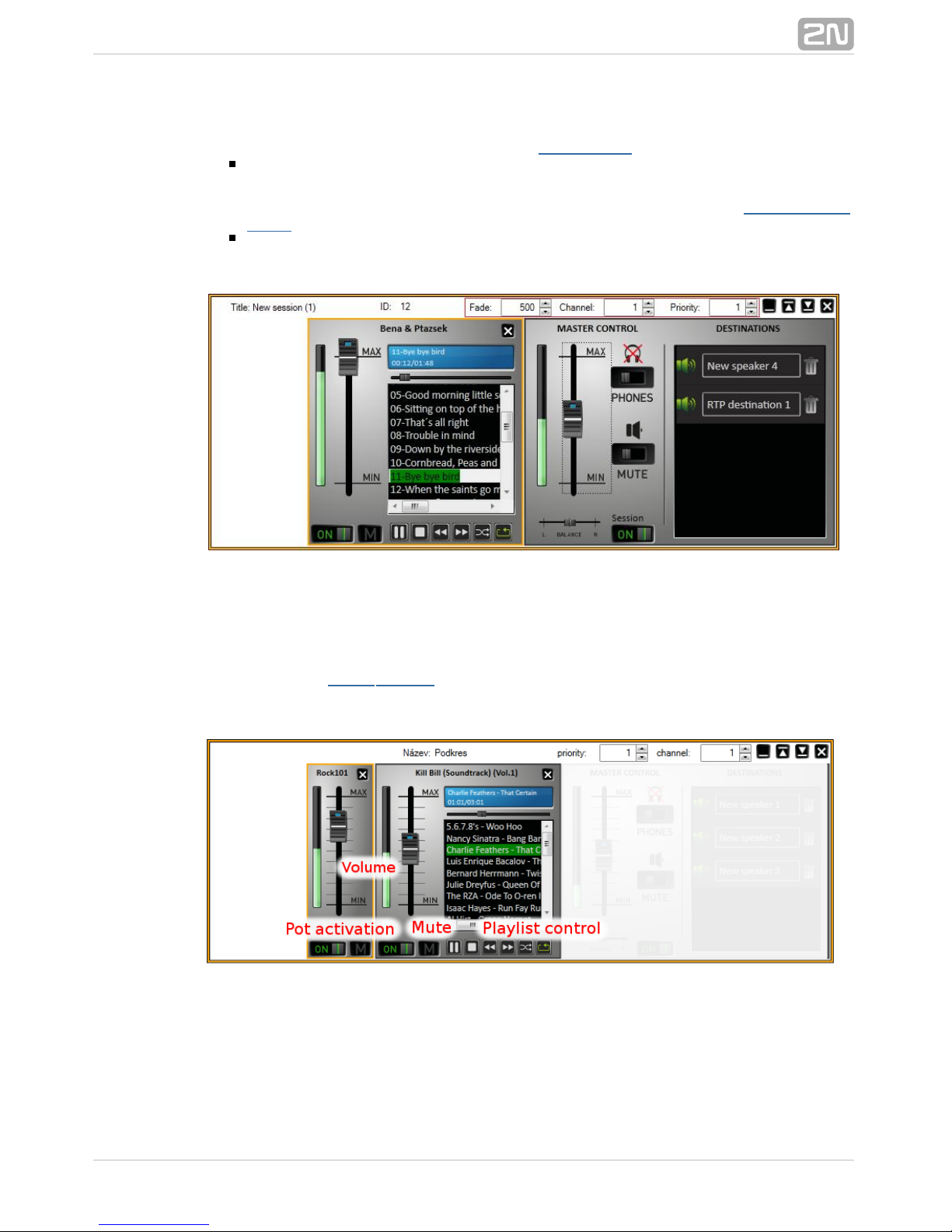

Figure: Adding of Sources and Destinations to Session
The created session is ready for broadcasting to destination(s). If no more parameters
are needed, simply click and the added or another source will startPLAY Sessions
playing. See the figure at the very end for two types of sources. The common bar
contains volume control settings.
Session Control and Launch
Click in the Session control section to launch a session; refer to the figure below.ON
The figure below also shows additional session controls.
Balance – set balance for the right/left channel.
Listening in – enable this parameter to listen to remote destinations locally.
Volume – set the main session volume.
Sound activation/deactivation – enable/disable sound for the active session.
Destinations − list of used destinations and zones.
Figure: Session Control
Additional Session Setting Options
Besides the basic settings mentioned in the Session Creation and Preparation for
Playing above, there are additional session settings such as , orPriority Channel Fade
situated in the right–hand upper corner.
Priority – set the session priority. The priority session is alwayshighest
preferred to lower priority sessions. A higher priority of the active Session

142N TELEKOMUNIKACE a.s., www.2n.cz
®
that the Session will occupy the destinations assigned to italways guarantees
(the source will play in the destination). The priority range is <1;10>, where
priority 10 is automatically assigned to broadcasting.Freeride role
Channel – set the channel for each session. 2N® Net Audio Decoder and 2N®
supports 4 channels for 4 different sources. Set the channel forNet Speaker
the or units on the 2N® Net Audio Decoder 2N® Net Speaker Destinations &
tab or by a remote controller on the site.Zones
Fade – set the session fade. The parameter can be used for a gradual sound
volume change. The fade range is <500;2000> ms.
Figure: Priority, Channel and Fade Settings
Audio Sources
You can add multiple sources to each session. Use the tab to create aAudio source
source (refer to for details). Add the sources in the format. ThereAudio Sources Bar
are two types of bars – one is designed for the Playlist and the other for the rest of the
sources. Fig.5 shows the two types.
Figure: Volume Bars
Common bar – helps you control volume, balance and sound activation/deactivation.
The Internet radio contains a status line displaying information on playing.
Playlist – here you can, besides basic functions, control mp3 files with play/stop,
pause, next, previous, shuffle and repeat. Moreover, you can minimise the playlist bar.

152N TELEKOMUNIKACE a.s., www.2n.cz
®

162N TELEKOMUNIKACE a.s., www.2n.cz
®
Destinations & Zones
This tab helps you administer by2N® Net Audio Decoders or 2N® Net Speakers
assigning them to zones and changing their parameters. The tab includes a Zones tree,
a Net Audio Decoder and Net Speaker panel (speakers, zones including contents) and a
Zone/Net Speaker Properties panel.
Zones
Zones helps and assign divide objects logically 2N® Net Audio Decoders or 2N®
to zones for easier handling (by assigning zones to ) inNet Speakers Sessions
extensive installations. Basically, zones can be regarded as 2N® Net Audio Decoder o
groups.r 2N® Net Speaker
Figure: View of Destinations & Zones
To create a , click the selection menu –> or retrieve theZone All Zones Create zone
floating menu with the right mouse click and select Create zone again. Retrieve the
floating menu via the to rename a zone. Zone name –> Rename
What you should know
Zones are logical units used for 2N
®Net Audio Decoder or 2N® Net
grouping.Speaker
A zone can be added to a Session if you want to play the same music or
announce news.
2N® Net Audio Decoder or with the active mode2N® Net Speaker
setting connects to the server automatically.
The scanner helps you administer unconnected 2N® Net Audio
via the tab.Decoders or 2N® Net Speakers Administrator
When gets connected to2N® Net Audio Decoder or 2N® Net Speaker
the server, Telnet is disabled by default unless enabled in the speaker
configuration.
A licence is necessary for a proper function of more than one RTP
destinations.

172N TELEKOMUNIKACE a.s., www.2n.cz
®
The figure below shows how to add a 2N® Net Audio Decoder or 2N
®Net Speaker
using drag&drop into a zone. In you can see the list of all All Destinations 2N® Net
and RTP destinations and you can use thisAudio Decoders or 2N
®Net Speaker s
list to add a to a zone.2N® Net Audio Decoder or 2N® Net Speaker
Figure: Adding to Zone2N®Net Audio Decoders or 2N® Net Speaker s
Destination List and Filter
The Destination list is included in a simple table and allows you to choose which
columns shall be visible. Retrieve the floating menu with the right mouse button and
choose "Select columns". Destinations can then be displayed in the
descending/ascending order for one of the used columns.
Figure: Destination List Columns
Moreover, you can use a filter in this table, which is extremely helpful for large
installations. Click the funnel symbol to retrieve the filter settings. See the figure below
for filter settings and simple queries.

182N TELEKOMUNIKACE a.s., www.2n.cz
®
Figure: Destination List Filter
2N
®Net Audio Decoders or 2N
®Net Speakers
Use the function to move the selected speaker from the list of speakers todrag&drop
the required zone. Use the floating menu –> Remove to remove a speaker from the
zone to the speaker list.
The properties are divided as follows:2N
®Net Audio Decoder or 2N® Net Speaker

192N TELEKOMUNIKACE a.s., www.2n.cz
®
Figure: Settings2N® Net Audio Decoder or 2N® Net Speaker
Speaker Information
Here find the speaker name, which can be changed, connection if existing, and
synchronisation status. Click the button to restart Restart 2N® Net Audio Decoder o
and to enable LED blinking and sound notification tor 2N® Net Speaker Blink
discover on site. 2N® Net Audio Decoder or 2N® Net Speaker
SD card state – informs whether or not the SD card has been connected and is ok.
State – announces one of the following synchronisation states:
Synchronisation is not active
Waiting for synchronisation
Synchronisation in progress
Synchronisation error
Synchronisation completed
Ready for synchronisation
Calculation in progress
Synchronisation postponed
Formatting SD card
Audio Parameters
This section is devoted to speaker sound parameters.
Volume and mute – use this parameter to set the loudspeaker volume. This
setting will not be active until saved. Use remote control or press the 2N Net
®
buttons.Audio Decoder
Power supply – detects this 2N
®Net Audio Decoder or 2N
®Net Speaker
parameter to inform the server of the type of power used.

202N TELEKOMUNIKACE a.s., www.2n.cz
®
Speaker impedance − is automatically detected if 2N
®Net Audio Decoders
uses speaker(s). This information is provided during the or 2N® Net Speakers
start.2N® Net Audio Decoders or 2N
®Net Speakers
Maximum gain – select a power supply and speaker type to determine the
maximum gain.
Sound path delay – set the expected 2N Net2N® Net Audio Decoder or ®
Speaker delay (buffer size) for Wi–Fi installations or potentially unreliable packet
deliveries (500 ms or more).
Sampling frequency – set the audio signal sampling frequency.
Bits per sample – define the count of bits per audio signal sample.
Channels – define the count of audio signal channels – stereo/mono bridged
stereo - two independent audio channels are used for two independent
speakers.
mono - only one channel is used for audio transmission and both speakers
produce the same sound.
Bit stream – define the count of bits to be transmitted in 1 s of the audio signal.
The IP packet overhead is not included in this information.
Advanced Settings
Disable multicast – multicast is a Point–to–Multipoint transmission option,
which saves the network capacities (if implemented in network elements) and
server resources. Multicast can be turned on globally in the tab.Administrator
Multicast can be adjusted for each speaker individually.
Disable remote control – disable remote or 2N® Net Audio Decoder 2N®
setting. Net Speaker
Enable Telnet – Telnet connection is disabled by default for security reasons
upon or 2N® Net Audio Decoder 2N
®Net Speaker unit – P Audio2N I
®
connection. You can select this option to enable Telnet during thisManager
connection. This option, however, is not recommended for security reasons.
Switch on relay while transmitting – select this option, for example, to switch
on/off the external amplifier if available.
Channel – set the channel. 2N® Net Audio Decoder or 2N
®Net Speaker
Button mode – select the HW button mode – channel switching or volume
setting. Or, deactivate the buttons.
Expander − is an advanced feature of the , which enables2N IP Audio system
load balancing through the network of expanders and this option is used to
assign to the particular or 2N® Net Audio Decoder 2N
®Net Speaker
Expander.
Generic RTP Output
Generic RTP output enables sending of the audio from the t IP Audio Manager2N®
o all the devices that support audio via the RTP protocol with codec G711, L16. Codec
is defined in this output. The audio stream will be sent to the defined IP address and
port. The so-defined output can then be used as an audio output from the session with
which the RTP output must be interconnected. A l is necessary for a propericence
function of the .RTP destinations
This manual suits for next models
8
Table of contents
Other 2N Speakers manuals
