1. Product Overview
1.1 Components and Associated Products
1.2 Terms and Symbols
2. Description and Installation
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.4 Product Description
3. Function and Use
3.1 Configuration
3.2 Default Reset
3.3 Basic Functions
3.4 Downloads
4. Technical Parameters
5. Supplementary Information
5.1 Troubleshooting
5.2 Directives, Laws and Regulations
5.3 General Instructions and Cautions
Installation manual 2N® SIP Speaker, Wall Mounted
3 / 27
•
•
•
•
•
•
•
•
•
•
•
•
•
1. Product Overview
In this section, we introduce the2N®SIPSpeaker, Wall Mountedproduct, outline its
application options and highlight the advantages following from its use. The section also
includes safety precautions.
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols
Basic Properties
2N®SIPSpeaker, Wall Mountedis a versatile sound transmission system for IP networks. It is
designed as a universal VoIP telephone with an audio output. It finds a variety of applications –
in schools, hospitals, office buildings, hotels, production halls, shopping centres, bus terminals,
airports and so on.
2N®SIPSpeaker, Wall Mountedis a stand-alone SIP-based sound decoder and converter with
an amplifier.2N®SIPSpeaker, Wall Mountedcommunicates with the other audio system
components via the SIP Proxy or directly via a specified address.
You can manage your2N®SIPSpeaker, Wall Mountedunit via a configuration web interface.
Advantages of Use
Operable in the Ethernet network
Ethernet-based power supply – PoE
SIP
Integrated administration web server
Streamed audio support
Applicable as standard VoIP telephone/communicator
DTMF detection according to RFC2833, in-band and SIP-INFO
Basic Features
10/100Base-TX LAN interface
12 V DC / 1,8 A or PoE 802.3af supply
Integrated 12 W amplifier
Line output
Installation manual 2N® SIP Speaker, Wall Mounted
4 / 27
•
•
•
•
1.1 Components and Associated Products
Basic Unit
2N Part No.914421B
Axis Part No.
01431-001
2N®SIP Speaker, Wall Mounted
Black colour
2N Part No.914421W
Axis Part No.
01432-001
2N®SIPSpeaker, Wall Mounted
White colour
Installation manual 2N® SIP Speaker, Wall Mounted
5 / 27
•
•
•
•
•
•
Power Supply
Part Numbers:
91378100, 01394-00
91378100E
91378100US,
01403-001
PoE injector – without cable
PoE injector – with EU cable
PoE injector – with US cable
For power supply of intercom via ethernetcable when PoE
switch is not available.
Part No.91341481E
Stabilised 12 V / 2 A power supply needs to be used when no PoE
is available.
Part No.932928
For external power supply of the lock with 12 V AC voltage.
Installation manual 2N® SIP Speaker, Wall Mounted
6 / 27
•
•
•
•
•
•
VoIP Telephones
2N Part No.91378357
Axis Part No. 01422-001
Grandstream GXV3240 VoIP video telephone
GXV3240 is the successor to the popular GXV3140
model, which allows comfortable video calls in the
IP network. Touchscreen and keyboard control.
2N Part No.91378358
Axis Part No. 01421-001
Grandstream GXV3275 VoIP telephone
GXV3275 is the successor to the popular GXV3175
model, which allows comfortable video calls in the
IP network. Touchscreen control.
Accessories
2N Part No.9137410E
Axis Part No. 01397-001
External IP Relay – 1 output
Standalone IP device which can be controlled
byHTTPcommands sent by Helios IP intercom, which
can thus control devices on unlimited distance.
Installation manual 2N® SIP Speaker, Wall Mounted
7 / 27
•
•
•
•
•
2N Part No.9137411E
Axis Part No. 01398-001
External IP Relay – 4 outputs, PoE
Standalone IP device which can be controlled
byHTTPcommands sent by Helios IP intercom, which
can thus control devices on unlimited distance.
Part No. 9159014EU/US/UK
2N®2Wire
(set of 2 adaptors and power source for EU/US/UK)
The 2N®2Wire converter allows you to use existing
wiring (2 wires) from your original door bell or door
intercom to connect any IP device. You don’t have to
configure anything, and you only need one 2N®2Wire
unit at each end of the cable and a power source
connected to at least one of these units.
The 2N®2Wire unit then providesPoEpower not only
to the second converter, but also to all other
connected IP end devices.
1.2 Terms and Symbols
The following symbols and pictograms are used in the manual:
•
Tip
For more accessories and particular advice please contact your local distributor of
2N products.
•
Safety
Always abide by this information to prevent persons from injury.
•
Warning
Always abide by this information to prevent damage to the device.
Installation manual 2N® SIP Speaker, Wall Mounted
8 / 27
•
Caution
Important informationfor system functionality.
•
Tip
Useful informationfor quick and efficient functionality.
•
Note
Routines or advice for efficient use of the device.
Installation manual 2N® SIP Speaker, Wall Mounted
9 / 27
•
•
•
•
•
•
•
•
•
2. Description and Installation
In this section, we describe the2N®SIPSpeaker, Wall Mountedproduct and its installation.
Here is what you can find in this section:
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.4 Product Description
2.1 Before You Start
Product Completeness Check
Before installing this product, check whether the product delivery includes:
1x2N®SIPSpeaker, Wall Mounted
Quick User Manual
Installation Conditions
2N®SIPSpeaker, Wall Mountedis to be connected to the LAN.
2N®SIPSpeaker, Wall Mountedis designed for indoor use.
2N®SIPSpeaker, Wall Mountedmay not be operated in damp environment.
2.2 Mechanical Installation
Surface Mounting
To mount your2N®SIPSpeaker, Wall Mountedunit on a wall or another solid surface use the
speaker holder. This holder fit with screws to keep the device in place. Follow the figure below
while drilling the mounting holes.
Mounting holes
Installation manual 2N® SIP Speaker, Wall Mounted
10 / 27
•
•
•
Speaker Holder
2.3 Electric Installation
Electric Installation Step by Step
It is very easy to connect2N®SIPSpeaker, Wall Mountedelectrically. Follow the steps below to
avoid equipment damage or electrical injury:
Connect the aditional speaker
Connect the UTP cable.
Connect a 12 V power supply (unless PoE is used).
Loudspeaker Connection
2N®SIPSpeaker, Wall Mountedis equipped with a power amplifier for 1 or 2 loudspeakers. The
loudspeakers to be used must have the nominal impedance of 8 Ωeach. Refer to the table
below for possible configurations and related maximum power outputs (sinus, THD < 1 %):
•
•
Caution
Be sure to connect the 2N®SIP Speaker, Wall Mounted power supply as the last
step. The same applies to PoE supply from the LAN.
We recommend the use of a shielded SSTP Ethernet cable.
Installation manual 2N® SIP Speaker, Wall Mounted
11 / 27
Loudspeaker(s) 12 V / 2 A PoE
Two 8 Ω2x 9 W 2x 5 W
One 8 Ω1x 12 W 1x 10 W
Loudspeaker Connection
LAN Connection
2N®SIPSpeaker, Wall Mountedcan be connected to a standard local area network using a LAN
interface via the RJ-45 connector on the back panel. Always use CAT-5d or higher class cables for
reliability reasons.
•
Caution
Use an external power supply to maximise the power output. Make sure that the
maximum Master volume value is +6 dB in the Hardware / Audio menu if you use
PoE and 4Ωspeaker.
Installation manual 2N® SIP Speaker, Wall Mounted
12 / 27
LAN Connection
The LAN interface is equipped with the Auto MDIX function for automatic straight or cross-over
cable detection.
The LAN interface can also be used for the2N®SIPSpeaker, Wall Mountedpower supply
through active network elements or injectors meeting the IEEE 802.3af standard.
Power Supply Connection
2N®SIPSpeaker, Wall Mountedcan be fed using active network elements or PoE injectors via
the LAN interface. In case this option is unavailable, use a 12 V DC / 2 A (Part No. 914102E) power
supply or another power supply on condition that you keep the nominal values included in the
Mechanical and Electrical Parameters subsection.
•
Note
With PoE, the integrated amplifier power output is limited to 10 W. To utilise the
maximum power output of the amplifier, feed 2N®SIP Speaker, Wall Mounted
from a 12 V DC / 1.8 A external power supply.
•
•
Caution
We recommend the use of a LAN surge protection.
We recommend the use of a shielded SSTP Ethernet cable.
Installation manual 2N® SIP Speaker, Wall Mounted
13 / 27
Connect the 12 V DC power supply either to the back panel supply connector markedDCIN, or
terminals markedDCIN+andDCIN–.
Power Supply Connection
2.4 Product Description
2N®SIPSpeaker, Wall Mountedis an Ethernet audio converter designed for public sound
distribution. It is connected to and communicates with the SIP Proxy server via telephone calls.
This guarantees compatibility with all SIP-based systems.
The main principle of the2N®SIPSpeaker, Wall Mountedoperation is to convert an audio
signal between the Ethernet and audio interfaces. Therefore,2N®SIPSpeaker, Wall Mountedis
equipped with an integrated 2x 10 W amplifier for direct loudspeaker connection.
You can control2N®SIPSpeaker, Wall Mountedwith two buttons on the front panel or using an
infrared remote controller.
•
Warning
If you use an adapter other than the recommended one, do not exceed the
nominal supply voltage value of 12 V. Also make sure that the supply voltage
polarity is correct. Exceeding nominal values and/or incorrect connection may
lead to irreversible damage of the equipment.
Installation manual 2N® SIP Speaker, Wall Mounted
14 / 27
2N®SIPSpeaker, Wall Mountedis equipped with a digital input and output, which extend the
converter options and may be helpful in special applications.
Use an integrated web interface for2N®SIPSpeaker, Wall Mountedconfiguration. Apply
the2N®Helios IP Network Scannerto search all the2N®SIPSpeaker, Wall Mountedunits
connected.
Installation manual 2N® SIP Speaker, Wall Mounted
15 / 27
•
•
•
•

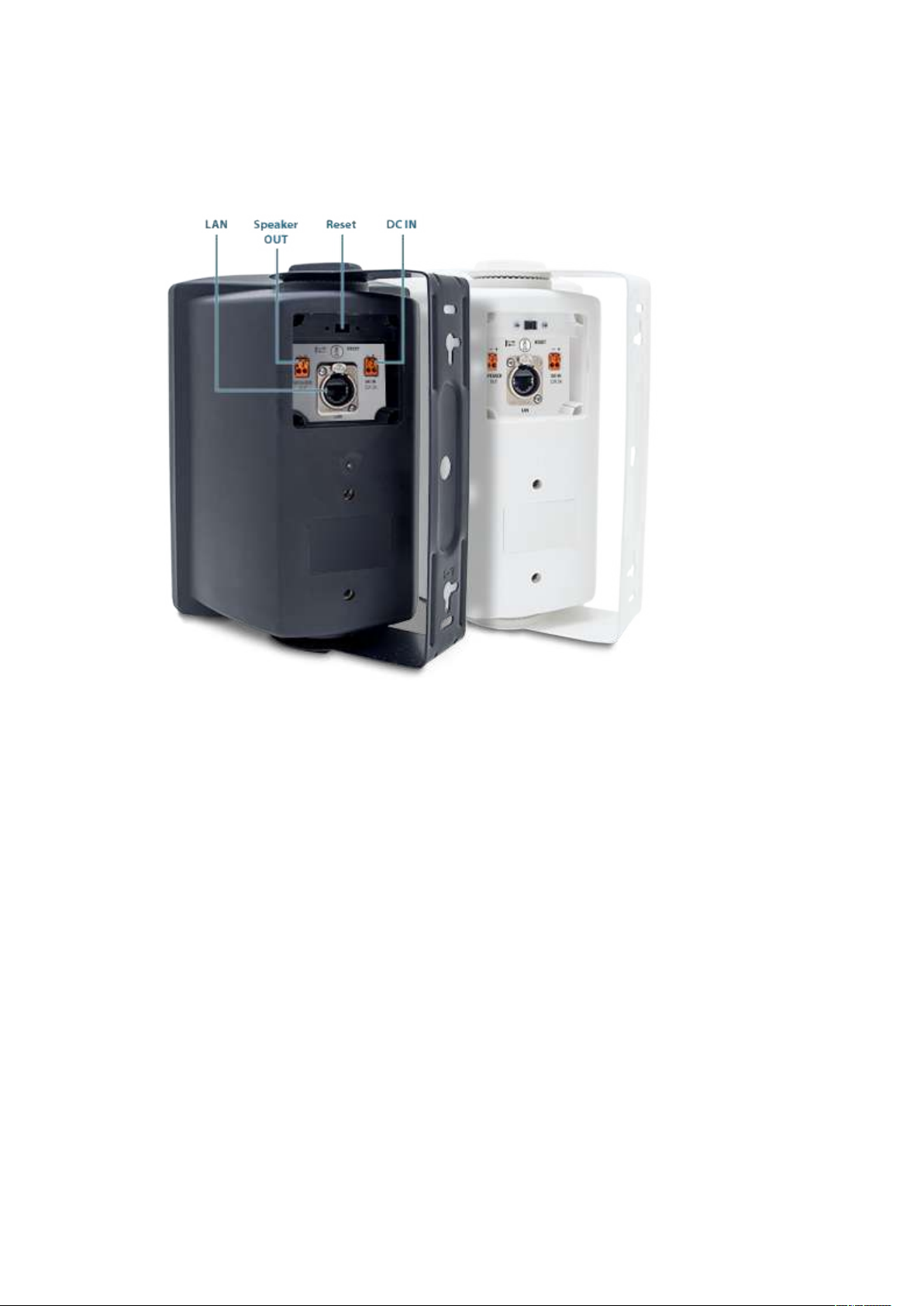

2N®SIPSpeaker, Wall MountedBack Panels
2N®SIP Speaker, Wall Mounted Back Panel
Connectors and Controls:
LAN: 10/100BASE-TX RJ-45 connector
Speaker: Integrated amplifier output terminals for one loudspeaker
RESET button
DC IN: 12 V DC / 2 A power supply adapter connector
Installation manual 2N® SIP Speaker, Wall Mounted
16 / 27
•
•
•
•
1.
2.
3. Function and Use
This section provides the basic and extended functions of the2N®SIPSpeaker, Wall
Mountedproduct.
Here is what you can find in this section:
3.1 Configuration
3.2 Default Reset
3.3 Basic Functions
3.4 Downloads
3.1 Configuration
2N®SIPSpeaker, Wall Mountedis configured through an integrated administration web server.
Connect2N®SIPSpeaker, Wall Mounted to the IP network and make sure that2N®
SIPSpeaker, Wall Mountedis powered.
Description of 2N®IP Network Scanner
The purpose of this application is to find the dynamic IP address of2N®SIP Speaker, Wall
Mounted in the local IP network. The application can be downloaded from the 2N web
siteswww.2n.cz.
Run the2N®IP Network Scannerinstaller.
The installation wizard will guide you through the installation.
2N®IP Network Scanner Installation Wizard
Installation manual 2N® SIP Speaker, Wall Mounted
17 / 27
3.
4.
5.
•
•
After installing the2N®IP Network Scannerapplication, run the application using
theStartmenu of the Microsoft Windows operating system.
Upon launch, the application starts searching the LAN automatically for all
2N®SIP Speaker, Wall Mounted with an assigned or statically set IP address. The devices
are then listed in a table.
2N®IP Network Scanner Window
Select the2N®SIP Speaker, Wall Mounted to be configured. Click on it with the right-
hand mouse button and selectBrowse...to open the web browser window, log in to2N®
SIP Speaker, Wall Mounted and start configuring as described in the Login subsection
below.
Login
In the web browser enter the IP address of2N®SIPSpeaker, Wall Mounted . Subsequently, a
login screen will be displayed. The default login username and password are as follows:
Username: Admin
Password: 2n
If the login screen does not appear, an incorrect IP address was entered into the web browser or
the2N®SIPSpeaker, Wall Mounted administration web server was turned off. If you are not
sure of the IP address of2N®SIPSpeaker, Wall Mounted, use the
2N®IP Network Scannerapplication as described in the Description of
2N®IP Network Scannersubsection.
Find how to switch on the administration web server in the Administration Web Server Switch-
On subsection. Please check the IP address entered, or, if applicable, check the way the IP
address was obtained as described at the beginning of subsection3.1 Configuration.
Installation manual 2N® SIP Speaker, Wall Mounted
18 / 27
1.
Language Selection
You can select the language using the tag menu in the right-hand upper corner as shown in
Figure below.
Language Selection
3.2 Default Reset
Factory Default
The following factory default parameters are available:
Parameter Default
DHCP Off
IP address 192.168.1.100
Mask 255.255.255.0
Default gateway 192.168.1.1
User name Admin
Password 2n
Factory Default Reset
In some cases, it may be useful to reset the2N®SIPSpeaker, Wall Mountedfactory default
values using the RESET switch on the back panel. Do so, for example, if
2N®SIPSpeaker, Wall Mountedceases to respond due to, for example, incorrect LAN settings,
LAN configuration changes, forgotten password and so on.
Factory Default Reset with Static IP Address
Move the switch to the position RESET. Do not disconnect the device from the power
supply while resetting.
Installation manual 2N® SIP Speaker, Wall Mounted
19 / 27
2.
3.
Reset with Static IP Address
Wait until you can hear a beep (for approx. 18 s).
Now move the RESET switch to the opposite position.
Device Restarting
Press the RESET button shortly (< 1 s) to restart the system without changing configuration.
3.3 Basic Functions
Operational Status Signalling
2N®SIPSpeaker, Wall Mountedsignals acoustically changes of and transitions between
variable operational statuses. There are different tone combinations for each status change.
Refer to table below for the list of signals.
•
Note
Časový interval od krátkého stisku tlačítka RESET po znovu připojení zařízení do
sítěpo proběhlém restartu trvá pro2N® SIP Speakerdo 14s.
Installation manual 2N® SIP Speaker, Wall Mounted
20 / 27
Tones Meaning
Calendar activated
Used for calendar activation. Use this function, for example, to enable
user group ringing in an office. Refer to the Time Profiles subsection in
configuration manual for activation code settings.
Calendar deactivated
Used for calendar deactivation. Use this function, for example, to
disable user group ringing in an office and forward the call(s) to a
predefined telephone number (reception desk or user mobile phones).
Refer to the Time Profiles subsection in configuration manual for
deactivation code settings.
Call prolongation confirmation signalling
The maximum call duration is set in 2N®SIP Speaker, Wall Mounted
for security reasons; refer to Phone subsection in configuration manual.
Other manuals for 914421B
1
This manual suits for next models
3
Table of contents
Other 2N Speakers manuals
