DESCRIPTION:
SHEET 1 OF 60 REV #
KURVE COLLECTION KURVE DESK W/HAND CRANK ADJUSTABLE
HEIGHT "T" BASE
ASSEMBLY INSTRUCTIONS
09.23.21
DESK ASSEMBLY INSTRUCTIONS
SK-KU-DESK-ADJT-ASSEMBLY-01

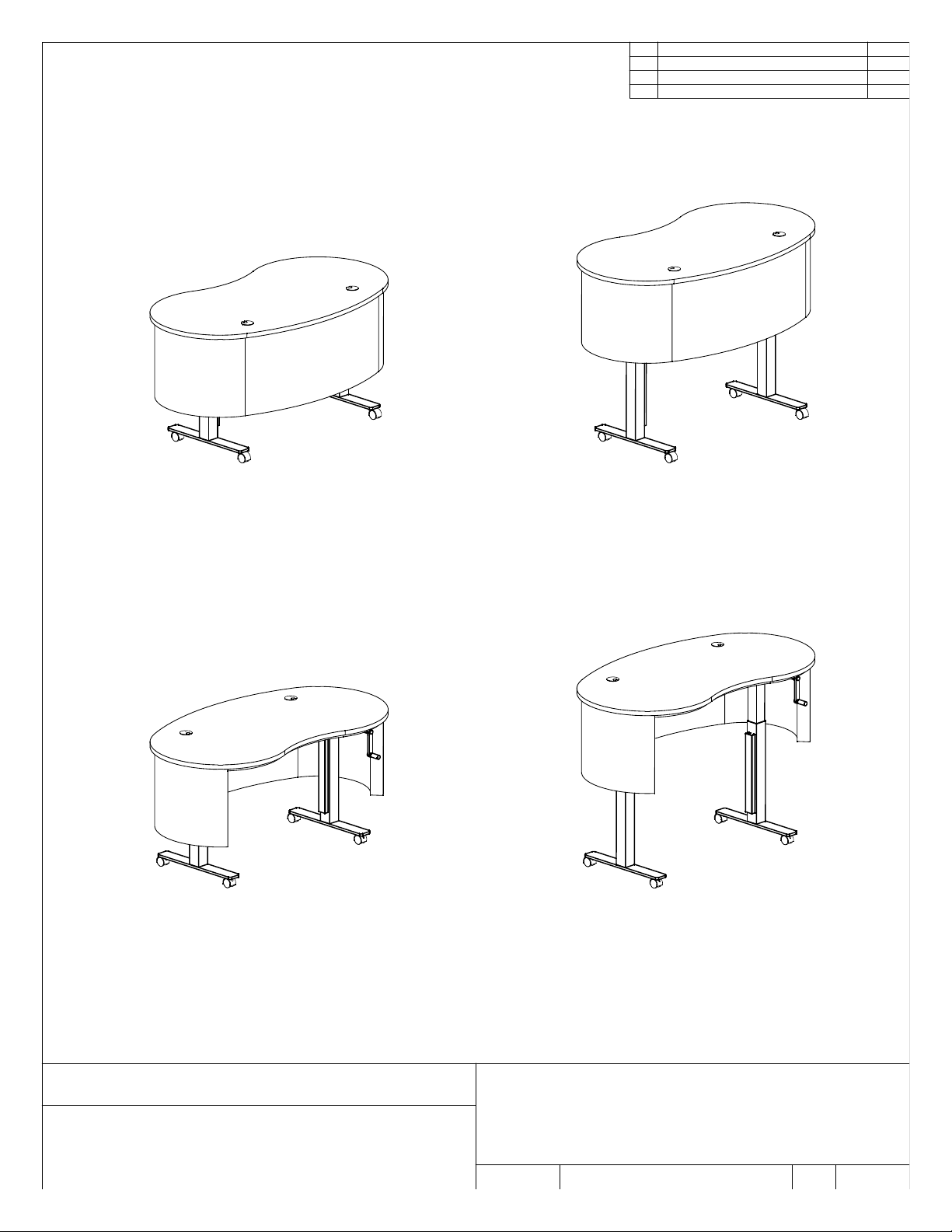

ASSEMBLED DESK- BACK VIEW
TOP LOWERED
ASSEMBLED DESK- BACK VIEW
TOP @ FULL EXTENSION
ASSEMBLED DESK- FRONT VIEW
TOP LOWERED
ASSEMBLED DESK- FRONT VIEW
TOP @ FULL EXTENSION

PARTS LIST:
TOP PANEL QTY= 1
APRON/SUB-TOP ASSEMBLY QTY= 1
BASE ADJUSTABLE HEIGHT COLUMNS QTY= 2
BASE MAIN BARS QTY= 2
BASE MOUNTING PLATES QTY= 2
DRIVE ROD QTY= 1
HANDLE ASSEMBLY QTY= 1
HANDLE ASSEMBLY BACK COVER QTY= 1
HARDWARE:
M8 X 25MM MACHINE SCREWS QTY= 8
M8 X 35MM MACHINE SCREWS QTY= 8
#12 X 1"L PHILLIPS ROUND HEAD WOOD QTY= 8
SCREWS, STEEL W/BLACK FINISH
#8 X 1 1/2"L PHILLIPS FLAT HEAD SHEET QTY= 9
METAL SCREWS
CASTERS, 2"DIA WHEEL, 5/16"-18X 1/2"L STEM QTY= 4
LEVELERS, 5/16"-18X 1/2"L STEM (OPTIONAL) QTY= 4
SILICONE ADHESIVE QTY= 4
(SOLID SURFACE TOP ONLY)
WIRE MANAGEMENT:
2"DIA GROMMET QTY= 2
MAGNETIC WIRE CHANNEL QTY= 1
TOOLS REQ'D:
#2 PHILLIPS SCREW DRIVER/BIT (TOP MOUNTING)
#3 PHILLIPS SCREW DRIVER/BIT ("T" BASE MOUNTING)
5MM HEX HEAD DRIVER/BIT ("T" BASE ASSEMBLY)
NOTE:
WORKSURFACE HEIGHT ADJUSTABLE FROM 29 3/4" TO 42".
BASE COLUMNS BASE MAIN BARS
DRIVE ROD
GROMMETS
BASE MOUNTING PLATES
HANDLE ASSEMBLY HANDLE ASSEMBLY
BACK COVER
MAGNETIC WIRE CHANNEL
TOP PANEL
APRON/SUB-TOP ASSEMBLY
CASTERS
DWG #DATE:
product design solutions
3branch
P 847.291.3900
F 847.291.3901
www.3branch.com
DESCRIPTION:
SHEET 2 OF 60 REV #
KURVE COLLECTION KURVE DESK W/HAND CRANK ADJUSTABLE
HEIGHT "T" BASE
ASSEMBLY INSTRUCTIONS
SK-KU-DESK-ADJT-ASSEMBLY-0109.23.21

STEP 3:
LAY PLASTIC LAMINATE TOP PANEL ON CLEAN COVER WITH GOOD FACE
TURNED DOWN.
NOTE: STEPS 3, 4 , & 5 ARE FOR PLASTIC LAMINATE TOPS ONLY.
SOLID SURFACE TOPS WILL BE MOUNTED TO APRON/SUB-TOP
ASSEMBLY WITH SILICONE ADHESIVE AFTER BASE END ASSEMBLIES
ARE ATTACHED. SEE STEP 19.
STEP 1:
REMOVE ALL PACKING MATERIAL FROM DESK TOP PANEL,
APRON/SUB-TOP ASSEMBLY, & BASE PARTS & TOP.
*CAUTION: TWO PEOPLE REQ'D FOR DESK ASSEMBLY TO
AVOID DAMAGE TO DESK PARTS & PERSONAL INJURY!
STEP 2:
LAY CLEAN COVER ON FLOOR TO PROTECT FLOOR &
DESK PARTS.
BACK EDGE OF
TOP PANEL
STEP 4:
LAY APRON/SUB-TOP ASSEMBLY ON BOTTOM FACE OF PLASTIC
LAMINATE TOP PANEL & CENTER.
NOTE: THERE IS AN APPROXIMATE 1" TOP OVERHANG PAST THE
APRON/SUB-TOP ASSEMBLY.
NOTE: APRON/SUB-TOP ASSEMBLY MAY SHIP WITH TOP PANEL
ALREADY ATTACHED. IF SO, SKIP STEPS 4 & 5.
DWG #DATE:
product design solutions
3branch
P 847.291.3900
F 847.291.3901
www.3branch.com
DESCRIPTION:
SHEET 3 OF 60 REV #
KURVE COLLECTION KURVE DESK W/HAND CRANK ADJUSTABLE
HEIGHT "T" BASE
ASSEMBLY INSTRUCTIONS
SK-KU-DESK-ADJT-ASSEMBLY-01
CLEAN COVER
NOTE: THE FOLLOWING ASSEMBLY INSTRUCTIONS
APPLY TO ALL SHAPES & SIZES OF KURVE DESKS.
STEP 5:
ATTACH APRON SUB-TOP ASSEMBLY TO TOP PANEL WITH
#8 X 1 1/2" PFH SHEET METAL SCREWS. INSERT SCREWS INTO
COUNTERSUNK HOLES LOCATED IN SUB-TOP & THREAD INTO
BOTTOM FACE OF TOP PANEL.
NOTE: QUANTITY OF SCREWS WILL VARY WITH SIZE & SHAPE OF DESK.
*NOTE: DO NOT ATTACH APRON/SUB-TOP ASSEMBLY TO ANY SOLID
SURFACE TOP WITH SCREWS!!! SOLID SURFACE TOPS WILL BE
ATTACHED TO APRON/SUB-TOP ASSEMBLY WITH SILICONE ADHESIVE
AFTER BASE END ASSEMBLIES ARE ATTACHED TO APRON/SUB-TOP
ASSEMBLY. SEE STEP 19.*
#8 X 1 1/2" PFH
SCREWS
APRON/
SUB-TOP
ASSEMBLY
TOP PANEL
PLASTIC
LAMINATE
TOP PANEL
09.23.21

STEP 8:
TURN ASSEMBLED BASE ENDS FROM STEP 7 UPSIDE DOWN & SET
ON APRON/SUB-TOP ASSEMBLY.
NOTE: COLUMN "A" TO BE LOCATED ON LEFT END. ROTATE
COLUMN "A" SO THAT THE LABEL & HOLE IS TO THE INSIDE.
ROTATE COLUMN "B" SO THAT THE LABEL & HOLE IS TO
THE INSIDE. (LABELS WILL BE FACING EACH OTHER)
NOTE: THRU HOLES IN BOTH COLUMNS WILL BE ORIENTATED
FRONT TO BACK.
"A"
THRU HOLE
FRONT & BACK "B"
STEP 9:
LOCATE DRIVE ROD BETWEEN COLUMNS.
ALIGN DRIVE ROD WITH HOLES IN COLUMNS & PUSH COLUMNS
TOGETHER.
DRIVE ROD
STEP 10:
ALIGN BASE MOUNTING PLATES WITH PILOT HOLES LOCATED
IN BOTTOM FACE OF APRON/SUB-TOP ASSEMBLY.
ATTACH BASE ENDS TO BOTTOM FACE OF TOP PANEL WITH
#12 X 1" RHP WOOD SCREWS. INSERT SCREWS THRU HOLES
IN BASE MOUNTING PLATES & TIGHTEN INTO CORRESPONDING
PILOT HOLES LOCATED IN THE BOTTOM FACE OF THE SUB-TOP.
NOTE: FOUR SCREWS REQ'D FOR EACH BASE END.
MOUNTING
SCREWS
DWG #DATE:
product design solutions
3branch
P 847.291.3900
F 847.291.3901
www.3branch.com
DESCRIPTION:
SHEET 4 OF 60 REV #
KURVE COLLECTION KURVE DESK W/HAND CRANK ADJUSTABLE
HEIGHT "T" BASE
ASSEMBLY INSTRUCTIONS
SK-KU-DESK-ADJT-ASSEMBLY-01

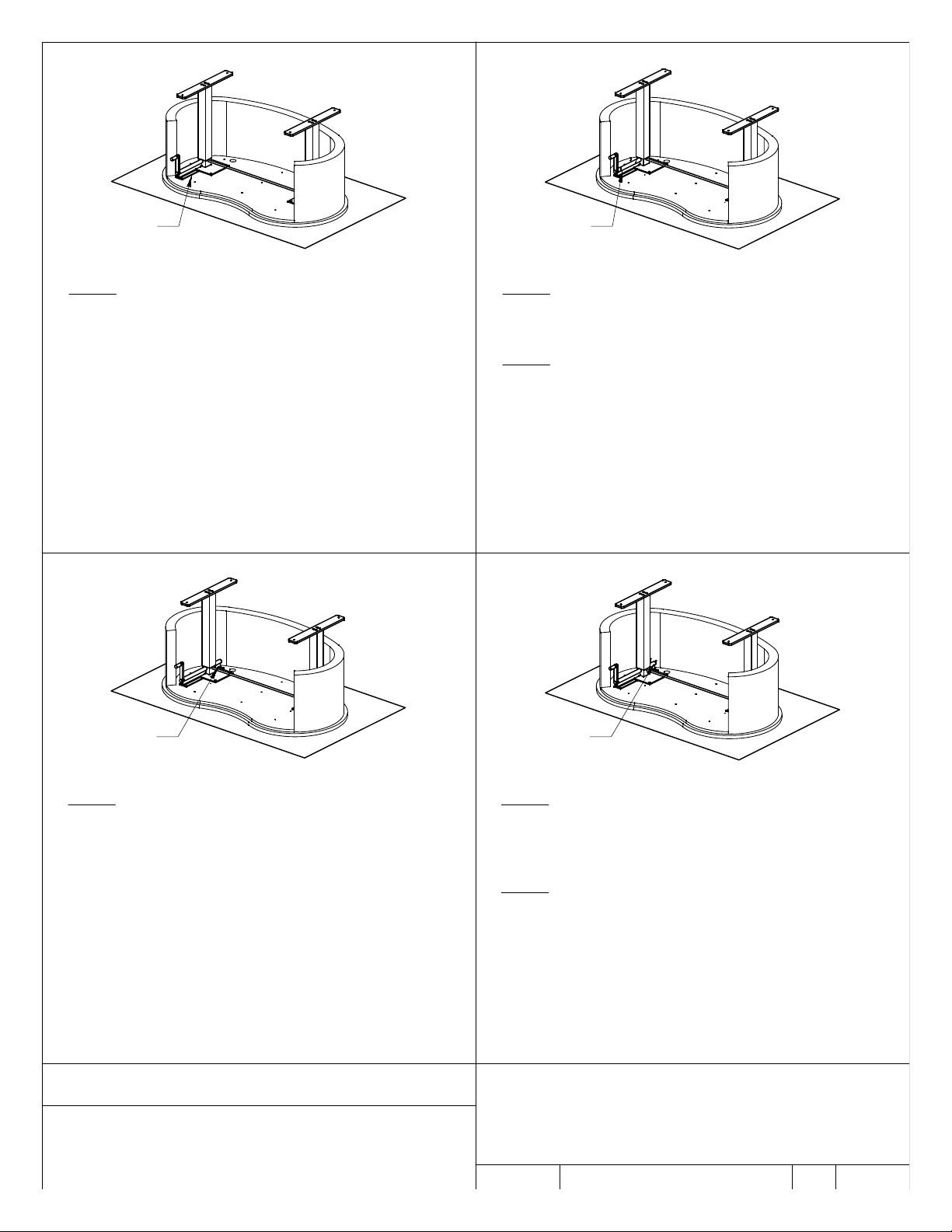

STEP 6:
NOTE: BASE COLUMNS ARE LABELED "A" & "B" NEAR THE TOP.
ORIENATE COLUMNS SO THAT LABELS "A" & "B" ARE TURNED
TOWARDS THE WIDE OVERHANGING SIDE OF THE MOUNTING PLATES.
ORIENTATE MOUNTING PLATES SO THAT COUNTERSUNK SCREW
HOLES ARE OPPOSITE THE COLUMN.
ATTACH MOUNTING PLATES TO COLUMNS WITH M8 X 35MM
5MM HEX DRIVE SCREWS INSERTED THRU MOUNTING PLATES &
THREADING INTO TAPPED HOLES IN COLUMN END (4/END BASE).
STEP 7:
ORIENTATE MAIN BARS SO THAT COUNTERSUNK SCREW HOLES
ARE OPPOSITE THE COLUMN.
ATTACH MAIN BARS TO COLUMNS WITH M8 X 25MM 5MM HEX
DRIVE SCREWS INSERTED THRU COUNTERSUNK HOLES IN MAIN BAR
& THREADING INTO TAPPED HOLES IN COLUMN END (4/BASE END).
25MM SCREWS
35MM SCREWS
THRU HOLE
FRONT & BACK
25MM SCREWS
COLUMN "A"
COLUMN "B"
MOUNTING
PLATE
ADJ HEIGHT
COLUMN
MAIN BAR
THRU HOLE
FRONT & BACK
COUNTERSINK
UP
COUNTERSINK
DOWN
HOLE TO
INSIDE
09.23.21

HANDLE
ASSEMBLY
STEP 11:
LOCATE HANDLE ASSEMBLY IN FRONT OF COLUMN "A".
NOTE: HANDLE ASSEMBLY IS CENTERED ON COLUMN. THE ROD
PROTRUDING BEHIND THE ASSEMBLY IS INSERTED INTO THE THRU
HOLE IN THE COLUMN. THE HANDLE ASSEMBLY IS PUSHED UP
TIGHT TO THE MOUNTING PLATE.
MOUNTING
SCREWS
STEP 12:
WITH THE HANDLE ASSEMBLY IN PLACE, MARK & DRILL PILOT HOLES
IN THE BOTTOM FACE OF THE APRON/SUB-TOP ASSEMBLY.
STEP 13:
ATTACH HANDLE ASSEMBLY TO APRON/SUB-TOP ASSEMBLY WITH
#12 X 1" WOOD SCREWS PROVIDED (4 TOTAL).
HANDLE
ASSEMBLY
BACK COVER
STEP 14:
LOCATE HANDLE ASSEMBLY BACK COVER BEHIND COLUMN "A".
NOTE: BACK COVER IS CENTERED ON COLUMN. THE COVER FITS
OVER THE HANDLE ASSEMBLY ROD PROTRUDING THRU THE COLUMN.
THE BACK COVER IS PUSHED UP TIGHT TO MOUNTING PLATE.
MOUNTING
SCREWS
STEP 15:
WITH THE HANDLE ASSEMBLY BACK COVER IN PLACE, MARK &
DRILL PILOT HOLES IN THE BOTTOM FACE OF THE APRON/
SUB-TOP ASSEMBLY.
STEP 16:
ATTACH HANDLE ASSEMBLY TO APRON/SUB-TOP ASSEMBLY WITH
#12 X 1" WOOD SCREWS PROVIDED (2 TOTAL).
DWG #DATE:
product design solutions
3branch
P 847.291.3900
F 847.291.3901
www.3branch.com
DESCRIPTION:
SHEET 5 OF 60 REV #
KURVE COLLECTION KURVE DESK W/HAND CRANK ADJUSTABLE
HEIGHT "T" BASE
ASSEMBLY INSTRUCTIONS
SK-KU-DESK-ADJT-ASSEMBLY-0109.23.21

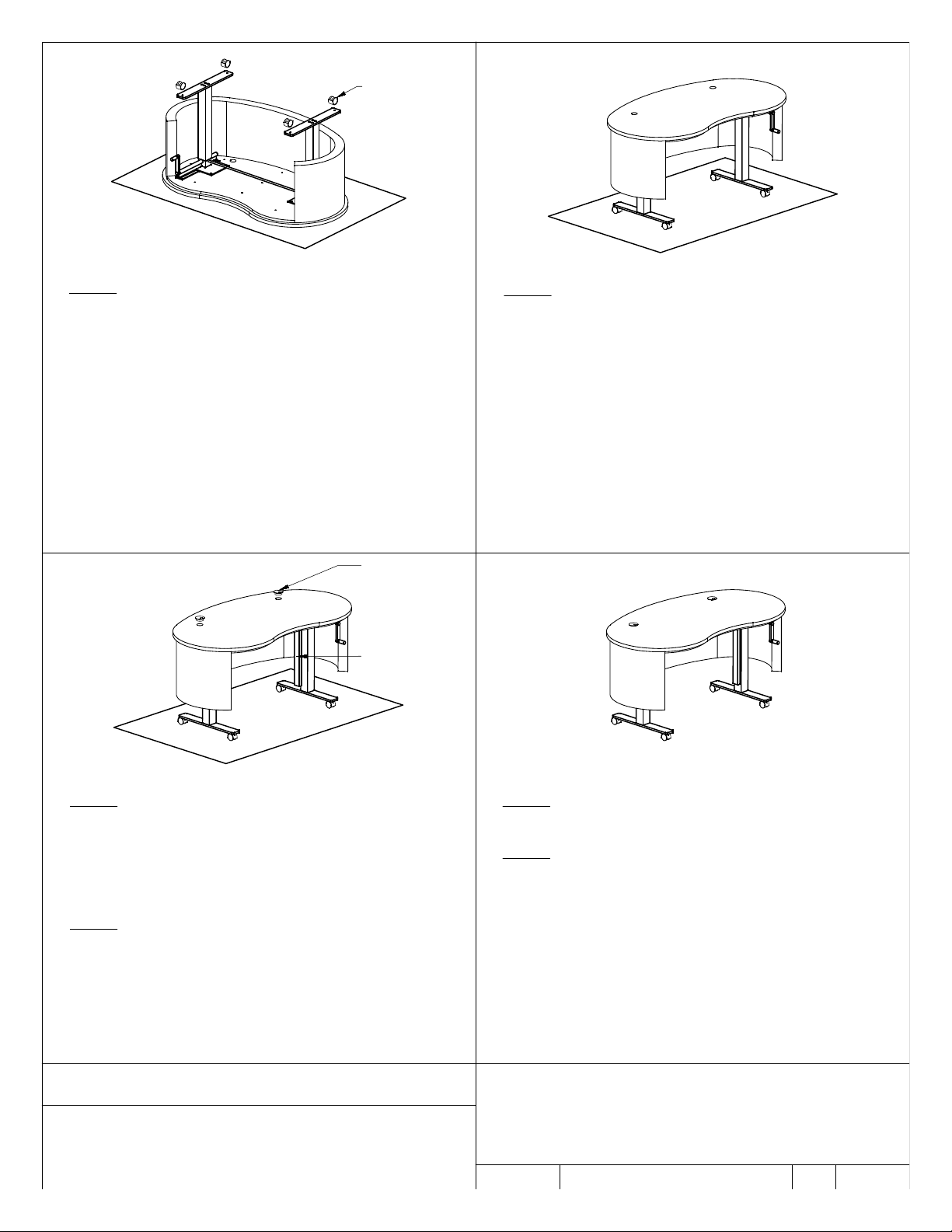

CASTERS
STEP 17:
THREAD & TIGHTEN CASTER STEMS INTO INSERTS LOCATED
IN THE BOTTOM OF THE BASE ASEEMBLY.
NOTE: BASE IS ALSO AVAILABLE WITH OPTIONAL LEVELERS.
GROMMETS
MAGNETIC
WIRE CHANNEL
STEP 19:
INSTALL GROMMETS IN HOLES BORED THRU TOP PANEL &
APRON/SUB-TOP ASSEMBL NEAR EACH END.
NOTE: SOLID SURFACE TOP WOULD BE ATTACHED TO APRON/
SUB-TOP ASSEMBLY WITH SILICONE ADHESIVE @ THIS STEP
IF APPLICABLE.
STEP 20:
MOUNT MAGNETIC WIRE CHANNEL TO DESIRED BASE COLUMN.
STEP 18:
TURN ASSEMBLED DESK UPRIGHT.
*CAUTION: TWO PEOPLE REQ'D TO TURN TABLE OVER TO AVOID
DAMAGE TO DESK PARTS & PERSONAL INJURY!
*CAUTION: DO NOT PIVOT ON TABLE BASE TO AVOID DAMAGE
TO BASE!
STEP 21:
ROLL ASSEMBLED DESK IN PLACE.
STEP 22:
PULL HANDLE OUT TO RAISE & LOWER TOP TO DESIRED HEIGHT.
TURN HANDLE CLOCKWISE TO RAISE TABLE.
TURN HANDLE COUNTER CLOCKWISE TO LOWER TABLE.
PUSH HANDLE IN TO STORE BELOW TOP.
DWG #DATE:
product design solutions
3branch
P 847.291.3900
F 847.291.3901
www.3branch.com
DESCRIPTION:
SHEET 6 OF 60 REV #
KURVE COLLECTION KURVE DESK W/HAND CRANK ADJUSTABLE
HEIGHT "T" BASE
ASSEMBLY INSTRUCTIONS
SK-KU-DESK-ADJT-ASSEMBLY-0109.23.21
