3CX Nx 32 User manual

BREAK FREE
WITH A SOFTWARE BASED PBX
APPLIANCE
QUICK START
www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
Model: Nx 32
call4tel

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
WAN
LAN
USB
POWER INDICATION RUN
HDMI
POWER
RESET

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
01 Web Access
1.1 URL
LAN http://192.168.101.1:5448
WAN <your ip>:5448
1.2 To Access device
LAN
WAN
1) Connect WAN to DHCP Network
2) WAN gets the IP from DHCP Network to find IP. Download
Call4tel NX Detector tool in the link below.
Download Link: http://update.call4tel.com/detector/NX32_DETECTOR.zip
Once the IP address found proceed with URL:
URL: http://<your ip>:5448
http://192.168.101.1:5448
1.3 Connect the WAN port to your Switch or Router, using the (included) network cable.
1.4 URL: http://<your ip>:5448
Mandatory:Set the WAN IP (the one which is connected to the internet and
the network with all the phones) to be static.
Step 1: Web Access
Step 2: IP Configuration
Step 3: Allow IP in Firewall
Step 4: SIP Connect - Allow static route
Step 5: 3CX Licensing
Step 6: Configure SBC
Step 7: Profile
Step 8: Need to change Password?
Step 9: On new version available
Step 10: After Update
Step 11: Indicators and Beepers
On this topic

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
Username : root
Password : 3cx
1.5 Enter username & password
02 IP Configuration
2.1 By default, "Obtain IP address automatically" will be enabled and the system will obtain IP address
automatically.
2.2 By selecting "Use the following IP address", the system will be enabled to update a custom LAN IP Address.
LAN
2.3 By default, "Use the following IP address", the system will be enabled to update custom WAN IP Address.
2.4 By selecting "Obtain IP address automatically" the system will obtain an IP address automatically.
WAN

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
2.5 By default “DNS” will be obtained automatically.
DNS Information
03 Allow IP in Firewall
Allow All: Allow all ip address
You can allow IP in Firewall (External access for port 5448) by selecting any one option
Allow IP: Allow only specific ip address
Allow IP Range: Allow specific ip address with range
Firewall changes: Can delete IP address added

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
04 SIP Connect - Allow static route
Allow IP: Allow only specific ip address with either LAN or WAN
If you need to add a Static route, select “Static route” to update
Allow IP Range: Allow specific ip address in range either LAN or WAN
Need to delete IP Address added?
Click on delete button in “Route Changes” to delete the record

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
05 3CX Licensing
Latest 3CX Version:
3CX Uninstall:
Are you planning to install or reset 3CX and network?
At all-times, the installed 3CX version will be displayed here.
Need to check your 3CX version?
Call4tel Reset:
Network Reset:
3CX Wizard Reset:
Reset All:
Power off:
Show 3CX latest version
Click to uninstall 3CX
Click to reset call4tel NX device
Click to reset network
Click to reset 3CX
Click to reset all settings
Click to Switch off your device
Reboot: Click to Reboot your device

www.call4tel.com118 Aljunied Ave, 07-102, Singapore 380118 [phone]
Are you planning to change 3CX to SBC?
Select SBC and then click “Change” to change device from 3CX to SBC
Fill SBC Form and then click “Confirm” to change device from 3CX to SBC
06 Configure SBC
www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]

www.call4tel.com118 Aljunied Ave, 07-102, Singapore 380118 [phone]
SBC Config Update:
SBC Uninstall:
Call4tel Reset:
Network Reset:
Reset All:
Power off:
Click to update SBC Config
Click to uninstall SBC
Click to reset call4tel NX device
Click to reset network
Click to reset all settings
Click to Switch off your device
Reboot: Click to Reboot your device
After updating from 3CX to SBC, you can update SBC settings as follows:
www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
07 Profile
View / Update your profile
08 Need to change Password?
Enter current and new password and then click “Change Password”
09 New version available
You will be notified once a new version is available. You can update by clicking the “click here” button

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
a. When the power source is connected, you will hear a short beep which means, the system is powered up.
b. When the system is started and ready, you will hear a long beep.
c. A long press on RST button for 2-3 seconds and release, will ensure the system is powered off. You will hear four beeps
as confirmation. The system is now successfully powered off..
d. For reset - a long press on RST for maximum 8 seconds until you hear ten rapid beeps, resets the
3CX phone system & network settings and auto reboots to a fresh installation. Proceed to use the default
IP address to access the setup interface.
e. If the 12V power is disconnected or there is a sudden outage, the UPS battery residing inside is automatically
triggered & executes the "Power-off" command to shut down the system safely, avoiding any data loss or system damage.
11
10 After update
Once the update is complete, you will be notified that “Your device is up to date”.
Additional Guide
Call4tel NX32 Detector: To detect a connected NX32 device in your network, click here to download
http://update.call4tel.com/detector/NX32_DETECTOR.zip

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
Step: 1 In order to get your 3CX license key, you need to fill in the form below and click the submit button
to register your account.
URL: https://www.call4tel.com/activation/
Step: 2 You will receive an email to confirm your email address.
Step: 3 Go to the Call4tel portal login area and enter your Username and Password and then click Login.
URL: https://erp.cal4care.com/nx32/
How to obtain a License Key?

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]

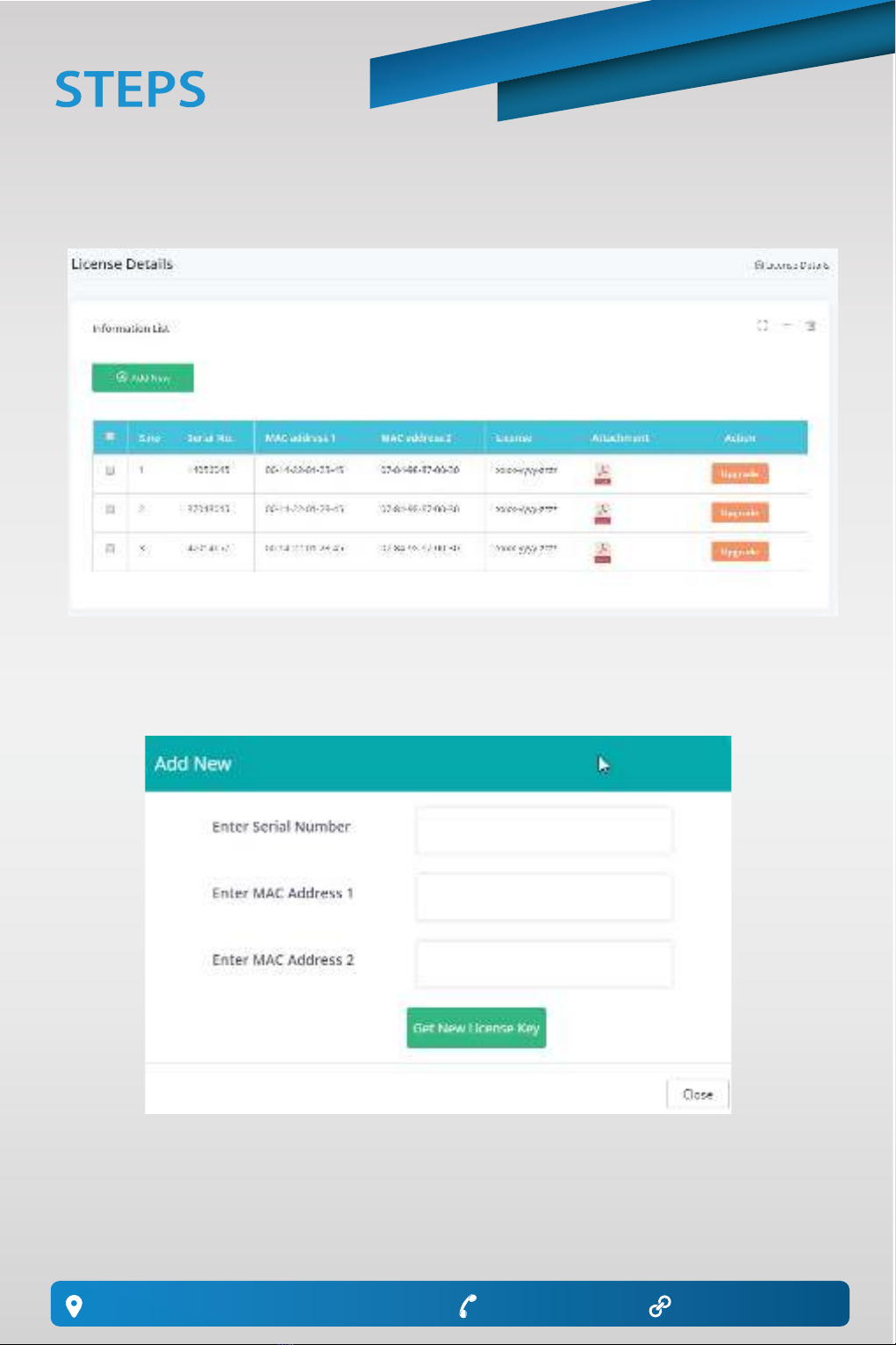

Step: 4 You can find the list of Licenses on the License Details page. In that window, click the “Add new”
button to register a new license.
Step: 5 Enter your device serial number and mac address and click the “Get new license key”.
Step: 6 You will receive an email with your 3CX License details.

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
Step: 1 Go to the Call4tel portal login area and enter your username and password and click the “Login” button.
URL: https://erp.cal4care.com/nx32/
Step: 2 You can find the list of License keys here. Click the “Upgrade” button to upgrade your license.
Step: 3 Select your available license and choose desired upgrade and then click “Add to cart” button.
How to upgrade your License Key?

www.call4tel.comNovelty Techpoint, Singapore 536212 [phone]
Step: 4 In the Cart Page you can see the upgrade details that you selected. After confirmation, click the “Proceed”
button to progress to the payment page..
Step: 5 Choose payment method and click the “Proceed” button to pay.
Step: 6 You will receive an email with your 3CX License details.
