3D Systems Touch User manual

User Guide
Hands on design
Touch™
3D stylus

TABLE OF CONTENTS
COPYRIGHT 3
FCC NOTICE 3
COMPLIANCE 3
WARRANTY 3
LIMITATION OF LIABILITY 3
1INTRODUCTION 4
2SAFETY 5
3TOUCH SETUP 6
WHAT'S INCLUDED 6
CONNECT THE TOUCH 6
4GETTING TO KNOW THE TOUCH 8
TOUCH COMPONENTS 8
LED (LIGHT) RING INDICATORS 8
5PROPER HANDLING AND POSITIONING 9
HANDLING THE TOUCH DEVICE 9
HANDLING THE STYLUS 10
6USING THE TOUCH DEVICE 12
WORKING IN 3D SPACE 12
PHYSICAL LIMITS OF THE DEVICE 12
MOVING WITH THE STYLUS 12
7REGISTER AND ACTIVATION 15
REGISTER YOUR TOUCH DEVICE 15
REGISTER, ACTIVATE AND START USING CUBIFY SCULPT 15
REGISTER, ACTIVATE AND START USING GEOMAGIC SCULPT 15
8FEATURES AND SPECIFICATIONS 16

3D Systems, Inc. 3
COPYRIGHT
©2014. 3D Systems, Inc. All rights reserved. The content of this manual is furnished for informational use only, is subject to change
without notice, and should not be construed as a commitment by 3D Systems, Inc. This document is copyrighted and contains
proprietary information that is the property of 3D Systems, Inc. Touch, 3D Systems, and the 3D Systems logo are registered
trademarks, and Touch is a trademark, of 3D Systems, Inc. Use of the Cubify.com website constitutes acceptance of its Terms of
Service and Privacy Policy. Any names, places, and/or events in this publication are not intended to correspond or relate in any way
to individuals, groups or associations. Any similarity or likeness of the names, places, and/or events in this publication to those of any
individual, living or dead, place, event, or that of any group or association is purely coincidental and unintentional.
FCC NOTICE
This equipment has been tested and found to comply with the limits for a class “B” digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at their expense.
COMPLIANCE
This equipment conforms with International Electric Committee (IEC) 60950-1, EN 55022, EN55024, EN 61000-3-2, EN 61000-3-3, and
EN 60950 and meets the requirements of the applicable EC directives.
WARRANTY
No warranties of any kind are created or extended by this publication. 3D Systems warrants that the Touch haptic device will be free
from defects in materials and workmanship, during the applicable warranty period, when used under the normal conditions described
in the documentation provided to you, including the respective User Guide. 3D Systems will promptly repair or replace the Touch, if
required, to make it free of defects during the warranty period. This warranty excludes repairs required during the warranty period
because of abnormal use or conditions (such as riots, oods, misuse, neglect or improper service by anyone except 3D Systems or its
authorized service provider). The warranty period for the Touch is twelve (12) months and shall start the date Your device is purchased.
For consumers who are covered by consumer protection laws or regulations in their country of purchase or, if different, their country
of residence, the benets conferred by our standard warranty are in addition to, and operate concurrently with, all rights and remedies
conveyed by such consumer protection laws and regulations, including but not limited to these additional rights.
THIS WARRANTY IS THE ONLY WARRANTY PROVIDED FOR THE TOUCH 3D DEVICE. TO THE MAXIMUM EXTENT PERMITTED
BY LAW, 3D SYSTEMS EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES FOR THE TOUCH 3D DEVICE AND EACH OF ITS
COMPONENTS, WHETHER THOSE WARRANTIES ARE EXPRESS, IMPLIED OR STATUTORY, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR INTENDED OR PARTICULAR PURPOSES.
LIMITATION OF LIABILITY
3D SYSTEMS WILL NOT BE RESPONSIBLE FOR CONSEQUENTIAL, EXEMPLARY OR INCIDENTAL DAMAGES (SUCH AS
LOSS OF PROFIT OR EMPLOYEE’S TIME) REGARDLESS OF THE REASON. IN NO EVENT SHALL THE LIABILITY AND/OR
OBLIGATIONS OF 3D SYSTEMS ARISING OUT OF THE PURCHASE, LEASE, LICENSE AND/OR USE OF THE EQUIPMENT BY
YOU OR OTHERS EXCEED THE PURCHASE PRICE OF THE TOUCH 3D DEVICE.

3D Systems, Inc. 4
1 INTRODUCTION
The Touch 3D stylus is the rst-ever haptic consumer 3D stylus for intuitive 3D sculpting and design, with instant force feedback that
mimics the sense of physical touch. Touch works with 3Ds’ Cubify Sculpt and Geomagic Sculpt, powerful virtual sculpting tools that
transforms 3D modeling from a complex, skills-centric design experience to a simple, easy sculpting delight for students, designers, and
hobbyists alike.
The Touch 3D stylus features, include:
• Ergonomic design and compact footprint
• 6-degree-of-freedom positional sensing
• 3-degree-of-freedom force feedback
• Two integrated momentary stylus switches
• Magnetic stylus-docking inkwell
• USB 2.0 full-speed interface plug-n-play
• Made of metal components and injection-molded plastics
• Instructional LEDs in base and gimbal
1

3D Systems, Inc. 5
!
2 SAFETY
WARNING: INDICATES SOMETHING MAY HAPPEN THAT COULD CAUSE LOSS OF DATA, DAMAGE TO EQUIPMENT, OR
COULD CAUSE PERSONAL INJURY.
SAFETY GUIDELINES
• Follow all safety rules in this section and observe all cautions and warnings in this guide.
• Hardware usage guidelines are provided to assist you in protecting the effectiveness and life of the device. They are not intended as
recommendations for the prevention of repetitive stress injury, carpal tunnel syndrome or any other conditions, injuries or disorders; users
should consult their own physicians. By using the Touch device, you acknowledge and agree that 3D Systems shall have no liability for
any disorder, condition or injury arising from any use of the device.
• Do not open the Touch device. Attempting to open or repair the device by anyone other than a certied authorized service center voids
the manufacturer warranty and hardware maintenance contract. There are no serviceable components in the Touch device or power
supply. Return to 3D for servicing.
2

3D Systems, Inc. 6
3 TOUCH SETUP
In this section you will setup the Touch device and plug in the cables.
WHAT'S INCLUDED
Included in the box:
• Touch 3D stylus
• Power cord
• Power supply
• USB cable
• Quick Start Guide
CONNECT THE TOUCH
1. Carefully remove the Touch and cables from the box.
2. Position the Touch device in your workspace, using both hands to grasp the base of the device.
NOTE: See “Handling the Touch Device” on page 9 for instructions on how to handle the device to reduce the risk of
damage.

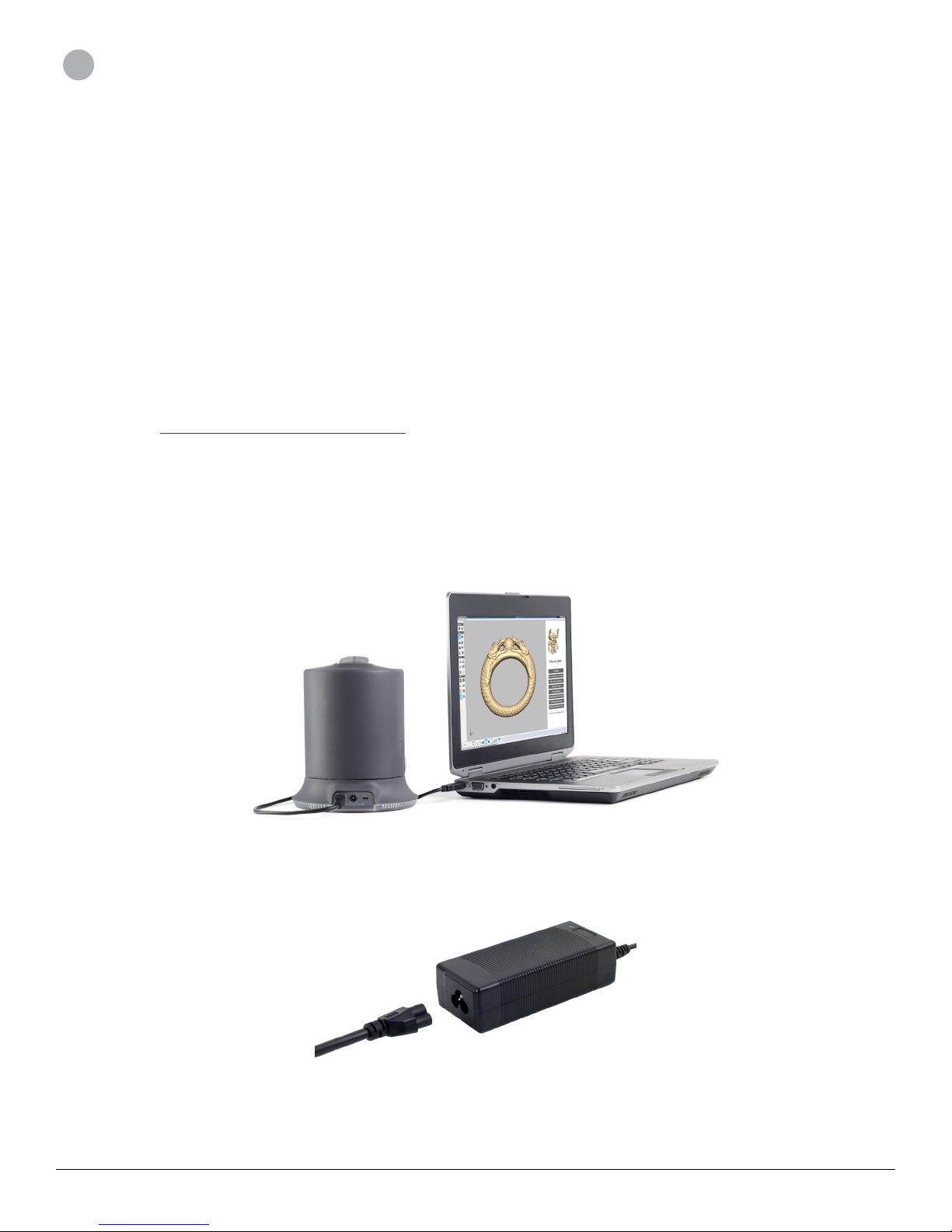

3. Insert the smaller end of the USB cable into the Touch device, then connect the larger end of the USB cable into the USB port on
your computer.
4. Plug the power cord into the power supply.
3

3D Systems, Inc. 7

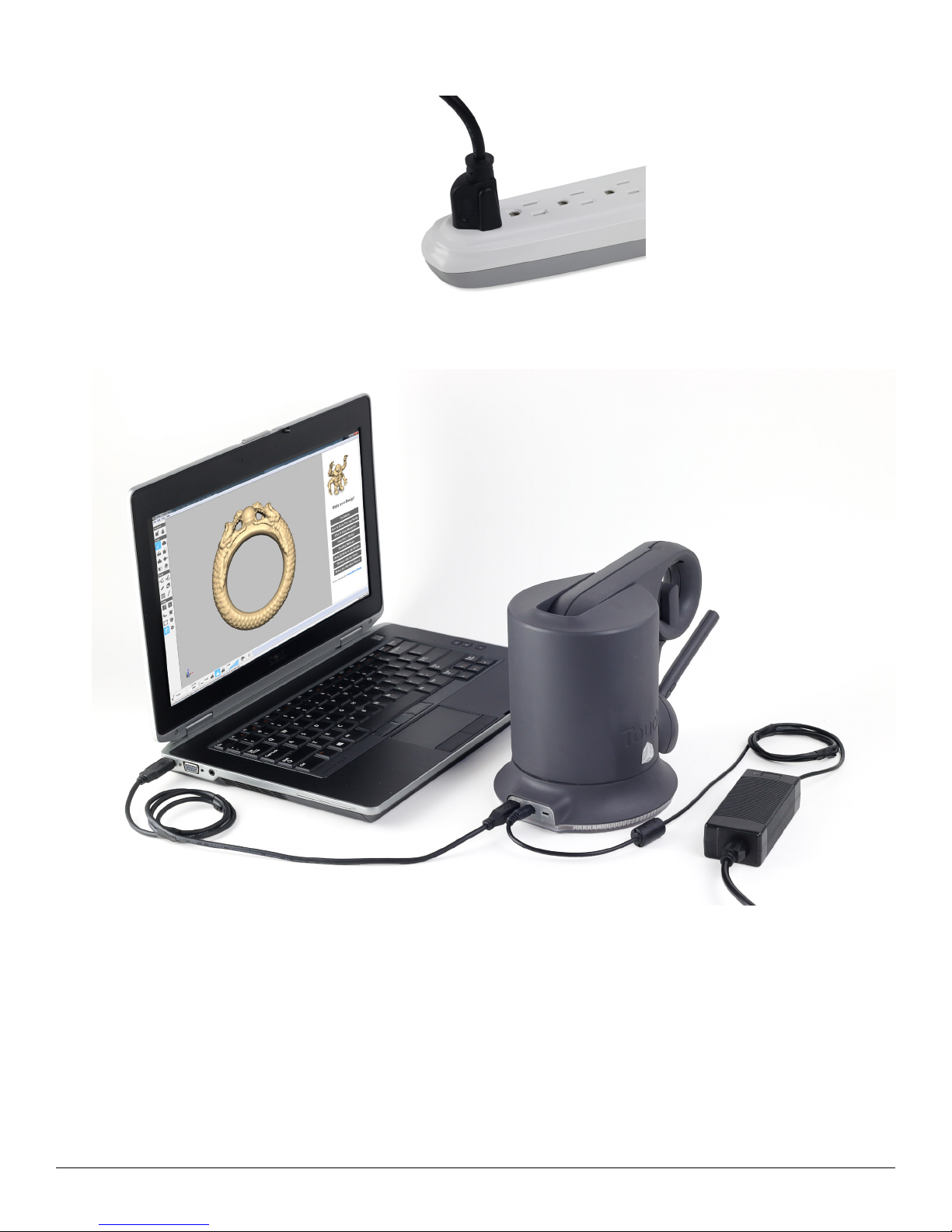

5. Plug the power cord into an available outlet (for 110V the outlet must be rated for at least 2 Amps, for 220V: 1 Amp). The Green
status light on the power supply indicates that it is working correctly.
6. Plug the power supply connector into the back of the Touch device.
7. Make sure that the LEDs ring at the base is lit Blue. Blue indicates the Touch has power. If it is not, check all of the connections. If
the problem continues, contact 3D Systems customer support.

3D Systems, Inc. 8
4 GETTING TO KNOW THE TOUCH
TOUCH COMPONENTS

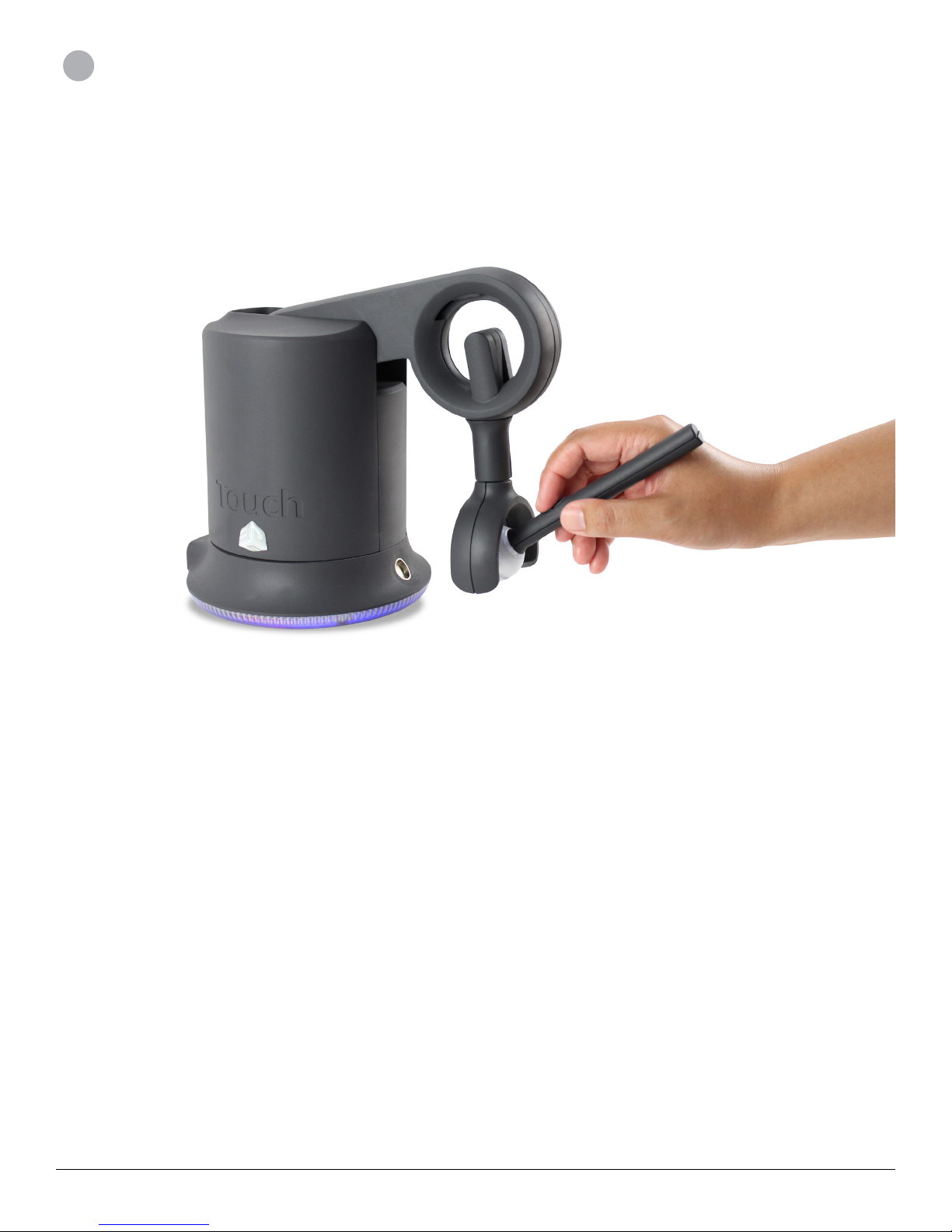

The picture below labels the parts of the Touch device.
4
LED ring indicator
Inkwell
Stylus
Arm
Elbow
USB Connection
Orb
LED (LIGHT) RING INDICATORS
The LED ring at the base of the Touch will display a different color light depending on the status of the Touch.
• Blue - indicates that the power is on
• White - indicates that the Touch is calibrated or the stylus is sitting in the inkwell
• Green - indicates that the stylus is out of the inkwell and is active within an application

3D Systems, Inc. 9
5 PROPER HANDLING AND POSITIONING
HANDLING THE TOUCH DEVICE
!
WARNING: LIFTING THE TOUCH DEVICE IMPROPERLY MAY DAMAGE IT. TO REDUCE THE RISK OF DAMAGE, PLEASE
FOLLOW THE INSTRUCTIONS BELOW.

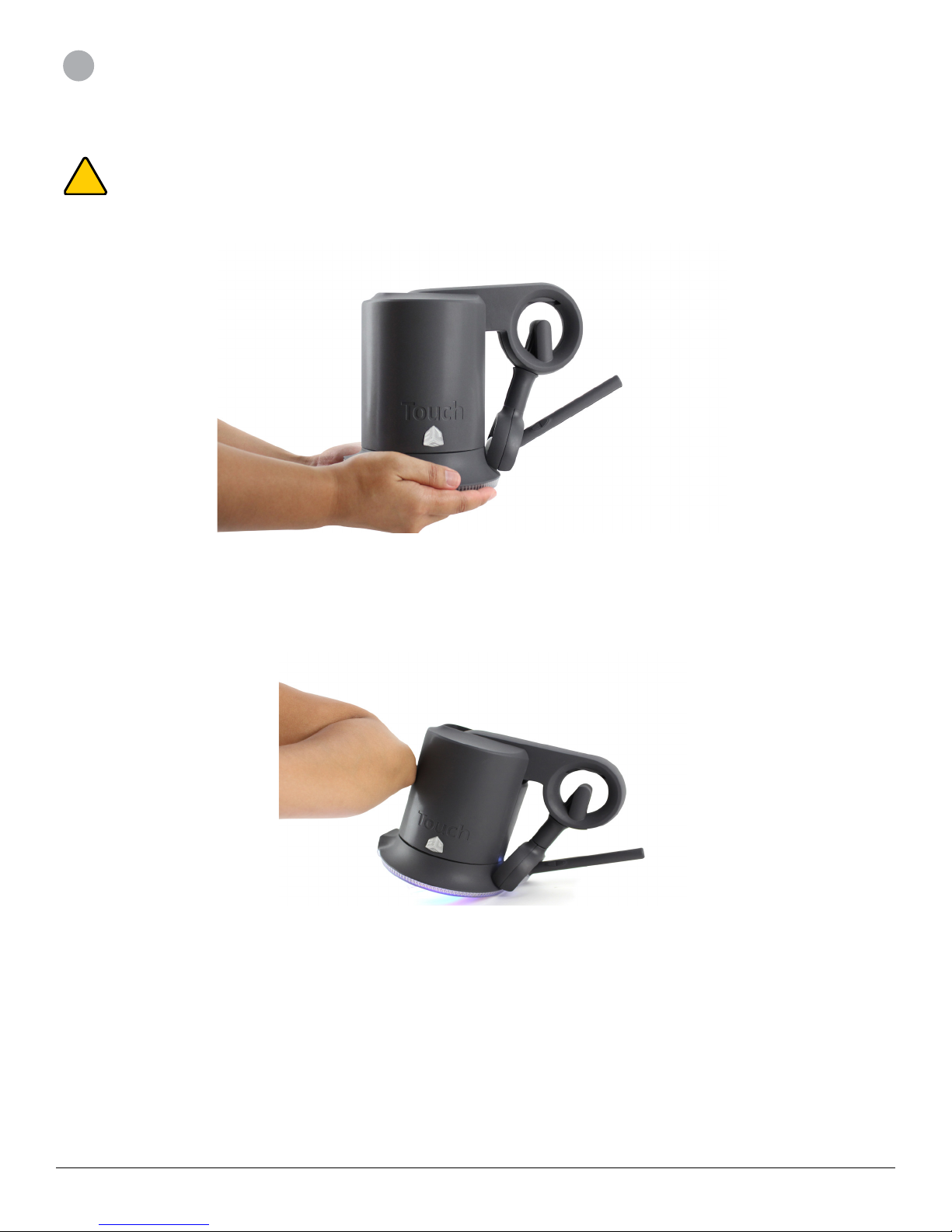

Lifting the device: To properly lift the device grasp the base of the Touch unit on both sides and lift as shown in the image below. DO
NOT lift by grabbing the stylus or arm. Lifting the unit by the stylus or arm could result in severe damage to the device.
Position hands to securely lift the device.
Protecting the device from damage: It is best to place the device rmly on the desktop and away from edges to reduce the risk of
damage from a direct, unintentional elbow hit.
To reduce the risk of damage, keep the device out of the way. Pay extra attention if the stylus is stored in the inkwell.
5

3D Systems, Inc. 10
HANDLING THE STYLUS
The correct way to hold the stylus: Grasp the stylus as you would a pen or pencil. Holding the stylus at the bottom, closer to the orb.
Lifting the stylus out of the inkwell: Grasp the stylus and lift up to disengage as shown below in the image on the left. Do NOT
attempt to pull the stylus straight out as shown on the right.
Calibrating the device: The Touch may need to be recalibrated from time to time, particularly if it has lost power or has been moved.
To calibrate the device, place the stylus in the inkwell and start your application. The LED ring at the base of the Touch device will be lit
White when the device is properly calibrated.
Storing the stylus: After the device is calibrated, the stylus may be kept in the inkwell or left resting on the desk. Storing the stylus in
the inkwell might increase the risk that the device will be knocked over or that the stylus will be damaged.
The stylus does not need to be stored in the inkwell.
Proper Handling Improper Handling
Proper Handling Improper Handling

3D Systems, Inc. 11
POSITIONING THE TOUCH DEVICE
The correct placement of the device will vary from one user to another. You may want to experiment to nd a placement that feels right
for you.
• The device should be positioned so that you are comfortable when working with it.
• You should not feel any strain on your wrist or forearm when working with the device.
• If you are left-handed, you may nd it easier to work with the Touch placed to the left of the keyboard.
• Remember to take breaks often to stretch your hands, wrists, and elbows.

3D Systems, Inc. 12
6 USING THE TOUCH DEVICE
This section introduces you to working with the Touch device and the physical limits of the device’s range of motion. It is important to
understand these physical limitations so that you do not inadvertently damage the device by forcing it past its designed limits.
WORKING IN 3D SPACE
We have become so accustomed to using a mouse to move around a computer screen that we don’t think twice as we move our hand
around a desk to move the cursor. But there was a time not long ago when this simple task was not second nature; some even found
it challenging and were often frustrated as they learned. If you are new to working with a haptic and in a 3D digital space, it may take
some time to feel comfortable. Understanding where objects are in 3D space may take some practice before you are able to move and
manipulate objects with ease and certainty. Be patient with yourself.
PHYSICAL LIMITS OF THE DEVICE
The Touch device has physical limits. When you reach one of these limits you will feel a sudden stop; this is the mechanical stop
designed into the device. Forcing the Touch past any of these stops will damage the device.
Take some time to become more familiar with the stops of the Touch before using the device by moving the device through its full range
of motion.
MOVING WITH THE STYLUS
Using the steps below and the accompanying images, try moving the stylus through the different range of motions.
1. Hold the stylus as you would a pencil or pen, with the free end (the end not connected to the device) of the stylus (the eraser end
of a pencil) pointing towards you.
2. Gently move the stylus to the left and then to the right.
Move the stylus to the right. Move the stylus to the left.
6

3D Systems, Inc. 13
3. Move the stylus up and down.
Move the stylus up. Move the stylus down.
4. Move the stylus towards the device and then away from the device.
Move the stylus away from the device. Move the stylus towards the device.
NOTE: When you reach a physical limit, you’ll feel one of the device’s mechanical stops. Don’t force the device past any
of these stops.
5. Next, perform smaller movements from the orb, moving your wrist:
a. Rotate the stylus left and right.
Using your wrist, rotate the stylus to the left. Using your wrist, rotate the stylus to the right.

3D Systems, Inc. 14
b. Next pivot the stylus up and down.
From the wrist, pivot the stylus up. From the wrist, pivot the stylus down.
c. Finally gently twist the stylus back and forth.
From the wrist, twist the stylus.
Now you should have an understanding of the range of motion of the Touch device and where its limits are.
!
WARNING: ALWAYS WORK WITH THE CONNECTED END OF THE STYLUS POINTING AWAY FROM YOU. NEVER ROTATE
THE STYLUS WITH THE POINT FACING YOU.

3D Systems, Inc. 15
8 REGISTER AND ACTIVATION
REGISTER YOUR TOUCH DEVICE
You need to create an account and then log in to Cubify.com to activate the Touch 3D stylus.
1. Go to www.Cubify.com/Touch.
2. Click My Cubify, and then click Sign up.
3. Fill out the required information and click Sign Up.
The Activate your Touch 3D stylus window appears.
4. Enter the serial number of your Touch 3D stylus, then click Activate.
You will receive an activation code that you need to enter into your software to activate and start using.
Depending on which 3D software you purchased, follow the appropriate instructions below to register and activate your 3D software.
REGISTER, ACTIVATE AND START USING CUBIFY SCULPT
If you are using 3D’s Cubify Sculpt application to create your designs with the Touch device, you must register and activate the software
for the Touch device to recognize the software.
1. Download and install the Cubify Sculpt application.
You will receive a prompt to register the 3D software.
2. Register the Cubify Sculpt software through the Cubify website: www.Cubify.com/Sculpt
3. Enter the activation code (you received after registering your Touch device) in the Cubify Sculpt installer window.
You’re now ready to begin using the Touch device and the 3D software.
When Cubify Sculpt launches, the Touch automatically recognizes the application. The Touch LED ring should display White.
NOTE: For instructions on correctly connecting the Touch, see “Connect the Touch” on page 6.
4. From Cubify Sculpt, select a shape in the New Model dialog, then click OK.
5. Use the Touch and the options in Cubify Sculpt to create and draw your design.
 NOTE:SeetheWorkowwindow(tutorial)that’sincludedwiththeCubifySculptapplicationforinformationonhowtouse
the software and create a design.
REGISTER, ACTIVATE AND START USING GEOMAGIC SCULPT
If you are using 3D’s Geomagic Sculpt application to create your designs with the Touch device, you must register and activate the
software for the Touch device to recognize the software.
1. Download and install the Geomagic Sculpt application.
2. Start the application.
The License Utility window opens. The License Utility allows you to license and use your product. When you launch the License
Utility, click the Help button to read the Licensing Guide.
3. Follow the instructions to activate your product in the License Utility.
You’re now ready to begin using the Touch device and the 3D software.
When Geomagic Sculpt launches, the Touch automatically recognizes the application. The Touch LED ring should display White.
NOTE: For instructions on correctly connecting the Touch, see “Connect the Touch” on page 6.
4. From Geomagic Sculpt, select File > New, and then select a shape in the New Model dialog, then click OK.
5. Use the Touch and the options in Geomagic Sculpt to create and draw your design.
NOTE: See the Geomagic Sculpt Training Guide (tutorial) for information on how to use the software and create a design.
7

3D Systems, Inc. 16
7 FEATURES AND SPECIFICATIONS
Specication Value
Supported operating systems Windows 7® (32-bit or 64-bit)
Windows 8® (32-bit or 64-bit)
Power consumption 100/240V 50/60 Hz 1 Amps (output DC 18V 2.2 A so 38 Watts
max)
Workspace dimensions 10.45 x 9.5 x 3.5 in
Hardware recommendations
• Intel Pentium or equivalent processor
• RAM
• Screen resolution
• Color
• Available hard disk space
• 2 GHz or faster
• 2 GB minimum
• 1280 x 1024 minimum
• 32-bit
• 4 GB
Height 7” (arm at rest)
Base diameter 5.5” (round base)
Range of Motion Hand motion pivoting at wrist
Nominal position resolution Approx 0.084 mm
Max force (neutral position: when 4-bar links are orthogonal) 3.4 N
Force feedback 3° of freedom X, Y and Z
6-degree-of-freedom positional sensing 6° of freedom X, Y & Z (Digital Encoders) Roll, Pitch & Yaw (± 5%
linearity potentiometers)
Interface USB 2.0
USB cable length 6”
8

3D Systems, Inc.
333 Three D Systems Circle | Rock Hill, SC | 29730
www.3dsystems.com
©2014 3D Systems, Inc. All rights reserved.
The 3D Systems logo, 3D Systems, Geomagic and Geomagic
Product are registered trademarks of 3D Systems, Inc .
pn 401332 Rev. A
