3Disc FireCR CR-FPM-03-001EN Operating manual

Maintenance Guide
Universal Cassette
Doc No. : TM-704-EN
Rev 1.2.1 Nov 2014
Part No. : CR-FPM-03-001EN
3DISC, FireCR, Quantor and the 3D Cube are trademarks of 3D Imaging & Simulations Corp,
South Korea, and its affiliates. All other trademarks are held by their respective owners and
are used in an editorial fashion with no intention of infringement. The data in this publication
are for illustration purposes only and do not necessarily represent standards or specifications,
which must be met by 3D Imaging & Simulations Corp. All information contained herein is
intended for guidance purposes only, and characteristics of the products and services described
in this publication can be changed at any time without notice. Products and services may not
be available in your local area. Please contact your local sales representative for availability
information. 3D Imaging & Simulations Corp. strives to provide as accurate information as
possible, but shall not be responsible for any typographical error.
© Copyright 2014 3D Imaging & Simulations Corp. All rights reserved.

Maintenance Guide
Universal Cassette TM-704-EN
2
Contact
3D Imaging & Simulations Corp.
Bldg.1, 48, Yuseong-daero 1184 beon-gil,
Yuseong-gu, Daejeon, 305-345 Korea
Tel : [phone]
Fax : [phone]
Website : www.3DISCimaging.com
E-mail : [e-mail]
3DISC Americas
22560 Glenn Dr, Suite 116
Sterling, VA 20164 USA
Tel : [phone]
E-mail : [e-mail]
3DISC Europe
Gydevang, 39-41, 3450 Alleroed, Denmark
Tel : [phone]
E-mail : [e-mail]

Maintenance Guide
Universal Cassette TM-704-EN
3
Warnings and Used Symbols
To ensure the safety of patients, staff and other persons, any changes to software and hardware
delivered by 3D Imaging & Simulations Corp. may only be made with prior written permission
from 3D Imaging & Simulations Corp.
Please read the respective manuals of the connected software, such as acquisition and
diagnostic software, before starting to use the system.
The following symbols will be used throughout this manual:
DANGER
General prohibition indication.
The functionality of the system can be destroyed in the case of
incorrect use.
If unauthorized changes have been made to delivered system and
accessories, the warranty by 3D Imaging & Simulations Corp.
becomes void. 3D Imaging & Simulations Corp. will not accept
any responsibility or liability for the proper functioning of the
product in such a case.
DANGER
General mandatory action manual.
The functionality of the system can be destroyed in the case of
incorrect use.
If unauthorized changes have been made to delivered system and
accessories, the warranty by 3D Imaging & Simulations Corp.
becomes void. 3D Imaging & Simulations Corp. will not accept
any responsibility or liability for the improper functioning of the
product in such a case.
WARNING
The functionality of the system can be limited in the case of
incorrect use. Hints that require special attention.
NOTE
Notes represent information that is important to know but which do
not affect the functionality of the system.

Maintenance Guide
Universal Cassette TM-704-EN
4
General Safety Guidelines
All the safety and operating instructions should be read carefully before this device is operated.
This device has been designed and tested to meet strict safety requirements applicable to
medical equipment, and has been supplied in a safe condition. To ensure personnel and
patient safety, the device shall be operated and serviced in compliance with all procedures,
warnings and precautions during all phases of operation and service of this device. Failure to
comply to with safety guidelines may result in injury to service personnel, operator, or patient.
3D Imaging & Simulations Corp. assumes no liability for failure to comply.
If this device is not used as specified, the protection provided by the device could be impaired.
This device must be used in a normal condition only.
Installation, service and operation of this device should only be undertaken by qualified trained
personnel. The operator should study instructions and precautions carefully before starting to
use the device listed here and throughout the manual.
There are no user serviceable parts inside this device. The device should only be opened and
serviced by qualified service personnel. Failure to heed this warning may result in injury to
service personnel or damage to equipment, and void any and all warranties. If there is a
service problem, please contact 3D Imaging & Simulations Corp. or authorized dealer.
Do not spill liquids on the device, and never operate the device in a wet environment.
Keep the device from radiators and heat sources.
Use the device only with accessories supplied with this device.
This device is intended to be grounded. Plug power cord into properly grounded electrical
outlets. This cord is equipped with three-prong plugs to help ensure proper grounding.
This device contains static sensitive components. Proper static handling procedures and
equipment must be used when servicing this device.

Maintenance Guide
Universal Cassette TM-704-EN
5
Do not look inside of the device.
If any of the following conditions occur, unplug the device from the electrical outlet and contact
authorized service personnel.
The power cord or power adapter is damaged.
An object has fallen into the device.
The device has been exposed to water.
The device has been dropped or damaged.
The device does not operate correctly when the operating instructions are followed.

Maintenance Guide
Universal Cassette TM-704-EN
6

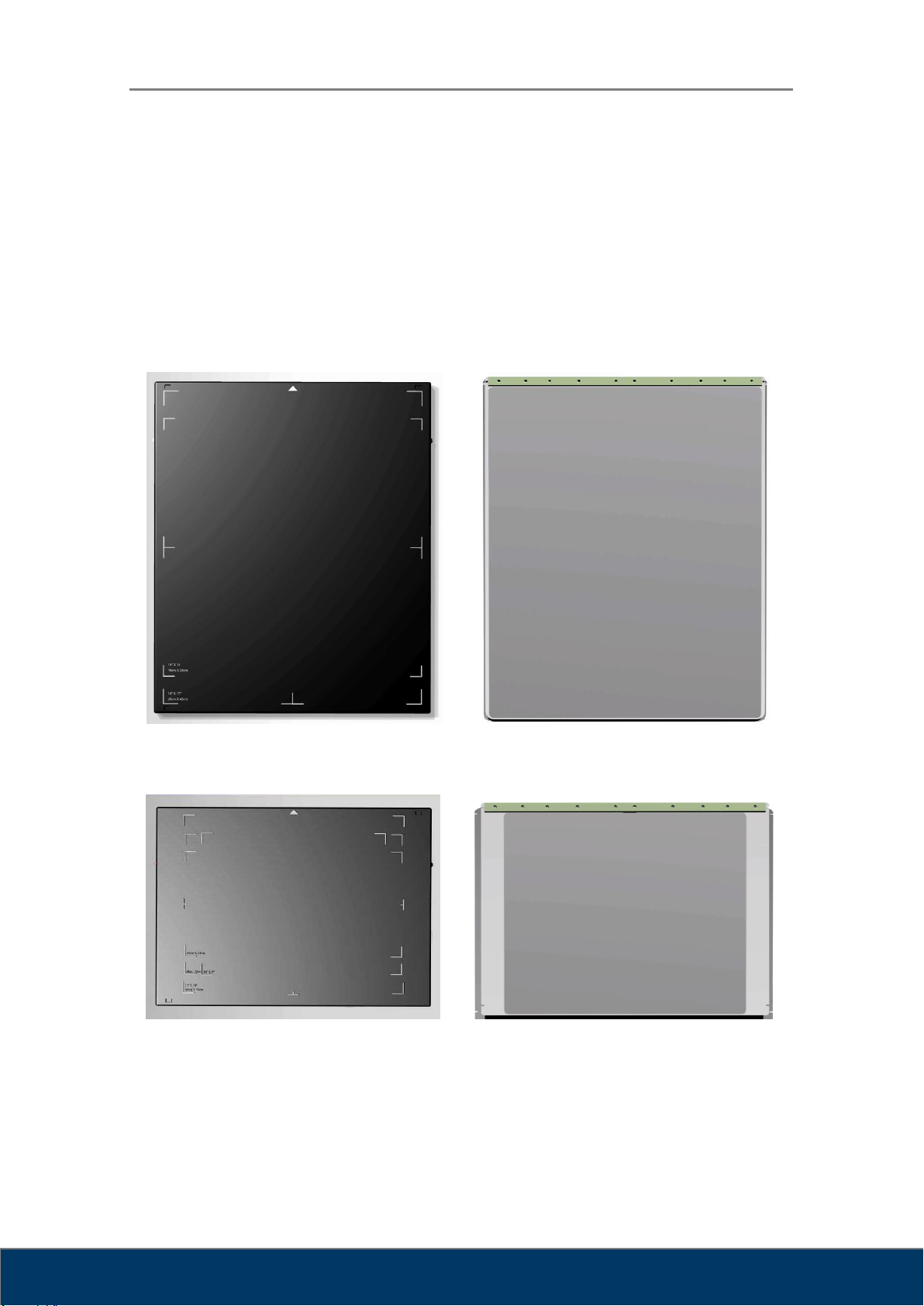

1. Universal Cassette Type
There are 2 types of cassettes, and each size cassette supports following size imaging plates.
Universal Cassette 35cm x 43cm (14”x 17”) : Imaging plate size 35cm x 43cm
Universal Cassette 24cm x 30cm (10” x 12”): Imaging plate size 24cm x 30cm
Cassette contains the imaging plate glued on a moving plate.
Universal Cassette 35cm x 43cm Imaging Plate 35cm x 43cm with Moving Plate
Universal Cassette 24cm x 30cm Imaging Plate 24cm x 30cm with Moving Plate

Maintenance Guide
Universal Cassette TM-704-EN
7
2. Imaging Plate Cleaning
Protect your investment
Dust and dirt build up on CR imaging plate, leading to image artifacts. To avoid contamination,
plates need cleaning at regular intervals.
2.1. Service Life
Imaging plates in the following condition cannot be used.
Scratches on the surface of the protective layer and they appear on the image.
The phosphor layer has peeled away from the support layer.
2.2. Imaging Plate Cleaning Tools
Moving plate extracting tool
Imaging plate cleaner
Use ethanol based cleaner : ethanol > 99.5%
Soft lint free dry cotton (nonabrasive cloth)
WARNING
As CR imaging plates are highly sensitive to water based cleaning
fluids, we strongly recommend an ethanol-based plate cleaner.
If possible, use a cleaner that is specially designed for CR imaging
plates. This will help ensure longest possible service life.

Maintenance Guide
Universal Cassette TM-704-EN
8
2.3. Imaging Plate Cleaning Process

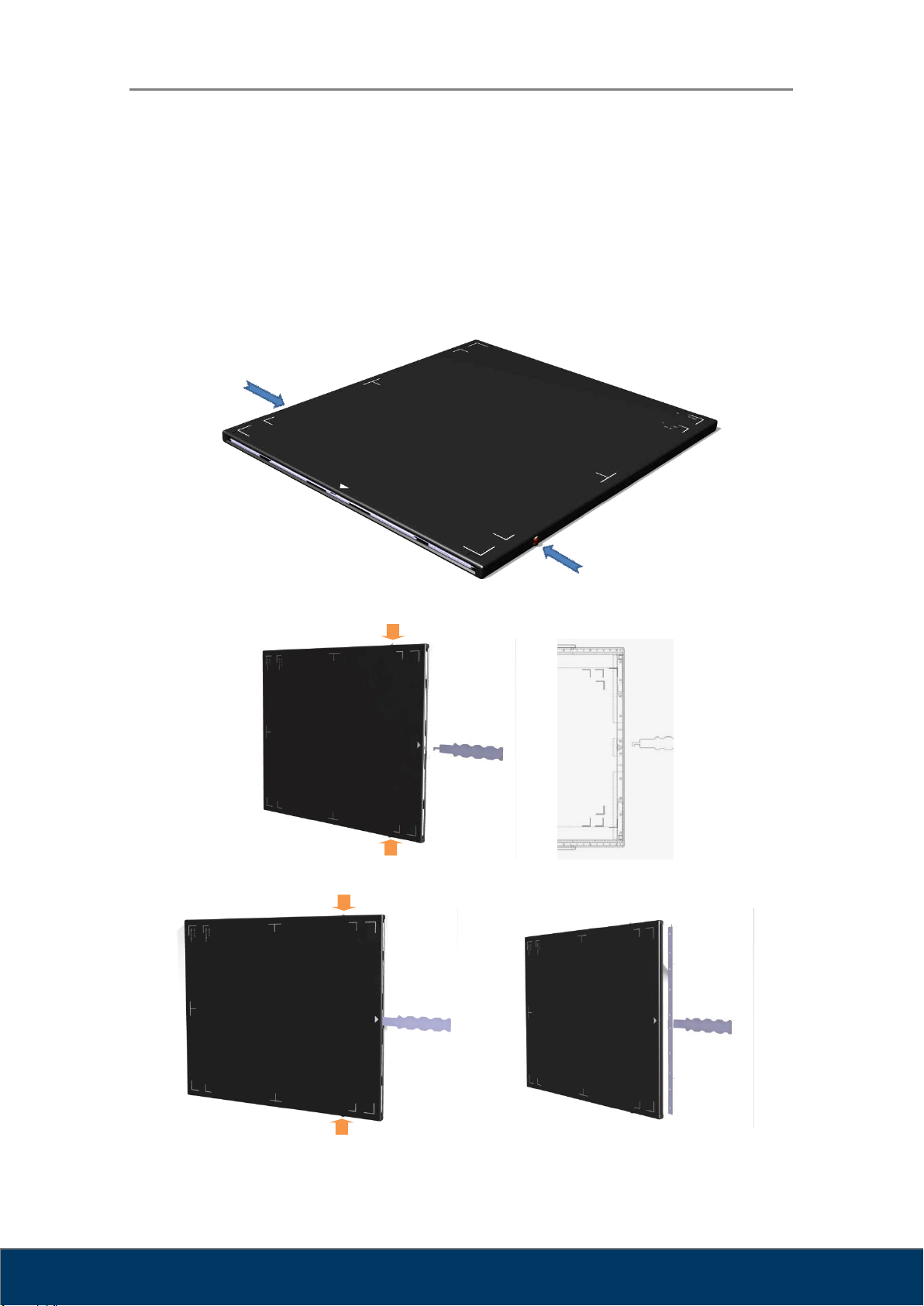

2.3.1.Moving Plate Pull Out
Pull out the moving plate from the cassette using extractor.
There are 2 push buttons on each side of cassette for unlocking the moving plate.
Stand the cassette on the side and press push button. Make sure both of buttons keep pressed.
Hook and pull the moving plate out.

Maintenance Guide
Universal Cassette TM-704-EN
9

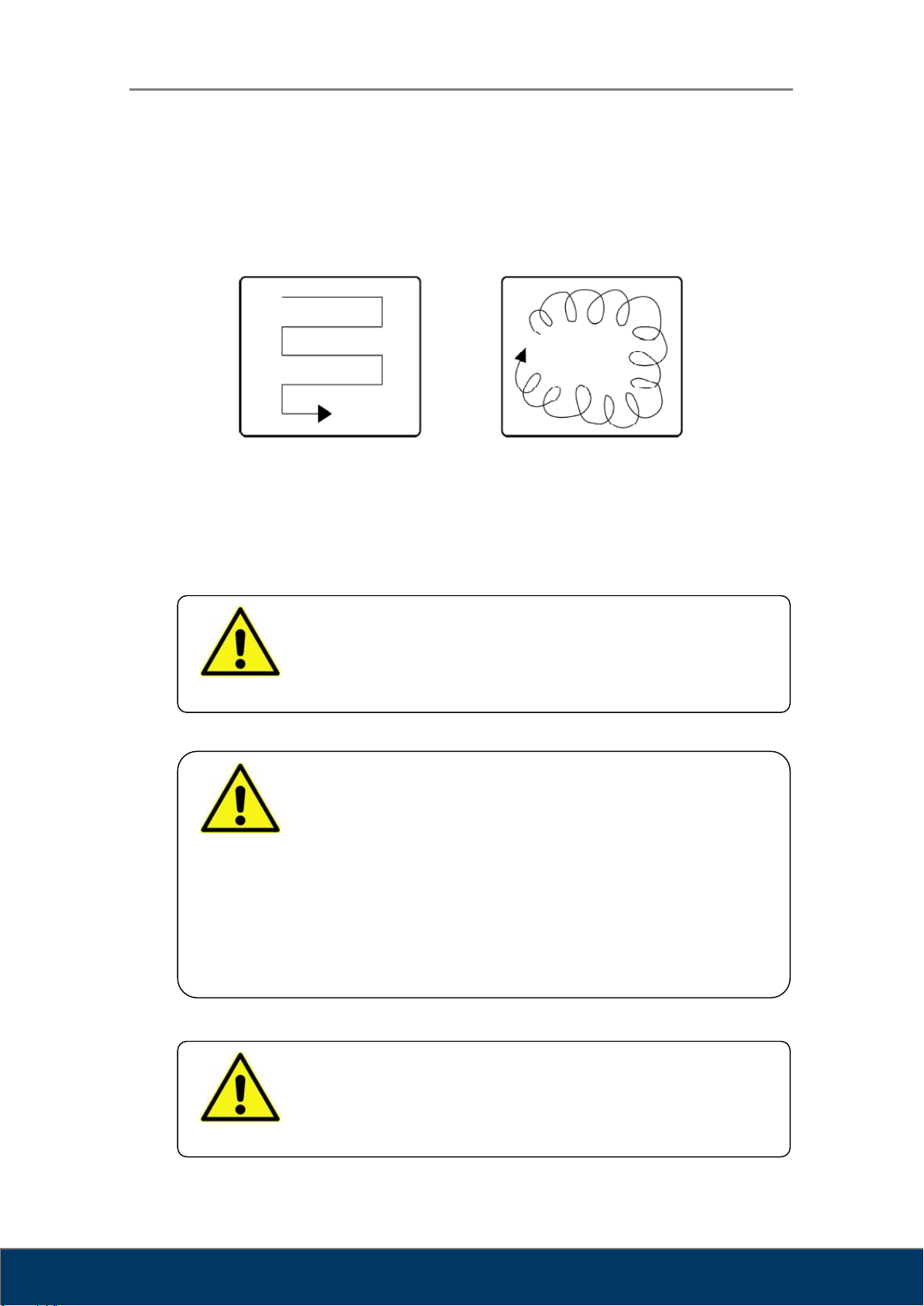

2.3.2.Cleaning Process
Using the dry cleaning cloths listed previously, clean the imaging plate surface as
illustrated below.
Use ethanol dampened cleaning cloths to clean stains that do not come off with the
above method.
When the imaging plate surface has been cleaned using ethanol dampened cloth,
slightly wipe it off with the listed dry cloths.
WARNING
Do not pour ethanol directly on to the imaging plate.
Make sure the imaging plate surface is completely dry before
using the imaging plate.
WARNING
Be sure not to damage the imaging plate.
Do not scratch the imaging plate with your fingernails.
Never use erasures or any other solvents.
Never use hand lotions or sunblock cosmetics prior to handling
the imaging plate.
Do not bend or crack the imaging plate during use or cleaning.
Do not stack other objects on the image plate.
Do not let the imaging plate stand under direct rays (ultraviolet
rays).
WARNING
Imaging plates must be discarded according to laws and
regulations applicable in each country.

Maintenance Guide
Universal Cassette TM-704-EN
10

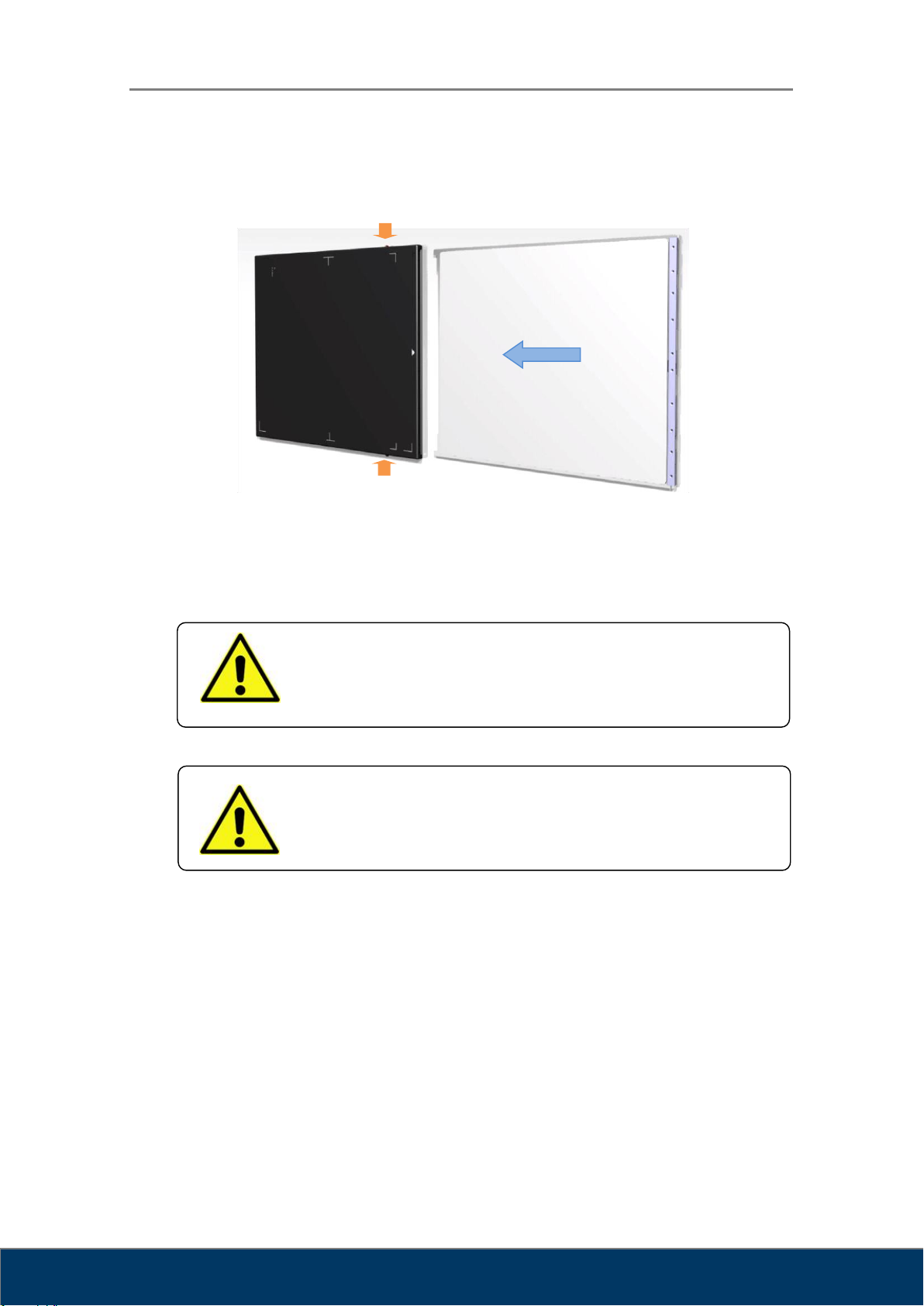

2.3.3.Insert Moving Plate
Stand the cassette on the side and press push button. Make sure both of buttons keep
pressed firmly.
Insert moving plate into the cassette
WARNING
Do not position the imaging plate upside down when it is inserted.
Do not insert moving plate in wrong direction.
WARNING
Make sure both of buttons keep pressed firmly.

Maintenance Guide
Universal Cassette TM-704-EN
11
DANGER
Never press push buttons of the cassette with upside down
position. A crash will cause damage of the imaging plate and
moving plate which can affect X-ray image quality.
Always carry the cassette with the slot side up.
Crash!!!
Upside
