3M 210 User manual
Contents
Safety.............................................................................................................................................1
EMCcompliance.............................................................................................................................3
Overview.........................................................................................................................................5
3M™MiniRFIDPadModel210components..................................................................................5
Specifications................................................................................................................................5
Cleaningthe3M™MiniRFIDPadModel210.................................................................................5
Installthe3M™MiniRFIDPadModel210.......................................................................................7
Determinethebestplacementfortheunit......................................................................................7
Connectthehardware...................................................................................................................8
Troubleshooting.............................................................................................................................9
Warranty.........................................................................................................................................11
3MService......................................................................................................................................13
Copyright©20093M.Allrightsreserved.i
Downloaded from Elcodis.com electronic components distributor
Safety
Intendeduse
The3M™MiniRFIDPadModel210isdesignedandtestedforusewithotherequipmentandsoftwaretoreadand/orprogram
3M™RFIDtags.Thesetagsareusedtoidentifyfiles,folders,andotheritemssuchasbooks.Whenusedinconjunction
withsoftware,theunitcantrack,monitor,andassistinlocatingvariousitemsequippedwithRFIDtags.Theproducthas
notbeenevaluatedforotheruses.
ForusewithUL/c-UL–listedITEproductsonly.
Explanationofsignalwordconsequences
CAUTION
Indicatesapotentiallyhazardoussituation,which,ifnotavoided,mayresultinminor
ormoderateinjuryand/orpropertydamage.
Explanationofproductsafetylabels
Donotthrowawayinnormaltrash.Disposeoftheproductaccordingtofederal,state,
andlocalrequirements.
CAUTION
Toreducetherisksassociatedwithrepeatedbodymovement:
•Operationofthepadmayinvolverepeatedbodymovements.TominimizepossibilityofRepetitiveStressInjury,avoid
prolongedrepetitivemovements,restwhenbecomingfatigued,andwhenpossible,alternatejobfunctionswithother
people.Itisrecommendedthattheuseravoidawkwardreachingforitems.
.
Toreducetheriskassociatedwithenvironmentalcontaminationduetoincorrectdisposal:
•Attheendofservicelife,disposeofthe3M™MiniRFIDPadModel210accordingtofederal,state,andlocalrequirements.
Copyright©20093M.Allrightsreserved.1
Downloaded from Elcodis.com electronic components distributor
Safety
Labellocation
GR_210_label_Location
Model 210
5V 500mA
S/N: 210XXXXX
3
3M Track and Trace Solutions
St. Paul, Minnesota 55144 Made in USA
I.T.E.
LISTED
4P24
N1108
FCC ID: DGFTTS210
IC: 458A-TTS210
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
This Class A digital apparatus complies with
Canadian ICES-003.
Ce t ap pareil num ériq ue de la cla s s e A es t c on fo rme à la
no rm e NMB-003 du Can ada .
2Copyright©20093M.Allrightsreserved.
Downloaded from Elcodis.com electronic components distributor
EMCcompliance
FCCIntentionalRadiatorCertification
MiniRFIDPadModel210FCCID:DGFTTS210.
ThisequipmentcontainsanintentionalradiatorapprovedbytheFCCundertheFCCIDnumbersshownabove.Thisdevice
complieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynot
causeharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesirableoperation.
NOMODIFICATION:Modificationstothisdeviceshallnotbemadewithoutthewrittenconsentofthe3MCompany.
UnauthorizedmodificationsmayvoidtheauthoritygrantedunerFederalCommunicationsCommissionrulespermitting
theoperationofthisdevice.
IndustryCanadaradiofrequencyrulesandregulations
ThisClassAdigitalapparatusmeetsallrequirementsoftheCanadianInterference-CausingEquipmentRegulations.
CetappareilnumeriquedelaclasseArespectetouteslesexigencesdoReglementsurlematerielbrouilleurduCanada.
CANADA:458A-TTS210
Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemust
acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperationofthedevice.
EMCcomplianceEurope
ThisequipmentcomplieswiththerequirementsoftheRTTEandEMCdirectives.
Copyright©20093M.Allrightsreserved.3
Downloaded from Elcodis.com electronic components distributor
Overview
The3M™MiniRFIDPadModel210isusedwithotherequipmentandsoftwaretoreadand/orprogramRFIDtags.These
tagsareusedtoidentifyfiles,folders,andotheritemssuchasbooks.Whenusedinconjunctionwithpadsoftware,theunit
cantrack,monitor,andassistinlocatingvariousitemsequippedwithRFIDtags.
3M™ ™
™MiniRFIDPadModel210components
The3M™MiniRFIDPadModel210includesthefollowingcomponents:
•The3M™MiniRFIDPadModel210
•USBcable-connectsthe3M™MiniRFIDPadModel210toacustomer-suppliedcomputer
Specifications
3M™ ™
™MiniRFIDPadModel210
DimensionsLength:7.21in.(18.3cm)
Width:6.44in.(16.3cm)
Height:0.6in.(1.5cm)
ReadRangeAtleast6in.(15.2cm)withthetaginthecenterofthepad
Tip:Metalsurfaceswithintwoinchesofthepadwillreducethepad’sreadrange.
Weight16oz.(454g)
EnvironmentalOperatingtemperaturerange:50°Fto104°F(10°Cto40°C)
Storagetemperaturerange:-40°Fto131°F(-40°Cto55°C)
Humidity:0%to85%RH,non-condensing
Cleaningthe3M™ ™
™MiniRFIDPadModel210
DOnotuseanyabrasivecleanersonthepad.Gentlyrubthepadwithasoftclothdampenedwithamildcleaningsolution.
Copyright©20093M.Allrightsreserved.5
Downloaded from Elcodis.com electronic components distributor
Installthe3M™ ™
™MiniRFIDPadModel210
Determinethebestplacementfortheunit
•Placethe3M™MiniRFIDPadModel210onaflat,
non-metallicsurfaceinaconvenientlocation.Forbest
performance,makesurethattheunitisatleast2in.(5
cm)awayfromanymetalsurface,keepinginmindthat
somedesksandtablesmayhavemetalpartsunderneath
thesurface.Ifnecessary,theunitcanbeascloseas1.0
in.(2.5cm)toametalsurface.Thiswillreducetheread
range.
•Placethe3M™MiniRFIDPadModel210closeenough
tothecomputersothattheusercanheartheverification
sounds.Thecomputergeneratestheunit’saudibleand
visualcues.

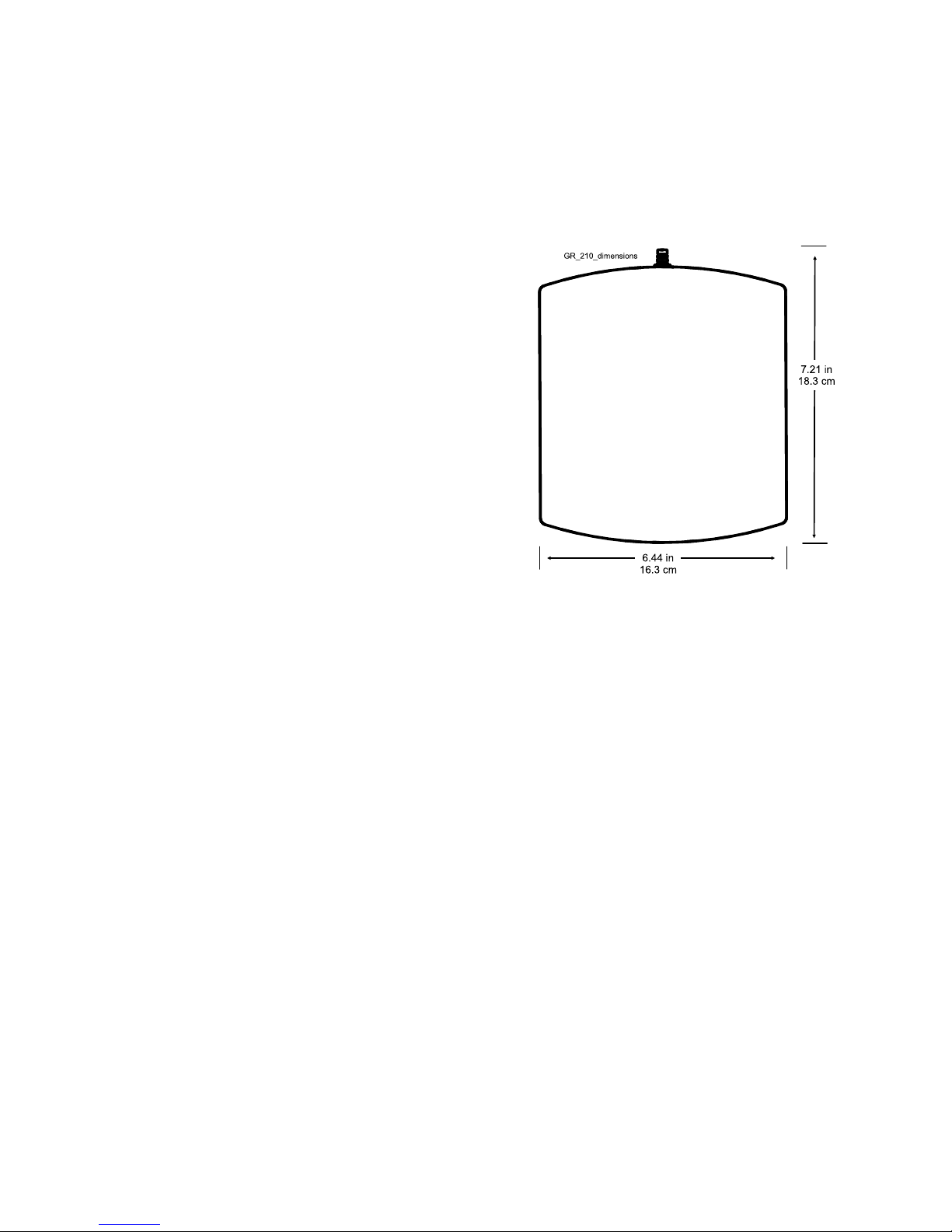

7.21 in
18.3 cm
6.44 in
16.3 cm
GR_210_dimensions
Copyright©20093M.Allrightsreserved.7
Downloaded from Elcodis.com electronic components distributor
Troubleshooting
IntroductiontotheLEDsonthebottomoftheunit
ThefollowingisabriefintroductiontotheLEDsthatarelocatedonthebottomoftheunit,whichwillaidintroubleshooting.
1.Solidgreenwhentheunitispoweredon.
2.Blinkingredwhencommunicatingwithsoftware.
3.Blinkinggreenwhenthefirmwareisworkingandthe
unitiswaitingforacommand.
GR_210_LEDs
1
2
3
Tagsarenotread
Herearesomethingstotry:
•Makesurethattheitemsthatyouaretryingtoreadareequippedwith3MRFIDtags.
•Makesurethattheunit’sgreenpowerlightisflashing,indicatingthatthereaderhaspower.IfthepowerlightisNOT
flashing,checktheUSBconnection.
•Makesurethatthereader’sredcommunicationslightisflashingtoindicatethatitiscommunicatingwiththesoftware.If
thecommunicationslightisnotflashing,makesurethesoftware(deliveredwithyoursystem)isinstalledandrunning
onyourcomputer.
Readrangeisreduced(lessthan4in.)
•Checktomakesurethattheunitisatleasttwoinches(15cm)fromanymetalsurfaces.Somelocationsmayhavehidden
metalsurfacesandcomponents.Trymovingthepadtoadifferentlocationtoseeifthereadrangeimproves.
•Makesurethattheitem’stagsareplacedinthecenteroftheunit.
Tagsnotalwaysread
•Makesurethatyouarenottryingtoreadblank,invalid,ordisabledtags.
•Makesurethatthetagsarewithinthereadrange.
•Makesurethattheitem’stagsareplacednearthecenteroftheunit(nothangingofftheside).
Copyright©20093M.Allrightsreserved.9
Downloaded from Elcodis.com electronic components distributor
Warranty
Effective12-12-05
OneY earLibrarySystemsProductPerformanceGuarantee:SubjecttotheLimitationofLiabilitybelow,3Mguaranteesyour
satisfactionwiththeperformanceofany3MLibrarySystemProductfor12monthsfromthedateofinstallationprovidedthat
a)youaretheoriginalpurchaser:b)youhaveexecutedaone(1)year3MServiceAgreementformaintenanceoftheLibrary
Systemproduct;andc)theproducthasnotbeensubjectedtoabuse,misuse,accidentorneglect.Performancemeansthe
productmeets3Mpublishedproductspecifications.IfyouarenotcompletelysatisfiedwiththeperformanceofyourLibrary
SystemProduct,youmayreturntheLibrarySystemproductforapromptrefund.3Mwillpayallreasonablede-installation
andshippingchargestoreturntheproductto3M.Notethatallclaimsunderthisguaranteemustbesubmittedto3Mwithin12
monthsfromthedateofinstallationofthe3MLibrarySystemsProduct.Failuretosubmitaclaimwithinthistimeframewill
invalidatethisguarantee.IMPORTANT:Consumablesandnon-3MbrandedproductsareexcludedfromthisGuarantee.
WarrantyandLimitedRemedyforNon-SoftwareLibrarySystemsProductsNotCoveredbyPerformanceGuarantee:
Unlessstatedotherwisein3Mproductliteratureorpackaging,3Mwarrantsthateach3MLibrarySystemsProductmeetsthe
applicablespecificationsforaperiodofninety(90)daysfromthedateofshipment(or,inthecaseofhardwareinstalledby
3M,fromthedateofinstallation).Anywarrantiesrelatedto3Msoftwarearecontainedinseparate3Msoftwarelicenses.
Consumablesandnon-3MbrandedproductsareexcludedfromthisWarrantyandLimitedRemedy.
3MMAKESNOOTHERGUARANTEES,WARRANTIESORCONDITIONS,EXPRESSORIMPLIED,
INCLUDING,BUTNOTLIMITEDTO,ANYIMPLIEDW ARRANTYORCONDITIONOFMERCHANTABILITY
ORFITNESSFORAPARTICULARPURPOSEORANYIMPLIEDWARRANTYORCONDITIONARISINGOUT
OFACOURSEOFDEALING,CUSTOMORUSAGEOFTRADE.Y ouareresponsiblefordeterminingwhetherthe3M
productisfitforaparticularpurposeandsuitableforyourapplication.Ifthe3Mproductisdefectivewithinthewarranty
periodandprovidedthata)theproducthasnotbeensubjectedtoabuse,misuse,accidentorneglectandb)youhavenotified
3Mwithinthirty(30)daysafterthedefectwasdiscovered,yourexclusiveremedyand3M’sandseller’ssoleobligationwill
be,at3M’soption,toreplaceorrepairthedefective3Mproduct.
LimitationofLiability:EXCEPTWHEREPROHIBITEDBYLA W,3MANDSELLERWILLNOTBELIABLE
FORANYLOSSORDAMAGEARISINGFROM3MLIBRARYSYSTEMs,WHETHERDIRECT,INDIRECT,
SPECIAL,INCIDENTALORCONSEQUENTIAL,REGARDLESSOFTHELEGALTHEORYASSERTED,
INCLUDINGW ARRANTY ,CONTRACT,NEGLIGENCEORSTRICTLIABILITY.
GuaranteeandWarrantyClaims:Forguaranteeandwarrantyclaims,andforservice,contactourservicerepresentatives
at1-800-328-0067
TrackandTraceSolutions
3MCenterBuilding225-4N-14
St.Paul,MN55144-1000
Ver121205
Copyright©20093M.Allrightsreserved.11
Downloaded from Elcodis.com electronic components distributor
