3r-global STANDARD 4 User manual

1

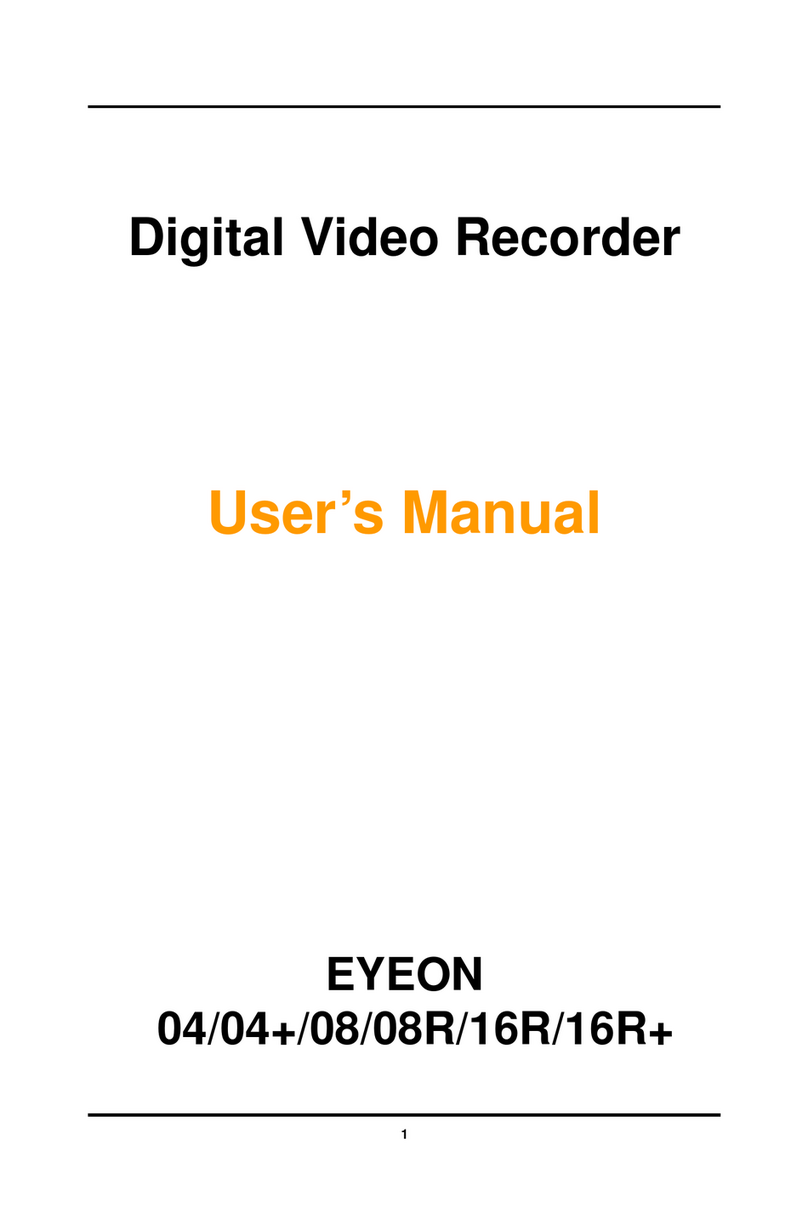

Digital Video Recorder
User’s Manual
3R Standard04/08/16

2
Thank you for using our product.
1. This is user's manual for H.264 4CH, 8CH and 16CH DVR (Digital Video
Recorder).
2. This manual contains product specification and introduction, installation guide,
operating guide and other necessary matters for easy understanding. Users should
read this user's manual carefully for proper use.
3. Contents in this manual may be changed according to the specification change and
feature improvement without any notification.
4. This user's manual shall never be copied without prior agreement and violating this
may be a reason for legal punishment on piracy.
5. If there is any incorrect or insufficient content in this user's manual, notify it to
Customer Support Center.

3
Contents
CH 1. Product Introduction
1-1. Product Contents 5
1-2. Specifications 6
1-3. Product Characteristics 7
1-4. Name of Each Part 9
CH 2. Installation Guide and Cautions
2-1. Cautions 11
2-2. Product Installation 14
2-2-1. Power Connection 14
2-2-2. Connecting External Device 14
CH 3. How to Use
3-1. General Usage Information 20
3-2. Live Mode 21
3-2-1. Live mode control 21
3-2-2. Live mode feature 23
3-3. Search Mode 27
3-3-1. Search selection type 27
3-3-2. Play mode 29
3-4. Setup Mode 30
3-4-1. Display 30
3-4-2. Record 32
3-4-3. Device 37
3-4-4. Network 41
3-4-5. system 43
CONTENTS

4
Contents
CH 4. Client Program 46
4-1. Installing Client Program 46
4-2. How to use Client Program 51
4-2-1. Initial Screen 52
4-2-2. Connecting the DVR 56
4-2-3. Initial Screen after connection 57
4-2-4 WATCH-live viewing 58
4-2-5. Favorite – multiple DVR connection 59
4-2-6. SEARCH-playback 62
4-2-7. SETUP-remote setup of DVR 66
4-3. Firmware Upgrade 67
4-4. Web browser Monitoring and Playback 69
Trouble Shooting 70
Warranty 71
CONTENTS

5
1-1. Product Contents
After removing packing materials of this product, check whether all following
contents are included.
Main Body (DVR):
This converts the analog video and audio signal
to the digital signal and saves on HDD.
Adapter:
This 12V adapter supplies power to the product.
Power Cable:
This connect the adapter and the power source.
Program CD:
This contains the User’s manual and Client
Program for DVR.
Remote Controller:
This is an IR remote controller for convenience.
Battery:
These are 2(two) AA size battery for the remote
controller.
CH1. Product Introduction
CH 1 Product Introduction

6
1-2. Specifications
Image Input/Output : NTSC / PAL
Recording Speed :
NTSC - 1~123fps(4ch), 1~127(8ch), 1~135fps(16ch) : based on 360X240
PAL - 1~103fps(4ch), 1~107(8ch), 1~115fps(16ch) : based on 360X288
Compression Method : H.264 Technology
Power : DC12V, 4.0A (DC adapter)
Power Consumption : 34W
External Terminal : Video Input - BNC 4CH/BNC 8CH/BNC 16CH
Video Output - BNC 1CH, VGA 1CH
(4ch : Hardware selectable)
Audio Input - RCA 4CH
Audio Output - RCA 1CH
Sensor Input - Terminal Block 1CH (Contact, TTL)
Sensor Output - Terminal Block 1CH (Dry Contact)
LAN Communication - RJ45 Port
Serial Communication - Terminal Block(RS485)
2xUSB 2.0 Type A
Temperature : 5~40℃(30~110 F)
Humidity : 20%~80%(Non-condensing)
Size : 340 (W) ×250 (D) ×60 (H) mm
Weight : Lighter than 3Kg(Supplements and Packing Materials Excluded)
Supplements : Adapter 1
Power Cable 1
Program CD 1
Remote Controller 1
Battery 2
CH 1 Product Introduction

7
1-3. Product Characteristics
1) High quality picture
This enables recording and playing high quality digital image based on H.264
compression method.
2) High reliability
With Embedded hardware and software design, this maintains higher product
reliability compared to common PC type products.
3) Simple usage
This allows users to use it conveniently by placing control buttons similar to existing
ones on VCR, and users can easily learn the usage.
4) Triplex System
Triplex System allows recording, backup, networking and playback simultaneously.
5) Selectable recording setup
For recording methods, users can select the frame rate, resolution and video quality
individually in order to be appropriate for user's environment.
6) Remote monitoring
With using exclusive line or Internet network, you can search or monitor recorded
images remotely by installing exclusive client program on PC.
7) Backup
You can backup with USB.
8) Audio recording
You can record four sound inputs simultaneously. Moreover, you can listen to the
sound in search and live monitoring and play mode.
9) Various recording methods
This provides convenient use with manual recording, recording by dates and days,
hourly schedule recording, sensor and motion detection event recording and others to
enable unmanned monitoring.
10) Various total monitoring features
You can use overall and economical security system through various sensor inputs
and contact output control.
11) Display information in easy-to-understand information method
This enhanced convenience of user by displaying information (date, time, recording
method, recording frame number, HDD capacity and others) in monitoring, recording
and playing mode in easy-to-understand way.
CH 1 Product Introduction

8
12) P/T/Z control
By built in RS485, various P/T/Z cameras can be used.
13) Individual resolution setting
You can record in each channel by choosing 360X240, 720X240 and 720X480
individually.
14) Separate video transmission engine
DVR can send 60 fps (based on CIF) regardless of the local recording and viewing
setup regardless with recording setup.
15) Web browser support
You can monitor and playback the video and control the PTZ camera by internet
explorer.
16) Built in S.M.A.R.T.
You can automatically check the health of the hard disk drives.
17) Language pack
Basically DVR has multiple language set, furthermore you can choose the language
set if you want.
CH 1 Product Introduction

9
1-4. Name of Each Part
[Front Panel]
1. IR Window : the window for remote controller
2. USB ports : These USB ports are for mouse and USB devices. You should
connect correctly the USB devices and mouse as picture directed.
3. Status lamps
POWER : Blue color back light. Power indicator.
RECORD : Red. Indicate the recording.
NETWORK : Green. Lit on connecting the network
CH 1 Product Introduction
[Rear Panel]
[4ch]
[8ch]

10
1. Cooling Fan
2. Video In: This receives images from cameras and sends them to monitors.
3. LAN Port: This is LAN cable connection terminal.
4. Video Out : For main monitor.
5. VGA port: video output for VGA display
6. DC Power : DC12V 4.0A
7. RS485 port : For control the pan and tile cameras. Make sure that the polarity.
8. Relay out : This terminal blocks connect external electric devices to the product
( Warning Lamp and others).
9. Sensor In : This terminal connects external sensor to the product.
10. Audio In: RCA audio in terminals. You can record four channels at the same
time.
11. Audio Out: RCA audio out terminal.
12. VGA/Composite select switch : Choose the proper position.
※ For more details, refer to [CH 2. Installation Method and Cautions].
CH 1 Product Introduction
[16ch]

11
2-1. Cautions
- Avoid installing the product where there are direct rays or it is hot by locating near
from heat generator. (May cause fire)
- Do not put vase, flowerpot, cup, cosmetics, drug, and anything the contain water on
product. (May cause fire or electric shock, and it may injure people by falling)
- Do not insert or drop any metal object (coin, hair pin) or flammable object (match,
paper) into air hole. (May cause fire or electric shock)
- Do not put any heavy object on it. (May injure people by being fell or destroyed.)
- Put power plug surely not to be moved. (If not, this may cause fire.)
- Unplug power plug and antenna when there are thunders and lightening. (May
cause fire.)
- For cleaning the product, wipe surface with dry towel. Using chemical agent or
cleaner may change the color and unpeel paint. Do not put several plugs at same
time. (May cause electric shock.) If there is smoke or strange smell, stop operation. In
this case, turn the power off and unplug it, and then contact our service center. (If you
keep using it, this may cause fire or electric shock.)
- Do not unplug by pulling cord. (If cord is damaged, it may cause fire or electric
shock.)
- Do not plug or unplug with wet hands. (May cause electric shock.)
CH2. Installation Method and Cautions
CH 2 Installation Method and Cautions
WARNING
Risk of electric shock.
Do not open the cover of the product.
Servicing of this product by unauthorized personnel is
prohibited and will result in a void of warranty.
In order to ensure the most stable
conditions for power, the use of a UPS (Uninterrupted
Power Supply) is recommended.

12
- Keep the power cord untwisted. (May cause fire or electric shock.)
- Use proper adapter. (Using too much electric power may cause fire or electric shock.)
- Do not install it at where exposed to rain and wind and water drop. (May cause fire,
electric shock and transformation.)
- Keep away from fire. (May cause fire.)
-Do not disassemble or remodel on your own. (May cause malfunction or electric
shock.)
- Do not put next to flammable materials like flammable spray. (May cause fire.)
- Do not install it at a place with too much dirt. (May cause fire.)
- Do not install it on unstable places like shaking table and inclined place or shaking
place. (May injure users by falling down or being upside down.)
- Do not put an heavy object on power cord or avoid it from being pressed by the
device. (May cause fire or electric shock.)
- In case of using extension cord, do not use several devices at same time. (May cause
fire with abnormal heating of extension.)
- When there are dirt on power plug pin or power outlet, clean it nicely. (May cause
fire.)
-Do not damage on power cord or plug, and bend or twist or pull too much, and put it
between other objects or heat. If power outlet insertion part is not tight, do not use it.
(May cause fire or electric shock.)
-Do not drop or give a shock to the product. (May injure people or cause malfunction.)
- Do not touch power adaptor or signal controller. (May cause electric shock.)
- Do not put any object too close to block cooling fan. (May cause fire.)
- In case of exchanging batteries with improper type, there might be danger of
explosion.
- For used batteries, throw away separately from other garbage.
- When you take out batteries, avoid children from eating them by mistake. Keep them
away from children. (If a child ate them, contact a doctor right away.)
CH 2 Installation Method and Cautions

13
CH 2 Installation Method and Cautions
Note :
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense. Changes or modifications to this equipment may cause harmful
interference unless the modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
This device complies with the part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operations.
FCC Warning :
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could lose
the authority to operate this equipment if an unauthorized change or modification is
made.
CE Warning : This is a Class A product. In a domestic environment this may cause
radio interference in which case the user may be required to take adequate measures.
This product has obtained EMI registration.

14
2-2 Product Installation
This product may be composed of camera and monitor in default, and additionally
the sensor, microphone, speaker and PC for network can be connected if necessary.
2-2-1. Power Connection
1) Connect adapter cable to power connection terminal at rear side.
2) Input AC power to the adapter. (free voltage from 100V to 240V, 50/60Hz)
※You must operate it at the rated voltage instructed on the user's manual. In case
power higher than the rated voltage is supplied, it may cause damages on product.
2-2-2. Connecting External Device ( 4CH)
※Connect it when power of the product is off.
※Read through user's manual for the device you are connecting carefully.
1) How to Connect External Video/Audio Device
Connect cameras to VIDEO IN by channels.
Connect microphone (AMP) to AUDIO IN by channels.
Connect VIDEO OUT to VIDEO IN of monitor.
Connect AUDIO OUT to AUDIO IN of monitor (or speaker).
2) How to connect external sensor
Sensor terminal is composed of 1 input channel and 1 output channel. Sensor out
terminal is relay output with 1A, 24V or 0.5A,125V.
CH 2 Installation Method and Cautions
CAMERA
MIC

15
SIREN
POWER
-+
SENSOR
Sensor In : Connect the sensors. The sensor are composed of both signal and ground
terminals, with a voltage difference of 5V. In the case that the sensor used for input
is of the N/O (Normal Open) type, when the voltage difference between the signal
and ground falls to 0V (short), the DVR can use this as a trigger to start alarm/sensor
based recording.
Sensor Out : Connecting external electrical devices
The 1 output sensor terminal does not provide power, and functions only on an
ON/OFF basis via a relay. Normally, the signal and ground should be on an OPEN
basis, and the DVR will complete the relay connection.
3) Connecting with PC using LAN cable
If you want to connect DVR to PC directly, use Cross Cable(1), and if you want to
use HUB, use Direct Cable(2).
*Hub : This is a device connecting one office to devices located near with using
cable when you organize LAN
*Direct Cable : This is standard UTP cable used for communication among
devices through Hub and others when you organize LAN
*Cross Cable : This is a cable that has changed internal array of standard UTP
Cable for direct communication among devices not using connection
devices like Hub when you organize LAN
CH 2 Installation Method and Cautions
②Direct Cable
①Cross Cable
PC
HUB

16
4) Connection Using PTZ camera
In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as
shown at following figure.
CH 2 Installation Method and Cautions
5) Installing Hard disk drive
In case of installing the hard disk drive, open the upper case and install the hard disk
drive on the hard bracket. If you use the one hard disk drive, it should be set the IDE1
with master setting. If you use the 2 hard disk drives, it also should be set the IDE1
with 1 master and 1 slave setting. Remember that the main power should be off to
install the hard disk drive. If you have any trouble, please contact the technical
support.
RS485CABLE
VIDEO CABLE
SPEED
DOME

17
Connecting External Device(8 and 16 CH)
※Connect it when power of the product is off.
※Read through user's manual for the device you are connecting carefully.
1) How to Connect External Video/Audio Device
Connect cameras to VIDEO IN by channels.
Connect microphone (AMP) to AUDIO IN by channels.
Connect VIDEO OUT to VIDEO IN of monitor.
Connect AUDIO OUT to AUDIO IN of monitor (or speaker).
2) How to connect external sensor
Sensor terminal is composed of 1 input channel and 1 output channel. Sensor out
terminal is relay output with 1A, 24V or 0.5A,125V.
CH 2 Installation Method and Cautions
CAMERA
MIC
.
.
.
SIREN
POWER
-+
SENSOR

18
Sensor In : Connect the sensors. The sensor are composed of both signal and ground
terminals, with a voltage difference of 5V. In the case that the sensor used for input
is of the N/O (Normal Open) type, when the voltage difference between the signal
and ground falls to 0V (short), the DVR can use this as a trigger to start alarm/sensor
based recording.
Sensor Out : Connecting external electrical devices
The 1 output sensor terminal does not provide power, and functions only on an
ON/OFF basis via a relay. Normally, the signal and ground should be on an OPEN
basis, and the DVR will complete the relay connection.
3) Connecting with PC using LAN cable
If you want to connect DVR to PC directly, use Cross Cable(1), and if you want to
use HUB, use Direct Cable(2).
*Hub : This is a device connecting one office to devices located near with using
cable when you organize LAN
*Direct Cable : This is standard UTP cable used for communication among
devices through Hub and others when you organize LAN
*Cross Cable : This is a cable that has changed internal array of standard UTP
Cable for direct communication among devices not using connection
devices like Hub when you organize LAN
CH 2 Installation Method and Cautions
②Direct Cable
①Cross Cable
PC
HUB

19
4) Connection Using PTZ camera
In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as
shown at following figure.
CH 2 Installation Method and Cautions
5) Installing Hard disk drive
In case of installing the hard disk drive, open the upper case and install the hard disk
drive on the hard bracket. If you use the one hard disk drive, it should be set the IDE1
with master setting. If you use the 2 hard disk drives, it also should be set the IDE1
with 1 master and 1 slave setting. Remember that the main power should be off to
install the hard disk drive. If you have any trouble, please contact the technical
support.
RS485CABLE
VIDEO CABLE
SPEED
DOME

20
3-1. General Usage Information
The STANDARD series DVR can be operated with a mouse or remote controller
under the four main modes listed below:
Live Mode – This is the “main or default” mode. From this mode you can view in
real time all currently operating cameras, information regarding camera status, and
have access to Pan/Tilt camera controls. In addition, system status information will
be shown during live mode, and other modes can be entered from Live mode.
Setup Mode – The user will be able to customize settings for Live viewing,
Recording, Backup, and Camera related devices under the Setup Mode.
Search Mode – In Search Mode, the user will be able to review all recorded footage
in the case that an event must be reviewed using a calendar or event based search.
Backup Mode – In Backup Mode, the user will be able to archive the desired data to
the preferred supported media of their choice (ex. CD, DVD, USB Backup, Remote
Client Software, etc.)
Password Protection – The DVR system will utilize a user ID and password system
to prevent unauthorized usage of this product. Control of the system will only be
possible after entering a proper ID and password as illustrated below. (Factory
Default settings are blank for these fields).
IDs and passwords should be managed by a system administrator, as different users
may be given different levels of access to the DVR.
CH3. How to Use
CH 3 How to Use
