4B IE-NODE 2 User manual

www.go4b.com
IE-NODE
INDUSTRIAL ETHERNET NODE 2
10 ANALOG 4-20 mA INPUTS
COMMUNICATION PROTOCOLS -
PROFINET, ETHERNET/IP & MODBUS TCP/IP
INSTALLATION INSTRUCTIONS
OPERATION MANUAL
Part No.’s - ETH-NODE2V46CAI, ETH-NODE2V4CAI
Hardware Version R3 - Software Version 4.2.4 - Ethernet 0.2.X
EN - FR - CN - RU

Exposed buckets and
moving parts will cause
severe injury or death.
Lockout power before
removing cover or
inspection door.
DANGERDANGER
Moving parts can
crush and cut.
Lockout power before
removing guard or
servicing.
Do NOT operate with
guard removed
WARNING

1. CUSTOMER SAFETY RESPONSIBILITIES Page 4 - 5
2. PRODUCT OVERVIEW Page 6
3. SPECIFICATIONS Page 6
4. DIMENSIONS Page 7
5. INSTALLATION Page 7
6. SENSOR PLACEMENT DIAGRAMS Page 8
7. ELECTRICAL CONNECTION Page 9
8. WIRING DIAGRAMS Page 11 - 15
8.1 Supply Voltage Wiring (120 to 240 VAC) Page 11
8.2 Supply Voltage Wiring (24 VDC) Page 11
8.3 Wiring Block Diagram for Elevator & Conveyor Page 12
8.4 Standard System Sensor Wiring Diagram Page 13
8.5 Individual Bearing Temp. Sensor Wiring Diagrams Page 14
8.6 Individual Belt Alignment Sensor Wiring Diagrams Page 14
8.7 Individual Speed Sensor Wiring Diagrams Page 14
9. IE-NODE OPERATION Page 15 - 16
9.1 Startup Operation Page 15
9.2 Rotary Switch (SW1) Page 15
9.3 DIP Switches (SW2) Page 16
9.4 PLC Protocol Selection Page 16
9.5 Temperature Unit Page 16
9.6 Bootloader Selection Page 16
9.7 RTU Node ID Source Page 16
9.8 Internal Temperature Sensor Page 16
10. COMMUNICATIONS OPTIONS Page 17
11. EXPANSION BOARDS Page 17
12. IE-NODE NETWORK CONFIGURATOR SOFTWARE Page 18 - 21
13. TROUBLESHOOTING GUIDE Page 22
14. TESTING AND MAINTENANCE Page 22
15. WARNINGS PRESENT ON PRODUCT Page 22
16. PRODUCT WARRANTY Page 27
TABLE OF CONTENTS

PAGE 4
4B appreciates your business and is pleased you have chosen our products to meet your
needs.
Please read in its entirety and understand the literature accompanying the product before
you place the product into service. Please read the safety precautions carefully before
operating the product. With each product you purchase from 4B, there are some basic
but important safety considerations you must follow to be sure your purchase is permitted
to perform its design function and operate properly and safely, giving you many years
of reliable service. Please read and understand the Customer Safety Responsibilities
listed below. Failure to follow this safety directive and the Operation Manuals and other
material furnished or referenced, may result in serious injury or death.
SAFETY NOTICE TO OUR CUSTOMERS
A. In order to maximize e󰀩ciency and safety, selecting the right equipment for each
operation is vital. The proper installation of the equipment, and regular maintenance
and inspection is equally important in continuing the proper operation and safety
of the product. The proper installation and maintenance of all our products is the
responsibility of the user unless you have asked 4B to perform these tasks.
B. All installation and wiring must be in accordance with Local and National Electrical
Codes and other standards applicable to your industry. (Please see the article
“Hazard Monitoring Equipment Selection, Installation and Maintenance” at www.
go4b.com.) The installation of the wiring should be undertaken by an experienced
and qualied professional electrician. Failure to correctly wire any product and/or
machinery can result in the product or machine failing to operate as intended, and can
defeat its design function.
C. Periodic inspection by a qualied person will help assure your 4B product is
performing properly. 4B recommends a documented inspection at least annually and
more frequently under high use conditions.
D. Please see the last page of this manual for all warranty information regarding this
product.
CUSTOMER SAFETY RESPONSIBILITIES
1. READ ALL LITERATURE PROVIDED WITH YOUR PRODUCT
Please read all user, instruction and safety manuals to ensure that you understand
your product operation and are able to safely and e󰀨ectively use this product. If the
equipment is used in a manner not specied in this manual, the protection provided by
the equipment may be impaired.
2. YOU BEST UNDERSTAND YOUR NEEDS
Every customer and operation is unique, and only you best know the specic needs
and capabilities of your operation. Please call the 24-hour hotline at 309-698-5611 for
assistance with any questions about the performance of products purchased from 4B.
4B is happy to discuss product performance with you at any time.
1. CUSTOMER SAFETY RESPONSIBILITIES

PAGE 5
3. SELECT A QUALIFIED AND COMPETENT INSTALLER
Correct installation of the product is important for safety and performance. If you have
not asked 4B to perform the installation of the unit on your behalf, it is critical for the
safety of your operation and those who may perform work on your operation that you
select a qualied and competent electrical installer to undertake the installation. The
product must be installed properly to perform its designed functions. The installer should
be qualied, trained, and competent to perform the installation in accordance with Local
and National Electrical Codes, all relevant OSHA Regulations, as well as any of your
own standards and preventive maintenance requirements, and other product installation
information supplied with the product. You should be prepared to provide the installer
with all necessary installation information to assist in the installation.
4. ESTABLISH AND FOLLOW A REGULAR MAINTENANCE AND INSPECTION
SCHEDULE FOR YOUR 4B PRODUCTS
You should develop a proper maintenance and inspection program to conrm that your
system is in good working order at all times. You will be in the best position to determine
the appropriate frequency for inspection. Many di󰀨erent factors known to the user will
assist you in deciding the frequency of inspection. These factors may include but are not
limited to weather conditions; construction work at the facility; hours of operation; animal
or insect infestation; and the real-world experience of knowing how your employees
perform their jobs. The personnel or person you select to install, operate, maintain,
inspect or perform any work whatsoever, should be trained and qualied to perform these
important functions. Complete and accurate records of the maintenance and inspection
process should be created and retained by you at all times.
5. RETAIN AND REFER TO THE OPERATION MANUAL FOR 4B’S SUGGESTED
MAINTENANCE AND INSPECTION RECOMMENDATIONS
As all operations are di󰀨erent, please understand that your specic operation may require
additional adjustments in the maintenance and inspection process essential to permit
the monitoring device to perform its intended function. Retain the Operation Manual
and other important maintenance and service documents provided by 4B and have
them readily available for people servicing your 4B equipment. Should you have any
questions, please call the free 24-hour hotline number (309-698-5611).
6. SERVICE REQUEST
If you have questions or comments about the operation of your unit or require the unit
to be serviced please contact the 4B location who supplied the product or call us via our
24-hour hotline number in the USA (309-698-5611). Please have available product part
numbers, serial numbers, and approximate date of installation. In order to assist you,
after the product has been placed into service, complete the online product registration
section which is accessed via our website www.go4b.com/usa.
WARNING
• Rotating machinery can cause serious injury or death
• Always lockout and tagout the machine prior to installation

2. PRODUCT OVERVIEW
The Industrial Ethernet Node 2 (IE-NODE) is a remote sensor monitoring device with 10 4-20 mA
(current loop) sensor inputs designed to work alongside a PLC or other control systems.
However, the IE-NODE can be expanded up to 16 sensor inputs with the installation of an optional
expansion board. The board provides space for 6 additional NTC, contact or 4-20 mA inputs.
The IE-NODE operates by reading its sensor inputs and sending processed data when requested
by another system (e.g. PLC). The unit is equipped with an RJ45 Ethernet socket and supports
PROFINET, EtherNet/IP and Modbus TCP/IP protocols for easy integration with Siemens, Allen-Bradley
Rockwell, Modicon and other PLC’s or automation devices.
The IE-NODE can be used with the following 4B sensors:
4-20 mA Current Loop -
• Milli-Speed Switch: Designed to detect belt slip, belt underspeed, stop motion, low speed or zero
speed on bucket elevators, conveyors, airlocks, mixers, fans, grinders and many other rotating
machines
• Milli-Temp Series: For use on any application where bearing or surface
temperature monitoring is desired or required.
PAGE 6
3. SPECIFICATIONS
Supply Voltage - 120 to 240 VAC (ETH-NODE2V46CAI)
24 VDC (ETH-NODE2V4CAI)
Power Dissipation - 12 Watts Maximum
Sensor Supply - 24 VDC @ 800 mA (Across Fuse 1 - Fuse 4)
Power Terminals - 14 AWG / 4 mm2
Signal Terminals -
16 AWG / 2.5 mm2
Communication Protocols -
PROFINET, EtherNet/IP and Modbus TCP/IP
Height - 9.7 in. (246 mm)
Width - 7.4 in. (188 mm)
Depth - 4 in. (102 mm)
Fixing Centers - 8.75 x 4 in. (222 x 102 mm)
Cable Entry - 2 Holes - 1-1/8 in. (28 mm) Diameter - 3/4 in. Conduit
Weight - 2.5 lbs / 1.4 kg
Protection - IP66
Approvals -
ATEX / IECEx/UKEX - V4
Ex tb IIIC T125° Db IP66 TAMB -20°C to +50°C IECEx BAS05.0026X
0598 1180 Ex II 2D Ex tb IIIC T125° Db IP66 TAMB -20°C to +50°C
Baseefa04ATEX0131X BAS21UKEX0306X
ATEX / IECEx/UKEX - V46
Ex tc IIIC T125°Dc IP66 TAMB -20°C to +45°C IECEx BAS11.0018X
0598 1180 Ex II 3D Ex tc IIIC T125°Dc IP66 TAMB -20°C to +45°C
Baseefa II ATEX 0033X BAS21UKEX0309X
CSA - V4
Ex tb IIIC T125°C Db IP66 Tamb -20°C to +50°C
Zone 21 AEx tb IIIC T125°C Db IP66 Tamb -20°C to +50°C
Class II Division 1, Groups E, F and G T125°C
(When used with a Class2 power supply)
CSA - V46
Ex tc IIIC T125°C Dc IP66 Tamb -20°C to +45°C
Zone 22 AEx tc IIIC T125°C Dc IP66 Tamb -20°C to +45°C
Class II Division 2, Groups F and G T125°C
IP66

4. DIMENSIONS
PAGE 7
5. INSTALLATION
The IE-NODE should be installed in an area with network Ethernet access.
ENCLOSURE INSTALLATION -
1. Use the correct cable, glands and sealing arrangement in accordance to local installation codes.
2. Where other certied components are used as part of the assembly or installation procedure, the
user must take in to account any limitations which might be listed on the relevant certicates.
3. The box is supplied with 2 x 1-1/8 inch (27 mm) pre drilled holes in the bottom face. All unused
entry apertures must be sealed using component certied stopping plugs.
NOTE: Special Consideration when installed in a Class II environment: In order to connect conduit
to the control unit enclosure, use a CSA and/or UL certied Class II conduit hub (for example,
a Myers™ hub) with a suitable bonding (grounding) connection that is rated for the installation
environment.
4. The enclosure must not be modied in any way, as this will invalidate the certication.
5. All wiring must be carried out in accordance with relevant codes of practice and / or instructions.
NOTE: Special Consideration when installed in a Class II environment: Power input and output
(I/O) wiring shall be in accordance with Class II wiring methods per the National Electrical
Code (NFPA70) for installations within the US and per the Canadian Electrical Code (CEC) for
installations in Canada.
6. The voltage, current and maximum power dissipation on the units label must not be exceeded.
7. The wiring installation must extend to within 1 mm of the metal face of the terminal, and all leads
must be insulated for the appropriate voltage.
8. Not more than one or multiple strand cable is to be connected to any terminal unless multiple
conductors have previously been joined in a suitable manner (e.g. boot lace ferrule) such that they
present a single connection point to the terminal.
9. The sensor terminals use a screwless push in spring design, a small at-head or straight
screwdriver can be used to gently push in the tab to terminate the sensor wires.
SENSOR INSTALLATION -
Follow the installation instructions for each sensor as provided in each individual product manual.
ENVIRONMENTAL CONDITIONS-
Unit can be used in outdoor locations, Ambient temperature and IP NEMA ratings should be considered.
Product altitude is limited to 2000m above sea level. Humidity 0-100% RH, non-condensing.

6. SENSOR PLACEMENT DIAGRAMS
1
2
2
33
4
1
2
2
3
3

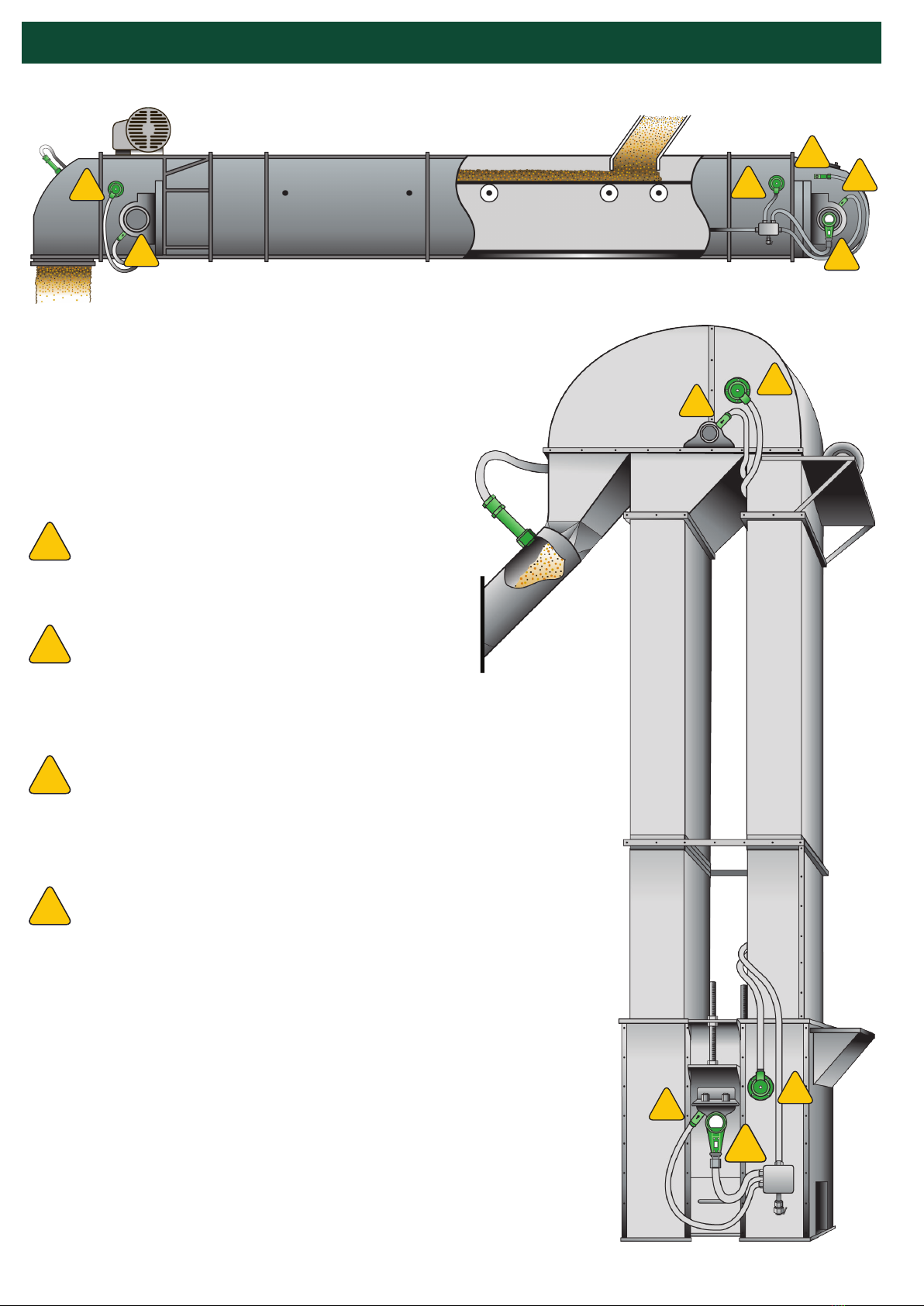

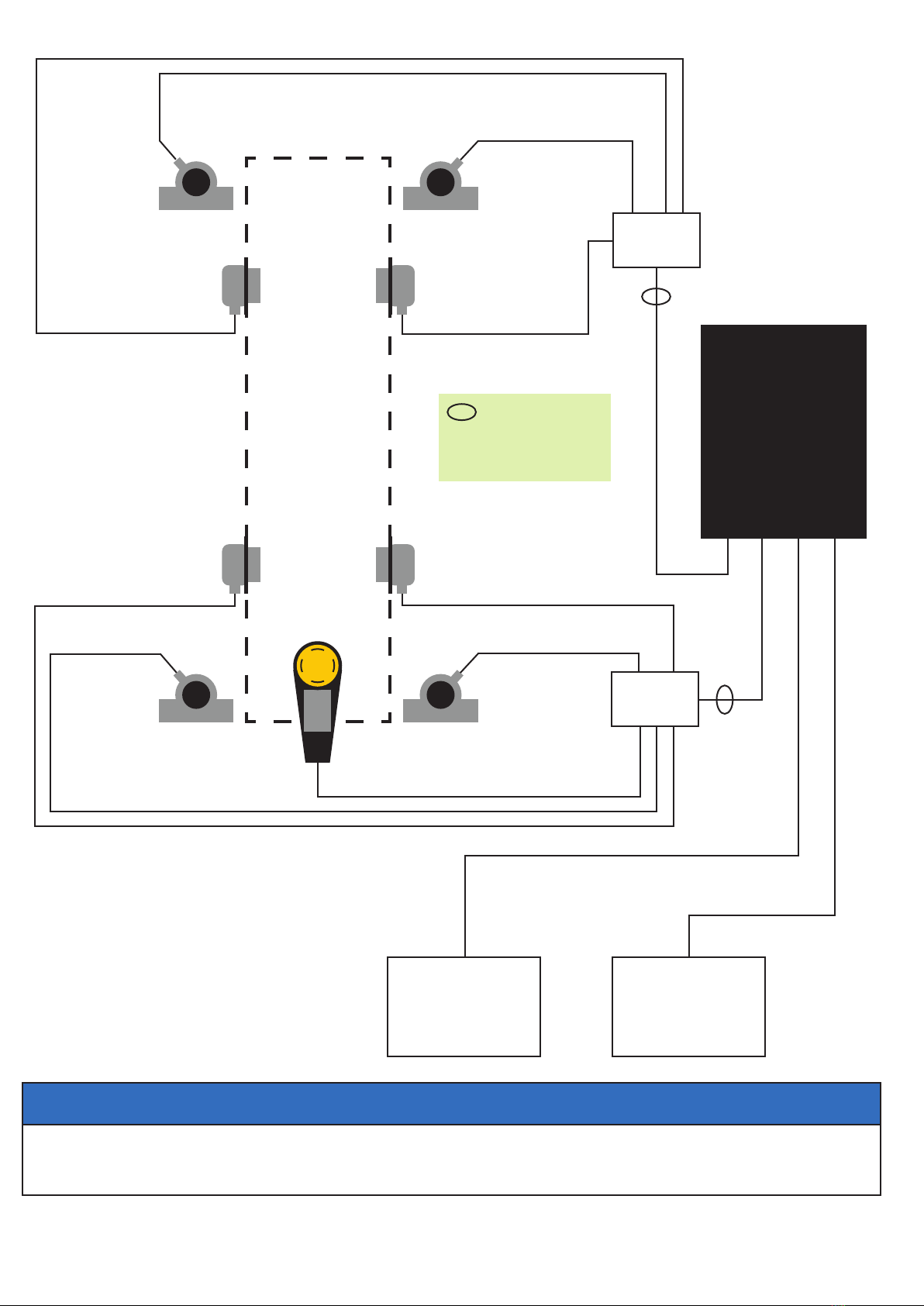

SPEED MONITORING
Qty 1 - One sensor located on either
side of the tail or boot shaft.
BEARING TEMPERATURE
Qty. 4 - One sensor for the bearings
at each end of the drive and tail or
head and boot shafts.
BELT MISALIGNMENT
Qty. 4 - Sensors work in pairs, one
for each side of the belt on the drive
and tail or head and boot sections.
TAIL PULLEY MISALIGNMENT
(Enclosed Belt Conveyor)
Qty. 2 - One sensor located on each
side of the housing on the conveyor
tail section.
1
2
3
4
TYPICAL SENSOR PLACEMENT
FOR BUCKET ELEVATORS &
ENCLOSED BELT CONVEYORS
PAGE 8

WARNING
The Control Unit is susceptible to static voltage, static handling precautions should be taken. Connection
of a clean ground to terminal 23 is essential for optimum performance.
Static Hazard – Clean Only With A Damp Cloth
Remove Power Before Opening Cover – Do Not Apply Power When Cover Is Open
7. ELECTRICAL CONNECTION
All wiring must be in accordance with local and national electrical codes and should be undertaken by
an experienced and qualied electrician. All equipment should be properly grounded prior to operation.
Additional wire used during the installation must have a temperature rating of 158° F (70° C) or above,
and be at least 24 AWG. 4B recommends using shielded cable to reduce electromagnetic interference
(EMI) to maintain signal integrity. Never run sensor cables in the same conduit as three phase motor
cables.
Always use dust/liquid tight exible metal conduit with approved ttings to protect the sensor cables.
Use rigid metal conduit to protect the cables from the sensors to the control unit. Conduit systems can
channel water due to ingress and condensation directly to sensors and sensor connections which over
time will adversely a󰀨ect the performance of the system. As such, the installation of low point conduit
drains is recommended for all sensors.
All electrical connections are shown in image 1.
FUSE RATINGS -
In order to maintain the product certication, all fuses MUST be replaced with equivalent fuses at the
same rating. Failure to do so will invalidate the certication and any warranties which may exist.
Model ETH-NODE2V46C
• F1 - F4 and F6 2 Amp.
• F5 200 mA.
Model ETH-NODE2V4C
• F1 - F4 AND F5 200 mA
SENSOR INPUTS -
NOTE
Recommended cable type is Belden 5508FE with 10 conductors each 22 AWG, shielded. Overall
outer diameter is 0.23 inches. Belden 5508FE wire colors are used in all of the sensor wiring
diagrams.
PAGE 9
TERMINAL SENSOR MINIMUM MAXIMUM
CLI#1 - CLI#10 Speed/Temperature (4-20 mA) 0 mA 20 mA

PAGE 10
WARNING
The unit should ONLY be powered with either a main supply (ETH-NODE2V46C model) OR a
24 VDC (ETH-NODE2V4C) NOT BOTH (see specications).
Image 1 -
Control Board - No Internal Power Supply
FIELD WIRING
CONNECTIONS
01 - 0 VDC
02 - CLI#1 Sensor Input
03 - CLI#2 Sensor Input
04 - +24 VDC (Fuse F1)
05 - 0 VDC
06 - CLI#3 Sensor Input
07 - CLI#4 Sensor Input
08 - +24 VDC (Fuse F2)
09 - 0 VDC
10 - CLI#5 Sensor Input
11 - CLI#6 Sensor Input
12 - +24 VDC (Fuse F3)
13 - 0 VDC
14 - CLI#7 Sensor Input
15 - CLI#8 Sensor Input
16 - +24 VDC (Fuse F4)
17 - 0 VDC
18 - CLI#9 Sensor Input
19 - CLI#10 Sensor Input
20 - +24 VDC (Fuse F4)
Power Supply
Location
(If Installed)
POWER CONNECTIONS
21 - VAC Neutral Connection
22 - 120 to 240 VAC Connection
23 - 0 VDC & Ground Connection
24 - (+) 24 VDC Connection
DIP Switches (SW2)
Rotary Switch (SW1)
HB (Heart Beat) - Green LED
Power - Red LED
RJ45 Ethernet

PAGE 11

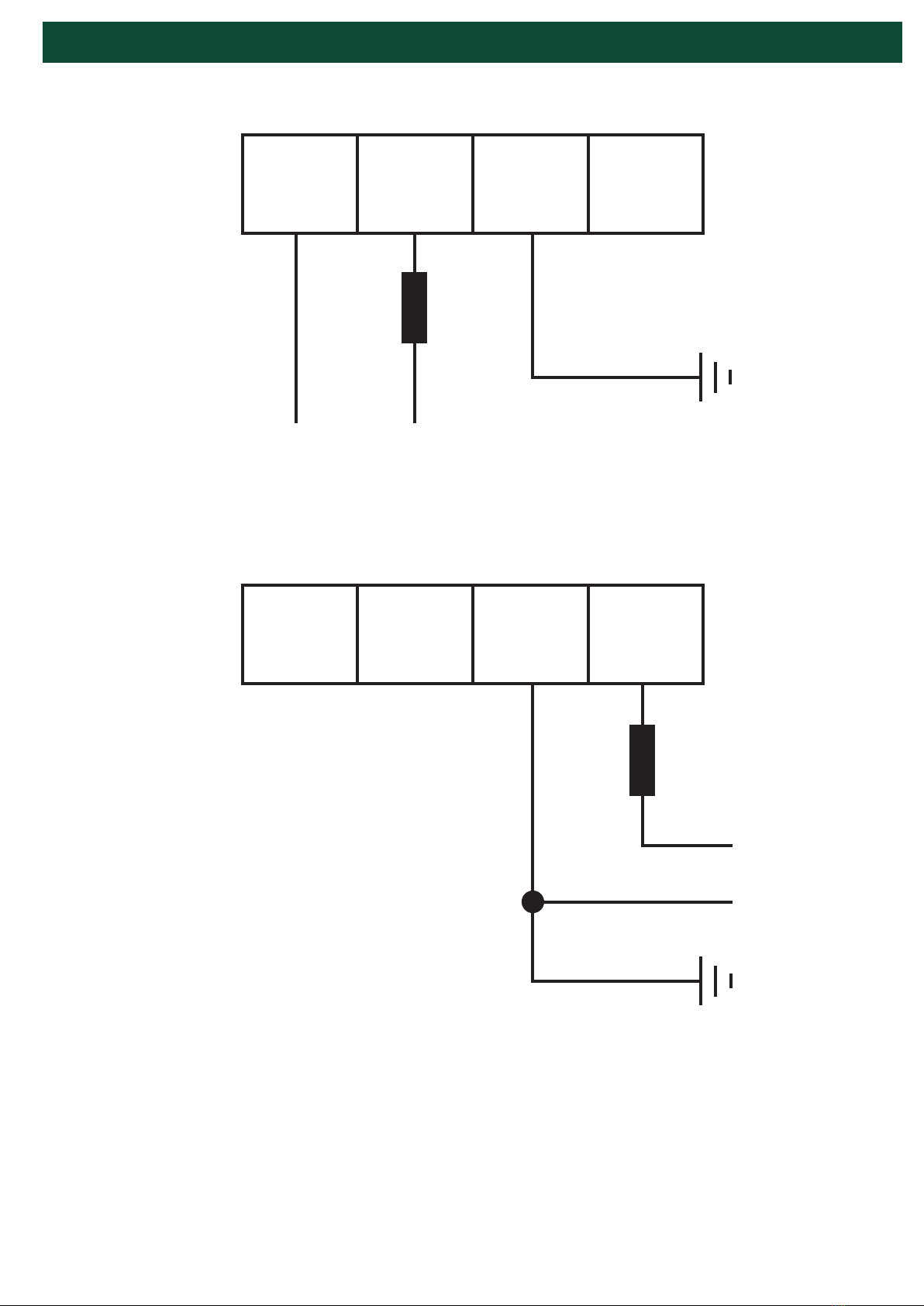

8. WIRING DIAGRAMS
8.1 SUPPLY VOLTAGE WIRING (120 TO 240 VAC)
21 22 23 24
No
Connection
N L
Ground
Fuse
2 A
8.2 SUPPLY VOLTAGE WIRING (24 VDC)
21 22 23 24
No
Connection
+
-
Ground
24 VDC
Fuse
2 A

PAGE 12
NOTE
• Metal conduit and liquid tight should be used to protect the cables from physical damage.
• Left and right are determined when facing the direction the bucket elevator discharges.

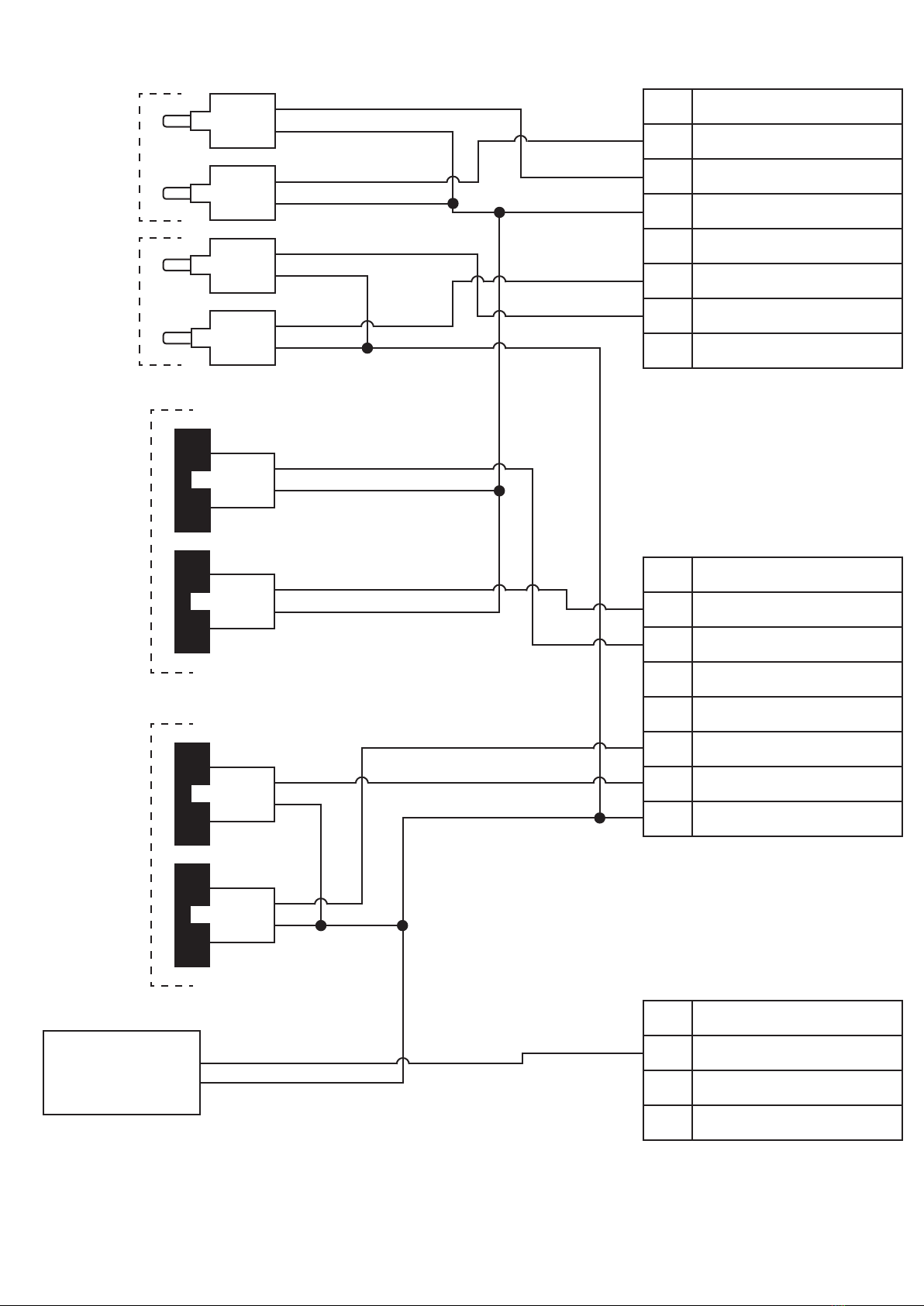

8.3 WIRING BLOCK DIAGRAM FOR BUCKET ELEVATOR & BELT CONVEYOR -
HEAD / DRIVE
BOOT / TAIL
Hot Bearing
Sensor
Hot Bearing
Sensor
Hot Bearing
Sensor
Hot Bearing
Sensor
Alignment
Top Right
Alignment
Top Left
Alignment
Bottom Left
Alignment
Bottom Right
Speed
Sensor
INDUSTRIAL
IE-NODE
Junction
Box
Junction
Box
RJ45 Connection
Modbus TCP/IP
Ethernet/IP or
PROFINET
Switch & Fused
Supply
BELDEN 5508FE
BELDEN 5508FE
Ethernet
Denotes shielded
cable. Shield to
be grounded at
one end only.
TOP LEFT TOP RIGHT
BOTTOM LEFT BOTTOM RIGHT

PAGE 13
Black
Brown
Black
Brown
Black
Brown
Black
Brown
Bearing
Bottom (Tail)
Bearing
Top (Head)
RIGHT
LEFT
RIGHT
LEFT
Blue
Black
Speed
8.4 STANDARD SENSOR WIRING DIAGRAM:
- MILLI-TEMP (BEARING TEMP), RUB BLOCKS (BELT ALIGNMENT) & MILLI-SPEED (SPEED)
01 0 VDC
02 CLI#1
03 CLI#2
04 +24 VDC (Fuse F1)
05 0 VDC
06 CLI#3
07 CLI#4
08 +24 VDC (Fuse F2)
09 0 VDC
10 CLI#5
11 CLI#6
12 +24 VDC (Fuse F3)
13 0 VDC
14 CLI#7
15 CLI#8
16 +24 VDC (Fuse F4)
17 0 VDC
18 CLI#9
19 CLI#10
20 +24 VDC (Fuse F4)
Yellow
Red
Orange
Yellow
Red
Orange
Alignment
Top (Head)
Black
Brown
Black
Brown
Alignment
Bottom (Tail)
Black
Brown
Black
Brown
RIGHTLEFTRIGHTLEFT
Blue
Brown
Brown
Blue
White

PAGE 14
8.5 INDIVIDUAL BEARING SENSOR WIRING DIAGRAMS:
Black
Brown
0 VDC
CLI#
+24 VDC
Milli-Temp 4-20 mA
8.6 INDIVIDUAL BELT ALIGNMENT SENSOR WIRING DIAGRAMS:
0 VDC
CLI#
+24 VDC
Black
Brown
4-20 mA Rub Block (Milli-Temp)
8.7 INDIVIDUAL SPEED SENSOR WIRING DIAGRAMS:
Blue
Black
Speed
0 VDC
CLI#
+24 VDC
Milli-Speed (4-20 mA)

PAGE 15
9. IE-NODE OPERATION
The Industrial Ethernet Node is designed to sample data from several sensors and provide this data to
remote users or PLC’s on request. It is only a reporting system, and does not control any other system
or device.
9.1 STARTUP OPERATION -
After all sensor and power connections have been made, locate the POWER and HB (Heart Beat)
LED’s on the IE-NODE’s control board (See Image 1). When the unit is powered on, the red power LED
should be solid and the green HB LED should begin ashing.
The HB LED will behave in one of four ways -
HB LED DESCRIPTION
O󰀨 No internal communications, indicates an issue with the rmware or hardware.
On Normal operation, no external communications from a PLC or other device.
Flashing Normal operation, external communication detected from a PLC or other
device.
Fading Bootloader mode (allows for software updates)
9.2 ROTARY SWITCH (SW1) -
The rotary switch on the IE-NODE (Image 2) is used for setting the node slave ID when using one of the
optional expansion boards that support RS485. Refer to the expansion board manual for installation
and setup.
If SW1 Node ID functionality is not enabled, the default Modbus ID number is derived from the last 2
digits of the product serial number. For example, if the last 2 digits of the serial number are ‘00’ then the
ID number becomes ‘100’ given that the ID number ranges from 1 to 100.
Image 2 -
Control Board
Rotary Switch (SW1)
POSITION NODE ID
0 100
1 1
2 2
3 3
4 4
5 5
6 6
7 7

PAGE 16
9.4 PLC PROTOCOL SELECTION -
The IE-NODE will always have Modbus TCP/IP enabled, but it can also communicate over PROFINET
or Ethernet/IP (selectable).
9.5 TEMPERATURE UNIT -
The IE-NODE output temperature readings can be set as degrees Celcius or Fahrenheit.
9.6 BOOTLOADER SELECTION -
This switch selects whether bootloading for software updates is permitted or not. The switch is set to
OFF from the factory.
9.7 RTU NODE ID SOURCE -
This switch enables the Node ID settings for RS485 Modbus RTU. If the rotary switch (O󰀨 - Left) is
chosen, the node address is set from the rotary switch (Section 9.2). If internal (On - Right) is chosen,
then the node address is set from the IE-NODE Network Congurator Software (Section 11).
9.8 INTERNAL TEMPERATURE SENSOR -
In addition to the 10 sensor inputs, the IE-NODE is tted with an internal NTC temperature sensor. This
device is mounted to the IE-NODE PCB and will therefore provide the temperature of the electronics.
If an IE-NODE is mounted in the eld, it could be used to approximate the local ambient temperature,
but will report temperatures approximately 10°F (5°C) higher than local ambient. For a more accurate
ambient temperature reading, an ambient temperature sensor can be wired to one of the 10 sensor
inputs.

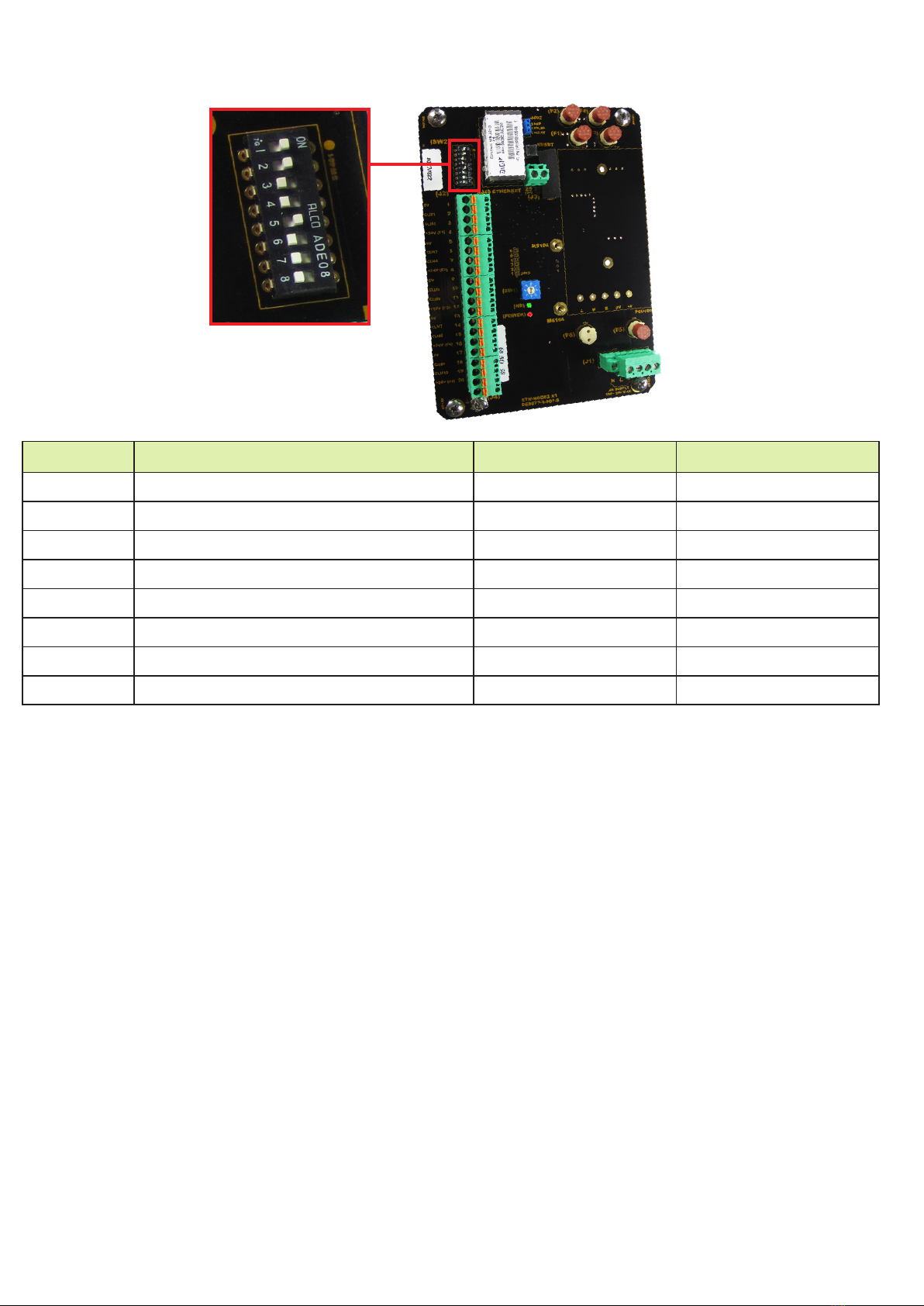

9.3 DIP SWITCHES (SW2) -
The IE-NODE has a set of eight DIP switches to change settings (Image 3). Each switch setting is
described in the table below. If a switch setting is changed, the unit must be restarted for the change to
take e󰀨ect.
Image 3 -
Control Board
DIP Switches (SW2)
SWITCH DESCRIPTION OFF (LEFT) ON (RIGHT)
1 PLC Protocol Selection PROFINET EtherNet/IP
2 Temperature Unit °C °F
3Reserved - Not Used (No E󰀨ect) ---- ----
4Reserved - Not Used (No E󰀨ect) ---- ----
5 Bootloader Selection Allowed Disabled
6 HazardMon.com Setup Enabled Disabled
7Reserved - Not Used (No E󰀨ect) ---- ----
8 RTU Node ID Source Rotary Switch (SW1) Internal

PAGE 17
The IE-NODE comes with a standard RJ45 Ethernet Socket. The unit is sent out from the factory with
the following IP address settings pre-set:
FACTORY SETTING VALUE
IPV4 Address 192.168.1.100
Subnet Mask 255.255.255.0
Default Gateway 192.168.1.1
Primary DNS Server 0.0.0.0
Secondary DNS Server 0.0.0.1
The IE-NODE supports PROFINET and EtherNet/IP communication protocols. The data allocation is
exactly the same for both the protocols and detailed information can be found in the IE-NODE Data
Format document.
The byte order within words is dependent on the selected protocol. For PROFINET it is Little-Endian
and for EtherNet/IP it is Big-Endian.
Modbus TCP is supported in addition to PROFINET and EtherNet/IP. The Modbus TCP information
contains equivalent information to the PROFINET and EtherNet/IP array type communications.
The Ethernet Node also has an FTP server. This should only be used for rmware updates. User
should not use this FTP server to store any les as it may become problematic to perform future
rmware updates if not enough free space is left on the device. Contact 4B for a copy of the rmware
update guide.
10. COMMUNICATIONS OPTIONS

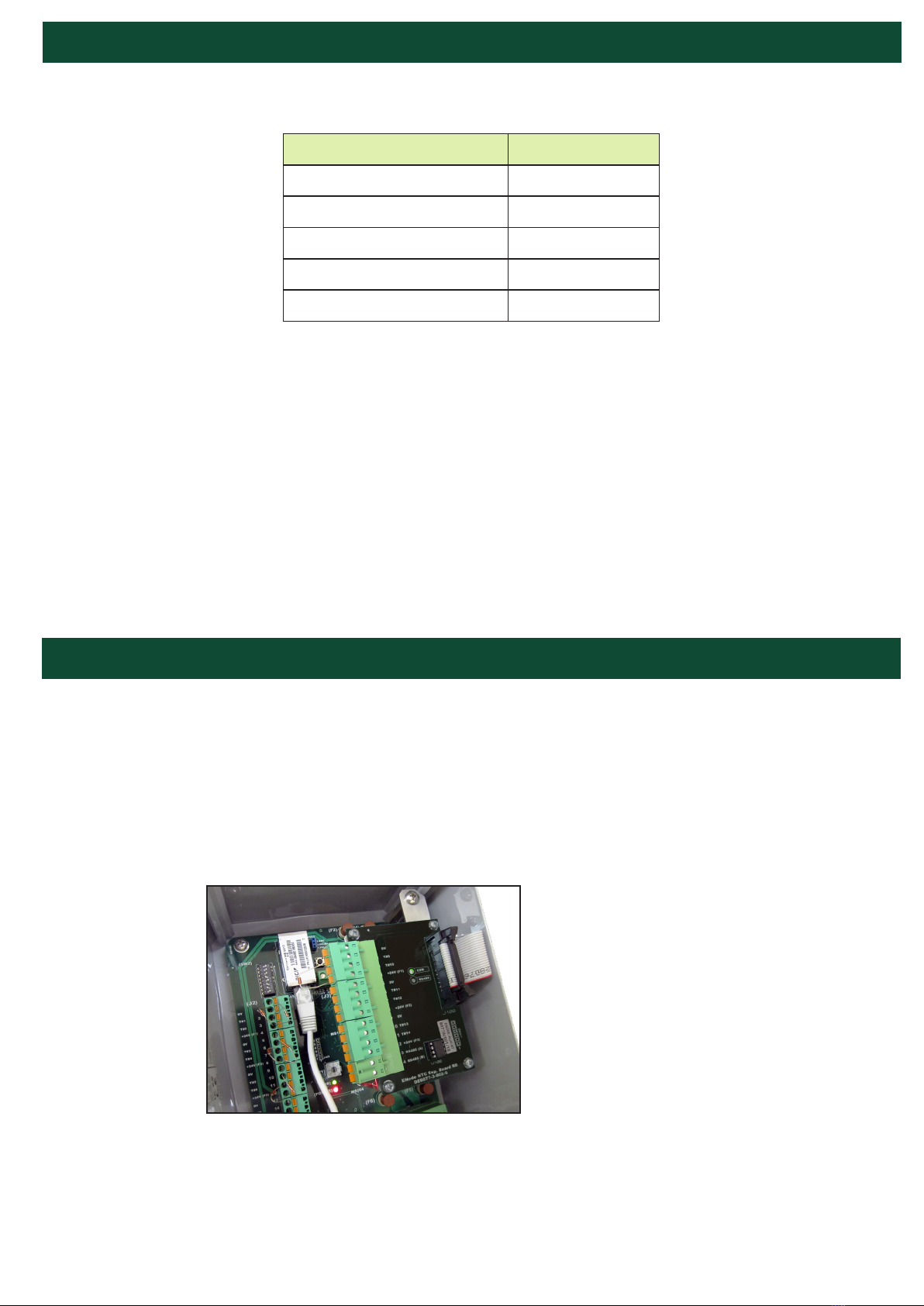

11. EXPANSION BOARDS
Two expansion boards are available for the IE-NODE to expand total sensor inputs from 10 to 16.
1. The ETH-NODE-AUXI-6NTC expansion board allows for the support of up to 6 additional NTC
temperature sensors or 6 contact sensors, or any combination of 6.
2. The ETH-NODE-AUXI-6AN expansion board allows for the support of up to 6 additional 4-20 mA
(current loop) sensors.
Both boards add the capability to allow for an RS485 Modbus RTU connection to be made to access all
onboard sensor information. Refer to the expansion board manual(s) for installation and setup.
Image 4 -
Expansion Board Installed

PAGE 18
12. IE-NODE NETWORK CONFIGURATOR SOFTWARE
The IE-NODE network congurator software provides you with a visual view of all devices on the
network. It allows for easy identication for each unit on the network, and allows you to change network
settings as needed.
The software does not ship with the unit, it is available as a free download from 4B’s website (see the
IE-NODE product page).

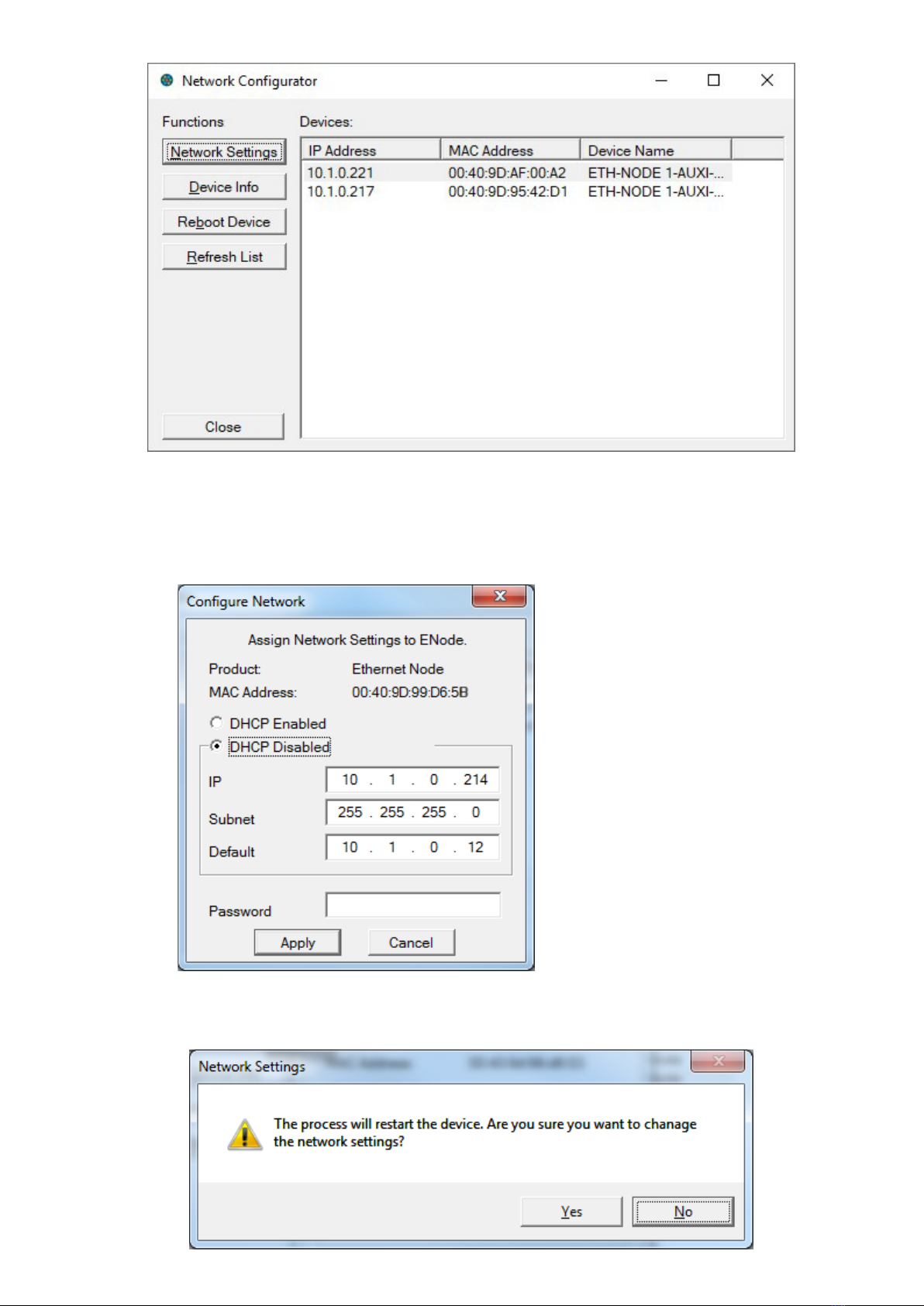

When opened, the software will automatically scan the network (Image 6). If the IE-NODE is on a
di󰀨erent network card than the one selected, you can change the selection in the drop down menu and
select “Update List”. If you add or remove a network device after the software is opened, you can select
the “Refresh” icon to update the list of network cards in the drop down menu.
To change the network settings of one of the nodes, highlight the node and select the “DIGI Finder
Graphical Interface” icon .
Image 6 - IE-NODE Congurator Menu
1. Update IE-NODE Conguration Settings
2. Update IE-NODE Main/Auxiliary Firmware
3. Change ETH-NODE X Modbus ID
4. DIGI Finder Graphical Interface
5. Update DIGI Module via FTP
1. 2. 3. 4. 5.
Image 5 - Network Menus
Select “Yes” to continue
with the update.

PAGE 19

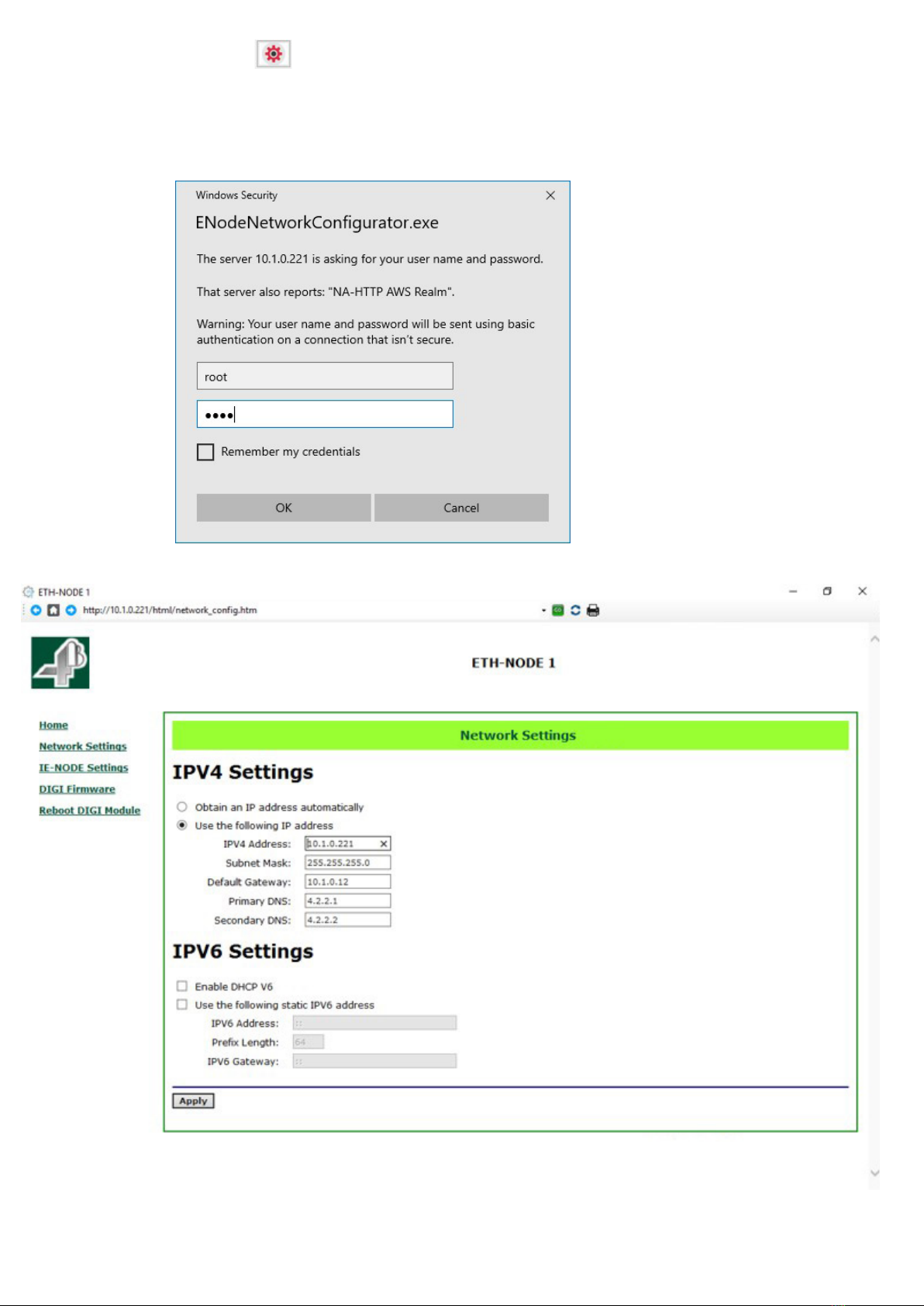

A “Network Congurator” will launch and rescan the network -
If nothing is found, try updating your computer’s network settings to the same IP address range as the
IE-NODE and select “Refresh List”. To change the network settings of an IE-NODE, highlight it from the
device list and select “Network Settings”.
Enter the network changes followed by the password “BBBB” then select “Apply”. You will be prompted
if you want to continue, select “Yes” to restart the device and apply the new settings.
Image 7 - Network Congurator Menu
Image 8 -
Congurator Network Menu

PAGE 20
If you prefer to use the built-in web server on the IE-Node, you can select “Update IE-NODE
Conguration Settings” icon from the main menu, or simply enter the node’s IP address into a web
browser.
Enter the user name “root” followed by the password “BBBB” then select “OK”. Once logged in, you
will be taken to the home page on the web server. Click on “Network Settings” to get to the IP address
settings page. Enter the IP settings that you require, and click Apply.
Image 10 - Network Settings
Image 9 -
IE-NODE Network
Congurator Sign In
