RG1
ROTARY LEVEL INDICATOR
INSTALLATION INSTRUCTIONS
OPERATION MANUAL
Part No’s RG1V56A, RG1V4A

CUSTOMER SAFETY RESPONSIBILITIES Page 4 - 5
PRODUCT OVERVIEW Page 6
SPECIFICATIONS Page 6
DIMENSIONS Page 6
INSTALLATION Page 7
STANDARD WIRING DIAGRAM Page 8
TESTING AND COMMISSIONING Page 10
TROUBLESHOOTING GUIDE Page 10
PARTS AND ACCESSORIES Page 11
PRODUCT WARRANTY Page 15
TABLE OF CONTENTS

PAGE 4
Dear 4B Customer:
Congratulations on your purchase. 4B appreciates your business and is pleased you have chosen our
products to meet your needs.
Please read in its entirety and understand the literature accompanying the product before you place the
product into service. Please read the safety precautions carefully before operating the product. With each
product you purchase from 4B, there are some basic but important safety considerations you must follow
to be sure your purchase is permitted to perform its design function and operate properly and safely, giving
you many years of reliable service. Please read and understand the Customer Safety Responsibilities
listed below. Failure to follow this safety directive and the Operation Manuals and other material furnished
or referenced, may result in serious injury or death.
SAFETY NOTICE TO OUR CUSTOMERS
A. In order to maximize e󰀩ciency and safety, selecting the right equipment for each operation is vital.
The proper installation of the equipment, and regular maintenance and inspection is equally important
in continuing the proper operation and safety of the product. The proper installation and maintenance
of all our products is the responsibility of the user unless you have asked 4B to perform these tasks.
B. All installation and wiring must be in accordance with Local and National Electrical Codes and
other standards applicable to your industry. The installation of the wiring should be undertaken by
an experienced and qualied professional electrician. Failure to correctly wire any product and/or
machinery can result in the product or machine failing to operate as intended, and can defeat its design
function.
C. Periodic inspection by a qualied person will help assure your 4B product is performing properly. 4B
recommends a documented inspection at least annually and more frequently under high use conditions.
D. Please see the last page of this manual for all warranty information regarding this product.
CUSTOMER SAFETY RESPONSIBILITIES
1. READ ALL LITERATURE PROVIDED WITH YOUR PRODUCT
Please read all user, instruction and safety manuals to ensure that you understand your product operation
and are able to safely and e󰀨ectively use this product.
2. YOU BEST UNDERSTAND YOUR NEEDS
Every customer and operation is unique, and only you best know the specic needs and capabilities of
your operation. Please go to www.go4b.com or call the 24-hour hotline at [phone] for assistance
with any questions about the performance of products purchased from 4B. 4B is happy to discuss product
performance with you at any time.

PAGE 5
3. SELECT A QUALIFIED AND COMPETENT INSTALLER
Correct installation of the product is important for safety and performance. If you have not asked 4B to
perform the installation of the unit on your behalf, it is critical for the safety of your operation and those
who may perform work on your operation that you select a qualied and competent electrical installer to
undertake the installation. The product must be installed properly to perform its designed functions. The
installer should be qualied, trained, and competent to perform the installation in accordance with local
and national electrical codes, all relevant regulations, as well as any of your own standards and preventive
maintenance requirements, and other product installation information supplied with the product. You
should be prepared to provide the installer with all necessary installation information to assist in the
installation.
4. ESTABLISH AND FOLLOW A REGULAR MAINTENANCE AND INSPECTION SCHEDULE FOR
YOUR 4B PRODUCTS
You should develop a proper maintenance and inspection program to conrm that your system is in good
working order at all times. You will be in the best position to determine the appropriate frequency for
inspection. Many di󰀨erent factors known to the user will assist you in deciding the frequency of inspection.
These factors may include but are not limited to weather conditions; construction work at the facility; hours
of operation; animal or insect infestation; and the real-world experience of knowing how your employees
perform their jobs. The personnel or person you select to install, operate, maintain, inspect or perform
any work whatsoever, should be trained and qualied to perform these important functions. Complete
and accurate records of the maintenance and inspection process should be created and retained by you
at all times.
5. RETAIN AND REFER TO THE OPERATION MANUAL FOR 4B’S SUGGESTED MAINTENANCE
AND INSPECTION RECOMMENDATIONS
As all operations are di󰀨erent, please understand that your specic operation may require additional
adjustments in the maintenance and inspection process essential to permit the monitoring device to
perform its intended function. Retain the Operation Manual and other important maintenance and service
documents provided by 4B and have them readily available for people servicing your 4B equipment.
Should you have any questions, please call go to www.go4b.com or call the 24-hour hotline at +1-309-
698-5611.
6. SERVICE REQUEST
If you have questions or comments about the operation of your unit or require the unit to be serviced
please contact the 4B location who supplied the product or send your request go to www.go4b.com or call
the 24-hour hotline at [phone]. Please have available product part numbers, serial numbers,
and approximate date of installation. In order to assist you, after the product has been placed into service,
complete the online product registration section which is accessed via our website www.go4b.com.

PRODUCT OVERVIEW
The RG1V rotary paddle switch is designed to detect high and low levels of bulk granular solids in bins,
tanks, silos, and as blockage detectors in spouts where failsafe detection is required, or for dust hazard
areas.
The detection of material is achieved by a rotating paddle. If material impedes the rotation of the paddle,
the motor topples of its axis and triggers a contact. The power supply to the motor is cut and the contact
signals that a critical level has been reached, which will cause the motor for any inlet or outlet to close
down or start up. When the level of the material reaches normal levels again, the motor returns to its initial
position and restarts.
SPECIFICATIONS
Power Supply - RG1V56A: 110/240 VAC, RG1V4A: 24 VDC
Operating Temp. - -20° C up to +70°C
Output - Change over relay 10 A at 250 VAC.
Mounting - ø 2”1/2 BSPT / Gas
Paddle - Standard NYLON propeller, available on request in stainless steel or other
materials and versions with 1, 2, 3 or 4 blades.
Conduit Entry - Two conduit entries tapped ø 1/2” BSPP.
Enclosure - Die-cast aluminium casing.
Protection - IP65
Approvals -
ATEX Zone 20 / Zone 21
II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db
TÜV IT 13 ATEX 070
PAGE 6
ALL DIMENSIONS
IN MM
DIMENSIONS
346,5
92,5 138 16 100
10533
ø154
ø2" 1/2 Gas

PAGE 7
INSTALLATION
Before installation, inspect the outer structure of the level gauge. Check the movement of the propeller
shaft and the operation of the clutch assembly. If this check reveals anything irregular, the level gauge
must be reported back to 4B. 4B level gauges can be installed in any position. With the shaft in a horizontal
or vertical position, the level gauge must be mounted with cable glands on the right hand side (Figure 1).
The level gauge is mounted on silos or vessels on the side or top. It is important to choose the position
so that the device is outside of the product ow, likewise taking care that the material can move freely all
around the gauge.
Protective deectors (Figure 2) are advisable when there is considerable weight load on the shaft or when
material ow is unevem and lumps of product may fall down on the probe. The level gauge can be mounted
on the silos via a threaded insert (2” 1/2 BSPP), which is welded onto a silo.
M
10A.250VAC
110
240
0
7
6
5
4
1
2
3
Figure 1 - Mounting position.
Figure 2 - Shaft protection.

PAGE 8
STANDARD WIRING DIAGRAM
All wiring must be In accordance with local and national electrical codes and should be undertaken by an
experienced and qualied electrician.
The conductors forming the power supply and signal carrying cable must have an adequate cross-section
so that the current density, in each conductor, is no higher than 4 A/mm . One of these is used only for the
earthing of the level gauge.
The cross-section of the conductors must also be adequate in relation to the length of the cable used to
avoid a drop in voltage along the cable over the values prescribed by the regulations on the subject. It is
likewise recommended to use exible cables with an adequate outside diameter for the cable entries used
(not supplied) to ensure a correct sealing of the cable gland on the cable.
External ground connection can be found on the outside of the level guage next to the cable entry. It is
realised via M5 screw and eyelet cable crimp.
- The external earthing has to be carried out by the installer.
- The equipment has to be protected against impact and electrostatic inside the silo.
- The user has to protect the equipment circuits with fuses against short circuit.
- The maximum surface temperature is determined taking into account a safety margin, but without
considering a possible dust deposit on the equipment.
WARNING
Use exclusively cable glands certied according to directive 2014/34/EU, Category 2 and EN60079-
31 (as applicable).
The terminal box contains a screw which is marked by the earth symbol (Figure 3). This screw
must be connected to the Earth core of the power cable. The earth connection of the level gauge is
compulsory.
A.250VAC
110 240
0
7 6
5
4
1 2 3

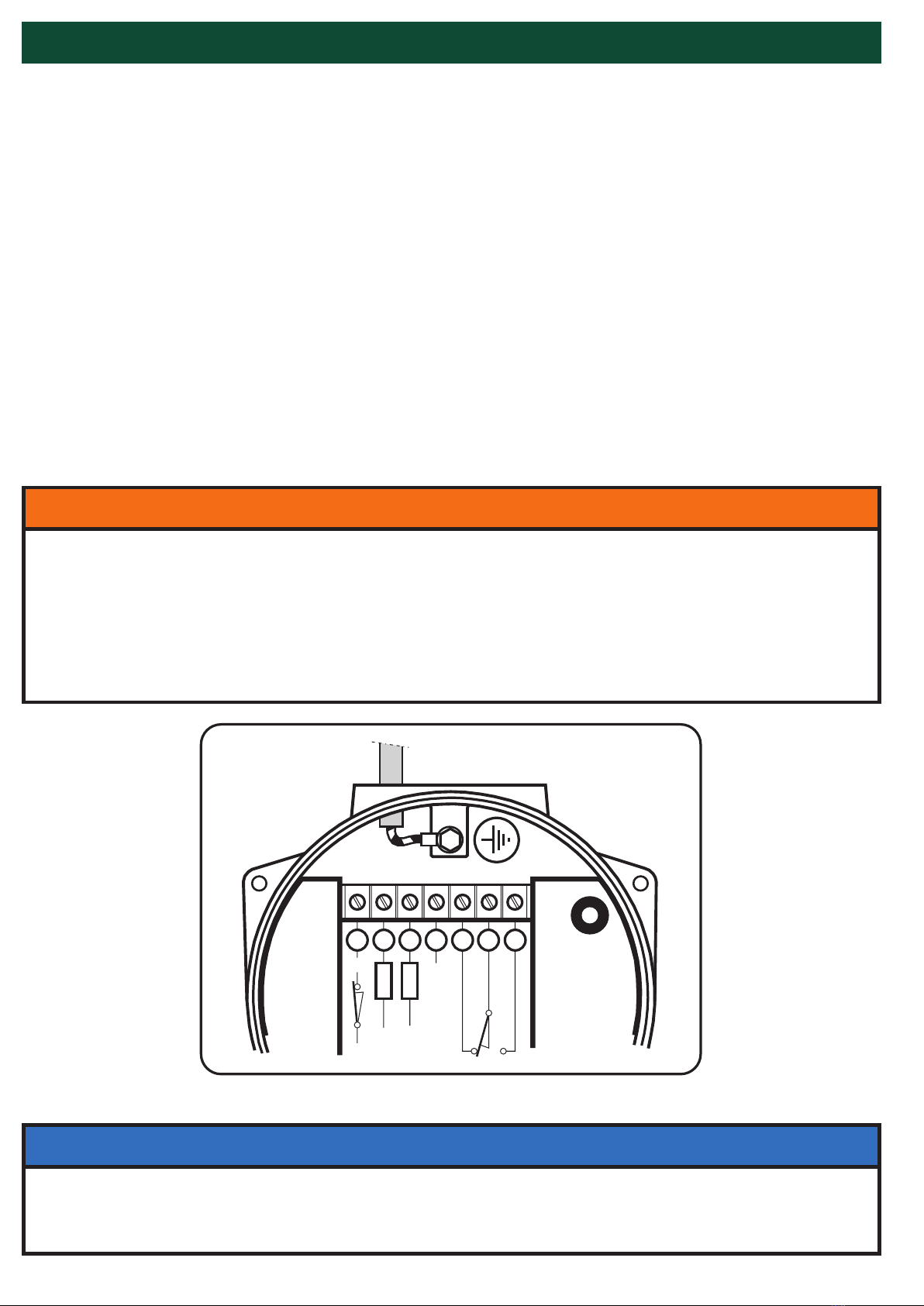

Figure 3 - Earthing detail.
NOTE
4B Rotary level indicators need no routine maintenance. Possible extraordinary maintenance is restricted
to replacing parts that are deteriorated by use. The gauge must not be lubricated, the shaft, the only
moving part is mounted on ball bearings with permanent lubrication.

PAGE 9
Figure 4 - 110/240 VAC Wiring detail.
Figure 5 - 24 VDC Wiring detail.

PAGE 10
TESTING AND COMMISSIONING
1. Follow the safety rules below when installing this product.
2. Check that the unit is correctly installed (see standard wiring diagram).
WARNING
All the appropriate safety precautions must be taken when electrically operated equipment is used, in
order to reduce the risk of re outbreaks, electric shock and injuries to persons.
- Keep the work zone clean and orderly. Accidents are more likely to occur in untidy areas and
environments.
- Before beginning work, make sure that the level gauge is in a perfect condition. Damaged or broken
parts must be repaired or replaced by competent personnel authorized by the Manufacturer.
- All verications, inspections, cleaning and maintenance operations, part changes and replacements,
must be carried out with the level gauge disconnected and the plug removed from the power socket.
- It is absolutely forbidden for children, unauthorized and/or inexperienced persons to touch or use the
level gauge.
- Make sure that the electricity system complies with the laws in force. Make sure that the earthing is
e󰀩ciently connected when the instrument is installed.
Make sure that the power socket is suitable, that it complies with the laws in force and that it has a built-
in automatic protection circuit-breaker. The level
gauge must never be stopped by detaching the plug; moreover, never use the cable to pull the plug
from the socket.
- Periodically check to be sure that the cable is in perfect conditions and replace it if damaged. This
operation must only be carried out by competent and
authorized persons. Only use extension cables of the permitted type and marked.
- Do not allow children or unauthorized persons to touch the cable when the instrument is plugged in.
- The models with signal lamp must be protected from direct exposure to sunlight.
TROUBLESHOOTING GUIDE
FAULT REMEDY
Paddle is not rotating Check power supply.
Manufactured by: CamLogic Snc, 42025, IT

PAGE 11
PARTS & ACCESSORIES
PADDLES
Part number Description Picture
RG1SP1 Single vane screw in NYLON
ø120 x 100 mm.
RG1SP3 3 Vanes NYLON screw ø120 x
65 mm.
RG1SP1-SS Single vane screw in Stainless
steel ø120 x 100 mm.
RG1SP4-SS 4 Vanes Stainless steel screw
ø100 x 60 mm.
RG1SP4-SS-L
4 Vanes Stainless steel screw,
mounting with ange. ø138 x 60
mm.
RG1SPV-SS 1 Vanes Stainless steel screw.

PAGE 12
PARTS & ACCESSORIES
EXTENSIONS
Part number Description Picture
RG1EXT-0500-SS Stainless steel extension without
rod guard 500 mm (0.5 m) long.
RG1EXT-1000-SS Stainless steel extension without
rod guard 1000 mm (1 m) long.
RG1EXT-1500-SS
Stainless steel extension without
rod guard 1500 mm (1.5 m)
long.
RG1EXT-0500-SS-G
Extension with rod guard in
stainless steel 500 mm (0.5 m)
long.
RG1EXT-1000-SS-G
Extension with rod guard in
stainless steel 1000 mm (1 m)
long.
RG1EXT-1500-SS-G
Extension with rod guard in
stainless steel 1500 mm (1.5 m)
long.

PARTS & ACCESSORIES
EXTENSIONS
Part number Description Picture
RG1EXT-
2000-SS-W
Stainless steel exible extension
2m.
MOUNTING BRAKETS / FLANGES
RG1MP1
Standard aluminium ange.
External diameter 203 mm,
holes centers ø178 mm, 6
equidistant ø7,5 holes.
RG1-
TUBE-2.5” Iron sleeve 2”1/2 BSPP / Gas
RG1-TUBE-
2.5”-SS
Stainless steel sleeve 2”1/2
BSPP / Gas.
SPARES
RG1MOTOR-
SPARE
Geared motor that can be
installed on any bladed level
indicator.
Available power supplies:
V.110/220 a.c. 50/60 Hz.
V. 24 d.c.
Power consumption: 4 Watt
PAGE 13

PARTS & ACCESSORIES
PAGE 14
PADDLES SELECTION TABLE
Part number Description Selection criteria
RG1SP1 Single vane screw in NYLON
ø120 x 100 mm.
SUGGESTED MATERIAL DENSITY[kg/dm3]:
between 0.6 and 0.9
MIN. INSTALLATION HOLE DIMENSION[mm]:
65
For medium weight materials.
RG1SP3 3 Vanes NYLON screw ø120 x
65 mm.
SUGGESTED MATERIAL DENSITY[kg/dm3]:
between 0.3 and 0.5
MIN. INSTALLATION HOLE DIMENSION[mm]:
115
For lightweight and medium weight materials.
RG1SP1-SS Single vane screw in Stainless
steel ø120 x 100 mm.
SUGGESTED MATERIAL DENSITY[kg/dm3]:
between 0.6 and 0.9
MIN. INSTALLATION HOLE DIMENSION[mm]:
65
For medium weight materials.
RG1SP4-SS 4 Vanes Stainless steel screw
ø100 x 60 mm.
SUGGESTED MATERIAL DENSITY[kg/dm3]:
between 0.3 and 0.5
MIN. INSTALLATION HOLE DIMENSION[mm]:
105
For lightweight and medium weight materials.
RG1SP4-SS-L
4 Vanes Stainless steel screw,
mounting with ange. ø138 x 60
mm.
SUGGESTED MATERIAL DENSITY[kg/dm3]:
between 0.2 and 0.4
MIN. INSTALLATION HOLE DIMENSION[mm]:
140
For lightweight materials.
RG1SPV-SS 1 Vanes Stainless steel screw.
SUGGESTED MATERIAL DENSITY[kg/dm3]:
between 0.8 and 1
MIN. INSTALLATION HOLE DIMENSION[mm]:
30
For medium weight materials.

PAGE 15
1. EXCLUSIVE WRITTEN LIMITED WARRANTY
ALL PRODUCTS SOLD ARE WARRANTED BY THE COMPANY 4B COMPONENTS
LIMITED AND 4B BRAIME COMPONENTS LIMITED HEREIN AFTER REFERRED TO
AS 4B TO THE ORIGINAL PURCHASER AGAINST DEFECTS IN WORKMANSHIP OR
MATERIALS UNDER NORMAL USE FOR ONE (1) YEAR AFTER DATE OF PURCHASE
FROM 4B. ANY PRODUCT DETERMINED BY 4B AT ITS SOLE DISCRETION TO BE
DEFECTIVE IN MATERIAL OR WORKMANSHIP AND RETURNED TO A 4B BRANCH
OR AUTHORIZED SERVICE LOCATION, AS 4B DESIGNATES, SHIPPING COSTS
PREPAID, WILL BE, AS THE EXCLUSIVE REMEDY, REPAIRED OR REPLACED AT
4B’S OPTION.
2. DISCLAIMER OF IMPLIED WARRANTY
NO WARRANTY OR AFFIRMATION OF FACT, EXPRESSED OR IMPLIED, OTHER
THAN AS SET FORTH IN THE EXCLUSIVE WRITTEN LIMITED WARRANTY
STATEMENT ABOVE IS MADE OR AUTHORIZED BY 4B. 4B SPECIFICALLY
DISCLAIMS ANY LIABILITY FOR PRODUCT DEFECT CLAIMS THAT ARE DUE TO
PRODUCT MISUSE, ABUSE OR MISAPPLICATIONS, AS AUTHORIZED BY LAW,
4B SPECIFICALLY DISCLAIMS ALL WARRANTIES THAT THE PRODUCT IS FIT OR
MERCHANTABLE FOR A PARTICULAR PURPOSE.
3. NO WARRANTY “BY SAMPLE OR EXAMPLE”
ALTHOUGH 4B HAS USED REASONABLE EFFORTS TO ACCURATELY ILLUSTRATE
AND DESCRIBE THE PRODUCTS IN ITS CATALOGS, LITERATURE, AND WEBSITES,
SUCH ILLUSTRATIONS AND DESCRIPTIONS ARE FOR THE SOLE PURPOSE OF
PRODUCT IDENTIFICATION AND DO NOT EXPRESS OR IMPLY A WARRANTY
AFFIRMATION OF FACT, OF ANY KIND OR A WARRANTY OR AFFIRMATION
OF FACT THAT THE PRODUCTS WILL CONFORM TO THEIR RESPECTIVE
ILLUSTRATIONS OR DESCRIPTIONS. 4B EXPRESSLY DISCLAIMS ANY WARRANTY
OR AFFIRMATION OF FACT, EXPRESSED OR IMPLIED, OTHER THAN AS
SET FORTH IN THE EXCLUSIVE WRITTEN LIMITED WARRANTY STATEMENT
ABOVE, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
4. LIMITATION OF DAMAGES
ANY LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL, EXEMPLARY, OR
PUNITIVE DAMAGES, OR FOR LOSS OF PROFIT WHETHER DIRECT OR INDIRECT,
IS EXPRESSLY DISCLAIMED.
PRODUCT WARRANTY

Copyright © 2019 4B Group - All Rights Reserved
With subsidiaries in North America, Europe, Asia,
Africa and Australia along with a worldwide network
of distributors, 4B can provide practical solutions for
all your applications no matter the location.
www.go4b.com
REV101519
4B FRANCE
9 Route de Corbie
80800 Lamotte Warfusée
France
Tel: [phone]
Fax: [phone]
4B AFRICA
14 Newport Business Park
Mica Drive, Kya Sand
2163 Johannesburg
South Africa
Tel: [phone]
Fax: [phone]
4B AUSTRALIA
Unit 1/18 Overlord Place
Acacia Ridge
Queensland 4110
Australia
Tel: [phone]
Fax: [phone]
4B COMPONENTS LTD.
625 Erie Avenue
Morton, IL 61550
USA
Tel: [phone]
Fax: [phone]
4B BRAIME
COMPONENTS LTD.
Hunslet Road
Leeds
LS10 1JZ
United Kingdom
Tel: [phone]
Fax: [phone]
4B DEUTSCHLAND
9 Route de Corbie
Lamotte Warfusée
F-80800
France
Tel: [phone]
Fax: [phone]
4B ASIA PACIFIC
Build No. 899/1 Moo 20
Soi Chongsiri, Bangplee-Tam Ru Road,
Tanbon Bangpleeyai, Amphur Bangplee,
Samutprakarn 10540
Thailand
Tel: [phone]
Fax: [phone]
4B CHINA
F1, Building 5A,
8 West Lake Road,
Wujin High & New Technology
Development Zone,
Changzhou 213164, Jiangsu Province,
China
Tel: [phone]
