4B Auto-Set ATS8V10AI User manual

www.go4b.com
Auto-Set™
RADIO FREQUENCY (RF) CAPACITANCE
POINT LEVEL INDICATOR
INSTALLATION INSTRUCTIONS
OPERATION MANUAL
Part No’s ATS8V10AI, ATS8V10AI-300, ATS8V10AI-400, ATS8V10AI-FP
ATS8V10AI-FP
ATS8V10AI

CUSTOMER SAFETY RESPONSIBILITIES Page 4 - 5
PRODUCT OVERVIEW Page 6
SPECIFICATIONS Page 6
APPROVALS Page 7
DIMENSIONS Page 7 - 8
INSTALLATION Page 9 - 10
STANDARD WIRING DIAGRAM Page 11
SENSOR OPERATION Page 12 - 13
SENSOR CALIBRATION Page 14 - 15
POWER SHIELD OVERVIEW Page 16
TESTING AND COMMISSIONING Page 17
TROUBLESHOOTING GUIDE Page 17
PARTS AND ACCESSORIES Page 18
PRODUCT WARRANTY Page 23
TABLE OF CONTENTS

PAGE 4
Dear 4B Customer:
Congratulations on your purchase. 4B appreciates your business and is pleased you have chosen our
products to meet your needs.
Please read in its entirety and understand the literature accompanying the product before you place the
product into service. Please read the safety precautions carefully before operating the product. With each
product you purchase from 4B, there are some basic but important safety considerations you must follow
to be sure your purchase is permitted to perform its design function and operate properly and safely, giving
you many years of reliable service. Please read and understand the Customer Safety Responsibilities
listed below. Failure to follow this safety directive and the Operation Manuals and other material furnished
or referenced, may result in serious injury or death.
SAFETY NOTICE TO OUR CUSTOMERS
A. In order to maximize e󰀩ciency and safety, selecting the right equipment for each operation is vital.
The proper installation of the equipment, and regular maintenance and inspection is equally important
in continuing the proper operation and safety of the product. The proper installation and maintenance
of all our products is the responsibility of the user unless you have asked 4B to perform these tasks.
B. All installation and wiring must be in accordance with Local and National Electrical Codes and
other standards applicable to your industry. The installation of the wiring should be undertaken by
an experienced and qualied professional electrician. Failure to correctly wire any product and/or
machinery can result in the product or machine failing to operate as intended, and can defeat its design
function.
C. Periodic inspection by a qualied person will help assure your 4B product is performing properly. 4B
recommends a documented inspection at least annually and more frequently under high use conditions.
D. Please see the last page of this manual for all warranty information regarding this product.
CUSTOMER SAFETY RESPONSIBILITIES
1. READ ALL LITERATURE PROVIDED WITH YOUR PRODUCT
Please read all user, instruction and safety manuals to ensure that you understand your product operation
and are able to safely and e󰀨ectively use this product.
2. YOU BEST UNDERSTAND YOUR NEEDS
Every customer and operation is unique, and only you best know the specic needs and capabilities of
your operation. Please go to www.go4b.com or call the 24-hour hotline at [phone] for assistance
with any questions about the performance of products purchased from 4B. 4B is happy to discuss product
performance with you at any time.

PAGE 5
3. SELECT A QUALIFIED AND COMPETENT INSTALLER
Correct installation of the product is important for safety and performance. If you have not asked 4B to
perform the installation of the unit on your behalf, it is critical for the safety of your operation and those
who may perform work on your operation that you select a qualied and competent electrical installer to
undertake the installation. The product must be installed properly to perform its designed functions. The
installer should be qualied, trained, and competent to perform the installation in accordance with local
and national electrical codes, all relevant regulations, as well as any of your own standards and preventive
maintenance requirements, and other product installation information supplied with the product. You
should be prepared to provide the installer with all necessary installation information to assist in the
installation.
4. ESTABLISH AND FOLLOW A REGULAR MAINTENANCE AND INSPECTION SCHEDULE FOR
YOUR 4B PRODUCTS
You should develop a proper maintenance and inspection program to conrm that your system is in good
working order at all times. You will be in the best position to determine the appropriate frequency for
inspection. Many di󰀨erent factors known to the user will assist you in deciding the frequency of inspection.
These factors may include but are not limited to weather conditions; construction work at the facility; hours
of operation; animal or insect infestation; and the real-world experience of knowing how your employees
perform their jobs. The personnel or person you select to install, operate, maintain, inspect or perform
any work whatsoever, should be trained and qualied to perform these important functions. Complete
and accurate records of the maintenance and inspection process should be created and retained by you
at all times.
5. RETAIN AND REFER TO THE OPERATION MANUAL FOR 4B’S SUGGESTED MAINTENANCE
AND INSPECTION RECOMMENDATIONS
As all operations are di󰀨erent, please understand that your specic operation may require additional
adjustments in the maintenance and inspection process essential to permit the monitoring device to
perform its intended function. Retain the Operation Manual and other important maintenance and service
documents provided by 4B and have them readily available for people servicing your 4B equipment.
Should you have any questions, please call go to www.go4b.com or call the 24-hour hotline at +1-309-
698-5611.
6. SERVICE REQUEST
If you have questions or comments about the operation of your unit or require the unit to be serviced
please contact the 4B location who supplied the product or send your request go to www.go4b.com or call
the 24-hour hotline at [phone]. Please have available product part numbers, serial numbers,
and approximate date of installation. In order to assist you, after the product has been placed into service,
complete the online product registration section which is accessed via our website www.go4b.com.

PRODUCT OVERVIEW
The Auto-Set™ series RF capacitance point level monitors are used for detecting high, intermediate, or low
levels of liquids, powders and free owing granular solids stored in tanks, bins, silos or other containers.
The Auto-Set series incorporates simple push-button calibration with microprocessor enable/disable switch
for total protection of stored values. Once the Auto-Set is calibrated for the application it never has to be
re-calibrated. Data is stored in non-volatile memory so it is not a󰀨ected by power loss.
A four digit LED display shows set values for uncovered, covered and trip settings, allowing simple set-up
and adjustment. A set of voltage-free changeover relay contacts are actuated when the level of the material
in the container reaches the probe. The unit incorporates a unique power shield which automatically
compensates for material build-up around the probe and on the sides of the container, preventing false
indication. The solid state electronics are housed in a weatherproof, glass-reinforced nylon enclosure.
The Auto-Set series can be top or side mounted, and are available with 220 mm, 320 mm, 1 meter and 2
meter (3, 12, 24, 36 and 48 inch) 303 solid stainless steel probes. For applications up to 10 meters (33
feet) long (maximum), 303 stainless steel wire is used to extend the probe length. The Auto-Set can be
used with container walls up to 368 mm (14.5 inches) thick (see specications).
The ush probe version (ATS8V0AI-FP) is designed for plug condition monitoring within tight tting applications.
It has a built-in mounting ange, and the probe can be inserted 32 mm (1-1/4 inches) (minimum) into a
tank or spouting with container walls up to 20 mm (3/4 inch) thick. For container walls thinner than 20 mm
(3/4 inch), the probe can be inserted farther.
For high temperature and/or high vibration applications, a remote Auto-Set version is available. Contact
4B for more information.
SPECIFICATIONS
Power Supply - 120/240 VAC or 24 VDC (Universal Supply)
Operating Temp. - -20° C to 50° C
Output - S.P.C.O 240 VAC Contacts Rated at 2.5 Amps non-inductive
Mounting - Via 1” BSP Parallel thread
Fail Safe - Low Level or High Level (Selectable)
Calibration - Push Button (With or Without Material)
LED Display - Measured Values (Covered, Uncovered, Trip)
LED Indicator - Material Detection
Time Delay - 0 to 60 Seconds
Power Shields -
ATS8V0AI ~ 99 mm (3-7/8 Inch) (Walls up to 76 mm or 3 Inches Thick)
ATS8V0AI-300 ~ 306 mm (12-1/16 Inch) (Walls 75 to 280 mm or 3 to 11
Inches Thick)
ATS8V0AI-400 ~ 389 mm (15-5/16 Inch) (Walls 280 to 11 to 14.5 Inches
Thick)
ATS8V0AI-FP ~ 7 mm (1/4 Inch) (Walls up to 20 mm or 3/4 Inch Thick)
Probes - Stainless Steel
Conduit Entry - Two conduit entry tapped 20mm (One blind, drill out to use).
Enclosure - Modied Polyamide 66.
Protection - IP65
PAGE 6

PAGE 7
APPROVALS
ATEX
TRAC11ATEX11268X
II 1(1)D Ex ta [ ia] IIIC T100°C Da
Tamb -20°C to 50°C, IP65
IECEx
IECEx TRC 12.0016X
ta [ia] IIIC T100°C Da
Tamb -20°C to 50°C
DIMENSIONS
132
157
ALL DIMENSIONS
IN MM

DIMENSIONS
PAGE 8
ALL DIMENSIONS
IN MM
408
Power Shield 389 (Diameter 24)
1” BSP Mounting Thread
20 mm Conduit Entries
ATS8V0AI-400
326
Power Shield 306 (Diameter 24)
ATS8V0AI-300
100 23 121
Power Shield 99
(Diameter 24)
ATS8V0AI
Dimensions are Shared with
the Exceptions of the Power
Shields (Show in Grey) and
Overall Lengths.
127
ø98.5
ø152.5
ø8.7 x 4
100
168
51
20 mm Conduit Entries
Power Shield (Grey) 7
ATS8V0AI-FP

PAGE 9
INSTALLATION
A thread locking compound is already applied to the probe xing stud of the AUTOSET. This will prevent
the probe rod from vibrating loose. Once tted, the compound is fully hardened after 20 minutes.
IMPORTANT: If the probe rod is removed from the unit for any reason, a thread locking compound must
be applied before the rod is retted.
When mounting all versions of the Auto-Set, care must be taken to ensure that the power shield is properly
installed.
ATS8V0AI / ATS8V0AI-300 / ATS8V0AI-400 MODELS -
The power shield is covered with a plastic sleeve with about 16 mm (5/8 inch) of bare metal exposed toward
the probe end. A minimum of 7 mm (1/4 inch) of the plastic sleeving must protrude into the vessel (Image
A). Mount the unit securely to minimise vibration.
Vessel Wall
Power Shield
Probe
Plastic Sleeved Portion of
Power Shield in Vessel
(7 mm Minimum)
Image A - Power Shield Spacing
Exposed Metal End
of Power Shield

PAGE 10
ATS8V0AI-FP (FLUSH PROBE) MODEL -
The probe can be inserted 32 mm (1-1/4 inches) (minimum) into the vessel depending on the wall thickness.
Both the metal probe and the power shield are integrated into the plastic mounting ange. A minimum of 7
mm (1/4 inch) of the plastic mounting ange must protrude into the vessel, with a maximum wall thickness
of 20 mm (3/4 inch) (Image B). Mount the unit securely to minimise vibration.
WARNING
Proper spacing of the power shield is vital for correct operation. For questions regarding proper spacing
of the power shield to the vessel wall, contact 4B.
Image B - Flush Probe Power Shield Spacing
Plastic Mounting
Flange in Vessel
(7 mm Minimum)
Exposed Metal Ring
of Power Shield
Probe
Vessel Wall
(20 mm Maximum Thickness)
NOTE
For high temperature and/or high vibration applications, a remote Auto-Set version is available. Contact
4B for more information.

PAGE 11
STANDARD WIRING DIAGRAM
All wiring must be In accordance with local and national electrical codes and should be undertaken by an
experienced and qualied electrician.
AUTOSET will operate on 110V/230V ac 50/60Hz or 24V dc supplies (Um). The unit may be wired in
ordinary un-screened cable of any length and need not be separated from other cables.
When mounting the AUTOSET, care must be taken to ensure that the exposed end of the power shield
protrudes into the container. Powershiled - Sleeve should protrude as far as possible into container and at
least a minimum of 6mm. Mount unit securely to minimise vibration.
Connect in accordance with image C, and set High/Low switch to required position (see image D), ensure
that cable gland and back cover are fully tightened when nished. The AUTOSET has two 20mm cable
entries, one of which is blank, the blank may be drilled out carefully if required; it must not be knocked out.
All cable glands must be ATEX approved, IP65 rated. The unit should be wired and earthed in accordance
with appropriate Electrical Regulations. The Auto-Set must be grounded using the unit ground screw
located on the outside of the housing (Image C). The internal wire terminal is already connected to the
terminal ground point from the factory (Image C), do not remove this connection.
On metal bins and silos, the Auto-Set must be grounded to the container. If the bin or silo is non-metallic,
the metal anges or couplings used to mount the Auto-Set should be grounded. This also applies to probes
mounted in wooden or plastic tops of metal bins.
NOTE
The Auto-Set must be grounded using the unit ground screw located on the outside of the housing. The
internal wire terminal is already connected to the terminal ground point from the factory, do not remove
this connection.
Terminal
Ground
230 V 110 V N E 0V 24V
Image C - Wiring Diagram
Unit
Ground
Normally Open
Common
Normally Closed

SENSOR OPERATION
PAGE 12
FAIL SAFE SETTING -

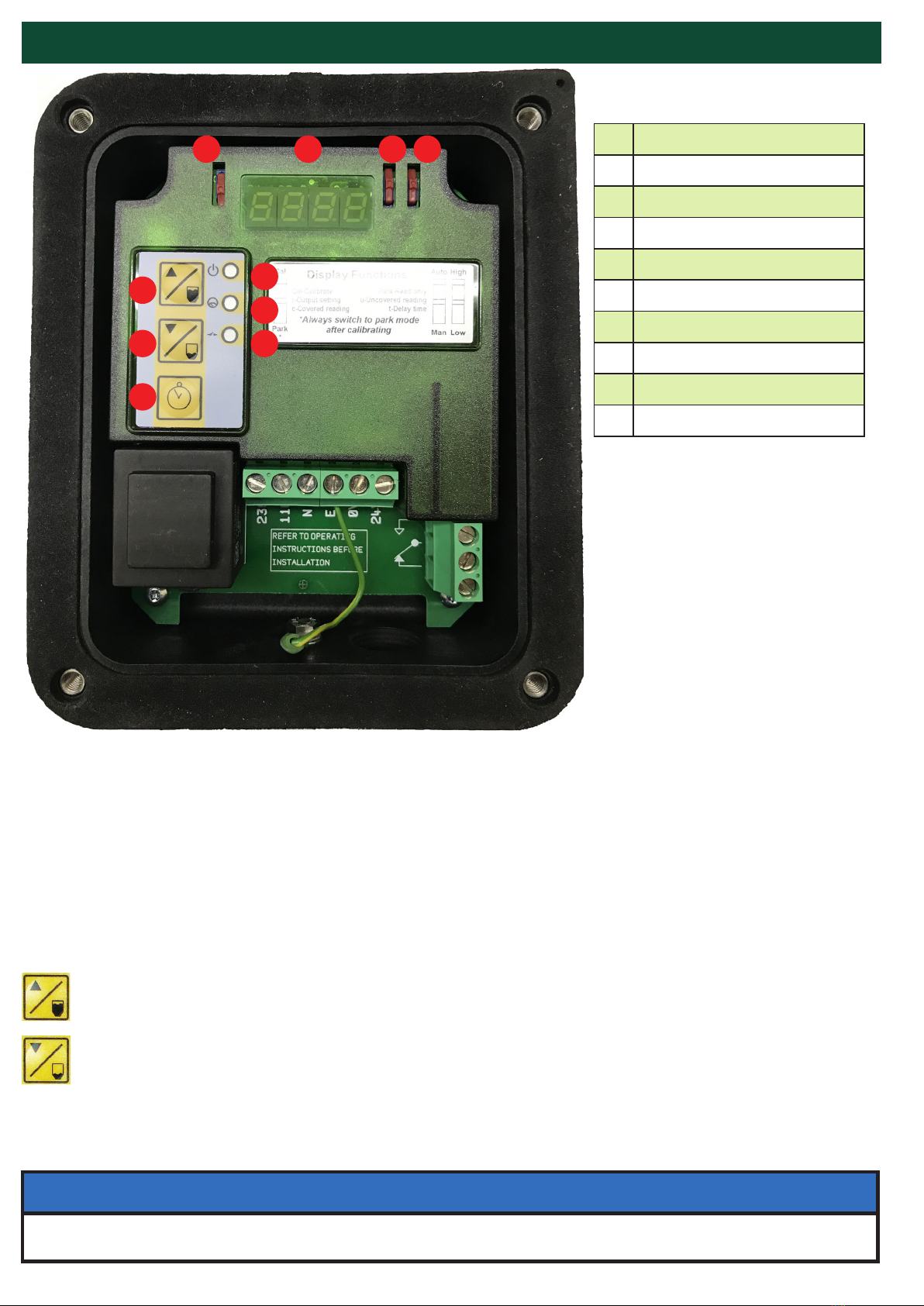

The “High/Low” switch (D - Image D), sets the fail safe mode. In the “High” position, the relay is energized
without material present. In the “Low” position, the relay is energized with material present. Normally,
the “High” position is used for high level probes and the “Low” position for low level probes. Intermediate
probe settings depend upon individual requirements.
ELECTROSTATIC RISK - Ensure that the enclosure is not subject to charging in end application.
PARK MODE -
In normal operation, the LED display shows a value representing the capacitance measured by the probe
at the time.
Pressing and holding the “Probe Covered / Raise” button (E - Image D) will cause the display to
show CXXX followed by RXXX.
Pressing and holding the “Probe Un-Covered / Lower” button (F - Image D) will cause the display
to show UXXX followed by RXXX.
CXXX is the probe covered value measured during calibration, UXXX is the uncovered value and RXXX is
the relay operating point which the Auto-Set calculates and is half way between the two measured values.
APark / Calibrate (SW3)
B 4 Digit LED Display
CAuto / Manual (SW1)
DHigh / Low (SW5)
EProbe Covered / Raise
FProbe Un-Covered / Lower
G Timer
H Power On LED
I Calibrating LED
J Output LED
Image D - Inside View
NOTE
In park mode, settings are “View Only” and cannot be altered.
A B C D
E
F
G
H
I
J

PAGE 13
CAL MODE (AUTO/MAN SWITCH SET TO AUTO) -
In this mode, pressing and holding the “Probe Covered / Raise” button (E - Image D) with the probe
covered, will cause the unit to measure and display the covered value, and recalibrate the relay
operating point if necessary.
Pressing and holding the “Probe Un-Covered / Lower” button (F - Image D) with the probe uncovered,
will cause the unit to measure and display the uncovered value, again recalibrating the relay
operating point if necessary.
CAL MODE (AUTO/MAN SWITCH SET TO MAN) -
In this mode, pressing and holding the “Probe Covered / Raise” button (E - Image D) will cause the
display to momentarily display the present relay operating point and then to increment the setting
slowly and then rapidly to set a higher operating point.
Pressing and holding the “Probe Un-Covered / Lower” button (F - Image D) will cause the display
to momentarily show the current relay operating point, and then decrement the setting, slowly and
then rapidly.
Once adjusted in manual mode, any previous settings will be lost. The CXXX reading will be 1 above the
relay operating point and the UXXX reading 1 below.
NOTE
Always return to “Park” after calibration.
Image E - Top Cover View

PAGE 14
SENSOR CALIBRATION
The Auto-Set can be calibrated automatically, manually or by a combination of the two methods.
Usually, automatic calibration is the simplest method, particularly when the vessel can be lled to cover
the probe.
Manual calibration is useful when a number of probes in similar applications need to be set. Once the
correct calibration has been determined and noted, on one system, the remainder can be set to the
same setting.
AUTOMATIC CALIBRATION (MATERIAL AVAILABLE) -
1. Set Park/Cal switch (A - Image D) to Cal and Auto/Man switch (C - Image D) to Auto. The Cal
LED will ash.
2. Ensure that the probe is uncovered and press and hold the “Probe Un-Covered / Lower”
button (F - Image D) button. The display will show UXXX followed by RXXX.
3. Fill the vessel su󰀩ciently to cover the probe and then press the “Probe Covered / Raise”
button (E - Image D) button. Display will show CXXX followed by RXXX.
4. Return the Park/Cal switch (A - Image D) to park. The unit is now calibrated. UXXX and
CXXX values can be viewed but not altered by pressing the “Probe Un-Covered / Lower” and
“Probe Covered / Raise” buttons together.
SEMI-AUTOMATIC CALIBRATION (MATERIAL NOT AVAILABLE) -
5. Follow steps 1 & 2 above.
6. Set Cal/Park switch (A - Image D) to Park and press the “Probe Un-Covered / Lower” button
(F - Image D) button. Note the UXXX reading but ignore the RXXX reading. Return the Cal/
Park switch (A - Image D) to Cal and set the Auto/Man switch (C - Image D) to Man.
7. From Table A below, select the nearest material type to be detected for your application and
add the value to the UXXX reading determined in step 6.
8. Press the “Probe Covered / Raise” button (E - Image D) button to raise the reading and
the “Probe Un-Covered / Lower” button (F - Image D) to lower the reading to achieve the
calculated setting from step 7.
9. Return the Cal/Park switch (A - Image D) to Park and press and hold the “Probe Covered /
Raise” button (E - Image D) to conrm that the relay operating point RXXX is correctly set.
The UXXX and CXXX settings will be one below and one above the readings.
Material Type Increment
Light +15
Medium +30
Heavy +60 or Greater
Table A - Typical Settings

PAGE 15
TIME DELAY -
The Auto-Set has an adjustable delay from 0 to 60 seconds, the timer operating on both material arriving
and leaving.
To set the time delay, proceed as follows:
10.Set the Cal/Park switch (A - Image D) to Cal.
11. Press and hold the timer button (G - Image D), the display will show T000 (zero delay). To
set a time delay, continue to hold the timer button and the display will start to increase by 1
second increments (maximum delay is 60 seconds). When the required delay time is shown,
release the timer button. To reset the delay, press and hold the timer button again to restart
the entire process from T000 (zero delay).
12.Return the Cal/Park switch (A - Image D) to Park and press the timer button (G - Image D) to
conrm the timer setting.
13.The timer can be altered to a longer or shorter delay by repeating the entire procedure from
steps 10 to 12.
NOTE
For questions regarding non-standard Auto-Set probe lengths or diameters, contact 4B.
Image F - Probe Types
1. Standard Power Shield with Wire Probe and Mounting Plate
2. Extended Power Shield and Solid Probe (ATSP10)
3. Flush Probe
1
2
3

PAGE 16
POWER SHIELD OVERVIEW
The Auto-Set detects material by radiating a high frequency (RF) signal from the probe. The advanced
electronics of the Auto-Set use this signal to measure the capacitance inside the vessel with respect to
ground and thus indicate when material has reached the Auto-Set probe.
The power shield creates a barrier and enables the unit to ignore a certain amount of material built up
on the probe, helping to prevent false readings. The Auto-Set is available in four power shield lengths,
and can be used with walls that are up to 368 mm (14.5 inches) thick. Installation through thick concrete
silos only requires a 25.4 mm (1 inch) diameter hole for probe insertion.
MATERIAL BUILD UP
IGNORED BY PROBE DUE
TO POWER SHIELD
(NO FALSE SIGNALS)
PROBE
POWER
SHIELD WALL
UP TO
14.5” THICK
MATERIAL BUILD UP
NOT DETECTED
(CONTACT CLOSED)
MAIN BULK OF
MATERIAL DETECTED
(CONTACT OPEN)
NOTE
The actual amount of material build up that the Auto-Set is able to ignore is dependant upon several
factors, including the density of the material, the moisture content of the material and the type/style of
the vessel.

NOTE
The actual amount of material build up that the Auto-Set is able to ignore is dependant upon several
factors, including the density of the material, the moisture content of the material and the type/style of
the vessel.
PAGE 17
TESTING AND COMMISSIONING
1. Check that the unit is correctly installed (see standard wiring diagram).
2. After going through the sensor calibration steps, the green LED should be “ON”.
3. Introduce material to the Auto-Set. If calibrated correctly, the Auto-Set will activate when material
has been detected. Machinery shut down will depend on your specic monitoring setup. 4B
recommends an instant shutdown when maximum ll level or a plug condition has been detected.
WARNING
If the system does not immediately shutdown as expected or alarm as required, then remove the
machine from service until the problem has been diagnosed and corrected.
TROUBLESHOOTING GUIDE
FAULT REMEDY
Readings uctuate
when the weather
changes.
Ground the Auto-set to the bin using the unit ground connection (Image C).
Relays operate
backwards. Verify that the “High/Low” switch is in the correct position (D - Image D).
Relay activates
sporadically. Set the timer delay to 1 or 2 seconds to ignore sporadic material issues.
Manufactured by SYNATEL Instrumentation Limited, WS11 9TB, UK

PAGE 18
PARTS & ACCESSORIES
NOTE
These parts and accessories are not used with Auto-Set ush probe (ATS8V0AI-FP).
200 mm
300 mm
1 m
2 m
Stainless Steel Wire Probe
Lengths Up To 10 meter Long
ATSP10 ATSP11 ATSP12 ATSP13 ATWP11
10m
MOUNTING PLATE (SMP1)
The SMP is a zinc plated steel mounting
plate for installing the Auto-Set™. A
stainless steel version is also available.
6 x 8.7 mm Holes
on 177 mm Diameter 1” BSP
Coupler
203 mm
Diameter
STAINLESS STEEL PROBES/WIRE
The Auto-Set™ is available with 303 solid
stainless steel probes. For applications up
to 10 meter 33 feet long (maximum), 303
stainless steel wire is used to extend the
probe length.
Probe Length Diameter
ATSP10 220 mm 28 mm
ATSP11 320 mm 16 mm
ATSP12 1 m 16 mm
ATSP13 2 m 16 mm
ATWP11 10 m 16 mm

NOTE
These parts and accessories are not used with Auto-Set ush probe (ATS8V0AI-FP).
PAGE 19
NOTES

NOTES
PAGE 20
