Quick Start Guide
1INTRODUCTION
1.1 What’s in the Box?
Your PRECISION PRO
powermeter comes
complete with the
following:
1
Table of Contents

2.1 Installation
The steps and tools needed for installing a crankset on your bike will vary
depending on the model of your crankset. For your safety, follow the crankset
manufacturer’s instructions when installing the crankset to your bike. Consult your
local bike mechanic if you are not comfortable or able to follow the manufacturer’s
installation instructions.
Quick Tip: Accuracy is dependent on proper torque.
2GETTING STARTED
2
Table of Contents

2.2 Preparing for your ride
Your powermeter is delivered with a pre-installed battery and comes ready to ride.
1. Spin the crank arms four times to wake your powermeter.
2. Pair your powermeter with a compatible display unit using ANT+ and/or
Bluetooth Smart. For more details, see Section 3
3. Perform a zero offset (some display units refer to this as calibration). For more
details, see Section 4
Quick Tip: For best performance, remember to perform a zero offset before each ride.
2GETTING STARTED
3
Table of Contents

2.3 Installing and replacing batteries
Your powermeter uses common CR2032 coin cell lithium ion batteries. If the battery
reaches 0% on one side, the other side of the dual system will automatically operate
as a single-sided powermeter; reported wattage from this side will be doubled.
When the reported battery life is 8%, you will have 8-10 hours of remaining usage.
Non-drive-side crank arm replacement instructions are in Section 2.3.1
Drive-side Dura-Ace FC-9000 replacement instructions are in Section 2.3.2
Drive-side FC-Mxxxx (XT/XTR series) replacement instructions are in Section 2.3.3
Quick Tip: When storing your batteries, keep them separated; shorting a battery
will shorten its life.
2GETTING STARTED
4
Table of Contents

Loosen
Tighten

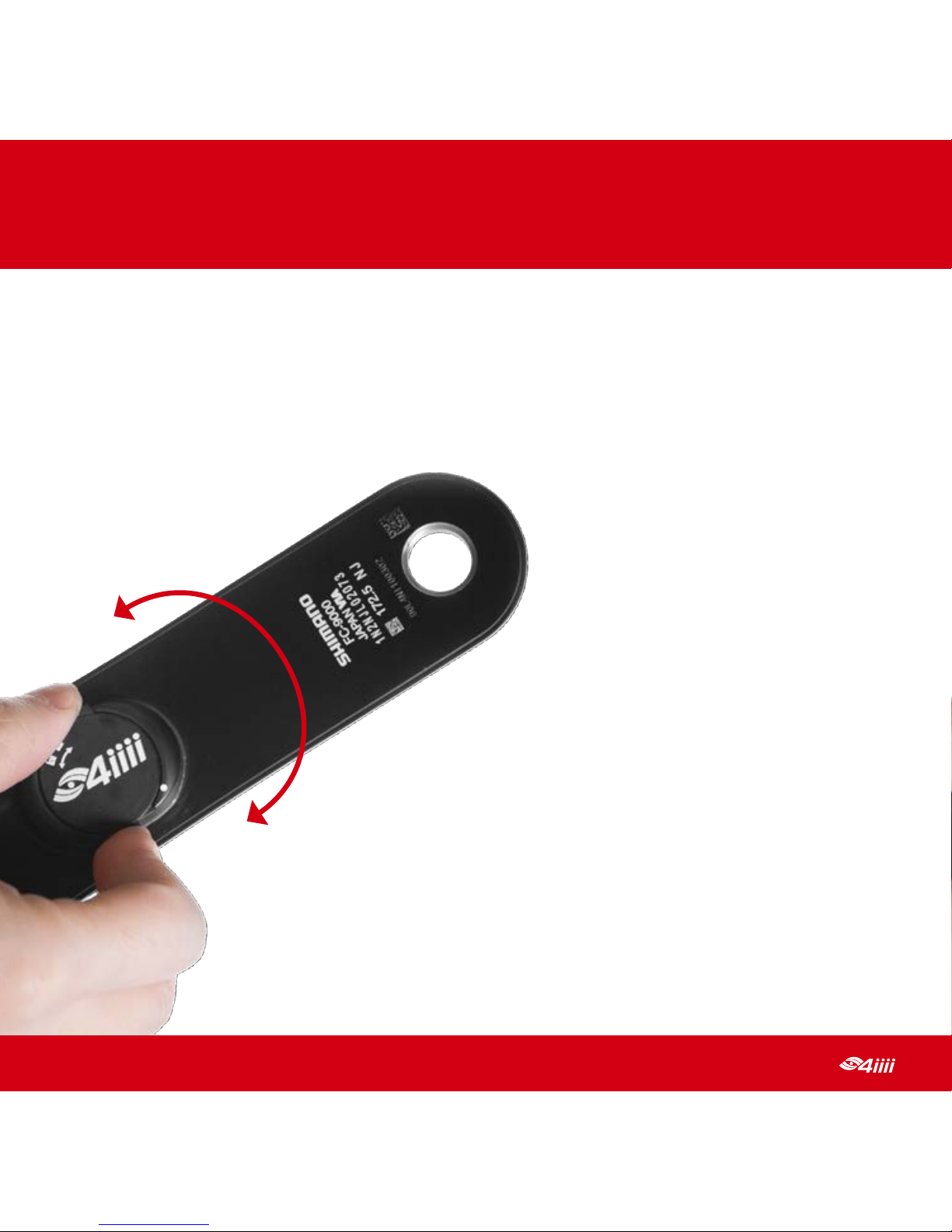

2.3.1 Non-drive-side powermeters
To replace the battery on your non-drive-side powermeter, you will need a new
CR2032 coin lithium ion battery.
2GETTING STARTED
1. Do not pry your battery cap.
To remove, twist the battery
cap counterclockwise on
your powermeter
2. Remove the old battery from
the battery cap. To remove
the battery from the cap,
hold the cap by its edges
and tap it against a hard
surface
3. Place your battery into the
cap with ‘+’ facing the white
sticker inside the battery cap
Quick Tip: Do not remove the
white sticker inside the battery
cap, it holds the metal contacts.
5
Table of Contents

2.3.2 Drive-side powermeters for Dura-Ace FC-9000
To replace the battery on your drive-side powermeter you will need a new CR2032
lithium ion battery and a 1.5 mm hex tool (included with your powermeter).
1. Using the supplied 1.5 mm hex tool, remove the three screws by turning
counterclockwise
2. Gently push the edge
of the old battery
into the battery
compartment and
remove the battery
3. Place your new
battery into
the battery
compartment with
‘+’ facing outwards
towards you
4. Reinstall the battery
cap and tighten the
three screws in place
using the 1.5 mm
hex tool
Loosen
Tighten
2GETTING STARTED
6
Table of Contents

2.3.3 Drive-side powermeters for FC-Mxxxx (XT/XTR series)
To replace the battery on your non-drive-side powermeter, you will need a new
CR2032 coin lithium ion battery.
2GETTING STARTED
Loosen
Tighten
1. Do not pry your battery cap.
To remove, twist the battery
cap counterclockwise on
your powermeter
2. Remove the old battery from
the battery cap. To remove
the battery from the cap,
hold the cap by its edges
and tap it against a hard
surface
3. Place your battery into the
cap with ‘+’ facing the white
sticker inside the battery cap
Quick Tip: Do not remove the
white sticker inside the battery
cap, it holds the metal contacts.
7
Table of Contents

2.4 Configuring your powermeter using the 4iiii App
When your PRECISION PRO was shipped from the factory, the drive-side and
non-drive-side powermeters were linked together such that they operate as a
dual-sided powermeter. Your powermeter can also operate as two independent
single-sided powermeters. If you want to operate your PRECISION PRO powermeter
as a single-sided powermeter using only one crank arm, follow the instructions
on Section 2.4.2
Additional information and settings on your PRECISION PRO can be accessed
through the 4iiii app on iOS and Android devices using Bluetooth Smart.
To configure your PRECISION PRO powermeter in single-sided mode, follow the
instructions in Section 2.4.3
To configure your PRECISION PRO powermeter in dual-sided mode, follow the
instructions in Section 2.4.1
Quick Tip: Pairing is the connection between your powermeter and display units
such as a bike computer, watch, or smartphone. Linking is the connection between
the drive and non-drive side powermeters.
Quick Tip: Connect your powermeter to the 4iiii App once a month to check for the
latest firmware update. If your firmware requires updating, you will be prompted
to upgrade.
2GETTING STARTED
8
Table of Contents

2.4.1 Configuring as a dual-sided powermeter
If you have unlinked your PRECISION PRO, you will need to re-link in order to use it
as a dual-sided powermeter:
1. Spin the crank arms four times to wake your powermeter
2. Open the 4iiii app on your smartphone
3. Tap on the menu and select PRECISION Configuration
4. Select your powermeter from the list
5. Select Dual Sided when prompted
6. Select your other powermeter to link
7. On the next screen, wait up to one minute for the left borders of the
information panes to turn green
Quick Tip: If the left borders of the information panes are red, the powermeter is not
paired to the app, see Section 7.4
2GETTING STARTED
9
Table of Contents

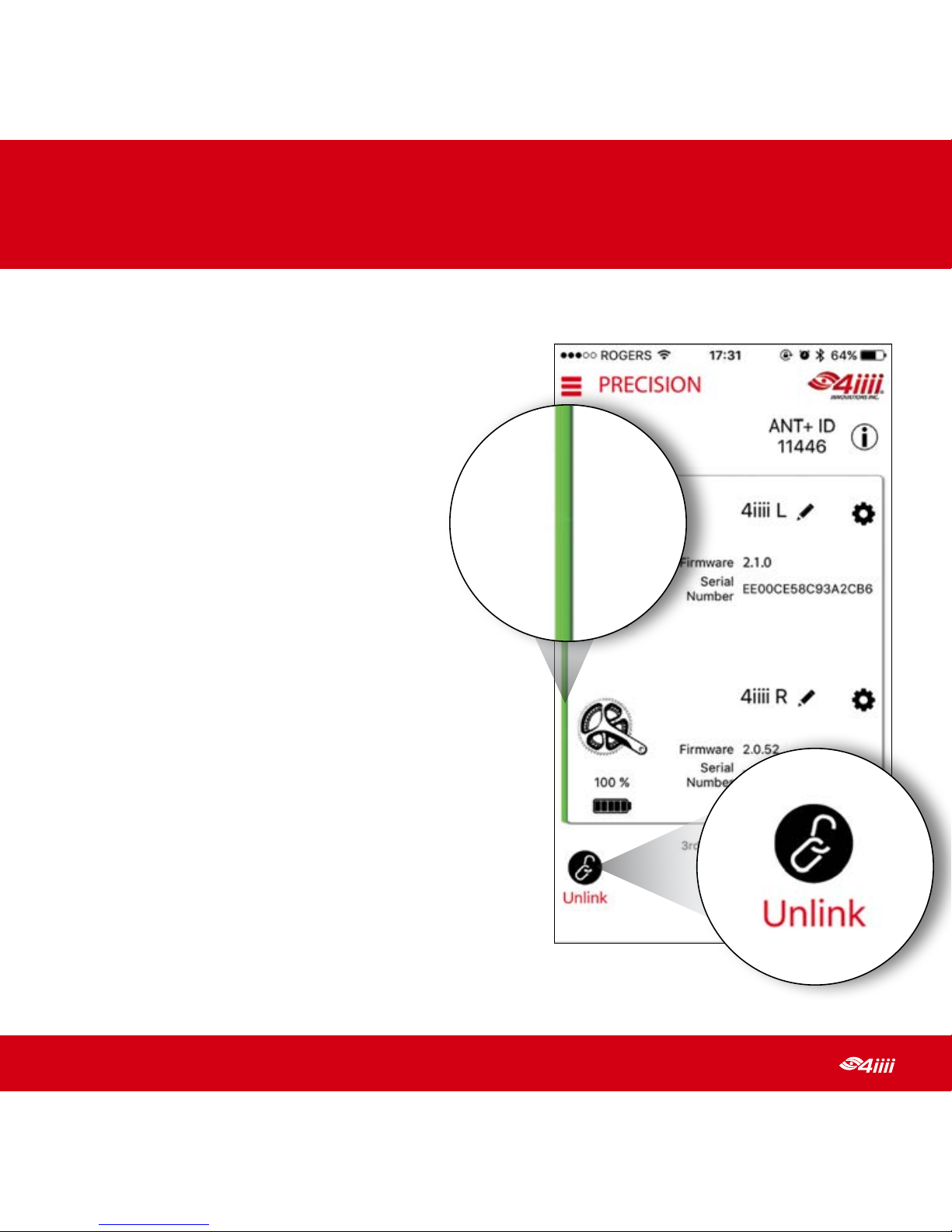

2.4.2 Unlinking your dual-sided powermeter
To unlink your dual-sided powermeter so
that it becomes two separate single-sided
powermeters:
1. Spin the crank arms four times to
wake your powermeters
2. Open the 4iiii app on your
smartphone
3. Select your powermeter
from the list
4. Once the left borders for both
sides are green, tap on the Unlink button
(located at the bottom
left of the screen)
Quick Tip: Make sure both cranks are connected
before unlinking. If only one side is unlinked,
the remaining side will continue to search for its
previously linked powermeter.
Quick Tip: If you have previously enabled the
3rd-Party Apps mode on the 4iiii App, you will
need to re-enable this feature on both sides
after unlinking.
2GETTING STARTED
10
Table of Contents

2.4.3 Configuring in single-sided mode
To unlink your PRECISION PRO, you will need:
• The 4iiii App
• A data connection (cellular or WiFi)
• Bluetooth Smart enabled on your smartphone
Follow these steps to unlink your PRECISION PRO:
1. Spin the crank arms four times to wake your powermeter
2. Open the 4iiii App on your smartphone
3. Tap on the menu and select PRECISION Configuration
4. Select your PRECISION PRO from the list of powermeters
5. Tap on the unlink button to unlink the two sides
Quick Tip: If your powermeter does not appear in the list, check that it is
disconnected from all other Bluetooth Smart devices, and that both batteries have
sufficient charge.
2GETTING STARTED
11
Table of Contents

3.1 Pairing with ANT+ enabled displays
To receive power and cadence
information from PRECISION PRO, it
must first be paired to your display
unit. Pairing procedures vary between
display units, but the following generic
instructions are provided:
1. Turn on your display unit
2. Spin the crank arms four times
to wake your powermeter
3. Go to the Sensors menu on
your display unit
4. Select Add a new sensor
5. A list of available power sensors
will be shown. Select the ANT+ ID
that matches your PRECISION PRO
which is etched on the edge of the
non-drive side PRECISION pod
Quick Tip: The ANT+ ID used for pairing
is also displayed on the 4iiii App.
3PAIRING
12
Table of Contents

With your powermeter paired, you can add power metrics to the workout screens
of your display unit. Consult your display unit’s instruction manual for more specific
directions.
Fields that are available on many display units include:
• Power (1 sec. 3 sec. 10 sec.)
• Normalized Power
• Intensity Factor
• TSS
• Power Balance
• Cadence
3PAIRING
13
Table of Contents

3.2 Pairing with Bluetooth Smart
Pairing procedures vary widely between Bluetooth Smart display units. Please
consult the manufacturer’s instructions to pair your PRECISION PRO. Following are
instructions for pairing using the 4iiii App.
1. Spin the crank arms four times to wake your powermeter
2. Open the 4iiii App on your smartphone
3. Tap on the menu and select PRECISION Configuration
4. Select your PRECISION PRO from the list of powermeters
5. If your PRECISION PRO is configured as a dual-sided powermeter, continue to
Step 6; otherwise, select Single Sided
6. Once the left edge of the PRECISION info pane turns green, tap on the menu and
select Workout
Quick Tip: If your powermeter does not appear in the list, check that it is disconnected
from all other Bluetooth Smart devices, and that Bluetooth is enabled on your phone.
Also, ensure both batteries on your powermeter have sufficient charge.
3PAIRING
14
Table of Contents

4.1 Performing a zero offset via ANT+
For best performance, you should allow the powermeter
to adjust to the ambient riding temperature before
performing a zero offset and starting your ride. Allowing
your powermeter to reach ambient temperatures
normally takes a few minutes.
To perform a zero offset on your powermeter using your
ANT+ display unit, follow these steps:
1. Unclip and dismount from your bike
2. Spin the crank arms four times to wake your
powermeter
3. Place your crank arms in the 12 and 6 o’clock
positions
4. Use your display unit to calibrate your powermeter
i. Go to the Sensors menu
ii. Select the ANT+ ID of your powermeter
from the list of available sensors
iii. Choose Calibrate
Quick Tip: Some display units uses the term “calibration”
rather than “zero offset”.
4PERFORMING A ZERO OFFSET
Single-sided mode:
A two digit response
will appear on your
display unit. Refer to
Zero Offset Table on
Page 16
Dual-sided mode:
A four digit number
will appear on your
display unit. The
first two digits refer
to the zero offset
response of the
non-drive side of
PRECISION PRO and
the last two digits
refer the zero offset
response of the
drive side. Refer to
Zero Offset Table on
Page 16
15
Table of Contents

4PERFORMING A ZERO OFFSET
Two digit
Response Result Description What to do
10 Success Go Ride!
20 Error Crank movement
detected Keep your bike steady
40 Error Firmware
mismatch Connect to 4iiii App to update firmware
50 Error Firmware error Connect to 4iiii App to update firmware
99 Error Powermeter side
not found
• Spin crank arms four times to wake up
• Replace battery
• Confirm linking status on 4iiii App
0Error Powermeter
not found
• Spin crank arms four times to wake up
• Replace battery
If an error cannot be solved with the recommendations above, contact your 4iiii
authorized dealer for support.
16
Table of Contents

4.2 Performing a zero offset using your 4iiii App (Bluetooth Smart)
Zero offset is performed by pairing your
powermeter with the 4iiii App, not through the
phone’s Bluetooth settings. Follow these steps:
1. Unclip and dismount from your bike
2. Spin the crank arms four times to
wake your powermeter
3. Place your crank arms in the
12 and 6 o’clock positions
4. Ensure that you have an internet
connection (cellular or WiFi) and
that Bluetooth is enabled in your
smartphone settings
5. Open the 4iiii App
6. Tap on the menu and select
PRECISION Configuration
7. If your powermeter is not already paired with the 4iiii App, you will
be presented with a list of nearby powermeters, select your powermeter
from the list
8. Once the left edge of the PRECISION info pane turns green for both sides,
tap the Zero button
4PERFORMING A ZERO OFFSET
12 O’CLOCK
6 O’CLOCK
17
Table of Contents
