4iiii FLiiiight User manual
Manual
User
1. Introduction
1.1 What’s in the box 1
1.2 Trainer component diagram 2
2. Introduction to Smart Trainers
2.1 Compatible devices 3
2.2 Compatible apps 4
2.3 Smart trainer modes 5
3. Getting Started
3.1. Before installing the bike trainer 6
3.2. Installing the bike in the trainer: first time set-up 7

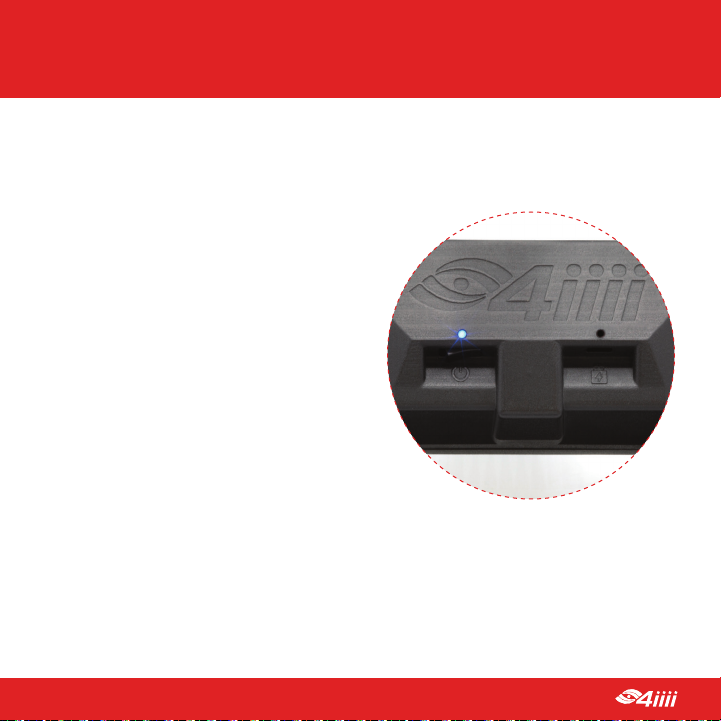

3.3. Activate the trainer 11
3.4. Regular set-up 12
3.4.1 Removing the bike from the trainer 12
3.4.1 Installing the bike on the trainer 12
3.5. Calibration 12
4. Connecting to an App 13
TABLE OF CONTENTS
5. 4iiii App 15
5.1 Calibrating the trainer for a smaller wheel size 16
6. Charging and Storing Fliiiight
6.1 Charging 17
6.2 Viewing your battery level 18
6.3 Storage 19
7. Troubleshooting
7.1 What is the status LED indicating? 20
7.2 Using the 4iiii app for troubleshooting 21
7.3 Troubleshoot connection over ANT+ or Bluetooth® 21
7.4 Alignment 13
8. Detailed Specifications 24
9. Safety Information 26
10.Warranty 28
11. Regulatory Compliance 29
12. Contact Information BACK
TABLE OF CONTENTS
5
1
2
3
4
58
16
1
16
2
3
4
5
6
1INTRODUCTION
Frame:
1. Frame
2. Legs
3. Knobs
4. Threaded rods
5. Skewer cups
6. Adjustable foot
Resistance Unit:
7. Electronics case
8. Calipers
9. Magnet array
10. Anti-wear stickers
11. Speed sensor
12. Charging port
13. Charging port light
14. Trainer status light
15. Power switch
16. Mounting bolts
7
9
11
10
8
15
14
12
13
7
15
12
13
8
11
9
10
14
2
Table of Contents
In order to control your smart trainer, you’ll need a smart training app, running on
a device such as a smartphone or laptop.
2.1 Compatible devices
You can run training apps on:
• Smartphones
• Tablets
• PCs
• Macbook Computers
• Laptops
• Apple TVs
Your device needs either Bluetooth Smart or ANT+ in order to communicate with
the trainer. Smartphones, tablets and Macbook Computers have Bluetooth built in,
whereas you’ll insert an ANT+ dongle in the USB port of a Windows PC or laptop to
connect with it.
2INTRODUCTION TO SMART TRAINERS
Brand new to smart trainers?
Get the complete orientation online at www.4iiii.com/support
3
Table of Contents
2.2 Compatible Apps
Fliiiight has been tested to be compatible with:
• TrainerRoad
• Zwift
There are many other compatible apps out there. In order to be compatible, an app
must be capable of sending smart trainer commands using one of two standard
connection protocols:
• ANT+ FE-C (Fitness Equipment Controlled)
• Bluetooth Smart [BLE] FTMS (Fitness Machine Service)
2INTRODUCTION TO SMART TRAINERS
4
Table of Contents
2.3 Smart trainer modes
There are two main types of smart trainer workouts.
ERG mode
ERG mode keeps you accountable to your interval workout, ensuring you hit your
power targets by increasing resistance if you slow down, or easing up if you pedal faster.
Always use your bike’s fastest gear (large front chainring).
SIM mode
SIM mode simulates an outdoor ride: tougher on the climbs than the downhills. Use
your gears like you would outdoors.
Fliiiight also has a non-smart mode, Resistance Mode. Use the 4iiii app to set the
resistance level, then use your gears to adjust the difficulty.
2INTRODUCTION TO SMART TRAINERS
5
Table of Contents
3GETTING STARTED
3.1 Before installing the bike in the trainer
1. Check your wheel for compatibility, if you have not done so before purchasing.
a. Run a strong magnet around the wheel rim, being especially careful to check
opposite the valve stem. If the wheel is compatible, the magnet will not stick
anywhere on the flat surface of the wheel rim. Do not use the trainer with an
incompatible wheel. Go to 4iiii.com/support for assistance.
2. Install the included trainer skewer in your bike’s rear wheel.
Tip: As long as it is properly installed, it is safe to leave your trainer skewer in your bike
during outdoor rides.
6
Table of Contents
3GETTING STARTED
4. Turn the threaded rods counter clockwise to retract them. Retract one completely,
and the other by ¾.
5. Back the bike into the trainer frame, aiming the wheel between the magnet arrays.
Tip: If the magnet arrays are not far enough apart to allow for easy installation of the
bike, you can pull them open gently by hand while the trainer is off.
44
5
9
Table of Contents
3.3 Activating the trainer
1. Flip the “ON” switch. The magnet arrays will close on your wheel in order to center
themselves. Keep the wheel still until they release.
2. Pedal to start your ride.
Tip: Until the trainer receives a command from the controlling app, it will default to 36%
resistance.
Tip: Don’t forget to turn the trainer off when not in use.
3GETTING STARTED
11
Table of Contents
3GETTING STARTED
3.4 Regular set-up
Leave one threaded rod in place to easily remove or install your bike.
3.4 .1 Removing the bike from the trainer
1. Turn off the trainer.
2. Loosen one knob to release the bike from the trainer.
3.4 .2 Installing the bike on the trainer
1. Re-install the speed index if you’ve removed it.
2. Back the bike into the frame and insert the skewer in the innermost skewer cup.
3. Tighten the other knob until both skewer cups secure the trainer skewer.
4. Turn the trainer on.
3.5 Calibration
Fliiiight is calibrated for a standard 700c road wheel or 29” MTB wheel. Use the 4iiii app
to update the wheel rim circumference if you have a different wheel size (Section 5.1).
You will not need to do regular recalibrations.
12
Table of Contents
4CONNECTING TO AN APP
Check the app’s support resources for more assistance navigating your individual app.
1. Bluetooth Smart or ANT+ must be enabled on your device before connecting to
the trainer.
Android or iOS smartphone, tablet, Macbook or Apple TV with Bluetooth Smart
Make sure Bluetooth and location services are enabled on your device.
Windows PC, Windows Laptop or Macbook with an ANT+ dongle
Plug the ANT+ dongle into a USB port.
Android device with native ANT+
ANT Radio Service and ANT+ Plugins may come pre-installed on your device, or
you may need to download them from Google Play.
2. Start up your cycling app.
3. Turn the trainer on.
4. Navigate to the app’s device connection page, and search for nearby devices. Your
trainer should show up as “4iiii Fliiiight” in the device list.
5. Connect to the trainer.
6. Navigate to your workout.
7. Pedal to start your workout.
13
Table of Contents
54iiii APP
The free app is available for Android and iPhone.
iPhone: Download the 4iiii iOS app in App Store
Android: Download the 4iiii Android app in Play Store
Tip: You will need to update older iPhones to iOS 11 or later in order to download the app.
Use the app to:
• Calibrate the trainer for a different wheel size (Section 5.1)
• View your current battery level (Section 6.2)
• Update the trainer firmware*
• Change your trainer’s Bluetooth device name*
• Set an ERG or resistance target*
• View, record, and share ride data*
• Do advanced troubleshooting (Section 7.2)
*Instructions available online at 4iiii.com/support
We highly recommend that you use compatible apps like TrainerRoad or Zwift for
training, in order to experience more extensive features, graphics, and workout plans.
15
Table of Contents
54iiii APP
5.1 Calibrate the trainer for a smaller wheel size
Fliiiight is calibrated for a standard 700c road wheel or 29” MTB wheel. Use the app to
update your wheel rim circumference value if you have a different wheel size.
1. Download the 4iiii app.
2. Sign in. If this is your first time, sign up for an account.
3. Select the devices tab. Connect to the trainer.
4. Select “>” for more options.
5. Go to “Wheel Circumference” and select your wheel from the drop down menu.
For more assistance selecting your wheel rim circumference, go to 4iiii.com/support
16
Table of Contents
6CHARGING AND STORING Fliiiight
6.1 Charging
When fully charged, Fliiiight allows over 2 hours of wireless riding.
Warning: For safety reasons, do not charge the trainer below 5°C (41°F). Doing so may
result in damage to the lithium ion battery, explosion, or injury.
Tips:
• Use the included cable (2A 5V type C USB
charger).
• For best results, charge from a USB wall
outlet adapter.
• Batteries deteriorate more quickly when
left in a fully depleted state. To maximize
the life of your trainer, charge it regularly
or plug it in during use.
• If the battery is fully drained, charge
overnight.
• Turn the trainer off when not in use.
17
Table of Contents
