1.1 What’s in the box?
1x Fliiiight Smart Trainer
1x Trainer skewer
3x Speed index
1x USB type C charging cable
1x Quick start guide
1
1INTRODUCTION

1.2 Trainer component diagram
Frame:
1. Frame
2. Legs
3. Adjustable foot
4. Knobs
5. Lock nuts
6. Threaded rods
7. Skewer cups
Resistance Unit:
8. Electronics case
. Caliper arms
10. Speed sensor
11. Anti-wear stickers
12. Magnet array
13. Status light
14. Power switch
15. Charging port
16. Charging light
17. Mounting bolts
2
1INTRODUCTION
13
2
4
6
7
5
17
8
9
10
11
12
13
14
15
16

2.1 Compatible devices
In order to control your smart trainer, you’ll need a smart training app, running on
a device such as a smartphone or laptop.
You can run training apps on:
• Smartphones
• Tablets
• PCs
• Macbook Computers
• Laptops
• Apple TVs
Your device needs either Bluetooth Smart or ANT+ in order to communicate with
the trainer. Smartphones, tablets and Macbook Computers have Bluetooth built in,
whereas you’ll insert an ANT+ dongle in the USB port of a Windows PC or laptop to
connect with it.
Brand new to smart trainers?
Get the complete orientation online at
www.4iiii.com/support
3
2INTRODUCTION TO SMART TRAINERS

2.2 Compatible apps
Fliiiight has been tested to be compatible with:
• TrainerRoad ( Mac, Windows, iOS, Android )
• Zwift ( Mac, Windows, iOS )
In order to be compatible, an app must be capable of sending smart trainer
commands using one of two standard connection protocols:
• ANT+ FE-C ( Fitness Equipment Controlled )
• Bluetooth Smart [BLE] FTMS ( Fitness Machine Service )
4
2INTRODUCTION TO SMART TRAINERS 2INTRODUCTION TO SMART TRAINERS

2.3 Smart trainer modes
There are three modes for smart trainer workouts.
ERG
ERG mode keeps you accountable to your interval workout, ensuring you hit your power
targets by increasing resistance if you slow down, or easing up if you pedal faster.
Always use your bike’s fastest gear (large front chainring).
SIM
SIM mode simulates an outdoor ride: tougher on the climbs than the downhills.
Use your gears like you would outdoors.
Resistance ( non-smart mode )
Fliiiight also has a non-smart mode, Resistance Mode. Use the 4iiii app to set the
resistance level, then use your gears to adjust the difficulty.
5
2INTRODUCTION TO SMART TRAINERS

3.1 Before installing the bike in the trainer
1. Check your wheel for compatibility, if you have not done so before purchasing.
a. Run a strong magnet around the wheel rim. If the wheel is compatible,
the magnet will not stick anywhere on the flat surface of the wheel rim.
Ensure you check opposite the valve stem. Do not use the trainer with an
incompatible wheel. Go to 4iiii.com/support for assistance.
2. Install the included trainer skewer in your bike’s rear wheel.
a. In most cases, you do not need to remove your wheel to change the
wheel skewer.
Tip
As long as it is properly installed, it is safe to leave your trainer skewer in your bike
during outdoor rides.
6
2INTRODUCTION TO SMART TRAINERS 3GETTING STARTED

7
3.2 Installing the bike in the trainer: first time set-up

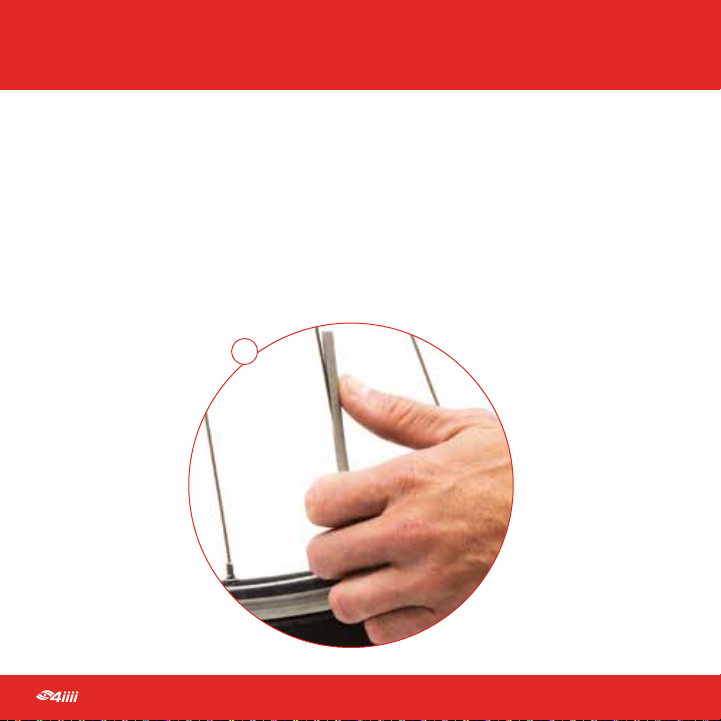

1. Install one speed index on a spoke. It does not matter which spoke.
Slide the index towards the rim. DO NOT install the spare indexes. Doing so
will will affect the functionality of the unit.
2. Open Fliiiight’s legs to full extension and place the trainer flat on the floor.
3. Rotate the magnet arrays so they are parallel with your wheel rim.
3GETTING STARTED
1

8
3GETTING STARTED
2
3
2Front of Bike
This Way

9

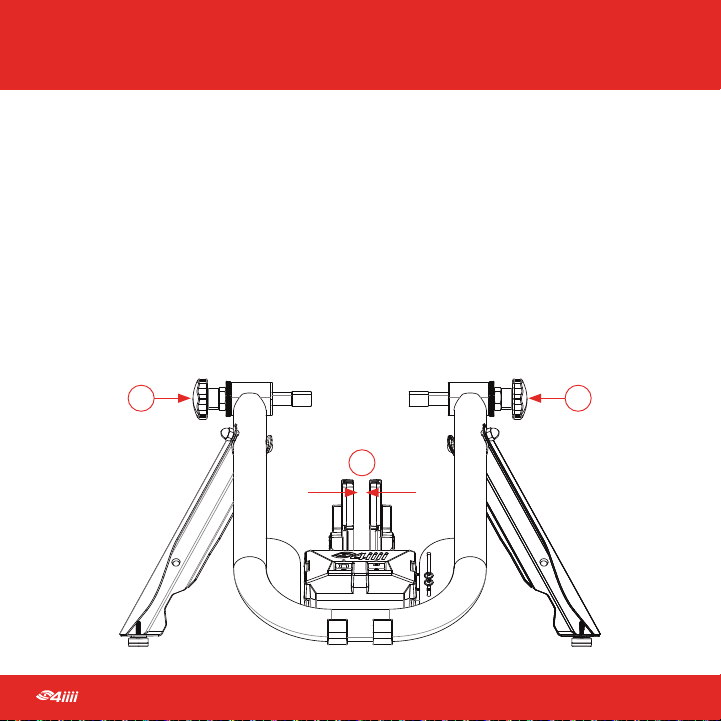

4. Turn the large plastic knobs counter clockwise to retract the threaded rods.
Retract one completely and the other approximately ¾ of the way. It does
not matter which one is open all the way. This will open up the skewer cups
enough to place the bike, and make it easier to mount.
5. Back the rear wheel of the bike into the trainer frame. Aim the wheel between
the magnet arrays.
Tip
If the magnet arrays are not far enough apart for easy installation, gently pull them
open by hand while the trainer is off. Pull both sides simultaneously.
3GETTING STARTED
5
44

10

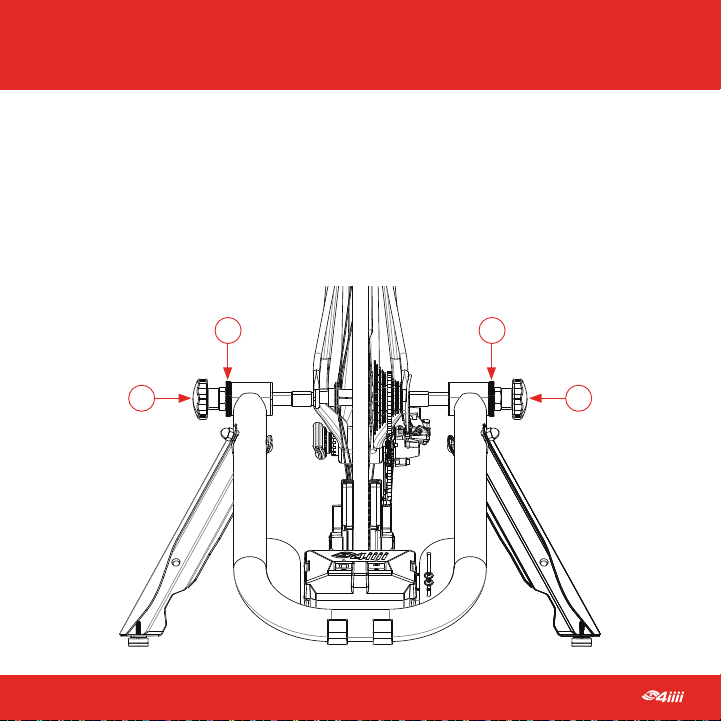

6. Lift the tip of the trainer skewer into the closest skewer cup. The bike should be
approximately centered.
7. Keeping the bike upright, tighten the other knob until both skewer cups firmly
secure the trainer skewer.
8. Tighten the lock nuts against the frame.
Final set-up
3GETTING STARTED
67
8 8

3.3 Activating the trainer

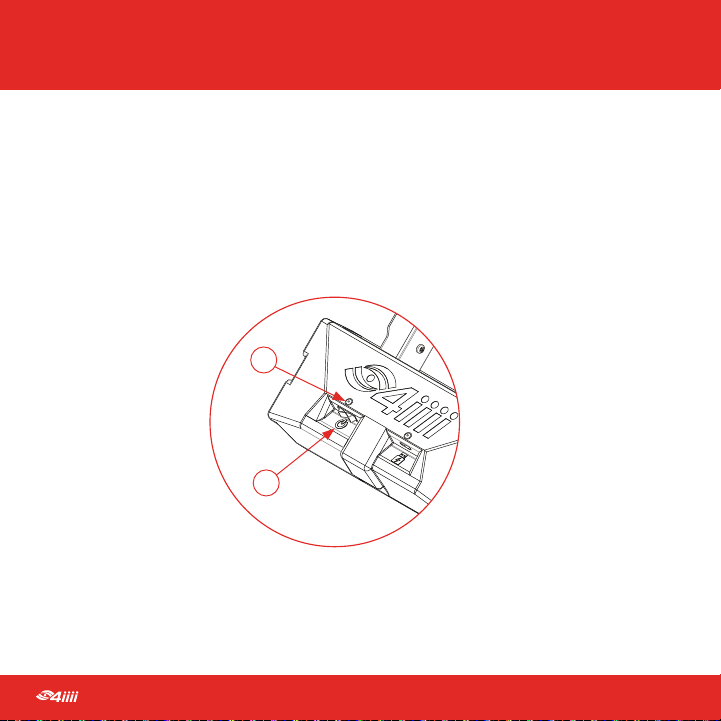

1. Turn the power switch to “ON” ( #1 in the diagram ). The status light ( #2 in the
diagram ) will be solid blue until paired with your app.
2. The magnet arrays will close on your wheel in order to center themselves.
Keep the wheel still until they release.
3. Pedal to start your ride.
Tips
• The trainer will default to 36% resistance, until it receives a command from the app.
• Don’t forget to turn the trainer off when not in use.
11
3GETTING STARTED
2
1

3.4 Calibration
Fliiiight is calibrated for a standard 700c road wheel or 29” MTB wheel. Use the 4iiii
app to update the wheel rim circumference if you have a different wheel size
( Section 5.1 ). You will not need to do regular re-calibrations.
3.5 Removing your bike
It is not necessary to undo both threaded rods. Leave one threaded rod in place to
easily remove or install your bike.
Additionally, you do not need to remove the speed index.
12
3GETTING STARTED

4.1 Download the app
The free 4iiii app is available for Android and iPhone. We highly recommend that
you use compatible apps like TrainerRoad or Zwift for training, in order to experience
more extensive features, graphics, and workout plans.
iPhone
Download the 4iiii iOS app via the Apple App Store
Android
Download the 4iiii Android app via the Play Store
Use the app to
• Calibrate the trainer for a different wheel size ( Section 5.1 )
• View your current battery level ( Section 6.2 )
• Update the trainer firmware*
• Change your trainer’s Bluetooth device name*
• Set an ERG or resistance target*
• View, record, and share ride data*
• Do advanced troubleshooting ( Section 7.2 )
*Instructions available online at 4iiii.com/support
13
4THE 4iiii APP

4.2 Calibrate the trainer for a smaller wheel size
Fliiiight is calibrated for a standard 700c road wheel or 29” MTB wheel. Use the app
to update your wheel rim circumference value if you have a different wheel size.
1. Download the 4iiii app.
2. Sign in. If this is your first time, sign up for an account.
3. Select “Add a Device.” Select “Fliiiight” then press “Connect”.
4. Select “>” for more options.
5. Go to “Wheel Circumference” and select your wheel from the drop down menu.
For more assistance selecting your wheel rim circumference, go to 4iiii.com/support
14
4THE 4iiii APP

5.1 Connecting other apps
Check the app’s support resources for more assistance navigating the app you have
chosen to use with Fliiiight.
1. If you are connecting via Bluetooth [BLE], Bluetooth and location services must
be enabled on your device. Allow Bluetooth and location permissions for the app.
If you are connecting via ANT+, install the ANT+ dongle in the USB port. Or, for
Android devices with built in ANT+, ensure ANT Radio Service and ANT+ Plugins
are installed.
2. Start up your cycling app.
3. Turn the trainer on.
4. Navigate to the app’s device connection page, and search for nearby devices.
Your trainer should show up as “4iiii Fliiiight” in the device list.
If Fliiiight does not show up immediately, try pedaling.
5. Connect to the trainer.
6. Navigate to your workout.
7. Pedal to start your workout.
15
5OTHER APPS

Tips
• Once you have paired with the trainer, many apps will pair with it automatically
next time you start up the app and trainer.
• Find more Bluetooth and ANT+ troubleshooting assistance online at
4iiii.com/support.
16
5OTHER APPS

6.1 Charging
When fully charged, the Fliiiight battery will allow for a minimum of 2 hours of use.
• Use the included cable ( 2A 5V type C USB charger ).
• For best results, charge from a USB wall outlet adapter.
• Batteries deteriorate more quickly when left in a fully depleted state.
To maximize the life of your trainer, charge it regularly or plug it in during use.
• If the battery is fully drained, charge Fliiiight overnight.
• Turn the trainer off when not in use.
Warning
For safety reasons, do not charge the trainer below 5°C (41°F).
Doing so may result in damage to the lithium ion battery, explosion, or injury.
