4NSYS 4CH User manual

For safe use of system and to prevent product failure or accident, please read this manual
carefully before use.
Ver : HL.R1.00.ENG_1.3
DIGITAL VIDEO
RECORDER
USER MANUAL
4/8/16CH DVR

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
2
Before Usage
This product has been designed and manufactured to assure personal safety. Improper use can
result in electronic shock or fire hazard. The safeguards incorporated in this product will protect
you if you observe the following procedures for installation, use, and servicing.
This product does not contain any parts that can be repaired by user.
[Note]
Some contents of this manual can be different due to function improvement.
Photos for instruction can be different per channel.

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
3
Note of Caution
Warning
Check if the power is switched off before
installation. Don’t plug in at the same time.
Otherwise it may be set on fire or put you at
the risk of electrocution or damage.
Check if the power is switched off before
installation or additional repair. Never plug in
while the device is in operation. Otherwise it
might be set on fire or put you at the risk of
fire, electrocution and damage.
Keep the cables at least 15 centimeters away
from the wall and at least five centimeters away
from the side so that the cables, including
power line and video cable, may not be
disfigured. Otherwise it might put you at the
risk of fire, electrocution and damage.
Never uplift the cover, break down, repair and
maintain at your disposal. Otherwise it might
put you at the risk of fire, electrocution and
damage.
.
Keep the device environment always clean
before and after installation of the device. Use
dry cloth to clean the device. Never use any
organic solvent. Otherwise it might be the
cause of electrocution or mechanic disorder.
Input voltage of the device should come within
the range of 10 percent of specified voltage.
Use separate wall power to keep heating
appliances, including hair dryer, iron and
refrigerator. Otherwise it might be the cause of
fire and electrocution.

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
4
When strange noise or smell is sensed,
immediately plug out and send inquiry to
service center or seller.
Do not install device in humid place filled with
dust. It might be the cause of electrocution and
fire.
Caution
Do not install the device in any place where
strong magnetic flow, electric wavelength and
vibration may be sensed or where radio, TV or
other wireless device is located. Keep the
device away from magnetic flow, electric wave
or vibration.
Do not put anything heavy on the product.
Otherwise it may be the cause of disorder.
Strong shockwave or vibration may be the
cause of mechanic disorder. Please be careful.
Be careful so that anything conductive may not
fall into the ventilation hole. Otherwise it may
be the cause of disorder.
Check if power switch and record on the front
side of the product is still turned on.
When HDD is overloaded, you change the
setting to keep recording. In that case, check
again if it would be OK to eliminate the saved
data.

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
5
When HDD saving data gets old enough, video
data to be saved may suffer so much damage
that it may be irreparable. If screen appears
broken while regenerating data saved in HDD,
it means HDD won’t work any longer.
Immediately contact service center to replace
them.
When any abnormal sign is detected,
immediately contact seller or service center.

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
6
CONTENTS
1. Summary
∙ Feature ……………………………………………………………………………………………….………………………..……………….8
2. Installation
∙ Contents ………………………………..…………………………………………………………………….…………………………………..9
∙ Front panel ………………………………………………………………………………………………………………………..……….….10
∙ Rear panel.………………………………………………………………………………………………………………………………………11
3. System Operation
∙ Icon………………………………………………………………………………………………………………………………………..…..…..…12
∙ Remote Controller…………………………………………………………………………….………………………………………..…..14
∙ How to setup the remote controller ID ………………………………………………………………………………..….…..15
4. System configuration
∙ System..……………………………………………………………………………………………………………………….……..……..…….16
∙ Time/Date………………….……………………………………………………………………………….……………………………..……17
∙ Password………………..……………………………………………………………………………………………..…………………..…….18
∙ Hard Disk…………………………….……………………………………………………………………………………………..……..…….19
∙ Default Setup………………..…………………………………………………………………………………………………....…….…….20
∙ Upgrade……..………………………………………………………………………………………………………………………..………....20
∙ BUTTON SETUP………..…………………………………………………………………………………..………………………….….……21
∙ RS-485……………………………..……………………………………………………………………………..……….………………….…….22
5. Display
∙ OSD……………………………………………………............................................. ……………....................................................….22
∙ SPLIT MODE……………………………………............................................. ……………....................................................….23
∙ Auto Sequence..…….………………..…………………………………………………………………………….……..…..…………….25
∙ TV Adjustment…………..………………………………………………………………………………………………...………..…..……26
6. Network Setup
∙ IP Address……….………………..………………………………………………………………….………………………………………….26
∙ Notification….………………..………………………………………………………………….………………………………………….27
∙ Selecting E-mail Notification…………………………………………………………….………………………………………….28
∙ Web Server………………………..………………………………………………………………………………………….………………….29
∙ Free DDNS………………………..………………………………………………………………………………………….………………….29

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
7
∙ Dual Codec Setup…………..………………………………………………………………………………………….………………….35
7. Camera Setup
∙ Camera ……………….………………………………………………………………………..…………………………………..…………..…36
∙ Camera Title……….………………………………………………………………………..…………………………………..…………..…36
∙ PTZ Setting………….….……………………….………………………………………………………………………………………...……37
∙ How to use PAN/TILT….….……………………….………………………………………………………………………………...……39
8. Record
∙ Record Setup…………………………..……….……………………………………………………………………….…………………….41
∙ Schedule Record..……………………..……….…………………………………………………………….………….………………….42
∙ Holiday Record..…...…………………………..……….…………………………………………………………….………….………….43
9. Event Setup
∙ sensor…………………..………..…………………………………………………………………………………….…….……………………44
∙ Motion Detection.…………..…..……………………………………………………………………….……………………..……..……44
∙ Camera Temper Detection...……………….…………………………………………………………..……..…………………..……47
∙ Event Action……..………………..…………………………………………………………………………………………………….……..47
10. Search
∙ Search…………..…………………………….………………………………………………………….………………………………..……49
∙ DATA / TIME Search……………..……………..………………………………………………………………….………………………51
∙ Event Search...…………………………………....……………………………………………………………………..……………….……51
∙ Go to First / Go to Last…..………………………………………………………………………………………….………………..…52
∙ Search Control…………………………….……….……………………………………………………………………….……………......52
∙ Audio ……………….………………………..….………….…….……………………………………………………………..…………......53
11. Backup
∙ Backup…………………………………………………..…………………………………………………………………………………………54
12. Remote Connection-iPhone………………………………………………………………………………………………………..59
13. Windows Mobile Viewer……………………………………………………………………………………………………………….68
14. Remote Connection-Android Phone…………………………………………………………………………………………..76
15 Appendix
∙ Specification ………………………..……………………………………………………………………………….……………....………86

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
8
1 — Summary
This Stand Alone Digital Video Recorder is capable of high quality of video and audio data
recording and provides various ways of data search by Calendar, Date/Time and event. Also the
system allows remote user to access in order to monitor and control multiple local DVRs via
TCP/IP / LAN connection.
Main features
(1) High resolution live display
(2) Easy installation and operation
(3) Motion detection record
(4) Sensor and Alarm outputs
(5) Reserved recording (Motion, Sensor/Alarm and time selected record)
(6) Network control via Dynamic IP
(7) NTSC / PAL compatible
(8) Highest data compression of H.264 technology
(9) Data backup to USB memory stick
Application
(1) Bank, ATM unit, Supermarket, Convenient store and other public places.
(2) Private homes, Apartment, Jewelry shop, Commercial compound and other places where
it needs anti theft surveillance system.
(3) Warehouse, Production line and other places where evidence is needed after any event
happened and to analyze the situation.
(4) Where to monitor sites remotely
Feature

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
9
2 — Installation
Accessories.
ㆍ Digital Video Recorder (1EA)
ㆍ HDD Fixing screw (8pcs)
ㆍ Program CD (1EA)
ㆍ Manual (1EA)
ㆍ Power code (1EA)
ㆍ Remote controller)
ㆍ Battery AAA (1.5V 2EA)
ㆍ Adaptor (1EA)
[Note] Check the accessories before use.
Contents
HDD fixing screw (8PCS)
Battery for
remote
controller
Size : AAA
1.5V X 2EA
Power
Ada
p
ter
Remote
controller
POWER
CODE
MANUAL
Program CD

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
10
(4Ch / 8CH DVR)
(16CH DVR)

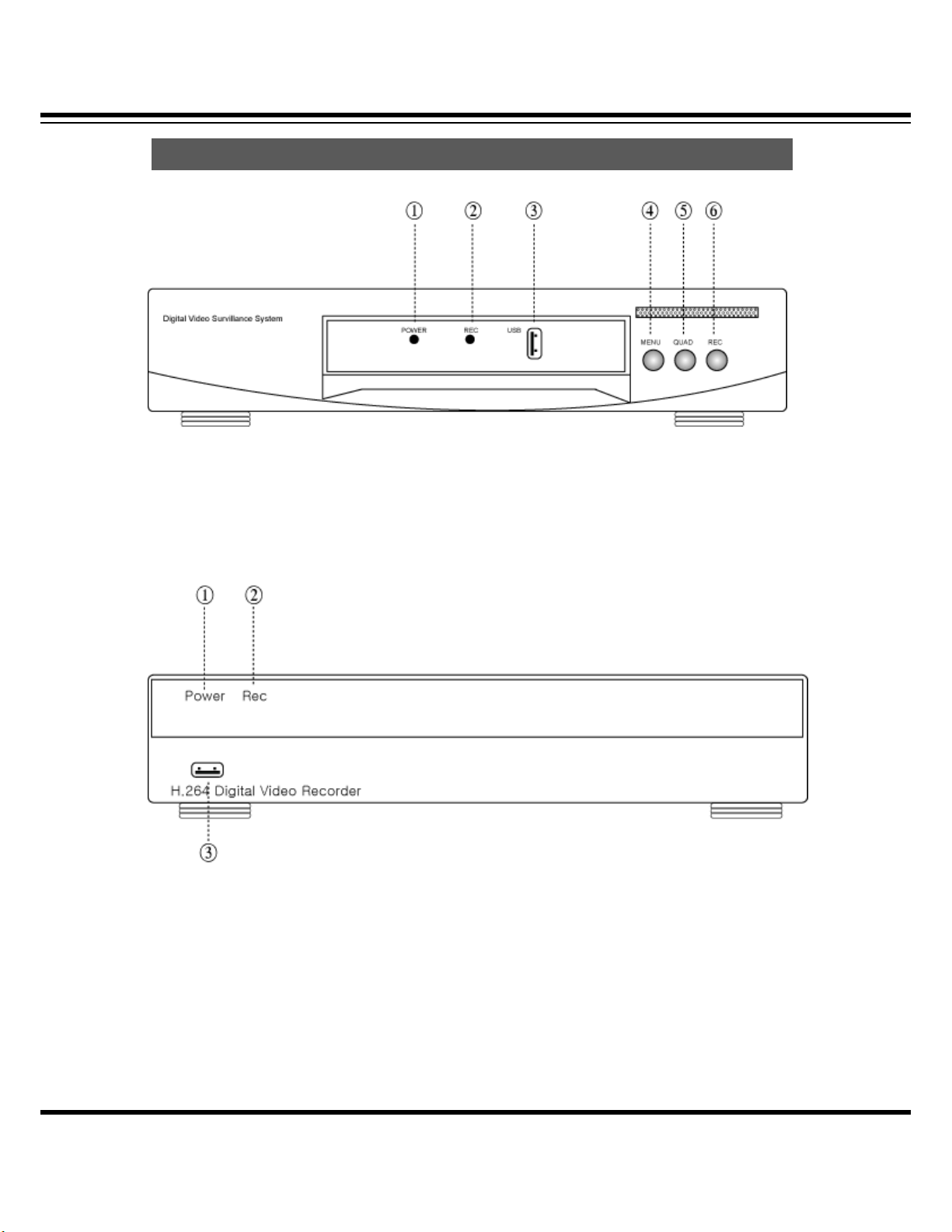

[1] POWER LED [2] RECORD LED [3] USB Port [4] MENU Button
[5] QUAD Button [6] REC Button (Emergency / Schedule)
Front
p
anel

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
11
(4Ch DVR)
(8Ch DVR)
(16Ch DVR)
Rear
p
anel

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
12
[1] AUDIO OUTPUT
[2] AUDIO INPUT
[3] VIDEO INPUT
[4] VIDEO OUTPUT (COMPOSITE)
[5] VGA OUTPUT
[6] ETHERNET PORT (RJ-45)
[7] USB PORT (USB Drive / Mouse)
[8] RS-485/ALARM/SENSOR
[9] POWER (ADAPTER)
3 — System Operation

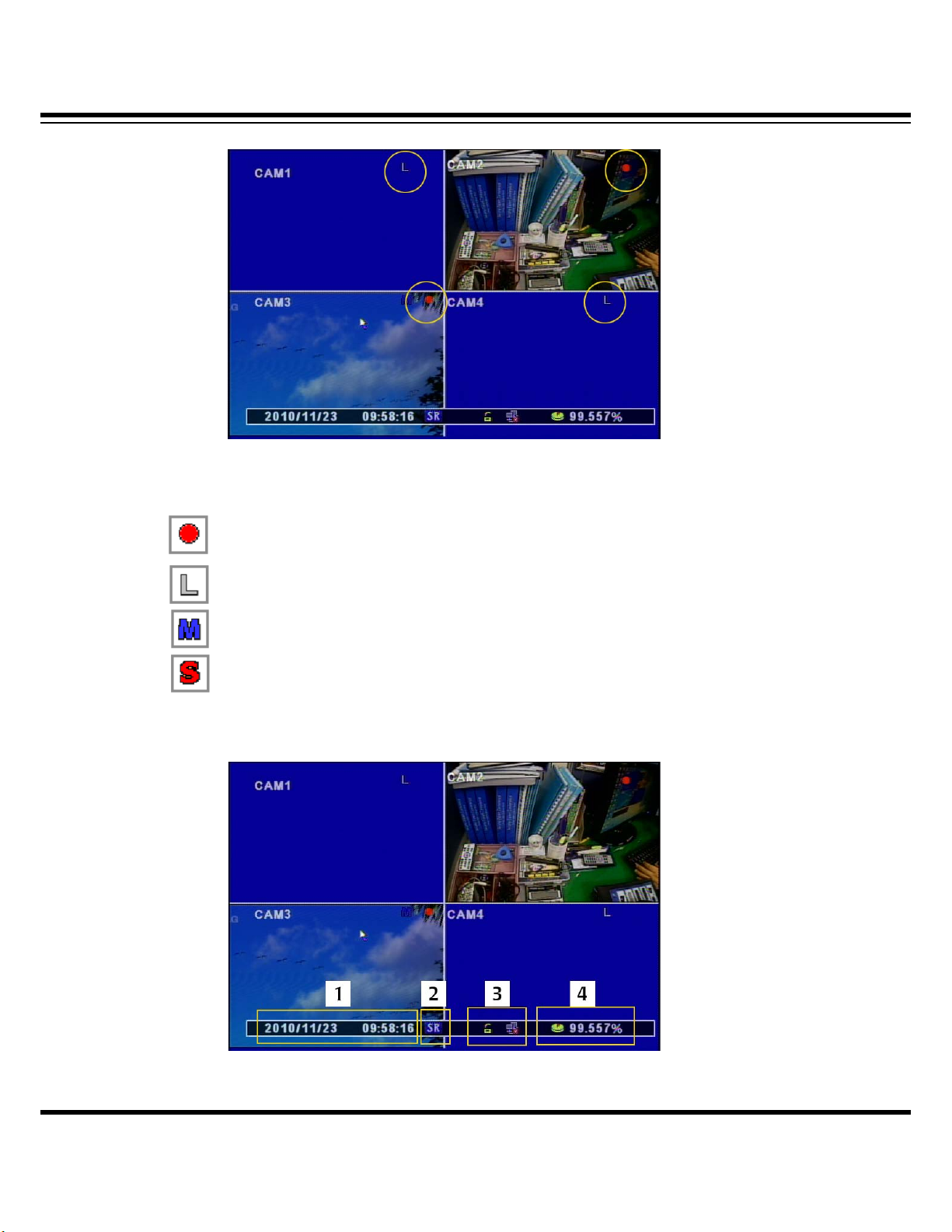

[1] The icons on the live screen indicate the status.
Icon

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
13
[2] Camera title will be shown as above.
[3] Recording Status Icon
Recording.
Video Loss.
Motion Detection.
Sensor.

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
14
[4] Status Bar
1. Date / Time
2. Record mode : Emergency recording - “ER”, Scheduled recording - “SR”.
3. Key Lock / Network Connectivity status.
4. Hard Disk status.
[1] ID (Remote controller ID) : Press to select a remote controller ID in case of using one remote
controller to multi DVRs.
[2] SPLIT : Press to see split mode. Once press “▲” button, split mode can be changed and
press “▶” button to change channel group.
[3] BACKUP : Press to start recorded data archiving to external media.
[4] AUDIO : Select a audio channel.
Remote Controller

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
15
[5] SEQ (Sequence) : Press to display each camera in sequence for specific duration.
[6] PTZ : Call PTZ control menu.
[7] SEARCH : Call search menu to playback recording image.
[8] CHANNEL / NUMERIC BUTTON : Input the channel number to make full screen mode or the
number in setup menu.
[9] SETUP : Press to call setup menu
[10] DIRECTION KEY / CONFIRM BUTTON / PLAYBACK CONTROL
[11] REC : Select recording mode.
In order to use remote controller, the ID must be same both DVR and remote controller. By
assigning DVR ID, it allows the user to control multiple DVRs with one remote controller.

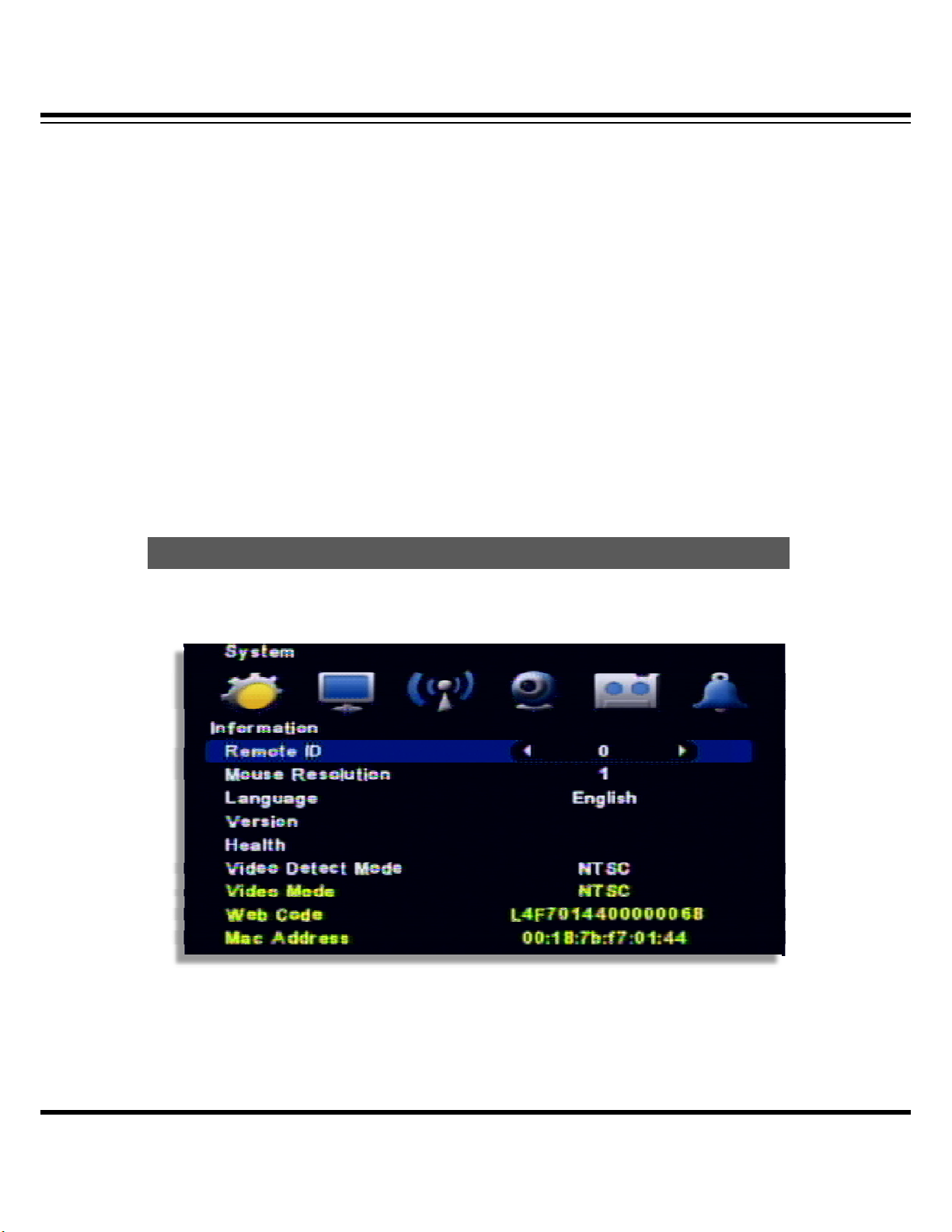

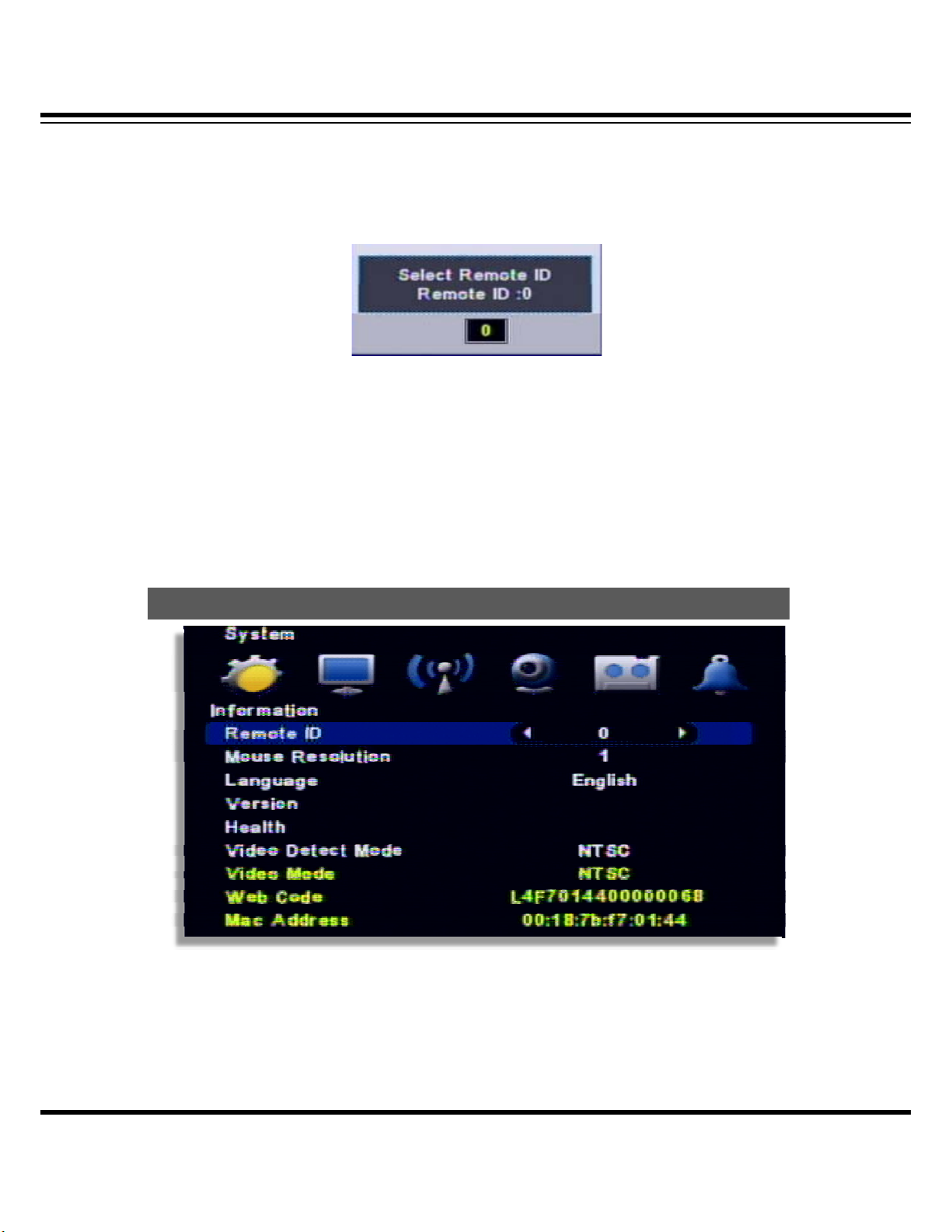

[1] Check current system ID and can be changed by user. (Factory default ID: “0”)
Menu > System > Information > Remote ID (Range: 0 ~ 99 )
System ID must be configured on DVR system menu. It cannot change DVR system
on remote controller.
How to setu
p
the remote controller ID

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
16
[2] How to use remote controller
ID must be identified between remote controller and system. Otherwise remote controller
cannot recognize DVR correctly.
[3] Remote controller ID menu displays as above image when you click ID button of remote
controller.
∙ Remote ID : It displays current ID of the system.
∙ “00” : Input the same ID number of DVR and press “Confirm”
4 — System configuration
[1] Remote ID : Assign the ID of remote controller, so that user can separately control multiple
DVR unit with one controller. (ID range: 0 ~ 99)
[2] Mouse Resolution : Mouse sensitivity level can be adjusted at user’s convenience.
(Basic Level 1; Slow speed, Level 1 < Level 2 < Level 3 to increase reaction speed.)
S
y
stem

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
17
[3] Language : Select a language
[4] Version : To show H/W Version and S/W Version
[5] Health: Indicates storage status
• HardDisk1 : Temperature of HDD.
• Front USB : Temperature of external storage with front USB port.
• Rear USB : Temperature of external storage with rear USB port.
[6] Video Detect Mode : Select a video signal format. (NTSC / PAL)
[7] Video Mode : Display video signal format
[8] WEB Code : DDNS ID for DDNS connection.
[9] MAC Address
[1] Time : Set the time.
[2] Date : Set the date.
Time/Date

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
18
[3] Date Format : Select a Time / Date display format.
[4] Daylight Saving Time : It is commonly called as “Summer time”. During the period,
user can change system time 1 hour early or late.
[5] Time Server : It helps time set of DVR automatically by synchronization of time server service.
• Time server : Input the URL of server (Default : kr.pool.ntp.org )
• Synchronize Period : Select the period to syncronize between DVR and time server
ㅇ Power On : Try to sync once power on.
ㅇ 12Hour : Try to sync every 12 hours.
ㅇ 24Hour : Try to sync every 24 hours.
ㅇ Off : Disable to sync.
[6] Time Zone : Select a GMT zone.
[7] Apply : Save and apply time / date setting.
(Channel display could be different per model 4ch/8ch/16ch)
[1] ID : ID : Able to input max. 8 user’s account. (“Admin” and “User1~7“)
[2] Password : Input the new P/W for the selected ID. (Max. 8 digit)
[Note] Default password of all ID is “11111111”.
Password

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
19
[3] Function : Assign user’s function on each account.
ㅇ Configuration
ㅇ HardDisk
ㅇ Search
ㅇ Backup
ㅇ PTZ Setting
ㅇ Record Key
ㅇ Camera
It is the HDD and ODD setup. Since it is closely related to the record, if the setup is wrong, it may
cause the mal functioning.
[1] Hard Disk List : It shows the HDD information
ㅇ Hard Disk1 : Capacity of hard disk drive
ㅇ Front USB : Capacity of external drive on front USB port.
ㅇ Rear USB : Capacity of external drive on rear USB port.
ㅇ Erase Data : Format the disk.
[2] Total : Display total capacity of HDD ( Used size / Available size )
[3] Erase Data : Delete a recording date on selected disk.
[4] Auto delete : The function is to keep recorded data in HDD during only for specified period.
(Range: 1~120days)
[5] Advanced : Select a purpose of each device among “Main Disk”, “Mirror Disk”, “RW Write”
then “Apply” to reboot system.
Hard Disk

DIGITAL VIDEO RECORDER MANUAL
DIGITAL VIDEO RECODER MANUAL
20
[NOTE] “Mirro Disk” or “RW Writer” purpose is able to setup when the external device is
connected with DVR via USB port.
[1] Default Setup : Except major configuration (Network, Password), parameters are initialized.
[2] Factory Setup : All parameters are initialized.
[1] USB
In order to upgrade system firmware with USB memory stick, the firmware file must be saved in
the USB storage first and then insert to DVR to start USB upgrade from the menu.
U
pg
rade
Default Setu
p
