Welcome
Thanks for choosing the TDR01Z E-bike (hereinafter referred to as “D1”), and experiencing the pleasure
brought to you by travel and fitness.
Shall ride legally in accordance with the local laws and regulations in case of any special local laws and
regulations.
Contents
1. Products & Accessories
2. Precautions for Use
3. Product Description
4. Operation & Use
5. Electrical Schematic Diagram
6. Technical Parameters
7. Instrument Operation
8. Introduction to APP Operation
9. About Battery
10. Charging
11. Check before Use
12. Use & Maintenance of Controller and Motor
13. Troubleshooting
14. Maintenance & Repair
15. Authentication
2
3
4
5
7
8
9
11
13
15
16
19
20
21
22

E-bike body
Accessories

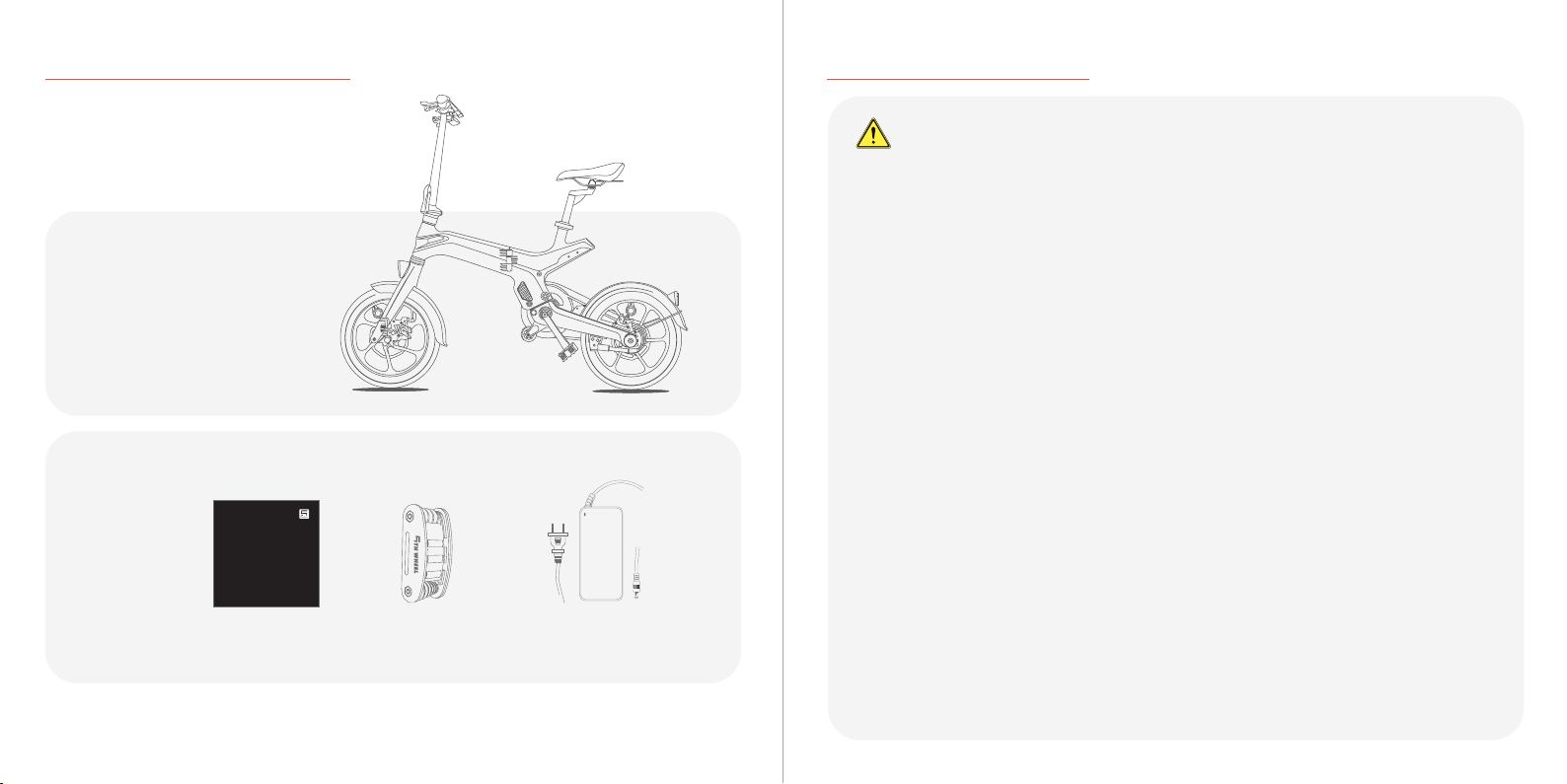

1. Products & Accessories
12
Please carefully check whether all items in the box are complete and intact.
2. Precautions for Use
Product name: 5TH WHEEL Electric Bicycle
Model: TDR01Z
CMIITID: 2021DP13705
Implementation standard: UL2849:2020
Obey traffic regulations and traffic safety.
• Persons under the age of 16 are prohibited to to ride E-bike on the road;
• Ride E-bike in the non-motorized vehicle lane, with the maximum velocity of not exceeding 15km/h;
Ride E-bike on the right side of the roadway in case of no non-motorized vehicle lane;
• Do not lend the E-bike to persons who cannot ride to avoid injury;
• Carry people or items with E-bike should in accordance with laws and regulations;
•It is recommended to wear a helmet when riding and pay attention to the traffic safety; It is strictly
forbidden to hold the handlebar with one hand or ride with both hands away from the handlebar;
• Pay attention to slow down when riding in rain or snow, because the braking distance will be extended
then; Try to avoid riding in severe weather, such as heavy rain, etc.
Safety tips for the use of E-bike
• Do not park E-bike in building foyer, evacuation stair, walkway or safety exit;
• Do not charge and park E-bike in residential buildings; Keep away from combustibles when charging,
and the charging time shall not be too long;
• Use and maintain the battery correctly; Used batteries shall not be dismantled without authorization,
and shall be recycled by relevant professional department;
• Understand the safe use of charger and warning terms;
• Replace the charger with those matching the storage battery model;
•Do not rinse it with water to avoid the hidden danger of accidents caused by the soaking of internal
electronic components and circuits;
• When adjusting the handlebar or sear, be careful not to expose the safety line marking of the
handlebar stand tube and saddle tube (where applicable).
• The A-weighted emissionsound pressure level at the driver ears is less than 70dB(A).
• For your safety, do not tamper with other parts of the electric bicycle except the sprocket and non
original parts. If any parts are damaged, the best way is to contact the local dealer for after-sales service.
Do not use the E-bike in the off-road or other extreme sports scenes since it is not a professional
equipment for off-road and extreme sports.
Instructions Power AdapterDebugging tool
The picture is for reference only.
Before using the pro duct, pleas e read this manua l.
5TH WHEE L Electric Bi cycle Manual
V1.0 IMPORTANT! Read car efully and keep f or future refe rence.
Model No. TDR01Z
Original Instructions

3. Product Description
34
Electronic instrument
Cushion
Taillight
Motor
Rear
suspension
shock
absorption
Mobile
auxiliary wheel
Pedal Kickstand
Ambient light
Front reflector Rear reflector
Headlight
Upright folder
Complete E-bike folder
Engraving position of E-bike code (under the main beam)
Brake crank
Front
disc brake
Rear disc
brake
Preparation before riding
• Check whether the power circuit and lighting are in good conditions;
• Check whether the front and rear brakes work normally;
• Check whether the handlebar and front and rear wheels are fastened firmly;
• Check whether the tire pressure is normal;
• Check whether the reflectors are broken or contaminated before riding.
4. Operation & Use
Folding of handlebar
Installation of pedal
• Align the pedals to the pedal
crank holes;
• Install them with the tool handle.
• Push the handle switch upward
and open the handle outward;
• Flip the handlebar to one side.
Front suspension
shock absorption

56
• Unscrew the riser cap and
draw the gas cylinder
assembly;
• Tightly insert the inflator
to the valve;
• Flip the fixed buckle 90°,
and then hold the cushion
and start to inflate.
• Open the seatpost clamp and pull
out the seatpost，Or adjust to the
appropriate height.The maximum
height of adjustment shall not be
higher than the safety line
• Open the E-bike folding
buckle;
•Remove the used battery
and insert the new one.
Seat installation and adjustment Replacement or installation of battery
Air inflation
with inflator
MIN.INSERTION
Inflation pressure range：280-460Kpa
5. Electrical Schematic Diagram
Motor
Controller
Instrument
Electric Break
Battery charging port
10A charging fuse
30A discharge fuse
Front and
rear lights
Negative pole
Negative pole
Light signal
Negative pole
Booster signal

78
6. Technical Parameters
Main technical parameters
Dimensions (L X W X H) 1410mm×600mm×1060mm
Center distance between front and rear wheels 985mm
Total weight 24kg
Max. design speed 24.9km/h
Endurance mileage 28km
Power consumption per 100km 1kW·h/100km
Load capacity 75kg
This endurance mileage is measured at the mean speed of 15km/h the flat road without wind under the conditions of
full power, 75kg load, the temperature of about 25℃. However, the actual endurance mileage varies depending on
many factors, such as road conditions, temperature, wind velocity, humidity, personal weight and operating habits
and so on. The endurance mileage value in this parameter page and the specification certificate are for reference only.
Main parameters of battery
Type of battery Lithium battery
capacity 7.8Ah
Nominal voltage 36V
Main technical parameters of motor
Type of motor Permanent magnet
Nominal power 250W
Rated rotate speed 330±10r/min
Rated voltage 36V
Main technical parameters of controller
Undervoltage protection 31±2V
Overcurrent Protection 15±1A
7. Instrument Operation
2.8"TFT color screen
Button “+”
Button “-”
Power button Fixed bracket
Electric quantity
Speed
Other area of displaying
riding information
Speed/ Auxiliary gear
Speed interface Fitness interface Riding information Incoming call reminder Navigation tips
Special reminder: The navigation service of the mobile phone is provided by the map manufacturer, but the map
manufacturer does not support the guidance information of cycling navigation currently.
(Android version of the
APP of “5th Wheel Riding”) (APP of “5th Wheel
Riding”)

910

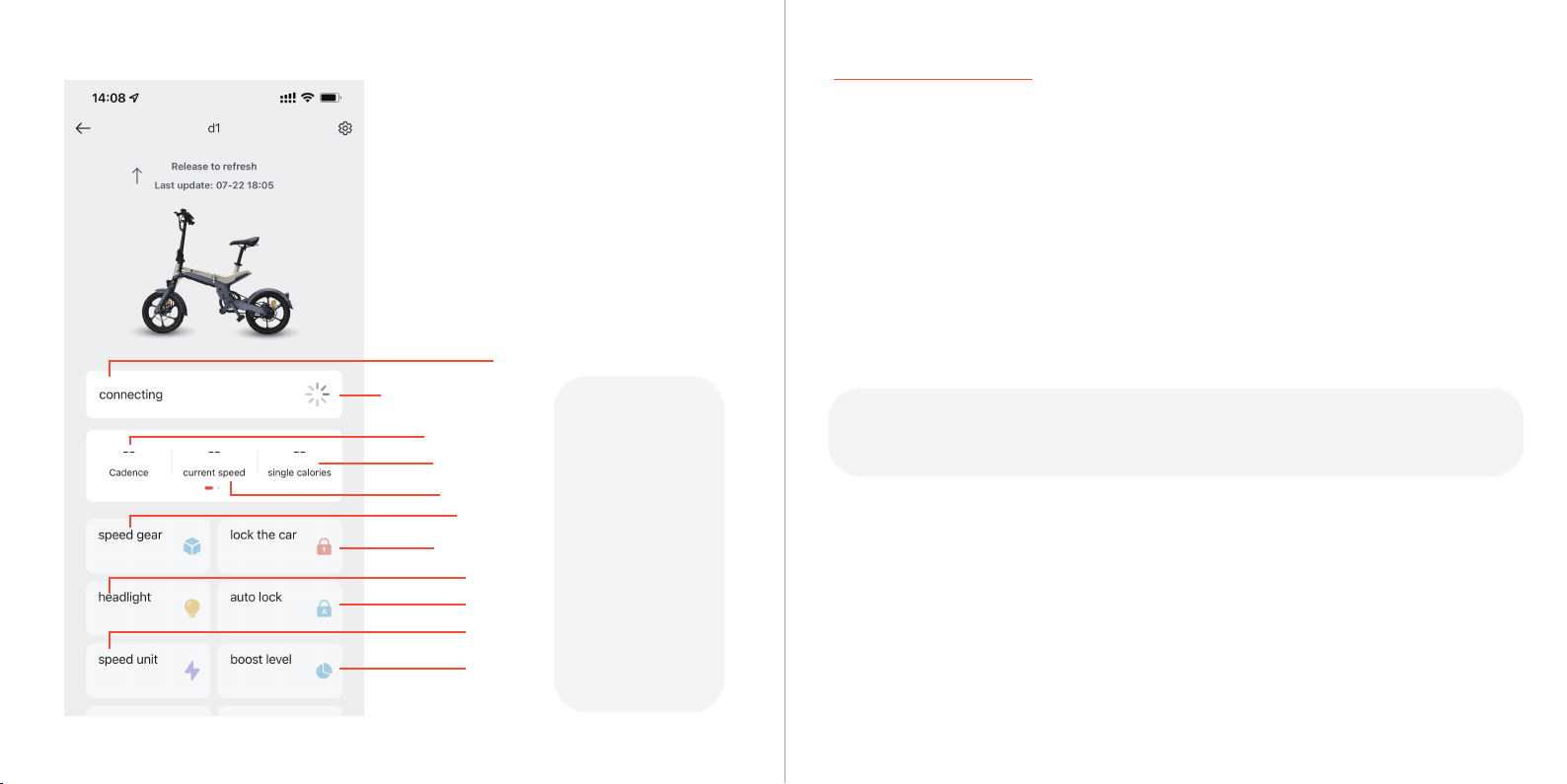

8. Introduction to APP Operation
5TH WHEEL App Manual Operation
1. Please scan the QR code with your mobile phone,
or search for “5thWheel” in the App market to
download and install the App.
2. Open the 5thWheel App, and please register/log
in to the 5thWheel account according to the App
guidelines for the first use. And then, enter the App
homepage, click “+” in the upper right corner
and “Add Device”. After that, move your mobile
phone close to the device, and the App will
automatically scan the device.
5thWheel App
In the event that you have installed 5thWheel App,
please make sure that it is the latest version.
Please keep your mobile phone Bluetooth and device in
the state of “On”, and try again in case of failure to
scan the device.
No manual operation is required in case of registering an account of 5TH WHEEL and completing the
minimalist connection. The device card will be displayed on the homepage of the 5TH WHEEL App.
3. After scanning the device successfully, please
click “Connect” to successfully add the device
as prompted by the interface.
After adding the device successfully, the device will be
displayed on the homepage of 5thWheelApp. And then,
click the device card to enter the control interface to
control the device.
Connect
正在搜索可用设备...
add manully Scan code to add
Connect
E-bike
Scanning
4. Please note that super key is required when switching
account and pairing connection. It is provided on the
sticker below the Warranty Card on page 22 of the
Manual (as shown in the figure).
Please note that super key is required when switching
account and pairing connection.
XXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
IOS
Add Device
Function of buttons
1. Button “+”
Press
Cursor upward/ increase
Press for several seconds Press and hold
Instrument interface
Menu interface
Interaction upward/ increase
Interaction downward/ decrease
E-bike light switch
2. Button “-”
Cursor downward/ decrease
Instrument interface
Menu interface
3. Button “ ”
Switch interactive interface System power Switch auxiliary/
speed gear
Power on Shut down
•Press and hold the button“ ”for
2 seconds to start the deviceJust pedal.
•Press and hold the button“ ”
to turn off the device.
Press Press for several seconds Press and hold
Press Press for several seconds Press and hold
Instrument interface
Menu interface
Press and hold the button“ ”for 2 seconds to
turn on / off the device.
Double click the button“ ”to switch Ride/
Fitness Mode.
Click the button“ ”to adjust the gear.
Click the button“ ”to switch the display interface.
Ride Mode
Fitness Mode
In the screen of “Ride Mode”, it shall display Gear 1(15km
/h), Gear 2(20km/h) and Gear 3(25km/h).
In the screen of “Fitness Mode”, it shall display Gear -3,
Gear -2, Gear -1, Gear 0, Gear 1, Gear 2 and Gear 3.
Negative gears represent pedal resistance, and positive gears
represent pedal assist
Start-up assistance mode 5TH WHEEL is a re gistered t rademark of Invanti (Beij ing) Technolog y Co., Ltd (here inafter ref erred to as "I nvanti"), whic h is
authorized to be used by Solowii (Beijing) Technology Developm ent Co., Ltd. Andr oid and Google P lay are trademark s of
Google Inc. and the App Store is the ser vice mark of Apple Inc. Their resp ective owners re serve the trade mark rights
mentioned in th is user manual .
The products in volved in the regis tered trade mark of 5TH WHEEL are prote cted by relevan t patent laws. For rele vant patent
information, please visit the website:https://5thwheel.life/.
In this user manual , we make our ut most to de scribe all t he ins tructio ns and func tions of the D1 electric scoote r. With
constant updates and iteration, the D1 electric scooter received may be slightly different from the product features shown
in this manual. For m ore informat ion, please vis it the Apple Ap p Store (iOS) to downl oad the App.
Please note that Inv anti has developed product s with many func tions and different models of produ cts, a nd some of the
functions ment ioned here may not be applicab le to the product or equipment re ceived. The manufac turer reser ves the right
to change the desi gn and functi on of the D1 electr ic scooter and d ocuments wi thout notice.
2021 Invanti (Bei jing) Technolog y Co., Ltd all righ ts reser ved.
If you encounter any probl ems when using the prod uct, please fee l free to contact us throu gh the following meth ods or scan
the QR code to get a qui ck response an d a satisfac tory solut ion.
Email Address: [email protected]
Contac t Us
Trademark and Legal Statements
Get Customer S ervice
Use Camera or QR S canner to Sc an
Or Visit: htt ps://5thwheel .life/pages/co ntact-us

11 12
Note before the use of lithium battery
• Before use, please confirm that the battery model is the original one of the E-bike; Do not use other batteries
of other brands arbitrarily;
• Check and confirm that the lithium battery has good appearance, without obvious phenomena, such as
damage, leakage, heat, soaking, or smoking, etc;
• In order to ensure safe transportation, the battery usually keeps a power quantity of about 30%. But due to
the self-consumption during transportation and storage cycle, the power is low or no power when using it for
the first time, which is normal. Please don't worry about that and recharge it by following the charging instructions.
Usage Environment
Warning
• The best usage environment is at 10℃- 45℃;
• At low temperature, the available capacity of lithium battery will be attenuated to varying degrees. The
specific values are as follows: The available capacity is about 70% at -10°C, that is about 85% at 0°C and that is
about 100% at 25°C; In case of any abnormal conditions of the battery, such as peculiar smell, heat or
deformation, etc., please stop using it immediately, stay away from it and contact the after-sales department.
Storage Environment
• The battery power will be consumed from time to time in case of installing it in the E-bike body. So after the
E-bike is not used for a period of time, it is normal for the instrument to show a drop of power;
• Please store the battery at an ambient temperature of 0°C - 25°C. Please do not store it in an environment
higher than 45°C, otherwise it will cause irreversible capacity degradation;
• In case of not using the E-bike for a long time (such as in winter, summer or other special circumstances), the
battery must be removed and stored separately, and maintained and charged regularly, otherwise it may cause
the battery to be completely exhausted and cause irreversible damages. For this, battery fault is not within the
scope of “Three Guarantees” policy;
• The most suitable storage capacity of the battery is 50%. In the event that the E-bike is stored for a long time
under the conditions of keeping capacity lower than 10% or higher than 90%, it will cause irreversible capacity degradation;
•Do not store the battery in risky locations. Dropping may cause uncontrollable damage to the battery interior
and may cause the battery to leak, heat up, smoke, catch a fire or explode.
The battery cannot be maintained and repaired by the user. In case of any abnormal
conditions, please contact the after-sales department for overhaul. In addition, the “
Three Guarantees” policy will not be available in case of disassembling the battery
without permission, and it may cause the battery to heat up, smoke, catch a fire or explode.
9. About Battery
Special note: The function
of locking the E-bike can
only guarantee that the
E-bike cannot run normally.
Since the whole E-bile is
light in weight and is
composed of mechanical
parts that can be
disassembled with
corresponding tools, we
cannot ensure that your
E-bile will not be stolen.
Please keep your E-bike
within sight or lock it
together with mechanical
and fixture objects.。
*The actual content shall be
subject to the display
interface of APP.
Power quantity display
Pedal frequency
Current speed
Single calories
Speed gear
Lock the E-bike
Headlight
Auto Lock
Speed unit
Boost level
Status

Usage and Maintenance of Battery
Note
• Fully charge the battery when using the new E-bike for the first time;
• Fully charge the battery as soon as possible after each use of the E-bike, which is conducive to extending
the battery life;
• It is forbidden to overdischarge, undercharge and overcharge when the battery is in use, so as not to
damage the battery and shorten its service life;
• Keep the battery away from open flames or high temperature heat source. Do not expose it to the sun
in the high temperature season to avoid damage to the battery;
• It is recommended to deeply discharge the battery on a regular basis, usually once a month. That is,
after long-distance riding until the undervoltage indicator shows that the power is exhausted or the
undervoltage protection device acts, turn off the power for charging. This method can effectively prolong
the battery life;
• In case of not using the E-bike for a long time, cut off the power supply and remove the battery. It is best
to keep the battery in a cool place and recharged once for 20 - 30 days;
• Used batteries shall not be dismantled without authorization, and shall be recycled by relevant
professional department.
•As the key component of E-bike, battery shall be correctly used, properly protected, and charged as
needed. In case of more than 20km of daily travel distance, the battery shall be charged every day.
•The performance of the battery is greatly affected by the ambient temperature. When the temperature is
below 0°C, its discharge capacity may drop by more than a quarter. Therefore, so it is normal for the
endurance mileage of a single charge to decrease in winter or at cold regions. When the temperature
rises above 20°C, its performance will recover automatically.
• Do not discard the used batteries at will, so as not to pollute the environment; Please send them to the
designated recycling outlet.
Charging Environment
• Please use the original battery charger for charging, instead of using other brands or models;
• Please charge the battery at an ambient temperature of 10℃ - 40℃, and ensure that there are no flammable
substances around, with good ventilation;
•Instruction of charging time: Please charge the battery within 12 hours, while overcharging will affect the
battery life, with potential safety hazards;
•The power rises quickly in the early stage of charging, but slowly in the later stage, which is a normal
procedure set for charging safety;
• When charging the battery in winter, it will stop charging at a low outdoor temperature, especially lower
than 0°C. It is a normal phenomenon, so please charge the battery in a suitable ambient temperature to
ensure the charging effect;
• No outdoor charging in bad weather;
•During charging, the charger has a temperature rise effect and the surface temperature is high, which is a
normal phenomenon. Please feel free to use it and avoid children touching it.
13 14
Usage and Maintenance of Charger
This charger shall be specially used for the E-bike, which can take careful care of the battery to effectively
improve its service life.
• Warning: All users must charge the E-bike according to the instructions, otherwise the consequences will be
at their own risk.
• Tips: All users must must use the original charger.
• Pay attention to the type of battery and the applicable voltage that the charger can be used for charging.
Mixed use is strictly prohibited.
• Charge the battery in a ventilated environment. It is strictly forbidden to charge in a confined space, or in
a hot sun, or at a high temperature environment. Do not place the charger in the seat or tail box for charging.
• When charging, plug in the battery first, then the power supply; After full charging, cut off the power first,
then unplug the battery.
• Cut off the power supply in time when the green light is on. It is forbidden to connect the charger to the AC
power supply without load for a long time under the conditions of not charging.
• During charging, stop charging immediately in case of abnormal indicator light, or strange smell, or
overheated charger shell. And then, repair or replace the charger.
• During the use and storage of the charger, be careful to avoid the entry of foreign objects, especially the
inflow of water or other liquids, so as to avoid short circuit inside the charger.
Try not to carry the charger with the E-bike. In case of really needing to carry it, it shall be placed in the
toolbox after shock absorption.
• Do not disassemble or replace the components of the charger by yourself.
Regular
charging port
10.About charging

15 16
Check the handlebar
• Swing the handlebar upward, downward, forward, backward, left and right to check whether there is looseness;
• Rotate the handlebar to check whether it is too tightly;
• When the handlebar is loose or there is a knocking sound, please check and repair it in the Invanti dealer or
after-sales point;
Check wheels
• Check whether the wheels rotate smoothly, whether there is abnormal noise, and whether the front and rear
wheel fixing screws are tightened;
• Check whether the wheel net is deformed or cracked. In case of any damage, please check and repair it in the
Invanti dealer or after-sales point.
Check the brake
• Check whether the idle stroke of the brake handle is within the specified range. Generally speaking, the idle
stroke of the drum brake handle is 10mm - 20mm, that of the hydraulic disc brake handle is 5mm - 10mm, and
that of the brake pedal is 10mm - 20mm. All of them are obtained through measurement. In case of any error,
please adjust it;
• When riding at a low speed on dry and flat road, use the front and rear brakes respectively to check their
respective braking effects. The brake handle or brake pedal shall reach the maximum braking effect within 3/4
of the full stroke. When stopping the force, the braking force shall disappear and no self-braking is allowed
during riding;
• Replace it in time when the brake pads are severely worn or worn to the wear mark.
Check tire tread groove depth
Check the tire wear and the depth of tread groove. Replace the tire when it is used to the tire wear mark. In
case of any abnormality in the tire, please check and repair it in the Invanti dealer or after-sales point. The
recommended locking torque of the rear wheel is 40N.m - 45N.m, and that of front wheel is 30N.m - 35N.m.
Warning Lighting will affect the observation of road conditions, pedestrians and vehicles at night,
while the taillight will affect the observation of vehicles behind.
Check the tire
• Check whether the tire pressure is normal.
Judge whether the air pressure is appropriate according to the grounding depression of the tire. In case
of any abnormal air pressure, check it with a tire gauge and adjust it to normal.
The normal air pressure of this E-bike tubeless tires is shown in the tire label.
• Check whether the tires are cracked or abnormally worn;
• Check whether there are no nails, stones or glass embedded in the tread groove;
• Replace the tire when it is used to the tread wear mark;
Check the lighting device, brake and power outage
•Turn on the power, operate the lighting switch and the switch distance light. Check whether the headlight
and taillight are on, and whether the headlight is normal;
• Check the front and rear brake levers separately to confirm whether the power is off.
Check the handlebar steering
• Shake the handlebar to check whether there is any abnormal noise, and check whether the handlebar, front
fork and shock absorber are deformed, bent or cracked;
• Check whether there are abnormal phenomena in front fork and shock absorber, such as oil leakage, etc. In
case of any abnormality, please check and repair it in the Invanti dealer or after-sales point;
• Shake the handlebars to check whether there is any abnormal noise or movement in the front fork. In case
of any abnormality, please check and repair it in the Invanti dealer or after-sales point.
Check the E-bike before riding. Please repair it in time or seek professional repair in case of any abnormality.
11. Check before Use

17 18
Note for
water washing
• Disconnect the power supply of the E-bike before cleaning. Do not touch the
live parts with wet hands or metal conductors, such as battery charging/
discharging port;
• Do not rinse the electrical components with water, but wipe the E-bike
appearance with a wet towel after drying it;
• Avoid rinsing the charging socket, wiring harness connectors and fuses
with water. Do not directly splash water on the storage box;
• Do not splash water directly on the brake, motor and front and rear axles
to prevent water from affecting the service life of the E-bike components;
• Do not wash the E-bike with steam or high pressure water.
Usage and Maintenance of Controller
• Regularly check whether the fixing screws and wiring of the controller are loose.
• Regularly clean the dust on the controller surface, which is conducive to heat dissipation. It is forbidden to
wash the electrical components with water to avoid the danger of electrical short-circuit fault;
• It is strictly forbidden to modify the controller circuit without permission;
• Regularly check controller wiring and fuses, etc;
• In case of any abnormality in the controller, stop running immediately and send it to the Infanti dealer or
after-sales service for inspection and maintenance.
Motor installation and maintenance
• Regularly check whether the end cap screws on both sides of the motor are loose.
• Regularly check whether the motor wiring is loose, whether the appearance is deformed, and whether the
motor phase wire is damaged.
• For use in rainy days, the motor cannot be driven in deep water, and the water surface cannot exceed the
position of the rear axle.
• The hub of the motor cannot be violently impacted, the motor cannot be forced to run under the condition
of locked rotor, and overloading of the motor is strictly prohibited.
• If the motor is found to be running abnormally, stop the movement immediately, and check and repair it in
the Invanti dealer or after-sales point.
12. Use & Maintenance of Controller and Motor
Check the chain
Loosen the rear axle nut first, and then turn left or right to adjust the chain drawing nut to correct the
slack of the chain. When adjusting the chain, align the front and rear sprockets to form a straight line.
After adjustment, re-fix the rear axle nut and lock the drawing nut to make the upper and lower
movable distance of the loose side of the chain at the midpoint of the two sprockets reach
10mm - 15mm.
10-15mm

19 20
Regularly check the complete E-bike
• Check whether the fasteners are locked and whether the joints of various parts are normal;
• Check whether the pattern of the outer tire is worn or cracked, whether the front and rear tire pressure
is appropriate, and whether the drive system is smooth;
• Check whether the brake system is running properly;
E-bike storage method
• In case of not using this product for a long time, do not store it outdoors, or under strong light or below zero
temperature for a long time. Keep it from the heat source (e.g. heating equipment, etc.) not less than 2cm;
• Store in a dry, clean and well-ventilated indoor environment, with a temperature of 10°C - 45°C and a relative
humidity of not more than 90%;
• In case of not using the E-bike for a long time, charge it regularly (usually once every two months) to mainta
in the battery performance;
• Keep the E-bike away from corrosive liquids, and prevent it from any mechanical shock and heavy object
pressure.
Transportation
• During transportation, prevent it from severe mechanical shock, exposure to sunlight, rain, chemical
corrosive substances and harmful gas erosion;
• During loading and unloading, be careful to handle it gently to prevent dropping, rolling and heavy object
pressure.
Instructions of maintenance and cleaning
• It is forbidden to rinse the E-bike with water to avoid the hidden danger of accidents caused by the soaking
of internal electronic components and circuits;
• Please gently wipe the stains on the surface of paint or plastic parts with neutral detergent and rag, and
then clean it with a dry cloth;
• Please wipe the metal parts with lubricating oil for maintenance;
• It is strictly forbidden to inject oil into the brake part, so as to avoid danger caused by brake failure.
14. Maintenance & Repair
13. Troubleshooting
Fault Cause of fault Solution
No power after powering on
The motor fails to start after
powering on and turning
the handlebar.
Insufficient endurance
mileage
The battery is not charging.
No display on the instrument.
It is in the locking state.
1. It is in the braking state;
2. It is in the parking state;
3. The speed does not reach 6km/h;
4. The starting switch is faulty.
1. The battery is undercharged;
2. The tire pressure is insufficient;
3. Frequently start the brake;
4. The battery is aging or degraded
normally;
5. The ambient temperature is
low and the battery capacity is
degraded.
1. The charger plug is not inserted
properly;
2. The battery temperature is too
low;
3. The battery temperature is too
high.
1. The power connector is damaged;
2. The power converter is damaged;
3. The instrument is faulty.
1. Unlock the E-bike.
1. Whether the brake handle is
in the braking state;
2. Release the P gear;
3. Ride to 6km/h;
4. Please contact the after-sales
service worker.
1. Check the charger and confirm
whether is is damaged;
2. Check the tire pressure before
each use;
3. Develop good riding habits;
4. Replace the battery;
5. It is a normal phenomenon.
1. Check whether the plug is loose;
2. Wait for the battery to return to
charging temperature;
3. Wait for the battery to return to
charging temperature.
1. Check whether the battery plug
is inserted properly;
2. Charge the battery when it is
undervoltage;
3. Contact the after-sales service
worker to replace the damaged
parts.

21 22
15.Authentication
WEEE needs to properly dispose of and recycle the product. This sign indicates that the product should not be disposed of
together with other domestic waste throughout the EU.
Therefore, in order to prevent possible harm of uncontrolled waste treatment to the natural environment or human health,
it is necessary to recycle it and promote the sustainable reuse of material resources. To recycle the used product, use the
return and collection system or contact the retailer who can use the product for environmentally safe recycling.
Batteries or battery compartments are marked in accordance with the European Directive 2006/66/EC and the amendment
2013/56/EU on batteries and accumulator cells and scrap batteries and accumulator cells.
The directive applies to the recycling framework of waste batteries and accumulator cells throughout the EU. The label on
the battery indicates that the battery should not be discarded, but recycled at the end of its service life according to the
directive.
According to the European Directive 2006/66/EC and the amendment 2013/56/EU, batteries and accumulator cells are
labeled to indicate that they will be collected separately and recycled at the end of their service life. The label on the battery
may also contain the chemical symbols of the relevant metals in the battery (Pb, Hg and Cd). Users should not dispose of
batteries and accumulator cells as garbage, but use the collection framework available to customers to recycle and dispose
of batteries and accumulator cells. With the engagement of users, it is important to minimize any potential impact of
batteries and accumulator cells on the environment and human health due to the presence of potentially hazardous
substances.
Before placing electrical and electronic equipment (EEE) into a waste collection stream or waste collection facility, users of
equipment containing batteries and/or accumulator cells must remove these batteries and accumulator cells for separate
collection.
Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive.
The products and parts (cables, wires, etc.) of Invanti (Beijing) Technology Co., Ltd comply with the requirements of
directive 2011/65/EU on restricting the use of certain hazardous substances in electrical and electronic equipment ("RoHS
recasting" or "RoHS 2")
Applicable model: D1
The EU Compliance Statement is as follows:
EU Battery Recycling Information:
The product has passed the ANSI/CAN /UL-2272 certification of the CSA.
The battery complies with the UN/DOT 38.3.
According to the Federal Communications Commission (FCC) Compliance Statement as follows:
The product complies with part 15 of the FCC rules, and the operation must meet the following two conditions: (1) the
product should not cause harmful interference, and (2) the product must accept any received interference, including
interference that may lead to accidental operation. Any change or modification not expressly approved by the responsible
party may make void the user’s right to operate the product.
5TH WHEEL is a registered trademark of Invanti (Beijing) Technology Co., Ltd (hereinafter referred to as "Invanti"), which is
authorized to be used by Solowii (Beijing) Technology Development Co., Ltd. Android and Google Play are trademarks of
Google Inc. and the App Store is the service mark of Apple Inc. Their respective owners reserve the trademark rights
mentioned in this user manual.
The products involved in the registered trademark of 5TH WHEEL are protected by relevant patent laws. For relevant patent
information, please visit the website:https://5thwheel.life/.
In this user manual, we make our utmost to describe all the instructions and functions of the D1 electric scooter. With
constant updates and iteration, the D1 electric scooter received may be slightly different from the product features shown
in this manual. For more information, please visit the Apple App Store (iOS) to download the App.
Please note that Invanti has developed products with many functions and different models of products, and some of the
functions mentioned here may not be applicable to the product or equipment received. The manufacturer reserves the right
to change the design and function of the D1 electric scooter and documents without notice.
2021 Invanti (Beijing) Technology Co., Ltd all rights reserved.
If you encounter any problems when using the product, please feel free to contact us through the following methods or scan
the QR code to get a quick response and a satisfactory solution.
Email Address: [e-mail]
Contact Us
Trademark and Legal Statements
Get Customer Service
Use Camera or QR Scanner to Scan
Or Visit: https://5thwheel.life/pages/contact-us
Location of sticking the super key
