Grace ONE User manual

GRACE ONE
Manual
Stand 04/2013
GRACE ONE 2013
This user manual is valid for the GRACE ONE with the City and Universal frame variations
(type number WGRACEUXDB) delivered in the 2013 model year.

44
GRACE ONE 2013 Manual
Explanation of the safety instructions and symbols:
To begin with, we would like to familiarize you with the meaning of the attention signs
and hazard symbols that you will find in this user manual.
Please pay attention to the instructions displayed next to the symbols and follow them
without fail.
Caution!
This attention sign alerts you to a potentially dangerous situation, which
could result in injury to people in the vicinity and damage to
the product or
objects, if you fail to take the required action.
Danger!
This symbol indicates an imminent threat of explosion due to improper
handling of the battery and the charger for example.
Warning!
A warning about hot surfaces, for example brake disks and brake callipers
that become very hot due to the brakes and can cause burns if touched!
Information!
This sign shows you useful information on how to handle your product.
Please note!
This symbol indicates that your vehicle could suffer damage.

GRACE ONE 2013 Manual
45
Table of contents
Your GRACE ONE E-Motorbike
About this user manual...........................................................................................................................47
Before the first use .................................................................................................................................48
Description of the devices ......................................................................................................................49
Scope of delivery.....................................................................................................................................50
Accessories/options................................................................................................................................50
Safety instructions and tips.....................................................................................................................51
Initial operation
Charging the battery packs .....................................................................................................................53
Switching the bike on and off .................................................................................................................54
Checking the tyre pressure .....................................................................................................................55
Setting the seat height............................................................................................................................56

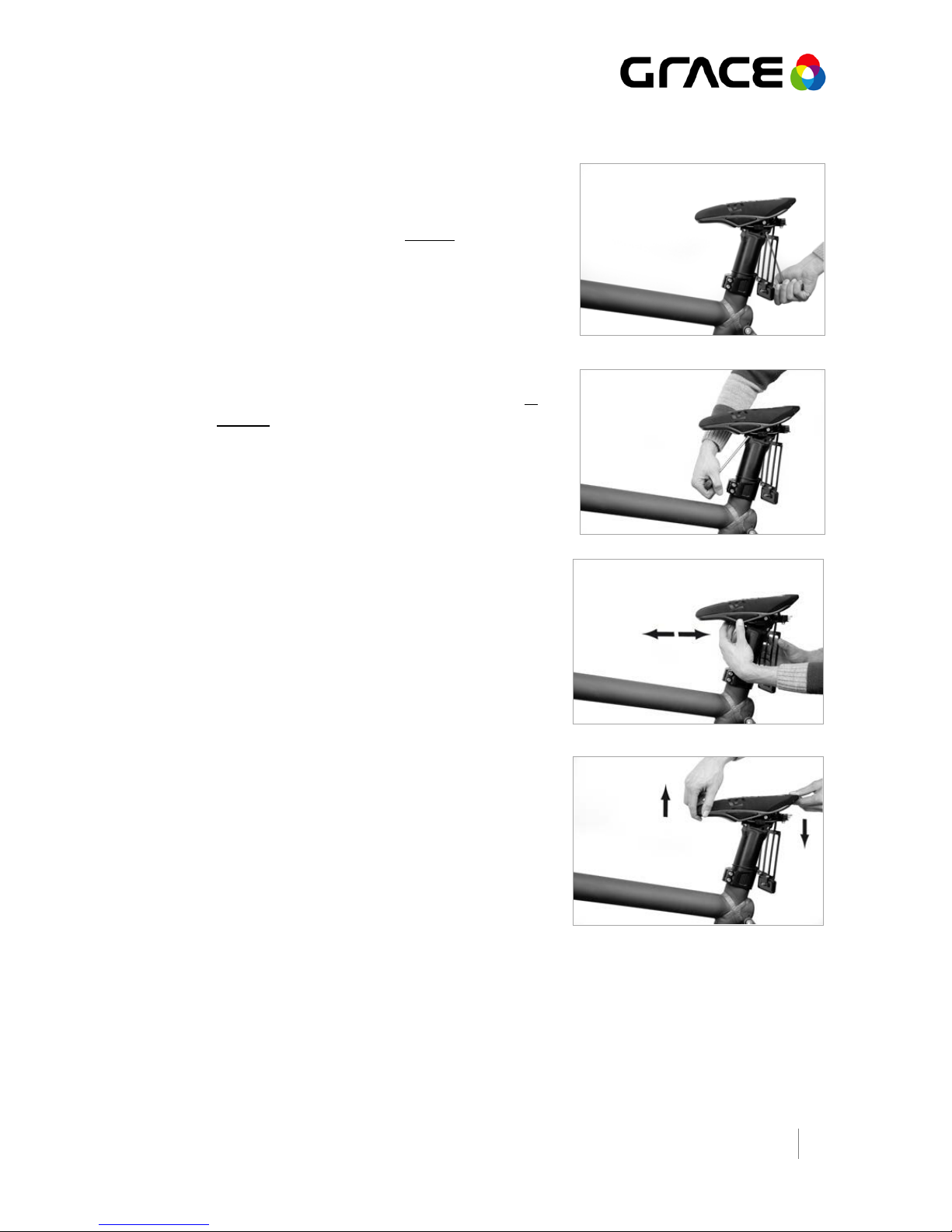

Setting the seat angle .............................................................................................................................57
Functional description

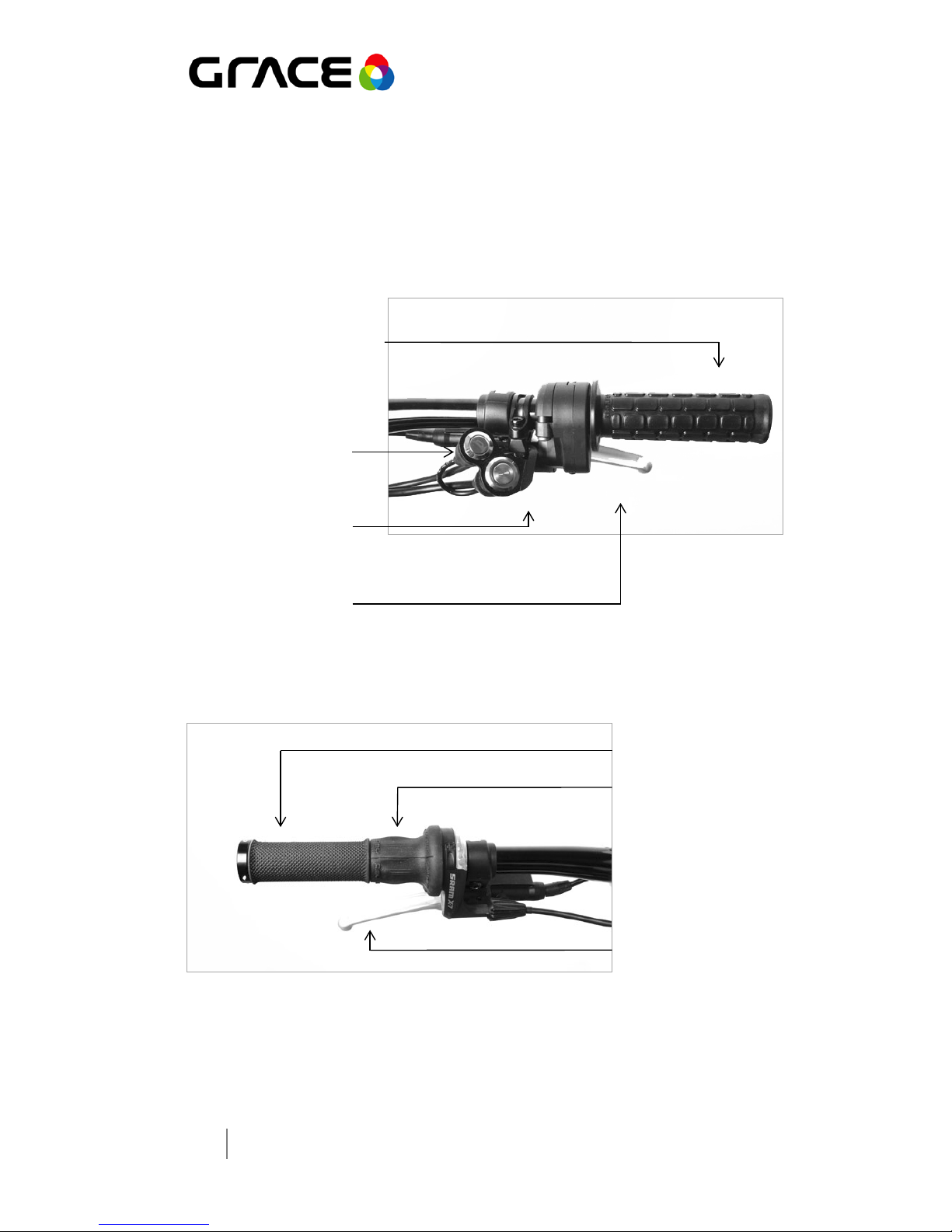

The handlebars .......................................................................................................................................58

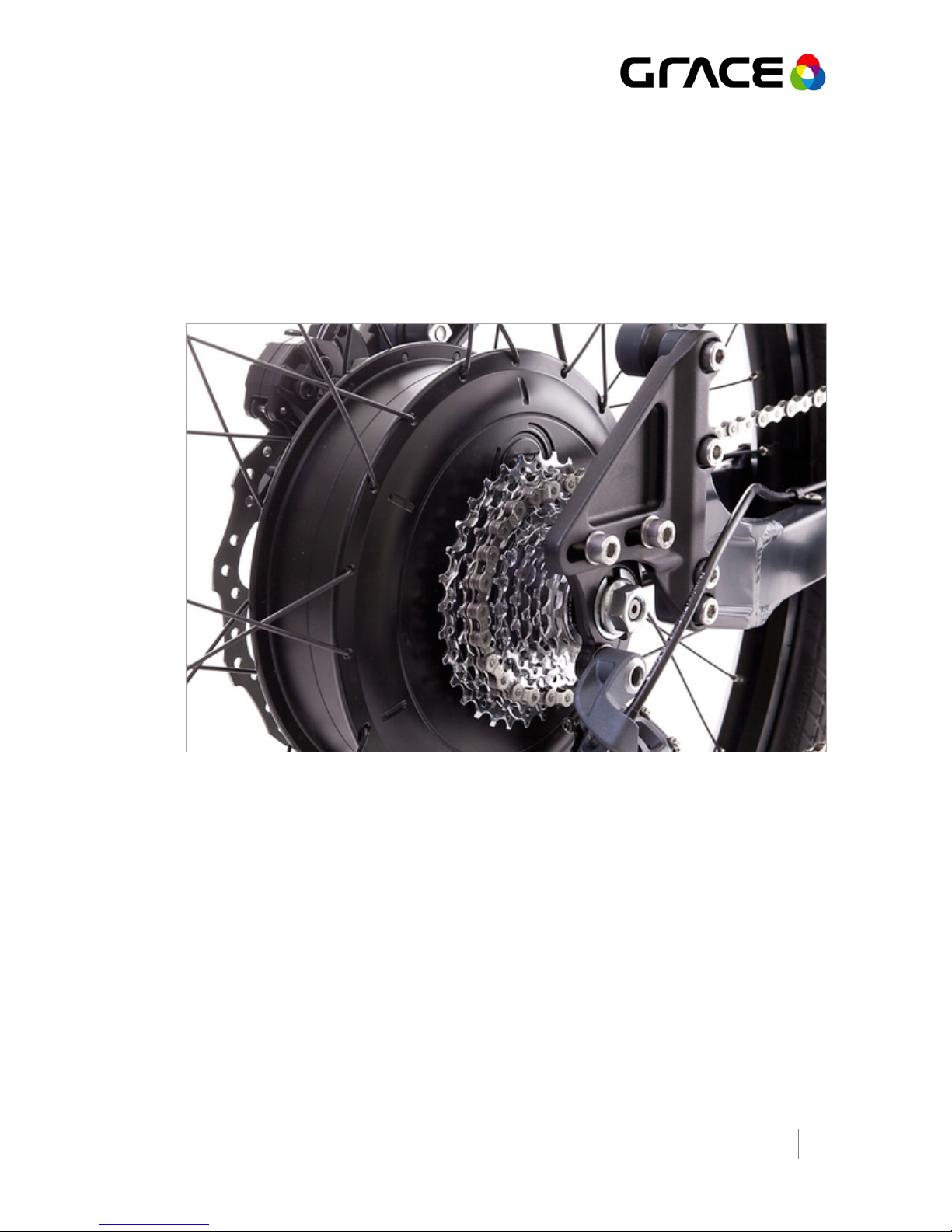

The motor ...............................................................................................................................................59
The cockpit..............................................................................................................................................60

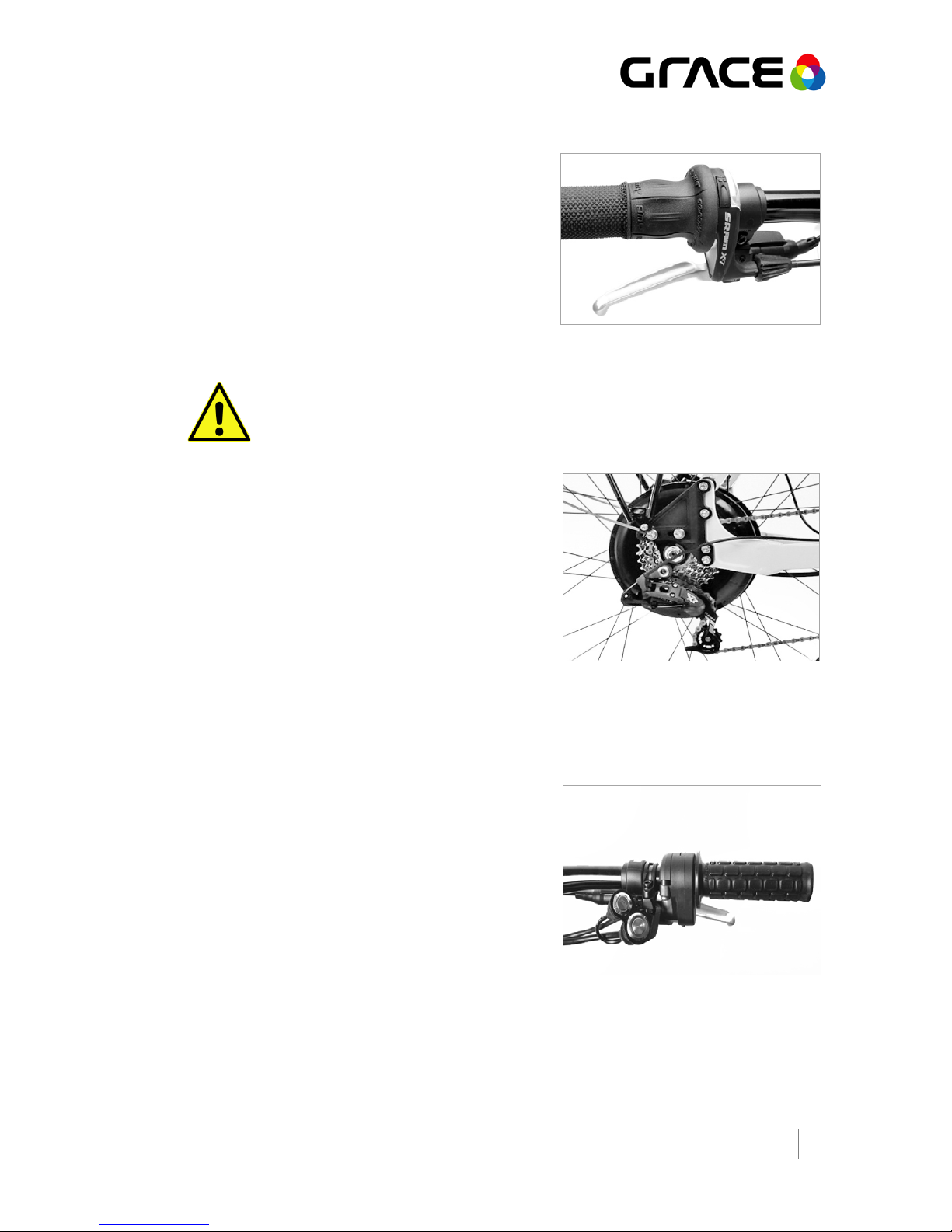

The derailleur system..............................................................................................................................61
The throttle system ................................................................................................................................61
The brakes...............................................................................................................................................62
The display ........................................................................................................................................ 63-64
Maintenance and repair
Prior to any maintenance work...............................................................................................................65
Disassembling the front wheel ...............................................................................................................66
Disassembling the rear wheel.................................................................................................................67
The drive chain........................................................................................................................................67
Changing the tyres............................................................................................................................ 68-69
Switching gears .......................................................................................................................................70
The suspension fork................................................................................................................................70
Checking the brake pads.........................................................................................................................70
Changing the lights .................................................................................................................................71
Adjusting the lighting..............................................................................................................................72
Wearing parts, maintenance, bike inspection after a fall ................................................................. 73-74

46
GRACE ONE 2013 Manual
Replacing parts ........................................................................................................................................75
Technical data .........................................................................................................................................76
Frame sizes..............................................................................................................................................77
Torques ...................................................................................................................................................78
Rear-view mirror installation guide ........................................................................................................79
Side reflector installation guide ..............................................................................................................80
Use in compliance with the regulations .................................................................................................81
Warranty conditions ...............................................................................................................................82
Attachment A: Delivery checklist
Attachment B: GRACE Service booklet

GRACE ONE 2013 Manual
47
Your GRACE ONE E-Motorbike
The GRACE ONE is the first E-Motorbike that has been authorized for road use worldwide.
It is equipped with a 1.3 kW motor with a speed of up to 45 km/h and has a range* of up
to 60 km.
In that way, the low weight and modern, high-performance lithium ion batteries make the
GRACE ONE E-Motorbike into an ecologically groundbreaking and efficient means of
transportation.
You can operate your GRACE ONE E-Motorbike independently with a motor drive or by
pedalling or you can choose to use a combination of the two drives.
The battery packs, which were developed exclusively for GRACE, are optimally suited to
the frame and provide the highest energy density with the least use of space.
The GRACE ONE E-Motorbike can be connected at any time to the automatic chargers
completely independently of the state of charge of the batteries.
About this user manual
The content of this user manual refers exclusively to the GRACE ONE City und GRACE ONE
Universal range of models (type number WGRACEUXDB) delivered in the 2013 model
year.
Please take the time to read through the following pages of this manual thoroughly and
attentively in order to familiarize yourself with the GRACE ONE E-Motorbike.
For maintenance and repair work, do not hesitate to consult your specialist retailer, whose
contact data you will find in the delivery checklist (Attachment A).
For care and maintenance of the components, please consult the instructions in the
component manufacturers’ manuals.
______________________
*Depending on the riding style, territory, weather and the use of a range extender

48
GRACE ONE 2013 Manual
Before the first use
As a moped, your GRACE ONE E-Motorbike is subject to the country-specific traffic
regulations. Please inform yourself about the guidelines that govern the equipment of
mopeds for use on the roads.
Helmets are required for riders of mopeds. Apart from the requirement of wearing a
safety helmet, it is also necessary to have an insurance sticker on the GRACE ONE E-
Motorbike and to be the holder of a class M driver’s licence.
We recommend that you try out your GRACE ONE in a suitable low-traffic location before
you venture into road traffic with it.
Please note that when you are operating the bike with the motor drive exclusively or if
you are using the motor and the pedals, the highest prescribed speed for mopeds, which
is 45 km/h, must not be exceeded.
Your GRACE ONE E-Motorbike will be delivered without installation of the rear-view
mirror or reflectors. In order to go out in road traffic, the rear-view mirror and the side
reflectors must be installed. For this, please follow the assembly instructions on pages 79-
80 in this manual.
In order to go out in road traffic, the rear-view mirror and the side
reflectors
must be installed.
Modifications of your GRACE ONE E-Motorbike, which result in an increase in
motor power and
speed, compromise your driving safety and can lead to the
loss of your driver’s licence and insurance coverage.
Please lift your GRACE ONE slightly, when you set it on the double kickstand.
To do this, grip the bike with one hand in the middle of the
handlebar and
place the other hand under the seat.
In this way, you will avoid damage to the stand.
Description of the bike

GRACE ONE 2013 Manual
49
1. Seat 12. Stem
2. Brake light, rear light 13. Rear-view mirror
3. Seat post with range extender 14. Halogen headlamp
4. Seat post clamp 15. Front mudguard*
5. Luggage rack* 16. Fork
6. Rear mudguard* 17. Control unit
7. Hub motor 18. Front wheel
8. Rear wheel 19. Hydraulic disk brake
9. Chain 20. Crank and pedal
10. Double kickstand 21. Down tube with
11. Top tube with integrated battery packs integrated battery packs
22. Motor Plug-Connector
23. USB-Port (only for the service)
24. Charging-Port
*Luggage racks and mudguards are available as optional features.
Scope of delivery
24
23
22222222
22

50
GRACE ONE 2013 Manual
1 standard charger (weight: 850 g, dimensions: 155 x 85 x 45 mm)
2 key cards (ISO card: 85.6 x 54 x 0.85 mm)
2 transport locks for the brake system
1 user manual
2 reflectors
1 rear-view mirror
Keep the yellow transport locks for the brake system. They will be needed,
when wear to the
brakes is being examined and serve as a helpful tool for
repairs.
Please consult the completed transfer protocol, which has been prepared for you by your
dealer, to find out about the individual equipment of your GRACE E-Motorbike.
(Attachment A)

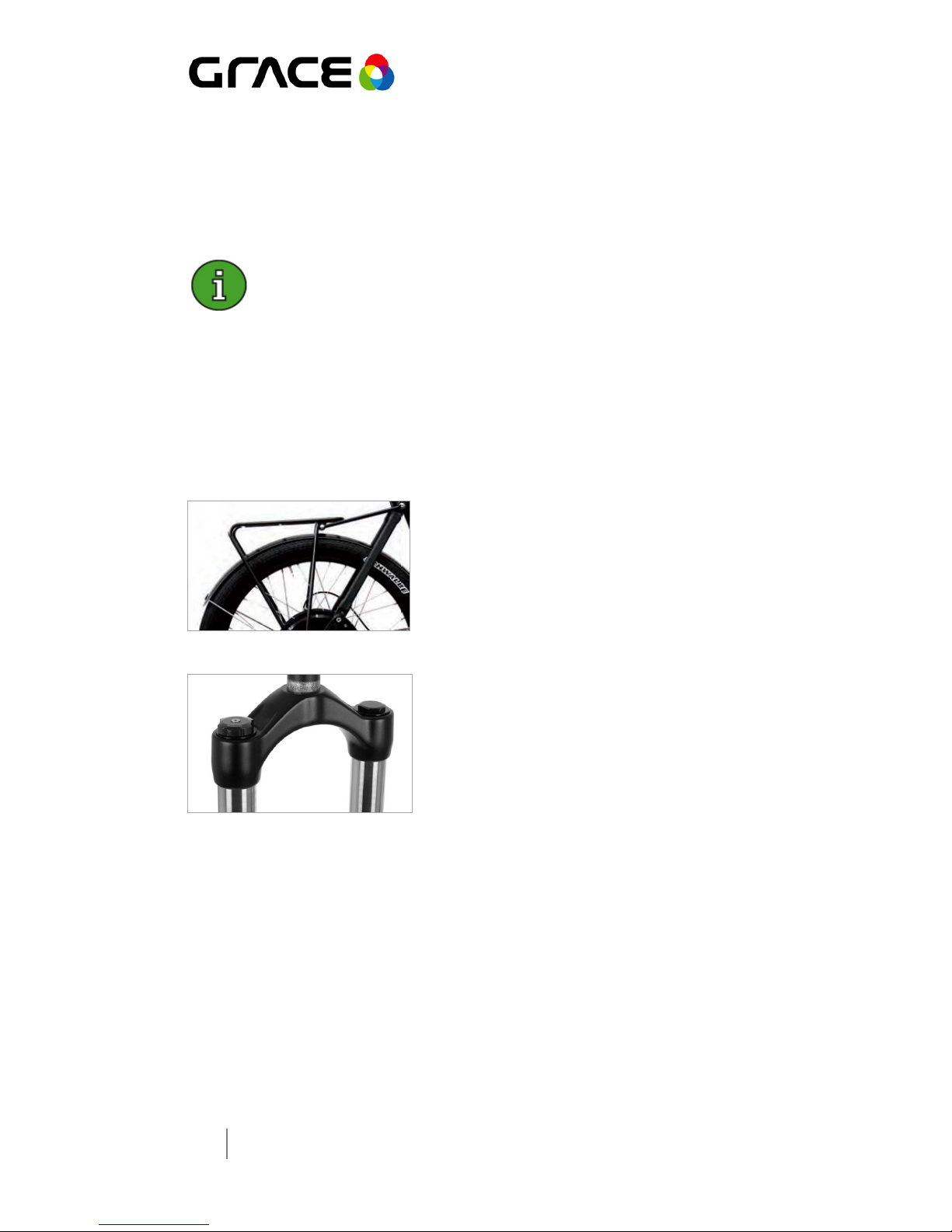

Accessories/options
Curana C-Lite mudguards (26'' x 60mm) and Tubus Vega
luggage rack in a typical minimalistic design for trips
under any weather conditions and the comfortable
transport of your luggage.
The Domain RC suspension fork ensures that there is
even more ground clearance and comfort.
This
suspension fork from the renowned manufacturer Rock
Shox is outst
anding in its functionality and
is virtually
maintenance
-free.
Safety information

GRACE ONE 2013 Manual
51
Always check that the lights and the horn are working before using your bike.
Wear safety helmet when you ride the GRACE ONE E-Motorbike. We also
recommend that you wear safety goggles.
Make sure that you avoid the use of loose leg wear. In that way, you can
prevent clothing from being caught in the chain or between the spokes.
Check all wearing parts regularly. These include, but are not limited to the
drive chain, lights, brake pads, brake disks, seals, the cartridge and tyres.
Check your GRACE ONE regularly for loose spokes as they can lead to
instability at high speeds.
Modifications of your GRACE ONE E-Motorbike, which result in an increase in
motor power and speed, compromise your driving safety and can lead to the
loss of your driver’s licence and insurance coverage.
Please note that the E-Bike for safety reasons only responds to the throttle
operation when the rear wheel will be moved contemporaneously.
To save energy the GRACE ONE turns off automatically when not in use after
10 minutes.
Even when switched off electrical currents can still be in the system. If you
need to separate electrical connections please make always sure to
disconnect and to connect the contacts cleanly.
To avoid short circuits in
the system please to not touch the frame or not
foreseen contacts.

52
GRACE ONE 2013 Manual
Important tips and instructions for handling lithium ion batteries
If you don’t wish to use your GRACE ONE for an extended period of time (> 1
month), make sure that the battery voltage is not below 44 volts.
In this way,
you can extend the length of the life span of your battery pack.
You can read
the battery voltage off the display (page 63).
Lithium ion batteries have no memory effect, therefore you can charge your
GRACE ONE
at any time irrespective of the state of charge of the batteries.
However, we recommend that you use up the battery capacity fully at
regular
intervals to achieve the best possible life span.
If your GRACE ONE cannot be switched off as usual, there could be a defect in
the controls. I
n this event, contact your GRACE dealer immediately in order to
avoid long-term damage to the batteries.
