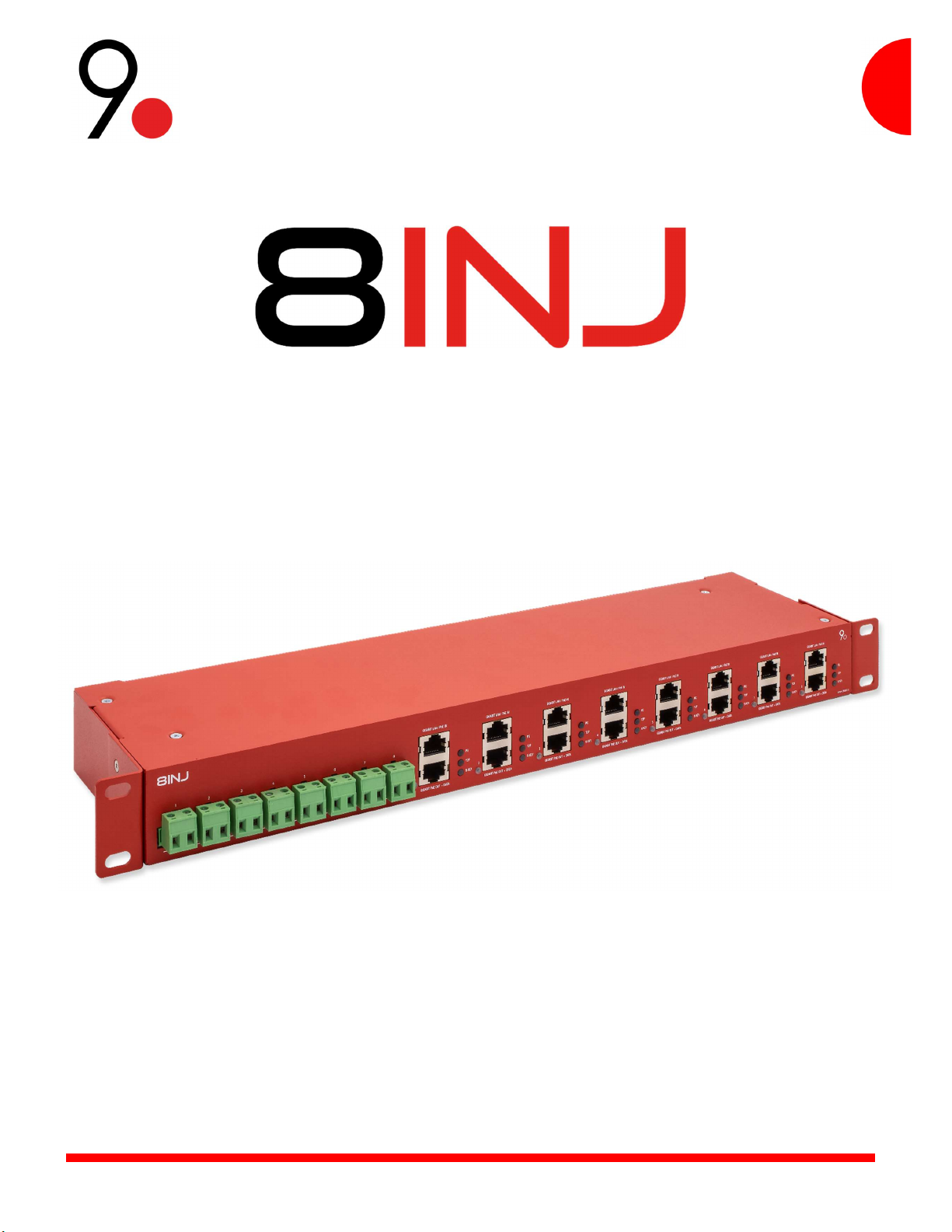

9dot 8INJ User manual

1
8INJ MANUAL VER. 2 REV. 0

2
8INJ MANUAL VER. 2 REV. 0
Important notes .........................................................................................................................................................................3
Safety ..........................................................................................................................................................................................4
General warnings and precautions ............................................................................................................................................4
Certifications and compliances ..................................................................................................................................................4
Guarantee ...................................................................................................................................................................................4
General description ....................................................................................................................................................................5
Features 8INJ ..............................................................................................................................................................................7
Manages any kind of PoE .................................................................................................................................................................................................................. 7
Surge protection ................................................................................................................................................................................................................................. 7
More power ........................................................................................................................................................................................................................................ 7
Compact design ................................................................................................................................................................................................................................. 7
Label ........................................................................................................................................................................................................... 8
Technical specifications .............................................................................................................................................................9
Installation ............................................................................................................................................................................... 10
Typical configuration ........................................................................................................................................................................................................................ 10
Physical interface ..................................................................................................................................................................... 11
LED coding ............................................................................................................................................................................................... 11
Power input .............................................................................................................................................................................. 11
Special case -48V ............................................................................................................................................................................................................................ 11
Output power ........................................................................................................................................................................... 11
GigaKey ............................................................................................................................................................................................................................................ 11
Official distributors .................................................................................................................................................................. 13

3
8INJ MANUAL VER. 2 REV. 0
Important notes
 Warnings and cautions must be read and understood before installing 9dot products. Otherwise, personal injury could
occur.
 The photographs, diagrams and figures contained in this manual are for illustrative purposes only. They may not
match to your installation.
 9dot will not be liable for eventual damage or injury involving its hardware if it is used in any way inconsistent with
its intended purpose, or if it is installed or used in an untested manner or is improperly maintained.
 The material in this document is for informational purposes only and is subject to change without notice. While
reasonable efforts have been made in the preparation of this document to ensure its accuracy, 9dot assumes no
responsibility for errors or omissions in this document or for the use of the information contained therein. 9dot
reserves the right to make changes to the design of the product without reservation and without prior notice to its
users.
 The operator is advised to review the drawings and illustrations contained in this manual before proceeding. If you
have any questions regarding the safe operation of this power system, please contact 9dot or your nearest 9dot
distributor1.
 For more information, visit www.9dot.it
For technical support, please contact:
Email: [e-mail]
1
See section "Official Distributors"

4
8INJ MANUAL VER. 2 REV. 0
Safety
This manual contains important safety instructions that must be followed during installation, operation, and maintenance of
the product. Review the drawings and illustrations in this manual before proceeding. If you have any questions regarding the
safe installation or operation of this product, please contact 9dot or your nearest 9dot representative. Please keep it in a safe
place for future reference.
To reduce the risk of injury and to ensure continued safe operation of this product, the following terms have been incorporated
into this manual:
 ATTENTION: indicates safety information intended to prevent damage to people, materials or equipment
 IMPORTANT NOTE: additional clarifications on some features, terminology, reminders, etc.
Where they appear, please take more care and attention.
General warnings and precautions
You should read and understand the following warnings before installing the 9dot 8INJ and its components. Otherwise, it could
cause personal injury.
• Read and follow all instructions included in this manual.
• Don't work alone in dangerous conditions.
• Only qualified personnel may install, use, and repair this system and its components.
• Always assume electrical connections or conductors are live. Turn off all switches and recheck connections with a
voltmeter before installation or maintenance.
• Keep the installation area clean and dust-free during and after installation.
• Wear safety glasses when working in conditions that can be dangerous to the eyes.
Certifications and compliances
The equipment complies with FCC rules and regulations, European CE standard and RoHS directive.
Guarantee
To know the guarantee of our products, consult with our nearest distributor. See the “Official Distributors” section of this
document.

5
8INJ MANUAL VER. 2 REV. 0
General description
8INJ is a Power over Ethernet injector with integrated surge protection device belonging to the Smart Power Module System
family: a simple system designed to power up to 8 PoE devices where Plug n 'Play is required. Each PoE port works
independently and ensures the highest level of reliability and security.
There are power terminals for each port. Each power supply terminal has its own voltage present LED indicator.
Gigabit data port, galvanically isolated.
Gigabit port with PoE output to power different devices according to the chosen GigaKey. The output voltage of the PoE port
is equal to the input voltage at the power connector of the same port.
On the front there is a “9.KEY” LED that will indicate if the key is inserted correctly.
On the front there is a LED with the port number (1 to 8) which indicates if the port is powered.
2
LAN PORT
3
POE INJECTOR
4
GIGAKEY LED INDICATOR
Figure 1 – 8INJ front view
1
POWER CONNECTORS
5
PORT INDICATOR LED
1
2
3
4
5
9
9
o
8
INJ
MHUB
'
Ma
tWTUIlMM
mMtjm
.
nn
_
iiiiiiinE
ì
B
-
-
U
i
-
H
•
B
i
H
-
B
•
H
i

6
8INJ MANUAL VER. 2 REV. 0
This image indicates the correct position for inserting the GigaKeys, with the serigraphy facing upwards.
On the back of the unit there are slots for inserting the GigaKey keys that allow you to select the output pin of the PoE port
without the use of microswitches in order to provide PoE to a wide range of devices.
6
GIGAKEY
Figure 2 - 8INJ rear view
7
GIGAKEY SLOT
6
7
/
v
\
ai
/ \
JC &
J
i
/
v
/
b
'
"
C
ajl
lu
!
d
u
t
ó
smaa
Mxmm
umana
minim
JllllllllL
umilili
minim

7
8INJ MANUAL VER. 2 REV. 0
8INJ features
Manages any kind of PoE
Each port can be configured to handle a different type of PoE injection map. The configuration of the power pin out is simple
and does not require any IT skills: just insert the specific electronic GigaKey and the port is configured.
Surge protection
Connected devices are protected from electrostatic overvoltage and electric shock. The combination of different types of
arresters maximizes efficiency and reduces the action time.
Galvanic Isolation
Galvanic isolation protects circuits and people from overvoltages between the input side and the output side. This results in
the best protection for your devices and for you.
More power
Up to 3A (145W@48V) per PoE port.
Compact design
The unit can manage up to 8 PoE ports. All functionalities are contained in a single rack unit.

8
8INJ MANUAL VER. 2 REV. 0
Label
This device is equipped with a label with the relevant information, which we will describe below.
As we can see, on the label it says:
• The product code: 8INJ, with its short description.
• The serial number.
• The part number P / N.
• Indications of compliance with FCC, CE and RoHS certifications and directives.
• Indications of power requirements and operating temperature range.
The image of the garbage container indicates that this equipment should not be placed in household containers. Instead, it
must be disposed of correctly in compliance with current regulations.
Figure 3 – 8INJ label example
8
INJ
#
8
Injector
Serial
:
1
9
,
RSC
Power
requirements
:
21.4
-
57
VDC
=
-
=
-
=
up
to
3
A
per
Port
Operating
temperature
:
-
20
to
+
55
°
C
Made
in
Italy
-
P
/
N
:
02101912110100
-
9
DOT
Sri
-
www
.
9
dot
.
it

9
8INJ MANUAL VER. 2 REV. 0
Technical specifications
8INJ
Product code 8INJ
ELECTRICAL SPECIFICATIONS
Operating voltage [V] Clamps: 10 to 60 AC/DC
Power connectors 8 x cable terminals 2 x 3.3 mm2
Typical current per port [A] (*)
3
Door led indicators
9.KEY:
key presence
;
number
1
to
8:
presence power
port
Peak current protection [kA] 15
Overvoltage protection [V] 150
Protection mode All the lines (1-8) Protected (L-L) and (L-G)
SPD technology 2 phases: TVS and GDT
NETWORK SPECIFICATIONS
Ethernet connector 16 x jack RJ45 shielded (8 x LAN, 8 x PoE + data)
Speed network transmission 10BaseT; 100BaseT; 1000BaseT
MECHANICAL SPECIFICATIONS
Dimensions (LxPxH) [mm] 105 x 445 x 45
Weight [Kg] 2
Material Varnished iron
Mounting
R
ack 19”
ENVIRONMENTAL SPECIFICATIONS
Operating ambient temperature [° C] -20 to +55
Operating humidity without condensation [%] 5 to 95
IMPORTANT NOTES:
• (*) Although the typical value indicates that 3A current can flow continuously and indefinitely, this value must not be
exceeded.
• (*) The typical current of 3A per port can be reached if the PoE configuration chosen to power a device is via GigaKey:
GS-K-AB or GS-K-9.S because both use all four pairs of conductors for power supply. If instead we use the other
GigaKeys: GS-K-B or GS-K-BR, the typical current per port will be 1.5A2.
2
See the “GigaKey” section

10
8INJ MANUAL VER. 2 REV. 0
Installation
The 8INJ is designed for installation in a 19 "rack cabinet, however the fixing flaps can be rotated 90 ° for wall mounting.
IMPORTANT NOTE: Use only the parts supplied with the device for fixing the fins; the use of different parts can cause
irreparable damage to the device.
Before turning on the device it is advisable to connect the grounding terminal, fix the chassis to the cabinet or to the wall,
insert the chosen GigaKey keys and connect the signal cables, in particular:
• Wire the power supply.
• Connect the ethernet cables.
• Connect the power supply pins of the power supply to each port, paying attention to the polarity adopted.
• Connect the power supply to the electricity.
These cables are not supplied with the 8INJ.
Typical configuration
A typical configuration that can be obtained with this device is to combine it with NCore Lite, an Active Power Station 9dot
with 8 configurable power outputs for different voltages that allows modular power supply with ACDC or DCDC and has a
battery charger.
By powering an 8INJ with NCore Lite we can improve the benefits of both devices by remotely managing each output port and
thus having remote and indirect control over the input power of the 8INJ's PoE ports. That is, by controlling the NCore Lite
solution will allow you to control 8INJ ports as well.
This configuration transforms a PoE injector device into a remotely manageable integral power solution.
Figure 4 – configuration example 8INJ supplied by NCore Lite
Remote
Management
4
Batteries
12
V FIAMM
AC
Solar
Power
AVAVAVAVAVAVAV
MIA
llllllll
iUI
tmrn
<
R
•
!
!
:
Router
/
Switch
12
-
24
-
29
-
48
-
54
V
Passtrough
The
voltage
may
vary
depending
on
the
NCore
Lite
configuration
r
«
l
'
1
«
«
I
i
*
CAMBIUM
450
m
°
/
48
VPoE
/
Siae
/
Ceragon
Cambium
29
V
PoE

11
8INJ MANUAL VER. 2 REV. 0
Physical interface
LED coding
Below are the meanings of the LEDs:
LED Color Description
9.KEY Fixed green GigaKey inserted correctly
Numero di porta (da 1 a 8) Fixed green Power supply on the door
Table 1 – LEDs indications
Power input
The power input technical information is detailed below:
Input voltage Self-consumption Max load
Input 10 – 60V DC < 0.25W per port 180W
Table 2 - voltage range, self-consumption and maximum input load
IMPORTANT NOTE: Each power connector is galvanically isolated from the others.
Special case -48V
The power input does not allow polarity inversion. If you have a voltage of -48V (as often happens in some telecommunications
systems), it is sufficient to connect the 0V cable to the positive (+) terminal and the -48V to the negative (-) terminal according
to the indications of the silkscreen.
Output power
The main function of the PoE injector of this device is to allow the powering of other equipment on the network. 8INJ PoE
injector are passive injectors.
IMPORTANT NOTE: Unlike active PoE, passive PoE does not use any protocol to determine the type of device to be powered;
it simply applies a type of voltage to its port without identifying which type of PoE standard or supply voltage the connected
load is compatible with. Using an unsuitable voltage and / or wrong pin out can cause irreparable damage to the powered
device.
It is possible to power a wide range of devices that accept different voltages as this device essentially replicates the voltage
from the power terminals to the PoE output ports without applying any conversion.
This offers great versatility when it comes to connecting several PoE devices in the same infrastructure as each port can be
powered with a different voltage than the rest.
In addition to supporting different voltages, the 8INJ has the ability to select the pin out of the PoE output ports, with the
GigaKey, thus allowing it to power a wide range of devices on the market.
To find out if your PoE device can be powered via 8INJ, just check the pin out that the GigaKeys allow you to select and see if
it matches the input pin out of your equipment3.
GigaKey
This is the generic name that identifies the output pin out selection keys of each PoE port.
3
See the “GigaKey” section

12
8INJ MANUAL VER. 2 REV. 0
The GigaKey has been designed to avoid manipulating the microswitches or jumpers which usually satisfy this function but
are subject to errors. This simplifies the selection, which can be done simply by inserting the chosen key into the slot
corresponding to the PoE port.
If desired, you can select a different key for each PoE port on the same unit.
At the moment 4 different GigaKeys have been developed that allow a wide range of compatibility between the devices on the
market. They are easy to identify through their code and different colors.
Pin out GigaKey
Code GS-K-9.S GS-K-AB GS-K-B GS-K-BR
Name on the GigaKey 9.SYNC A+B B Brp
PoE Mode A + B reverse polarization A + B B B reverse polarization
wires
1,2
DC +
DC +
wires 3,6 DC – DC –
wires 4,5 DC – DC + DC + DC –
wires
7,8
DC +
DC
–
DC
–
DC +
COMPATIBILITÀ (*)
Cambium 450m •
Cambium 450i • •
Cambium 450 •
IEEE 802.3af/at
•
10/100Base-T PoE •
1000Base
-
T PoE
• •
Intracom / Siae • •
Mikrotik / Ubiquiti • •
Ceragon
•
Table 3 – Pin out GigaKey keys
(*) These are just some of the devices that can be powered by 8INJ. The list is very long, if you want to know if your equipment can be connected to 8INJ, please do
not hesitate to contact us.
Pay attention to the direction of insertion of the GigaKeys in the slots: the correct position is with the screen printing facing
upwards.
ATTENTION: in case of incorrect insertion of the GigaKey, the device will still supply power to the port, but with an
unpredictable pinout. This can cause damage to connected devices.
Special case -48V
There are installations that require -48V power supply via the network, this option is perfectly feasible with 8INJ. We simply
have to connect -48V to the 8INJ
4
input and then choose the correct GigaKey in order to get -48V on the PoE ports based on
the input pin out of the devices we want to connect.
Protection
On each port there are double phase surge arresters TVS (Transient Voltage Suppression) and GDT (Gas Discharge Tube).
4
As explained in the section "Power input"
9
limimi
9
o
9
.
SYNC

13
8INJ MANUAL VER. 2 REV. 0
Official distributors
EUROP
A
, ASIA
&
AFRICA
Telcomms Srl
Via Giuntini 25 int. 22
56023 Navacchio (PI), Italy
([phone]
[email protected]
www.telcomms.it
Skylinks Telecoms
Unit 31, Ramstown, Gorey Business Park, Co.
Wexford, Y25 HC67, Ireland
0402 21955
[email protected]
www.skylinkstelecoms.ie
VanCo
U Čokoládoven 9
143 00 Praha 12, Czech Republic
[phone]
[email protected]
www.vanco.cz
Wifidom
Offices
Calle Valencia 63
08015 Barcelona, Spain
Headquarters
Avenida de la Industria, 32 28108 Madrid,
Spain
Offices
([phone]
Headquarters
([phone]
[e-mail]
www.wifidom.com
Winncom Technologies Regional
Presence
Ireland
Suite 144 The Capel Building Suite 5, Mary's
Abbey,
Dublin 7, Ireland
[phone]
[email protected]
www.winncom.com

14
8INJ MANUAL VER. 2 REV. 0
USA & CANADA
Streakwave Wireless, Inc. Headquarters
840 Jury Ct, San Jose, CA 95112, USA
Utah sales and distribution
1420 S 4800 W Suite B, Salt Lake City, UT
84104, USA
Ohio sales and distribution
11777 Enterprise Dr, Cincinnati, OH 45241,
USA
[phone]
[email protected]
www.streakwave.com
Winncom Technologies World Headquarters
28900 Fountain Pkwy, Unit B Solon, Ohio
44139, USA
[phone]
[email protected]
www.winncom.com
LATINA AMERICA
&
THE CARIBBEAN
Winncom Technologies CALA Offices
3840 W 104th Street, Unit 6, Hialeah, FL 33018, USA
440-519-2984 or 1-888-946-6266 EXT 146
Spanish and English
[email protected]
[e-mail]
www.winncom.com
Visit us on our website: www.9dot.it
9dot is a registered trademark of 9dot in the European Union. Copyright © 2020 9dot.
Due to continuous product development, 9dot reserves the right to change specifications without prior notice.
CENTRAL ASIA & AUSTRALIA
Winncom Technologies Regional Presence
Uzbekistan
35, 6th passage, A. Kahhar St., Tashkent
100025, Uzbekistan
[phone]
[phone]
For US callers: 1 [phone] office code
802, Operator: 309, Sales: 332/333
[e-mail]
www.winncom.uz
Streakwave Pty Ltd
Ground Floor - 470 St Kilda Road
MELBOURNE VIC 3004
[phone]
[e-mail]
