A SYSTEMS DMP808 User manual

User’s Manual
Manual del Usuario
Automatic Matrix Mixer
DMP808

2
English
DMP808
V2 03/24/2016
IMPORTANT SAFETY INSTRUCTIONS�������������������������������������������������������������������������������������� 1
INTRODUCTION�������������������������������������������������������������������������������������������������������������������������� 2
FEATURES����������������������������������������������������������������������������������������������������������������������������������� 2
GETTING STARTED �������������������������������������������������������������������������������������������������������������������� 2
GLOSSARY���������������������������������������������������������������������������������������������������������������������������������� 3
CONTROLS & SETTINGS ����������������������������������������������������������������������������������������������������������� 3
DMP808 CONTROL SOFTWAREE ��������������������������������������������������������������������������������������������� 5
SIGNAL PROCESSORS ������������������������������������������������������������������������������������������������������������ 18
TROUBLESHOOTING ��������������������������������������������������������������������������������������������������������������� 19
SPECIFICATIONS���������������������������������������������������������������������������������������������������������������������� 20
PARAMETERS ��������������������������������������������������������������������������������������������������������������������������� 21
A Systems reserves the right to alter any information contained within
this manual without prior notice�
CONTENTS

1
English
DMP808
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR

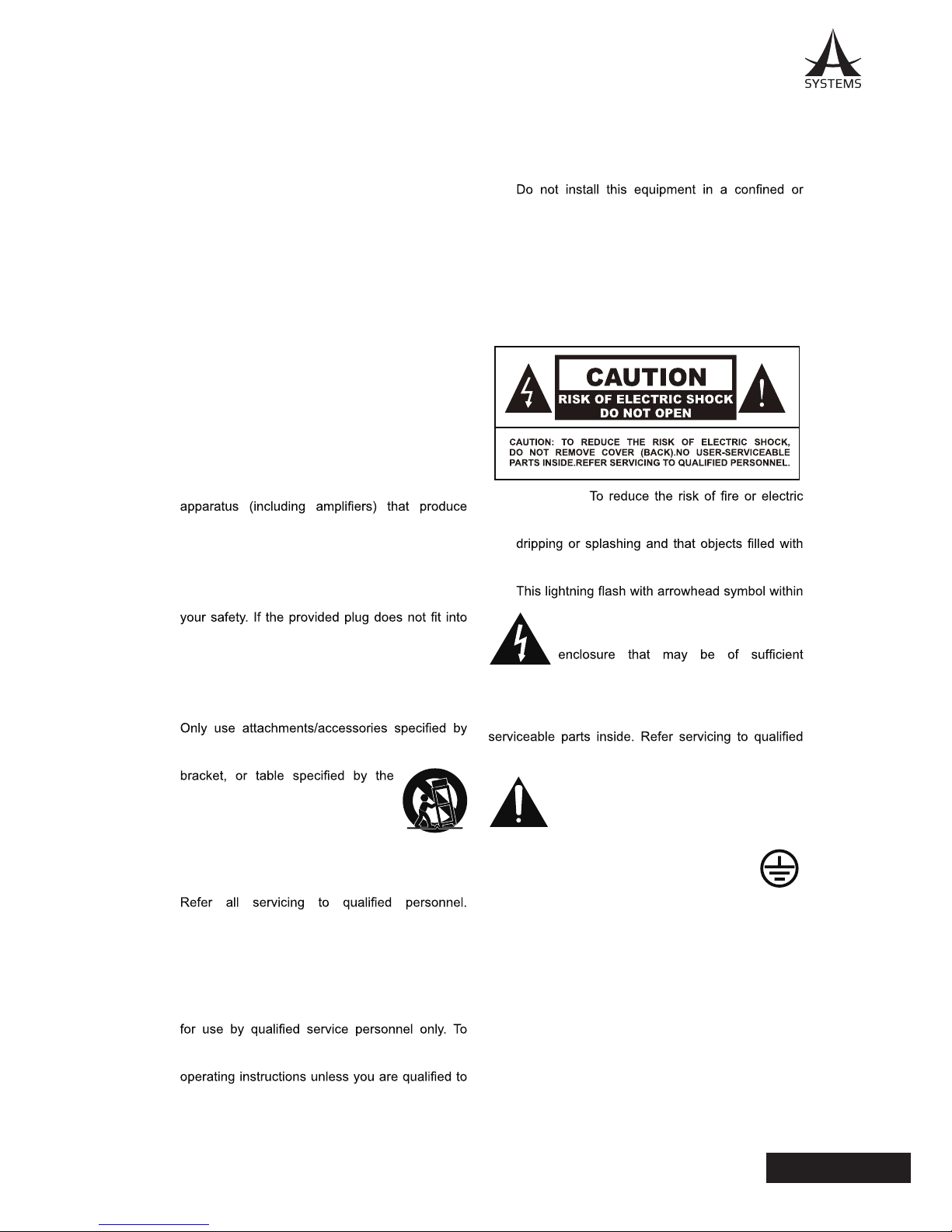

1. Read these instructions – All the safety and
operating instructions should be read before this
product is operated.
2. Keep these instructions – The safety and
operating instructions should be retained for
future reference.
3. Heed all warnings – All warnings on the appliance
and in the operating instructions should be
adhered to.
4. Follow all instructions – All operating and use
instructions should be followed.
5. Do not use this apparatus near water – The
appliance should not be used near water or
moisture – for example, in a wet basement or
near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacture’s instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
heat.
9. Do not defeat the safety purpose of the polarized
or grounding plug. A polarized plug has two
blades with one wider than the other. A grounding
plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for
your outlet, consult an electrician for replacement
of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from
the apparatus.
11.
the manufacturer.
12. Use only with the cart, stand, tripod,
manufacturer, or sold with the
apparatus. When a cart or rack is
used, use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13. Unplug the apparatus during lightning storms or
when unused for long periods of time.
14.
Servicing is required when the apparatus has
been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
15. CAUTION: These servicing instructions are
reduce the risk of electric shock, do not perform
any servicing other than that contained in the
do so.
16.
building-in space such as a book case or similar
unit, and remain a well ventilation conditions at
open site. The ventilation should not be impeded
by covering the ventilation openings with items
such as newspaper, table-cloths, curtains, etc.
17. WARNING: The mains plug/appliance coupler is
used as disconnect device, the disconnect device
shall remain readily operable.
18. This apparatus is for professional use only.
19. WARNING:
shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to
liquids, such as vases, shall not be placed on
apparatus.
20.
an equilateral triangle is intended to alert
the user to the presence of non-insulated
“dangerous voltage” within the product’s
magnitude to constitute a risk of electric
shock.
Warning: To reduce the risk of electric shock, do
not remove cover (or back) as there are no user-
personnel.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance instructions in the literature
accompanying the appliance.
21. Protective earthing terminals. The
apparatus should be connected to a
mains socket outlet with a protective
earthing connection.
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
IMPORTANT SAFETY INSTRUCTIONS

2
English
DMP808
INTRODUCTION
Congratulations on your purchase of a DMP808 Automatic Mixer� The DMP808 provides a simple, effective way to
maintain your audio levels in live venues without having to keep on your toes� A single DMP808 offers twelve-in, eight-
out support and the entire unit can be controlled remotely through standard potentiometers and remote controls� Internal
processing is accomplished through a high quality 40-bit oating point processor, with internal signal processors and
matrix routing all handled with ease�
Clear, easy-to-use software on your Windows computer makes control of your onboard processing simple� The software
offers full performance monitoring for each processor, giving real-time information on the load placed upon DSPs�
We know how eager you are to get started – hooking up your new DMP808 is probably your rst priority right now – but
we would advise that you take the time to look over this manual. Inside you’ll nd important safety considerations and
operating instructions that could prove helpful� After reading the manual, we would suggest putting it somewhere easy to
nd as you will probably need to refer to it later on.
FEATURES
√ 8 input channels and 8 output channels available via 3-pin euroblock connections with 4 additional RCA inputs
√ 8 x 8 matrix mixing
√ 40-bit floating point processor with internal sampling selectable between 44.1 and 48 kHz
√ Ethernet connectivity for network control application
√ Automatic DHCP network IP configuration
√ Easy and intuitive control software from A Systems
√ User-accounts with multi-layer security
√ 4-band parametric EQs and 31-band graphic equalizers
√ Autoleveler (Loudness Control)
√ Compressors and noise gates
√ Level ducking with trigger control
√ All signal processors flexible and user-controllable
GETTING STARTED
For easy control of the DMP808, you will need to connect the device to a network-enabled Windows computer� By
installing the A Systems software on a computer will allow for remote control of this unit� Enter the DMP808’s IP address
into the PC software to locate the DMP808 on either the local area network�
Connect all necessary input and output devices� Input can be achieved through correctly wired euroblock connectors�
Wiring for balanced euroblock connectors should be as follows:
Pin 1: Shield/Ground
Pin 2: Cold (–)
Pin 3: Hot (+)
Whereas unbalanced connectors can be wired as so:
Pin 1: Shield/Ground
Pin 2: Link to Pin 1
Pin 3: Hot (+)

3
English
DMP808
GLOSSARY
The following are a few words that may serve you
well while reading this manual� These aren’t in depth
explanations, but should hopefully give you the basics
and a place to start�
Balanced Connections – balanced connections offer
three conductors, carrying a ground, an in-phase signal,
and an out-of-phase signal� Once the two signals are sent
from one device to another, the out-of-phase signal has
its phase inverted and the two signals are combined� Any
interference picked up along the way is removed through
to phase cancellation� This allows cables to be run over
long distances without collecting excessive noise on the
way�
Compressor – a Compressor reduces signals over a
user-dened threshold by a user-dened amount/ratio.
Dynamic Processor – is any kind of processor that
dynamically – or in real time – adjusts signal properties�
EQ – Equalizer – is a device or process that allows users
to boost or attenuate audio signals at specic frequencies.
Euroblock – These types of inputs allow for self-wiring
of connections for permanent installations� Check the
“Getting Started” section for more information on wiring�
GEQ – Graphic Equalizer – is in essence the same as
an equalizer, but this title is reserved for equalizers with
more ‘bands’ than the typical EQ. While a typical channel
EQ may only allow for 3 or 4 frequencies to be adjusted,
a graphic equalizer may allow for 31 different frequencies.
GUI – Graphical User Interface – this is the remote PC
software used for the DMP808�
HPF – High Pass Filter – a high pass lter will cut or
signicantly reduce all audio signals below a particular
126 35
47

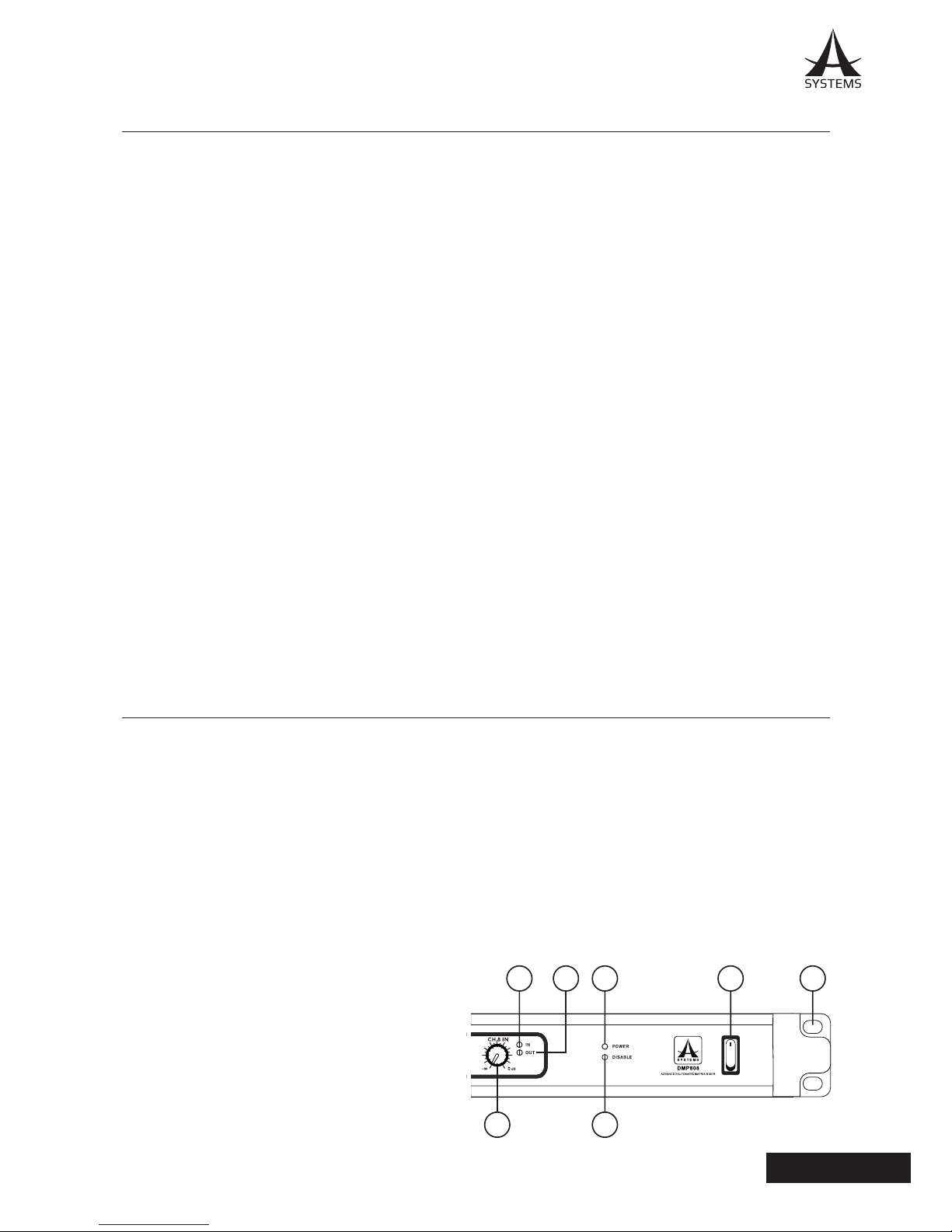

CONTROLS & SETTINGS
FRONT PANEL
1. Mounting Holes
These holes are for mounting the DMP808 on a standard
19” rack�
2. Power Switch
Flick this switch to sturn the unit on or put it on standy� Be
aware that the power switch can be disabled through the
A Systems DMP808 software�
3. Power LED
This LED indicator will illuminate when the DMP808
is activated – whether by switch or through the remote
software�
4. Disable LED
This LED will light up when the power switch is disabled�
When this occurs, the DMP808 cannot be turned on or
put on standby via the front panel switch� This function is
disabled within the A Systems PC software�
5. Output LEDs
The Mix Output LEDs will light up green when an output
signal is present on the corresponding output mix� It will
also ash red when the output channel clips. In this event,
you can reduce any excessive input signals, or turn down
your master output mix level through the control software�
6. Signal/Clip LED
This LED indicator is found on every input channel� When
a signal is present in the input channel, the LED will light
up green� When it clips, it will light up red� In the event that
the LED is red, we suggest reducing the input signal level�
Occasional ashes may be acceptable if it doesn’t affect
your program material�
7. Gain Controls
These rotary controls will allow users to adjust the nal
input level for channels 1 through 8�
user-dened frequency, allowing – as the name suggests
– high frequency sounds to pass through�
High Shelf Filter – the high shelf lter will reduce or
increase all audio signals below a particular frequency�
The level at which the signal is boosted/attenuated is
determined by the user�
Limiter – work just as compressors do; however with an
input to output signal ratio permanently set to innity-to-1.
LPF – Low Pass Filter – a low pass lter will cut all
audio signals above a particular user-dened frequency,
allowing low frequency sounds to pass through� This is
signicantly useful when using subwoofer speakers on
particular outputs�
Low Shelf Filter – the low shelf reduces or increases
the level of audio signals below a particular frequency
selected by the user� The level at which the signal is
altered is also set by the user�
Network – a network is a series or group of computers that
are interconnected so as to share information� In the case
of the DMP808, the network allows for remote operation
of the device using our Windows-based computer�
Noise Gate – a noise gate is a dynamic process that
turns off or signicantly attenuates the audio signal
passing through it when the signal level falls below a user
adjustable threshold�
UnbalancedConnections– unlikebalancedconnections,
unbalanced connections only have 2 conductors: one for
the signal and one for the grounding� This, unfortunately,
makes them more susceptible to noise and interference�

4
English
DMP808
10141516
11121718 1389
REAR PANEL
8. Ethernet Connection
This connection is for standard RJ-45 cables, used
for 10/100 Ethernet control� Using a CAT5 twisted pair
copper cable, A Systems doesn’t recommend a distance
of more than 100 meters to the nearest computer or hub�
The Ethernet connection is used to control the software
via the PC control software�
9. Peripheral Ethernet Connection
The Ethernet connection marked Peripheral is for
connecting A Systems remote peripherals� This will allow
for remote control of various internal functions�
10. Euroblock Line Inputs
The DMP808 offers a total of eight line input channels
These inputs are active balanced with euroblock
connectors If an unbalanced signal is used, A Systems
advises that customers ground the unused conductor�
11. Euroblock Line Outputs
The DMP808 offers a total of eight euroblock line outputs�
These are servo-balanced euroblock connectors and can
be wired to either balanced or unbalanced connections�
12. RCA Inputs
These unbalanced RCA connectors are for the
connection of stereo RCA cables� These act as inputs 9
to 12, as found in the “Ex In” pages within the DMP808
software�

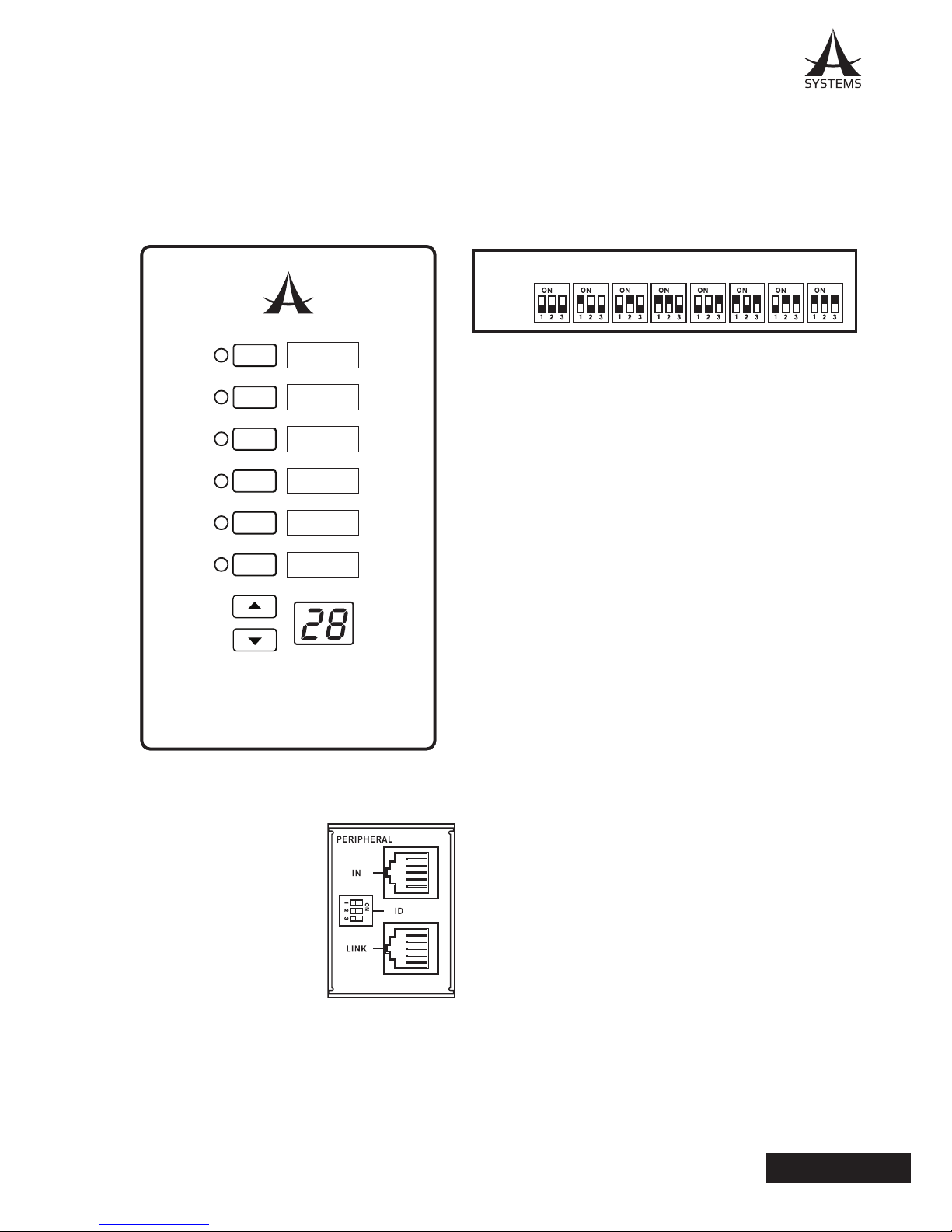

13. Unit ID Controls
The Unit ID controls consist of a single rotary switch as
well as 8-pin DIP switch� These essentially adjust various
controls and settings as well as things like rmware
updates� More information on Unit ID settings can be
found in the relevant area of this manual� These controls
extend to IP address settings and initialization.
14. 24VDC Input
This connector is used for emergency power to the
DMP808� This input connector can be used with a 24VDC
battery or power supply to ensure operation continues in
the event of power outage�
15. GPIO IN
These euroblock connectors can be wired to connect the
A Systems RM-4 for remote control�
16. GPIO OUT
When connected, it provides 0V or 5V of power for
external controller to turn the unit on or put it on standby�
17. Digital I/O Expansion Slot
This slot is for the addition of the I/O networking
expansion card for extending the channel count of the
DMP808� The DMP808 can act as a networking portal to
our other audio networking devices, including the DMA
digital matrix ampliers.
18. AC Power Connector
This is for a standard IEC power cable�

5
English
DMP808
DMP808 CONTROL SOFTWAREE
CONNECTION
After a connection is established, you can use the control software to remotely control and change the settings of your
DMP808�
To begin, please visit the A Systems website to download the control software program� The program will be downloaded
to a zipped folder. Please unzip the folder then follow the instructions to proceed the installation.
1� Turn on your DMP808�
2� Connect your computer to the DMP808 using a commercially available CAT5 RJ-45 Ethernet cable�
3� On the rear panel, set PIN 2 of the DIP switch to ON�
4� Set PIN 3 and 4 of the DIP switch to OFF�
5� Set the UNIT ID rotary to 1�

6
English
DMP808
6� Go to the “Open Network and Sharing Center” of your computer�
7� Click on “Connections”�
8� Select
9. Select “Internet Protocol Version 4 (TCP/IPv4)” and
click on

7
English
DMP808
10� Please make a note of the current settings for future reference�
11� Change the IP Address to “192�168�0�03” and click “OK”�
12. Select the executable le (.exe) inside the DMP808 Control Software folder.
13� On login page, enter the following information�
IP Address: 192�168�0�1
User Name: USER_1
Password: ASYSTEMS
*In the unfortunate event that you forget the User
Name and/or Password, please enter the following
information to retrieve them�
User Name: Admin
Password: ASYSTEMS
14� Click to begin the installation�

8
English
DMP808
If your DMP808 and your computer are connected through an existing local area network and not a set IP address,
please follow the steps below to establish a connection�
3� Select at the login screen to search the current
IP address�
2. Select the executable le (.exe) inside the DMP808
Control Software folder�
1� Make sure that your DMP808 and computer have
successfully connected to the local area network�
4� All the existing IP addresses will appear in the “Device
IP” drop-down box�
7� Click to begin the installation�
5� Select the IP address that will be used for DMP808�
6� Enter the following information on the login page�
User Name: USER_1
Password: ASYSTEMS
DSP
The DSP page will give you an overall idea of input and output mixes (including levels and naming) as well as offer a
manner to view and edit the current signal processors assigned to input and output channels�
Name: Edit the name for each of the individual input
channels�
On/Off: Use this button to switch the corresponding input
channel on and off�
Processing: These buttons allow you to inject any of the
DMP808’s internal signal processors right into the input
chain� Processing will be accomplished in order from left
to right� For more information on the available programs,
check the Signal Processor section of this manual
Reset Button: Pushing these buttons will reset the DSP
parameters for the input or output, including name, on/off
status, and selected signal processors� There is a reset
button available for each the input and output�
Monitoring: The DMP808 software offers extensive
monitoring for DSP performance� The percentage of the
processor used will be visible at the bottom of the page�

9
English
DMP808
Channel In Matrix
This page offers matrix mixing for the Analog inputs to the Channel Input mixes� Any of the input sources can be assigned
to the individual “Channel Input” mixes�
Each of the possible input matrix sources can have a
number of controls available� These include:
Attenuation: Adjust the input level of each of the
individual signals�
Panning: These will let you adjust the left/right mix of the
incoming signals�
ALC: This button will assign the DMP808’s Auto Level
Control to the corresponding input signal�
Duck: Pushing this button will apply the ducking feature
to the corresponding input signals� The duck function can
be activated as ducker 1, ducker 2, or off, the settings of
which are decided by their respective menus�
INV: This button will invert the phase of the corresponding
signal�
On: This button allows you to turn the corresponding
input signal on and off� When turned off, the signal will
not be sent to the Input Channels selected�
Routing: Each of the 12 analog inputs can be assigned to the DMP808’s 8 matrix channels� These input channels are
what will be used for the DSP processing and will be then routed to your output mix�
Mix Matrix
Each of the 12 input channels and the 8 matrix inputs can be tweaked before being sent to the main output�
Attenuation: Adjust the input level of each of the individual input signals or matrix mixes�
Panning: These will let you adjust the left/right mix of the
incoming signals�
ALC: This button will assign the DMP808’s Auto Level
Control to the corresponding input (channel in, matrix in).
Duck: Pushing this button will apply the ducking feature
to the corresponding mix� The duck function can be
activated as ducker 1, ducker 2, or off, the settings of
which are decided by their respective menus�
Auto Mixer: This button will link theALC and Duck buttons
for each channel� It is recommended that you activate the
Auto Mixer button before activating the ALC or Duck as
to ensure this function works as expected� Once active,
activating the Duck will activate the ALC, and vice versa�
INV: This button will invert the phase of the corresponding
input or matrix signal�
On: This button allows you to turn the corresponding
input signal on and off� When turned off, the signal will
not be sent to any of the matrix outputs selected�
Routing: Each of the 12 analog inputs and matrix inputs can be assigned to the DMP808’s output mix�

10
English
DMP808
Signal Generator
The Channel Inputs and Matrix Output can have a signal
generator applied to them� The option can be found in the
Channel Matrix and Mix Matrix pages by right clicking the
mouse� The signal generator can be activated with the
“ON” buttons and assigned to the appropriate mixes using
the matrix/channel select section below the controls�
There are 4 different signals available, including White
Noise and Pink Noise – ideal for setup of systems – and
sine and sweep waves – for testing of equipment and for
general setup purposes�
Sine: The sine wave can be selected between 20 Hz and
20 kHz. The signal level can also be adjusted, and the
signal can be turned on and off�
Sweep: When using the sweep wave, a lowest and
highest frequency can be selected� The sweep wave will
move between these frequencies and small increments�
The hold time for each frequency can be selected by the
users� There are also controls for adjusting the signal level and turning the sweep wave on and off�
Pink Noise: The pink noise function includes level controls and on/off button�
White Noise: Like the pink noise, the white noise only offers level controls and an on/off button�
Network Matrix
Any of the incoming input signals can be assigned directly to the Network output mixes� The network matrix pages are
only used when the A Systems network expansion card is installed in the DMP808� Attenuation: Adjust the input level of
each of the individual input and output mixes�
Panning: These will let you adjust the left/right mix of the
available mixes�
ALC: This button will assign the DMP808’s Auto Level
Control to the corresponding input�
Duck: Pushing this button will apply the ducking feature to
the corresponding mix� The duck function can be activated
as ducker 1, ducker 2, or off, the settings of which are
decided by their respective menus�
INV: This button will invert the phase of the corresponding
input or matrix signal�
On: This button allows you to turn the corresponding input
signal on and off� When turned off, the signal will not be
sent to any of the matrix outputs selected�
Routing: Each of the 12 analog inputs, 8 matrix inputs
and 8 matrix outputs can be assigned to the DMP808’s 8
network outputs� These channels will appear as Network
Input connections in any networked A Systems� DMP or DMA matrix devices�

11
English
DMP808

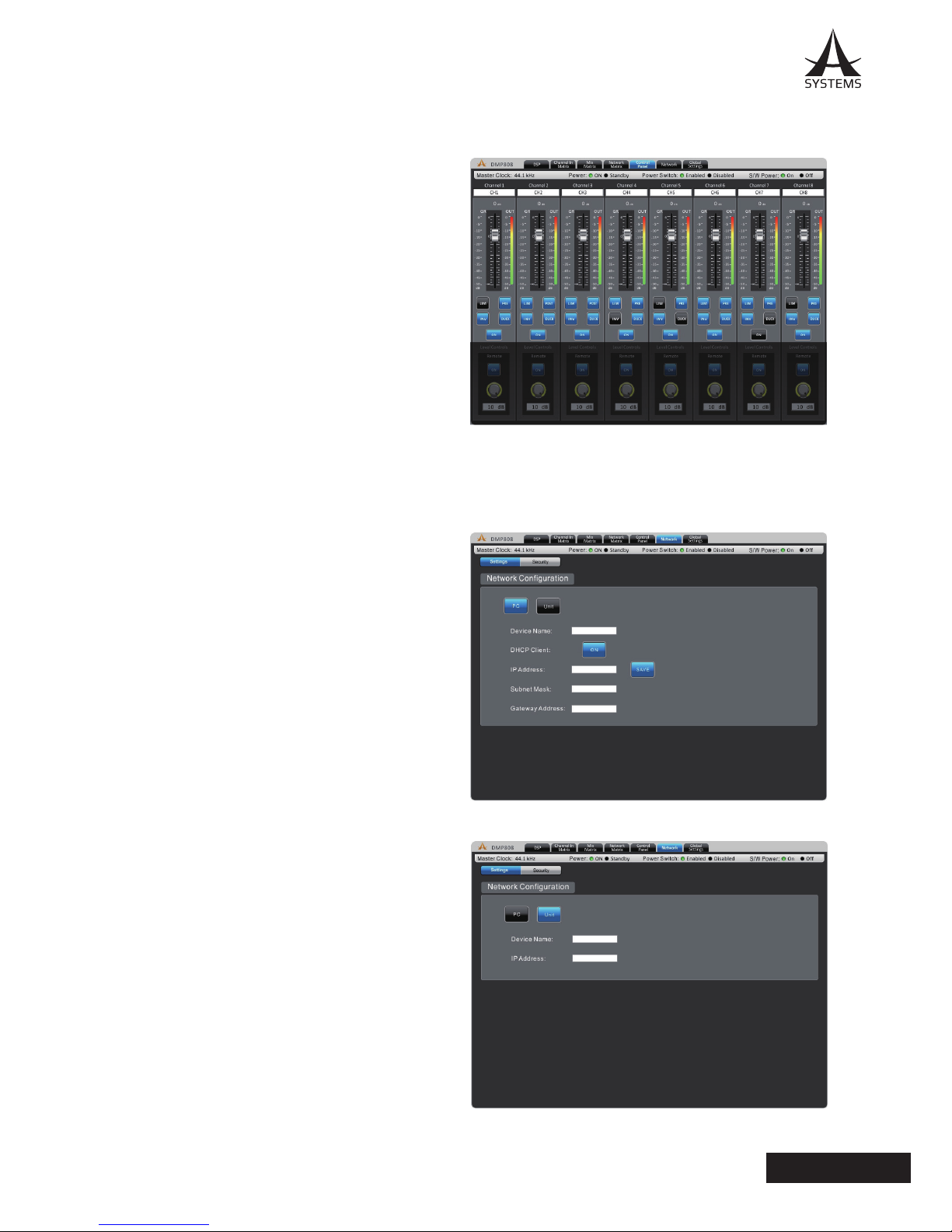

Control Panel
The control panel menu offers complete control of output channels� This menu includes level, gain controls, metering, and
a host of other parameters that can be edited�
Channel Name: A preselected channel name can be
viewed or edited in this screen�
Fader: The input level can be adjusted using this
onscreen fader�
Meters: The input and output signal level of the channel
can be viewed through these meters� They can be
adjusted between pre- and post-fader meters�
Gain Reduction: The gain reduction meter will provide
a real-time indication of any reduction in gain applied by
the internal DSP processes of the DMP808 (including
compressors-limiters, equalizers, etcetera).
Limiter: This button will activate the internal limiter
function for the corresponding channel�
Duck: Activate the ‘ducking’ feature by pushing this
button� The duck function can be activated as ducker 1,
ducker 2, or off, the settings of which are decided by their
respective menus�
INV: This button will invert the phase of the corresponding signal�
CH ON: This button will turn the corresponding channel on and off�
Network
When using the DMP808 remote software – either within
the local area network or through the internet – the
network settings need to be set appropriately to allow
external computers to identify and connect to it�
The IP address of DMP808 can be set via the system
hardware (rear panel) or the software (remote control
software).
Set via System Hardware
When the IP address is set via the hardware, the on
screen display will show the following:
Device Name: The name of the current device is found
here, and it can be adjusted by the user, if necessary�
IP Address: The actual IP address of DMP808 will
automatically be detected and shown here� User can
manually adjust the IP address through the rear panel�
Set via Software
Device Name: The name of the current device is found
here, and it can be adjusted by the user, if necessary�
IP Address: The actual IP address of DMP808 will
automatically be detected and shown here� User can
manually adjust the IP address through the rear panel�。

12
English
DMP808

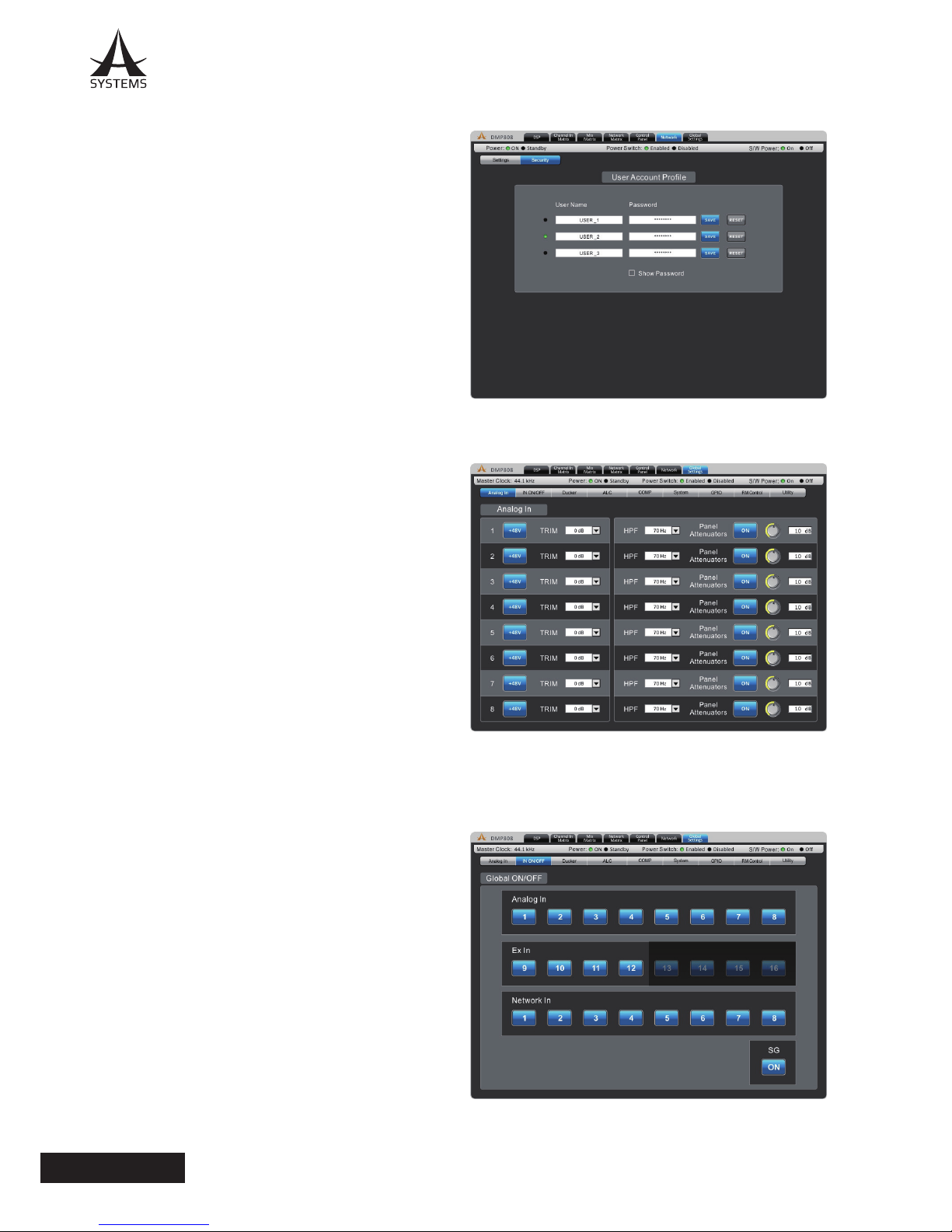

Security
This tab can be found under the Network Settings
menu� The security tab provides a means of securing
the DMP808 against unauthorized changes. Through
the DMP808’s onboard software these accounts can be
created for use of the A Systems remote software�
Global Settings
Analog In
Each of the analog inputs can have +48V of phantom
power applied to it, ideal for condenser microphones�
This menu also allows the user to trim the signal slightly
if levels are too excessive. A high-pass lter can also be
added to each of the analog inputs to help remove stage
rumble and other unwanted noise�
Global In On/Off
This menu provides buttons for each individual input,
including analog input, network input, EX IN input and
signal generator�

13
English
DMP808

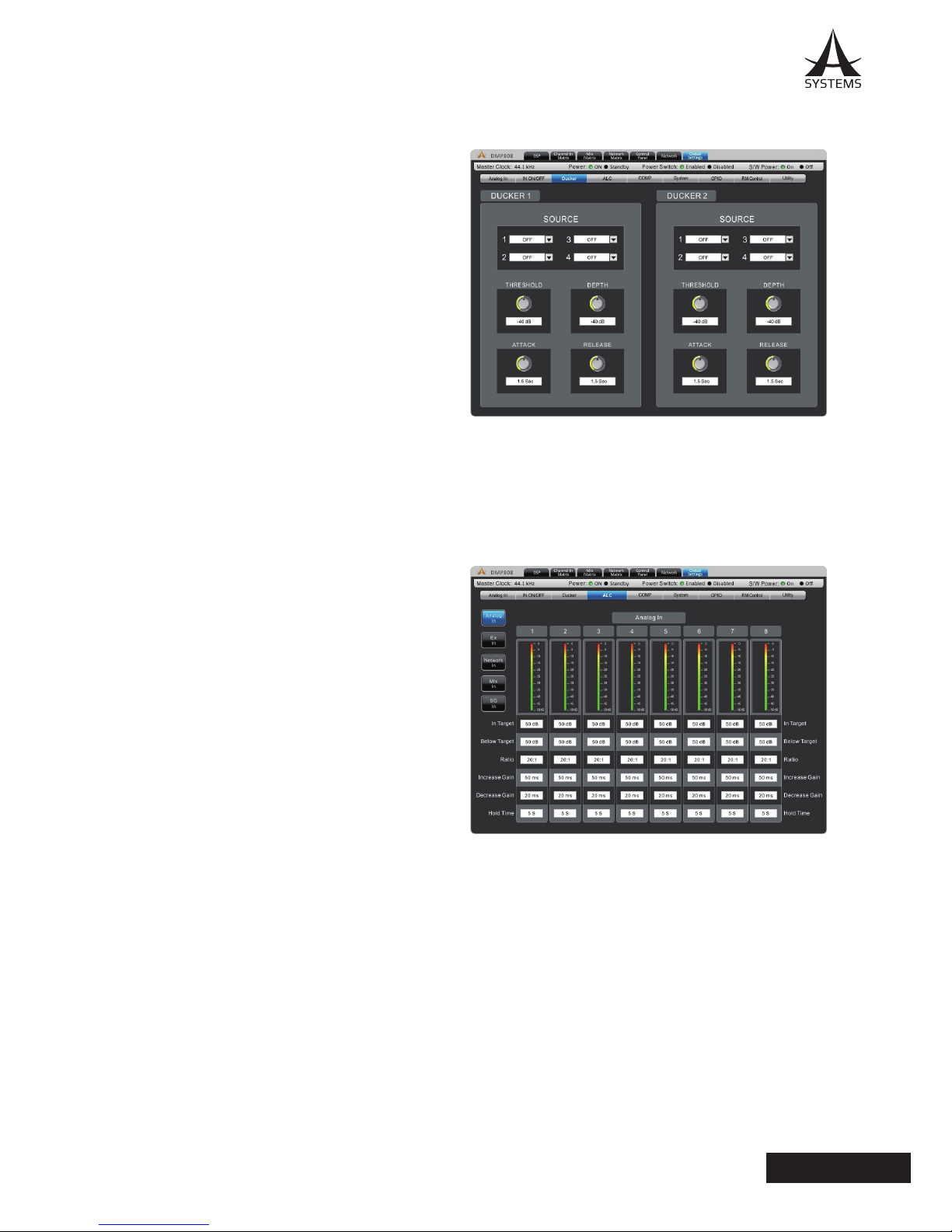

Ducker
The ducker allows a signal to temporarily attenuate below another signal when said signal activates the ducking feature�
This is useful when making announcements and other
such times when a signal needs to be heard clearly� The
ducker can be activated on input and output channels by
pushing the ‘Duck’ buttons found in the individual Matrix
control pages� There are two of these ‘duckers’ total on
the DMP808�
Source: This is used to select the source of the duck
function; ie� the trigger signal� When the selected source’s
signal rises to a user-selected level, the currently selected
‘duck’ signals will attenuate at the selected level�
Threshold: This determines the level that the source
signal needs to be before the ducking function will be
activated�
Depth: This determines how much the selected ‘duck’
signals will be attenuated�
Attack: The attack time is the time it takes for the ducking
feature to kick in after the source signal passes the
selected threshold�
Release: The release time control will determine the time the ‘duck’ feature will remain active as the source signal drops
back below the set threshold�
ALC – Auto Level Control
An autoleveler will allow users to dynamically change the level of an input or output signal to match a predened level
set by the user� The autolevel function can be activated
for each individual mix in the matrix pages� The settings
for these autolevelers can be found within this ALC menu�
In Target: The target level setting allows users to select
the desired signal level for their autoleveler� All signals
that are processed by the autoleveler will essentially aim
for the target level�
Below Target: The below target threshold of the
autoleveler is the point at which the autoleveler will kick
in� Signals below the threshold will not be affected, but
signals above will be have their gain increased�
Ratio: The ratio is the input level change in decibels to
the output level change in decibels�
Increase Gain: The increase gain determines the amount
that the signal can be increased to meet the target level�
This helps prevent sudden, alarming changes in audio
level�
Decrease Gain: The decrease gain works the same as
the decrease gain, but in reverse� It determines the amount a signal can be cut�
Hold Time: This determines the time the ALC will remain engaged after the signal falls back below the determined
threshold�

14
English
DMP808
Compressor/Limiter
This menu allows compressors and limiters to be applied to the channel output
Limiter Threshold: This control determines the threshold for the limiter function� This means that no signal will surpass
the selected threshold, being ‘compressed’ at a ratio of
innity:1.
Compressor Threshold: Use this control to set the
threshold of the compressor function� Any signals that
surpass the selected threshold will be compressed at the
selected ratio�
Compressor Ratio: This control can be used to set
the ratio for the compressor� The ratio is expressed as
<input>:<output>�
Compressor Attack: This control adjusts the attack time
of the compressor, essentially determining the time taken
for the compressor to kick in after it passes the selected
threshold�
Compressor Release: The release control determines
the time the DMP808 will wait before disengaging the
compressor when the signal bypasses the selected
threshold�
Side Chain HPF: This allows users to set a high pass
lter on these channels to essentially help rid these
channels of low-frequency noise�
System
System Clock: This menu allows you to select the
internal sampling rate of the DMP808� Users are able
to select between either 44.1 or 48 kHz. You can also
choose to take clock settings from the audio networing
feature. The ENTER button must be pushed to conrm.
Power Settings: There are three power settings on the
DMP808� The software power can be turned on and off,
essentially enabling the DMP808 to be turned on and
off via the software – including event scheduling� The
hardware power can be selected on and off, essentially
allow the unit to be activated and deactivated using the
hardwired switch on the front of the DMP808�
Relay I/O (GPIO)
The general purpose interface output is used to remotely
control the DMP808� When properly setup, you can turn
the power on or put the system in standby mode�

15
English
DMP808

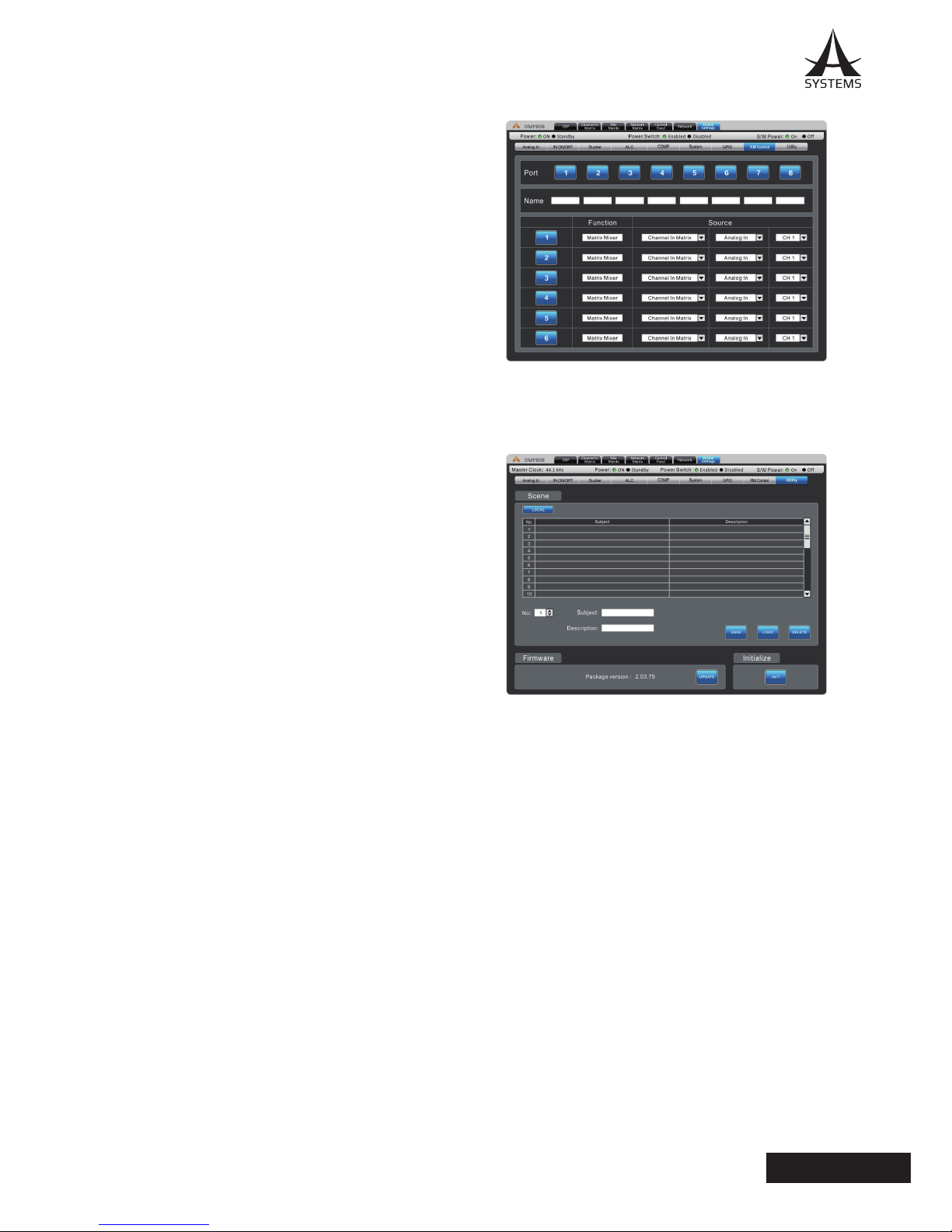

RM Control
This page offers a number of assignment options for the optional
A Systems RM remote controls� More detailed information on
this will be provided at a later date
Utility
All of the DSP processes can have their settings saved, while
there are a number of factory presets available, users are
always encouraged to nd their own settings and save them for
later use� The custom scene settings of the DMP808 are stored
in the hard drive of the computer connected. After the rmware
is updated, the initialize button can be selected to reset the
device. Save any settings (or “scenes”) before initializing the
system�

16
English
DMP808
RM-4 PRESET RECALL REMOTE
With a single RM-4 you will be able to recall up to 4
independent presets�
WIRING
The RM-4 can be wired to the “Preset” section on the
rear of the DMP8800�
As shown, there are pins for each of the 4 preset buttons
on the RM-4, as well as a grounding pin� Each of the 4
pins corresponds with a user-selected “Scene” within the
control software�
Suggested wiring:
SETUP AND OPERATION
To utilize the RM-4, you simply need to assign a preset
to each of the buttons� This is done within the Control
Software of the DMP 8800� First, enter the “Global
Settings” menu and find the GPIO submenu� Here you
will find the “Preset” panel (shown below). Each of the
pins on the rear of the device will correspond to the Ports
listed here. You can then select which “Scene” (or preset)
you wish to assign to that port�
The pre-saved scenes are all listed within the Utility
menu. Scenes can be saved (and recalled) in this
menu� The “No” in the Preset window on the GPIO
page will correspond with the ‘Scene’ numbers found
here� The Subject in the Preset window will be updated
automatically�
A single preset can be recalled at any one time� The
button selected on the RM-4 will lock down, releasing
any other preset button that may have previously been
selected�
DMP8800 RM-4

17
English
DMP808
RM-6E PROGRAMMABLE REMOTE
With a single RM-6E you will be able to control up to 6
independent functions including gain control, channel
muting and matrix mixing� Up to eight RM-6Es can be
utilized at any one time.
SETUP
The rear of the RM-6E features 3 DIP switches that can
be utilized for identification of the unit. These correspond
with the 8 ports available within the DMA and DMP
software� The pin identifications and their corresponding
ports are as follows:
To assign a function to any of the RM-6E’s buttons, you
will need to enter the software of your DMA or DMP series
device� When in the software, navigate to the “Global
Settings” tab� Within this menu there is an “RM Control”
submenu that offers control of the RM-6E programmable
remote controls�
The “Port” option at the top of the page will correspond with
the port options found above� When the corresponding
port is selected, the 6 rows in the lower-half of the
page can be used to determine the operation of each
individual button on the RM-6E� Available functions are:
“Gain Control”, “Channel In Mute”, “Channel Out Mute”
and “Matrix Mixer”� The first three functions also have
a “Source” option that simply lets you select from an
available channel that you can then control� The “Matrix
Mixer” function has further options, allowing you to select
from the applicable matrix mix and input source�
Below the “Port” option in the control software, there
is also a “Lock” option� When a port is “locked”, the
corresponding functions of the RM-6E assigned to this
port will be deactivated and cannot be utilized using that
remote unit�
OPERATION
When a function is selected, pushing the RM-6E’s
corresponding onboard buttons will activate said
function� In the case of “Gain Control”, the up/down arrow
buttons are used to adjust the gain as needed� When a
“Mute” function is selected, simply pushing the button
will mute the selected channel/source� Finally, when the
Matrix function is selected, pushing the corresponding
button will route the signal selected to the mix selected�
Pushing it again will un-route the signal�
With up to 8 individual RM-6E units you’re able to set a
maximum of 48 individual gain controls, channel mutes
and/or matrix routing presets for use at any time�
WIRING
The RM-6E has an “IN” port that
can be connected to the RJ-45
“Peripheral” connector on the
DMA and DMP series of digital
matrix amplifiers and processors�
This is done using a typical
CAT5/6 cable�
A second RM-6E can then be
daisy-chained off the first by
connecting the “LINK” RJ-45
connector on the first to the “IN” connector on the second�
This can then be repeated for a third, a fourth, and so on�
You can use a maximum of 8 RM-6E’s together with your
DMP or DMA unit�
PORT
DIP
12345678

18
English
DMP808
Below you will nd the onboard signal processors of the
DMP808 and information on their use and respective
parameter� These can be applied to any of the 8 input or
8 output channels of the DMP808�
Compressor-Limiter
Compressor Threshold: Use this control to set the
threshold of the compressor function� Any signals that
surpass the selected threshold will be compressed at the
selected ratio�
Compressor Attack: This control adjusts the attack
time of the compressor, essentially determining the time
taken for the compressor to kick in after it passes the
selected threshold�
Ratio: This control can be used to set the ratio for the
compressor� The ratio is expressed as <input>:<output>�
Compressor Release: The release control determines
the time the DMP808 will wait before disengaging the
compressor when the signal bypasses the selected
threshold�
Limiter Threshold: This control determines the threshold
for the limiter function� This means that no signal will
surpass the selected threshold, being ‘compressed’ at a
ratio of innity:1.
Output Gain: This control determines the amount of
gain applied to the signal after already passing through
the compressor-limiter�
On & Reset Buttons: The on button is, of course, used
to turn the Compressor-Limiter on and off, while the reset
button will reset all values to default�
Gate
On: This button turns the gate on and off�
Reset: Push the reset button to restore all parameters
back to default�
Dynamic Graph: This graph shows the currently set
gate properties and how it will affect your audio�
Level Meters: These meters give the input and output
level of the gate for the current channel�
Gain Reduction: The gain reduction meter will provide
a real-time indication of any reduction in signal caused
by the gate�
Threshold: This control will set the threshold of the gate
function� Any signals that fall below the set threshold will
activate the gate function�
Range: This control sets the amount of attenuation when
the gate is closed�
Attack: This control adjusts the attack time of the gate�
This is the time the DMP808 will wait after the signal
drops below the threshold before engaging the gate�
Hold: The hold will allow you to select the length of time
the gate will remain open after the signal drops below the
set threshold�
Release: The release control determines how long the
gate will wait before disengaging when the signal rises
back above the selected threshold�
SIGNAL PROCESSORS
Expander
On: This button turns the expander on and off�
Reset: Push the reset button to restore all parameters
back to default�
Dynamic Graph: This graph shows the currently set
expander properties and how it will affect your audio�
Level Meters: These meters give the input and output
level of the expander for the current channel�
Gain Reduction: The gain reduction meter will provide
a real-time indication of any reduction in signal caused
by the expander�
Threshold: This control will set the threshold of the
expander function� Any signals that fall below the set
threshold will activate the expander at the user-set ratio�
Ratio: This signal sets the ratio of the expander function�
When a signal drops below the threshold, the signal will
be decreased by the selected ratio�
Attack: This control adjusts the attack time of the gate�
This is the time the DMP808 will wait after the signal
drops below the threshold before engaging the gate�
Release: The release control determines how long the
gate will wait before disengaging when the signal rises
back above the selected threshold�
Delay
Adding a delay on output can be particularly helpful to
help time align drivers within a single cabinet or help avoid
delay in larger multi speaker setups� For example, when
there are a number of drivers in a single cabinet, typically
they’re different distances from the front of the cabinet�
The tweeter, typically longer than the woofer, could have
its driver 8 inches deeper than the woofer� The problem
this creates is the sound from the woofer will be pushed
out a fraction of a second before the tweeter, arriving at
the wavefront at different times� Adding a 0�6 millisecond
delay to the woofer can combat this, essentially making
the signal wait for the tweeter to catch up�
Delay: Use this control to adjust the delay time� To the
right of the control, the selected delay will be indicated in
milliseconds, meters and feet�
Temperature Control: This allows you to set the current
temperature for the delay circuit� This allows the DMP808
to better rene the delay’s ‘meter’ and ‘feet’ results. The
temperature is indicated in both degrees Celsius and
degrees Fahrenheit�
On & Reset Buttons: The on button is used to turn the
delay circuit on and off� The reset button resets all values
to default�
