A2Z Ozone Aquatic User manual

Aquatic
Operating Manual
*Register your product at a2zozone.com/pages/warranty
Produced for and
Distributed by:
A2Z Ozone, Inc.
Louisville, KY 40299 USA
EPA Est.: 95432-KY-1
Phone 1+502-499-4977
Active Ingredient: Ozone.
Do Not Inhale Ozone.
Keep Out of Reach of
Children.
Produced by:
Bluegrass Water
Technology Shenzhen
Co., Ltd
EPA Est.: 95432-CHN-1
Made in China
Version 1.2.3

1
Table of Contents
Important Safety Information .................................................................. 2
Technical Specifications .............................................................................3
Aquatic Features .........................................................................................5
Installation Instructions ............................................................................6
Wiring Diagram .........................................................................................8
Operating Instructions ..............................................................................9
Maintenance .............................................................................................10
Troubleshooting .......................................................................................11
Warranty ...................................................................................................12
IMPORTANT:
WARNING: Do Not Inhale Ozone. Ozone Can Damage Lungs if Inhaled. Remove
Immediately to Fresh Air if exposed. Keep Out of Reach of Children. Hazards to
Humans and Domestic Animals--Do Not Expose Children, People, Pets, Plants or
Valuables to Ozone. Ozone Health Information -- If exposed to ozone, get to fresh
air immediately. Seek doctor’s advice if exposed to ozone.
HIGH VOLTAGE! Perform service on ozone generator by certied technicians only!
For your safety, do not store or use gasoline, chemicals or other ammable liquids
or vapors near this or any other appliance. NOTE: Use Only As Directed. Follow
All Instructions Provided in the Manual. Buyer will assume all responsibility for
installation, running and use not in accordance with directions.
For questions, please call 1+502-499-4977 or email [e-mail]

2
Important Safety Information
Read and follow this owner’s manual carefully for important installation,
operation and safety information.
• All electrical connections should be made by a qualified electrician.
• Follow all applicable electrical codes.
• Be sure the electrical power is shut OFF at the main circuit breaker
before installing the ozone generator.
• Do not bury the cord.
WARNING – To reduce the risk of electrical shock, replace damaged
cord immediately.
• Per UL spa requirements, the Aquatic must be mounted indoors or
under a cover sheltered from elements such as rain, sun, or sprinklers.
• To reduce the risk of injury, the unit should be mounted where it is
inaccessible to children.
• Plastic ozone supply tubing is available with the Aquatic. Never
replace this tubing with metal tubing.
• Do not operate the Aquatic unless sufficient air flow is being drawn
through the unit.
• Do not inhale ozone gas produced by the device.
• Use ozone test strips or dissolved ozone monitor is required.
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
Caution: In case of accidental leakage, install the ozone generator in a
well-ventilated area.

3
Technical Specications
Model Aquatic
Electric 100-250 VAC 50/60 Hz
Power 9 W
Ozone Output 300 mg/hour (based on 1 LPM of oxygen
flow)
Size 7.5 x 5 x 3.2 inches
184 x 128 x 80 millimeters
Weight 1.2 lbs
530 grams
Connection AMP Model
Cable 5.5 feet
Check Valve ¼ inch
Tube 5 feet
*Aquatic ozone output is standardized with 1 LPM oxygen ow rate. Because this
unit is run by air, actual ozone concentration is 1 mg/L only. Note, there is no oxygen
connector on the Aquatic.

4
1
2 3
4
Figure 1
(Bottom of Unit)
5 6


Aquatic Features
1Power LED
Indicates when the unit is running. When
operating properly, a blue light will illuminate. A
red light for a few seconds when the unit is first
turned on is normal.
2Air Intake
This sucks in air for the unit to produce ozone.
Please do not block this intake port. Clean the
small round outlet as needed.
3O3 Output Ozone is sucked out and injected into the water.
4Power
Button
Use to shut off the ozone generator.
5Power Cable Supplies power to the unit.
6Main Fuse If the unit has no power, check here first. Requires
a 2 AMP fuse.
5

6
Installation Instructions
Installation Parts
• Aquatic Ozone Generator
• 1 installation manual
• 1 check valve
• 5 feet of tubing
• 4 hose ties
• 2 screws and plastic anchor for mounting
Installation Tools and Materials
• Phillips screwdriver
• Pliers
Unit Assembly
• The Aquatic is pre-assembled and ready to install.
Mounting
• Mount the ozone generator as high as possible.
• Screws are provided for mounting but may not be appropriate for all
surfaces. Substitute proper mounting hardware as required.
Electrical
• Test the GFCI breaker
• Connect the Aquatic cord to the mating connector(s) on the control
box.
• Where possible, route the power cord away from other electrical
lines. Do not run the power cord parallel to any low voltage signal
wires.
• Secure the power cord as required to prevent damage.

7
Operation
• Verify that the ozone generator turns on and off as required by the
controller.
• The LED light will be visible from the viewing window on the bottom
left. Verify that the gas is flowing into the injector.
• Blue means that it is working properly and Red means that it is
not producing ozone.
• There should be no water in the tubing and very small bubbles
entering the spa through the return.
• Verify that water does not push passed the check valve during any
spa cycle.
• Check for and correct any leaks.
Installation Complete
• Once properly installed, the ozone generator requires no further user
operation.
• It will operate automatically.

8

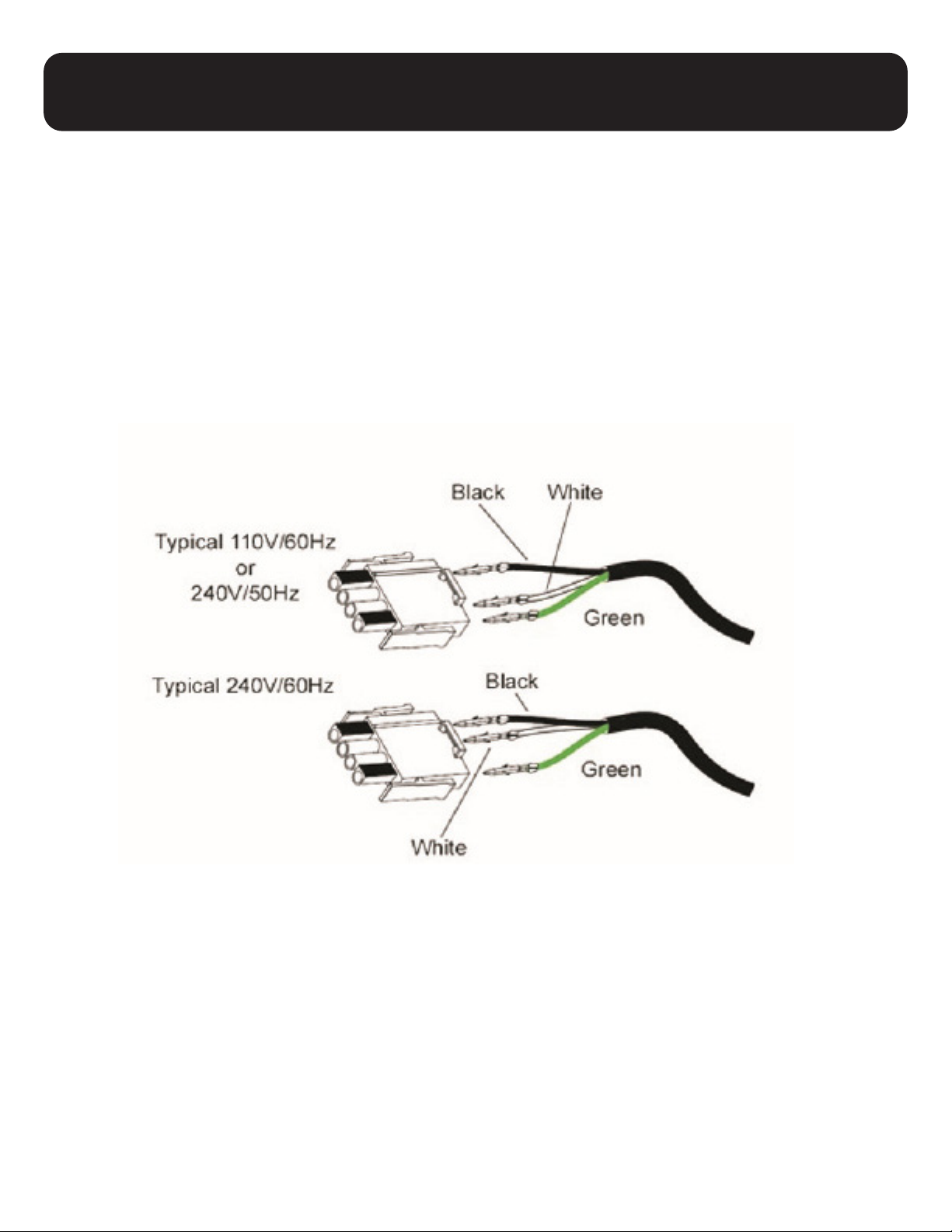

Wiring Diagram
This unit is shipped with the wiring as shown. 110V or 240V can be
applied to the black and white wires. Match alignment of the white wire
of the ozone generator connector with the controller box connector.
Keep in mind, the white wire can be moved. Mount the unit so that the
tube, light and wires are toward the ground. Disregard the front label.
Figure 2

9
Please make sure water will not back into the Aquatic Ozone Generator.
Water will damage the unit and void the warranty.
Please check these:
• Install the unit above water level and as high as possible.
• Mount the unit so the tube, light, and wires are toward the ground
(disregard the front label.)
• Install the check valve according to arrow on check valve (arrow is
toward injector)
• You need an injector.
• If you do not have an injector, please contact us for purchasing
one.
• This unit does not work without a venturi injector.
• There should be a vacuum at ozone injector suction location.
• This can be felt with your finger when installing.
• Ozone generator should be on only when the pump is on.
Operating Instructions

Maintenance
10
• To keep your Aquatic Ozone Generator operating properly, please
replace the air filter in the unit as needed or wash, dry and reinstall
in unit. (Must be absolutely dry before replacement.)
• Refer to the chart below.
• Renew your spa ozone generator as needed with a repair kit.
Daily Use Average Unit Life
2 hour/day ozone cycle 3 years
3 hour/day ozone cycle 2 years
6 hour/day ozone cycle 1 year

Troubleshooting
11
Problem Possible Cause What to Do
Cloudy water
condition even
though the unit
appears to be
operating properly
Unit and pump not operating
long enough
Increase operating time (min. 6
hours is recommended)
Total alkalinity not correct Adjust total alkalinity between 8 and
150 ppm
pH not correctly balanced Check for proper pH between 7.2
and 7.6
Not enough suction Clear any obstruction in the water
lines or return fitting
Dirty, loose or cracked filter Check/replace spa filter as needed
Metals or minerals in the
water
Ozone may react with metals/
minerals in the water causing
cloudy water. Check alkalinity
pH and clean filter. Run filtration
system and ozone 24 hours.
System won’t turn
on/off Water backing into the unit
Mounting the unit as high as
possible in relation to the spa water
level is important. There is also
a one-way check valve provided
to prevent the back flow of water
from reaching it. As a secondary
precaution, a Hartford Loop in
the tubing, also hanging above
water level, will help prevent water
damage to the unit.
LED is red
Ozone board needs replaced
OR plates need to be
cleaned
Check the fuse on the ozone board
OR replace ozone board and plate.
The LED not lit on
ozone generator
No power to the ozonator or
DC board is bad
Check the electrical connections
and then the fuse on the DC board

12
Warranty
A2Z Ozone Systems Inc. - ONE YEAR LIMITED WARRANTY
The limited warranty set forth below applies to products manufactured by A2Z Ozone Systems
Inc. - and sold by A2Z Ozone Systems or its authorized dealers. This limited warranty is given
only to the rst retail purchaser of such products and is not transferable to any subsequent
owners or purchasers of such products. A2Z Ozone warrants that it or its authorized dealers
will repair or replace, at its option, any part of such products proven to be defective in materi-
als or workmanship within ONE (1) year from the date of retail purchase of such products. (All
parts) ANY REPAIR OR REPLACEMENT WILL BE WARRANTED ONLY FOR THE BALANCE
OF THE ORIGINAL WARRANTY PERIOD. NOTE: USE ONLY A2Z Ozone AUTHORIZED RE-
PLACEMENT PARTS. USE OF ANY OTHER PART(S) WILL AUTOMATICALLY VOID THIS
WARRANTY. THIS LIMITED WARRANTY DOES NOT INCLUDE ANY OF THE FOLLOWING:
(a) Any labor charges for troubleshooting, removal, or installation of such parts;
(b) any repair or replacement of such parts necessitated by faulty installation, improper main-
tenance, improper operation, misuse, abuse, negligence, accident, re, repair material, and/or
unauthorized accessories;
(c) Any such products installed without regard to required local codes and accepted trade prac-
tices;
(d) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF
FITNESS FOR PARTICULAR PURPOSE, AND SUCH WARRANTIES ARE HEREBY DIS-
CLAIMED: AND
(e) A2Z Ozone SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR LOSS OF USE
OF SUCH PRODUCTS, LOST PROFITS, DIRECT DAMAGES, INDIRECT DAMAGES, CON-
SEQUENTIAL DAMAGES AND/OR INCIDENTAL DAMAGES.
TO OBTAIN WARRANTY SERVICE
Contact A2Z Ozone, 1844 Cargo Court Louisville, KY 40299, USA
Customer Service Number: [phone].
When ling a claim, you must provide:
1) Your name, mailing address and telephone number
2) The selling dealer’s name
3) Proof of date of purchase
4) The date of failure
5) A description of the failure.
After this information is provided, A2Z Ozone will release a RETURN GOODS AUTHORIZA-
TION (RAN) NUMBER. After receiving the RAN number the part in question must be returned
to A2Z Ozone, freight prepaid, with the RAN number clearly marked on the outside of the pack-
age. All preauthorized defective parts must be returned to A2Z Ozone within thirty (30) days.
Under no circumstances may any product be returned to A2Z Ozone without prior authorization.
You must call or write prior to returning product or your returned goods shipment will be refused.
Upon receipt of preauthorized returned goods, A2Z Ozone will repair or replace, at its option,
the defective product(s) and return them (shipping is prepaid for units under warranty for USA
customers only). Buyer’s acceptance of the product and use thereof constitutes acceptance of
these terms.

13
A2Z Ozone WARRANTY REGISTRATION CARD
This information can be sent by EMAIL to us. Please provide ALL pertinent information and send
within twenty (20) days to: [email protected]
Otherwise, please ll out completely and return to A2Z Ozone by post within twenty (20) days of
purchase.
Customer Info:
Name__________________________________________________________
Address________________________________________________________
City__________________________________State_________Zip__________
Phone (____ ) ________________
Dealer Info:
Dealer Name______________________________
Dealer Address_______________________________________________________
City_________________________________State_________Zip__________
Phone ( ) ________________
Purchase/Product Info:
Purchased Date: _______________________Date Installed____________________
Product Purchased: AQUATIC OZONE GENERATOR
Comments / Questions:
DO NOT FORGET TO CUT OUT, PLACE IN ENVELOPE AND MAIL TO THE FOLLOWING
ADDRESS FOR INSTANT WARRANTY COVERAGE!
A2Z Ozone Systems Inc.
ATTN: Warranty Dept.
1844 Cargo Court
Louisville, KY 40299, USA
1+502-499-4977
